ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
Phillips Screwdriver
(Not Included)
Assembly Instructions
Page
2 of 8
BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches
Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
Parts List
Hardware List
#1 x 1pc
#2 x 2pcs
#A x 13pcs
#B x 8pcs
Before you begin, please read Page 2
of "Assembly and Care Advice".
And remember, do not tighten until
each step is completed or instructed.
Mirror
#
3 x 2pcs
#C x 8pcs
Page 3 of 8
Mirror Support
Center Panel
Bolt 1/4" x 2"
Flat Washer Ø1/4"
Lock
Washer Ø1/4"
#4 x 1pc
#5 x 2pcs
Top Panel
Side Panel
#D x 1pc
#F x 4pcs
Allen Key 4mm
#E x 5pcs
Barrel Nuts Ø1/4"
#H x 4pcs
Flat Washer M4
#G x 2pcs
Mirror Bolt Ø5/16"x8x1-7/9"
Bolt 5/32 x 1"
#6 x 1pc
#7 x 2pcs
Back Panel
Drawer Top
#8 x 1pc
#9 x 4pcs
Cabinet body
Leg
#10 x 2pcs
Drawer Bottom
#8
#4
#3
#3
#9
#A
#C
#B
#D
Page
4 of 8
#A x 8pcs
#B x 8pcs
#C x 8pcs
#E x 1pc
#E
1.
Prepare 8 bolt assemblies by first inserting a lock washer (#C) onto
the bolt (#A) then a flat washer (#B) onto that same bolt (#A).
2. Align the legs (#9) to the
holes along the corners of
the cabinet body (#8), then
insert the bolt assemblies
from within and secure
using the Allen wrench (#D).
1. Insert the pins along the center panels (#3) into
the holes
along the top panel (#4).
2. Insert a barrel nut (#E) into the large hole.
#8
Page 5 of 8
#A x 3pcs
#E x 2pcs
#A
#D
#6
#4
#5
#5
#E
#E

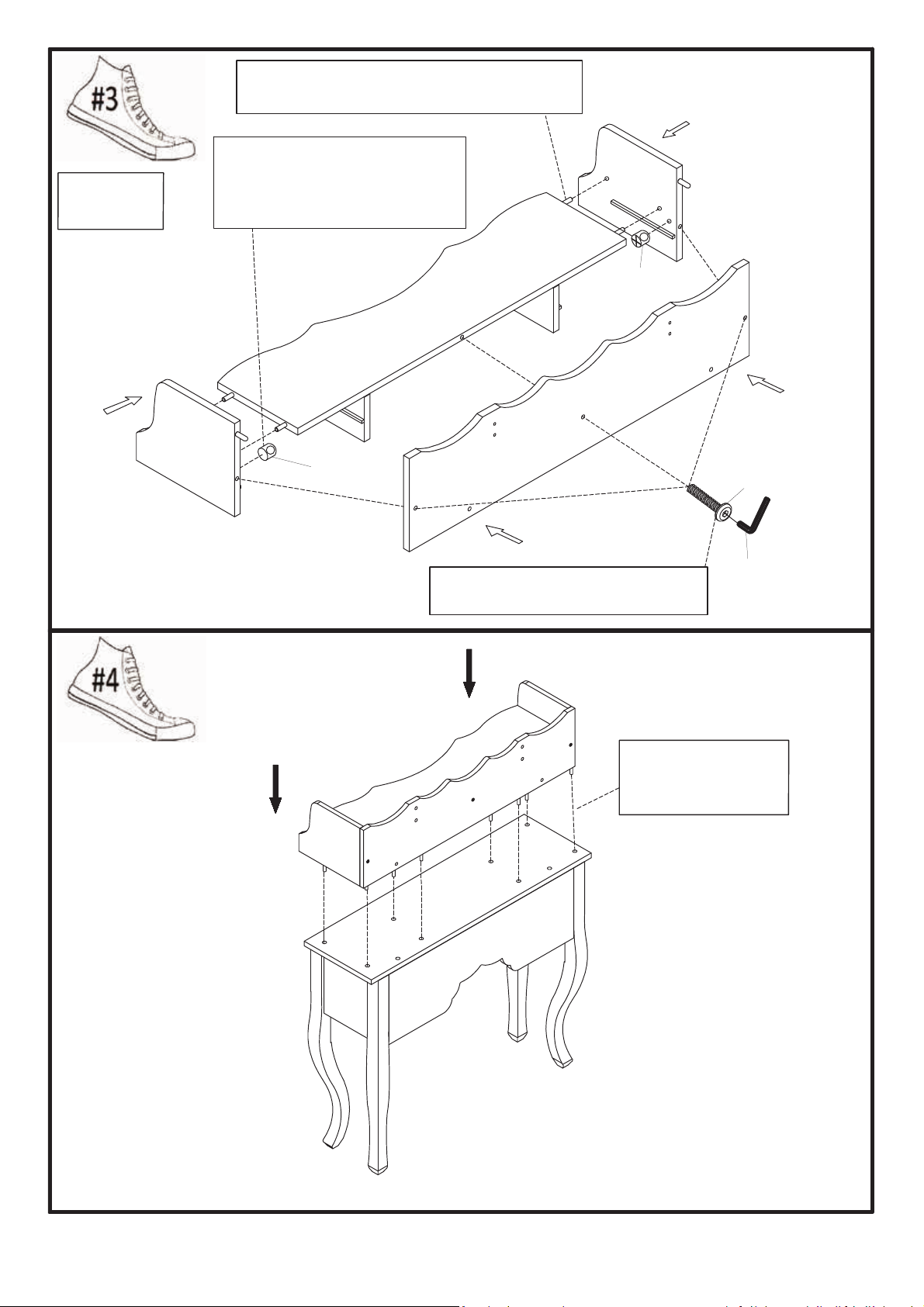

1. Insert the pins along the top panel (#4)
into the holes along the side panels (#5).
2. Insert the barrel nuts (#E)
into the large holes along the
side panels (#5), make sure
the holes face the openings.
3. Then insert the bolts (#A) into
the back panel (#6) and secure.
Insert each end into
the holes along the
cabinet body (#1).
#8
#6
#6
#2
#F
#A
#D
#E
#H
Page 6 of 8
#A x 2pcs
#E x 2pcs
#F x 4pcs
#H x 4pcs
1.
Insert the barrel nut (#E)
into the large holes along the
back panel (#6), make sure to
align the hole.
2. Insert the bolts (#A) into
the holes from beneath
and into the nuts. Secure
using the Allen wrench
(#D).
Align the mirror supports (#2)
to the holes along the back
panel (#6), then insert a bolt
(#F) with flat washer (#H) into
each hole and secure.
#10
#10
#7
#1
#2
#G
#G
Page 7 of 8
#G x 2pcs
ASSEMBLY IS COMPLETED
Align the mirror (#1) to the
holes along the mirror supports
(#2),then insert the mirror
bolts (#G). Turn right to secure.
Insert the drawer top (#7)
and the drawer bottom (#10).
#A
#C
#D
#B
Parts List
Hardware List
#1 x 1pc
#2 x 4pcs
#A x 8pcs
Before you begin, please read Page 2
of "Assembly and Care Advice".
And remember, do not tighten until
each step is completed or instructed.
Seat
#B x 8pcs
Page 8 of 8
Leg
Bolt Ø1/4" x 2"
#C x 8pcs
/RFN Washer Ø1/4"
#D x 1pc
Allen Key 4mm
#A x 8pcs
#B x 8pcs
#C x 8pcs
Flat Washer Ø1/4"
#2
#1
1. Prepare 8 bolt assemblies by first inserting a
lock washer (#C) onto the bolt (#A) then a flat
washer (#B) onto that same bolt (#A).
2. Align the legs (#2) to the holes along the corners of the seat
(#1), then insert the bolt assemblies from within and secure
using the Allen wrench (#D).
