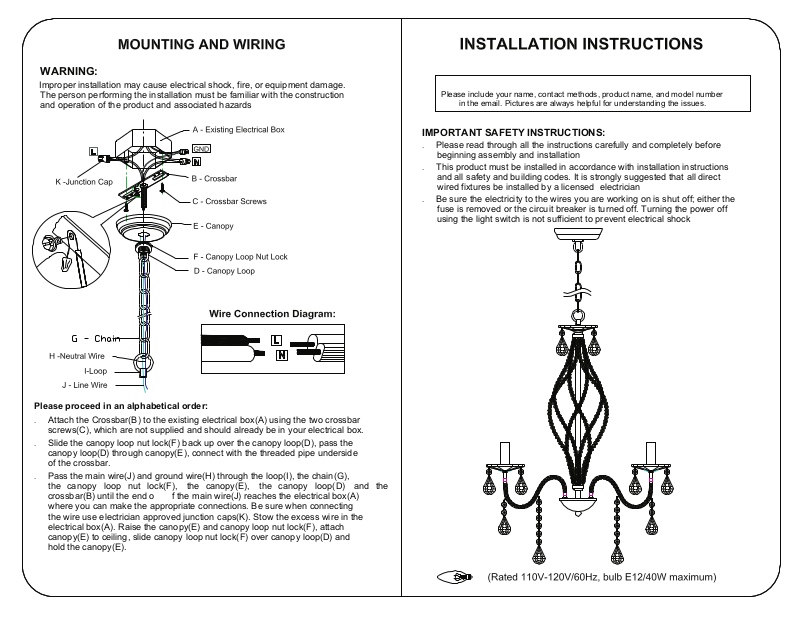

Page 1
WARNING:
Improper installation may cause electrical shock, fire, or equipment damage.
The person performing the installation must be familiar with the construction
and operation of the product and associated hazards
Please include your name, contact methods, product name, and model number
in the email. Pictures are always helpful for understanding the issues.
IMPORTANT SAFETY INSTRUCTIONS:
.
Please read through all the instructions carefully and completely before
beginning assembly and installation
.
This product must be installed in accordance with installation instructions
and all safety and building codes. It is strongly suggested that all direct
wired fixtures be installed by a licensed electrician
.
Be sure the electricity to the wires you are working on is shut off; either the
fuse is removed or the circuit breaker is turned off. Turning the power off
using the light switch is not sufficient to prevent electrical shock
Please proceed in an alphabetical order:
.
Attach the Crossbar(B) to the existing electrical box(A) using the two crossbar
screws(C), which are not supplied and should already be in your electrical box.
.
Slide the canopy loop nut lock(F) back up over the canopy loop(D), pass the
canopy loop(D) through canopy(E), connect with the threaded pipe underside
of the crossbar.
.
Pass the main wire(J) and ground wire(H) through the loop(I), the chain(G),
the canopy loop nut
lock(F),
the
canopy(E),
the canopy
loop(D)
crossbar(B) until the end o f the main wire(J) reaches the electrical box(A)
where you can make the appropriate connections. Be sure when connecting
the wire use electrician approved junction caps(K). Stow the excess wire in the
electrical box(A). Raise the canopy(E) and canopy loop nut lock(F), attach
canopy(E) to ceiling, slide canopy loop nut lock(F) over canopy loop(D) and
hold the canopy(E).
and the
Page 2
PART LIST AND ASSEMBLY ILLUSTRATION
Note: Some parts may be pre-installed or pre-assembled.
(12)*4PCS
(1)*1PC
(2)*1PC
(3)*1PC
(4)*1PC
(5)*1PC
(6)*1PC
(7)*2PCS
(8)*1PC
(9)*6PCS
1
The steps hanging crystals
1
2
2
3
(13)*12PCS
(14)*6PCS
(15)*6PCS
(10)*6PCS
(11)*1PC
3
1
4
1
5
