Hotpoint WMSG 601 EU.L User Manual

Instructions for use

WASHING MACHINE

English,1

Українська,37

Română,13

Magyar,25

Contents

Installation, 2-3

Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data

Care and maintenance, 4

Cutting off the water and electricity supplies Cleaning the washing machine Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose

Precautions and tips, 5

General safety Disposal

Description of the washing machine, 6-7

Control panel Display

WMSG 601

Running a wash cycle, 8

Wash cycles and options, 9

Table of programmes and wash cycles Wash options

Detergents and laundry, 10

Detergent dispenser drawer Preparing the laundry Special wash cycles

Troubleshooting, 11

Service, 12

Installation

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/ herself with its operation and features. ! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

3. Remove the protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.

! Packaging materials should not be used as toys for children.

Levelling

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

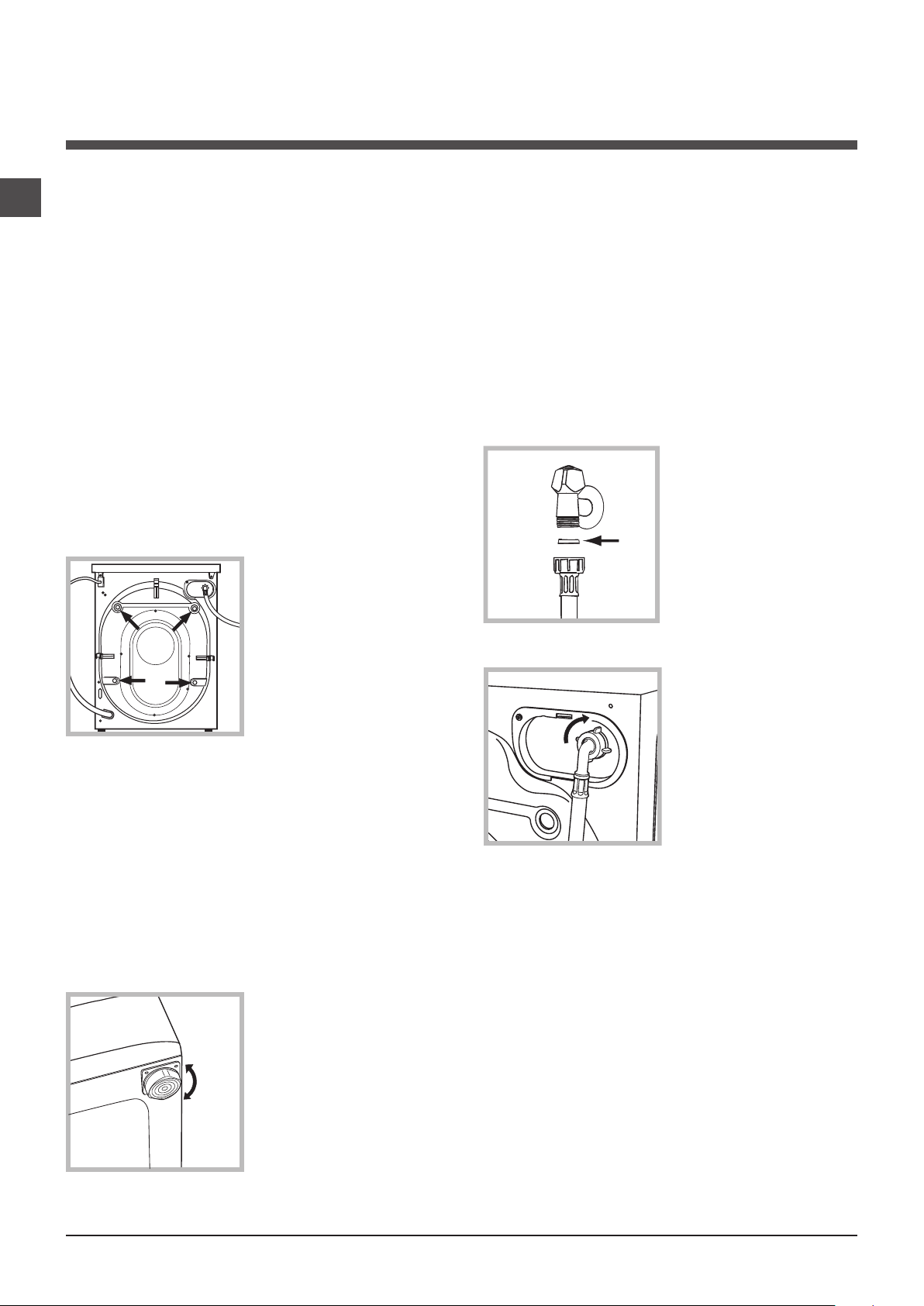

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Bef ore ma k ing t he connection, allow the water to run freely until it is perfectly clear.

2 . C o n n e c t t h e i n l e t h o s e to t he washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the range of values indicated in the Technical data table (see next page).

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

2. If the floor is not p e r f e c t l y l e v e l , c o m p e n s a t e f o r any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not

exceed 2°.

! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drain duct or a wall drain situated between 65 and 100 cm from the floor;

alternatively, placed it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! When the washing machine has been installed, the electricity socket must remain within easy reach.

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these standards are not observed.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using wash cycle number “Auto Clean” (see

“Cleaning the washing machine”).

Technical data

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• thesocketisearthedandcomplieswithall

applicable laws;

• thesocketisabletowithstandthe

maximum power load of the appliance as indicated in the Technical data table (see

opposite);

• thepowersupplyvoltagefallswithinthe

values indicated in the Technical data table (see opposite);

• thesocketiscompatiblewiththeplugof

the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

Model

Dimensions

Capacity

Electrical connections

Water connections

Spin speed

Test wash cycles in accordance with regulations 1061/2010 1015/2010

WMSG 601

width 59.5 cm height 85 cm depth 42,5 cm

from 1 to 6 kg

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure

0.05 MPa (0.5 bar) drum capacity 40 litres

up to 1000 rotations per minute

programme 3; Cotton Standard 60°C. programme 4; Cotton Standard 40°C.

This appliance conforms to the following EC Directives:

- 2004/108/EC (Electromagnetic Compatibility)

- 2006/95/EC (Low Voltage)

- 2012/19/EU (WEEE)

Care and maintenance

Cutting off the water and electricity supplies

•Turnoffthewatertapaftereverywashcycle.

This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.

•Unplugthewashingmachinewhencleaning

it and during all maintenance work.

Cleaning the washing machine

•Theouterpartsandrubbercomponents

of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

•Thewashingmachinehasa“AutoClean”

programme for its internal parts that must be run with no load in the drum.



cleaning programme every 40 wash cycles. To start the programme press buttons A and B simultaneously for 5 seconds (see figure). The programme will start automatically and will run for about 70 minutes. To stop the cycle press the START/PAUSE button.

To help the wash cycle you may want to use either the detergent (i.e. a quantity 10% the quantity specified for lightly-soiled garments) or special additives to clean the washing machine. We recommend running a

Caring for the door and drum of your appliance

•Alwaysleavetheportholedoorajarinorder

to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a selfcleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine

(see figure);

2. unscrew the lid by rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

Cleaning the detergent dispenser drawer

Remove the dispenser by raising it and pulling it out (see

figure).

Wash it under running water; this operation should be repeated frequently.

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Precautions and tips

! This washing machine was designed and constructed

in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• Thisappliancewasdesignedfordomesticuseonly.

• This appliance can be used by children

aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Donottouchthemachinewhenbarefootorwithwetor

damp hands or feet.

• Donotpullonthepowersupplycablewhenunplugging

the appliance from the electricity socket. Hold the plug and pull.

• Donotopenthedetergentdispenserdrawerwhilethe

machine is in operation.

• Donottouchthedrainedwaterasitmayreach

extremely high temperatures.

• Neverforcetheportholedoor.Thiscoulddamagethesafety

lock mechanism designed to prevent accidental opening.

• Iftheappliancebreaksdown,donotunderany

circumstances access the internal mechanisms in an attempt to repair it yourself.

• Alwayskeepchildrenwellawayfromtheappliancewhile

it is operating.

• Thedoorcanbecomequitehotduringthewashcycle.

• Iftheappliancehastobemoved,workinagroupoftwo

or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• Beforeloadinglaundryintothewashingmachine,make

sure the drum is empty.

Disposal

•Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.

•The European Directive 2012/19/EU - WEEE on Waste

Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Description of the washing machine

Control panel

Detergent dispenser drawer

ON/OFF

button

SELECTOR

TEMPERATURE

button

WASH

CYCLE

KNOB

DISPLAY

SPIN

button

OPTION

buttons and indicator lights

CHILD LOCK

button

DELAY TIMER

button

CLEANING ACTION

button

START/PAUSE

button and indicator light

Detergent dispenser drawer: used to dispense detergents and washing additives (see “Detergents and

laundry”).

ON/OFF button: press this briefly to switch the machine on or off. The START/PAUSE indicator light which flashes slowly in a green colour shows that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR KNOB: used to set the desired wash cycle (see “Table of programmes and wash cycles”).

OPTION buttons and indicator lights: press to select the available options. The indicator light corresponding to the selected option will remain lit.

CLEANING ACTION

wash intensity.

TEMPERATURE button: press to reduce or completely exclude the temperature; the value appears on the display.

SPIN button: press to reduce or completely exclude the spin cycle; the value appears on the display.

button : to select the desired

DELAYED START button: press to set a delayed start for the selected wash cycle; the delay period appears on the display.

START/PAUSE button and indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an amber colour. If the symbol is not illuminated, the door may be opened (wait approximately 3 minutes). To start the wash cycle from the point at which it was interrupted, press the button again.

CHILD LOCK button : to activate the control panel lock, press and hold the button for approximately 2 seconds. When the symbol is illuminated, the control panel is locked (apart from the ON/OFF button). This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

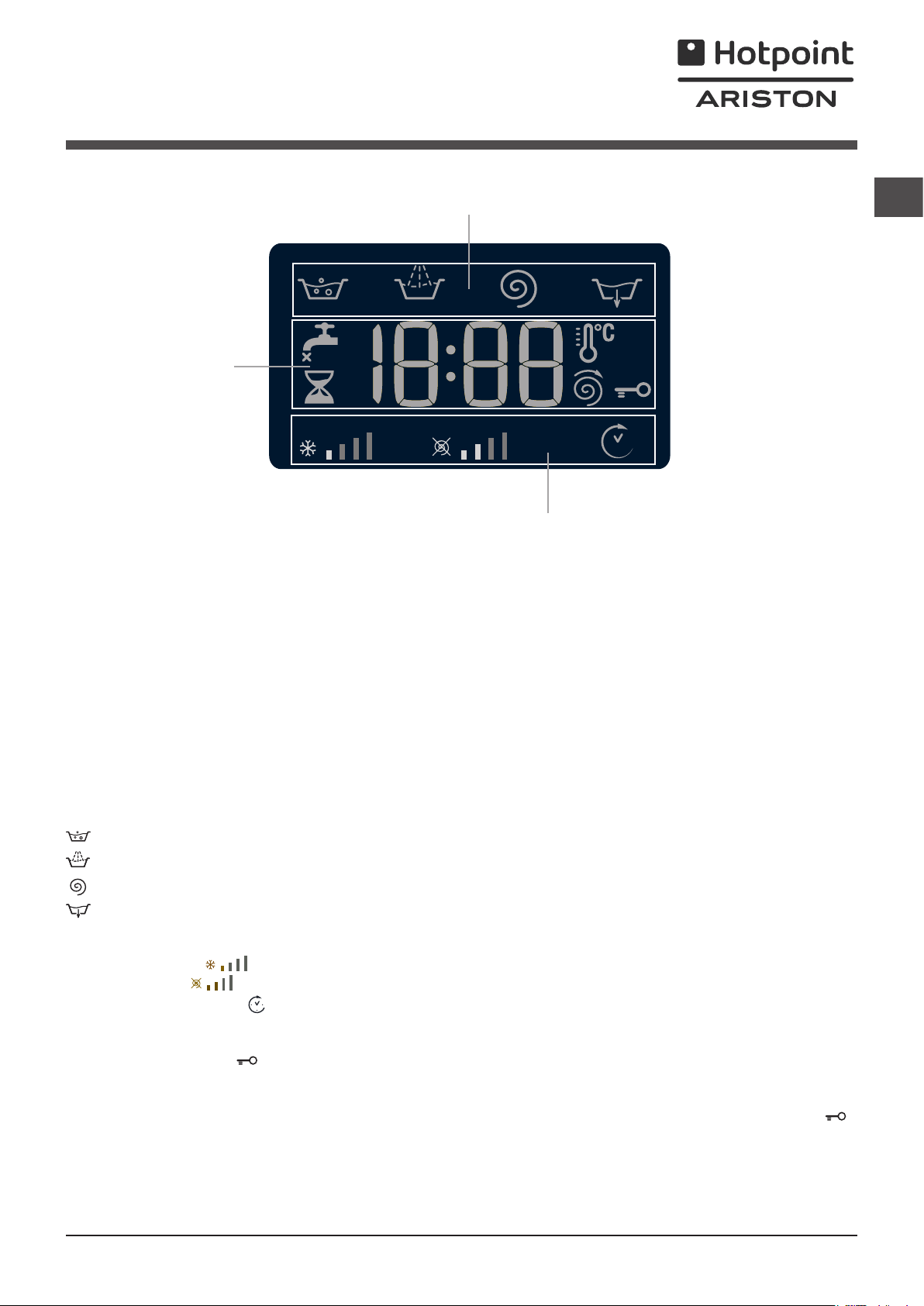

Display

The display is useful when programming the machine and provides a great deal of information.

The duration of the available wash cycles and the remaining time of a running cycle appear in section A; if the DELAYED START option has been set, the countdown to the start of the selected wash cycle will appear. Pressing the corresponding button allows you to view the maximum spin speed and temperature values attained by the machine during the set wash cycle, or the values selected most recently, if these are compatible with the set wash cycle.

The “wash cycle phases” corresponding to the selected wash cycle and the “wash cycle phase” of the running wash cycle appear in section B:

Main wash Rinse

Spin

Pump out

The icons corresponding to “temperature”, “spin” and “delayed start” (working from the left) are displayed in section C. The “temperature” bars indicate the maximum temperature level which may be selected for the set cycle. The “spin” bars indicate the maximum spin level which may be selected for the set cycle. The “delay” symbol , when lit, indicates that the set “delayed start” value has appeared on the display.

DOOR LOCKED indicator light: The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door (wait approximately 3 minutes). To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened.

Running a wash cycle

1. SWITCH THE MACHINE ON. Press the button; the START/PAUSE indicator light will flash slowly in a green colour.

2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes and wash cycles on the following page.

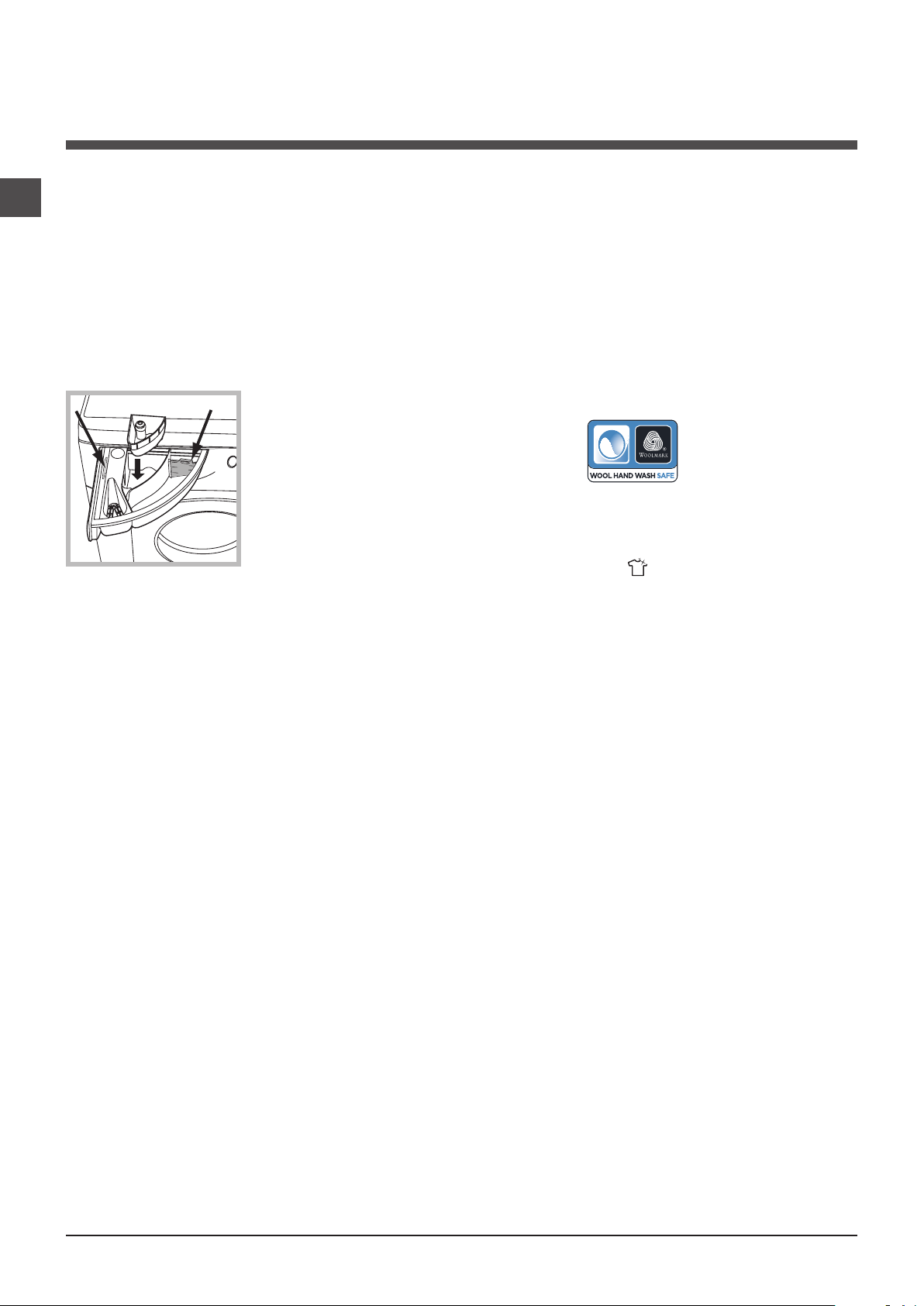

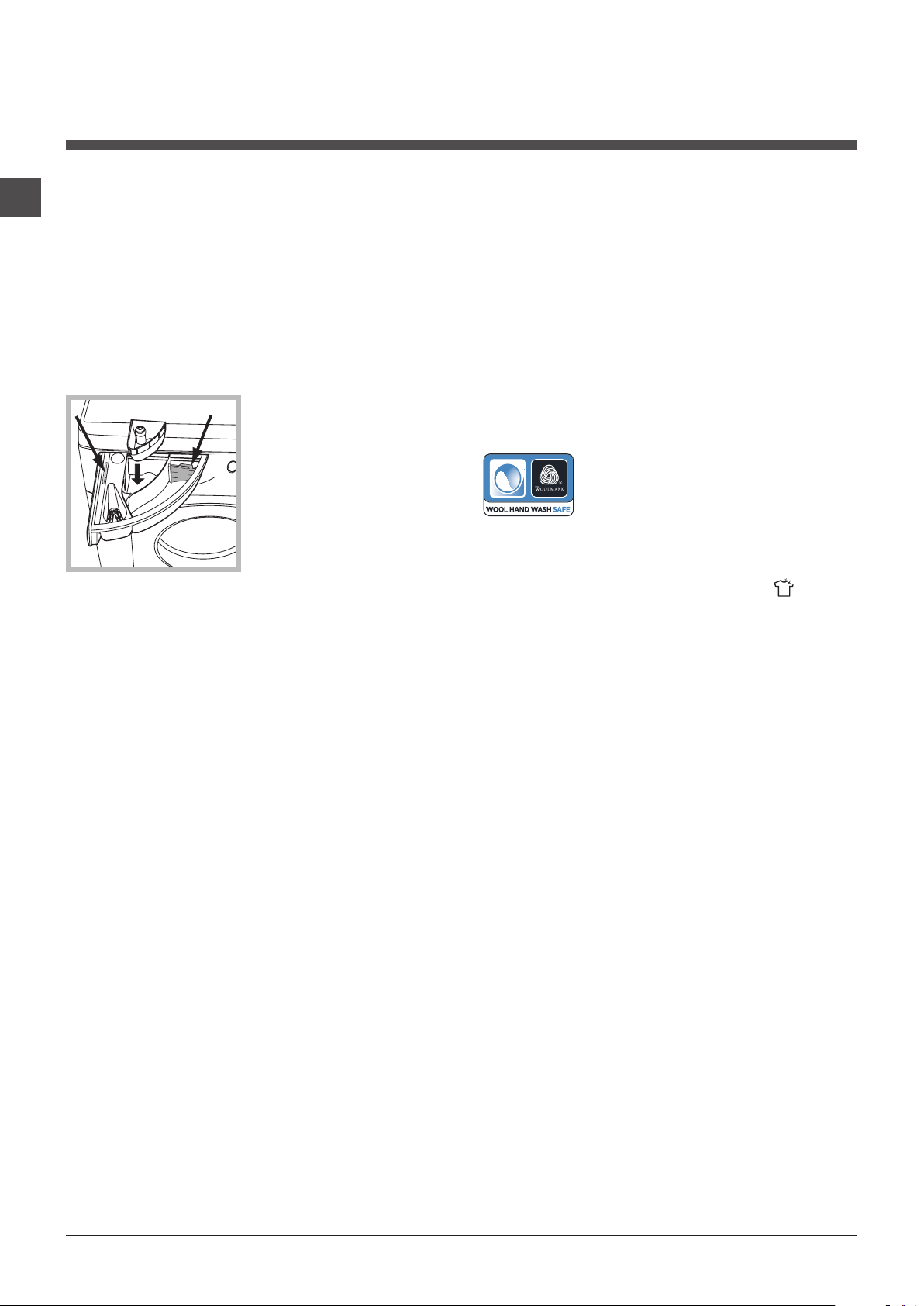

3. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in “Detergents and laundry”.

4. CLOSE THE DOOR.

5. SELECT THE WASH CYCLE. Use the WASH CYCLE SELECTOR knob to select the desired wash cycle. A temperature and spin speed is set for each wash cycle; these values may be adjusted. The duration of the cycle will appear on the display.

6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modify the temperature and/or spin

speed. The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the button, until the cold wash “OFF” setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the “OFF” setting). If these buttons are pressed again, the maximum values are restored.

! Exception: if the 3 programme is selected, the

temperature can be increased up to a value of 90°C.

Setting a delayed start.

To set a delayed start for the selected cycle, press the corresponding button repeatedly until the required delay period has been reached. When this option has been activated, the symbol lights up on the display. To remove the delayed start setting, press the button until the text “OFF” appears on the display.

Set the desired wash intensity.

Option makes it possible to optimise washing based on the level of soil in the fabrics and on desired wash cycle intensity. Select the wash programme: the cycle will be automatically set to “Normal” as optimised for garments with an average level of soil (this setting is not applicable to the “Wool” cycle, which is automatically set to “Delicate”). For heavily-soiled garments press button until the “Intensive” level is reached. This level ensures a high-performance wash due to a larger quantity of water used in the initial phase of the cycle and due to increased drum rotation. It is useful when removing the most stubborn stains.

It can be used with or without bleach. If you desire bleaching, insert the extra tray compartment (4) into compartment 1. When pouring in the bleach, be careful not to exceed the “max” level marked on the central pivot (see figure pag. 10). For lightly-soiled garments or a more delicate treatment of the fabrics, press button until the “Delicate” level is reached. The cycle will reduce drum rotation to ensure washing results that are perfect for delicate garments.

Modify the cycle settings.

• Pressthebuttontoenabletheoption;theindicator

light corresponding to the button will switch on.

• Pressthebuttonagaintodisabletheoption;the

indicator light will switch off. ! If the selected option is not compatible with the set wash cycle, the indicator light will flash and the option will not be activated. ! If the selected option is not compatible with a previously selected one, the indicator light corresponding to the first function selected will flash and only the second option will be activated; the indicator light for the option which has been activated will be illuminated. ! The options may affect the recommended load value and/or the duration of the cycle.

7. START THE WASH CYCLE. Press the START/ PAUSE button. The corresponding indicator light will turn green, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol will be lit). To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an amber colour); then select the desired cycle and press the START/PAUSE button again. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened (wait approximately 3 minutes). Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

8. THE END OF THE WASH CYCLE. This will be indicated by the text “END” on the display; when the DOOR LOCKED symbol switches off the door may be opened (wait approximately 3 minutes). Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun, press and hold the button. The cycle will be stopped and the machine will switch off.

Wash cycles and options

Table of programmes and wash cycles

Description of the wash cycle

Wash cycles

Anti Stain

Whites

Cotton Standard 60° (1): heavily soiled whites and resistant colours.

Cotton Standard 40° (2): lightly soiled resistant and delicate colours.

Synthetics: heavily soiled resistant colours.

Synthetics (4): lightly soiled resistant colours.

Anti allergy

Baby

Wool: for wool, cashmere, etc.

Delicates

Fast Wash 60’: to refresh normal soiled garments quickly (not

suitable for wool, silk and clothes which require washing by hand).

Cotton Standard 20°: lightly soiled resistant and delicate colours.

Eco Cottons

Eco Synthetics

Eco Fast 30’

Rinse

Spin and Pump out

Detergents

Max.

temp. (°C)

40° 1000 60° 1000 60°

(Max. 90°)

40° 1000 -

60° 1000 40° 1000 60° 1000 40° 1000 40° 800 30° 0 -

60° 1000 -

20° 1000 -

Cold Water

Max.

speed

(rpm)

1000

1000 -

800 -

- 1000 - - -

- 1000 - - - - 6 - - - **

Wash

Prewash

   

(3)

       

   

Bleach

  



  



Fabric

softener

 



3.5 62 0,71 35 60’



pness%

Max. load (kg)

3 - - - ** 3 - - - **

6 62 1,09 50,0 230’

6 62 1,03 66 215’

3 44 0,70 46 145’ 3 - - - ** 3 - - - ** 3 - - - ** 1 - - - ** 1 - - - **

6 - - - **

3 - - - **

3 71 0,04 32 30’

6 - - - **

Energy con-

Residual dam-

Total water lt

sumptionkWh

Cycle duration

Drain only *

- OFF - - - - 6 - - - **

* If you select programme and exclude the spin cycle, the machine will drain only. ** The duration of the wash cycle can be checked on the display.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 3 with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C . The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 4 with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C . The actual washing temperature may differ from the indicated value.

3) At 60 °C the “Prewash” function cannot be selected.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.

4) Long wash cycle for synthetics: set wash cycle 5 with a temperature of 40°C.

Wash options

- If the selected option is not compatible with the set wash cycle, the indicator light will flash and the option will not be activated.

- If the selected option is not compatible with a previously selected one, the indicator light corresponding to the first function selected will flash and only the second option will be activated; the indicator light for the option which has been activated will be illuminated.

Extra Rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

Prewash

If this function is selected, the pre-wash cycle will run; this is useful for removing stubborn stains. N.B.: Put the detergent in the relevant compartment.

Detergents and laundry

Detergent dispenser drawer

Successful washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution. ! Use powder detergent for white cotton garments, for prewashing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging. ! Do not use hand washing detergents; they create too

much foam.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Prewash detergent (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

If liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage. If powder detergent is used, place the partition into slot B.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Preparing the laundry

• Dividethelaundryaccordingto:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

• Emptyallgarmentpocketsandcheckthebuttons.

• Donotexceedthelistedvalues,whichreferto

the weight of the laundry when dry: see “Table of programmes and wash cycles”.

How much does your laundry weigh?

1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g

Special wash cycles

Anti Stain: the programme 1 is suitable to heavily-soiled garments with resistant colours. It ensures a washing class that is higher than the standard class (A class). When running the programme, do not mix garments of different colours. We recommend the use of powder detergent. Pre-treatment with special additives is recommended if there are obstinate stains. Whites: use this cycle 2 to wash white clothes. The programme is designed to maintain the brightness of white clothes over time. Use powder detergent for best results. Anti allergy: use programme 6 to remove major allergens such as pollen, mites, cat’s and dog’s hair.

Baby: use the special wash cycle 7 to remove the soiling typically caused by babies, while removing all traces of detergent from nappies in order to prevent the delicate skin of babies from suffering allergic reactions. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent.

Wool - Woolmark Apparel Care - Blue:

the wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as “hand wash” provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine.(M1128)

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Delicates: use programme 9 to wash very delicate garments having strasses or sequins. To wash silk garments and curtains select the cycle 9 and set the “Delicate” level from option . We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates. Use liquid detergent on delicate garments for best results.

Eco cycles

The Eco Cycles assure energy saving by eliminating the need of heating water and it’s an advantage both to your energy bill and the environment! These innovative Eco programmes ( and

Eco Fast 30’) are available for various fabrics

Eco Cottons,

Eco Synthetics

and different quantity of garment; they have been designed to guarantee a high cleaning action even at low temperature and can be used for lightly to medium soiled loads. Eco Cycles give the best results thanks to an intensified wash action, water optimization and are carried out in the same average time of a standard cycle. For the best washing results with Eco Cycles we recommend the usage of a liquid detergent.

Cotton Standard 20° ideal for lightly soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks.

Load balancing system

Before every spin cycle, to avoid excessive vibrations before every spin and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Troubleshooting

Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Service (see “ Service”), make sure that the problem cannot be solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not fill with water (the text “H2O” flashes on the display).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

Possible causes / Solutions:

• Theapplianceisnotpluggedintothesocketfully,ornotenoughtomake

contact.

• Thereisnopowerinthehouse.

• Thewashingmachinedoorisnotclosedproperly.

• TheON/OFFbuttonhasnotbeenpressed.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thewatertaphasnotbeenopened.

• Adelayedstarthasbeenset.

• Thewaterinlethoseisnotconnectedtothetap.

• Thehoseisbent.

• Thewatertaphasnotbeenopened.

• Thereisnowatersupplyinthehouse.

• Thepressureistoolow.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thedrainhoseisnotfittedataheightbetween65and100cmfromthefloor

(see “Installation”).

• Thefreeendofthehoseisunderwater(see “Installation”).

• Thewalldrainagesystemisnotfittedwithabreatherpipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Technical Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special antidraining valves are available in shops and help to prevent this inconvenience.

• Thewashcycledoesnotincludedraining:somecyclesrequirethedraining

process to be enabled manually.

• Thedrainhoseisbent(see “Installation”).

• Thedrainageductisclogged.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The “option” and START/PAUSE indicator lights flash rapidly and an error code appears on the display (e.g.: F-01, F-..).

There is too much foam.

• Thedrumwasnotunlockedcorrectlyduringinstallation(see “Installation”).

• Thewashingmachineisnotlevel(see “Installation”).

• Thewashingmachineistrappedbetweencabinetsandwalls(see “Installation”).

• Thewaterinlethoseisnotscrewedonproperly(see “Installation”).

• Thedetergentdispenserdrawerisblocked(forcleaninginstructions,see “Care

and maintenance”).

• Thedrainhoseisnotfixedproperly(see “Installation”).

• Switchoffthemachineandunplugit,waitforapproximately1minuteandthen

switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• Thedetergentisnotsuitableformachinewashing(itshoulddisplaythetext“for

washing machines” or “hand and machine wash”, or the like).

• Toomuchdetergentwasused.

Service

Before contacting the Technical Assistance Service:

• Checkwhetheryoucansolvetheproblemalone(see “Troubleshooting”);

• Restartthewashcycletocheckwhethertheproblemhasbeensolved;

• Ifthisisnotthecase,contactanauthorisedTechnicalAssistanceCentre.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• thetypeofproblem;

• theappliancemodel(Mod.);

• theserialnumber(S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

Instrucţiuni de folosire

MAŞINĂ DE SPĂLAT RUFE

Română

WMSG 601

Sumar

Instalare, 14-15

Despachetare şi punere la nivel Racorduri hidraulice şi electrice Primul ciclu de spălare Date tehnice

Întreţinere şi curăţire, 16

Întreruperea alimentării cu apă şi curent electric Curăţarea maşinii de spălat Curăţarea compartimentului pentru detergent Îngrijirea uşii şi a tamburului Curăţarea pompei Controlarea furtunului de alimentare cu apă

Precauţii şi sfaturi, 17

Siguranţa generală Scoaterea aparatului din uz

Descrierea maşinii de spălat, 18-19

Panoul de control Display

Cum se desfăşoară un ciclu de spălare, 20

Programe şi opţiuni, 21

Tabel de programe Opţiuni de spălare

Detergenţi şi rufe, 22

Sertarul detergenţilor Pregătirea rufelor Programe particulare

Anomalii şi remedii, 23

Asistenţă, 24

Instalare

! Este important să păstraţi acest manual pentru a‑l putea consulta în orice moment. În caz de vânzare, de cesiune sau de schimbare a locuinţei, acesta trebuie să rămână împreună cu maşina de spălat pentru a informa noul proprietar cu privire la funcţionare şi la respectivele avertismente.

! Citiţi cu atenţie instrucţiunile: veţi găsi informaţii importante cu privire la instalare, la folosire şi la siguranţă.

Despachetare şi punere la nivel

Despachetare

1. Scoaterea din ambalaj a maşinii de spălat.

2. Controlaţi ca maşina de spălat să nu  fost deteriorată în timpul transportului. Dacă este deteriorată, nu o conectaţi şi contactaţi agentul de vânzare.

3. Scoateţi cele şuruburi de protecţie pentru transport şi cauciucul cu distanţierul respectiv, situate în partea posterioară (a se vedea gura).

4. Închideţi oriciile cu dopurile din plastic aate în dotaţie.

5. Păstraţi toate piesele: pentru cazul în care maşina de spălat va trebui să e transportată, piesele vor trebui montante din nou.

! Ambalajele nu sunt jucării pentru copii!

(a se vedea gura); unghiul de înclinare, măsurat pe planul de lucru, nu trebuie să depăşească 2°. O nivelare precisă conferă stabilitate maşinii şi evită vibraţii, zgomote şi deplasări pe timpul funcţionării. În cazul mochetelor sau a unui covor, reglaţi picioruşele astfel încât să menţineţi sub maşina de spălat un spaţiu sucient pentru ventilare.

Racorduri hidraulice şi electrice

Racordarea furtunului de alimentare cu apă

1. Introduceţi garnitura A în extremitatea tubului de alimentare şi înşurubaţi‑l la un robinet de apă rece cu gura letată de 3/4 gaz (a se vedea gura) Înainte de conectare,

lăsaţi apa să curgă pentru a se limpezi.

2. Conectaţi tubul de alimentare la maşina de spălat, înşurubândul la priza de apă respectivă, amplasată în partea posterioară, sus în

dreapta (a se vedea

gura).

3. Fiţi atenţi ca furtunul să nu e nici pliat,

nici îndoit.

Punere la nivel

1. Instalaţi maşina de spălat pe un paviment plan şi rigid, fără a o sprijini de ziduri, mobilă sau altceva.

2. Dacă podeaua nu este perfect orizontală, compensaţi neregularităţile deşurubând sau înşurubând picioruşele anterioare

! Presiunea apei de la robinet trebuie să e cuprinsă în valorile din tabelul cu Date tehnice (a se vedea pagina alăturată).

! Dacă lungimea furtunului de alimentare nu este sucientă, adresaţivă unui magazin specializat sau unui instalator autorizat.

! Nu folosiţi niciodată tuburi folosite deja.

! Utilizaţi tuburile furnizate cu maşina.

Conectarea furtunului de golire

65 - 100 cm

Conectaţi furtunul de evacuare, fără al îndoi, la o conductă sau la o gură de evacuare în zid, situate între 65 şi 100 cm de pământ;

sau sprijiniţil pe marginea unei chiuvete sau a unei căzi, legând elementul de ghidare la robinet (a se vedea gura). Capătul liber al furtunului de golire nu trebuie să rămână cufundat în apă.

! Nu se recomandă folosirea furtunurilor prelungitoare; dacă este indispensabil, acestea trebuie să aibă acelaşi diametru ca şi furtunul original şi nu trebuie să depăşească 150 cm lungime.

Racordarea electrică

Înainte de a introduce ştecherul în priza de curent, asiguraţi‑vă că:

• priza să e cu împământare şi conformă prevederilor legale;

• priza să poată suporta sarcina maximă de putere a maşinii, indicată în tabelul cu Date tehnice (a se vedea alături);

• tensiunea de alimentare să e cuprinsă în valorile indicate în tabelul cu Date tehnice (a se vedea alături);

• priza să e compatibilă cu ştecărul maşinii de spălat. În caz contrar înlocuiţi priza sau ştecărul.

! Maşina de spălat nu trebuie instalată afară, nici chiar în cazul în care spaţiul este adăpostit, deoarece este foarte periculoasă expunerea maşinii la ploi şi furtuni. ! După instalarea maşinii de spălat, priza de curent trebuie să e uşor accesibilă.

! Nu folosiţi prelungitoare şi prize multiple.

! Cablul nu trebuie să e îndoit sau

comprimat. ! Cablul de alimentare trebuie să e înlocuit doar de instalatorii autorizaţi.

Atenţie! Firma îşi declină orice responsabilitate în cazul în care aceste norme nu se respectă.

Primul ciclu de spălare

După instalare, înainte de folosire, efectuaţi un ciclu de spălare cu detergent şi fără rufe, selectând programul „AUTOCURĂŢARE” (a se vedea “Curăţarea maşinii de spălat”).

Date tehnice

Model WMSG 601

lãrgime 59,5 cm

Dimensiuni

Capacitate de la 1 la 6 kg

Legãturi electrice

Legãturi hidrice

Viteza de centrifugare

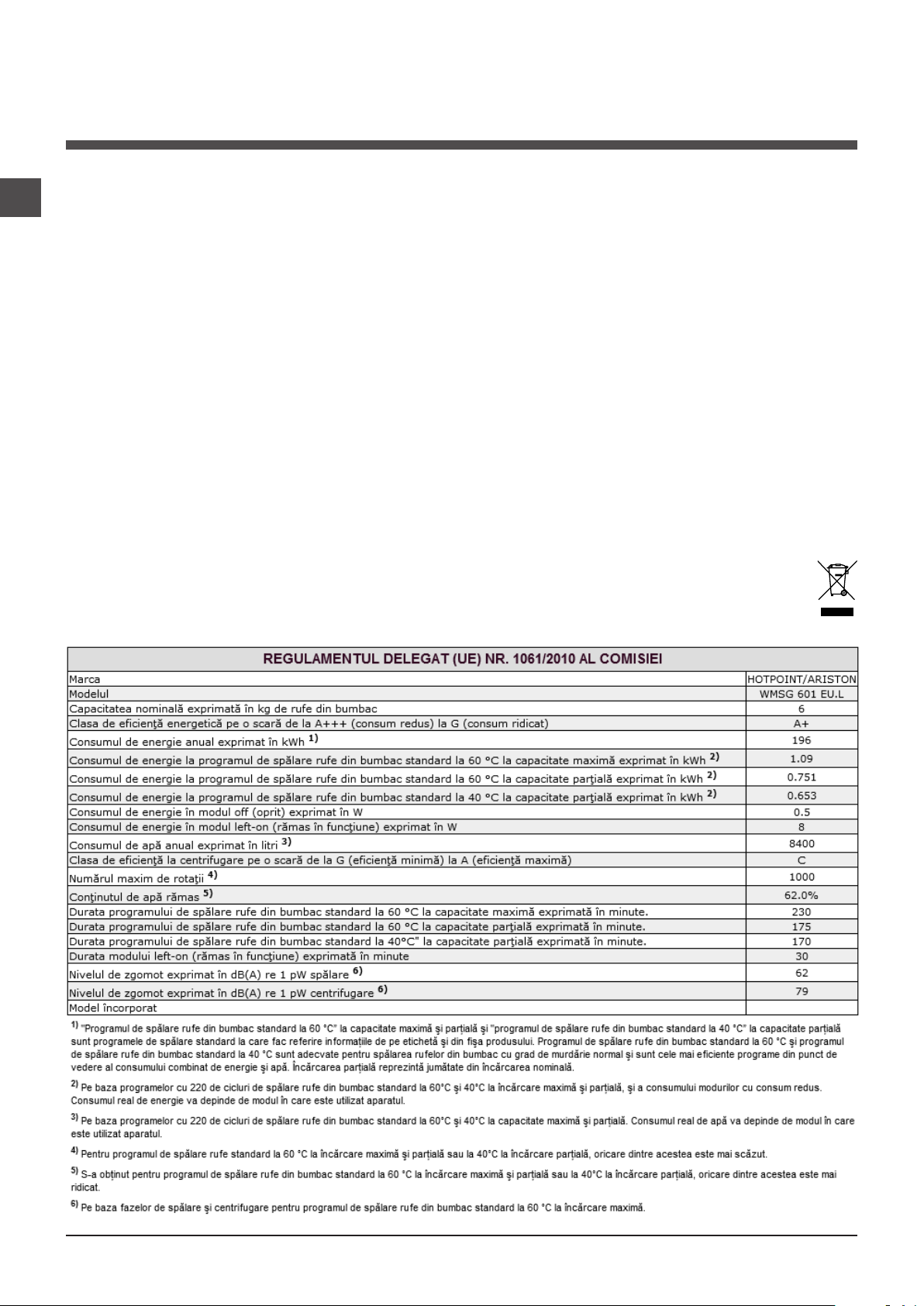

Programe de control conform

reglementările

1061/2010 1015/2010

înãlþime 85 cm profunzime 42,5 cm

Vezi placuta cu caracteristicile tehnice, aplicata pe masina.

presiune maximã 1 MPa (10 bari) presiune minimã 0,05 MPa (0,5 bari) capacitatea cuvei 40 litri

pânã la 1000 de rotaþii pe minut

programul 3; program standard la 60°C pentru rufe din bumbac. programul 4; program standard la 40°C pentru rufe din bumbac.

Acest aparat este conform cu urmãtoarele Directive Comunitare:

- 2004/108/CE (Compatibilitate Electromagneticã)

- 2006/95/CE (Tensiuni Joase)

- 2012/19/EU (WEEE)

+ 33 hidden pages
