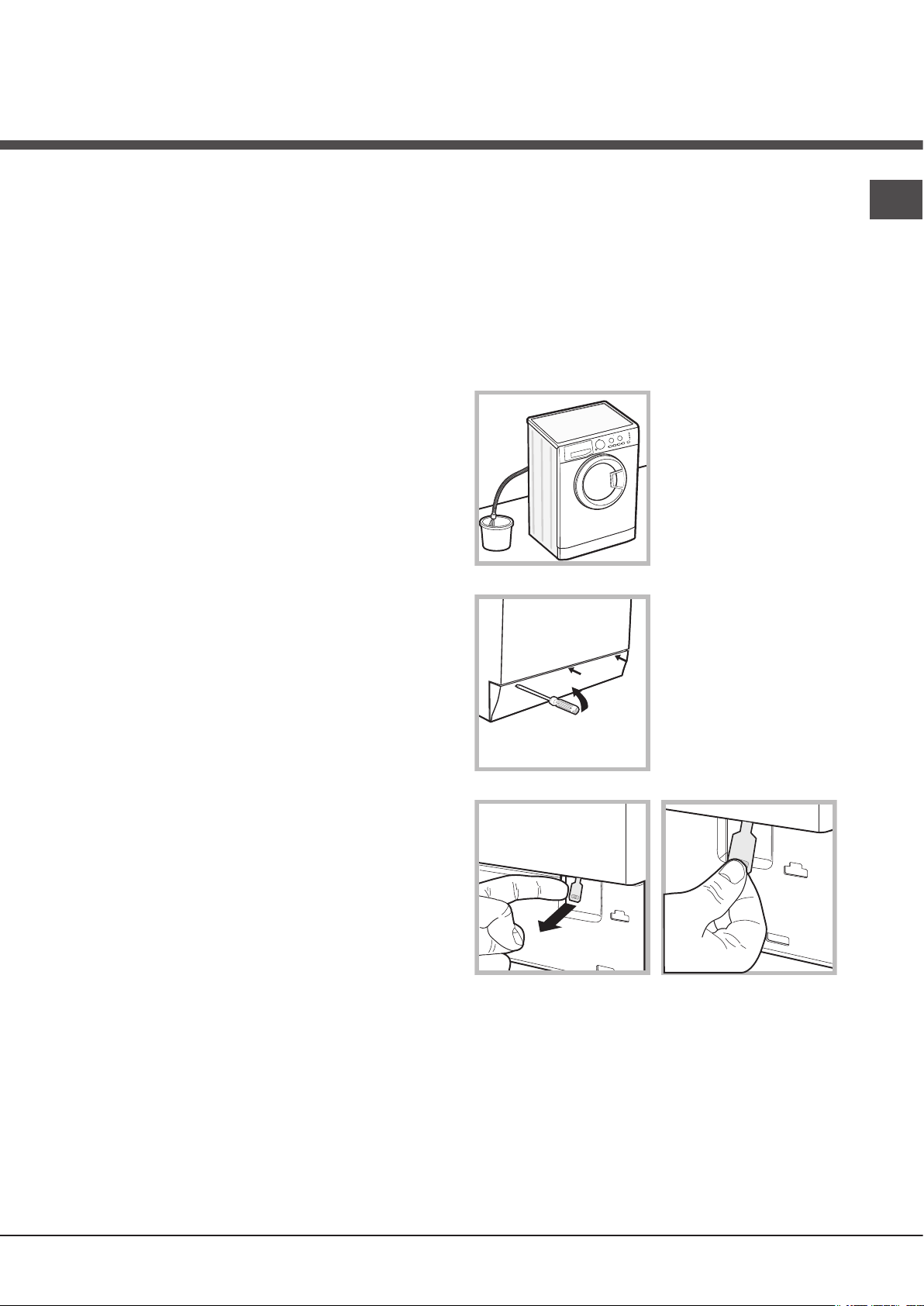

Opening the porthole door manually

Description of the washing machine

and starting a wash cycle, 6-7

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 8

Table of wash cycles

Personalisation, 9

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Load balancing system

Troubleshooting, 11

Service, 12

WML 902

Instructions for use

WASHING MACHINE

English,1

Italiano,13

Installation

! This instruction manual should be kept in a

safe place for future reference. If the washing

machine is sold, transferred or moved, make

sure that the instruction manual remains with

the machine so that the new owner is able to

familiarise himself/herself with its operation

and features.

! Read these instructions carefully: they con-

tain vital information relating to the safe instal-

lation and operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the washing machine from its

packaging.

2. Make sure that the washing machine has

not been damaged during the transportation

process. If it has been damaged, contact the

retailer and do not proceed any further with

the installation process.

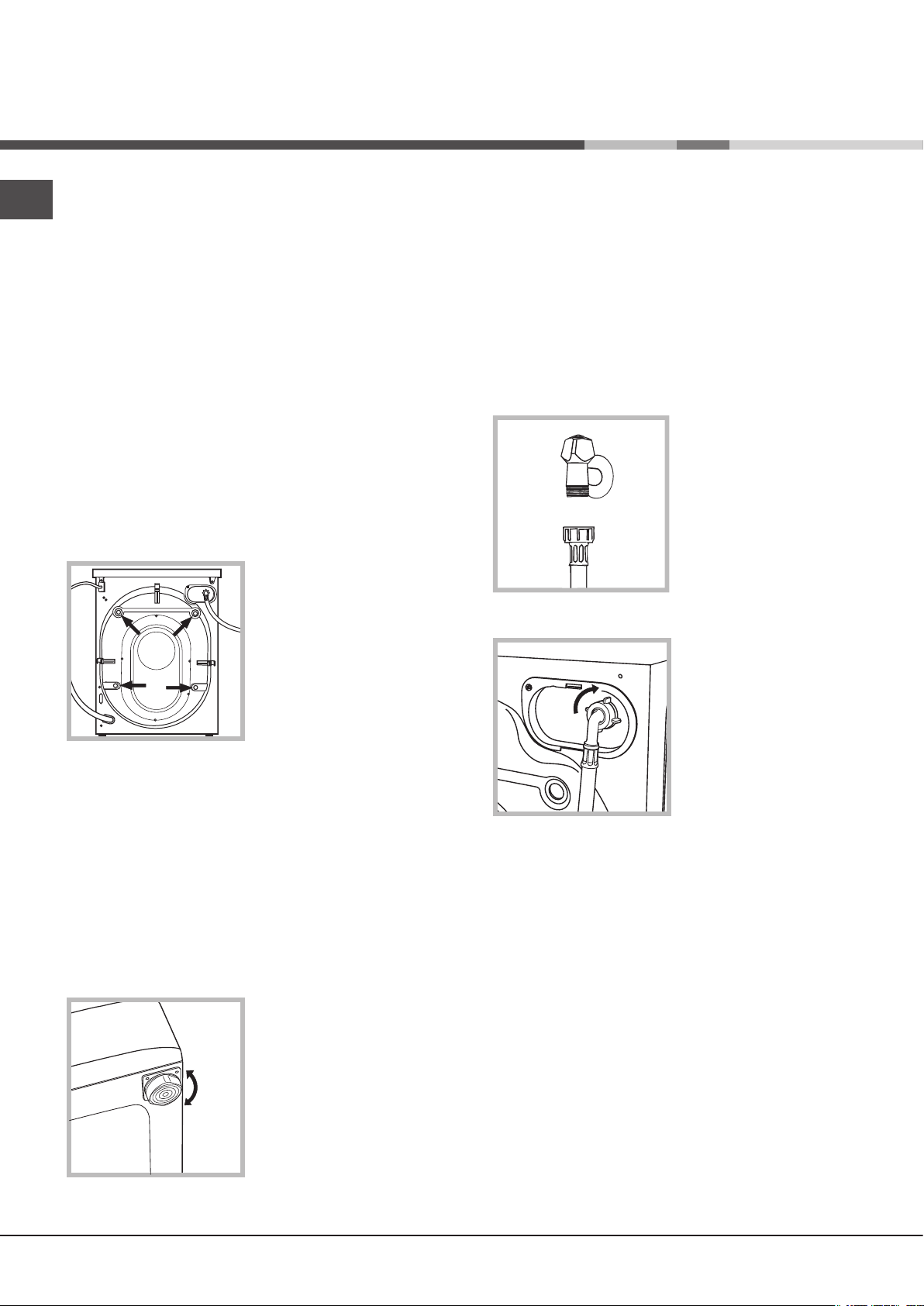

3. Remove the 4

protective screws

(used during transpor-

tation) and the rubber

washer with the cor-

responding spacer,

located on the rear

part of the appliance

(see figure).

4. Close off the holes using the plastic plugs

provided.

5. Keep all the parts in a safe place: you will

need them again if the washing machine ne-

eds to be moved to another location.

! Packaging materials should not be used as

toys for children.

Levelling

1. Install the washing machine on a flat sturdy

floor, without resting it up against walls, furni-

ture cabinets or anything else.

2. If the floor is not

perfectly level, com-

pensate for any une-

venness by tightening

or loosening the

adjustable front feet

(see figure); the angle

of inclination, measu-

red in relation to the

worktop, must not

exceed 2°.

Levelling the machine correctly will provide

it with stability, help to avoid vibrations and

excessive noise and prevent it from shifting

while it is operating. If it is placed on carpet or

a rug, adjust the feet in such a way as to allow

a sufficient ventilation space underneath the

washing machine.

Connecting the electricity and

water supplies

Connecting the water inlet hose

1. Connect the inlet

hose by screwing it to

a cold water tap using

a 3/4 gas threaded

connection (see figu-

re).

Before performing the

connection, allow the

water to run freely until

it is perfectly clear.

2. Connect the inlet

hose to the washing

machine by screwing

it onto the correspon-

ding water inlet of the

appliance, which is

situated on the top

right-hand side of the

rear part of the ap-

pliance (see figure).

3. Make sure that the hose is not folded over

or bent.

! The water pressure at the tap must fall within

the range of values indicated in the Technical

data table (see next page).

! If the inlet hose is not long enough, contact a

specialised shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

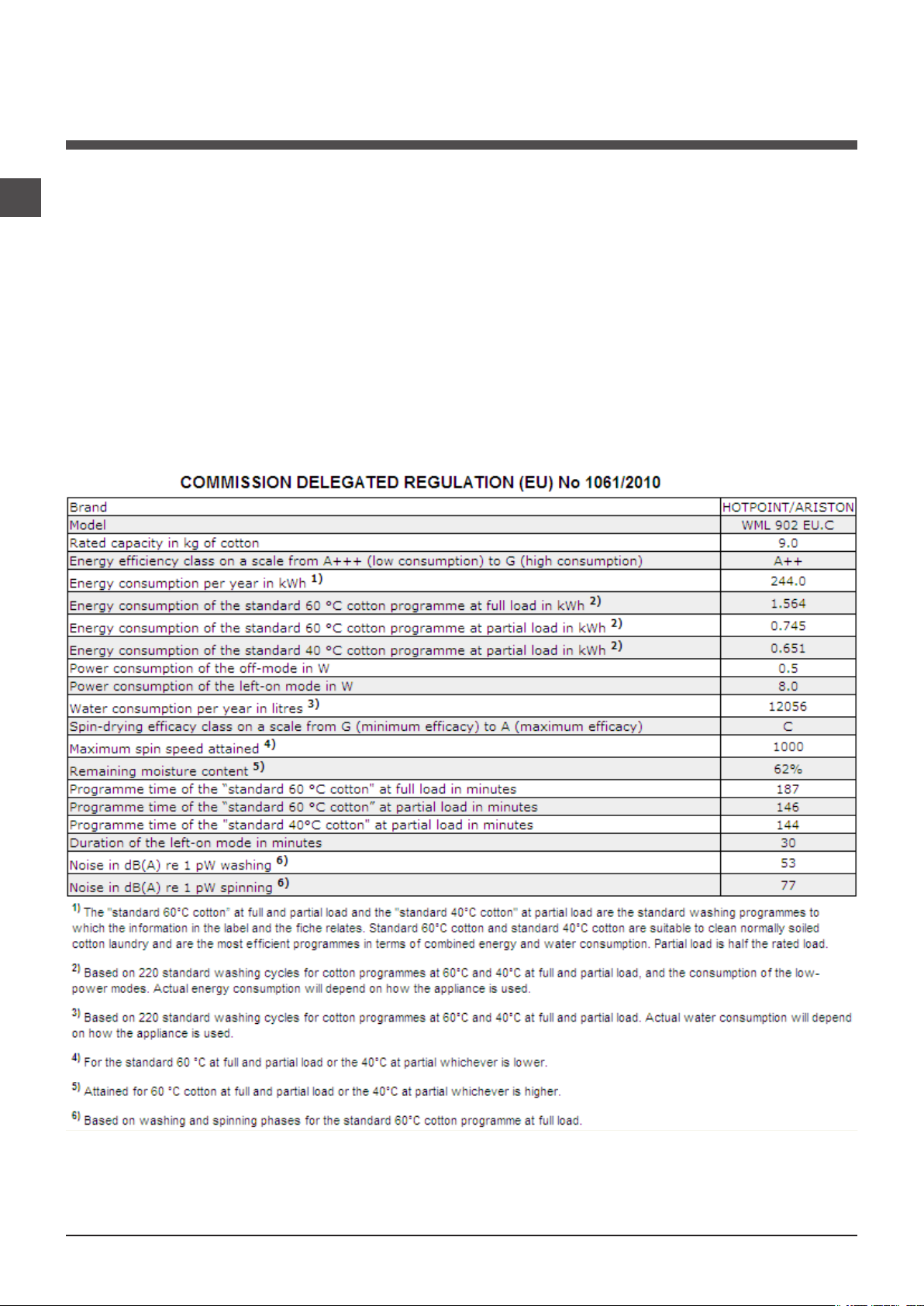

Technical data

Model

WML 902

Dimensions

width 59.5 cm

height 85 cm

depth 60.5 cm

Capacity

from 1 to 9 kg

Electrical

connections

please refer to the technical

data plate fixed to the ma-

chine

Water con-

nections

maximum pressure

1 MPa (10 bar)

minimum pressure

0.05 MPa (0.5 bar)

drum capacity 62 litres

Spin speed

up to 1000 rotations per

minute

Test wash

cycles in

accordan-

ce with

directives

1061/2010

1015/2010

programme

;

Cotton Standard 60°C.

programme ;

Cotton Standard 40°C.

This appliance conforms to

the following EC Directives:

- 2004/108/EC (Electroma-

gnetic Compatibility)

- 2006/95/EC (Low Voltage)

- 2012/19/EU

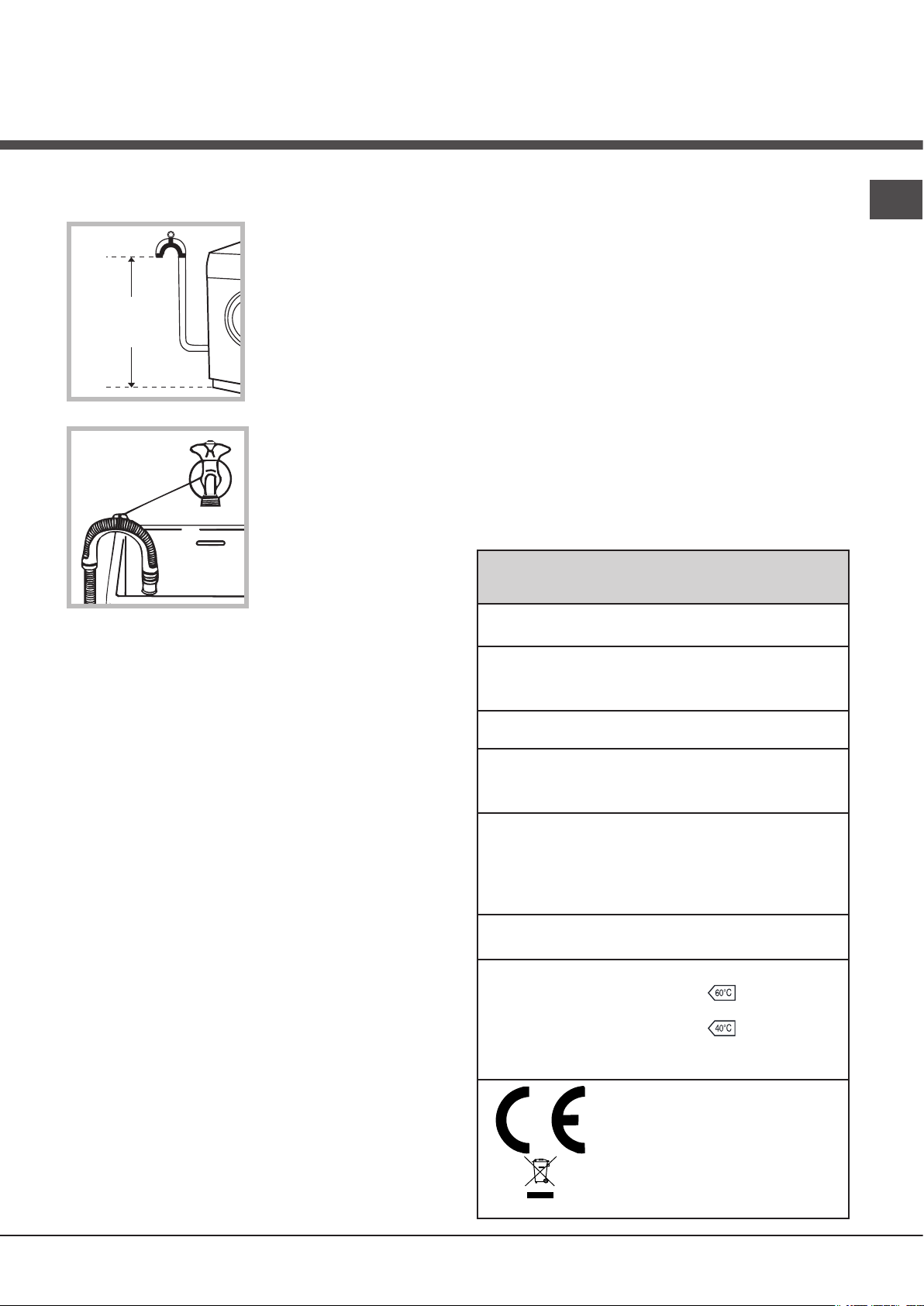

Connecting the drain hose

Connect the drain

hose, without bending

it, to a drain duct or

a wall drain situated

between 65 and 100

cm from the floor;

alternatively, placed

it over the edge of a

basin, sink or tub, fa-

stening the duct sup-

plied to the tap (see

figure). The free end

of the hose should

not be underwater.

! We advise against the use of hose extensions;

if it is absolutely necessary, the extension must

have the same diameter as the original hose

and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electri-

city socket, make sure that:

• the socket is earthed and complies with all

applicable laws;

• the socket is able to withstand the maxi-

mum power load of the appliance as indicated

in the Technical data table (see opposite);

• the power supply voltage falls within the va-

lues indicated in the Technical data table (see

opposite);

• the socket is compatible with the plug of the

washing machine. If this is not the case, repla-

ce the socket or the plug.

! The washing machine must not be installed

outdoors, even in covered areas. It is extreme-

ly dangerous to leave the appliance exposed

to rain, storms and other weather conditions.

! When the washing machine has been instal-

led, the electricity socket must remain within

easy reach.

65 - 100 cm

! Do not use extension cords or multiple so-

ckets.

! The cable should not be bent or compressed.

! The power supply cable must only be repla-

ced by authorised technicians.

Warning! The company shall not be held re-

sponsible in the event that these standards are

not observed.

The first wash cycle

Once the appliance has been installed, and

before you use it for the first time, run a wash

cycle with detergent and no laundry, using

wash cycle number “Auto Clean” (see “Clea-

ning the washing machine”).

Care and maintenance

Cutting off the water and electri-

city supplies

• Turn off the water tap after every wash cycle.

This will limit wear on the hydraulic system in-

side the washing machine and help to prevent

leaks.

• Unplug the washing machine when cleaning

it and during all maintenance work.

Cleaning the washing machine

• The outer parts and rubber components

of the appliance can be cleaned using a soft

cloth soaked in lukewarm soapy water. Do not

use solvents or abrasives.

• The washing machine has a “Auto Clean”

programme for its internal parts that must be

run with no load in the drum.

To help the wash cycle you may want to use

either the detergent (i.e. a quantity 10% the

quantity specified for lightly-soiled garments)

or special additives to clean the washing

machine. We recommend running a cleaning

programme every 40 wash cycles.

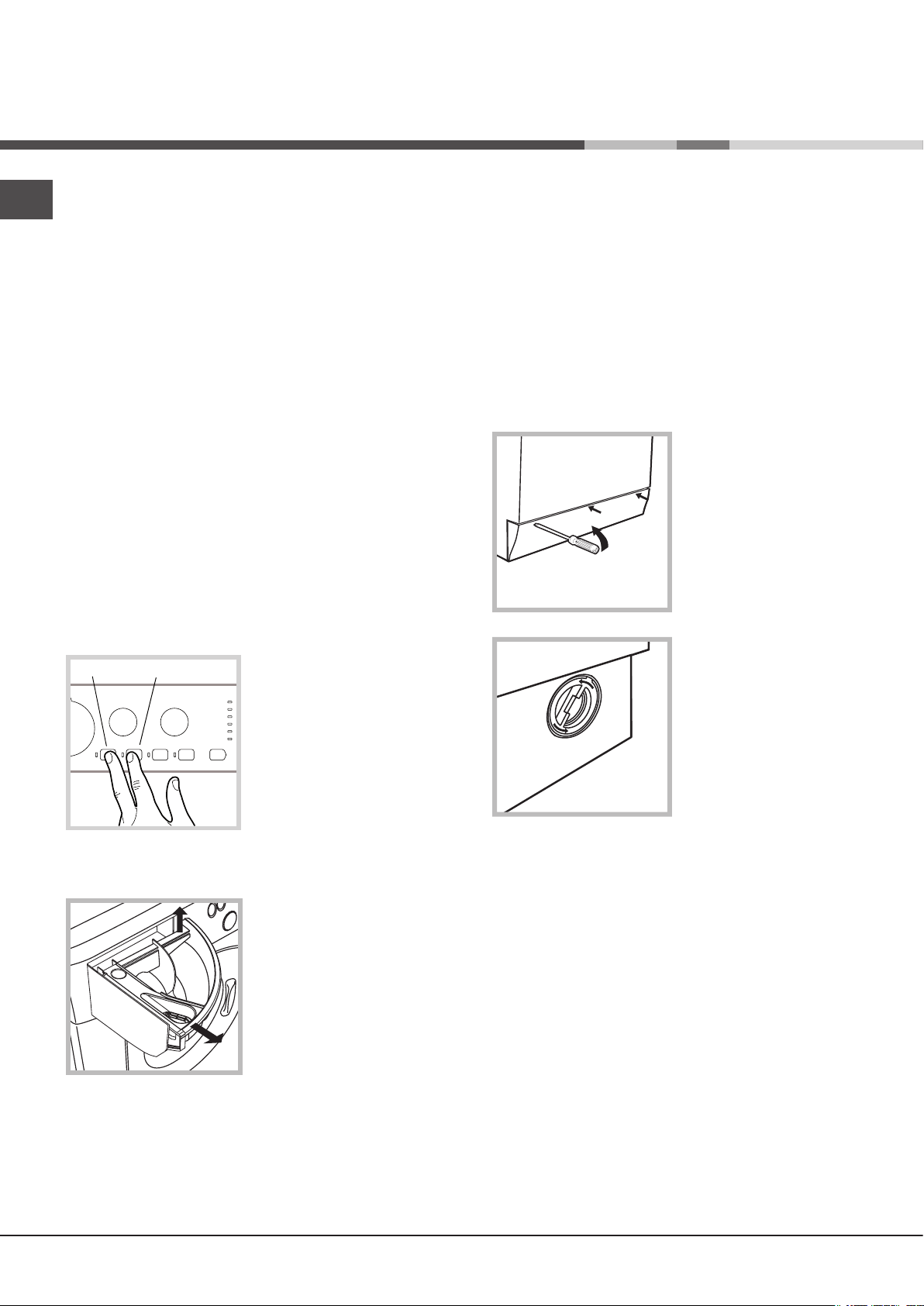

To start the programme

press buttons A and

B simultaneously for 5

seconds (see figure).

The programme will

start automatically and

will run for about 70

minutes. To stop the

cycle press the START/

PAUSE button.

Cleaning the detergent dispenser

drawer

Remove the dispen-

ser by raising it and

pulling it out (see

figure).

Wash it under running

water; this operation

should be repeated

frequently.

Caring for the door and drum of

your appliance

• Always leave the porthole door ajar in order

to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-clea-

ning pump which does not require any mainte-

nance. Sometimes, small items (such as coins

or buttons) may fall into the pre-chamber which

protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and

unplug the appliance.

To access the pre-chamber:

1. using a screwdri-

ver, remove the cover

panel on the lower

front part of the wa-

shing machine (see

figure);

2. unscrew the lid

by rotating it anti-

clockwise (see figu-

re): a little water may

trickle out. This is

perfectly normal;

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks

are securely in place before you push it onto

the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If

there are any cracks, it should be replaced

immediately: during the wash cycles, water

pressure is very strong and a cracked hose

could easily split open.

! Never use second-hand hoses.

Precautions and tips

! This washing machine was designed and constructed in

accordance with international safety regulations. The fol-

lowing information is provided for safety reasons and must

therefore be read carefully.

General safety

• This appliance was designed for domestic use only.

• This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental capabi-

lities or lack of experience and knowledge if

they have been given supervision or instruc-

tion concerning use of the appliance in a

safe way and understand the hazards invol-

ved. Children shall not play with the applian-

ce. Cleaning and user maintenance shall not

be made by children without supervision..

• Do not touch the machine when barefoot or with wet or

damp hands or feet.

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

and pull.

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach extreme-

ly high temperatures.

• Never force the porthole door. This could damage the safety

lock mechanism designed to prevent accidental opening.

• If the appliance breaks down, do not under any circum-

stances access the internal mechanisms in an attempt

to repair it yourself.

• Always keep children well away from the appliance while

it is operating.

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regu-

lations so that the packaging may be re-used.

• The European Directive 2012/19/EU on Waste Electrical

and Electronic Equipment, requires that old household

electrical appliances must not be disposed of in the normal

unsorted municipal waste stream. Old appliances must be

collected separately in order to optimise the recovery and

recycling of the materials they contain and reduce the im-

pact on human health and the environment. The crossed

out “wheeled bin” symbol on the product reminds you of

your obligation, that when you dispose of the appliance it

must be separately collected. Consumers should contact

their local authority or retailer for information concerning the

correct disposal of their old appliance.

Opening the porthole door manually

In the event that it is not possible to open the porthole

door due to a powercut, and if you wish to remove the

laundry, proceed as follows:

1. remove the plug from the

electrical socket.

2. make sure the water level

inside the machine is lower

than the door opening; if it

is not, remove excess water

using the drain hose, collec-

ting it in a bucket as indicated

in the figure.

3. using a screwdriver, remo-

ve the cover panel on the lo-

wer front part of the washing

machine (see figure).

4. pull outwards using the tab as indicated in the figure,

until the plastic tie-rod is freed from its stop position; pull

downwards and open the door at the same time.

5. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance.

Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and

laundry”).

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. Du-

ring the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the

available functions. The indicator light corresponding to the

selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold

wash cycle (see “Personalisation”).

SPIN SPEED knob: sets the spin speed or exclude the

spin cycle completely (see “Personalisation”).

WASH CYCLE PROGRESS/DELAY TIMER

indicator

light

s: used to monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in

progress.

If the Delay Timer function has been set, the time remaining

until the wash cycle starts will be indicated (see next page).

DOOR LOCKED indicator light: indicates whether the

door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or tem-

porarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this

button; the corresponding indicator light will flash orange,

while the indicator light for the current wash cycle phase

will remain lit in a fixed manner. If the DOOR LOCKED

indicator light is switched off, the door may be opened.

To start the wash cycle from the point at which it was inter-

rupted, press this button again.

Standby mode

This washing machine, in compliance with new energy sa-

ving regulations, is fitted with an automatic standby system

which is enabled after about 30 minutes if no activity is

detected. Press the ON-OFF button briefly and wait for the

machine to start up again.

Consumption in off-mode: 0,5 W

Consumption in Left-on: 8 W

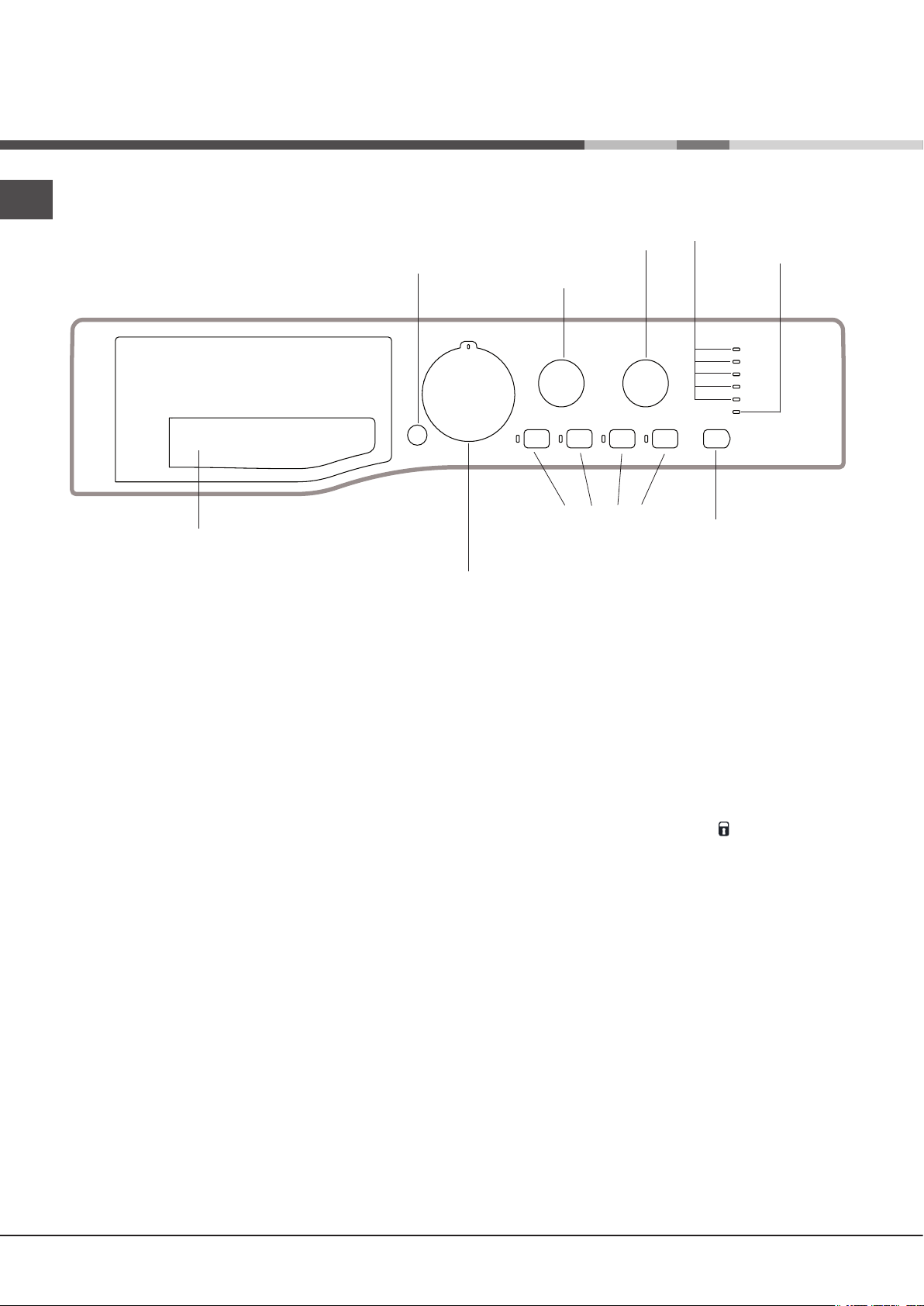

Description of the washing

machine and starting a wash cycle

TEMPERATURE

knob

Detergent dispenser drawer

WASH CYCLE PROGRESS/

DELAY TIMER indicator lights

FUNCTION

buttons with

indicator lights

ON/OFF

button

SPIN SPEED

knob

DOOR

LOCKED

indicator light

START/PAUSE

button with indicator

light

Control panel

WASH CYCLE

knob

Indicator lights

The indicator lights provide important information.

This is what they can tell you:

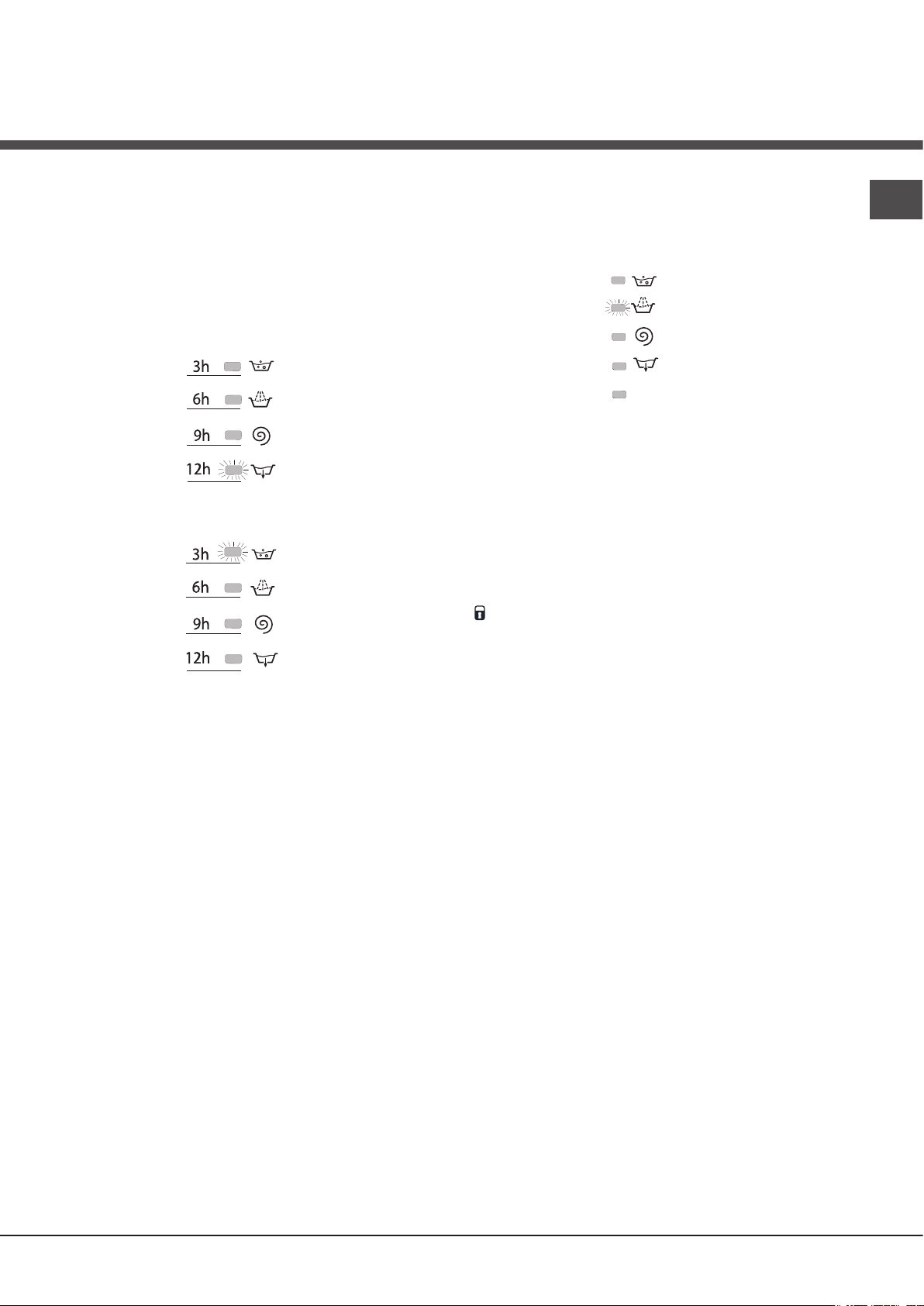

Delayed start

If the DELAY TIMER function has been activated (see “Per-

sonalisation”), after the wash cycle has been started the

indicator light corresponding to the selected delay period

will begin to flash:

As time passes, the remaining delay will be displayed and

the corresponding indicator light will flash:

Once the set delay has elapsed, the flashing indicator light

will switch off and the selected wash cycle will begin.

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has

begun, the indicator lights switch on one by one to indicate

which phase of the cycle is currently in progress.

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator

light will illuminate.

If the selected function is not compatible with the pro-

grammed wash cycle, the corresponding indicator light will

flash and a sound alert (3 beeps); the function will not be

activated.

If a function which is incompatible with another function

selected previously, only the most recent selection will

remain active.

Door locked indicator light

If this indicator light is on, the appliance door is locked to

prevent it from being opened accidentally; to avoid any

damage, wait for the indicator light to switch off before you

open the appliance door.

N.B. If the DELAY TIMER function is activated, the door

cannot be opened; pause the machine by pressing the

START/PAUSE button if you wish to open it.

! If the START/PAUSE indicator light (orange) flashes

rapidly at the same time as the function indicator light, this

indicates a problem has occurred (see “Troubleshooting”).

Starting a wash cycle

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then only

the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will flash.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see “Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed

manner, in green.

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the indicator light will switch on. The DOOR LOCKED indicator light will switch off, indi-

cating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries

completely. Switch the washing machine off by pressing the ON/OFF button.

Wash

Rinse

Spin

Pump out

End of wash cycle

END

Wash cycles

Table of wash cycles

Anti Stain: the programme 1 is suitable to heavily-soiled garments with resistant colours. It ensures a washing class that is

higher than the standard class (A class). When running the programme, do not mix garments of different colours. We recom-

mend the use of powder detergent. Pre-treatment with special additives is recommended if there are obstinate stains.

Whites: use this cycle 2 to wash white clothes. The programme is designed to maintain the brightness of white clothes over

time. Use powder detergent for best results.

Anti allergy: use programme 6 to remove major allergens such as pollen, mites, cat’s and dog’s hair.

Baby: use the special wash cycle 7 to remove the remove the soiling typically caused by babies, while removing all traces

of detergent from nappies in order to prevent the delicate skin of babies from suffering allergic reactions. The cycle has been

designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfec-

ting additives added to the detergent.

Eco cycles

The Eco Cycles assure energy saving by eliminating the need of heating water and it’s an advantage both to your

energy bill and the environment! These innovative Eco programmes (

Eco Cottons,

Eco Synthetics and

Eco

Fast 30’) are available for various fabrics and different quantity of garment; they have been designed to guarantee a

high cleaning action even at low temperature and can be used for lightly to medium soiled loads. Eco Cycles give the

best results thanks to an intensified wash action, water optimization and are carried out in the same average time of a

standard cycle. For the best washing results with Eco Cycles we recommend the usage of a liquid detergent.

Cotton Standard 20°: the programme 11 ideal for lightly soiled cotton loads. The effective performance levels achieved

at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at

varying speed, with repeated and frequent peaks.

Wash cycles

Description of the wash cycle

Max.

temp.

(°C)

Max.

speed

(rpm)

Detergents

Max. load (kg)

Residual dam-

pness%

Energy con-

sumptionkWh

Total water lt

Cycle duration

Prewash

Wash

Bleach

Fabric

softener

Anti Stain

40° 1000

   

5 - - - 180’

Whites

60° 1000

 



5 - - - 180’

Cotton Standard 60° (1): heavily soiled whites and resistant colours.

60°

(Max. 90°)

1000

(3)

  

9 62 1.56 76 185’

Cotton Standard 40° (2): lightly soiled resistant and delicate colours.

40° 1000 -

  

9 62 1.09 92 180’

Synthetics: heavily soiled resistant colours.

60° 800

   

4.5 46 1.03 60 115’

Synthetics (4): lightly soiled resistant colours.

40° 800

   

4.5 46 0.56 60 100’

Anti allergy

60° 1000 -



5 - - - 195’

Baby

40° 1000

   

5 - - - 145’

Wool: for wool, cashmere, etc.

40° 800 -



2 - - - 90’

Delicates

30° 0 -



1 - - - 80’

Fast Wash 60’: to refresh normal soiled garments quickly (not

suitable for wool, silk and clothes which require washing by hand).

60° 1000 -



3.5 62 0.84 44 60’

Cotton Standard 20°: lightly soiled resistant and delicate colours.

20° 1000 -

  

9 - - - 175’

Eco Cottons

Cold

Water

1000 -



9 62 0.23 68 80’

Eco Synthetics

Cold

Water

800 -



3 48 0.12 37 70’

Eco Fast 30’

Cold

Water

800 -



3 71 0.10 36 30’

Rinse

- 1000 - -

 

9 - - - 36’

Spin and Pump out

- 1000 - - - - 9 - - - 16’

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be

washed at 60°C . The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be

washed at 40°C . The actual washing temperature may differ from the indicated value.

3) At 60 °C the “Prewash” function cannot be selected.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle with a temperature of 40°C.

4) Long wash cycle for synthetics: set wash cycle 5 with a temperature of 40°C.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor-

ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

+ 16 hidden pages
