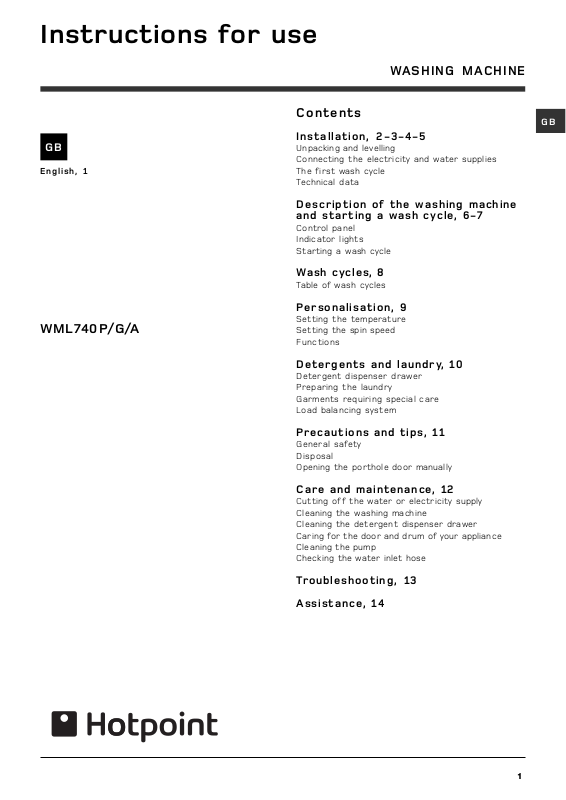

Hotpoint WML 740 P-G-A User Manual

Instructions for use

WASHING MACHINE

English, 1

WML 740 P/G/A

Contents

Installation, 2-3-4-5

Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data

Description of the washing machine and starting a wash cycle, 6-7

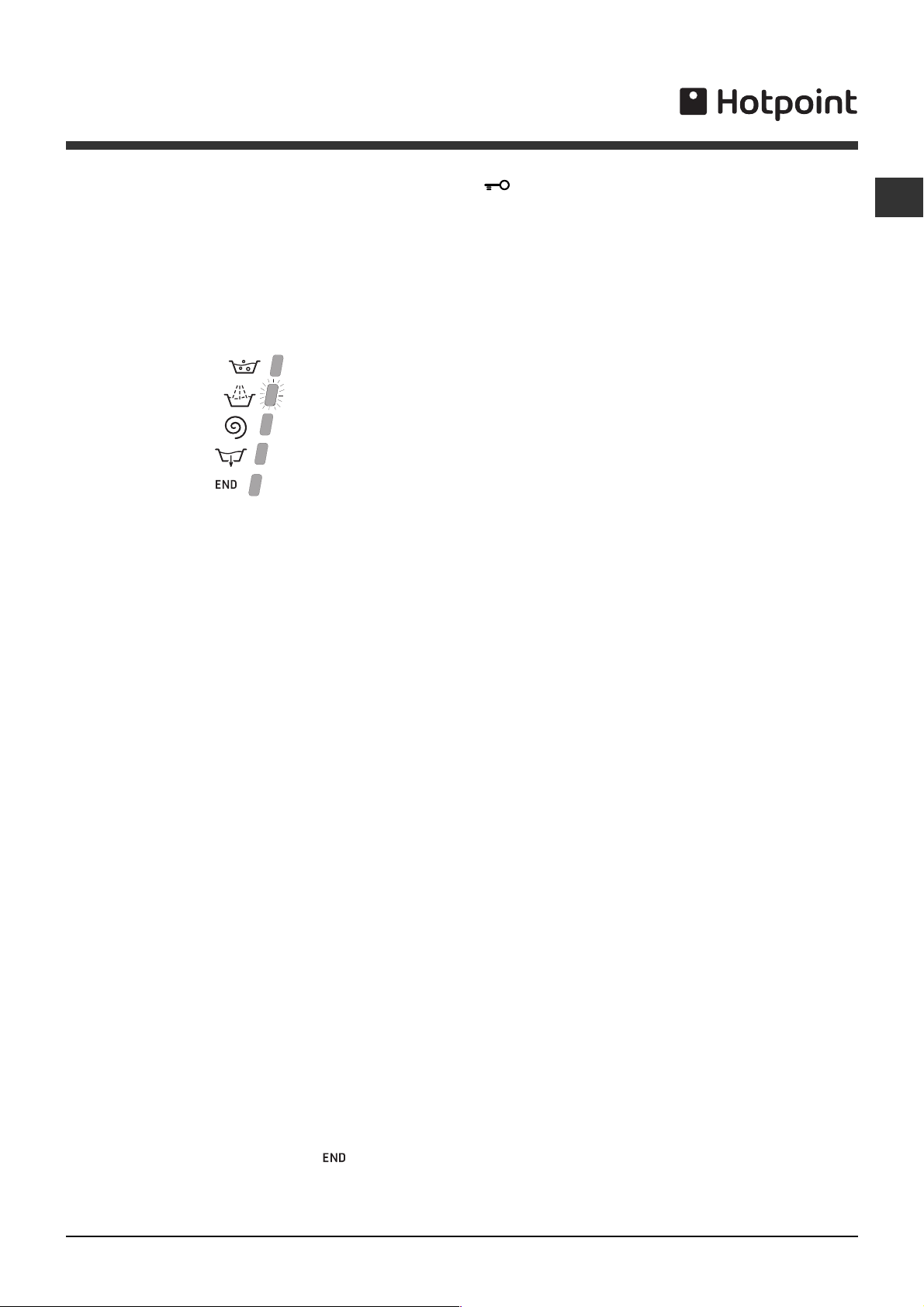

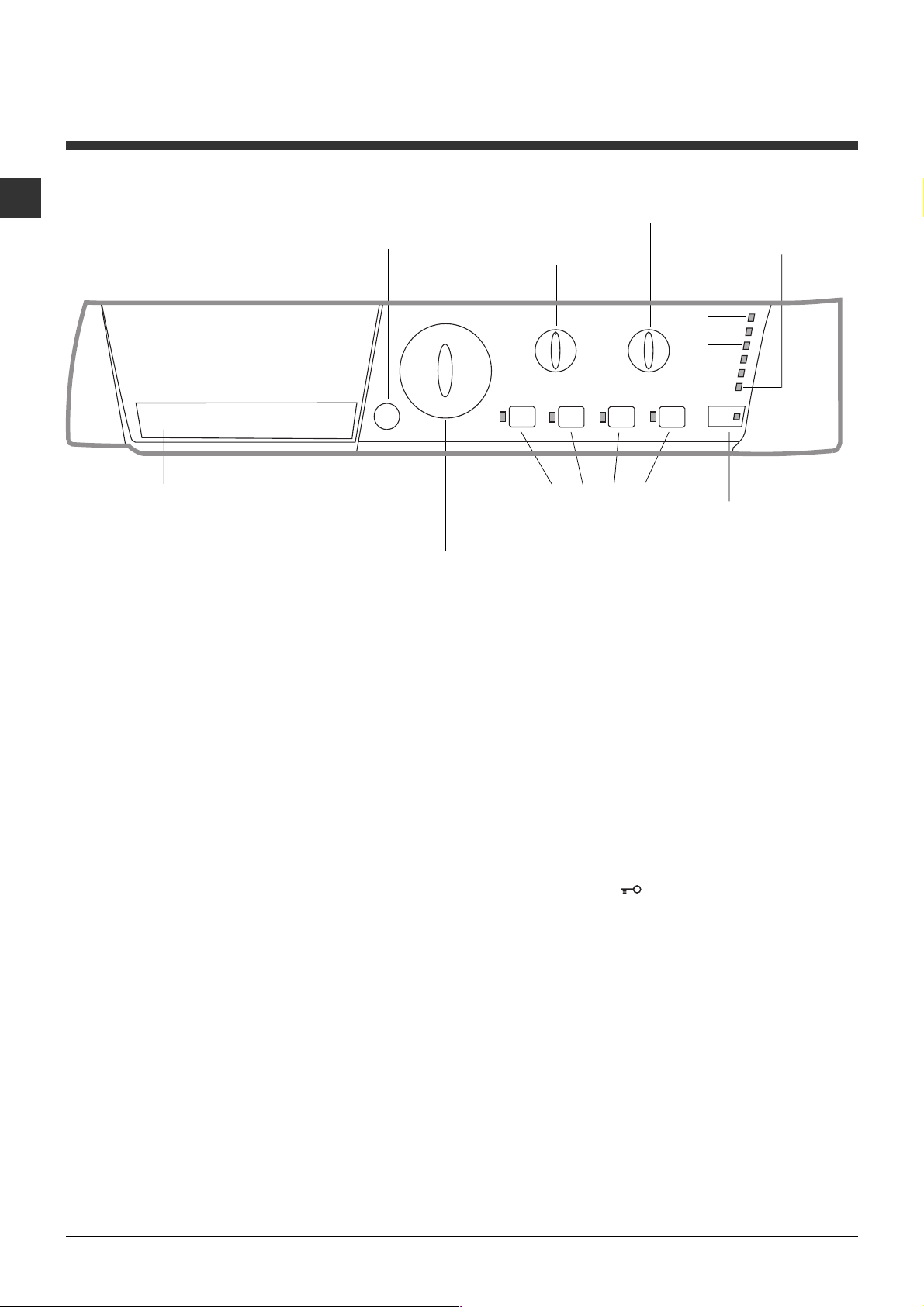

Control panel Indicator lights Starting a wash cycle

Wash cycles, 8

Table of wash cycles

Personalisation, 9

Setting the temperature Setting the spin speed Functions

Detergents and laundry, 10

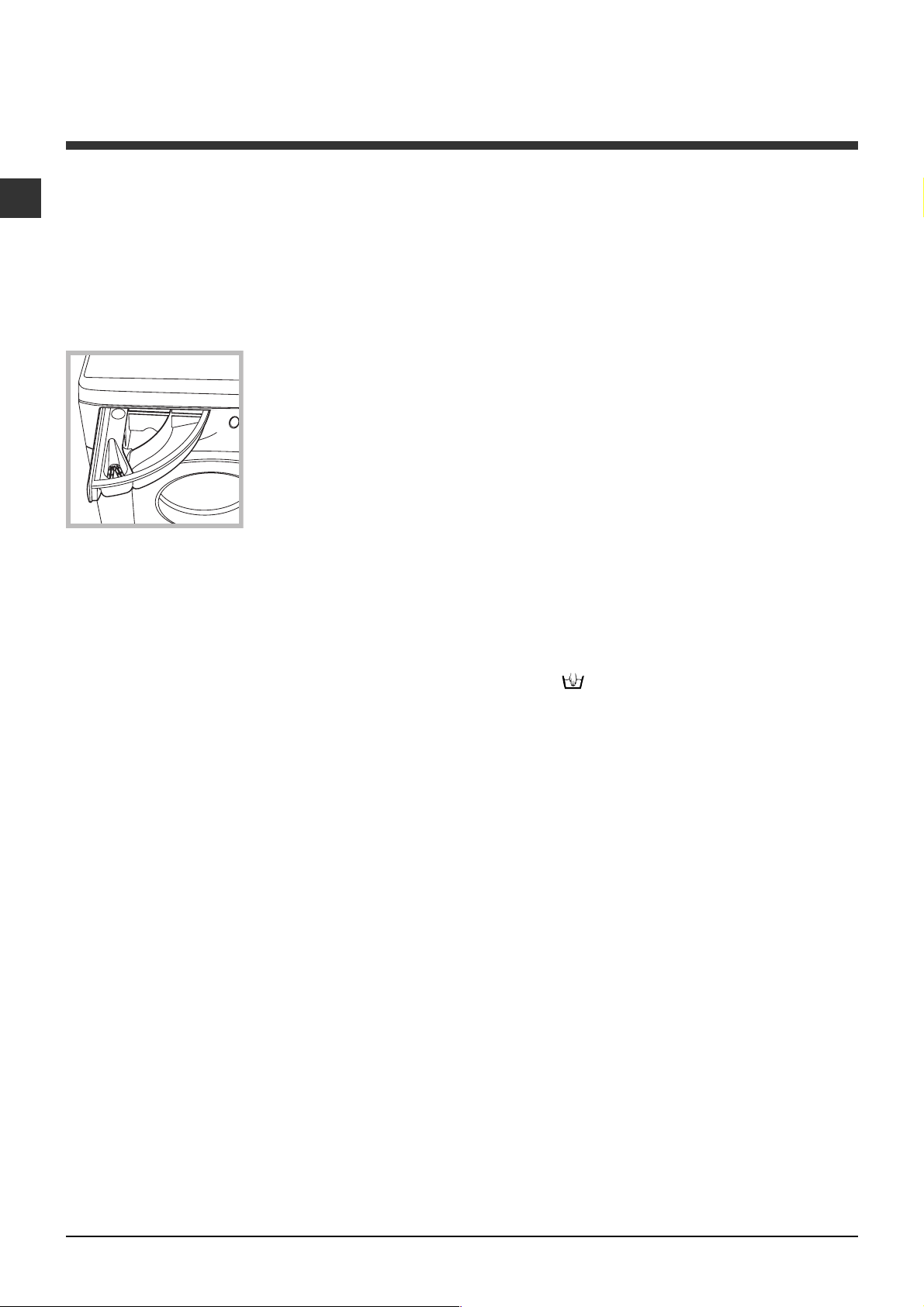

Detergent dispenser drawer Preparing the laundry Garments requiring special care Load balancing system

Precautions and tips, 11

General safety Disposal Opening the porthole door manually

Care and maintenance, 12

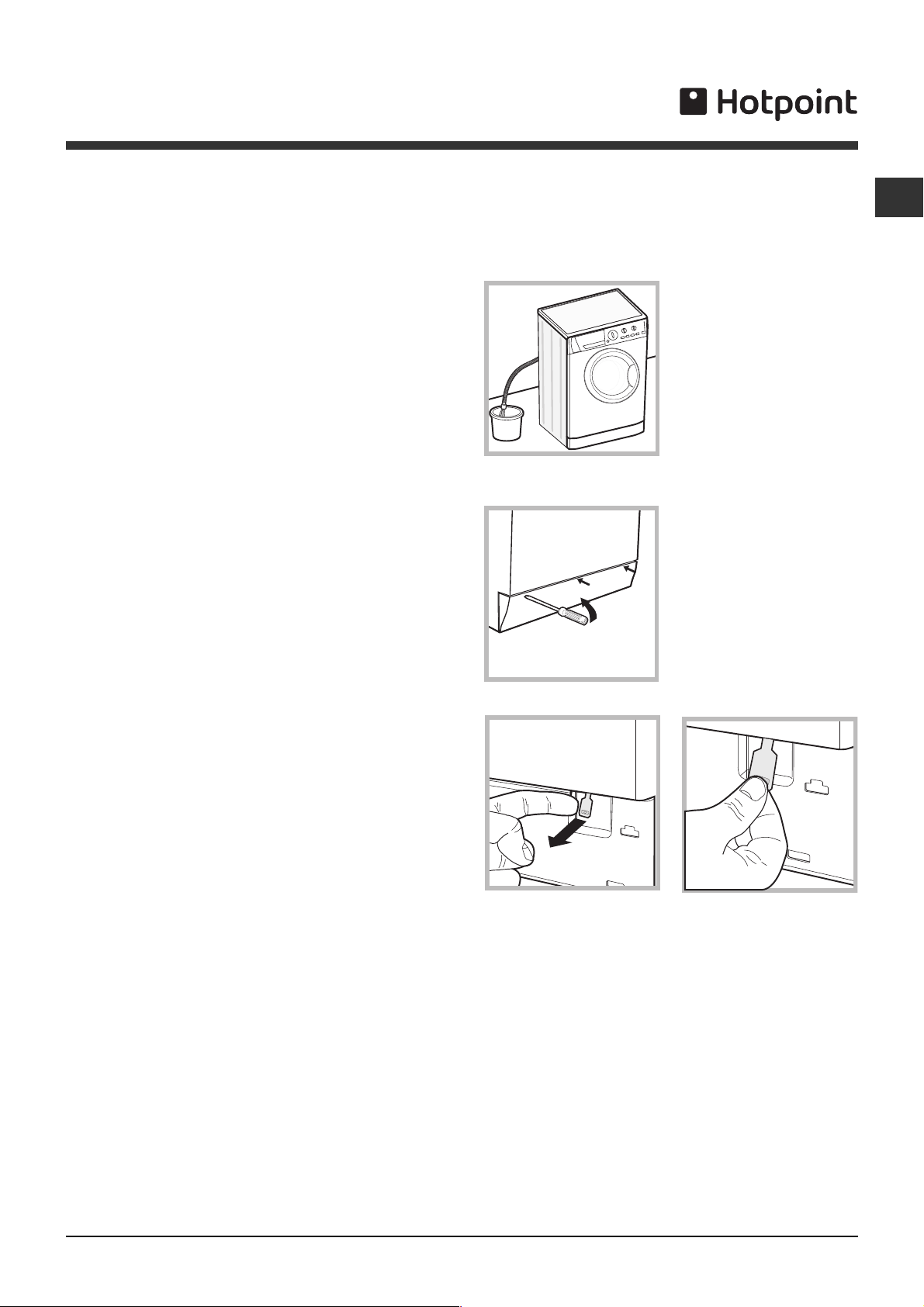

Cutting off the water or electricity supply Cleaning the washing machine Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose

Troubleshooting, 13

Assistance, 14



Installation

! Keep this instruction manual in a safe place for

future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

! Read these instructions carefully: they contain

vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.

2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

3. Remove the 2 protective screws and the rubber bush with the respective spacer, situated on the rear of the appliance (see also the installation leaflet). NB:The plastic spacers may fall down inside the

machine once the bolt has been removed, and will not interfere with the operation of the machine.

4. Do not remove external bar.

5. Seal the gaps using the plastic plugs provided.

6. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

! Packaging materials are not children's toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not

perfectly level, com-

pensate for any

unevenness by

tightening or loosening

the adjustable front

feet (see figure); the

angle of inclination,

measured according to

the worktop, must not

exceed 2°.

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4

3. Make sure there are no kinks or bends in the hose.

! The water pressure at the tap must be within the

values indicated in the Technical details table (on the next page).

! If the water inlet hose is not long enough, contact

a specialist store or an authorised serviceman.

! Ensure that the supply taps are allowing water

through. Old taps may seize in the closed position and thus prevent water reaching the machine.

gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

Connecting the drain hose

65 - 100 cm

Connect the drain

hose, without bending

it, to a draining duct or

a wall drain situated

between 65 and 100 cm

from the floor;

_ the supply voltage is included within the values

indicated on the Technical details table (see page 5);

_ the socket is compatible with the washing

machine's plug. If this is not the case, replace the socket or the plug.

Your appliance is now supplied with a 13 amp fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instructions below.

The drain hose may be connected to an undersink trap. Before connecting the drain hose from the machine ensure that any blanks or removable ends have been taken off the spigot.

If it is place over the edge of a basin or sink be sure the free end of the hose should not be underwater.

! We advise against the use of hose extensions; in

case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Ensure that if the drain hose is pushed into a standpipe, that the end does not go down more than 15cms (6 inches). If the hose is pushed down too far, this may cause the machine to self syphon ie. continuously empty as it is filling.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

_ the socket is earthed and in compliance with

the applicable law;

_ the socket is able to sustain the appliance's

maximum power load indicated in the Technical details table (see page 5);

WARNING - THIS APPLIANCE MUST BE EARTHED. THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained. Replacement fuse covers: If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either: the plug is replaced by a fused 13 ampere rewearable plug bearing the BSI mark of approval. or: the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

Instructions for connecting cable to an alternative plug: Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow Earth Blue Neutral Brown Live

As the colours of the wires in the lead may not correspond with the coloured markings identifyng the terminals in your plug, proceed as follows: Connect Green & Yellow wire to terminal marked E

or coloured Green or Green & Yellow.

or Connect Brown wire to terminal marked L or coloured Red. Connect Blue wire to terminal marked N or coloured Black. If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse, either in the plug or adaptor or at the distribution board. If you are in any doubt the electrical supply to your machine, consult a qualified electrician before use. How to connect an alternative plug: The wires in this mains lead are coloured in accordance with the following code:

BLUE NEUTRAL (N) BROWN LIVE (L) GREEN & YELLOW EARTH (E)

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

GREEN & YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR CORD GRIP

! The washing machine should not be installed in an

outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

! When the washing machine is installed, the mains

socket must be within easy reach.

! Do not use extensions or multiple sockets.

! The power supply cable must never be bent or

dangerously compressed.

! The power supply cable must only be replaced by

an authorised serviceman.

Technical data

Model

Dimensions

Capacity

Electrical connections

Water connections

Spin speed

Energy rated programmes according to regulation EN 60456

WML 740 P/G/A

width 59.5 cm height 85 cm depth 60 cm

from 1 to 7 kg

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 54 litres

up to 1400 rotations per minute

programme 1; temperature 60°C; using a load of 7 kg.

This appliance conforms to the following EC Directives:

- 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent modifications

- 2002/96/EC

- 2006/95/EC (Low Voltage)
