Hotpoint RGB780DEHBB, RGB780DEHCC, RGB780DEHWW Specifications
RGB780DEH
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
30"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
46 3/8"
28 3/4"
w/ handle
26 1/4"
w/o handle
30"
36"
46 7/8"
10 7/8"

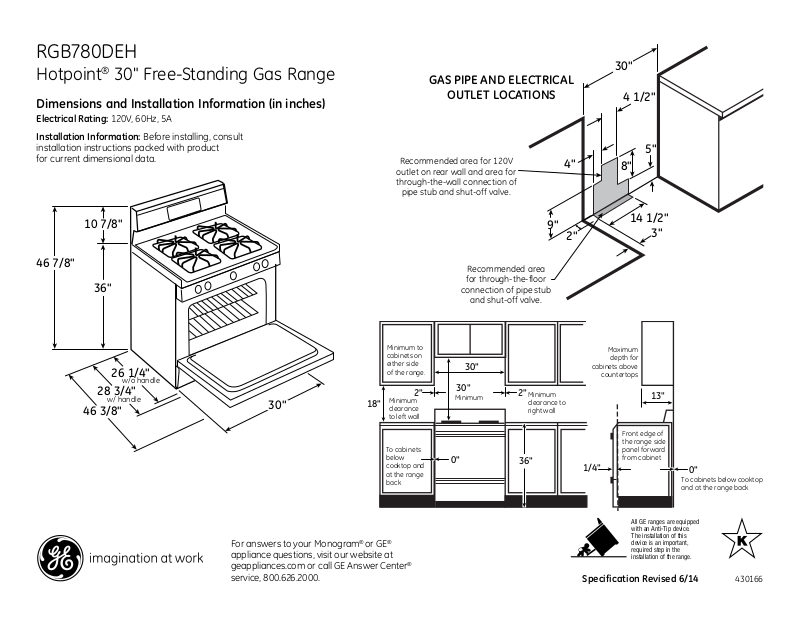

Hotpoint® 30" Free-Standing Gas Range
Dimensions and Installation Information (in inches)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing, consult
installation instructions packed with product
for current dimensional data.
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
4"
30"
4 1/2"
5"
8"
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
9"
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
18"
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
30"
2"
30"
Minimum
0"
2"
Minimum
clearance to
right wall
36"
14 1/2"
2"
Maximum
depth for
cabinets above
countertops
1/4"
3"
13"
Front edge of
the range side
panel forward
from cabinet
Specification Revised 6/14
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.
0"
To cabinets below cooktop
and at the range back
430166
RGB780DEH
Hotpoint® 30" Free-Standing Gas Range
Features and Benefits
• Self-Clean Oven - Cleans the oven cavity without the need for
scrubbing
• 4.8 cu. ft. Oven Capacity - Enough room to cook an entire meal
at once
• Sealed Cooktop Burners - Contains spills and make cleaning quick
and easy
• Simmer Burner - Provides low, even heat distribution for delicate
foods and sauces
• 12,500 BTU Burner - Quickly produces high heat
• Heavy Steel Grates - Heavy-duty steel grates deliver the highest
level of cooktop performance
• In-Oven Broil - Healthy meals are hassle-free with in-oven broiling
• Two Oven Racks - Durable to securely hold any cookware
• Electronic Pilotless Ignition - Provides reliable burner ignition
operation, eliminating the need for a standing pilot
7:08
• Model RGB780DEHBB - Black on black
• Model RGB780DEHWW - White on white
• Model RGB780DEHCC - Bisque on bisque
Specification Revised 6/14
430166
