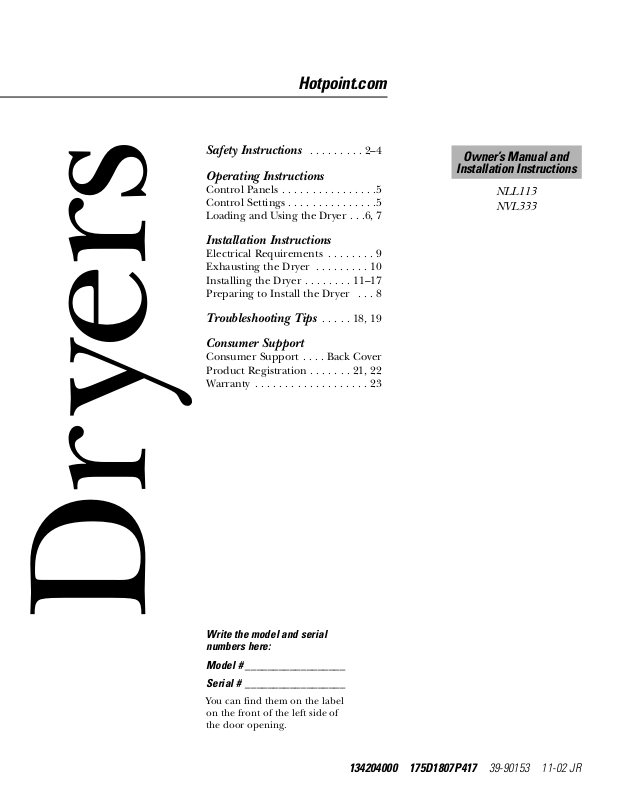

Safety Instructions . . . . . . . . . 2–4

Operating Instructions

Control Panels . . . . . . . . . . . . . . . .5

Control Settings . . . . . . . . . . . . . . .5

Loading and Using the Dryer . . .6, 7

Installation Instructions

Electrical Requirements . . . . . . . . 9

Exhausting the Dryer . . . . . . . . . 10

Installing the Dryer . . . . . . . . 11–17

Preparing to Install the Dryer . . . 8

Troubleshooting Tips . . . . . 18, 19

Consumer Support

Consumer Support . . . . Back Cover

Product Registration . . . . . . . 21, 22

Warranty . . . . . . . . . . . . . . . . . . . 23

Write the model and serial
numbers here:

Model # __________________

Serial # __________________

You can find them on the label
on the front of the left side of
the door opening.

Owner’s Manual and

Installation Instructions

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.

■ Properly ground dryer to conform with all
governing codes and ordinances. Follow
details in the Installation Instructions section.

■ Install or store where it will not be exposed
to temperatures below freezing or exposed
to the weather.

■ Connect to a properly rated, protected and
sized power supply circuit to avoid electrical
overload.

■ Remove all sharp packing items and dispose
of all shipping materials properly.

Exhaust/Ducting:

This dryer MUST be exhausted to the outside.

Use only rigid metal or flexible metal 4″
diameter ductwork inside the dryer cabinet or
for exhausting to the outside. USE OF PLASTIC

OR OTHER COMBUSTIBLE DUCTWORK CAN
CAUSE A FIRE. PUNCTURED DUCTWORK CAN
CAUSE A FIRE IF IT COLLAPSES OR BECOMES
OTHERWISE RESTRICTED IN USE OR DURING
INSTALLATION.

Follow details in the Installation Instructions section.

2

1

PROPER INSTALLATION

This dryer must be properly installed and located in accordance with the Installation Instructions
before it is used.

2

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, or to prevent property damage, personal injury, or death.

WHAT TO DO IF YOU SMELL GAS:

Do not try to light a match, or cigarette, or

turn on any gas or electrical appliance.

Do not touch any electrical switch;

do not use any phone in your building.

Clear the room, building or area of all

occupants.

Immediately call your gas supplier from

a neighbor’s phone. Follow the gas
supplier’s instructions carefully.

If you cannot reach your gas supplier,

call the fire department.

5

4

3

2

1

California Safe Drinking Water and Toxic Enforcement Act

This act requires the governor of California to publish a list of substances known to the state to cause cancer,
birth defects or other reproductive harm and requires businesses to warn customers of potential exposure
to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,
formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.

Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be
minimized further by properly venting the dryer to the outdoors.

■ Do not store or use gasoline or other

flammable vapors and liquids in the
vicinity of this or any other appliance.

■ Installation and service must be performed

by a qualified installer, service agency or
the gas supplier.

■ Never reach into the dryer while the drum is
moving. Before loading, unloading or adding
clothes, wait until the drum has completely
stopped.

■ Clean the lint filter before each load to prevent
lint accumulation inside the dryer or in the
room. DO NOT OPERATE THE DRYER WITHOUT

THE LINT FILTER IN PLACE, UNLESS THE DRYING
RACK IS IN USE.

■ Do not wash or dry articles that have been
cleaned in, washed in, soaked in or spotted
with combustible or explosive substances
(such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) which
may ignite or explode. Do not add these
substances to the wash water. Do not use or
place these substances around your washer
or dryer during operation.

■ Any article on which you have used a cleaning
solvent or that contains flammable materials
(such as cleaning cloths, mops, towels used in
beauty salons, restaurants or barber shops,
etc.) must not be placed in or near the dryer
until solvents or flammable materials have
been removed. There are many highly
flammable items used in homes such as
acetone, denatured alcohol, gasoline,
kerosene, some household cleaners, some spot
removers, turpentines, waxes, wax removers
and products containing petroleum distillates.

■ The laundry process can reduce the flame
retardancy of fabrics. To avoid such a result,
carefully follow the garment manufacturer’s
care instructions.

■ Do not dry articles containing rubber, plastic
or similar materials such as padded bras, tennis
shoes, galoshes, bath mats, rugs, bibs, baby
pants, plastic bags, pillows, etc. that may melt
or burn. Some rubber materials, when heated,
can under certain circumstances produce fire
by spontaneous combustion.

■ Do not store plastic, paper or clothing that
may

burn or melt on top of the dryer during

operation.

■ Garments labeled Dry Away from Heat or Do Not
Tumble Dry (such as life jackets containing

Kapok) must not be put in your dryer.

■ Do not dry fiberglass articles in your dryer.
Skin irritation could result from the remaining
particles that may be picked up by clothing
during subsequent dryer uses.

■ To minimize the possibility of electric shock,
unplug this appliance from the power supply
or disconnect the dryer at the household
distribution panel by removing the fuse or
switching off the circuit breaker before
attempting any maintenance or cleaning
(except the removal and cleaning of the lint
filter). NOTE: Turning the Cycle Selector knob
to an off position, or pressing PAUSE does NOT
disconnect the appliance from the power
supply.

■ Do not spray any type of aerosol into, on or
near dryer at any time.

■ Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking
oils may contribute to a chemical reaction
that could cause a load to catch fire.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

3

Hotpoint.com

YOUR LAUNDRY AREA

■ Keep the area underneath and around your
appliances free of combustible materials, such
as lint, paper, rags, chemicals, gasoline and
other flammable vapors and liquids.

■ Keep the floor around your appliances clean
and dry to reduce the possibility of slipping.

■ Keep area around the exhaust opening and
surrounding areas free from the accumulation
of lint, dust and dirt.

■ Do not obstruct the flow of ventilating air.
Do not stack or place laundry or throw rugs
against the front or back of the dryer.

■ Close supervision is necessary if this appliance
is used by or near children. Do not allow
children to

play on, with or inside this or

any other appliance.

■ Keep all laundry aids (such as detergents,
bleaches, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all
warnings on container labels to avoid injury.

■ Never climb on or stand on the dryer top.

■ Do not install or store this appliance where

it will be exposed to the weather.

WARNING!

WHEN USING YOUR DRYER

4

WHEN USING YOUR DRYER (cont.)

■ Never attempt to operate this appliance
if it is damaged, malfunctioning, partially
disassembled, or has missing or broken parts,
including a damaged cord or plug.

■ The interior of the machine and the exhaust
duct connection inside the dryer should be
cleaned at least once a year by a qualified
technician. See the Loading and Using the Dryer
section. Do not use any type of spray cleaner
when cleaning dryer interior. Hazardous fumes
or electrical shock could occur.

■ If yours is a gas dryer, it is equipped with an
automatic electric ignition and does not have
a pilot light. DO NOT ATTEMPT TO LIGHT WITH
A MATCH. Burns may result from having your
hand in the vicinity of the burner when the
automatic ignition turns on.

■ You may wish to soften your laundered fabrics
or reduce the static electricity in them by using
a dryer-applied fabric softener or an anti-static
conditioner. We recommend you use either a
fabric softener in the wash cycle, according to
the manufacturer’s instructions for those
products, or try a dryer-added product for
which the manufacturer gives written assurance
on the package that their product can be safely
used in your dryer. Service or performance
problems caused by use of these products are
the responsibility of the manufacturers of
those products and are not covered under
the warranty to this appliance.

WHEN NOT USING YOUR DRYER

■ Grasp the plug firmly when disconnecting this
appliance to avoid damage to the cord while
pulling. Place the cord away from traffic areas
so it will not be stepped on, tripped over or
subjected to damage.

■ Do not attempt to repair or replace any part
of this appliance or attempt any servicing
unless specifically recommended in this
Owner’s Manual or in published user-repair
instructions that you understand and have
the skills to carry out.

■ Before discarding a dryer, or removing it
from service, remove the dryer door to
prevent children from hiding inside.

■ Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.

Consumer Support Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

WARNING!

5

About the control panel. Hotpoint.com

You can locate your model number on the label on the front of the left side of the door opening.

Model NVL333

Model NLL113

1

2

1

2

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

IMPORTANT: Clean the lint filter each time you use the dryer.

Automatic cycles automatically determine fabric dryness. Select LESS DRY if you want your clothes slightly damp
at the end of the drying cycle. Select MORE DRY if you want them to feel drier.

Drying Cycles

COTTONS For cottons and most linens. For most loads select OPTIMUM DRY.

WRINKLE FREE For wrinkle-free, permanent press and delicate items, and knits.

FLUFF Provides no-heat tumbling for freshening or fluffing already dry clothing, fabric, linens and pillows.

Start

—Close the dryer door. Turn the START control clockwise to START. Hold for 1–2 seconds and release.

Opening the door during operation will stop the dryer. To restart the dryer, close the door and
select START to complete the cycle.

NOTE: Drying times will vary according to the type of heat used (Electric, Natural or LP gas), size of
load, types of fabrics, wetness of clothes and condition of exhaust ducts.

2

1

About the control settings.

NOTE: Not all features are available on all dryer models.

LESS

DRY

OFF

6

The Exterior: Wipe or dust any spills or washing
compounds with a damp cloth. Dryer control
panel and finishes may be damaged by some
laundry pretreatment soil and stain remover
products. Apply these products away from the
dryer. The fabric may then be washed and dried
normally. Damage to your dryer caused by these
products is not covered by your warranty.

The Lint Filter: Clean the lint filter before each
use. Remove by pulling straight up. Run your
fingers

across the filter. A waxy buildup may form
on the lint filter from using dryer-added fabric
softener sheets.

To remove this buildup, wash the
lint screen in warm, soapy water. Dry thoroughly
and replace. Do not operate the dryer without
the lint filter in place.

Have a qualified technician vacuum the lint
from the dryer once a year.

The Exhaust Duct: Inspect and clean the exhaust
ducting at least once a year to prevent clogging.
A partially clogged exhaust can lengthen the
drying time.

Follow these steps:

Turn off electrical supply by disconnecting
the plug from the wall socket.

Disconnect the duct from the dryer.

Vacuum the duct with the hose attachment
and reconnect the duct.

The Exhaust Hood: Check with a mirror that
the inside flaps of the hood move freely when
operating. Make sure that there is no wildlife
(birds, insects, etc.) nesting inside the duct
or hood.

3

2

1

Care and Cleaning of the Dryer

Sorting and Loading Hints

As a general rule, if clothes are sorted properly
for the washer, they are sorted properly for
the dryer.

Do not add fabric softener sheets once the load has
become warm. They may cause fabric softener stains.
Bounce®Fabric Conditioner Dryer Sheets have been
approved for use in all GE Dryers when used in
accordance with the manufacturer’s instructions.

Do not overload. This wastes energy and causes
wrinkling.

Do not dry the following items: fiberglass items,
woolens, rubber-coated items, plastics, items with
plastic trim and foam-filled items.

Loading and using the dryer. Always follow the fabric manufacturer’s care label when laundering.

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

7

Machine
wash
cycle

Normal

Permanent Press/

wrinkle resistant

Gentle/

delicate

Hand wash

Do not wash Do not wring

Water
temperature

Hot

(50°C/120°F)

Warm

(40°C/105°F)

Cold/cool

(30°C/85°F)

Tumble
dry

Dry

Normal

Permanent Press/

wrinkle resistant

Gentle/

delicate

Do not tumble dry

Do not dry
(used with

do not wash)

Heat
setting

High

Medium

Low

No heat/air

Special
instructions

Line dry/

hang to dry

Drip dry

Dry flat

In the shade

Bleach
symbols

Any bleach

(when needed)

Only non-chlorine bleach

(when needed)

Do not bleach

WASH LABELS

DRY LABELS

BLEACH LABELS

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Hotpoint.com

Fabric Care Labels

Prepare the area and exhaust for installation

of the new dryer.

Check to be sure that the existing external
exhaust is clean and that it meets attached
installation specifications.

Using the four shipping carton corner posts
as padding (two on each side), carefully lay
the dryer on its left side and remove foam
shipping pad.

CAUTION: To prevent damage,

do not use the control panel as a means
to pick up or move the dryer.

Return the dryer to an upright position.

Move the dryer to the desired location.

Connect the external exhaust.

Adjust the leveling legs to match the washer
height. The dryer must be level and rest
firmly on all four leveling legs.

Connect the power supply.

Check the operation of the power supply
and venting.

Place the Owner’s Manual and the
Installation Instructions in a location where
they will be noticed by the owner.

10

9

8

7

6

5

4

3

2

1

8

WARNING

■ This dryer must be exhausted to the outdoors

using only rigid metal or flexible metal 4″
diameter ductwork for inside the dryer cabinet
or exhausting.

■ Never use plastic or other combustible ductwork.

See Exhausting section.

■ This appliance must be properly grounded

and installed as described in these Installation

Instructions.

■ Do not install or store appliance in an area

where it will be exposed to water/weather.
See Location of Your Dryer section.

■ The National Fuel Gas code restricts installations

of gas appliances in garages. They must be 18″
(45.7 cm) off the ground and protected from
vehicles by a barrier. See Location of Your Dryer
section.

■ The electrical service to the dryer must conform

with local codes and ordinances and the latest
edition of the National Electrical Code,
ANSI/NFPA 70.

■ The gas service to the dryer must conform with

local codes and ordinances or the latest edition
of the National Fuel Gas Code ANSI Z223.1.
The gas dryer is designed under ANSI Z 21.5.1
for home use only. This dryer is not
recommended for commercial applications
such as restaurants or beauty salons, etc.

Preparing the Installation Site and Unpacking the Dryer

Foam shipping pad

Packing



Phillips head screwdriver



Adjustable pliers



Carpenter’s level



Flat or straight blade screwdriver



Duct tape



Rigid or flexible metal 4″ (10.2 cm) duct



Vent hood



Pipe thread sealer (GAS DRYER)

Tools and Materials Required for Dryer Installation

Preparing to install your dryer.

Read these instructions completely and carefully.

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

9

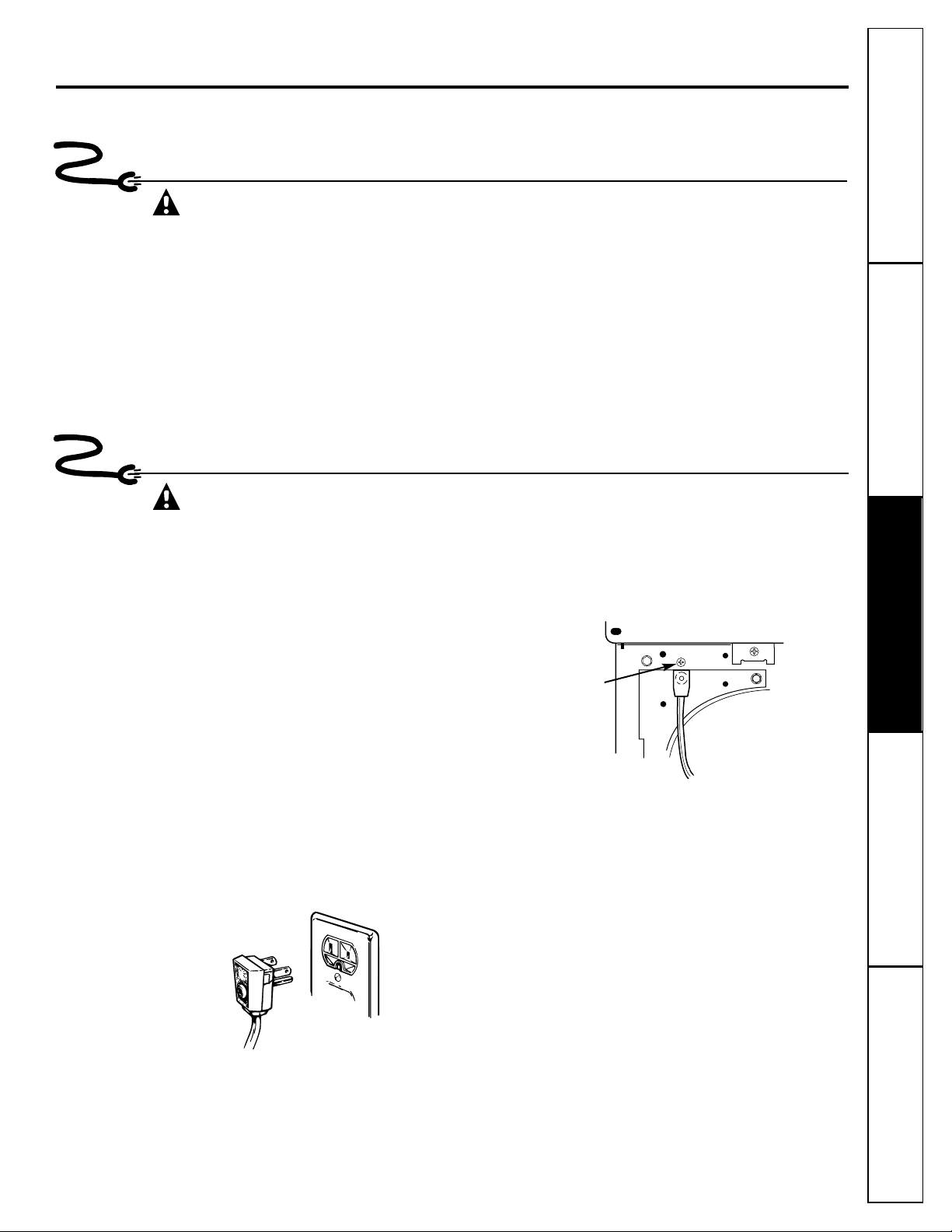

Electrical Connection Information for Gas Dryers

WARNING—

To reduce the risk

of fire, electric shock or personal injury:

• DO NOT USE AN EXTENSION CORD OR AN
ADAPTER PLUG WITH THIS APPLIANCE.

•

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD GROUNDING PRONG FROM
THE POWER CORD.

This dryer

must be electrically grounded in
accordance with local codes and ordinances, or in
the absence of local codes, in accordance with the
NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70.

Electrical Requirements

• This dryer must be supplied with 120V, 60 Hz,

and connected to an individual properly
grounded branch circuit, protected by a 15 or
20 amp circuit breaker or time-delay fuse.

• If the electric supply provided does not

meet the above specifications, it is
recommended that a licensed electrician
install an approved outlet.

External Ground (if required)

An external ground wire (not provided), which
meets local codes, may be added by attaching it to
the green ground screw on the rear of the dryer in
the upper left corner above the cord, and to grounded
metal cold water pipe or other established ground.

NOTE: A wiring diagram is located inside the

control panel.

Electrical Connection Information for Electric Dryers

WARNING—

To reduce the risk

of fire, electric shock or personal injury:

• DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE.

• THIS APPLIANCE MUST BE PROPERLY GROUNDED.

This dryer must be electrically grounded in
accordance with local codes and ordinances, or in
the absence of local codes, in accordance with the
NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70.

Electrical Requirements

• This dryer must be connected to a 208V or

240V individual branch circuit, protected by
30 amp circuit breakers or time-delay fuses.

• Use copper conductors only.

• If the electric supply does not meet the above

specifications, call a licensed electrician.

NOTE: A wiring diagram is located inside the
control panel.

Ensure proper ground
exists before use

Attach ground wire
(obtain locally)

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Electrical requirements.

Read these instructions completely and carefully.

If all rigid metal duct cannot be used, then flexible
all-metal venting can be used, but it will reduce the
maximum recommended duct length. In special
installations when it is impossible to make a
connection with the above recommendations,
then UL-listed clothes dryer transition duct may be
used as transition venting between the dryer and
wall connection only. The use of this ducting will
affect drying time.

If flexible transition duct is necessary, only UL-listed duct
identified for use with clothes dryers is approved.

The following directions must be followed.

• Use the shortest length possible.

• Stretch the duct to its maximum length.

• Do not crush or collapse.

• Never use transition duct inside the wall, flooring,

ceiling or inside the dryer.

• Avoid resting the duct on sharp objects.

• Venting must conform to local building codes.

10

Use only 4″ (10.2 cm) diameter (minimum) rigid metal
duct for best performance, or flexible metal duct. Use

approved vent hood which has swing-out dampers
that open when the dryer is in operation. When the
dryer stops, the dampers automatically close to
prevent drafts and the entrance of insects and
rodents. To avoid restricting the outlet, maintain a
minimum of 12″ (30.5 cm) clearance between the
vent hood and the ground or any other obstruction.

If all rigid metal duct cannot be used, then flexible
all-metal venting can be used, but it will reduce the
maximum recommended duct length. See Additional
Installation Instructions following.

WARNING: The following are specific

requirements for proper and safe operation of your
dryer. Failure to follow these instructions can create
excessive drying times and fire hazards.

DO NOT use plastic flexible duct to exhaust the
dryer. Excessive lint can build up inside exhaust
system and create a fire hazard and restrict air
flow. Restricted air flow will increase drying times.
If your present system is made up of plastic duct
or metal foil duct, replace it with rigid or flexible
metal duct. Ensure the present duct is free of any
lint prior to installing dryer duct.

The dryer exhaust system MUST BE EXHAUSTED
TO THE OUTSIDE of the dwelling.

DO NOT allow combustible materials (for example:

clothing, draperies/curtains, paper) to come in
contact with exhaust system.

The dryer MUST NOT be exhausted into a gas vent,
chimney, a wall, a ceiling, a common duct with a
kitchen exhaust or any concealed space of a
building which can accumulate lint, resulting in
a fire hazard.

DO NOT exceed the length of duct pipe or

number of elbows allowed in the Maximum Length
charts. Lint can accumulate in the exhaust
system, plugging the system and creating a fire
hazard, as well as increasing drying times.

DO NOT screen the exhaust ends of the vent
system, nor use any screws or rivets to assemble
the exhaust system. Lint can become caught in
the screen, on the screws or rivets, clogging the
duct work and creating a fire hazard as well as
increasing drying times. Use an approved vent
hood to terminate the duct outdoors, and seal
all joints with duct tape. All male duct pipe
fittings MUST be installed downstream with
the flow of air.

EXPLOSION HAZARD. Do not install the dryer
where gasoline or other flammables are kept
or stored. If the dryer is installed in a garage,
it must be a minimum of 18″ (45.7 cm) above
the floor. Failure to do so can result in death,
explosion, fire or burns.

Provide an access for inspection and cleaning of
the exhaust system, especially at turns. Inspect
and clean at least once per year.

Do not obstruct incoming or exhausted air.

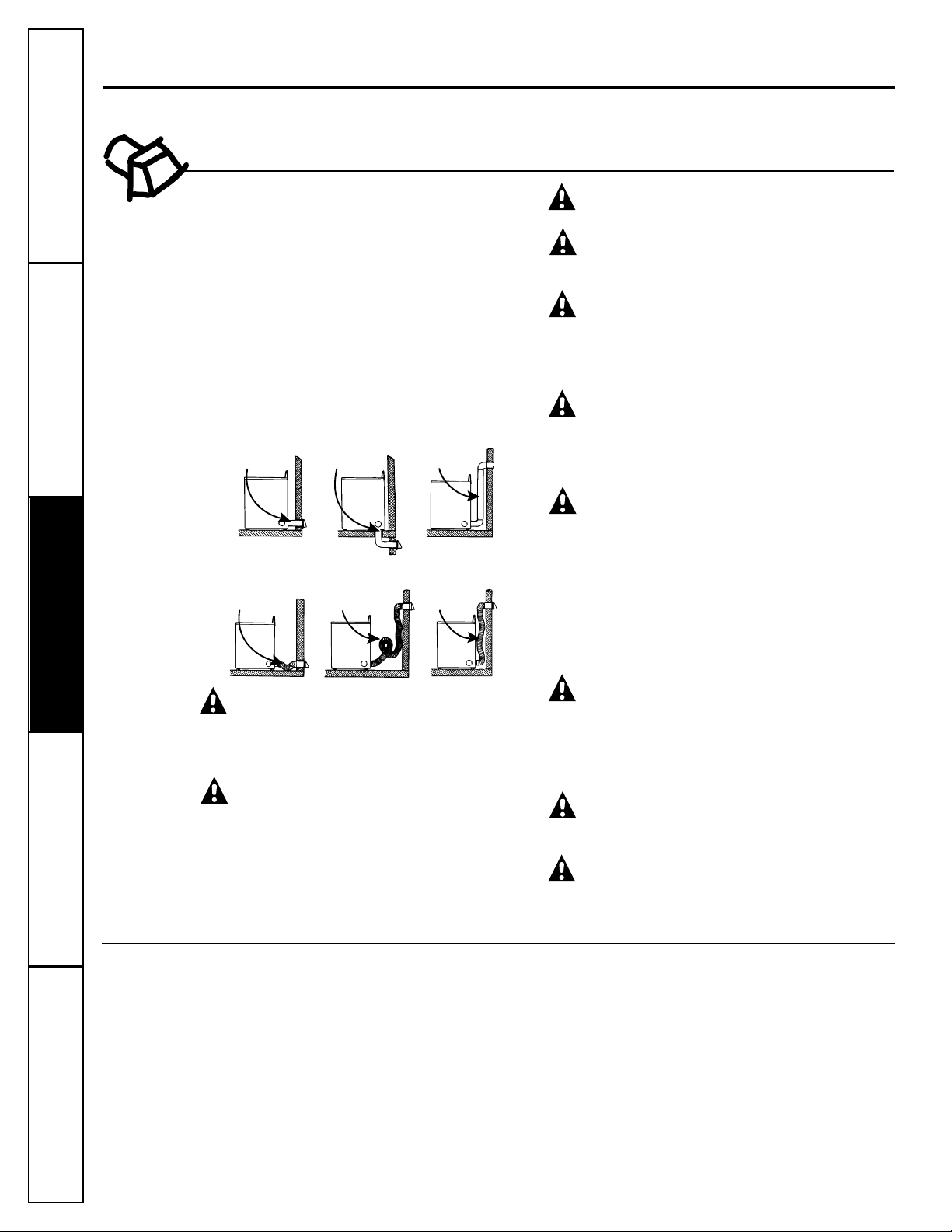

Correct

Incorrect

Do

Do

Do

Don’t

Don’t

Don’t

Additional Installation Instructions

Exhaust System Requirements

Exhausting the dryer.

Read these instructions completely and carefully.

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Replace brass connecting pipe that is not
plastic-coated. Stainless steel or plastic-coated
brass MUST be used.

WARNING: Never reuse old flexible

connectors. The use of old flexible connectors can
cause gas leaks and personal injury. Always use NEW
flexible connectors when installing a gas appliance.

Installation MUST conform with local codes, or
in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1 (latest edition).

The gas supply line should be of 1/2″ (1.27 cm)
rigid pipe.

If codes allow, flexible metal tubing may be used
to connect your dryer to the gas supply line. The
tubing MUST be constructed of stainless steel or
plastic-coated brass.

The gas supply line MUST have an individual
shutoff valve.

A 1/8″ (0.32 cm) NPT minimum plugged
tapping, accessible for test gauge connection,
MUST be installed immediately upstream of the
gas supply connection to the dryer.

The dryer and its individual shutoff valve MUST
be disconnected from the gas supply piping
system during any pressure testing of the gas
supply piping system at test pressures in excess
of 1/2 psig (3.45 kPa).

The dryer MUST be isolated from the gas supply
piping system by closing its individual manual
shutoff valve during any pressure testing of the
gas supply piping system at test pressures
equal to or less than 1/2 psig (3.45 kPa).

7

6

5

4

3

2

1

Exhaust Direction

All dryers are shipped set up for rear exhausting.
On electric dryers, exhausting can be on the cabinet
right or left side, or through the dryer bottom.
Gas dryers can exhaust on the cabinet right side or
the dryer bottom. To change exhaust direction you
will need Exhaust Kit, Pub No. 14-A018 and a rigid
metal 4″ 90 degree elbow. The kit is available through
your GE retailer. Follow the instructions supplied
with the kit.

Gas Supply Requirements

MAXIMUM LENGTH of 4“ (10.2 cm) Dia. RIGID METAL DUCT

PREFERRED VENT HOOD TYPE

0 60’ (18.28 m) 48’ (14.63 m)
1 52’ (15.84 m) 40’ (12.19 m)
2 44’ (13.41 m) 32’ (9.75 m)
3 32’ (9.75 m) 24’ (7.31 m)
4 28’ (8.53 m) 16’ (4.87 m)

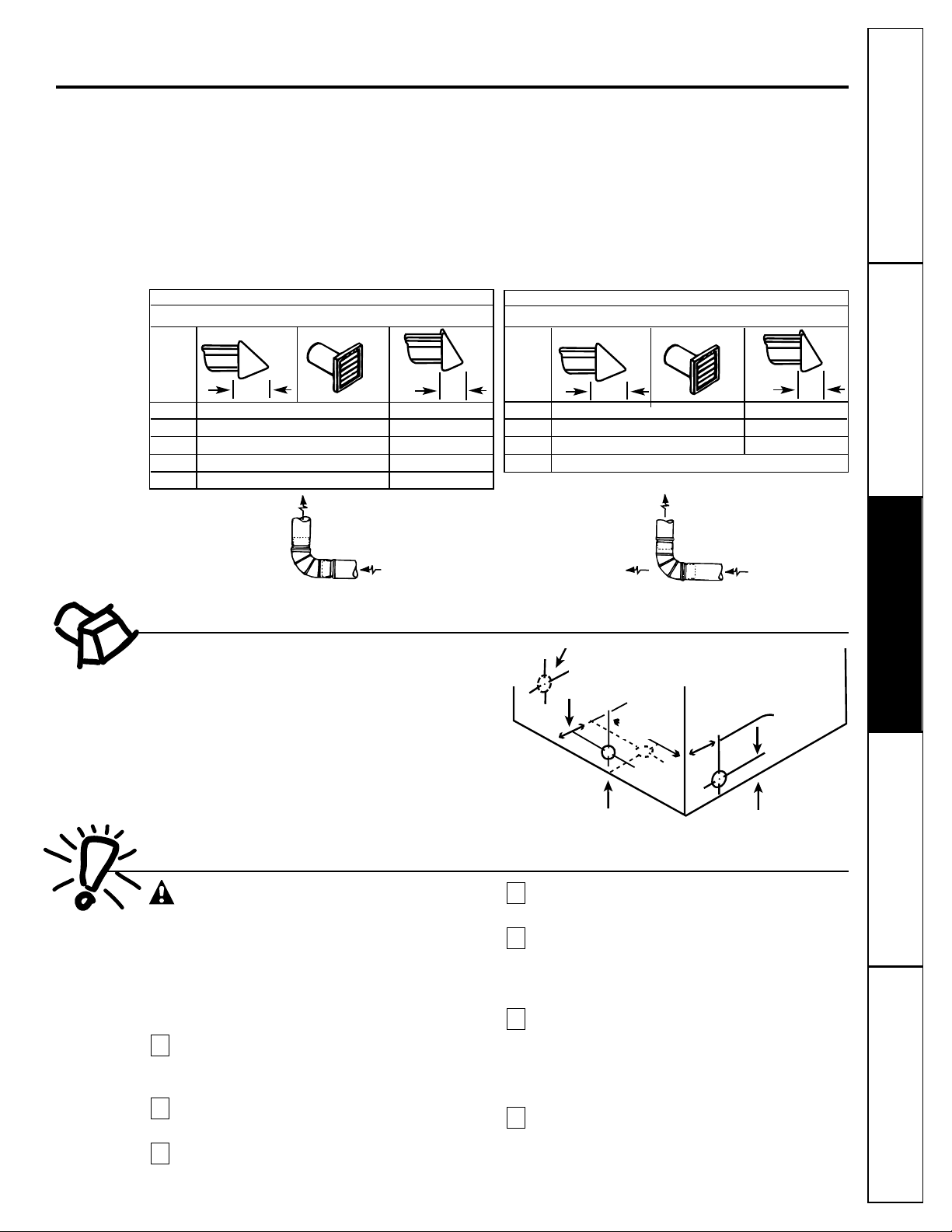

Exhaust Ducting Length

The exhaust system should be inspected and cleaned
at least once a year with normal usage. The more the
dryer is used, the more often you should check the
exhaust system and vent hood for proper operation.

If roof vents or louvered plenums are used, they must
be equivalent to a 4″ dampered wall cap in regard to
resistance to airflow, prevention of back drafts and
maintenance required to prevent clogging.

• DO NOT assemble the duct work with fasteners that

extend into the duct. They will serve as collection
points for lint.

• Ductwork which runs through an unheated area or

is near an air conditioning duct should be insulated
to reduce condensation and lint buildup.

4” (10.2 cm) Louvered

4”

(10.2 cm)

Number of

90° turns

2.5”

(6.35

cm)

MAXIMUM LENGTH of 4“ (10.2 cm) Dia.

FLEXIBLE METAL DUCT

PREFERRED VENT HOOD TYPE

0 30’ (9.14 m) 18’ (5.49 m)
1 22’ (6.71 m) 14’ (4.27 m)
2 14’ (4.27 m) 10’ (3.05 m)
3 not recommended

4” (10.2 cm) Louvered

4”

(10.2 cm)

Number of

90° turns

2.5”

(6.35

cm)

CORRECT

INCORRECT

INSTALL MALE FITTINGS IN

CORRECT DIRECTION

Same as
other side

EXHAUST DUCT LOCATING

DIMENSIONS

3-3/4″ (9.5 cm)

3-3/4″ (9.5 cm)

13-1/2″

(34 cm)

4-3/8″

(11 cm)

5-7/8″

(15 cm)

11

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

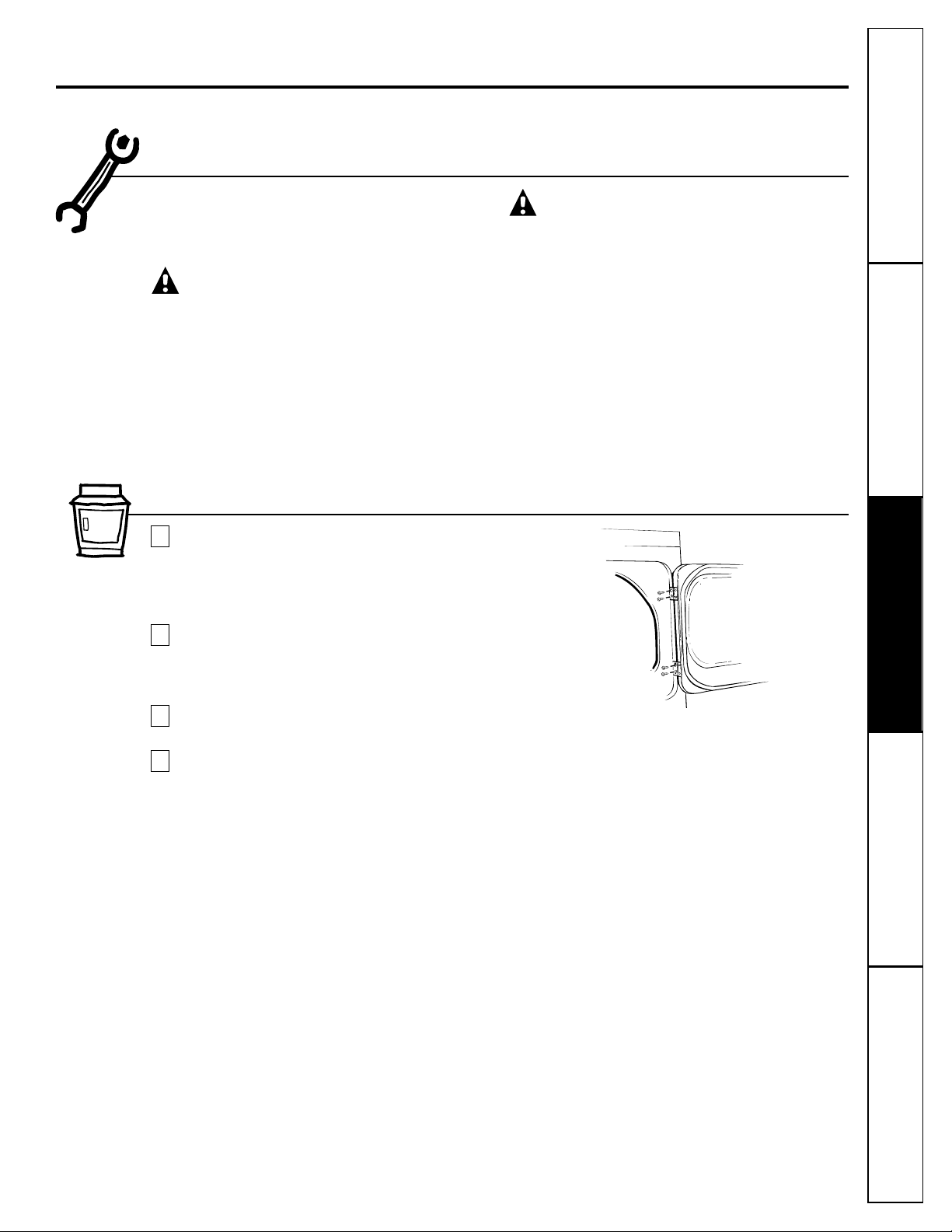

Installing the dryer.

12

Do Not Install the Dryer:

Do not install the dryer in an area exposed to

dripping water or outside weather conditions.

Do not install the dryer in an area where it will
come in contact with curtains, drapes or
anything that will obstruct the flow of
combustion and ventilation air.

Do not install the dryer on carpet.

Floor MUST be solid with a maximum slope
of 1″ (2.54 cm).

3

2

1

Installation in Recess or Closet

This dryer MUST be exhausted outdoors.

No other fuel burning appliance shall be
installed in the same closet as the GAS DRYER.

Your dryer needs the space around it for
proper ventilation. DO NOT INSTALL YOUR

DRYER IN A CLOSET WITH A SOLID DOOR.

Closet doors must be louvered or otherwise
ventilated and must contain a minimum of
60 sq. in. of open area equally distributed.
If the closet contains both a washer and a dryer,
doors must contain a minimum of 120 sq. in.
of open area equally distributed. Air openings
are required to be unobstructed when a door
is installed. A louvered door with equivalent
air openings for the full length of the door
is acceptable.

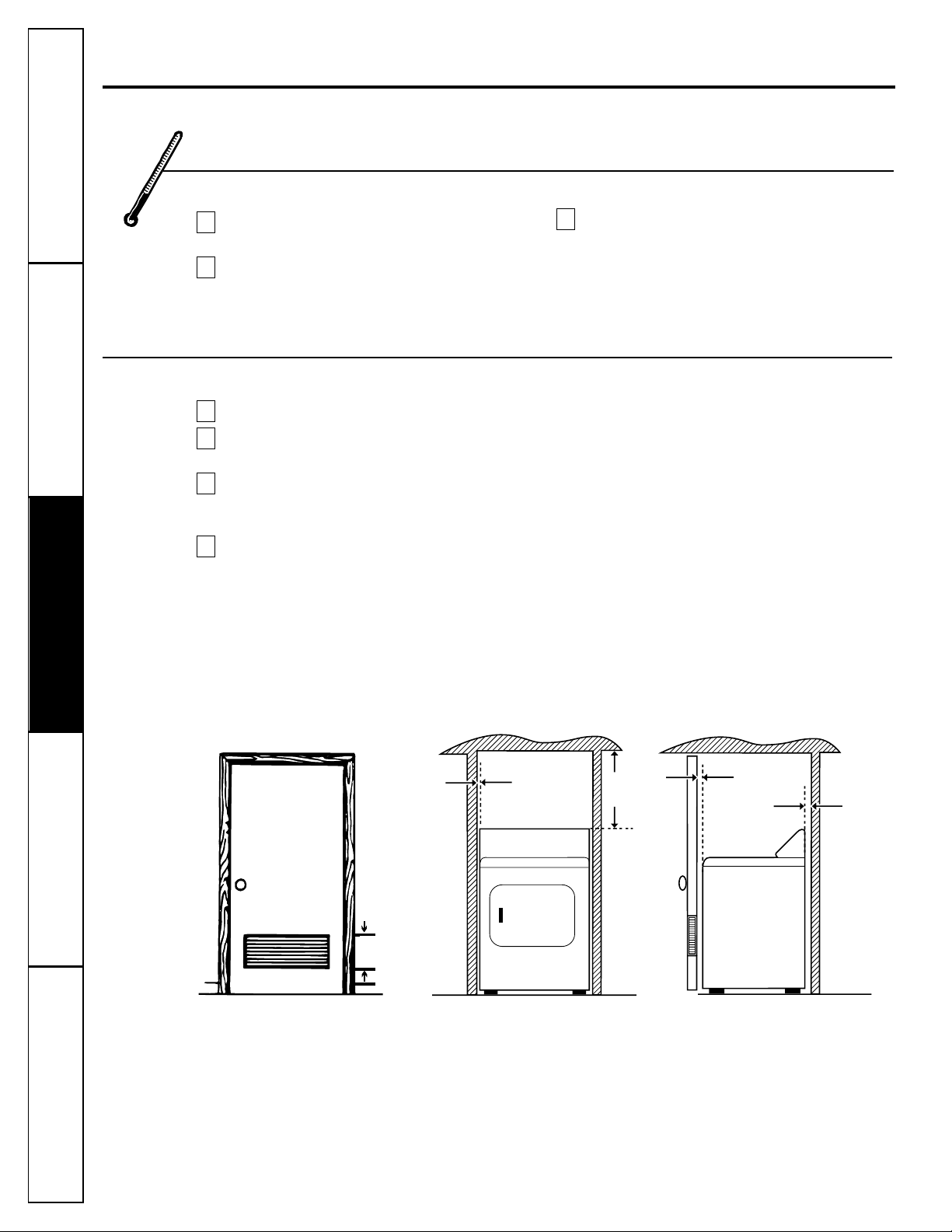

Allow the following clearances for ease of installation:

FRONT SIDES REAR* TOP

1″ (2.54 cm) 0 (0 cm) 1″ (2.54 cm) 15″ (38.1 cm)

*Additional rear clearance may be required
depending on the ducting installation.

4

3

2

1

Location of Your Dryer

Installing the dryer.

Read these instructions completely and carefully.

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

0" (0 cm)

1" (2.54 cm)

1" (2.54 cm)

15"
(38.1 cm)

60 sq. in.
(387.1 sq. cm)

Closet door

13

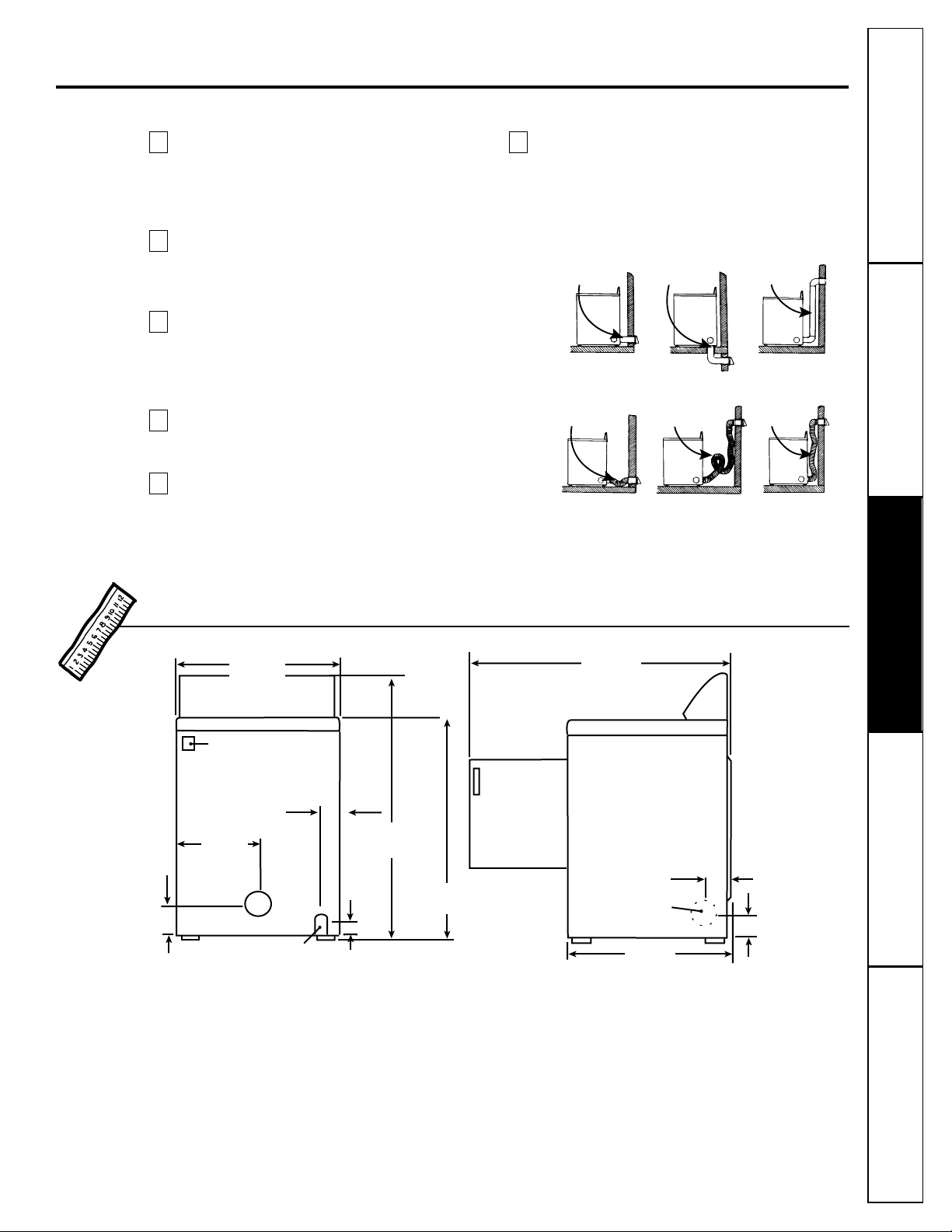

Rough-In Dimensions

Dryer MUST be exhausted outside (outdoors, not
beneath the mobile home) using metal ducting
that will not support combustion. Metal ducting
must be 4″ (10.16 cm) in diameter with no
obstructions. Rigid metal duct is preferred.

If dryer is exhausted through the floor, the
exhaust system MUST NOT terminate beneath the
mobile home. Termination MUST be securely
fastened to the mobile home structure.

When installing a dryer into a mobile home,
a provision must be made for outside make-up
air. Provide an opening with a free area of at
least 25 square inches for introduction of outside
air into the dryer room.

Gas dryers MUST be fastened to the floor
using Mobile Home Installation Kit
Pub. No. 14-D346-33.

See the Exhaust System Requirements section
for other important venting information.

Installation MUST conform to current
Manufactured Home Construction & Safety
Standard (which is a Federal Regulation Title
24 CFR—Part 32–80) or, when such standard is
not applicable, with American National Standard
for Mobile Homes, ANSI/NFPA No. 501B.

The dryer is designed under ANSI Z 21.5.1

for HOME USE only.

6

5

4

3

2

1

Mobile Home Installation

26 7/8″

(68.3 cm)

47 1/2″

(120.7 cm)

43 5/8″

(110.7 cm)

2 9/16″
(6.5 cm)

13 1/2″

(34.4 cm)

36″

(91.5 cm)

Door open

90˚

4 3/8″

(11.1 cm)

Optional

vent knockout

27″

(68.6 cm)

Electrical connection

3/8″ (0.96 cm) Dia.
gas pipe

1″ (2.54 cm)

3 3/4″
(9.5 cm)

3 3/4″

(9.5 cm)

REAR VIEW

SIDE VIEW

Correct

Incorrect

Do

Do

Do

Don’t

Don’t

Don’t

Servicing – Consideration must be given to provide adequate clearances for installation and servicing.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

14

DANGER: Improper connection of the

equipment-grounding conductor can result in
a risk of electric shock. Check with a licensed
electrician if you are in doubt as to whether
the appliance is properly grounded.

Grounding must be in accordance with local
codes and ordinances, or in the absence of
local codes, in accordance with the National
Electrical Code ANSI/NFPA No. 70.

For a grounded, cord-connected electric dryer:

The dryer MUST be grounded. In the event of
a malfunction or breakdown, grounding will
reduce the risk of electrical shock by creating
a path of least resistance for electrical current.

If your dryer is equipped with a power supply
cord having an equipment-grounding conductor
and a grounding plug, the plug MUST be
plugged into an appropriate, copper-wired
receptacle that is properly installed and
grounded in accordance with all local codes and
ordinances. If in doubt, call a licensed electrician.

For a permanently-connected electric dryer:

■ The dryer MUST be connected to a grounded

metal, permanent wiring system; or an equipment­grounding conductor must be run with the circuit
conductors and connected to the equipment­grounding terminal or lead on the appliance.

For a cord-connected gas dryer:

■ This dryer is equipped with a three-prong
(grounding) plug for your protection against
shock hazard and should be plugged directly into
a properly grounded three-prong receptacle.
Do not cut or remove the grounding prong from
this plug.

2

1

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Grounding Requirements

Installing the dryer.

Read these instructions completely and carefully.

WARNING: The following are specific

requirements for proper and safe electrical
installation of your dryer. Failure to follow
these instructions can create electrical shock
and/or a fire hazard.

WARNING: This appliance MUST be

properly grounded. Electrical shock can result
if the dryer is not properly grounded. Follow
the instructions in this manual for proper
grounding.

WARNING: DO NOT use an extension

cord with this dryer. Some extension cords are
not designed to withstand the amounts of
electrical current this dryer utilizes and can
melt, creating electrical shock and/or fire
hazard. Locate the dryer within reach of the
wall outlet, taking into account the length
of power cord to be purchased and allowing
some slack in the cord. Refer to Electrical
Requirements in this manual for the proper
power cord to be purchased.

WARNING: A UL-approved strain

relief must be installed onto power cord. If the
strain relief is not attached, the cord can be pulled
out of the dryer and can be cut by any movement of
the cord, resulting in electrical shock.

WARNING: Use copper receptacles only.

NOTE: Dryers operating on 208-volt power supply will

have longer drying times than those operating on
240-volt power supply.

A wiring diagram is located inside the control panel.

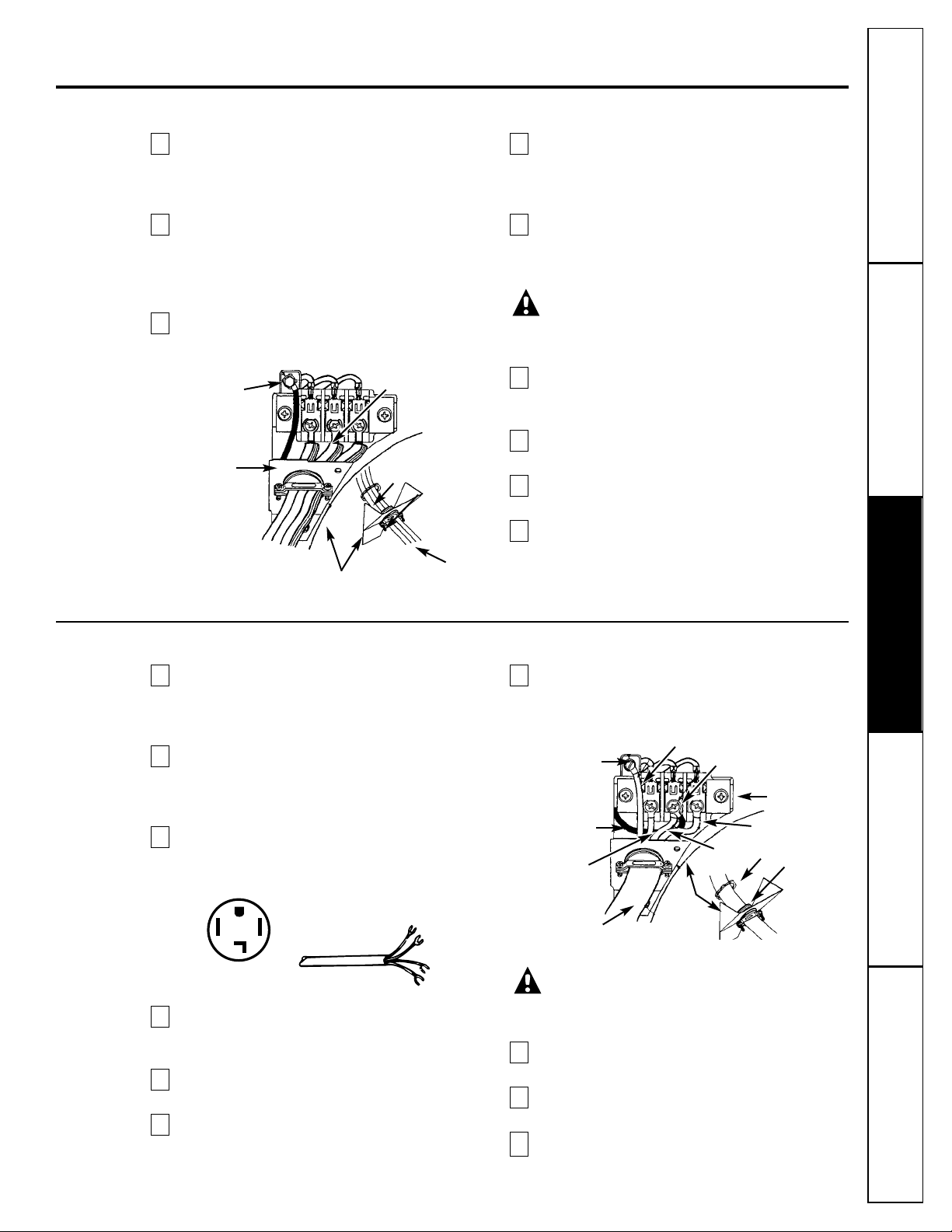

Electrical Installation for Electric Dryers

Remove the screws securing the terminal block
access cover and the strain relief mounting
bracket located on the back of the dryer
upper corner.

Install a UL-approved strain relief into the power
cord entry hole of the mounting bracket. Use
a strain relief which attaches to the mounting
bracket with a nut. Finger-tighten the nut only
at this time.

Thread a UL-approved 30A, 240V, 3 #10 AWG
minimum copper conductor power cord through
the strain relief.

Attach the power cord neutral (center wire)
conductor to the silver-colored center terminal
on the terminal block. Tighten the screw
securely.

Attach the remaining two power cord outer
conductors to the outer brass-colored terminals
on the terminal block. Tighten both screws
securely.

WARNING: Do not make a sharp

bend or crimp wiring/conductor at
connections.

Reattach the strain relief mounting bracket to
the back of the dryer with two screws. Tighten
screws securely.

Tighten the fasteners securing the cord restraint
firmly against the power cord.

Tighten the strain relief nut securely so that the
strain relief does not turn.

Reinstall the terminal block access cover.

9

8

7

6

5

4

3

2

1

4-Wire System for Electric Dryers—MUST be used for Mobile Home Installations

Remove the screws securing the terminal block
access cover and the strain relief mounting
bracket located on the back of the dryer
upper corner.

Install a UL-approved strain relief in the entry
hole of the mounting bracket. Use a strain relief
which attaches to the mounting bracket with a
nut. Finger-tighten the nut only at this time.

Remove the green neutral ground wire from
the green ground screw located above the
terminal block.

Thread a UL-approved 30A, 240V, 4 #10 AWG
minimum copper conductor power cord through
the strain relief.

Attach the green power cord ground wire to the
cabinet with the green ground screw.

Attach the white (neutral) power cord
conductor from the power cord and the green
ground wire from the dryer harness to the silver­colored center terminal on the terminal block.
Tighten the screw securely.

Attach the red and black power cord conductors
to the outer brass-colored terminals on the
terminal block.

WARNING: Do not make a sharp

bend or crimp wiring/conductor at the
connections.

Tighten the fasteners securing the cord

restraint firmly against the power cord.

Tighten the strain relief nut securely so the

strain relief does not turn.

Reinstall the terminal block access cover.

10

9

8

7

6

5

4

3

2

1

3-Wire System for Electric Dryers—DO NOT use for Mobile Home Installations

Green ground screw

Silver terminal

Nut

Tighten nut to
these threads

Power cord

Strain relief

mounting bracket

Green neutral
ground wire

Green ground
screw

Green neutral
ground wire

Red

White

Black

Terminal block

Silver terminal

Green power cord ground wire

Nut

Tighten nut to
these threads

Power cord

Strain
relief
mounting

bracket

Typical 4
conductor
receptacle

Black 240V

White neutral

Red 240V

Green ground

Typical
4 conductor cord

15

Use copper
conductors only.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

16

Remove the shipping cap from gas pipe at the
rear of the dryer.

NOTE: DO NOT connect the dryer to LP gas service
without converting the gas valve. An LP conversion
kit (Pub. No. 14-A038) MUST be installed by
a qualified gas technician.

Connect a 1/2″ (1.27 cm) I.D. semi-rigid
or approved pipe from gas supply line to
the 3/8″ (0.96 cm) pipe located on the back
of the dryer. Use a 1/2″ to 3/8″ (1.27 cm to

0.96 cm) reducer for a connection. Apply an
approved thread sealer that is resistant to the
corrosive action of liquefied gases on all pipe
connections.

Open the shutoff valve in the gas supply line.

Test all connections by brushing on a soapy
water solution.

WARNING: NEVER TEST FOR

GAS LEAKS WITH AN OPEN FLAME.

NOTE: On gas dryers, before the burner will light,

it is necessary for the gas line to be bled of air.
If the burner does not light within 45 seconds the
first time the dryer is turned on, the safety switch will
shut the burner off. If this happens, turn the timer
to OFF and wait 5 minutes before making another
attempt to light.

4

3

2

1

Before Operating the Dryer

Connect the exhaust duct to outside exhaust
system. Use duct tape to seal all joints.

With the dryer in its final position, adjust one or
more of the legs until the dryer is resting solidly
on all four legs. Place a level on top of the dryer.

THE DRYER MUST BE LEVEL AND RESTING
SOLIDLY ON ALL FOUR LEGS.

Plug the power cord into a grounded outlet.
NOTE: Check to ensure the power is off at circuit
breaker/fuse box before plugging the power
cord into the outlet.

Turn on the power at the circuit breaker/
fuse box.

CAUTION: Before operating the dryer,

make sure the dryer area is clear and free
from combustible materials, gasoline and
other flammable vapors. Also see that nothing
(such as boxes, clothing, etc.) obstructs the
flow of combustion and ventilation air.

Run the dryer through a cycle check for proper
operation.

If your dryer does not operate, please review the
Troubleshooting Tips section in this manual before
calling for service.

Place these instructions in a location near the
dryer for future reference.

7

6

5

4

3

2

1

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Gas Connection for Gas Dryers

Installing the dryer.

Read these instructions completely and carefully.

17

Reversing the Dryer Door Swing

Open the dryer door. Remove the 4 hinge hole
plugs or screws from the left side of door
opening. Place nearby for future installation.
NOTE: You may need a plastic knife to help pull
out the plugs. Be careful not to scratch the paint.

Remove the four screws that secure the door
hinges to the dryer front panel. NOTE: Remove
1 screw from each of the 2 hinges first. Hold the
door firmly before removing the last 2 screws.

Rotate the door 180° and reinstall the door
hinges to the dryer front panel with the 4 screws.

Install the 4 hinge hole plugs or screws that were
removed in step 1 into the open screw holes on
the right side of the door opening.

4

3

2

1

Replacement Parts

If replacement parts are needed for your dryer, visit
Hotpoint.com, or call GE Parts and Accessories
at 800.626.2002 or contact an authorized parts
supplier.

WARNING: Destroy the carton

and plastic bags after the dryer is unpacked.
Children might use them for play. Cartons
covered with rugs, bedspreads or plastic sheets
can become airtight chambers causing
suffocation. Place all materials in a garbage
container or make materials inaccessible
to children.

WARNING: The instructions in the

manual and all other literature included with
this dryer are not meant to cover every possible
condition and situation that may occur. Good
safe practice and caution MUST be applied
when installing, operating and maintaining
any appliance.

Remove 4 screws—one from each hinge first

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Problem Possible Causes What To Do

Dryer doesn’t start Dryer is unplugged • Make sure the dryer plug is pushed completely into

the outlet.

Fuse is blown/circuit breaker • Check the household Distribution Panel fuse/circuit
is tripped breaker box in your home, and replace fuse or reset

breaker. NOTE: Electric dryers use two fuses or breakers.

Thermal limiter tripped • Check the vent for any obstructions. Call authorized

service person for replacement if necessary.

Dryer doesn’t heat Fuse is blown/circuit breaker • Check the fuse/circuit breaker box in your home,

is tripped; the dryer may tumble and replace both fuses or reset both breakers.
but not heat Your dryer may tumble if only one fuse is blown or

one breaker tripped.

Gas service is off • Make sure gas shutoff at dryer and main shutoff are

fully open.

LP gas supply tank is empty • Refill or replace tank. Dryer should heat when utility
or there has been a utility service is restored.
interruption of natural gas
(gas models)

Dryer shakes or Some shaking/noise is normal. • Move dryer to an even floor space, or adjust leveling legs
makes noise Dryer may be sitting unevenly as necessary until even.

Greasy spots on clothes Improper use of fabric softener • Follow directions on fabric softener package.

Drying dirty items with • Use your dryer to dry only clean items. Dirty items can
clean ones stain clean items and the dryer.

Clothes were not • Sometimes stains which cannot be seen when the
completely clean clothes are wet appear after drying. Use proper washing

procedures before drying.

Lint on clothes Lint filter is full • Clean lint screen before each load.

Improper sorting • Sort lint producers (like chenille) from lint collectors

(like corduroy).

Static electricity can attract lint • See suggestions in this section under STATIC.

Overloading • Separate large loads into smaller ones.

Paper, tissue, etc. left in pockets • Empty all pockets before laundering clothes.

Static occurs No fabric softener was used • Try a fabric softener.

• Bounce®Fabric Conditioner Dryer Sheets have been

approved for use in all GE Dryers when used in
accordance with the manufacturer’s instructions.

Overdrying • Try a fabric softener.

• Adjust controls to LESS DRY.

Synthetics, permanent press • Try a fabric softener.
and blends can cause static

Troubleshooting Tips
Save time and money! Review the charts on the following pages, or
visit Hotpoint.com. You may not need to call for service.

18

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Before you call for service…

19

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Hotpoint.com

Problem Possible Causes What To Do

Inconsistent Type of heat • Automatic drying times will vary according to the type
drying times of heat used (electric, natural or LP gas), size of load,

types of fabrics, wetness of clothes and condition of
exhaust ducts.

Clothes take Improper sorting • Separate heavy items from lightweight items (generally,
too long to dry a well-sorted washer load is a well-sorted dryer load).

Large loads of heavy fabrics • Large, heavy fabrics contain more moisture and take
(like beach towels) longer to dry. Separate large, heavy fabrics into smaller

loads to speed drying time.

Controls improperly set • Match control settings to the load you are drying.

Lint filter is full • Clean lint filter before every load.

Improper or obstructed ducting •Check installation instructions for proper

ducting/venting.

• Make sure ducting is clean, free of kinks and

unobstructed.

• Check to see if outside wall damper operates easily.

• Check the Installation Instructions to make sure the

dryer venting is correct.

Blown fuses or tripped •Replace fuses or reset circuit breakers. Since most dryers
circuit breaker use 2 fuses/breakers, make sure both are operating.

Overloading/combining loads • Do not put more than one washer load in the dryer

at a time.

Underloading • If you are drying only one or two items, add a few items

to ensure proper tumbling.

Clothes are wrinkled Overdrying • Select a shorter drying time.

• Remove items while they still hold a slight amount of

moisture. Select a LESS DRY setting.

Letting items sit in dryer •Remove items when cycle ends and fold or hang
after cycle ends immediately.

Clothes shrink Some fabrics will naturally shrink • To avoid shrinkage, follow garment care labels exactly.

when washed. Others can be
safely washed, but will shrink

• Some items may be pressed back into shape after drying.

in the dryer

• If you are concerned about shrinkage in a particular

item, do not machine wash or tumble dry it.

20

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Notes.

General Electric Company

Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150

GE Service Protection Plus

™

GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus

™

—comprehensive protection on all your appliances—

No Matter What Brand!

Benefits Include:

• Backed by GE

• All brands covered

• Unlimited service calls

• All parts and labor costs included

• No out-of-pocket expenses

• No hidden deductibles

• One 800 number to call

You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It’s that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!
Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224
for more information.

*All brands covered, up to 20 years old, in the continental U.S.

We’ll Cover Any Appliance.
Anywhere. Anytime.*

Please place in envelope and mail to:

✁

Cut here

21

Consumer Product Ownership Registration

I

m

p

o

r

t

a

n

t

M

a

i

l

T

o

d

a

y

!

General Electric Company
Louisville, Kentucky
GEAppliances.com

First

Name

Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■

Street

Address

City

State

Date Placed

In Use

Month

Day

Year

Zip

Code

Apt. #

Last

Name

Phone

Number

_

_

Consumer Product Ownership Registration

Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

Important: If you did not get a registration card with your

product, detach and return the form below to
ensure that your product is registered, or register
online at Hotpoint.com.

1

23

Model Number Serial Number

✁

Cut here

Complete and mail
your Consumer
Product Ownership
Registration today.

Have the peace of
mind of knowing we
can contact you in
the unlikely event of
a safety modification.

After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is

800.GE.CARES
(800.432.2737).

Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.

Model Number Serial Number

E-mail Address*

22

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important

communications from GE Appliances (GEA).

■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.

23

For The Period Of: We Will Replace:

One Year Any part of the dryer which fails due to a defect in materials or workmanship. During this

From the date of the full one-year warranty, we will also provide, free of charge, all labor and in-home service to
original purchase replace the defective part.

■ Service trips to your home to teach you how to use

the product.

■ Improper installation.

■ Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

■ Replacement of house fuses or resetting of circuit

breakers.

■ Damage to the product caused by accident, fire, floods

or acts of God.

■ Incidental or consequential damage caused by possible

defects with this appliance.

What Is Not Covered:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Hotpoint Dryer Warranty.

All warranty service provided by our Factory Service Centers,
or an authorized Customer Care

®

technician. To schedule
service, on-line, 24 hours a day, visit us at Hotpoint.com,
or call 800.GE.CARES (800.432.2737).

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

Printed in the United States

Consumer Support.

Hotpoint Website

Hotpoint.com

Have a question or need assistance with your appliance? Try the Hotpoint Website 24 hours a day,
any day of the year! You can also shop for more great Hotpoint products and take advantage of
all of our on-line support services designed for your convenience.

Schedule Service Hotpoint.com

Expert Hotpoint repair service is only one step away from your door. Get on-line and schedule your service
at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal
business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please
call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a Hotpoint extended warranty and learn about special discounts that are available while your
warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business
hours. Hotpoint Consumer Home Services will still be there after your warranty expires.

Parts and Accessories Hotpoint.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.

Contact Us Hotpoint.com

If you are not satisfied with the service you receive from Hotpoint, contact us on our Website with all the
details including your phone number, or write to: General Manager, Customer Relations

Hotpoint, Appliance Park
Louisville, KY 40225

Register Your Appliance Hotpoint.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.
