Hotpoint KIC 633 C User Manual

KIC 644 C KIC 633 C

English

EnglishEnglish

Operating Instructions

HOB Contents

Operating Instructions,1 WARNING,2 Description of the appliance-Control Panel,5 Installation,8 Start-up and use,10 Precautions and tips,14 Care and maintenance,15 Technical description of the models,15

Français

Mode d’emploi Manutenção e cuidados

TABLE DE CUISSON

Sommaire

Mode d’emploi,1 ATTENTION,2 Description de l’appareil-Tableau de bord, 5 Installation,16 Mise en marche et utilisation,18 Précautions et conseils, 22 Nettoyage et entretien,23 Description technique des modeles,23

Polski

Instrukcja obsługi

PŁYTA GRZEJNA Spis treści

Instrukcja obsługi,1 UWAGA,3 Opis urządzenia-Panel sterowania,6 Instalacja,32 Uruchomienie i użytkowanie,34 Zalecenia i środki ostrożności,38 Konserwacja i utrzymanie,39 Opis Techniczny,39

РусскийРусский

Русский

Руководство по эксплуатации

ВАРОЧНАЯ ПАНЕЛЬ

Содержание

Руководство по эксплуатации,1 ВНИМАНИЕ,4 Описание изделия-Панель управления,7 Монтаж,40 Bарочная панель,42 Предосторожности и рекомендации,46 Техническое обслуживание и уход,47 Техническое обслуживание,48

Italiano

Istruzioni per l’uso

PIANO COTTURA Sommario

Istruzioni per l’uso,1 ATTENZIONE,3 Descrizione dell’apparecchio- Pannello di controllo,6 Installazione, 24 Avvio e utilizzo,26 Precauzioni e consigli,30 Manutenzione e cura,31 Descrizione tecnica dei modelli,31

Қазақша

Пайдалану нұсқаулығы

ПЛИТА Мазмұны

Пайдалану нұсқаулығы, 1 ЕСКЕРТУ, 4 Құрылғы сипаттамасы-Басқару тақтасы, 7 Орнату, 49 Қосу және пайдалану, 51 Сақтандырулар мен кеңестер, 55 Күтім көрсету және техникалық қызмет көрсету, 56 Модельдерді техникалық сипаттамасы, 56

WARNING!

ATTENTION !

• WARNING: The appliance and

its accessible parts become hot during use.

• Care should be taken to avoid

touching heating elements.

• Children less than 8 years of

age shall be kept away unless continuously supervised.

• This appliance can be used by

children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• WARNING: Unattended cooking

on a hob with fat or oil can be dangerous and may result in fire.

• NEVER try to extinguish a fire with

water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• WARNING: Danger of fire: do

not store items on the cooking surfaces.

• WARNING: If the surface in glass-

ceramic is cracked, switch off the appliance to avoid the possibility of electric shock.

•Never use steam cleaners

or pressure cleaners on the appliance.

•The appliance is not intended to be

operated by means of an external timer or separate remote control system.

• Do not place metal objects (knives,

spoons, pan lids, etc.) on the hob as they may become hot.

• After use, switch off the hob

element by its control and do not rely on the pan detector.

• ATTENTION : cet appareil ainsi que

ses parties accessibles deviennent très chauds pendant leur fonctionnement.

• Il faut faire attention de ne pas toucher

les éléments chauffants.

•Ne laisser s’approcher les enfants de

moins de 8 ans à moins qu’ils ne soient sous surveillance constante.

• Le présent appareil peut être utilisé par

des enfants de plus de 8 ans et par des personnes présentant des capacités physiques, sensorielles ou mentales réduites ou n’ayant pas l’expérience ou les connaissances nécessaires, à condition qu’ils soient sous bonne surveillance ou qu’ils aient reçu les instructions nécessaires pour une utilisation de l’appareil en toute sécurité et à condition qu’ils se rendent compte des dangers encourus. Les enfants ne doivent pas jouer avec l’appareil. Les opérations de nettoyage et d’entretien ne doivent pas être effectuées par des enfants non surveillés.

• ATTENTION : laisser un récipient de

cuisson contenant de l’huile ou de la graisse sur le foyer est dangereux et risque d’entraîner un incendie

• Il ne faut JAMAIS essayer d’éteindre une

flamme ou un incendie avec de l’eau ! Il faut éteindre l’appareil et couvrir la flamme avec un couvercle, par exemple, ou avec une couverture anti-feu.

• ATTENTION : risque d’incendie : ne

pas laisser d’objets sur les surfaces de cuisson.

• ATTENTION : si la surface vitrocéramique

est fêlée, éteindre l’appareil afin d’éviter tout risque d’électrocution.

• Ne jamais nettoyer l’appareil avec des

nettoyeurs vapeur ou haute pression.

•Cet appareil ne peut pas être allumé au

moyen d’un temporisateur extérieur ou d’un système de commande à distance

séparé.

• Ne pas poser d’objets métalliques

(couteaux, cuillères, couvercles, etc.) sur la table car ils risquent de devenir brûlants.

• Après utilisation, éteindre la table de

cuisson à l’aide de son dispositif de commande et ne pas se fier uniquement à son détecteur de casserole.

ATTENZIONE!

UWAGA !

• ATTENZIONE: Questo apparecchio e

le sue parti accessibili diventano molto caldi durante l’uso.

• Bisogna fare attenzione ed evitare di

toccare gli elementi riscaldanti.

• Tenere lontani i bambini inferiori agli 8

anni se non continuamente sorvegliati.

• Il presente apparecchio puo’ essere

utilizzato dai bambini a partire dagli 8 anni e da persone con ridotte capacita’ fisiche, sensoriali o mentali oppure con mancanza di esperienza e di conoscenza se si trovano sotto adeguata sorveglianza oppure se sono stati istruiti circa l’uso dell’apparecchio in modo sicuro e se si rendono conto dei pericoli correlati. I bambini non devono giocare con l’apparecchio. Le operazioni di pulizia e di manutenzione non devono essere effettuate dai bambini senza sorveglianza.

• ATTENZIONE: Lasciare un fornello

incustodito con grassi e olii puo’ essere pericoloso e puo’ provocare un incendio.

• Non bisogna MAI tentare di spegnere

una fiamma/incendio con acqua, bense bisogna spegnere l’apparecchio e coprire la fiamma per esempio con un coperchio o con una coperta ignifuga

•ATTENZIONE: Rischio di incendio:

non lasciare oggetti sulle superfici di cottura.

•ATTENZIONE: Se la superficie

vetroceramica e’ incrinata, spegnere l’apparecchio per evitare la possibilit? di scossa elettrica.

•Non utilizzare mai pulitori a vapore

o ad alta pressione per la pulizia dell’apparecchio.

•L’apparecchio non e’ destinato a

essere messo in funzione per mezzo di un temporizzatore esterno oppure di un sistema di comando a distanza

separato.

•Non posare oggetti metallici (coltelli,

cucchiai, coperchi, ecc.) sul piano perche’ possono diventare caldi.

•Dopo l’uso, spegnere il piano cottura

per mezzo del suo dispositivo di comando e non fare affidamento sul rivelatore di pentole.

• UWAGA: To urządzenie oraz jego

dostępne części silnie się rozgrzewają podczas użytkowania.

• Należy uważać, aby nie dotknąć

elementów grzejnych.

• Nie pozwalać, aby dzieci poniżej 8 roku

życia zbliżały się do urządzenia, jeśli nie są pod stałym nadzorem dorosłych.

• Z niniejszego urządzenia mogą

korzystać dzieci powyżej 8 roku życia i osoby o ograniczonych

zdolnościach ﬁ zycznych, zmysłowych bądź umysłowych, jak również osoby nieposiadające doświadczenia lub znajomości urządzenia, jeśli znajdują się one pod nadzorem innych osób lub jeśli zostały pouczone na temat bezpiecznego sposobu użycia urządzenia oraz zdają sobie sprawę ze związanych z nim zagrożeń. Dzieci nie powinny bawić się urządzeniem. Prace związane z czyszczeniem i konserwacją nie mogą być wykonywane przez dzieci, jeśli nie są one nadzorowane.

• UWAGA: Pozostawienie bez nadzoru

na kuchence tłuszczów i olejów może być niebezpieczne i może spowodować pożar.

• Nie należy NIGDY próbować ugasić

płomieni/pożaru wodą; należy wyłączyć urządzenie i przykryć płomień np. pokrywką lub ognioodpornym kocem.

• UWAGA: Ryzyko pożaru: nie

pozostawiać przedmiotów na powierzchniach grzejnych.

• UWAGA: Jeżeli powierzchnia ze szkła

ceramicznego jest pęknięta, należy wyłączyć urządzenie, aby uniknąć niebezpieczeństwa porażenia prądem elektrycznym.

•Nie stosować nigdy oczyszczaczy

parowych lub ciśnieniowych do czyszczenia urządzenia.

• Urządzenie nie jest przeznaczone do

włączania przy użyciu zewnętrznego przekaźnika czasowego lub zdalnego systemu sterowania

• Po użyciu, należy wyłączyć płytę

grzejną przy użyciu jej sterownika, nie polegając na wykrywaczu obecności naczyń.

• Na płycie nie należy kłaść metalowych

przedmiotów (noży, łyżek, pokrywek itp.), ponieważ mogą rozgrzać.

ВНИМАНИЕ

• ВНИМАНИЕ: Данное изделие и

его доступные комплектующие сильно нагреваются в процессе эксплуатации.

• Будьте осторожны и не касайтесь

нагревательных элементов.

• Не разрешайте детям младше 8

лет приближаться к изделию без контроля.

• Данное изделие может быть

использовано детьми старше 8 лет и лицами с ограниченными физическими, сенсорными или умственными способностями или без опыта и знания о правилах использования изделия при условии надлежащего контроля или обучения безопасному использованию изделия с учетом соответствующих рисков. Не разрешайте детям играть с изделием. Не разрешайте детям осуществлять чистку

и уход за

изделием без контроля взрослых.

• ВНИМАНИЕ: Опасно оставлять

включенную конфорку с маслом или жиром без присмотра, так как это может привести к пожару.

• НИКОГДА не пытайтесь погасить

пламя/пожар водой. Прежде всего выключите изделие и накройте

пламя крышкой или огнеупорной тканью.

• ВНИМАНИЕ: Опасность пожара: не

оставляйте предметов на варочных поверхностях.

•ВНИМАНИЕ:

Еслстеклокерамическая поверхность варочной панели треснула, выключите ее во избежание ударов током.

• Никогда не используйте паровые

чистящие агрегаты или агрегаты под высоким давлением для чистки изделия.

• Изделие не рассчитано на

влючение посредством внешнего синхронизатора или отдельной

системы дистанционного управления.

• Не кладите металлические

предметы (ножи, ложки, крышки и т.д.) на варочную панель, так как они могут сильно нагреться.

• После использования выключите

варочную панель при помощи специальной рукоятки, не полагаясь на сенсор обнаружения посуды.

Қазақша

ЕСКЕРТУ!

• ЕСКЕРТУ: Құрылғы мен оның қол жететін

•

бөліктері жұмыс кезінде қызуы мүмкін.

•

• Қыздыру элементтеріне тимеуге назар аударыңыз.

• 8-ге толмаған балаларға үздіксіз бақылау

•

болмаса, құрылғыдан аулақ ұстау керек.

• Бұл құрылғыны қауіпсіз түрде қолдану

•

бойынша кеңес не нұсқау берілген және ықтимал қауіп-қатерлерді түсінетін жағдайда, оны 8-ге толған балалар мен дене, сезіну немесе ой қабілеті төмен немесе тәжірибесі мен білімі жеткіліксіз адамдар қолдана алады. Балаларға құрылғымен ойнауға болмайды. Балаларға бақылаусыз құрылғыны тазалауға және оған қызмет көрсетуге болмайды.

• ЕСКЕРТУ: Плитада майға тамақ пісірген

•

кезде бақылап тұрмау қауіпті болуы және өрт шығуға әкелуі мүмкін.

• Өртті ЕШҚАШАН сумен өшіруші болмаңыз,

•

оның орнына құрылғыны өшіріп, жалынды жабыңыз, мысалы қақпақпен немесе өртенбейтін матамен.

• ЕСКЕРТУ: Өрт қаупі бар: пісіру беттерінде

•

заттарды сақтамаңыз.

• ЕСКЕРТУ: Шыны мен керамикадан

•

жасалған бет шатынаған болса, тоқ соғу мүмкіндігінің алдын алу үшін құрылғыны өшіріңіз.

• Құрылғыда ешқашан бу тазартқышты

•

немесе шаңсорғышты пайдаланбаңыз.

• Құрылғы сыртқы таймермен немесе бөлек

•

қашықтан басқару жүйесімен басқарылуға арналмаған.

• Металл заттарды (пышақтар, қасықтар,

•

таба қақпақтары, т.б.) конфоркаға қоймаңыз, себебі олар қызып кетуі мүмкін.

• Пайдаланғаннан кейін плитаны басқару

•

элементінің көмегімен өшіріңіз, таба детекторына сенбеңіз.

3 5

13 1

9 10

Booster

The control panel described in this manual is only a representative example: it may not exactly match the panelon your appliance.

Description of the appliance

Control panel

1 INCREASE POWER button switches on the hotplate

and controls the power (see Start-up and use).

2 REDUCE POWER button controls the power and

switches off the hotplate (see Start-up and use).

3 COOKING ZONE SELECTOR indicator shows a

particular cooking zone has been selected and therefore various adjustments are possible.

4 COOKING ZONE SELECTOR button is used to

select the desired cooking zone.

5 POWER indicator provides a visual display for the

current heat level.

6 ON/OFF button switches the appliance on and off. 7 ON/OFF indicator light shows whether the appliance

is on or off.

8 PROGRAMME TIMER* button controls the cooking

programme times (see Start-up and use).

9 PROGRAMME TIMER* display shows which

programme has been selected (see Start-up and use).

10 COOKING ZONE PROGRAMMED* indicator lights

show which cooking zones are being used during a cooking programme (see Start-up and use).

11 CONTROL PANEL LOCK button prevents

accidental changes to the hob settings (see Start-up and use).

12 CONTROL PANEL LOCK indicator light shows the

control panel has been locked (see Start-up and use).

13 BOOSTER button* activates the booster

function - 3000 W - of the cooking zone (see Start-up and use).

14 BOOSTER indicator light* shows that the

booster function has been activated.

15 TIMER* indicator light shows that the timer has been

activated

! This product complies with the requirements of the latest European Directive on the limitation of power consumption of the standby mode. If no operations are carried out for a period of 2 minutes, after the residual heat indicator lights turn off and the fan stops (if present), the appliance automatically switches to the .off mode.. The appliance resumes the operating mode once the ON/OFF button is pressed.

Le tableau de bord qui est décrit n.a qu.une valeur d.exemple :

il peut ne pas correspondre au modèle acheté

Description de l’appareil

Tableau de bord

1 Touche AUGMENTATION DE PUISSANCE pour

allumer le foyer et régler sa puissance (voir Mise en marche et utilisation).

2 Touche DIMINUTION DE PUISSANCE pour régler la

puissance et éteindre le foyer (voir Mise en marche et utilisation).

3 Voyant FOYER SELECTIONNE pour signaler que

le foyer correspondant a été sélectionné et que les régulations sont donc possibles.

4 Touche SELECTION FOYER pour sélectionner le

foyer souhaité

5 Indicateur de PUISSANCE : une colonne lumineuse

pour signaler le niveau de puissance atteint.

6 Touche ON/OFF pour allumer ou éteindre l’appareil. 7 Voyant ON/OFF : il signale si l’appareil est allumé ou

éteint.

8 Touche PROGRAMMATEUR* pour programmer

la durée d’une cuisson (voir Mise en marche et Utilisation).

9 Afficheur PROGRAMMATEUR* : pour afficher les

choix correspondant à la programmation (voir Mise en marche et utilisation).

10 Voyants FOYER PROGRAMMÉ* : ils indiquent les

foyers quand une programmation est lancée (voir Mise en marche et utilisation).

11 Touche VERROUILLAGE DES COMMANDES

pour empêcher toute intervention extérieure sur les réglages de la table de cuisson (voir Mise en marche et Utilisation).

12 Voyant COMMANDES VERROUILLEES : pour

signaler le verrouillage des commandes (voir Mise en marche et Utilisation).

13 Touche BOOSTER* pour brancher la suralimentation

- 3000 W – du foyer (voir Mise en marche et utilisation).

14 Voyant BOOSTER* il signale que la fonction de

suralimentation du booster est activée.

15 Voyant MINUTEUR* il signale que le minuteur est

activé

! Ce produit est conforme à la nouvelle Directive Européenne sur la réduction de la consommation d’énergie en mode standby. Sans opérations pendant 2 minutes, après l’extinction des voyants de chaleur résiduelle et l’arrêt du ventilateur (si existants), l’appareil se place automatiquement en “off mode”. Pour remettre l’appareil en mode de fonctionnement normal, appuyer sur la touche ON/OFF.

3 5

13 1

9 10

Booster

Descrizione dell’apparecchio

Pannello di controllo

Il pannello di controllo che qui viene descritto è rappresentato a fini esemplificativi: può non essere una esatta riproduzione del modello acquistato.

1 Tasto AUMENTO POTENZA per accendere la

piastra e regolare la potenza (vedi Avvio e utilizzo).

2 Tasto DIMINUZIONE POTENZA per regolare la

potenza e spegnere la piastra (vedi Avvio e utilizzo).

3 Spia ZONA DI COTTURA SELEZIONATA indica

che la zona di cottura relativa è stata selezionata e quindi sono possibili le varie regolazioni

4 Tasto SELEZIONE ZONA DI COTTURA per

selezionare la zona di cottura desiderata

5 Indicatore POTENZA: segnala visivamente il livello

di calore raggiunto.

6 Tasto ON/OFF per accendere e spegnere

l’apparecchio.

7 Spia ON/OFF: segnala se l’apparecchio è acceso o spento. 8 Tasto TIMER DI PROGRAMMAZIONE* per regolare

la programmazione della durata di una cottura (vedi Avvio e utilizzo).

9 Display TIMER DI PROGRAMMAZIONE*: visualizza

le scelte relative alla programmazione (vedi Avvio e utilizzo).

10 Spie ZONA DI COTTURA PROGRAMMATA*:

indicano le zone di cottura quando si avvia una programmazione (vedi Avvio e utilizzo).

11 Tasto BLOCCO DEI COMANDI per impedire

modifiche fortuite alle regolazioni del piano cottura (vedi Avvio e utilizzo).

12 Spia COMANDI BLOCCATI: segnala l’avvenuto

blocco dei comandi (vedi Avvio e utilizzo).

13 Tasto BOOSTER* per accendere la

sovralimentazione - 3000 W - della zona di cottura (vedi Avvio e utilizzo).

14 Spia BOOSTER* indica che è attiva la funzione di

sovralimentazione booster

15 Spia CONTAMINUTI* indica che è attivo il

contaminuti

! Questo prodotto soddisfa i requisiti imposti dalla nuova Direttiva Europea sulla limitazione dei consumi energetici in standby. Se non si eseguono operazioni per 2 minuti, dopo lo spegnimento delle spie di calore residuo e della ventola (ove presenti), l’apparecchio si dispone automaticamente in modalità “off mode”. L’apparecchio ritorna in modalità operativa agendo sul tasto ON/OFF.

Presente solo in alcuni modelli.

Opis urządzenia

Panel sterowania

Opisany tu panel sterowania jest przedstawiony jako przykład: nie musi być dokładnie taki sam, jak panel zainstalowany w zakupionym urządzeniu. 1 Przycisk ZWIEKSZENIA MOCY do wlaczania

plyty i do regulacji mocy (patrz Uruchomienie i uzytkowanie).

2 Przycisk ZMNIEJSZENIA MOCY do regulacji

mocy i do wylaczania plyty (patrz Uruchomienie i uzytkowanie).

3 Kontrolka WYBRANEGO POLA GRZEJNEGO

wskazuje, ze dane pole grzejne zostalo wybrane, a wiec mozliwe sa rózne regulacje

4 Przycisk WYBORU POLA GRZEJNEGO do wybrania

zadanego pola grzejnego.

5 Wskaźnik MOCY: wizualnie sygnalizuje osiągnięty

poziom ciepła.

6 Przycisk ON/OFF do wlaczania i wylaczania

urzadzenia.

7 Kontrolka ON/OFF: sygnalizuje, czy urzadzenie jest

wlaczone, czy wylaczone.

8 Przycisk REGULATORA CZASOWEGO

PROGRAMOWANIA* do regulacji programowania czasu trwania gotowania (patrz Uruchomienie i uzytkowanie).

9 Wyswietlacz REGULATORA CZASOWEGO

PROGRAMOWANIA*: wyswietla dane dotyczace programowania (patrz Uruchomienie i uzytkowanie).

10 Kontrolki ZAPROGRAMOWANEGO POLA

GRZEJNEGO*: wskazuja pola grzejne przy rozpoczynaniu programowania (patrz Uruchomienie i uzytkowanie).

11 Przycisk BLOKADY STEROWANIA do zapobiegania

przypadkowym zmianom parametrów przy regulacji plyty grzejnej (patrz Uruchomienie i uzytkowanie).

12 Kontrolka BLOKADY STEROWANIA : sygnalizuje

zablokowanie sterowania (patrz Uruchomienie i uzytkowanie).

13 Przycisk BOOSTER* służy aby dojść do

doładowania – 3000 W – strefy gotowania (patrz Uruchomienie i użytkowanie).

14 Wskaźnik BOOSTER* wskazuje, że włączona jest

funkcja doładwania booster.

15 Kontrolka MINUTNIKA* wskazuje, ze minutnik jest

wlaczony ! Ten produkt spełnia wymogi dyrektywy wspólnotowej dotyczącej ograniczenia zużycia energii w trybie czuwania.

Jeśli przez 2 minuty nie są wykonywane żadne operacje, po wyłączeniu wskaźnika ciepła resztkowego i wentylatora (jeśli obecne), urządzenie automatycznie przechodzi w tryb „off mode”. Urządzenie powraca do trybu aktywnego po naciśnięciu przycisku ON/OFF.

Znajduje siê tylko w niektórych modelach.

3 5

13 1

9 10

Booster

Панель управления, описание которои приводится ниже, служит только в качестве примера: она может не в точности соответствовать Вашеи модели

1 Кнопка УВЕЛИЧЕНИЕ МОЩНОСТИ служит для

Описание изделия

Панель управления

включения варочнои зоны и регуляции мощности нагрева (см. Включение и эксплуатация).

2 Кнопка УМЕНЬШЕНИЕ МОЩНОСТИ служит для

регуляции мощности и выключения варочнои зоны (см. Включение и эксплуатация).

3 Индикатор ВЫБРАННАЯ ВАРОЧНАЯ ЗОНА

показывает, что соответствующая варочная зона была выбрана и следовательно возможно произвести настроики ее функции.

4 Кнопка ВЫБОР ВАРОЧНОИ ЗОНЫ служит для

выбора нужнои варочнои зоны.

5 Индикатор МОЩНОСТЬ: показывает уровень

нагрева.

6 Кнопка ON/OFF (ВКЛ./ВЫКЛ.) служит для

включения и выключения изделия.

7 Индикатор ON/OFF (ВКЛ./ВЫКЛ.): показывает

состояние изделия, включено или выключено.

8 Кнопка ТАИМЕР ПРОГРАММИРОВАНИЯ* служит

для настроики продолжительности приготовления

(см. Включение и эксплуатация).

9 Дисплеи ТАИМЕРА ПРОГРАММИРОВАНИЯ*:

показывает различные настроики программирования (см. Включение и

эксплуатация

10 Индикаторы ЗАПРОГРАММИРОВАННЫЕ

ВАРОЧНЫЕ ЗОНЫ*: показывают варочные зоны

после запуска программирования ( см. Включение и эксплуатация).

11 Кнопка БЛОКИРОВКА УПРАВЛЕНИИ служит

для защиты управлении варочнои панели от случаиных измнении (см. Включение и

эксплуатация).

12 Индикатор УПРАВЛЕНИЯ ЗАБЛОКИРОВАНЫ

показывает, что управления

заблокированы ( см.

Включение и эксплуатация).

13 Кнопка BOOSTER* служит для включения

дополнительного электропитания – 3000 Вт – индукционной конфорки (см. Включение и

эксплуатация).

14 Индикатор BOOSTER* показывает, что

функция вольтодобавочного устройства включена.

15 Индикатор ТАИМЕР* показывает, что таимер

включен

! Данное изделие отвечает требованиям новой Европейской Директивы по ограничению энергопотребления в режиме энергосбережения.

Если в течение 2-х минут не производится никаких действий после выключения индикаторов остаточного тепла и вентилятора (если они присутствуют), изделие автоматически переходит в режим «ВЫКЛ.». Возврат изделия в рабочий режим производится кнопкой ВКЛ./ВЫКЛ.

Имеется только в некоторых моделях.

Құрылғы сипаттамасы

1 ҚУАТТЫ АРТТЫРУтүймесіконфорканықосады

2 ҚУАТТЫ АЗАЙТУтүймесіқуаттыбасқарадыжәне

3 ПІСІРУ АЙМАҒЫН ТАҢДАУ индикаторы

4 ПІСІРУ АЙМАҒЫН ТАҢДАУтүймесіқажеттіпісіру

5 ҚУАТ индикаторыағымдағықызудеңгейін

6 ҚОСУ/ӨШІРУ түймесіқұрылғынықосадыжәне

7 ҚОСУ/ӨШІРУиндикаторшамықұрылғы

8 БАҒДАРЛАМА ТАЙМЕРІ* түймесіпісіру

9 БАҒДАРЛАМА ТАЙМЕРІ* дисплейіқай

10БАҒДАРЛАМАЛАНҒАН ПІСІРУ АЙМАҒЫ*

11БАСҚАРУ ТАҚТАСЫНЫҢ ҚҰЛПЫтүймесіплита

12БАСҚАРУ ТАҚТАСЫНЫҢ ҚҰЛПЫ индикатор

13КҮШЕЙТКІШ түймесі*пісіруаймағыныңкүшейткіш

14КҮШЕЙТКІШ индикаторшамы*күшейткіш

15ТАЙМЕР*индикаторшамытаймерқосылғанын

Тек

Басқару тақтасы

жәнеқуаттыбасқарады(«Қосу және пайдалану» бөлімін қараңыз).

конфорканыөшіреді(«Қосу және пайдалану» бөлімін қараңыз).

таңдалғанбелгілібірпісіруаймағынкөрсетеді жәнесондықтанәртүрліреттеумүмкін.

аймағынтаңдауүшінпайдаланылады.

көрсетеді.

өшіреді.

қосылғаныннемесеөшірілгенінкөрсетеді.

бағдарламаларыныңуақыттарынбасқарады («Қосу және пайдалану» бөлімін қараңыз).



бағдарламатаңдалғанынкөрсетеді(«Қосу және пайдалану» бөлімін қараңыз).

индикаторшамдарыпісірубағдарламасы барысындақайпісіруаймағықолданыстаекенін көрсетеді(«Қосу және пайдалану» бөлімін қараңыз).

параметрлерінебайқаусызөзгерісенгізуге жолбермейді(«Қосу және пайдалану»бөлімін қараңыз).

шамыбасқарутақтасыныңқұлыпталғанын көрсетеді(«Қосу және пайдалану» бөлімін қараңыз).

функциясынқосады-3000Вт(«Қосу және пайдалану» бөлімін қараңыз).

функциясықосылғанынкөрсетеді.

көрсетеді

кейбірмодельдердеболады.



Installation

Before operating your new appliance please read

this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance.

Please keep these operating instructions for future

reference. Pass them on to any new owners of the appliance.

Positioning

Keep all packaging material out of the reach of children. It may present a choking or suffocation hazard (see Precautions and tips).

The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

Built-in appliance

Use a suitable cabinet to ensure that the appliance functions properly.

• The supporting surface must be heat-resistant up to

a temperature of approximately 100°C.

• If the appliance is to be installed above an oven,

the oven must be equipped with a forced ventilation cooling system.

• Avoid installing the hob above a dishwasher: if this

cannot be avoided, place a waterproof separation device between the two appliances.

• Depending on the hob you want to install, the

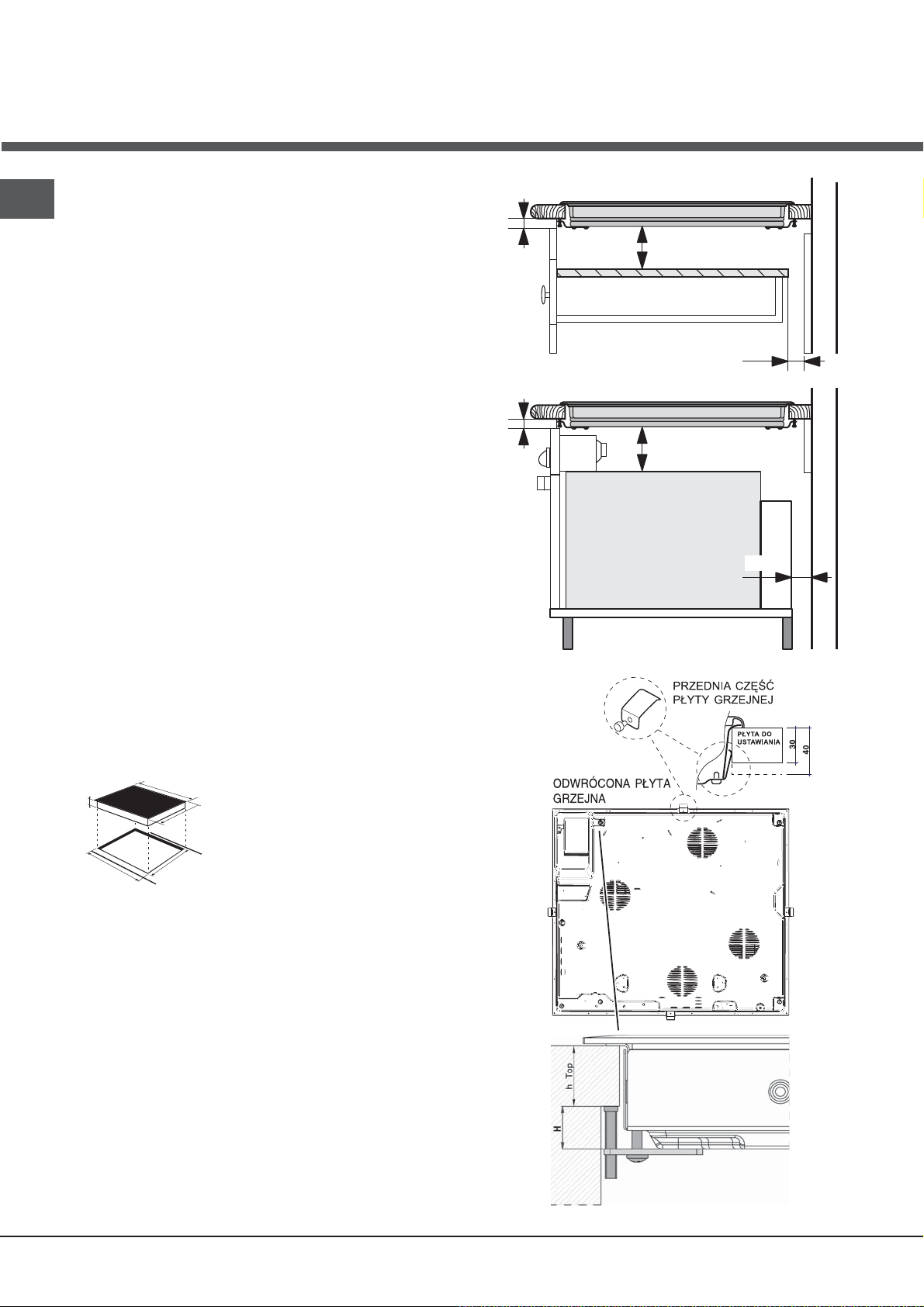

cabinet must have the following dimensions (see  gure):

590

520

5 mm

UNDERSIDE OF HOB

min. 20 mm

COMPARTMENT

min. 40 mm

min. 20 mm

FAN-ASSISTED

OVEN

min. 40 mm

FRONT SIDE OF HOB

SUPPORTING SURFACE

560 +/- 1

490 +/- 1

Ventilation

To allow adequate ventilation and to avoid overheating of the surrounding surfaces the hob should be positioned as follows:

• At a minimum distance of 40 mm from the back

panel or any other vertical surfaces.

• So that a minimum distance of 20 mm is maintained

between the installation cavity and the cabinet underneath.

• Kitchen cabinets adjacent to the appliance and taller

than the top of the hob must be at least 450 mm from the edge of the hob.

Fixing

The appliance must be installed

on a perfectly level supporting surface. Any deformities caused by improper fixing could affect the features and operation of the hob. The thickness of the supporting surface

into account when choosing

the length of the screws for

should be taken

the fixing hooks:

• 30 mm thick: 23 mm screws

• 40 mm thick: 13 mm screws Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment springs in the holes provided at the central point of each side of the hob.

2. Place the hob in the cavity, make sure it is in a central position and push down on the whole perimeter until the hob is stuck to the supporting surface.

3. For hobs with raised sides: After inserting the hob into its cavity, insert the 4 fixing hooks (each has its own pin) into the lower edges of the hob, using the long pointed screws to fix them in place, until the glass is stuck to the supporting surface.

The screws for the alignment springs must remain

accessible.

In order to adhere to safety standards, the appliance

must not come into contact with electrical parts once it has been installed.

All parts which ensure the safe operation of the

appliance must not be removable without the aid of a tool.

Electrical connection

The electrical connection for the hob and for any builtin oven must be carried out separately, both for safety purposes and to make extracting the oven easier.

• 400V - 2+N ~ 50 Hz

• 220-240V 3 ~ 50 Hz

• 400V 3 - N ~ 50 Hz

• 400V - 2+2N ~ 50 Hz

Separate the wires and connect them in accordance with the instructions given in the following table and diagrams:

Voltage and

mains frequency

400V - 2+N ~

220-240V 3 ~

400V 3-N ~

400V - 2+2N ~

50 Hz

Electrical cable Wire connection

: yellow/green;

N: the two blue wires together

L1: black L2: brown

: yellow/green;

N1: blue N2: blue L1: black L2: brown

Connecting the electricity supply cable to the mains

If the appliance is being connected directly to the electricity mains an omnipolar switch must be installed with a minimum opening of 3 mm between contacts.

! The installer must ensure that the correct electrical

connection has been made and that it is fully compliant with safety regulations.

Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the appliance itself.

• The voltage falls within the range of values indicated on the data plate.

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

Single-phase connection

The hob is equipped with a pre-connected electricity supply cable, which is designed for single-phase connection. Connect the wires in accordance with the instructions given in the following table and diagrams:

Voltage and

mains frequency

220-240V 1+N ~

50 Hz

Electrical cable Wire connection

: yellow/green

: the two blue wires together

: brown and black together

Other types of connection

If the mains supply corresponds with one of the following:

Voltage and mains frequency

Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

The cable must not be bent or compressed. The cable must be checked regularly and replaced by

authorised technicians only.

The manufacturer declines any liability should these

safety measures not be observed.

! Do not remove or replace the power supply cable for any reason. Its removal or replacement will void the warranty and the CE marking. INDESIT does not assume liability for accidents or damage arising from replacement/removal of the original power supply cable. Replacement can only be accepted when carried out by personnel authorised by INDESIT and using an original spare part.

Start-up and use

The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special nonabrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.

Switching on the hob

To switch the hob on, press and hold the button for approximately one second.

A few seconds after the hob is connected to the electricity

supply, a buzzer will sound. The hob may now be switched on.

Types of noise during normal hob operation:

• Buzz: due to the vibration of the metallic parts that

make up the induction element and the pot; it is generated by the electromagnetic field required for heating and increases as the power of the induction element increases.

• Soft whistle: heard when the pot placed on the

heating zone is empty; the noise disappears once food or water is placed into the pot.

• Crackle: produced by the vibration of materials on

the bottom of the pot due to the flow of parasitic currents caused by electromagnetic fields (induction); can be more or less intense depending on the material making up the bottom of the pot, and decreases as the pot dimensions increase.

• Loud whistle: heard when two induction elements of

the same group function simultaneously at maximum power and/or when the booster function is set on the larger element while the other is auto-adjusted. Noise is reduced by decreasing the power level of the auto-adjusted induction element; pot bottom layers made of different kinds of materials are among the main causes of this noise.

• Fan noise: a fan is necessary to ensure the hob

functions correctly and to safeguard the electronic unit from possible overheating. The fan functions at maximum power when the large induction element is at maximum power or when the booster function is on; in all other cases, it works at average power depending on the temperature detected. Furthermore, the fan may continue to work even after switching the hob off, if the

temperature detected is high. The types of noise listed above are due to induction technology and are not necessarily operational faults.

Switching on the cooking zones

Each cooking zone is controlled using a selector button

and a power adjustment device consisting of a

double

• To begin operating a cooking zone, press the corresponding control button and set the desired

power level (between 0 and 9) using the buttons

and

and + button.

Booster function*

The booster function for some of the cooking zones may be used to shorten heating-up times. It may be activated

Booster

by pressing the above the button will illuminate. This function boosts the power to 2000 W or 3000 W, depending on the size of the relevant cooking zone. The booster stops automatically after 4 minutes. While the booster for one of the cooking zones is active, the corresponding front or rear cooking zone will operate at a reduced power level (e.g. if the booster for the rear left-hand hotplate has been activated, the power level of the front left-hand hotplate will be reduced). For further information, please refer to the Technical description of the models.

button. The indicator light directly

Switching off the cooking zones

To switch off a cooking zone, select it using the

corresponding selector button and:

• Press the - button: the power of the cooking zone will progressively decrease until it is switched off.

If the - or + button is pressed for an extended

period of time, the display scrolls quickly though the power levels and timer minutes.

* Only available in certain models.

Programming the cooking duration

! All the cooking zones may be programmed simultaneously, for a duration between 1 and 99 minutes.

1. Select the cooking zone using the corresponding

selector button.

2. Adjust the power level of the cooking zone.

3. Press the programming button. The indicator light corresponding to the selected zone will start flashing.

and +

4. Set the cooking duration using the buttons.

5. Confirm by pressing the selection occurs after 10 seconds. The timer begins counting down immediately. A buzzer sounds for approximately 1 minute and the cooking zone switches off when the set programme has finished. Repeat the above procedure for each hotplate you wish to programme.

Using multiple programmes and the display

button or automatic

2. Set the desired duration using the buttons.

3. Confirm by pressing the button. The timer begins counting down immediately. When the time has elapsed, a buzzer will sound (for one minute).

and +

Control panel lock

When the hob is switched on, it is possible to lock the oven controls in order to avoid accidental changes being made to the settings (by children, during cleaning, etc.). Press

the light above the button will switch on. To use any of the controls (e.g. to stop cooking), you

button to lock the control panel: the indicator

If one or more hotplates are programmed, the display will show the data for the hotplate with the least time remaining, and the light corresponding to the position of the hotplate will flash. The lights corresponding to the other hotplates programmed will be switched on. To visualise the time remaining for the other programmed

hotplates, press the remaining for each hotplate will be shown sequentially in a clockwise order, starting from the front left hotplate.

Changing the programme

1. Press the wish to change is shown.

2. Use the buttons to set the new duration.

3. Confirm by pressing the

To cancel a programme, follow the above instructions. At

step 2, press the - button: the duration decreases progressively until it reaches 0 and switches off. The programme resets and the display exits programming mode.

button repeatedly until the duration you

button repeatedly: the time

button.

Timer

The hob must be switched on. The timer can be used to set a duration up to 99 minutes.

1. Press the

indicator light is illuminated

programming button until the timer

must switch off this function. Press the few moments, the indicator light will switch off and the lock function will be removed.

button for a

Switching off the hob

Press the button to switch off the appliance - do not rely solely on the pan sensor. If the control panel lock has been activated, the controls will continue to be locked even after the hob is switched on again. In order to switch the hob on again, you must first remove the lock function.

“Demo” mode

It is possible to set the hob to a demonstration mode where all the controls work normally but the heating elements do not switch on. To activate the “demo” mode the hob must be switched on, with all the hotplates switched off.

• Press and hold the for 6 seconds. When the 6 seconds have elapsed, the ON/OFF and CONTROLS LOCKED indicator

lights will flash for one second. Release the

buttons and press the button;

• The display will show the text DE and MO and the hob will be switched off.

• When the hob is switched on again it will be set to the “demo” mode.

To exit this mode, follow the procedure described above. The display will show the text DE and OF and the hob will be switched off. When it is next switched on, the hob will function normally.

and - buttons simultaneously

and

SUITABLE

UNSUITABLE

Cast iron

Enamelled steel

Special stainless steel 

Copper, 

Aluminium, Glass, Earthenware, 

Ceramic, non magnetic Stainless steel

Power level

Maximum operating time in hours

Practical advice on using the appliance

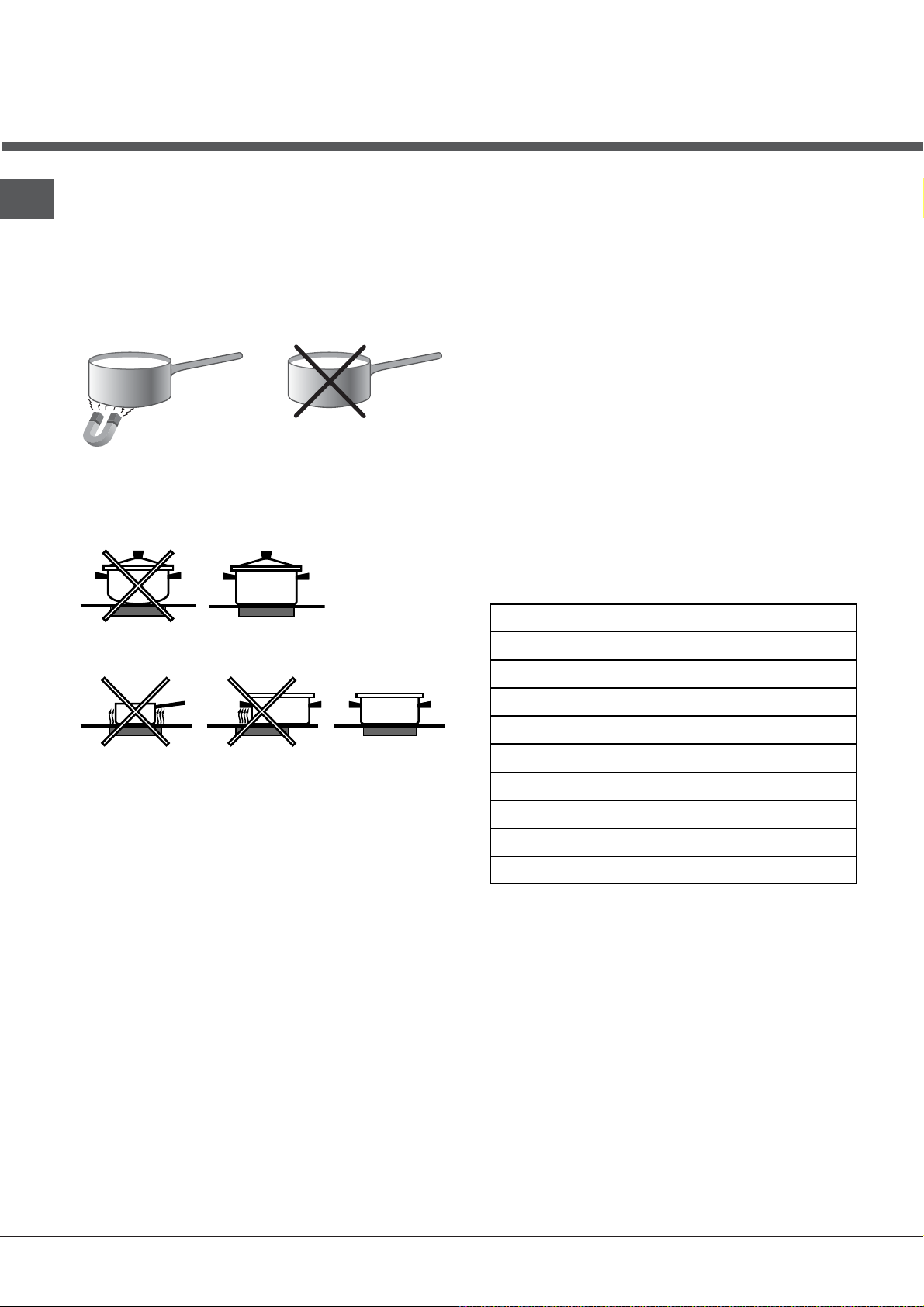

! Use cookware made from materials which are compatible with the induction principle (ferromagnetic material). We especially recommend pans made from: cast iron, coated steel or special stainless steel adapted for induction. Use a magnet to test the compatibility of the cookware.

! Do not use adapters, diffusers, or metal plates on the cooking zones .They may have a detrimental effect upon the hob’s performance, and might damage the hob’s aesthetics.

In addition, to obtain the best results from your hob:

• Use pans with a thick, flat base in order to fully utilise the cooking zone.

• An incompatible pan

• A pan whose diameter is too small

• The pan has been removed from the hotplate.

Overheating protection

If the electronic elements overheat, the hob switches off

automatically and

appears on the display, followed

by a flashing number. When the temperature has

reached a suitable level, this message disappears and the hob may be used again.

Safety switch

The appliance has a safety switch which automatically switches the cooking zones off after they have been in operation for a certain amount of time at a particular power level. When the safety switch has been triggered, the display shows “0”. For example: the right rear hotplate is set to 5 and will switch off after 5 hours of continuous operation, while the front left hotplate is set to 2 and will switch off after 8 hours.

• Always use pans with a diameter which is large enough to cover the hotplate fully, in order to use all the available heat.

• Make sure that the base of the cookware is always clean and dry, in order to fully utilise and extend the life of both the cooking zones and the cookware.

• Avoid using the same cookware which has been used on gas burners: the heat concentration on gas burners may distort the base of the pan, causing it not to adhere correctly.

Safety devices

Pan sensor

Each cooking zone is equipped with a pan sensor device. The hotplate only emits heat when a pan with suitable measurements for the cooking zone is placed on it. If the indicator light is flashing, it may indicate:

Buzzer

This can also indicate several irregularities:

• An object (a pan, cutlery, etc.) has been placed on the control panel for more than 10 seconds.

• Something has been spilt on the control panel.

• A button has been pressed for too long. All of the above situations may cause the buzzer to sound. Remove the cause of the malfunction to stop the buzzer. If the cause of the problem is not removed, the buzzer will keep sounding and the hob will switch off.

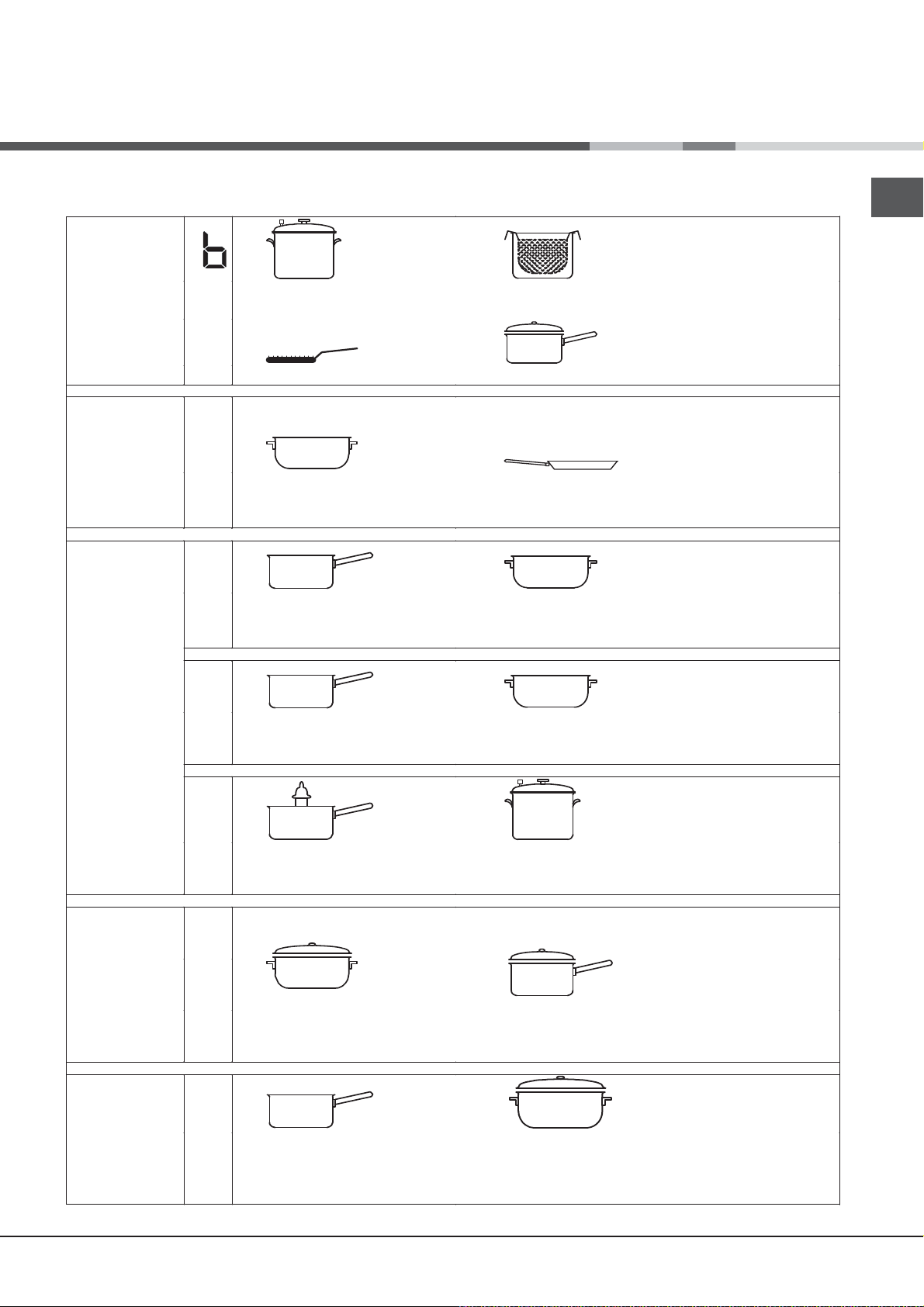

Practical cooking advice

Pressure cooking Pressure cooker

Frying

Grilling Boiling

Very high-flame

cooking

High-flame

cooking

Medium-flame cookingLow-flame

cooking

Very

low-flame

cooking

•

• ¶

Crêpes Cooking on a high flame and browning

(roasts, steaks, escalopes, fish fillets, fried eggs)

Fast thickening (liquid juices) Boiling water (pasta, rice, vegetables) Milk

Slow thickening (dense juices)

S ¢

Bain-marie cooking

Pressure cooking after whistle

™

Low-flame cooking (stews)

Reheating dishes

™

Chocolate sauce Keeping food hot

Precautions and tips

This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance conforms to the following European Economic Community directives:

- 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments;

- 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments;

- 93/68/EEC dated 22/07/93 and subsequent amendments.

- 1275/2008 stand-by/off mode.

General safety

Make sure that the air inlet behind the fan grille is

never obstructed. The built-in hob should, in fact, be provided with suitable ventilation for the cooling of the electronic components used in the appliance.

We advise against the installation of an induction hob

above an under-the-counter refrigerator (heat) or above a washing machine (vibrations). In fact, there would be insufficient space for the ventilation of electronic components.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• Do not touch the appliance when barefoot or with wet or damp hands and feet.

• The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Do not use the hob as a worktop or chopping board.

• The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre.

• Ensure that power supply cables of other electrical appliances do not come into contact with the hot parts of the hob.

• Remember that the cooking zones remain relatively hot for at least thirty minutes after they have been switched off. An indicator light provides a warning when residual heat is present (see Start-up and use).

• Keep any object which could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Be especially careful when using plastic film and aluminium foil or packaging: if placed on surfaces which are still hot, they may cause serious damage to the hob.

• Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.

• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

• For the attention of wearers of pacemakers or other active implants:

The hob complies with all current standards on

electromagnetic interference.

Your induction hob is therefore perfectly in keeping

with legal requirements (89/336/CEE directives). It is designed not to create interference on any other electrical apparatus being used on condition that the apparatus in question also complies with this legislation.

Your induction hob generates short-range magnetic

fields.

To avoid any interference between your induction

hob and a pacemaker, the latter must be designed to comply with relevant regulations.

In this respect, we can only guarantee our own

product conformity. Please consult the pacemaker manufacturer or your doctor concerning its conformity or any possible incompatibility.

• Do not let children play with the appliance.

• Do not place metal objects (knives, spoons, pan lids, etc.) on the hob as they may become hot.

• The appliance is not intended to be operated by

means of an external timer or separate remotecontrol system.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.

• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.

For further information relating to the correct disposal of

exhausted household appliances, owners may contact the public service provided or their local dealer.

Care and maintenance

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

Do not use abrasive or corrosive detergents (for

example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Never use steam cleaners or pressure cleaners on the

appliance.

• It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen towel.

• If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly

• To remove more stubborn dirt, use a suitable scraper. Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can achieve excellent results by using a rust-proof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water.

• If any plastic or sugary substances are accidentally melted on the hob, remove them immediately with the scraper, while the surface is still hot.

• Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance task should be carried out while the appliance is warm (not hot) or cold.

• Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes.

Stainless steel frame (only in models with outer frame) Stainless steel can be marked by hard water which has been left on the surface for a long time, or by cleaning products containing phosphorus. After cleaning, it is advisable to rinse the surface well and dry it thoroughly. If water is spilt on the surface, dry it quickly and thoroughly.

Some hobs have an aluminium frame which is similar to

stainless steel. Do not use any cleaning or degreasing products which are not suitable for use with aluminium.

Disassembling the hob

If it is necessary to disassemble the hob:

1. Loosen the screws fixing the alignment springs on each side.

2. Loosen the screws holding the fixing hooks in each corner.

3. Take the hob out of its installation cavity.

Do not attempt to repair the appliance yourself. If the

appliance breaks down, contact a Service Centre.

Technical description of the models

The induction system is the quickest existing way of cooking. Unlike traditional hotplates where the cooking zone heats up, with the induction system heat is generated directly inside pans which have ferromagnetic bases.

Hobs

Cooking zone

Back Left

Back Right

Front Left

Front Right

Total power

KIC633C

Power (W)

I 1400 - B 2000* - 600 if Front Left*

I 2200 - B 3000* - 1600 if Back Left*

3000 - B 4000

7600

Key:

I = single induction cooking zone B = booster: the power level of the cooking zone may be boosted to 3000 W * = the maximum power level is limited while the booster is activated for the relevant rear cooking zone (see Start-up

and use).

KIC644C

Power (W)

I 1400 - B 2000* - 600 if Front Left*

I 2200 - B 3000* - 1600 if Front Right*

I 2200 - B 3000* - 1600 if Back Left*

I 1400 - B 2000* - 600 if Back Right*

7200

CÔTÉ AVANT DE LA TABLE DE CUISSON

PLAN DE TRAVAIL

TABLE DE CUISSON RETOURNÉE

Installation

Conserver ce mode d’emploi pour pouvoir le consulter

à tout moment. En cas de vente, de cession ou de déménagement, veiller à ce qu’il suive l’appareil pour informer le nouveau propriétaire sur son fonctionnement et lui fournir les conseils correspondants.

! Lire attentivement les instructions : elles contiennent des

conseils importants sur l’installation, l’utilisation et la sécurité de cet appareil.

5 mm

min. 20 mm

TIROIR

Positionnement

Les emballages ne sont pas des jouets pour enfants, il faut les mettre au rebut en respectant la réglementation sur le tri sélectif des déchets (voir Précautions et conseils).

L’installation doit être effectuée par un professionnel du secteur conformément aux instructions du fabricant. Une mauvaise installation peut causer des dommages à des personnes, des animaux ou des biens.

Encastrement

Pour garantir le bon fonctionnement de l’appareil, il faut que le meuble possède des caractéristiques bien précises :

• le matériau du plan d’appui doit pouvoir résister à une

température d’environ 100°C ;

• en cas d’installation de la table de cuisson au-dessus d’un

four, il faut que ce dernier soit équipé d’un dispositif de refroidissement par ventilation forcée ;

• éviter d’installer la table de cuisson au-dessus d’un lave-

vaisselle : si c’est le cas, prévoir une séparation étanche entre les deux appareils ;

• selon la table de cuisson à installer (voir  gures), la

découpe du meuble doit avoir les dimensions suivantes :

590

520

min. 40 mm

min. 20 mm

5 mm

CHALEUR

TOURNANTE

min. 40 mm

Aération

Pour permettre une bonne aération et pour éviter

surchauffe des surfaces autour de l’appareil, la table de cuisson doit être positionnée :

• à au moins 40 mm de distance du mur arrière ou de toute

autre surface verticale;

• de manière à ce qu’il reste au moins 20 mm de distance

entre la découpe d’encastrement et le meuble en dessous.

• Les meubles jouxtant la table, dont la hauteur dépasse

celle du plan de cuisson, doivent être placés à au moins 450 mm du bord du plan.

560 +/- 1

490 +/- 1

toute

Fixation

Il est impératif d’assurer

l’encastrement de l’appareil sur un plan d’appui parfaitement plat. Les déformations provoquées par une mauvaise fixation risquent d’altérer les caractéristiques de la table de cuisson

ainsi que ses performances.

La longueur de la vis de réglage des crochets de fixation doit être réglée avant leur montage selon l’épaisseur du plan d’appui :

• épaisseur 30 mm : vis 23 mm;

• épaisseur 40 mm : vis 13 mm. Pour sa fixation, procéder comme suit :

1. Se servir des vis courtes sans pointe pour visser les 4 ressorts de centrage dans les trous prévus sur chaque côté de la table, en leur milieu;

2. insérer la table de cuisson dans la découpe prévue, bien au centre et bien appuyer tout autour du cadre pour que la table adhère parfaitement au plan d’appui.

3. pour les tables avec profils latéraux : après avoir encastré la table de cuisson dans la découpe, insérer les 4 crochets de fixation (chacun avec son goujon) sur le périmètre inférieur de la table de cuisson et visser avec les vis longues à pointe jusqu’à ce que le verre adhère bien au plan d’appui.

Il faut absolument que les vis des ressorts de centrage

soient accessibles.

Conformément aux normes de sécurité, après encastrement de l’appareil, il ne doit plus y avoir possibilité de contact avec les parties électrifiées.

Autres types de branchement

Si l’installation électrique correspond à une des caractéristiques

suivantes :

Tension type et fréquence réseau

• 400V - 2+N ~ 50 Hz

• 220-240V 3 ~ 50 Hz

• 400V 3 - N ~ 50 Hz

• 400V - 2+2N ~ 50 Hz

Séparer les câbles et procéder au raccordement des fils en suivant les indications du tableau et des dessins suivants :

50 Hz

Cordon électrique Raccordement fils

: jaune/vert;

N: les 2 fils bleus ensemble

L1: noir L2: marron

: jaune/vert;

N1: bleu N2: bleu L1: noir L2: marron

Tension type et

fréquence réseau

400V - 2+N ~

220-240V 3 ~

400V 3-N ~

400V - 2+2N ~

Branchement du câble d’alimentation au réseau électrique

En cas de raccordement direct au réseau, il faut intercaler entre l’appareil et le réseau un interrupteur à coupure omnipolaire ayant au moins 3 mm d’écartement entre les contacts.

L’installateur est responsable du bon raccordement électrique de

l’appareil et du respect des normes de sécurité.

Toutes les parties qui servent de protection doivent être

fixées de manière à ne pouvoir être enlevées qu’avec l’aide d’un outil.

Raccordement électrique

Le branchement électrique de la table de cuisson et

celui d’un éventuel four à encastrer doivent être effectués séparément, pour des raisons de sécurité électrique et pour pouvoir démonter plus facilement le four en cas de besoin.

Raccordement monophasé

La table est fournie déjà équipée d’un cordon d’alimentation prévu pour raccordement monophasé. Procéder au raccordement des fils en suivant les indications du tableau et des dessins suivants :

Tension type et

fréquence réseau

220-240V 1+N ~

50 Hz

Cordon électrique Raccordement fils

: jaune/vert;

: les 2 fils bleus ensemble

N L

: le marron avec le noir

Avant de procéder au branchement, s’assurer que :

• la prise est bien munie d’une terre conforme à la loi;

• la prise est bien apte à supporter la puissance maximale de l’appareil, indiquée sur la plaque signalétique de l’appareil ;

• la tension d’alimentation est bien comprise entre les valeurs indiquées sur la plaque signalétique;

• la prise est bien compatible avec la fiche de l’appareil. Si ce n’est pas le cas, remplacer la prise ou la fiche, ne pas utiliser de rallonges ni de prises multiples.

Après installation de l’appareil, le câble électrique et la prise de

courant doivent être facilement accessibles

Le câble ne doit être ni plié ni excessivement écrasé.

Le câble doit être contrôlé périodiquement et ne peut être

remplacé que par un technicien agréé.

Nous déclinons toute responsabilité en cas de non respect

des normes énumérées ci-dessus.

! Ne retirer ou ne remplacer en aucun cas le câble d’alimentation. Toute opération d’enlèvement ou de remplacement annule automatiquement la garantie et la marque CE INDESIT décline toute responsabilité en cas d’accidents ou de dommages dérivants de l’enlèvement ou du remplacement du câble d’alimentation original. Seul le remplacement effectué par un technicien agréé INDESIT utilisant une pièce détachée originale est autorisé.

+ 39 hidden pages
