Hotpoint HUL 61, HUG 61, HAG 60 Instruction manual
Operating Instructions
60cm Gas Cooker
GB
English, 1
62DGW
HUL 61
HUG 61
HAG 60
DSG60S

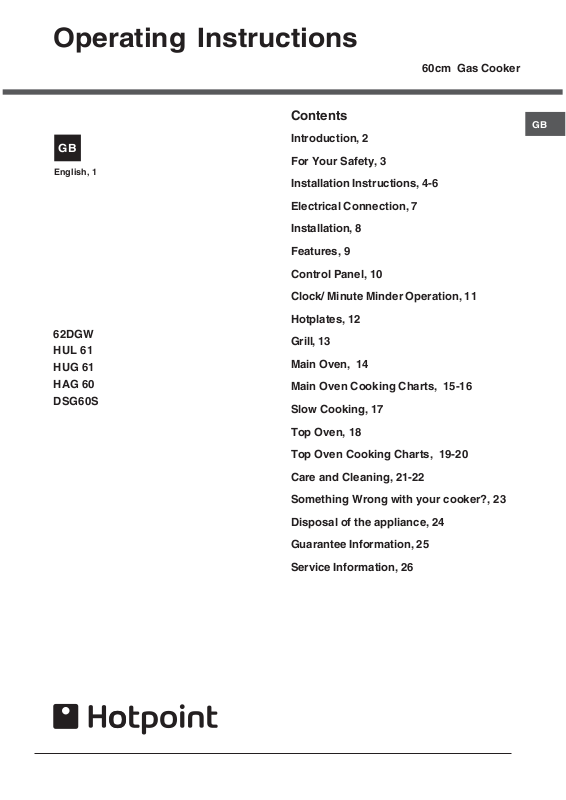

Contents
GB
Introduction, 2
For Your Safety, 3
Installation Instructions, 4-6
Electrical Connection, 7
Installation, 8
Features, 9
Control Panel, 10
Clock/ Minute Minder Operation, 11
Hotplates, 12
Grill, 13
Main Oven, 14
Main Oven Cooking Charts, 15-16
Slow Cooking, 17
Top Oven, 18
Top Oven Cooking Charts, 19-20
Care and Cleaning, 21-22
Something Wrong with your cooker?, 23
Disposal of the appliance, 24
Guarantee Information, 25
Service Information, 26
Introduction
GB
To the Installer:
Before installation, fill in the product details on the
back cover of this book.
The information can be found on the rating plate.
To the User:
You must read the instructions prior to installing and
using the appliance and then retain them for future
reference.
! Before operating your new appliance please read
this instruction booklet carefully. It contains
important information concerning the safe operation,
installation and maintenance of the appliance.
! Please keep these operating instructions for future
reference. Pass them on to possible new owners of
the appliance.
Retention of this Instruction Book
This Instruction Book must be kept handy for
reference as it contains important details on the safe
and proper use of the appliance.
If you sell or pass the appliance to someone else, or
move house and leave it behind, make sure this
Book is also provided so the new owner can become
familiar with the appliance and safety warnings.
Your new appliance is guaranteed* and will give
lasting service. This guarantee is only applicable if
the appliance has been installed in accordance with
the installation instructions detailed in this booklet.
To help make best use of your cooking equipment,
please read this booklet carefully.
The cooker is designed specifically for domestic use
and responsibility will not be accepted for use in any
other installation.
When the cooker is first used an odour may be
emitted, this will cease after a period of use.
When first using the cooker ensure that the room is
well ventilated (e.g. open a window or use an
extractor fan) and that persons who may be
sensitive to the odour avoid any fumes.
It is suggested that any pets be removed from the
room until the smell has ceased. This odour is due
to temporary finish on oven liners and elements and
also any moisture absorbed by the insulation.
Your new cooker is guaranteed and will give lasting
service.
The guarantee is only applicable if the cooker has
been installed in accordance with the Installation
Instructions.
The cooker is designed specifically for domestic use
and responsibility will not be accepted for use in any
other installation.
* The guarantee is subject to the provisions that
the appliance:
(a) Has been used solely in accordance with
the Users Instruction Book.
(b) Has been properly connected to a suitable
supply voltage as stated on the rating plate
attached to this equipment.
(c) Has not been subjected to misuse or
accident or been modified or repaired by
any person other than the authorised
employee or agent.
(d) Has been correctly installed.
Our policy is one of continual improvement in design
and development, therefore strict accuracy of
illustrations and descriptions cannot be guaranteed.
This appliance conforms with the following
European Economic Community directives:
- 2006/95/
subsequent modifications;
- 2004/108/
Compatibility) and subsequent modifications;
- 2009/142/
modifications (only for models which use gas);
- 93/68/
modifications.
- 2002/96/
- 1275/2008 (Stand-by/ Off Mode)
EC EC
EC of 12/12/06 (Low Voltage) and
EC EC
ECEC
EC of 15/12/04 (Electromagnetic
ECEC
ECEC
EC of 30/11/09 (Gas) and subsequent
ECEC
EECEEC
EEC of 22/07/93 and subsequent
EECEEC
ECEC
EC
ECEC
2
For your Safety
Please read the precautions below before using
your cooker.
ALWAYS . . .
ALWAYS make sure you understand the controls
before using the cooker.
ALWAYS check that all controls on the cooker are
turned off after use.
ALWAYS stand back when opening an oven door to
allow heat to disperse.
ALWAYS use dry, good quality oven gloves when
removing items from the ovens.
ALWAYS take care when removing items from the
top oven/grill when the main oven is on, as
the contents may be hot.
ALWAYS keep the oven and grill doors closed when
the cooker is not in use.
ALWAYS place pans centrally over the hotplate
burners and position them so that the
handles cannot accidentally be caught or
knocked or become heated by other
burners.
ALWAYSALWAYS
ALWAYS
ALWAYSALWAYS
ALWAYS allow the cooker to cool before cleaning.
ALWAYS follow the basic principles of food handling
ALWAYS keep ventilation slots clear of obstructions.
ALWAYS turn off the electricity supply before
ALWAYS refer servicing to CORGI registered
ALWAYS The appliance must be used by adults only
keep the cooker clean, as a build upkeep the cooker clean, as a build up
keep the cooker clean, as a build up
keep the cooker clean, as a build upkeep the cooker clean, as a build up
of grease or fat from cooking canof grease or fat from cooking can
of grease or fat from cooking can
of grease or fat from cooking canof grease or fat from cooking can
cause a fire.cause a fire.
cause a fire.
cause a fire.cause a fire.
and hygiene to prevent the possibility of
bacterial growth.
cleaning or replacing an oven lamp.
appliance service engineers.
for the preparation of food, in accordance
with the instructions outlined in this booklet.
Any other use of the appliance (e.g. for
heating the room) constitutes improper use
and is dangerous. The manufacturer may
not be held liable for any damage resulting
from improper, incorrect and unreasonable
use of the appliance.
NEVER . . .
GB
NEVER leave children unsupervised where the
cooker is installed as all surfaces will get
hot during and after use.
NEVER allow anyone to sit or stand on any part of
the cooker.
NEVER store items that children may attempt to
reach above the cooker.
NEVER heat up unopened food containers as
pressure can build up causing the container
to burst.
NEVER store chemicals, food stuffs, pressurised
containers in or on the cooker, or in cabinets
immediately above or next to the cooker.
NEVER fill a deep fat frying pan more than 1/3 full
of oil, and never use a lid. DO NOT LEAVE
UNATTENDED WHILE COOKING.
NEVER place flammable or plastic items on or near
the hotplate.
NEVER use proprietary spillage collectors on the
hotplate.
NEVER use the cooker as a room heater.
NEVER dry clothes or place other times over or
near to the hotplate or oven/gril doors.
NEVER wear garments with long flowing sleeves
whilst cooking.
NEVER let children play with the appliance.
NEVER should the appliancebe operated by people
(including children) with reduced physical,
sensory or mental capacities, by
inexperienced individuals or by anyone who
is not familiar with the product. These
individuals should, at the very least, be
supervised by someone who assumes
responsibility for their safety or receive
preliminary instructions relating to the
operation of the appliance.
NEVER should the appliance be operated by
people (including children) with reduced
physical, sensory or mental capacities, by
inexperienced individuals or by anyone who
is not familiar with the product. These
individuals should, at the very least, be
supervised by someone who assumes
responsibility for their safety or receive
preliminary instructions relating to the
operation of the appliance.
NOTE:NOTE:
NOTE: The use of a gas cooking appliance results
NOTE:NOTE:
in the production of heat and moisture in the room in
which it is installed. Always ensure that the kitchen
is well ventilated; keep natural ventilation holes open
or install a mechanical ventilation device
(mechanical extractor hood).
3
Installation
GB
Prior to installation, ensure that the local distribution
conditions (nature of the gas and gas pressure) and
the adjustment conditions are compatible. The
adjustment conditions for this appliance are stated
on the data badge which is fitted on the back panel.
This appliance is not designed to be connected to a
combustion products evacuation device. It must be
installed and connected in accordance with current
installation regulations. particular attention should be
given to the relevant requirements regarding
ventilation.
MODEL NUMBERS HAG 60
Category II2H3+ (GB)
These models are set to burn NATURAL GAS (G20)
at 20 mbar but can be converted for use on BUTANE
(G30) at 28-30mbar with the use of the LPG
conversion kit that can be obtained free of charge, if
you contact our Genuine Parts and Accessories
department (see Key Contacts, back page).
GAS SAFETY (INSTALLATION & USE)
REGULATIONS
It is the law that all gas appliances are installed by
competent persons in accordance with the current
edition of the above regulations. It is in your interest
and that of safety to ensure compliance with the law.
In the UK, CORGI registered installers work to safe
standards of practice. The cooker must also be
installed in accordance with BS 6172. Failure to
install the cooker correctly could invalidate the
warranty liability claims and could lead to
prosecution.
Adapting to different types of gas
(main and top oven)
In order to adapt the oven to a different type of gas
with respect to the gas for which it was
manufactured (indicated on the label), follow these
simple steps:
a) Replacing the oven burner nozzle
• open the oven door fully
• pull out the sliding oven bottom
V
Z
V
• Pry the fixing tab "V" and remove the oven burner
• Unscrew the oven burner nozzle using the socket
spanner for the nozzles "Z", or a 7 mm socket
spanner, and replace it with a nozzle suited to the
new type of gas (see Table). Take particular care
handling the spark plug wires and the thermocouple
pipes.
• Replace all the parts, following the steps described
above in the reverse order.

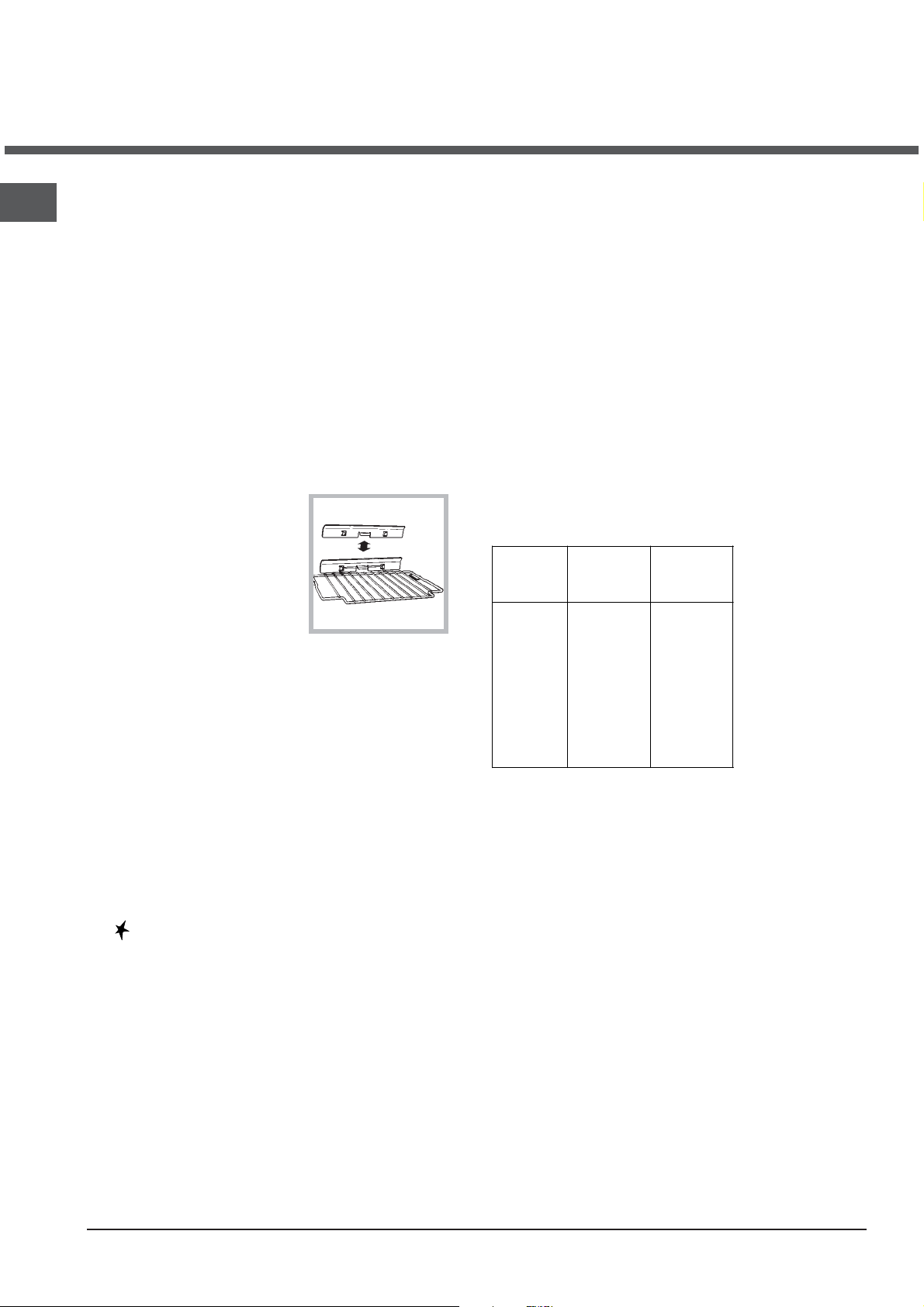

Hotplate
Front Left and Rear Right
Hotplate
Front Right and Rear Left
Grill 3.7 kW 150 3.4 kW (246g/h) 91
Main Oven 2.5 kW 115 2.3 kW (166g/h) 71
Top Oven 1.9 kW 100 1.9 kW (136g/h) 66
4
Heat Input Injector Heat Input Injector
3.0 kW 116 3.0 kW (220g/h) 86
2.0 kW 103 2.0 kW (145g/h) 70
Installation
LOCATION
The cooker may be located in a kitchen, kitchen/
diner or a bed-sitting room, but not in a room
containing a bath or shower. The cooker must not be
installed in a bed-sitting room of less than 20m
3
.
When adjusted for use on Butane (G30) or Propane
(G31), the cooker must not be installed in a room or
internal space below ground level, e.g. in a
basement.
PROVISION FOR VENTILATION
The room containing the cooker should have an air
supply in accordance with BS 5440: Part 2.
The room must have an opening window or
equivalent; some rooms may also require a
permanent vent. If the room has a volume between 5
and 10m
3
, it will require an air vent of 50cm
2
effective area unless it has a door which opens
directly to outside. If the room has a volume of less
than 5m
3
, it will require an air vent of 100cm
2
effective area. If there are other fuel burning
appliances in the same room, BS 5440: Part 2
should be consulted to determine air vent
requirements.
TECHNICAL DATA
Gas connection Rp ½ (½" BSP female)
Pressure test point Front left hotplate injector
Gas rate adjustment None
Aeration adjustment None
Electrical connection Flexible cord fitted with a
3 pin 13 amp plug
230/240V a.c. 50Hz.
13A fuse.
a)a)
a)The cooker may be located in a kitchen, a kitchen/
a)a)
diner or bed sitting room, but not in a bathroom or
shower room.
b)b)
b)The hoods must be installed according to the
b)b)
requirements in the hood handbook.
c)c)
c)The wall in contact with the back of the cooker
c)c)
must be of flameproof material.
d)d)
d)The cooker is fitted with a safety chain that must
d)d)
be attached to a hook, secured to the wall behind
the appliance.
SPACE FOR FIXING
The cooker can be close fitted below hotplate level.
This requires a minimum distance of 600mm
between cupboard units of hotplate height.
When installing next to a tall cupboard, partition or
wall, for a minimum distance of 400mm above
hotplate level, allow a side clearance of at least
65mm. The diagram below illustrates the minimum
clearance between the cooker and adjacent walls,
cupboards etc.
The wall behind the cooker, 50mm below and
450mm above, and the width of the cooker, must be
a non-combustible material such as ceramic wall
tiles.
If the cooker is to be fitted close to a corner on the
left hand side, ensure that there is a clearance of at
least 50mm to allow the main oven door to open fully
for when removing oven shelves.
65 mm Min
400 mm Min
840 mm Min
750mm Min
600 mm Min
COOKER HOODS
If a cooker hood is to be installed, refer to the
cooker hood manufacturers' instructions regarding
fixing height.
GB
!!
!Some models can have their gas
!!
connection inverted. It is important
to make sure the safety chain is
always situated on the side which
corresponds to the hose holder
(Fig. B).
UNPACKING THE COOKER
Unpack the components from inside the grill and
oven.
Check that the following parts are present:
Grill pan and grid Top oven/grill shelf heat shield
Pan supports Main oven shelves (2)
Enamelled burner caps (4) Top oven/grill shelf (1)
Aluminium burner bodies(4) Literature
5
Installation
GB
LEVELLING
Four skid feet are fitted which can be adjusted up or
down to level the cooker.
CONVERSION FOR USE ON BUTANE
(G30) OR PROPANE (G31)
Each burner requires the injector to be replaced and
bypass screws adjusted or replaced as follows:
1. Remove the loose hotplate burner parts.
2. Using a 7mm socket, replace the hotplate injectors
as appropriate (see table on previous page).
3. Re-position the loose burner parts.
4. Remove the enamelled baffle at the front of the grill
(2 screws).
5. Remove the screw on the right hand side of the
burner and gently slide the burner off the injector.
6. Using a 7mm socket, replace the grill injector as
appropriate (see table on previous page).
7. Re-assemble the burner and baffle.
8. Inside the top oven, remove the central screw
securing the burner retainer. Slide the retainer to
the right slightly and lift away.
9. Lift the burner assembly and place on the floor of
the oven to the right of the burner opening.
10.Using a 7mm socket, replace the oven injector as
appropriate (see table on previous page).
11.Re-assemble the oven burner and retainer.
12.Replace the main oven injector following the same
procedure as for the top oven.
13.Carefully pull off the control knobs and timer
buttons.
14.Remove the 2 screws securing the underside of
the control panel. Slide the control panel to the left
slightly to remove.
15.Remove the 6 screws securing the timer mounting
panel. Without completely removing it, manoeuvre
the timer mounting panel to gain access to the
thermostat bypass screws.
16.Using a narrow flat bladed screwdriver rotate the
bypass screws fully clockwise. The main oven
thermostat bypass screw is located on the body of
the thermostat below the spindle, the top oven
thermostat bypass screw is located on the body of
the thermostat to the right of the spindle and the
hotplate tap bypass screws are located down the
centre of the spindle.
17.Re-assemble the control panel parts ensuring that
when the connections are made to the ignition
switch, the wires are above the switch rather than
below.
18.Secure the self-adhesive LPG conversion label over
the gas details on the data badge.
STABILITY CHAIN
A hole in the gas inlet valve bracket can be used to
engage a stability chain.
CONNECTING TO GAS SUPPLY
670
300
Connection to the cooker should be made with an
approved appliance flexible connection to BS 669. A
length of 0.9 to 1.25m is recommended. The length
of hose chosen should be such that when the cooker
is in situ, the hose does not touch the floor.
Those cookers converted to use on LPG should be
connected with a hose suitable for LPG and capable
of withstanding a pressure of 50 mbar.
An adaptor backplate should be fitted within the
shaded area shown, to allow the cooker to be
pushed fully to the wall and to ensure that the
flexible hose is only likely to come into contact with
areas at the rear of the cooker that do not exceed a
temperature rise of 70°C.
6
Electrical Connection
WARNING - THIS APPLIANCE MUST BE EARTHED.
CONNECT TO A 230-240V A.C. SUPPLY ONLY.
Connection to the electricity supply should be made
via a properly earthed, readily accessible wall
socket which is adjacent to but not directly above,
and not more than 1.25m away from the appliance
and capable of electrical isolation.
The mains lead should be routed such that it cannot
touch hot parts of the cooker i.e. the back panel
above a height of 650mm from the floor.
Should this plug not fit the socket outlet in your
home it should be cut off and replaced with a
suitable plug as outlined below.
NOTE: The removed plug cannot be used for any
other appliance and should therefore be properly
disposed of and not left where children might find it
and plug it into a supply socket - with the obvious
consequent danger.
IF THE FITTED PLUG IS REMOVED
The flexible mains lead must be correctly connected
as below to a three pin plug of not less than 13 amp
capacity. If a B.S. 1363 fused plug is used, it must
be fitted with a fuse which is approved to B.S. 1362.
IMPORTANT: The wires in the mains lead fitted to
this appliance are coloured in accordance with the
following code:
Green &
Yellow to
Earth
Brown
to Live
Blue to
Neutral
Cord
Clamp
GREEN AND YELLOW - EARTH
BLUE - NEUTRAL
BROWN - LIVE
3 Amp
Fuse
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured green and yellow must be
connected to the terminal in the plug which is
marked with the letter E or by the earth symbol
or coloured green or green and yellow.
The wire which is coloured blue must be connected
to the terminal which is marked with the N or
coloured black.
The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.
When wiring the plug, ensure that all strands of wire
are securely retained in each terminal. Do not forget
to tighten the mains lead clamp on the plug.
As the appliance must be earthed, do not use 2-pin
sockets outlets, if you are in doubt, consult a
qualified electrician.
Should the mains lead ever require replacement, it is
essential that this operation be carried out by a
qualified electrician and should only be replaced
with a flexible cord of the same size i.e. 1.0mm2
cross sectional area PVC cable, available from our
parts department (see Back Cover).
IF A MOULDED PLUG IS FITTED
In the event of replacing a fuse in the plug supplied
an ASTA approved fuse to BS1362 must be fitted.
NOTE: The fuse cover must be refitted when
changing the fuse. In the event of losing the fuse
cover the plug must not be used until a replacement
fuse cover has been obtained and fitted. A new fuse
cover can be obtained from your local Electricity
Board. The colour of the correct replacement fuse
cover is that of the coloured marks or inserts in the
base of the plug.
Make sure that the cable does not become trapped
when pushing the cooker into position.
GB
7
Installation
GB
INSTALLATION AND OPERATIONAL CHECKS
After installation, check for gas soundness. The
supply pressure can be checked at the front left
hotplate burner injector.
Fit the hotplate burner bodies and caps, pan
supports and shelf shield(s).
Referring to the instructions for use where
necessary,
1. Check that the hotplate burners ignite and crosslight to all ports. Check for a steady flame on the
low setting.
2. Check that the grill burner ignites and cross-lights
to all ports and that the flames remain when the
control is released 3 seconds later, Check for a
steady flame on the low setting.
3. Check that with the main oven set to mark 9, the
burner ignites and that tha flames remain when the
control is released 3 seconds later. Leave the oven
full on with the door closed for 10 minutes, and
check that when the control is turned to mark 1 that
the flame reduces.
4. Check that with the top oven set to mark 8, the
burner ignites and that the flames remain when the
control is released 3 seconds later. Leave the oven
full on with the door closed for 10 minutes, and
check that when the control is turned to mark 1 that
the flame reduces.
5. Check the operation of the timer and oven light.
Technical Characteristics
Top Oven
Usable Volume: 28 Litres
Main Oven
Usable Volume: 54 Litres
Voltage and Frequency
see data plate
Instruct the user on operation of the cooker.
On those models adjusted for use with LPG, it is
normal for the oven and grill burners to burn with
yellow tips.
! The appliance must be used by adults only for
the preparation of food, in accordance with the
instructions outlined in this booklet. Any other
use of the appliance (e.g. for heating the room)
constitutes improper use and is dangerous.
The manufacturer may not be held liable for
any damage resulting from improper, incorrect
and unreasonable use of the appliance.
8
Features
GB
Glass cover
(except for model HAG 60)
Timer
Control panel
Conventional Grill
Grill pan and
food support
'Stay Clean' liners
Top Oven door
Main Oven door
Model number &
Serial number label
Grill pan handle
fixed/detachable
Top oven
rod shelf
Inner door glass
Oven light
Door Switch
'Stay Clean' liners
Inner door glass
Main oven
rod shelf
9
Loading...
