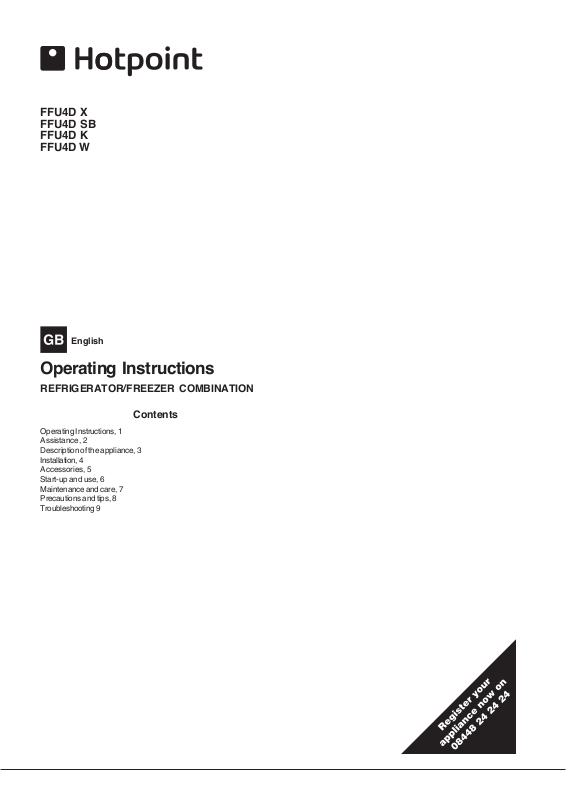

Hotpoint FFU4D X, FFU4D K, FFU4D SB, FFU4D W User Manual
FFU4D X
FFU4D SB
FFU4D K
FFU4D W
English
Operating Instructions
REFRIGERATOR/FREEZER COMBINATION
Contents
Operating Instructions, 1
Assistance, 2
Description of the appliance, 3
Installation, 4
Accessories, 5
Start-up and use, 6
Maintenance and care, 7
Precautions and tips, 8
Troubleshooting 9
Contact Information
Assistance
Guarantee
12 months Parts and Labour Guarantee
Your appliance has the benefit of our manufacturer’s guarantee, which
covers the cost of breakdown repairs for twelve months from the date
of purchase.
This gives you the reassurance that if, within that time, your appliance is
proven to be defective because of either workmanship or materials, we
will, at our discretion, either repair or replace the appliance at no cost to
you.
This guarantee is subject to the following conditions:
- The appliance has been installed and operated correctly and in
accordance with our operating and maintenance instructions.
- The appliance is used only on the electricity or gas supply printed on
the rating plate.
- The appliance has been used for normal domestic purposes only.
- The appliance has not been altered, serviced, maintained,
dismantled, or otherwise interfered with by any person not
authorised by us.
- Any repair work must be undertaken by us or our appointed agent.
- Any parts removed during repair work or any appliance that is
replaced become our property.
- The appliance is used in the United Kingdom or Republic of Ireland.
The guarantee does not cover:
- Damage resulting from transportation, improper use, neglect or
interference or as a result of improper installation.
- Replacement of any consumable item or accessory. These included
but not limited to: plugs, cables, batteries, light bulbs, fluorescent
tubes and starters, covers and filters.
- Replacement of any removable parts made of glass or plastic.
THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN
USED IN COMMERCIAL OR NON-DOMESTIC PREMISES.
5 Year Parts Guarantee
Hotpoint also offers you a free 5 year parts guarantee. This additional
guarantee is conditional on you registering your appliance with us and
the parts being fitted by one of our authorised engineers. There will be
a charge for our engineer’s time. To activate the extra parts warranty on
your appliance, simply call our registration line on 0870 6092094
(Republic of Ireland 01 230 0800).
Extended Guarantees
We offer a selection of protection plans that enable you to fully cover
yourself against the expense of repair bills for the life of your policy. To
find the ideal plan for you please call our advice line on 08709 088 088
(Republic of Ireland 01 230 0233).
Hotpoint Service
We are the largest service team in the UK and Ireland offering you
access to 400 skilled telephone advisors and 1000 fully qualified
engineers on call to ensure you receive fast, reliable, local service.
UK: 08709 066 066
Republic of Ireland: 0818 313 413
www.hotpointservice.co.uk
Please note: Our advisors will require the following information:
Model number: _____________________________________
Serial number: _____________________________________
Parts and Accessories
We supply a full range of genuine replacement parts as well as
accessory products that protect and hygienically clean your appliance to
keep it looking good and functioning efficiently throughout its life.
UK: 08709 066 066
Republic of Ireland: 0818 313 413
www.hotpointservice.co.uk
Appliance Registration
We want to give you additional benefits of Hotpoint ownership. To
activate your free 5 year parts guarantee you must register your
appliance with us.
UK: 0870 6092094
Republic of Ireland: 01 230 0800
www.hotpointservice.co.uk
Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB
Indesit Company Unit 49 Airways Industrial Estate, Dublin 17
Recycling and Disposal Information
As part of Hotpoint’s continued commitment to helping the environment,
Hotpoint reserves the right to use quality, recycled components to
keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully. To minimise
the risk of injury to children, remove the door, plug, and cut the mains
cable off flush with the appliance. Dispose of these parts separately to
ensure that the appliance can no longer be plugged into mains socket,
and the door cannot be locked shut.
Free Helpdesk Service
We have a dedicated team who can provide free advice and
assistance with your appliance if you experience any technical
difficulties within the first 90 days of ownership. Simply call our Hotypoint
Service Hotline on 08709 066 066 (Republic of Ireland 0818 313 413)
for telephone assistance, or, where necessary, to arrange for an
engineer to call.
- model - serial
number
After Sales Service
No one is better placed to care for your Hotpoint appliance during the
course of its working life than us – the manufacturer.
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24
2
Description of the appliance
Control panel
1 FREEZER OPERATION Button to regulate the temperature the
freezer compartment. Button is used with SUPER FREEZE
Button to switch on/switch off the product by pressing both 3
seconds
2 SUPER FREEZE Button (rapid freezing) to freeze fresh food.
Press button for 3 seconds to switch on the product while it is
switched off
3 SUPER FREEZE Blue light illuminates when SUPER FREEZE
button is pressed.
4 FREEZER TEMPERATURE Yellow light The temperature of the
Freezer is consisted with 4 levels as indicated on serigraphy
5 FRIDGE TEMPERATURE Yellow light The temperature of the
Fridge is consisted with 4 levels as indicated on serigraphy
6 SUPER COOL Blue light illuminates when SUPER COOL button
is pressed.
7 SUPER COOL Button (quick cool) to lower the temperature of
the refrigerator compartment rapidly.
8 REFRIGERATOR OPERATION button to regulate the
temperature of the refrigerator compartment.
!The indicator lights are also used to indicate an unusual temperature
increase in the freezer compartment (
see Troubleshooting
).
3
°C
1
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24
SUPER
FREEZE
2
26 22 20 18
4
5
2468
6
SUPER
COOL
°C
7
8
3
Description of the appliance
Overall view
The instructions contained in this manual are applicable to different
model refrigerators. The diagrams may not directly represent the
appliance purchased. For more complex features, consult the
following pages.
1 Levelling FEET
2 FREEZER and STORAGE compartment
3 BOTTLE shelf
4 Food Care Zone / Food Care Zone 0°C / Safe Defrost*
5 FRUIT and VEGETABLE bin
6 Removable multipurpose SHELVES*
7 Control panel.
8 WINE RACK*
* Varies by number and/or position, available only on certain
models.
*
*
7
8
6
6
5
3
3
4
2
461eps
1
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24
4
