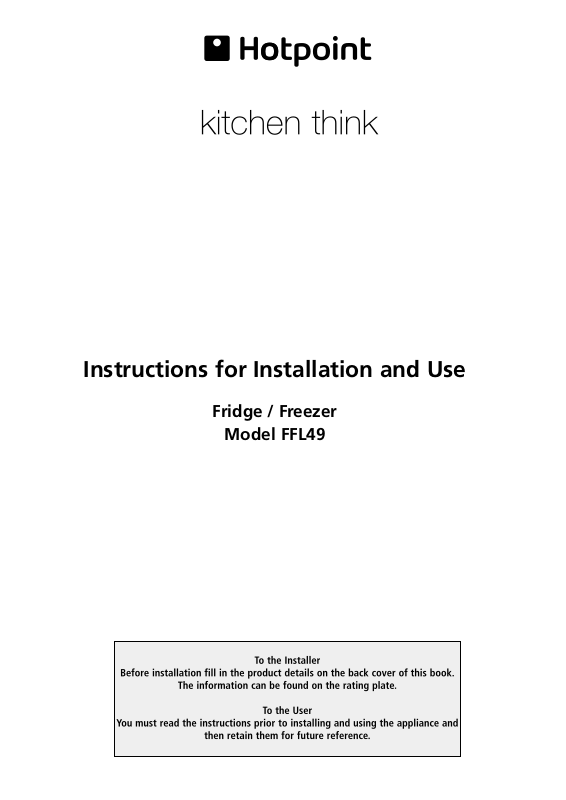

Hotpoint FFL49 User Manual

Instructions for Installation and Use

Fridge / Freezer

Model FFL49

Retention of this Instruction Book

This Instruction Book must be kept handy for reference as it contains important details on the safe and proper use of the
appliance.

If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is also provided
so the new owner can become familiar with the appliance and safety warnings.

If the Book is lost or damaged a copy may be obtained from:
Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB

Operating Instructions

REFRIGERATOR/FREEZER COMBINATION

GB

English

FFL49

Contents

Installation, 4

Positioning and connection
Bar compartment

Description of the appliance, 6-7

Control panel
Overall view

Accessories, 8

Refrigerator compartment
Freezer compartment

Display, 9-10

Display description
Using the display

Start-up and use, 11-13

Starting the appliance
Chiller system
Using the refrigerator to its full potential
Using the freezer to its full potential
Ever Fresh

GBGB

GB

GBGB

Maintenance and care, 14

Switching the appliance off
Cleaning the appliance
Ever Fresh
Avoiding mould and unpleasant odours
Replacing the light bulb
Changing the odour filter

Precautions and tips, 15

General safety
Disposal
Respecting and conserving the environment

Troubleshooting, 16

Assistance, 17

Installation

! Before operating your new appliance, please read

GB

these operating instructions carefully. They contain
important information for safe use, installation and care
of the appliance.

! Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free
room.

2. Do not obstruct the rear fan grills. The compressor and
condenser give off heat and require good ventilation to
operate correctly and save energy.

3. Leave a space of at least 10 cm between the top part of
the appliance and any furniture above it, and at least 5
cm between the sides and any furniture/side walls.

4. Ensure the appliance is far away from any sources of
heat (direct sunlight, electric stove, etc.).

5. In order to maintain the correct distance between the
appliance and the wall behind it, fit the spacers supplied
in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.

2. If the floor is not perfectly horizontal, adjust the

refrigerator by tightening or loosening the front feet.

Electrical connections

After transportation of the appliance, carefully place it
vertically and wait at least 3 hours before connecting it
to the electricity mains. Before inserting the plug into the
electrical socket ensure the following:

• The appliance is earthed and the plug is compliant
with the law.

• The socket can withstand the maximum power of the
appliance, which is indicated on the data plate
located on the bottom left side of the fridge (e.g. 150
W).

• The voltage must be in the range between the values
indicated on the data plate located on the bottom left
side (e.g. 220-240V).

• The socket is compatible with the plug of the
appliance.
If the socket is incompatible with the plug, ask an
authorised technician to replace it (
Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.

see Assistance

! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by

authorised technicians only (

! The manufacturer declines any liability should
these safety measures not be observed.

Connection of the water supply

To carry this out, use the kit provided which contains all the
necessary elements for connection to the water supply.
To improve the performance of the Aqua Care, we
recommend that you fit a tap with a filter on the pipe for the
connection to the water system: in this way it will be
possible to manually interrupt the water supply during long
periods in which Aqua Care is not used.
! The water pressure inside the water system must be
between 0.8 bar and 8 bar.
! The appliance must only be connected to a water supply
suitable for drinking.

Your appliance is supplied with a 13amp fused plug that
can be plugged into a 13amp socket for immediate use.
Before using the appliance please read the instructions
below.

WARNING:
THIS APPLIANCE MUST BE EARTHED.

Replacing fuse covers:

When replacing a faulty fuse, a 13amp ASTA approved
fuse to BS 1362 should always be used and the fuse
cover re-fitted.
If the fuse cover is lost, the plug must not be used until
a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the
correct colour as indicated by the coloured marking or the
colour that is embossed in words on the base of the plug.

Changing the plug:

Removing the plug

If your appliance has a non-rewireable moulded plug
and you should wish to remove it to add a longer cable
or to re-route the mains cable through partitions, units

).

etc. please ensure that either:

- The plug is replaced by a fused 13amp re­wireable plug bearing the BSI mark of approval.

or

- The mains cable is wired directly into a
13amp cable outlet, controlled by a
switch (in compliance with BS 5733)
which is accessible without moving the
appliance.

see Assistance

).

4

Disposing of the plug

Cut off and dispose of the supplied plug if it does not fit
your socket. The cable should be cut as close as
possible to the moulded plug.
Remove the fuse.

WARNING:

To avoid a shock hazard do not insert the discarded
plug into a socket anywhere else.

Fitting a new plug

IMPORTANT

WIRES IN THE MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE...

Green and Yellow - Earth
Blue - Neutral
Brown - Live

As the colours of the wires in the mains lead may not
correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:

- Connect Green and Yellow wire to terminal marked
'E' or

- Connect Brown wire to terminal marked 'L' or
coloured red or brown.

- Connect Blue wire to terminal marked 'N' or
coloured Black or Blue.

:

or coloured Green and Yellow.

Bar compartment

GB

The stiffness of the door opening/
closing movement for the bar
compartment may be adjusted.
When you are in front of the
appliance, turn the two lateral
rods to the left if you wish to
stiffen the movement, or to the
right if you wish to loosen the
movement.

! The two brackets must be adjusted to the same
stiffness level. Turn each rod the same number of times,
in the same direction.

If a 13amp plug (BS 1363) is used it must be
fitted with a 13amp fuse. A 15amp plug must be
protected by a 15amp fuse, either in the plug or adaptor
or at the distribution board.

If you are in any doubt about the electrical
supply to your machine, consult a qualified
electrician before use.

CE Marking certifies that this appliance conforms to
the following EEC directives :
Low Voltage Equipment - 73/23/EEC & 93/68 EEC
Electromagnetic Compatibility 89/336/EEC, 92/31/EEC
& 93/68/EEC

5

Description of the
appliance

Control panel

GB

ON/OFF button

Display MODE

ECOECO

ADJUST/SELECT +

button

button

EVER

FRESH

button

• ON/OFF button switches the whole appliance on and

off (refrigerator compartment and freezer
compartment). Press and hold for at least 2 seconds.

See Start-up and use

• EVER FRESH button activates and deactivates the
EVER FRESH function.

• RESET ALARM button switches off the sound alarm
(press once) and deletes the alarm messages from
the scrolling text on the display (press a second time).

See Troubleshooting

• MODE button selects the various display settings and
functions.

RESET ALARM

button

and

.

See Display

Maintenance and care

and

Start-up and use

.

.

ADJUST/SELECT -

button

• ADJUST/SELECT + button activates the functions

and modifies the temperature, time, date and
language settings.

• ADJUST/SELECT - button deactivates the functions

and modifies the temperature, time, date and
language settings.

• Display programmes the appliance and controls its

operation.

See Display

See Display

See Display

.

and

Start-up and use

and

Start-up and use

.

.

6

Description of the
appliance

Overall view

see Maintenance

(

SHELVES

EVER FRESH

FRUIT and

VEGETABLE

compartment

LAMP

shelf

GB

Removable shelf
with lid and

EGG TRAY

)

Storage SHELF

CAN RACK

shelves

BAR compartment

BOTTLE shelf

FREEZER and

STORAGE

compartment

STORAGE

compartments

Levelling FEET

WATER LEVEL

MAX

WATER LEVEL

MAX

ICE TRAYS

• Number and/or position may vary.

7

Accessories

Refrigerator compartment

GB

SHELVES: the shelves are

1

2

BAR COMPARTMENT:

Drinks stay cold and are easy to reach. The
compartment is designed to enable you to obtain bottles
without having to open the door of the refrigerator. It
also provides a handy surface when the door is open
(maximum load 10 kg). The bottle shelf cover ensures
the temperature inside the refrigerator does not rise too
quickly.

removable and their height may
be adjusted thanks to special

see diagram

rails (
storage of large containers and
bulky food. The height may be
adjusted without removing the
shelf completely.

EVER FRESH: shelf dedicated to
storing food in vacuum-packed
containers. Food keeps for longer
when stored in the containers
provided.

CAN RACK shelf: stores cans

horizontally (
Yoghurt, butter or general
containers may also be stored
here.

ODOUR FILTER

are fitted with a new active
carbon odour filter, which
ensures better air quality inside
the refrigerator.
The filter is located on the bottom
right-hand side, inside the
ventilation opening. To activate it,
remove the sticker from the
opening (

see diagram

), allowing easy

see diagram

: some models

*

Freezer compartment

ICE TRAYS: for making ice.

1. Take out the tray by pushing it
up and then outwards (

diagram

Check that the tray is completely
empty and fill it with water using
the opening provided.

2. Take care not to exceed the
level indicated (MAX WATER
LEVEL). Excess water prevents

WATER LEVEL

MAX

).

MAX

WATER LEVEL

).

the ice cubes from being
dispensed (if this happens, wait
for the ice to melt and empty the
tray).

3. Turn the tray 90°: the water fills
up the moulds (
Close the opening with the lid
and replace. When the ice has
formed (minimum time
approximately 8 hours), knock
the tray against a hard surface.

ICE PARTY: ensures bottles of
sparkling wine or champagne
reach the right temperature. Place
the bottle in the bucket provided
inside the FREEZER and
STORAGE compartment. The
bucket may be used to serve the
bottle and keeps it cool outside the
appliance.

).

see diagram

see

).

• Number and/or position may vary.

Available only in certain models.

*

8

Display

Display description

REFRIGERATOR OPERATING

FREEZER OPERATING

indicator light

indicator light

ALARM indicator light

EVER FRESH

function

ECOECO

SUPER FREEZE function

GB

Scrolling text

TIME

indicator
light

ICE PARTY function

SUPER COOL function

• REFRIGERATOR OPERATING indicator light:

displays the set temperature (static digit) or the
temperature that is being set (flashing digit) for the
refrigerator compartment. OFF indicates that the
compartment is off.

• ALARM indicator light: when this switches on a

critical situation is indicated (door open, high
temperature).

• ECO function: displays the function status.

Automatically sets the optimal temperature for food
storage while minimizing energy consumption.

• TIME indicator light: displays the time. This is also

used to set the date and time.

• Scrolling text: displays information on the status of

the appliance and on how to use the display.
It is also used to set the language.

• FREEZER OPERATING indicator light: displays the

set temperature (static digit) or the temperature that is
being set (flashing digit) for the freezer compartment.
OFF indicates that the compartment is off.

See Troubleshooting

.

ECO function

• SUPER COOL function: displays the function status.

• SUPER FREEZE function: displays the function

• EVER FRESH function: displays the function status.

• ICE PARTY function: displays the function status. It

! The function symbols light up in various ways to
indicate their status (deactivated, selected or activated).

This is the rapid cooling function of the refrigerator
compartment. It deactivates automatically.

See Start-up and use

status. This is the rapid cooling function of the freezer
compartment. It deactivates automatically.

See Start-up and use

The central position of the special shelf enables air to
be sucked out of the containers provided.

reduces the temperature of the freezer for the period
of time required to cool a bottle.
A buzzer sounds when the correct temperature has
been reached.

.

.

See Accessories

.

9

Using the display

GB

Setting the temperature

When the appliance is switched on, the standard
storage temperatures are automatically set:

• +5°C for the refrigerator compartment

• -18°C for the freezer compartment.

The temperatures may be set in the following ranges:

• between +2°C and +8°C for the refrigerator
compartment

• between -18°C and -26°C for the freezer compartment

To set the temperature:

1. Press the MODE button until the value flashes on the

refrigerator or freezer compartment display.

2. To increase the temperature, press the

ADJUST/SELECT+ button.
To decrease the temperature, press the
ADJUST/SELECT- button.
Each time the button is pressed, the value increases or
decreases by 1°C.

3. Confirm the choice by pressing the MODE button

within ten seconds: the value will stop flashing: If the
choice is not confirmed, the previous set temperature
will appear on the display.
! The ECO function reduces the possible adjustments:
from +4°C to +6°C for the refrigerator and from -18°C to ­20°C for the freezer.

Function status

function activated
(green symbol with blue inside lights up)

function selected
(green symbol with red border lights up)

function deactivated
(green symbol only lights up)

Setting the date and time

The settings are in series and it is not possible to adjust
the date if the time has not been set before:

1. Press the MODE button repeatedly until SET TIME [+/-]
appears on the scrolling text.

2. To scroll forward one hour press the ADJUST/
SELECT+ button. To scroll back one hour press the
ADJUST/SELECT- button.

3. Confirm the choice by pressing the MODE button
within ten seconds. If the choice is not confirmed, the
previously set time will appear on the display.
Once the hours have been set, the minutes, days,
months and years can be set by following steps 1-3.

Setting the language

1. Press the MODE button repeatedly until the language
setting screen appears on the scrolling text display.

2. To scroll forward, press the ADJUST/SELECT + button.
To scroll back, press the ADJUST/SELECT - button.

3. Confirm the choice by pressing the MODE button
within ten seconds. If the choice is not confirmed, the
previously set language will appear on the display.
! The first time the appliance is switched on, the
language setting request screen appears automatically
on the display: follow the above procedure.

Switching off the audio and visual alarms

Press the RESET ALARM button: by pressing it once, the
audio alarms are switched off; by pressing it a second
time, the alarm messages are deleted from the scrolling
text on the display.
! The open door alarm stops automatically when the door
is closed. (
! If DEMO MODE appears on the display, the appliance
is in exhibition mode, i.e. it does not cool despite the fact
that the display and the internal lamp are on. To exit this
mode, press the MODE, ADJUST/SELECT+ and
ADJUST/SELECT- buttons and hold for at least three
seconds.

See Troubleshooting

).

Activating and deactivating the SUPER COOL,
ECO, SUPER FREEZE, ICE PARTY functions.

1. Press the MODE button until the desired function is

selected.

2. To activate it, press the ADJUST/SELECT + button.

To deactivate it, press the ADJUST/SELECT - button.

3. Confirm the choice by pressing the MODE button

within ten seconds. If the choice is not confirmed, the
previously set function will appear on the display.
Once the operation has finished, the red border switches

off.
If the function has been activated: the green symbol with
blue inside lights up. If the function has been
deactivated: only the green symbol lights up.

10

Start-up and use

Starting the appliance

! Before starting the appliance, follow the installation
instructions (

! Before connecting the appliance, clean the
compartments and accessories well with lukewarm
water and bicarbonate of soda.

! The appliance comes with a motor protection control
system which means that the compressor starts up
approximately 8 minutes after being switched on. The
compressor also starts each time the power supply is
cut off, whether voluntarily or involuntarily (power cut/
blackout).

Insert the plug into the electrical socket and, if OFF
appears on both indicator displays (refrigerator and
freezer), switch the appliance on by holding the ON/OFF
button down for at least two seconds:

- the refrigerator will be set at a temperature of +5°C

- the freezer will be set at a temperature of -18°C.

To cool the two compartments more rapidly, activate the
SUPER COOL and SUPER FREEZE functions (

Display

see Installation

).

).

see

Using the refrigerator to its full
potential

• Adjust the temperature using the display.

• Activate the SUPER COOL function to lower the
temperature quickly, for example, when you place a
large number of new food items inside a fridge and
the internal temperature rises slightly. This function
quickly cools the groceries by temporarily reducing
the temperature until it reaches the ideal level.

• Place only cold or lukewarm foods in the
compartment, never hot foods (

).

tips

• Remember that cooked foods do not last longer
than raw foods.

• Do not store liquids in open containers: they will
increase the level of humidity in the refrigerator and
cause condensation to form.

see Precautions and

GB

Chiller system

The appliance is fitted with the following chiller system:

No Frost

This system can be recognised
by the aeration cells located on
the back walls of each
compartment.
The No Frost system circulates
cold air continuously to collect
humidity and prevent ice and frost

formation. The system maintains
an optimal humidity level in the compartment, preserving
the original quality of the food, preventing the food from
sticking together and making defrosting a thing of the
past.

! Do not block the aeration cells by placing food or
containers in direct contact with the refrigerating back
panel.
! Close bottles and wrap food tightly.

11

Using the freezer to its full potential

GB

• Adjust the temperature using the display.

• When you wish to freeze a lot of food at once, activate
the SUPER FREEZE function. The function is
automatically disabled after 24 hours or once the
optimal temperature has been reached.

• Do not refreeze food that has been defrosted or that is
defrosting; this food must be eaten within 24 hours or
may be frozen again after it has been cooked.

• Fresh food that needs to be frozen must not come into
contact with food that has already been defrosted.
Fresh food must be packed in the top FREEZER
compartment where the temperature drops below ­18°C and guarantees rapid freezing.

• Do not place glass bottles containing liquids or
bottles that are corked or hermetically sealed in the
freezer as they may break.

• The maximum quantity of food that may be frozen each
day is indicated on the plate containing the technical
properties located on the bottom left side of the
refrigerator compartment (for example: Kg/24h 4).

! Do not open the door during the freezing process.
! Do not open the freezer door if there is a power cut or

malfunction. This will help maintain the temperature
inside the freezer, ensuring that foods are conserved for
at least 9 -14 hours.

Ever Fresh

The absence of air inside the containers ensures that
food is preserved for longer periods of time while
maintaining its original appearance, taste and nutritional
characteristics.

In

Food

General cooked dish 2 days 10 days

Ready-made rice or pasta dish 2 days 10 days
Fresh fish 2-3 days 4-5 days
Fresh raw meat 3 days 9 days
Hard cheese 15 days 60 days
Raw vegetables 5 days 21 days
Fresh fruit 10 days 21 days
Dry biscuits 180 days 365 days
Pastries with cream/custard 2 days 10 days
Other desserts/pastries 5 days 20 days

* The above table is indicative and refers to food storage
in the refrigerator at temperatures ranging between 3°C
and 5°C. The length of time food lasts for will, however,
depend on the initial freshness of the products,
preparation and storage methods, and correct use of the
Ever Fresh function.

normal
conditions

With
EVER
FRESH*

! The food’s tendency to spoil and use-by date must
always be borne in mind when using the Ever Fresh food
storage system. This method of storing food does not
change any of the characteristics of the food.
! Use only the containers that come with the product to
store food in the Ever Fresh system. Do not use any other
type of container.

Ever Fresh system

The Ever Fresh system is activated and deactivated by
means of a button on the refrigerator shelf, an external
button on the display and a knob on the cover of each
container.
! There is a pump in the centre of the Ever Fresh shelf
which sucks the air out of the containers.

Activating and deactivating Ever Fresh

1. Fill the container. Make sure that the food inside
leaves room for the container to be closed properly.

2. Put the lid on the container.

U

U

C

M

A

V

O

T

O

U

A

V

3. Close the handles on either
side of the container and turn the
knob on the lid of the container all
the way to the CLOSE position.
Then turn the knob anticlockwise

O

T

N

R

E

E

P

P

A

O

C

H

C

I

L

U

O

S

S

O

to the VACUUM position

E

(see figure A).

4. Press the button on the shelf

B

1

and place the container in the
central position

(see figure B).

5. Lock the container into position
by pulling the button on the shelf

(see figure C)

.

2

6. Activate the Ever Fresh function
by pressing the relevant button on

C

the external display (the Ever
Fresh icon will light up).
A slight noise can be heard while
the Ever Fresh system is in
operation.

12

7. Wait for the signal that the operation has finished (the
Ever Fresh icon will switch off).

8. Unlock the container from its position by pressing the
button on the shelf.

D

E

provided with a circular valve. When the valve is low

(figure D)

valve is high

! If, after you have created a vacuum (instructions
1-9), the valve moves upward
days, check the lid has been put on the container
properly and/or that the container is intact. Check the
storage status of the food before repeating the vacuum
storage operation.

! The Ever Fresh function is equipped with a safety
device that switches off the pump in case of malfunction
(if the container is missing or incorrectly positioned, for
example). If the safety device is activated, the RESET
ALARM button must be pressed twice to restore normal
operation.

there is no air inside the container. When the

(figure E)

9. Take it out of the refrigerator
and turn the knob clockwise to
the CLOSE position to avoid
accidental opening

. The absence of air inside the

A)

container is indicated by the
valve at the bottom

10. To open the container, turn
the knob anticlockwise to the
OPEN position
will allow air to enter the container
and make it easy to open. The
valve will move upwards as air
enters the container

.

E)

! The lid of the container is

air is present inside the container.

(see figure E)

(see figure

(see figure D).

(see figure A)

(see figure

within three

: this

Using Ever Fresh to its full potential

The following information is a guide on how to get the
best from the Ever Fresh system and the food it stores.

Ever Fresh containers

• The maximum fill level marked on the container must
be respected when storing liquids of any kind.
Vacuuming actual liquid from the container may damage
the Ever Fresh pump.

• Repeated opening of the vacuumed containers may
disturb the storage conditions of the food inside.

• Before using the system, make sure there is no visible
damage on any part of the container.

• The container valve has a built-in security system. If,
after you have created a vacuum, the valve moves
upward within three days, check the lid has been put on
the container properly and/or that the container is intact.
Check the storage status of the food before repeating
the vacuum storage operation. See

deactivating Ever Fresh

• The containers were designed to come into direct
contact with food.

• Do not use the containers for any type of cooking (in
the microwave or oven, on an electric plate, over a
flame, etc.).

• Do not put the containers in the freezer.

• Do not clean the lids in a dishwasher.

Vacuum storage

• Pre-packed foods stored using the vacuum system
must still be consumed before the use-by date.

• Repeatedly storing these vacuum-packed foods does
not change their natural tendency to spoil.

• Do not store defrosted foods using the vacuum system
unless they have been cooked already.

• Stored food should be prepared while fresh (chopped,
sliced, peeled, cooked) and should be in perfect
condition.

• Perishable foods stored using the vacuum system
must still be stored inside the refrigerator.

• Cooked foods must be left to cool before being stored
using the vacuum system.

.

Activating and

GB

13

Maintenance and care

Switching the appliance off

GB

During cleaning and maintenance it is necessary to
disconnect the appliance from the electricity supply:

1. Hold the ON/OFF button down for more than two

seconds until OFF appears on both indicator displays
(refrigerator and freezer).

2. Pull the plug out of the socket.

! If this procedure is not followed, the alarm may sound.
This alarm does not indicate a malfunction. To restore
normal operation, hold the ON/OFF button down for
more than two seconds. To disconnect the appliance,
follow points 1 and 2 above.

Cleaning the appliance

• The external and internal parts and the rubber seals
may be cleaned using a sponge that has been
soaked in lukewarm water and bicarbonate of soda or
neutral soap. Do not use solvents, abrasive products,
bleach or ammonia.

• The removable accessories may be soaked in warm
soapy water or dishwashing liquid. Rinse and dry
them carefully.

• The back of the appliance may collect dust. This can
be removed by carefully using the hose of a vacuum
cleaner set on medium power. The appliance must
be switched off and the plug disconnected from the
electricity mains before it is cleaned.

Ever Fresh

• Use a clean dry cloth to clean the opening of the
vacuum system in the centre of the Ever Fresh shelf.
Do not use water or solvents.

• The opening in the centre of the Ever Fresh shelf
should not come into contact with water or any other
liquids.

• Wash and dry the containers before using them.

• Do not clean the lids in a dishwasher.

• Before closing the containers make sure that the
edges are clean. Traces of dirt may affect the sealing
process and consequently the length of time food
may be stored.

• If the knob on the cover needs to be cleaned, turn it
anticlockwise until it comes off and wash it using
water and neutral detergent. After drying it thoroughly,
screw it back on.

• If you wish to take the Ever Fresh shelf out and clean
it, you must first disconnect the tube at the back of
the shelf. Make sure it is reattached properly in order
to avoid blockages and system malfunctions. The
Ever Fresh shelf should not come into contact with
water or other liquids as these may damage the
system.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic, odour
free materials. Food should be wrapped well and
containers closed properly in order to maintain this
hygiene. This will also prevent the formation of stains.

• If you wish to switch the appliance off for an extended
period of time, clean the inside and leave the doors
open.

Replacing the light bulb

To replace the light bulb in the
refrigerator compartment,
disconnect the plug from the
electricity mains.

Access the light bulb as shown

see diagram

(
with a similar light bulb, the
power of which should not
exceed 10 W.

Changing the odour filter

The filter should be replaced approximately 6-8 months
after it has been activated. This period may vary
depending on the type of food stored inside the
refrigerator. For information on where a replacement
filter may be purchased, contact Assistance (

Assistance

see diagrams A and B

(

A

). To replace the filter, follow the instructions

).

B

) and replace it

see

14

Precautions and tips

! The appliance was designed and manufactured in
compliance with international safety standards. The
following warnings are provided for safety reasons and
must be read carefully.

This appliance complies with the following
Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and
subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic
Compatibility) and subsequent amendments;

- 2002/96/CE.

General safety

• The appliance was designed for domestic use inside the
home and is not intended for commercial or industrial
use.

• The appliance must be used to store and freeze food
products by adults only and according to the instructions
in this manual.

• The appliance must not be installed outdoors, even in
covered areas. It is extremely dangerous to leave the
appliance exposed to rain and storms.

Disposal

GB

• Observe local environmental standards when
disposing packaging material for recycling purposes.

• The European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE), requires
that old household electrical appliances must not be
disposed of in the normal unsorted municipal waste
stream. Old appliances must be collected separately
in order to optimise the recovery and recycling of the
materials they contain and reduce the impact on
human health and the environment. The crossed out
“wheeled bin” symbol on the product reminds you of
your obligation, that when you dispose of the
appliance it must be separately collected.
Consumers should contact their local authority or
retailer for information concerning the correct disposal
of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated
room. Ensure that it is protected from direct sunlight
and do not place it near heat sources.

• Do not touch the appliance with bare feet or with wet or
moist hands and feet.

• Do not touch the internal cooling elements: this could
cause skin abrasions or frost/freezer burns.

• When unplugging the appliance always pull the plug from
the mains socket, do not pull on the cable.

• Before cleaning and maintenance, always switch off the
appliance and disconnect it from the electrical supply. It
is not sufficient to set the temperature adjustment knobs
on “0” (appliance off) to eliminate all electrical contact.

• In the case of a malfunction, under no circumstances
should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may cause
injury or further malfunctioning of the appliance.

• Do not use devices or tools other than the special scraper
provided inside the compartments.

• Do not put ice cubes taken directly from the freezer into
your mouth.

• Do not allow children to tamper with the controls or play
with the appliance. Under no circumstance should they
be allowed to sit on the bins or to hang from the door.

• Try to avoid keeping the door open for long periods or
opening the door too frequently in order to conserve
energy.

• Do not fill the appliance with too much food:
cold air must circulate freely for food to be preserved
properly. If circulation is impeded, the compressor will
work continuously.

• Do not place hot food directly into the refrigerator. The
internal temperature will increase and force the
compressor to work harder and will consume more
energy.

• Defrost the appliance if ice forms (
A thick layer of ice makes cold transference to food
products more difficult and results in increased
energy consumption.

• Regularly check the door seals and wipe clean to
ensure they are free of debris and to prevent cold air
from escaping (

see Maintenance

see Maintenance

).

).

• Keep packaging material out of the reach of children! It
can become a choking or suffocation hazard.

15

Troubleshooting

If the appliance does not work, before calling for Assistance (

GB

following list.

Malfunctions:

The display is off.

The motor does not start.

The display is on but it is dim.

The alarm sounds and the lamp in
the refrigerator compartment
flashes.

The alarm sounds and a message
appears on the scrolling text of the
display.

The alarm sounds and a message
appears on the scrolling text of the
display.

Possible causes / Solutions:

• The plug has not been inserted into the electrical socket, or not far
enough to make contact, or there is no power in the house.

• The appliance is equipped with a motor protection control system (

Start-up and use

• Pull the plug out and check it before putting it back in the socket.

• The refrigerator door has been open for more than two minutes.
The buzzer stops when the door is closed or when the RESET ALARM
button is pressed. It could also be that the correct switching-off
procedure was not followed (

• The temperature of the freezer is too high.
The freezer will maintain a temperature of around 0°C so that the food
will not refreeze, allowing you to eat it within 24 hours or to refreeze it
after it has been cooked.

• The temperature of the freezer is dangerously high: the food inside
must not be eaten. The freezer will return to a temperature of -18°C.
To switch off the buzzer, press the RESET ALARM button. Press again
to delete the message on the display and restore normal operation.

see Assistance

).

see Maintenance

), check for a solution from the

See

).

The alarm icon flashes, the Ever
Fresh icon switches off and a
message appears on the display.

The refrigerator and the freezer do
not cool well.

The food inside the refrigerator is
beginning to freeze.

The motor runs continuously.

The appliance makes a lot of noise.

The functions end earlier than they
should.

• The Ever Fresh safety lock has intervened during prolonged use of the
vacuum pump. To restore normal operation, check the ever Fresh
system and press the Reset Alarm button twice

• Make sure that the tube at the back of the Ever Fresh shelf is
connected to the base of the refrigerator unit correctly.

• The doors do not close properly or the seals are damaged.

• The doors have been opened too frequently.

• The set temperature is too high (

• The refrigerator or freezer has been over-filled.

• The set temperature is too low (

• The SUPER COOL and/or SUPER FREEZE and/or ICE PARTY functions
have been activated.

• The door is not closed properly or has been open continuously.

• The ambient temperature outside the appliance is very high.

• The appliance has not been installed on a level surface (

)

Installation

• The appliance has been installed between cabinets that vibrate and
make noise.

• The internal refrigerant gas makes a slight noise even when the
compressor is off. This is not a defect, it is normal.

• There is electrical network disturbance or the power supply has been
interrupted briefly.

.

see Start-up and use

see Start-up and use

(see Display)

).

).

.

see

16

Assistance

Before calling for Assistance:

•

Check if the malfunction can be solved on your own (

see Troubleshooting

).

• If the appliance is still not working and the problem persists despite having carried out all the checks, call
your nearest Service Centre.

model

serial number

Communicating:

• type of malfunction

• appliance model (Mod.)

• serial number (S/N)

This information can be found on the data plate
located on the bottom left side of the refrigerator
compartment.

Gross
Bruto
Brut

TI

75

Test

P.S-I.

RG 2330

Mod.

220 - 240 V- 50 Hz 150 W

340

Total

Gross
Bruto
Brut

Compr.

R 134 a

Syst.

kg 0,090

Kompr.

Made in Italy 13918

93139180000 S/N 704211801

Net
Util
Utile

Pressure
HIGH-235

LOW 140

Cod.

Gross
Bruto
Brut

Fuse

W

A

Freez. Capac

Poder de Cong

4,0

kg/24 h

Max 15 w

Class

Clase

Classe

N

Never use unauthorized technicians and never accept replacement parts that are not original

GB

17

GB

After Sales Service

"No company is better positioned to offer an after sales service on a

Hotpoint appliance than us - the manufacturer"

As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts

and labour guarantee for the first 12 months. In addition to this you also have the advantage of free

replacement parts for the first 5 years when fitted by a Hotpoint

engineer. When the 12 months parts and labour guarantee expires we offer the following after sales

service options:

Repair Service and Information Help Desk

UK: 08709 066066

www.theservicecentre.co.uk

Republic of Ireland: 1850 302 200

Note: Our operators will require the Model number and the Serial number of your appliance

Available 364 days a year with a fast, effective and value for money service. We have the largest white

goods repair service in the UK with over 1200 of our own fully trained engineers. All repairs include a

parts and labour guarantee for 12 months from the date of the repair.

If you require any information or have any questions about your appliance, our operators are on hand with

help and advice.

All this ensures that you will receive the best available after sales service possible.

Extended Warranties

UK: 08709 088 088

www.theservicecentre.co.uk

Republic of Ireland: 1850 502 200

Whether you have just one or a number of Hotpoint appliances in your kitchen, we offer two service cover

plans to give you total peace of mind.

- Repair Protection Plan - FREE service repairs for a single Hotpoint appliance during the
period of cover.

- Kitchen Cover - FREE service repairs for all your Hotpoint appliances less than 8

years old.

Genuine Parts and AccessoriesUK: 08709 077 077

www.theservicecentre.co.uk

Republic of Ireland: [phone]

A wide range of genuine parts and accessories are available from our hotline or through our web site.

Genuine parts and accessories, extended warranties and service repairs are all

available on our web-site at:

18

www.theservicecentre.co.uk

Guarantee

"Satisfaction guaranteed or your money back"

We give you a unique 'satisfaction guaranteed' promise - valid for 90 days - after you have

purchased your Hotpoint appliance. If there is a technical problem simply call Hotpoint Repair service

or visit our web-site at www.theservicecentre.co.uk and where necessary, we will arrange for an

engineer to call. If the technical problem is not resolved under this guarantee, we will replace your

machine or, if you prefer, give you your money back.

All Hotpoint appliances carry a fully inclusive 12 month parts and labour guarantee as well as free
replacement parts for the first 5 years (except microwaves, selected integrated appliances and cooker
hoods, which have a one year guarantee) provided that they are fitted by a Hotpoint engineer.

Guarantee terms and conditions

Your guarantee is only applicable in the United Kingdom or Republic of Ireland and is subject to the
following provisions that your appliance:

- Has been installed and used correctly in accordance with this instruction booklet.

- Has been used solely for domestic purposes and is located on domestic premises (ie. not for
commercial or trade use).

- Has been properly connected to a suitable electrical supply voltage as stated on the appliance

rating plate.

- Has not been subject to misuse, accident, modified or repaired by anyone other than one of our
own service engineers.

GB

For pre purchase information on any other Hotpoint product call: 08701 50 60 70

or visit: www.hotpoint.co.uk

Recycling & Disposal Information

As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to
use quality recycled components to keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully.
To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the
appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged
into a mains socket, and the door cannot be locked shut.

19

Key Contacts

After Sales Service

Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in

both the appliances and services we offer.

Repair Service and Information Desk

UK: 08709 066 066

(Open 8 to 8 Mon - Fri, 8 to 6 Sat, 10 to 4 Sun & Bank Holidays)

www.theservicecentre.co.uk

Republic of Ireland: 1850 302 200

Note: Our operators will require the following information:

Model number:

Serial number:

Extended Warranties

UK: 08709 088 088

(Open 8 to 8 Mon - Sun)

www.theservicecentre.co.uk

Republic of Ireland: 1850 502 200

Genuine Parts and Accessories

UK: 08709 077 077

(Open 8-30 to 5-30 Mon - Fri & 9 to 12 Sat)

www.theservicecentre.co.uk

Republic of Ireland: [phone]

195051865.00

Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB.

April 2005
