Hotpoint FFB6200AX User Manual

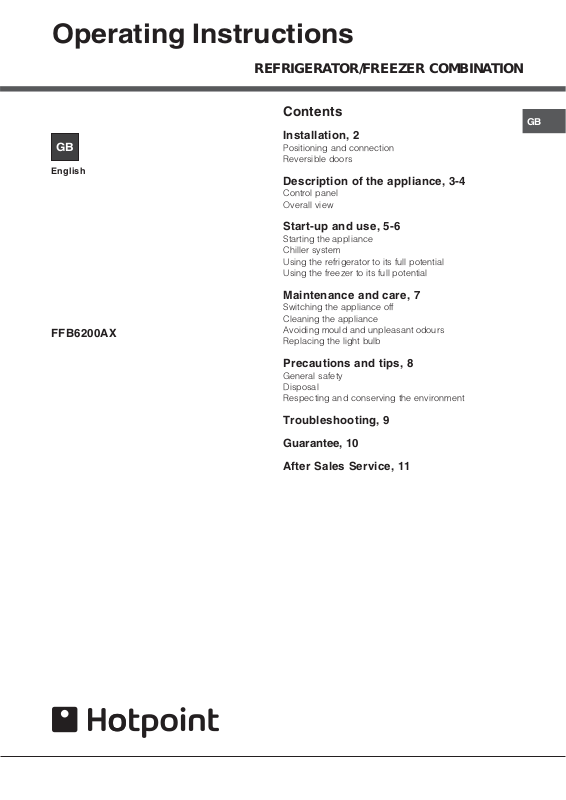

Operating Instructions
REFRIGERATOR/FREEZER COMBINATION
GB
English
FFB6200AX
Contents
GB
Installation, 2
Positioning and connection
Reversible doors
Description of the appliance, 3-4
Control panel
Overall view
Start-up and use, 5-6
Starting the appliance
Chiller system
Using the refrigerator to its full potential
Using the freezer to its full potential
Maintenance and care, 7
Switching the appliance off
Cleaning the appliance
Avoiding mould and unpleasant odours
Replacing the light bulb
Precautions and tips, 8
General safety
Disposal
Respecting and conserving the environment
Troubleshooting, 9
Guarantee, 10
After Sales Service, 11
Installation
GB
! Before placing your new appliance into operation
please read these operating instructions carefully. They
contain important information for safe use, for
installation and for care of the appliance.
! Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.
Positioning and connection
Positioning
1. Place the appliance in a well-ventilated humidity-free
room.
2. Do not obstruct the rear fan grills. The compressor
and condenser give off heat and require good
ventilation to operate correctly and save energy.
3. Leave a space of at least 10 cm between the top part
of the appliance and any furniture above it, and at
least 5 cm between the sides and any furniture/side
walls.
4. Ensure the appliance is away from any sources of
heat (direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the
appliance and the wall behind it, fit the spacers
supplied in the installation kit, following the
instructions provided.
Reversible doors
1
2
3
Levelling
1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the
refrigerator by tightening or loosening the front feet.
Electrical connections
After the appliance has been transported, carefully
place it vertically and wait at least 3 hours before
connecting it to the electricity mains. Before inserting
the plug into the electrical socket ensure the following:
The appliance is earthed and the plug is compliant
with the law.
The socket can withstand the maximum power of the
appliance, which is indicated on the data plate located
on the bottom left side of the fridge (e.g. 150 W).
The voltage must be in the range between the values
indicated on the data plate located on the bottom left
side (e.g. 220-240V).
The socket is compatible with the plug of the
appliance.
If the socket is incompatible with the plug, ask an
authorised technician to replace it (see Assistance).
Do not use extension cords or multiple sockets.
! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by
authorised technicians only (see Assistance).
! The manufacturer declines any liability should
these safety measures not be observed.
4
5
∅ 3
mm
2
Description of the
appliance
Control panel
REFRIGERATOR
OPERATION
Knob
SUPER COOL
Indicator light
SUPER COOL
Button
POWER
Indicator light
SUPER FREEZE
Indicator light
GB
FREEZER
OPERATION
Knob
SUPER FREEZE
Button
REFRIGERATOR OPERATION Knob
to regulate the temperature of the refrigerator
compartment.
is the optimal temperature for energy saving
levels.
is the holiday function (see Maintenance and
care).
OFF switches the refrigerator off.
SUPER COOL
of the refrigerator compartment rapidly. When it is
pressed, the SUPER COOL indicator light illuminates
(see Start-up and use).
SUPER COOL Yellow indicator light (rapid cooling)
illuminates when the SUPER COOL button is pressed.
POWER Indicator light illuminates when the
appliance is connected to the electricity network.
(quick cool) to lower the temperature
SUPER FREEZE button (rapid freezing) to freeze fresh
food. When it is pressed, the SUPER FREEZE indicator
light illuminates (
SUPER FREEZE Yellow indicator light (rapid
freezing) illuminates when the SUPER FREEZE
button is pressed.
FREEZER OPERATION Knob
to regulate the temperature of the freezer
compartment.
is the optimal temperature for energy saving
levels.
switches the appliance off, including the
refrigerator.
! The indicator lights are also used to indicate an
unusual temperature increase in the freezer
compartment (see Troubleshooting).
see Start-up and use
).
3
Description of the
appliance
Overall view
GB
The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not
directly represent the appliance purchased. For more complex features, consult the following pages.
Control panel
LAMP
(see Maintenance)
Removable lidded
shelf with EGG
TRAY
*
SHELVES
WINE RACK
FRESH BOX
Compartment
FRUIT and
VEGETABLE bin
FREEZER and
STORAGE
compartment
Removable multipurpose
SHELVES
*
BOTTLE shelf
*
Removable multipurpose
SHELVES
STORAGE
compartment
Levelling FEET
Varies by number and/or position.
Available only on certain models.
*
4
Removable multipurpose
SHELVES
