1

Installation

GB

! Keep this instruction booklet on hand in order to refer to it
when necessary. Take it with you when you move, and
should you sell this appliance or pass it on to another
party, make sure that this booklet is supplied along with
the dryer so that the new owner may be informed about
warnings and suggestions on how the dryer works.
! Read these instructions carefully; the following pages
contain important information on installation and
suggestions on how the appliance works.

Door Reversal Instructions

Hinge

Door latch

Hinge

The door of your dryer is reversible and can easily be
changed. Exchange diagonally hinge brackets and
blanking screws. Exchange door latch and catch with their
opposite blanking plates (see diagram above).

Door catch

Where to put your dryer

Electrical connections

Make sure of the following before you insert the plug into the
the electrical socket:

●

The socket must be grounded.

●

The socket must be able to sustain the machines
maximum power, which is indicated on the rating label
(see Dryer Description).

●

Power voltage must be within the values indicated on
the rating label (see Dryer Description).

●

The socket must be compatible with the dryers plug.
Should this not be the case, replace the plug or the socket.

! The dryer must not be installed outdoors, even if the space is
sheltered. It can be very dangerous if it is exposed to rain or
storms.
! Once installed, the dryers electrical wire and plug must be
within easy reach.

! Do not use extension cords.
! The power cord must not be bent or squashed.
! The power cord supplied is fitted with a BS1363 plug and a 13

amp BS1362 fuse. If you need to replace the fuse, use only
those rated at 13 amp (13A) and ASTA approved to
BS1362.

Moulded plug

! The plug must not be used without
the fuse cover in place.
If a replacement fuse holder/cover is
required, it must be of the same
colour coding or wording as shown
on the base of the plug.
Replacements are available from
authorised dealers.

●

Place your dryer at a distance from gas ranges,
stoves, heaters, or cook tops because flames can
damage the appliance.

●

If you are going to install the appliance under a work
counter, be sure to leave a 10mm space between the
top and any other objects on or above the machine
and a 15mm space between the sides and lateral
furnishings or walls. This is to ensure proper air circulation.
Make sure that the back vents are not obstructed.

Ventilation

When the dryer is in use, there has to be adequate
ventilation. Make sure you put your dryer in an environment
that is not damp and has proper air circulation throughout.
Airflow around the dryer is essential to condense the
water produced during the washing, the dryer will not
operate efficiently in an enclosed space or cupboard.
! If using the dryer in a small or cold room some
condensation could be experienced.

! We do not recommend that the dryer is installed in a
cupboard but the dryer must never be installed
behind a lockable door, a sliding door or a door with a
hinge on the opposite side to that of the dryer door.

Water drain

If your dryer is installed next to a drain the water can be
plumbed into this drain. This does away with the need to
empty the water container. Simply remove the top hose from
its top fitting at the rear of the dryer and plumb the hose
provided to the drain.

Changing the plug

The wires in the power cord are coloured in accordance with the
following:

Green and Yellow
(Earth) wire to terminal
marked ‘E’, symbol ,
or coloured green and
yellow.

Blue (Neutral) wire to
terminal marked ‘N’ or
coloured black.

Cord clamp

13A ASTA approved
fuse to BS1362.

Brown (Live) wire to
terminal marked ‘L’ or
coloured red.

! If the plug being replaced is a non-rewirable type, then the
cut-off plug must be disposed of safely. DO NOT leave it
where it can be inserted into a socket and create a shock
hazard.
! The power supply cord should be checked periodically and
replaced by a cord specially prepared for this dryer and fitted
only by authorised technicians (see Service). New or longer
power cords are supplied at an extra charge by authorised
dealers.
! The manufacturer denies any responsibility should any of
these rules not be followed.
! If in doubt about any of the above consult a qualified
electrician.

Before you start using your dryer

Once you have installed your dryer and before you use it,
clean the inside of the drum to remove any dust that could
have accumulated during transport.

2

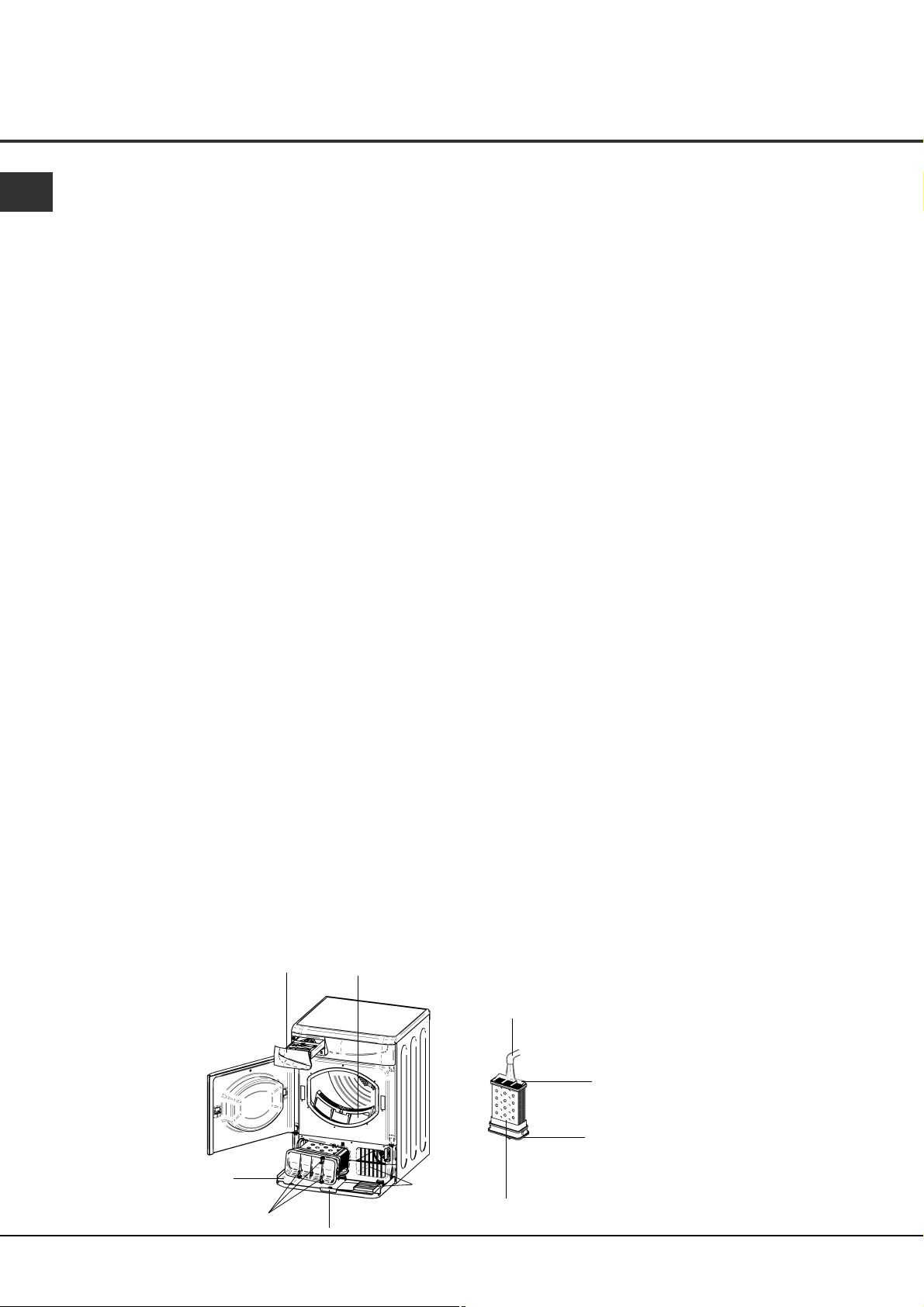

Dryer Description

To open the door The features

Press and release the front

panel in position shown

Door latch

Condenser cover

Condenser cover handle

(Pull to open)

Control panel

START/CANCEL

Time and Icon

Display unit

Water container

Filter

On/Off

Button

Light

ON/OFF

Button

Rating plate

Model &
Serial
numbers

Door catch

Air intake
grille

GB

Installation

Description

Programmes Laundry

Start and

OPTION

Buttons

The START/CANCEL button starts a selected
programme. When you press this button there will be
one short beep and the progress icons will flash
on/off to confirm the action. If you have not set a
programme, the buzzer will beep four times. When a
programme is running, holding this button in gives one
long beep and cancels the programme and stops the
dryer (see Start and Programmes).

The OPTION buttons/icons: these buttons select
available options for your selected programme (see
The Controls). The icons indicate that the option has
been selected.

The Empty Water icon signals that the
water container should be emptied. When it is flashing
it indicates that the container is full.
The light will take a few seconds to go out after
replacing the empty container, the dryer must be
running for this to happen (see The Controls).

PROGRAMME Selection

Buttons

The Clean Filter icon reminds you to
clean the filter every time you use the dryer (see
Maintenance).

The On/Off indicator light signals that your dryer
is in use or ready to select a programme.

The ON/OFF button : If the dryer is running and
this button is pressed, the dryer stops. Press again,
the dryer restarts. If you have not opened the door,
press START button to continue.

The Progress icons :

show you the status of the programme. They show
each stage of the programme by the corresponding
icon turning on (see Start and Programmes).

The PROGRAMME Selection buttons set the
programme: press the button corresponding with the
programme you want to select (see Start and
Programmes).

Warnings and

Suggestions

Maintenance and

Care Troubleshooting Service
