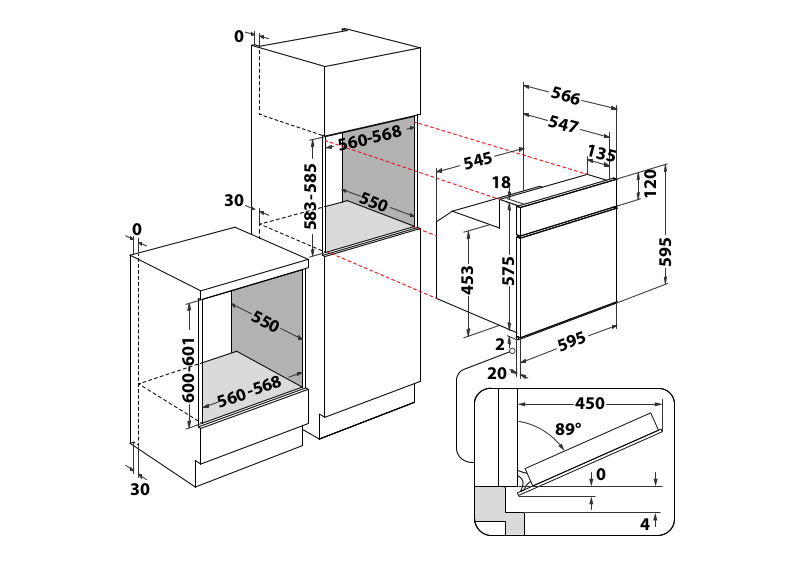

0
|
|
|
|
568 |
|
|
|
560 |
- |
|
|
|
|
|
|
30 |
-585 |
550 |
|
|
583 |
|||
|
|
|
||
0 |
|
|
|
|
|
|
|
|
|
|
550 |
-601 |
|
|
600 |
|
568 |
|
560 |
- |
|
|
30
|
566 |
|
|
547 |
|
545 |
135 |
|
18 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
575 |
|
453 |
2 |
595 |
20 |
|
|
450 |
|
89° |
|
0 |
120
595
4
AO Y54 C IX |
12NC/Fx: F153823 |
GTIN (EAN) code: |
|
|
5054645538232 |
DIMENSION |
MEASURE |
||
OVERALL CABINET |
|
|
|
MIN Height of the wall cabinet niche, including all required space for installation or ventilation |
0 |
mm |
|
MIN Height of the tall cabinet niche, including all required space for installation or ventilation |
583 |
mm |
|
MIN Height of the base cabinet niche, including all required space for installation or ventilation |
600 |
mm |
|
MAX Height of the wall cabinet niche, including all required space for installation or ventilation |
0 |
mm |
|
MAX Height of the tall cabinet niche, including all required space for installation or ventilation |
585 |
mm |
|
MAX Height of the base cabinet niche, including all required space for installation or ventilation |
601 |
mm |
|
MIN Width of the wall cabinet niche, including all required space for installation or ventilation |
0 |
mm |
|
MIN Width of the tall cabinet niche, including all required space for installation or ventilation |
560 |
mm |
|
MIN Width of the base cabinet niche, including all required space for installation or ventilation |
560 |
mm |
|
MAX Width of the wall cabinet niche, including all required space for installation or ventilation |
0 |
mm |
|
MAX Width of the tall cabinet niche, including all required space for installation or ventilation |
568 |
mm |
|
MAX Width of the base cabinet niche, including all required space for installation or ventilation |
568 |
mm |
|
MIN Depth of the wall cabinet niche, including all required space for installation or ventilation |
0 |
mm |
|
MIN Depth of the tall cabinet niche, including all required space for installation or ventilation |
550 |
mm |
|
MIN Depth of the base cabinet niche, including all required space for installation or ventilation |
550 |
mm |
|
Space in front, which is required to install bottom trim |
4 |
mm |
|
Indicates whether a ventilation opening is needed or not. Default is "N" |
Yes |
|
|
WALL CABINET (vent-shaft incoming) |
|
|
|
Indicates the position of the freespace for the inbound airflow (wall cabinet) |
Rear |
|
|
Minimum space or inbound ventilation (wall cabinet) |
0 |
mm |
|
Minimum area for inbound ventilation cavity (wall cabinet) |
0 |
cm² |
|
WALL CABINET (vent-shaft outgoing) |
|
|
|
Indicates the position of the freespace for the outbound airflow (wall cabinet) |
Rear |
|
|
Minimum space or outbound ventilation (wall cabinet) |
0 |
mm |
|
Minimum area for outbound ventilation cavity (wall cabinet) |
0 |
cm² |
|
TALL CABINET (vent-shaft incoming) |
|
|
|
Indicates the position of the freespace for the inbound airflow (tall cabinet) |
Rear |
|
|
Minimum space for inbound ventilation (tall cabinet) |
30 |
mm |
|
Minimum area for inbound ventilation cavity (tall cabinet) |
150 |
cm² |
|
TALL CABINET (vent-shaft outgoing) |
|
|
|
Indicates the position of the freespace for the outbound airflow (tall cabinet) |
Rear |
|
|
Minimum space for outbound ventilation (tall cabinet) |
0 |
mm |
|
Minimum area for outbound ventilation cavity (tall cabinet) |
150 |
cm² |
|
BASE CABINET (vent-shaft incoming) |
|
|
|
Indicates the position of the freespace for the inbound airflow (base cabinet) |
Rear |
|
|
Minimum space for inbound ventilation (base cabinet) |
30 |
mm |
|
Minimum area for inbound ventilation cavity (base cabinet) |
150 |
cm² |
|
BASE CABINET (vent-shaft outgoing) |
|
|
|
Indicates the position of the freespace for the outbound airflow (base cabinet) |
Rear |
|
|
Minimum space for outbound ventilation (base cabinet) |
0 |
mm |
|
Minimum area for outbound ventilation cavity (base cabinet) |
150 |
cm² |
|
|
|
|
|
DIMENSION |
MEASURE |
||
APPLIANCE |
|
|
|
Height of the front |
|
595 |
mm |
Width of the front |
|
595 |
mm |
Depth of the front |
|
20 |
mm |
Maximum depth all protruding elements, e.g. handles, controls |
|
42 |
mm |
Lateral clearance between front edge and most protruding elements which avoid to open a |
|
110 |
mm |
neighbour front more than 90 degrees |
|
|
|
Projection of front in relation to housing of appliance |
|
18 |
mm |
Projection of front in relation to bearing area of the appliance. Taken at minimum height of |
|
2 |
mm |
appliance, if height is adjustable |
|
|
|
When product panel is missing, set to 0 |
|
120 |
mm |
Space in front, which is required to guarantee full operability. The most protruding part gives this |
450 |
mm |
|
dimension |
|
|
|
Height from bearing area of appliances and lower handle |
|
412 |
mm |
Frontal handle thickness |
|
25 |
mm |
Frontal handle width |
|
375 |
mm |
MIN Height of the product body |
|
575 |
mm |
MAX Height of the product body |
|
575 |
mm |
Width of the product body |
|
545 |
mm |
Depth of the product body |
|
547 |
mm |
Full depth of product excluding protruding interface elements |
|
566 |
mm |
- |
|
- |
mm |
- |
|
- |
mm |
- |
|
- |
mm |
- |
|
- |
mm |
- |
|
- |
mm |
- |
|
- |
mm |
Appliance can be used as base for other appliances from the same manufacturer. Default is "No" |
No |
|
|
Appliance Flap door |
|
|
|
Projection of the opened flap in relation to bearing area |
|
0 |
mm |
Maximum angle when flap door is opened totally |
|
89 |
mm |
Appliance Side swing door |
|
|
|
Lateral projection of front incl. controls when door is opened totaly. At the side where the hinge is |
0 |
mm |
|
mounted |
|
|
|
Lateral projection of opened front at the side where the hinge is fixed |
|
0 |
mm |
Maximum angle when door is opened totally |
|
0 |
mm |
Appliance other |
|
|
|
Depth from front end of the niche to the front end of the freespace of the retrace |
|
135 |
mm |
Height from niche to bottom end of freespace for the retrace |
|
453 |
mm |
