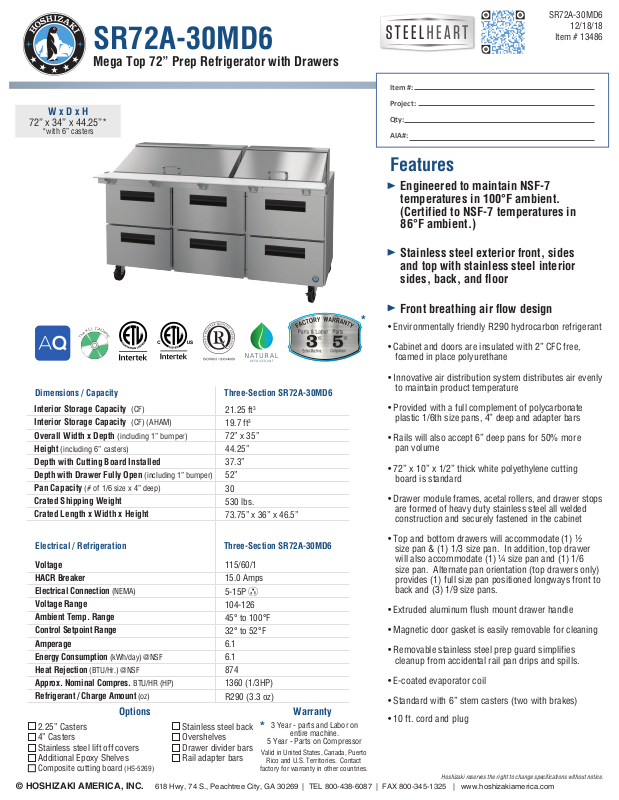

Hoshizaki SR72A30MD6 Specifications
SR72A-30MD6
Mega Top 72” Prep Refrigerator with Drawers
W x D x H
72” x 34” x 44.25”*
*with 6” casters
SR72A-30MD6
Item # 13486
Item #:
Project:
Qty:
AIA#:
Features
Engineered to maintain NSF-7
temperatures in 100°F ambient.
(Certified to NSF-7 temperatures in
86°F ambient.)
Stainless steel exterior front, sides
and top with stainless steel interior
sides, back, and floor
12/18/18
Dimensions / Capacity
Interior Storage Capacity (CF)
Interior Storage Capacity (CF) (AHAM)
Overall Width x Depth (including 1” bumper)
Height (including 6” casters)
Depth with Cutting Board Installed
Depth with Drawer Fully Open
Pan Capacity (# of 1/6 size x 4” deep)
Crated Shipping Weight
Crated Length x Width x Height
Electrical / Refrigeration
Voltage
HACR Breaker
Electrical Connection
Voltage Range
Ambient Temp. Range
Control Setpoint Range
Amperage
Energy Consumption
Heat Rejection (BTU/Hr.) @NSF
Approx. Nominal Compres. BTU/HR (HP)
Refrigerant / Charge Amount (oz)
(NEMA)
(kWh/day) @NSF
(including 1” bumper)
Options
2.25” Casters
4” Casters
Stainless steel lift off covers
Additional Epoxy Shelves
Composite cutting board (HS-5269)
© HOSHIZAKI AMERICA, INC.
Front breathing air flow design
*
• Environmentally friendly R290 hydrocarbon refrigerant
• Cabinet and doors are insulated with 2” CFC free,
foamed in place polyurethane
• Innovative air distribution system distributes air evenly
Three-Section SR72A-30MD6
3
21.25 ft
3
19.7 ft
72” x 35”
44.25”
37.3”
52”
30
530 lbs.
73.75” x 36” x 46.5”
Three-Section SR72A-30MD6
115/60/1
15.0 Amps
5-15P
104-126
45° to 100°F
32° to 52°F
6.1
6.1
874
1360 (1/3HP)
R290 (3.3 oz)
Warranty
Stainless steel back
Overshelves
Drawer divider bars
Rail adapter bars
618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com
3 Year - parts and Labor on
*
entire machine.
5 Year - Parts on Compressor
Valid in United States, Canada, Puerto
Rico and U.S. Territories. Contact
factory for warranty in other countries.
to maintain product temperature
• Provided with a full complement of polycarbonate
plastic 1/6th size pans, 4” deep and adapter bars
• Rails will also accept 6” deep pans for 50% more
pan volume
• 72” x 10” x 1/2” thick white polyethylene cutting
board is standard
• Drawer module frames, acetal rollers, and drawer stops
are formed of heavy duty stainless steel all welded
construction and securely fastened in the cabinet
• Top and bottom drawers will accommodate (1) ½
size pan & (1) 1/3 size pan. In addition, top drawer
will also accommodate (1) ¼ size pan and (1) 1/6
size pan. Alternate pan orientation (top drawers only)
provides (1) full size pan positioned longways front to
back and (3) 1/9 size pans.
• Extruded aluminum flush mount drawer handle
• Magnetic door gasket is easily removable for cleaning
• Removable stainless steel prep guard simplifies
cleanup from accidental rail pan drips and spills.
• E-coated evaporator coil
• Standard with 6” stem casters (two with brakes)
• 10 ft. cord and plug
Hoshizaki reserves the right to change specifications without notice.
SR72A-30MD6
Mega Top 72” Prep Refrigerator with Drawers
SR72A-30MD6
12/18/18
Item # 13486
FRONT VIEW
PLAN VIEW
69”
1.5”
8.25”
6”
36”
72”
44.25”
SIDE VIEW
21”
1.5”
13.2”
37.3”
20.9”
13.1”
1”
1.5”
16.75”
7.75”
1”
51”
10.7”
9.4”
(30) - 1/6 Size
Pan Capacity
72” x 10” x 1/2” Think
Cutting Board
30”
49.25”
Cabinet Construction
The exterior cabinet top, front, and sides, are constructed of high quality stainless steel. Cabinet is provided with a stainless steel top enclosure and an easily removable stainless steel
insulated lift-up cover. The exterior back and bottom are constructed of coated steel. The cabinet interior back and sides are stainless steel with an ABS ceiling and stainless steel floor.
Cabinet walls and drawers are insulated with 2” of environmentally friendly, CFC free, foamed in place polyurethane. 6” polyolefin, stem casters (two with brakes) are standard. Preparation
tables are supplied with a 60” x 10” x ½” thick N.S.F. approved white polyethylene cutting board.
Drawer Construction
Drawer fronts are constructed of high grade stainless steel inside with stainless steel interior liners and are insulated with 2” CFC free, foamed in place polyurethane. The bottom drawers
will accommodate 6” deep pans. Full size pans in the top drawer can be oriented longways from front to back. The top drawer will accommodate 4” deep pans with either orientation.
The top drawer will also accommodate (1) ½ size pan & (1) 1/3 size pan 6” deep at the front of the drawer opening and provide capacity for (1) ¼ size pan and (1) 1/6 size pan 4” deep
in the rear of the drawer. HS-5432 is recommended for this configuration. The drawer slides are constructed of heavy duty stainless steel and durable acetal rollers with stainless steel
ball bearings to prevent metal to metal contact. The drawer slides have a dynamic load capacity of 175 lbs. and have been life tested (fully-loaded) three hundred thousand openings and
closings without showing significant wear.
Refrigeration System
Front breathing refrigeration system allows unit to be built in to any enclosure with zero side or rear clearance. The high efficiency refrigeration system is self-contained with an enamel
coated evaporator for extended life. Condensate removal is accomplished with an energy efficient non-electric evaporation system. A capillary tube controls the flow of environmentally
friendly R290 refrigerant through the evaporator. Unit uses a heated, time initiated defrost to eliminate any ice on the evaporator coil. An innovative air distribution system distributes
air evenly around the pans. Engineered to maintain NSF-7 temperatures in 100°F ambient. (Certified to NSF-7 temperatures in 86°F ambient.) Preparation tables are supplied with a full
complement of N.S.F. approved plastic 1/6 size pans, 4” deep and stainless steel adapter bars. Units will also accommodate 6” deep pans. Pans are located 1.5” below the top to keep
food product within easy reach. 115 volt units are equipped with a ten foot cord and NEMA rated plug (20.0 amps or less).
© HOSHIZAKI AMERICA, INC.
618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com
