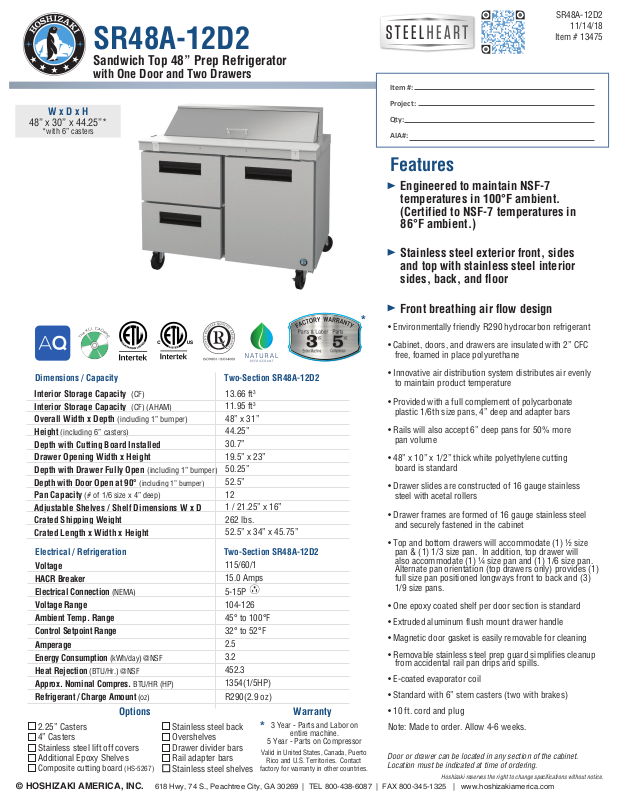

Hoshizaki SR48A12D2 Specifications

SR48A-12D2

Sandwich Top 48” Prep Refrigerator

with One Door and Two Drawers

W x D x H

48” x 30” x 44.25”*

*with 6” casters

SR48A-12D2

Item # 13475

Item #:

Project:

Qty:

AIA#:

Features

Engineered to maintain NSF-7
temperatures in 100°F ambient.
(Certified to NSF-7 temperatures in
86°F ambient.)

Stainless steel exterior front, sides
and top with stainless steel interior
sides, back, and floor

11/14/18

Dimensions / Capacity

Interior Storage Capacity (CF)
Interior Storage Capacity (CF) (AHAM)
Overall Width x Depth (including 1” bumper)
Height (including 6” casters)
Depth with Cutting Board Installed
Drawer Opening Width x Height
Depth with Drawer Fully Open
Depth with Door Open at 90° (including 1” bumper)
Pan Capacity (# of 1/6 size x 4” deep)
Adjustable Shelves / Shelf Dimensions W x D
Crated Shipping Weight
Crated Length x Width x Height

Electrical / Refrigeration

Voltage
HACR Breaker
Electrical Connection
Voltage Range
Ambient Temp. Range
Control Setpoint Range
Amperage
Energy Consumption
Heat Rejection (BTU/Hr.) @NSF
Approx. Nominal Compres. BTU/HR (HP)
Refrigerant / Charge Amount (oz)

(NEMA)

(kWh/day) @NSF

(including 1” bumper)

Options

2.25” Casters
4” Casters
Stainless steel lift off covers
Additional Epoxy Shelves

Composite cutting board (HS-5267)

© HOSHIZAKI AMERICA, INC.

618 Hwy, 74 S., Peachtree City, GA 30269 | TEL [phone] | FAX [phone] | www.hoshizakiamerica.com

Two-Section SR48A-12D2

13.66 ft

11.95 ft
48” x 31”

44.25”

30.7”

19.5” x 23”

50.25”

52.5”
12
1 / 21.25” x 16”
262 lbs.

52.5” x 34” x 45.75”

Two-Section SR48A-12D2

115/60/1

15.0 Amps
5-15P
104-126
45° to 100°F
32° to 52°F

2.5

3.2

452.3
1354(1/5HP)
R290(2.9 oz)

Stainless steel back
Overshelves
Drawer divider bars
Rail adapter bars
Stainless steel shelves

3

3

Warranty

3 Year - Parts and Labor on

*

entire machine.

5 Year - Parts on Compressor

Valid in United States, Canada, Puerto

Rico and U.S. Territories. Contact

factory for warranty in other countries.

Front breathing air flow design

*

• Environmentally friendly R290 hydrocarbon refrigerant

• Cabinet, doors, and drawers are insulated with 2” CFC
free, foamed in place polyurethane

• Innovative air distribution system distributes air evenly
to maintain product temperature

• Provided with a full complement of polycarbonate
plastic 1/6th size pans, 4” deep and adapter bars

• Rails will also accept 6” deep pans for 50% more
pan volume

• 48” x 10” x 1/2” thick white polyethylene cutting
board is standard

• Drawer slides are constructed of 16 gauge stainless
steel with acetal rollers

• Drawer frames are formed of 16 gauge stainless steel
and securely fastened in the cabinet

• Top and bottom drawers will accommodate (1) ½ size
pan & (1) 1/3 size pan. In addition, top drawer will
also accommodate (1) ¼ size pan and (1) 1/6 size pan.
Alternate pan orientation (top drawers only) provides (1)
full size pan positioned longways front to back and (3)

1/9 size pans.

• One epoxy coated shelf per door section is standard

• Extruded aluminum flush mount drawer handle

• Magnetic door gasket is easily removable for cleaning

• Removable stainless steel prep guard simplifies cleanup
from accidental rail pan drips and spills.

• E-coated evaporator coil

• Standard with 6” stem casters (two with brakes)

• 10 ft. cord and plug

Note: Made to order. Allow 4-6 weeks.

Door or drawer can be located in any section of the cabinet.
Location must be indicated at time of ordering.

Hoshizaki reserves the right to change specifications without notice.

SR48A-12D2

Sandwich Top 48” Prep Refrigerator

with One Door and Two Drawers

SR48A-12D2

11/14/18

Item # 13475

FRONT VIEW

PLAN VIEW

19.5”

43.25”

19.5”

23”

8.25”

6”

36”

44.25”

2.5”

48”

2.25”

SIDE VIEW

1”

1.5”

30.7”

12.5”

7.75”

1”

47”

(12) - 1/6 Size

Pan Capacity

48” x 10” x 1/2”

Think Cutting Board

49.25”

Cabinet Construction

The exterior cabinet top, front, and sides, are constructed of high quality stainless steel. Cabinet is provided with a stainless steel top enclosure and an easily removable stainless steel
insulated lift-up cover. The exterior back and bottom are constructed of coated steel. The cabinet interior back and sides are stainless steel with an ABS ceiling and stainless steel floor.
One heavy duty epoxy coated shelf per section is standard. Mounted on anodized aluminum pilasters the shelf is adjustable in 1/2” increments. Cabinet walls are insulated with 2” of
environmentally friendly, CFC free, foamed in place polyurethane. 6” polyolefin, stem casters (two with brakes) are standard. Preparation tables are supplied with a 48” x 10” x 1/2” thick
N.S.F. approved white polyethylene cutting board.

Drawer Construction

Drawer fronts are constructed of high grade stainless steel inside with stainless steel interior liners and are insulated with 2” CFC free, foamed in place polyurethane. The bottom drawers
will accommodate 6” deep pans. Full size pans in the top drawer can be oriented longways from front to back. The top drawer will accommodate 4” deep pans with either orientation. The
top drawer will also accommodate (1) ½ size pan & (1) 1/3 size pan 6” deep at the front of the drawer opening and provide capacity for (1) ¼ size pan and (1) 1/6 size pan 4” deep in the
rear of the drawer. HS-5432 is recommended for this configuration.The drawer slides are constructed of heavy duty 16 gauge stainless steel and durable acetal rollers with stainless steel
ball bearings to prevent metal to metal contact. The drawer slides have a dynamic load capacity of 175 lbs. and have been life tested (fully loaded) three hundred thousand openings and
closings without showing significant wear.

Door Construction

Doors are constructed of high grade stainless steel exterior with an ABS interior liner and are insulated with 2” CFC free, foamed in place polyurethane. Hoshizaki’s exclusive “stepped”
design protects the gasket while product is removed from the cabinet. Doors are provided with a one piece, extruded aluminum, flush mount handle. Spring assisted self-closing doors are
equipped with a stay open feature past 90 degrees. Snap-in magnetic door gaskets are durable and easily removed for cleaning. Field reversible door hinging is standard.

30”

51.5”

Refrigeration System

Front breathing refrigeration system allows unit to be built in to any enclosure with zero side or rear clearance. The high efficiency refrigeration system is self-contained with an E-coated
evaporator for extended life. Condensate removal is accomplished with an energy efficient non-electric evaporation system. A capillary tube controls the flow of environmentally friendly
R290 refrigerant through the evaporator. Refrigeration system utilizes a heated defrost to eliminate any ice on the evaporator coil. An innovative air distribution system distributes air
evenly around the pans. Engineered to maintain NSF-7 temperatures in 100°F ambient. (Certified to NSF-7 temperatures in 86°F ambient.) Preparation tables are supplied with a full
complement of N.S.F. approved plastic 1/6 size pans, 4” deep and stainless steel adapter bars. Rail will also accommodate 6” deep pans. Pans are located 1.5” below the top to keep food
product within easy reach. 115 volt units are equipped with a ten foot cord and NEMA rated plug (20.0 amps or less).
