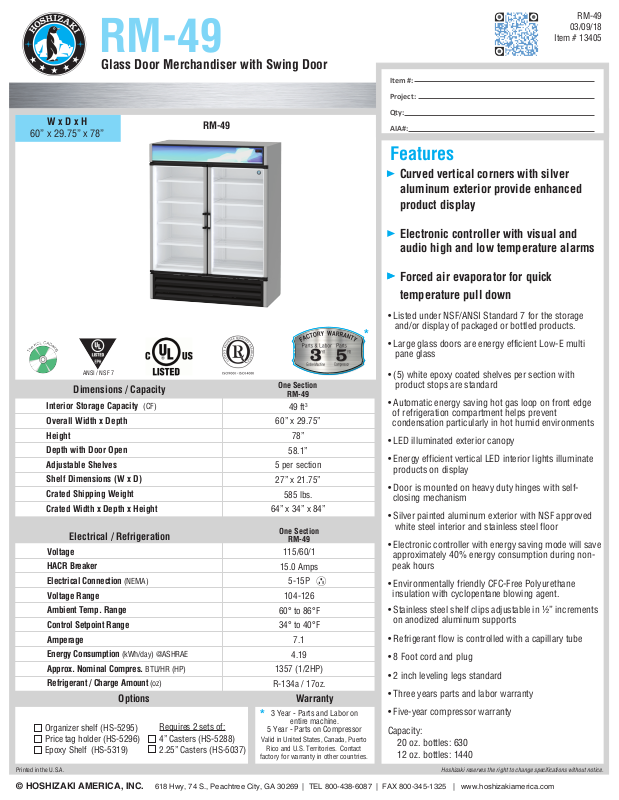

Hoshizaki RM49 Specifications

RM-49

W x D x H

60” x 29.75” x 78”

Glass Door Merchandiser with Swing Door

RM-49

RM-49

03/09/18

Item # 13405

Item #:

Project:

Qty:

AIA#:

Features

Curved vertical corners with silver
aluminum exterior provide enhanced
product display

Electronic controller with visual and
audio high and low temperature alarms

Forced air evaporator for quick
temperature pull down

ANSI / NSF 7

Dimensions / Capacity

Interior Storage Capacity (CF)
Overall Width x Depth
Height
Depth with Door Open
Adjustable Shelves
Shelf Dimensions (W x D)
Crated Shipping Weight
Crated Width x Depth x Height

Electrical / Refrigeration

Voltage
HACR Breaker
Electrical Connection
Voltage Range
Ambient Temp. Range
Control Setpoint Range
Amperage
Energy Consumption
Approx. Nominal Compres. BTU/HR (HP)
Refrigerant / Charge Amount (oz)

(NEMA)

(kWh/day) @ASHRAE

Options

Organizer shelf (HS-5295)
Price tag holder (HS-5296)
Epoxy Shelf (HS-5319)

Printed in the U.S.A.

© HOSHIZAKI AMERICA, INC.

• Listed under NSF/ANSI Standard 7 for the storage
and/or display of packaged or bottled products.

*

• Large glass doors are energy efficient Low-E multi
pane glass

• (5) white epoxy coated shelves per section with

One Section

RM-49

3

49 ft

60” x 29.75”

78”

58.1”
5 per section
27” x 21.75”

585 lbs.

64” x 34” x 84”

One Section

RM-49

115/60/1

15.0 Amps
5-15P

104-126
60° to 86°F
34° to 40°F

7.1

4.19

1357 (1/2HP)

R-134a / 17oz.

Warranty

3 Year - Parts and Labor on

*

Requires 2 sets of:
4” Casters (HS-5288)

2.25” Casters (HS-5037)

618 Hwy, 74 S., Peachtree City, GA 30269 | TEL [phone] | FAX [phone] | www.hoshizakiamerica.com

entire machine.

5 Year - Parts on Compressor

Valid in United States, Canada, Puerto

Rico and U.S. Territories. Contact

factory for warranty in other countries.

product stops are standard

• Automatic energy saving hot gas loop on front edge
of refrigeration compartment helps prevent
condensation particularly in hot humid environments

• LED illuminated exterior canopy

• Energy efficient vertical LED interior lights illuminate
products on display

• Door is mounted on heavy duty hinges with self­ closing mechanism

• Silver painted aluminum exterior with NSF approved
white steel interior and stainless steel floor

• Electronic controller with energy saving mode will save
approximately 40% energy consumption during non­ peak hours

• Environmentally friendly CFC-Free Polyurethane
insulation with cyclopentane blowing agent.

• Stainless steel shelf clips adjustable in ½” increments
on anodized aluminum supports

• Refrigerant flow is controlled with a capillary tube

• 8 Foot cord and plug

• 2 inch leveling legs standard

• Three years parts and labor warranty

• Five-year compressor warranty

Capacity:
20 oz. bottles: 630
12 oz. bottles: 1440

Hoshizaki reserves the right to change specifications without notice.
