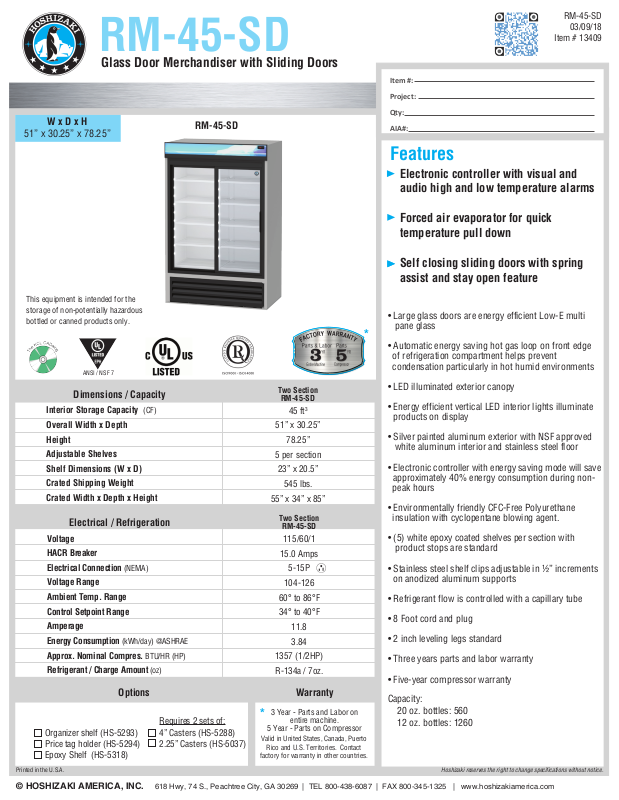

Hoshizaki RM45SD Specifications
RM-45-SD
Glass Door Merchandiser with Sliding Doors
W x D x H
51” x 30.25” x 78.25”
This equipment is intended for the
storage of non-potentially hazardous
bottled or canned products only.
ANSI / NSF 7
Dimensions / Capacity
Interior Storage Capacity (CF)
Overall Width x Depth
Height
Adjustable Shelves
Shelf Dimensions (W x D)
Crated Shipping Weight
Crated Width x Depth x Height
Electrical / Refrigeration
Voltage
HACR Breaker
Electrical Connection
Voltage Range
Ambient Temp. Range
Control Setpoint Range
Amperage
Energy Consumption
Approx. Nominal Compres. BTU/HR (HP)
Refrigerant / Charge Amount (oz)
Organizer shelf (HS-5293)
Price tag holder (HS-5294)
Epoxy Shelf (HS-5318)
Printed in the U.S.A.
© HOSHIZAKI AMERICA, INC.
(NEMA)
(kWh/day) @ASHRAE
Options
Requires 2 sets of:
4” Casters (HS-5288)
2.25” Casters (HS-5037)
618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com
RM-45-SD
Two Section
RM-45-SD
3
45 ft
51” x 30.25”
78.25”
5 per section
23” x 20.5”
545 lbs.
55” x 34” x 85”
Two Section
RM-45-SD
115/60/1
15.0 Amps
5-15P
104-126
60° to 86°F
34° to 40°F
11.8
3.84
1357 (1/2HP)
R-134a / 7oz.
Warranty
3 Year - Parts and Labor on
*
entire machine.
5 Year - Parts on Compressor
Valid in United States, Canada, Puerto
Rico and U.S. Territories. Contact
factory for warranty in other countries.
RM-45-SD
03/09/18
Item # 13409
Item #:
Project:
Qty:
AIA#:
Features
Electronic controller with visual and
audio high and low temperature alarms
Forced air evaporator for quick
temperature pull down
Self closing sliding doors with spring
assist and stay open feature
• Large glass doors are energy efficient Low-E multi
pane glass
*
• Automatic energy saving hot gas loop on front edge
of refrigeration compartment helps prevent
condensation particularly in hot humid environments
• LED illuminated exterior canopy
• Energy efficient vertical LED interior lights illuminate
products on display
• Silver painted aluminum exterior with NSF approved
white aluminum interior and stainless steel floor
• Electronic controller with energy saving mode will save
approximately 40% energy consumption during non peak hours
• Environmentally friendly CFC-Free Polyurethane
insulation with cyclopentane blowing agent.
• (5) white epoxy coated shelves per section with
product stops are standard
• Stainless steel shelf clips adjustable in ½” increments
on anodized aluminum supports
• Refrigerant flow is controlled with a capillary tube
• 8 Foot cord and plug
• 2 inch leveling legs standard
• Three years parts and labor warranty
• Five-year compressor warranty
Capacity:
20 oz. bottles: 560
12 oz. bottles: 1260
Hoshizaki reserves the right to change specifications without notice.
SECCIÓN A-A
ESCALA 3/64
VISTA 2
ESCALA 3/64
E-ID-02-01
VISTA ENSAMBLADA
USADO EN :
ESCALA :
FECHA :
APROBADO POR:
DISEÑADO POR :
DIBUJADO POR :
TITULO :
13/01/2017
3/64" = 1"
DISEÑADOR
R. MAZAREIGOS
ENSAMBLE DE EQUIPO
ING. H. VALDES
VR-45-SD-HO-US
FECHA SIM. REVISION AUT. DIB.
VÍA
51 [1295.4]
46 1/4 [1174.8]2 3/8 [60.3] 2 3/8 [60.3]
29 19/32 [752]
26 11/32 [669.1]
SECCIÓN A-A
ESCALA 3/64
REF. DWG:
USADO EN :
ESCALA :
FECHA :
13/01/2017
3/64" = 1"
\\FOGELGT3B\Manuales de Partes\MANUALES AUTOCAD\VR-45-SD-US\VISTA ORTOGONAL.dwg
VR-45-SD-HO-US
A
A
B
B
FECHA SIM. REVISION AUT. DIB.
51 [1295.4]
46 1/4 [1174.8]2 3/8 [60.3] 2 3/8 [60.3]
29 19/32 [752]
26 11/32 [669.1]
6
5 1/8 [1654.2]
12 3/8 [314.3]
79 1/4 [2012.7]
62 1/2 [1587.5]
30 3/16 [766.8]
29 1/2 [749.3]
23 3/8 [593.7]
51 [1295.4]
79 5/16 [2014.3]
77 9/16 [1970.1]
E-ID-02-01
VISTA ENSAMBLADA
FECHA SIM. REVISION AUT. DIB.
VÍA
5
1 [1295.4]
46 1/4 [1174.8]2 3/8 [60.3] 2 3/8 [60.3]
29 19/32 [752]
26 11/32 [669.1]
RM-45-SD
Refrigerated Merchandiser - 45 cu.ft.
With sliding doors
RM-45-SD
03/09/18
Item # 13409
FRONT VIEW
51 [1295.4]
77 9/16 [1970.1]
A
79 5/16 [2014.3]
SIDE VIEW
B
A
PLAN VIEW
© HOSHIZAKI AMERICA, INC.
618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com
B
HEADER DIMS
Graphic Requirements:
• 360 dpi resolution. Scale 1=1
• Colors for CMYK process
• Image with 1/4” of excess by side
• Graphics must be saved in photoshop (with layers)
- (or your sign company file type requirements)
• Include a full color print out
Material Requirements:
• 3M exterior grade UV resistant vinyl adhesive
Note: Texts and important parts of the image should be within the visible area.
The visible area is illustrated by dotted lines when it applies.
Printed in the U.S.A.
