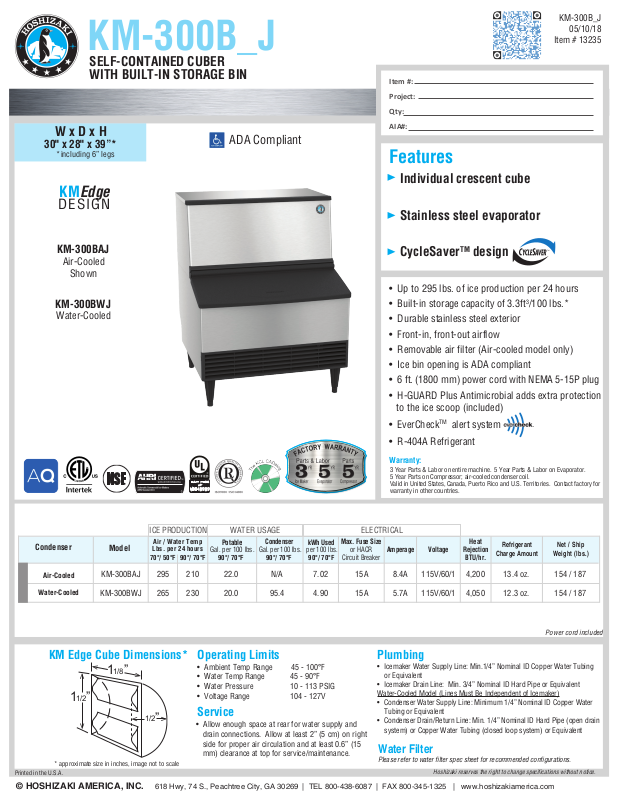

KM-300B_J
SELF-CONTAINED CUBER
1
1
”
WITH BUILT-IN STORAGE BIN
W x D x H
30" x 28" x 39”*
*including 6” legs
KMEdge
DESIGN
KM-300B_J
05/10/18
Item # 13235
Item #:
Project:
Qty:
AIA#:
ADA Compliant
Features
Individual crescent cube
Stainless steel evaporator
KM-300BAJ
Air-Cooled
KM-300BWJ
Water-Cooled
Condenser
Air-Cooled
Shown
Model
KM-300BAJ
ICE PRODUCTION
Air / Water Temp
Lbs. per 24 hours
70°/ 50°F 90°/ 70°F
295
210
WATER USAGE
Potable
Gal. per 100 lbs.
90°/ 70°F 90°/ 70°F
22.0
Condenser
Gal. per 100 lbs.
N/A
kWh Used
per 100 lbs.
90°/ 70°F
7.02
ELECTRICAL
Max. Fuse Size
or HACR
Circuit Breaker
15A
CycleSaver
TM
design
TM
• Up to 295 lbs. of ice production per 24 hours
• Built-in storage capacity of 3.3ft3/100 lbs.*
• Durable stainless steel exterior
• Front-in, front-out airflow
• Removable air filter (Air-cooled model only)
• Ice bin opening is ADA compliant
• 6 ft. (1800 mm) power cord with NEMA 5-15P plug
• H-GUARD Plus Antimicrobial adds extra protection
to the ice scoop (included)
• EverCheckTM alert system
TM
• R-404A Refrigerant
Warranty:
3 Year Parts & Labor on entire machine. 5 Year Parts & Labor on Evaporator.
5 Year Parts on Compressor; air-cooled condenser coil.
Valid in United States, Canada, Puerto Rico and U.S. Territories. Contact factory for
warranty in other countries.
Amperage
8.4A
Voltage
115V/60/1
Heat
Rejection
BTU/hr.
4,200
Refrigerant
Charge Amount
13.4 oz.
Net / Ship
Weight (lbs.)
154 / 187
Water-Cooled
KM-300BWJ
265
KM Edge Cube Dimensions*
1/8
”
1/2
1/2
”
Printed in the U.S.A.
© HOSHIZAKI AMERICA, INC.
* approximate size in inches, image not to scale
618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com
230
20.0
95.4
4.90
Operating Limits
• Ambient Temp Range 45 - 100°F
• Water Temp Range 45 - 90°F
• Water Pressure 10 - 113 PSIG
• Voltage Range 104 - 127V
Service
• Allow enough space at rear for water supply and
drain connections. Allow at least 2” (5 cm) on right
side for proper air circulation and at least 0.6” (15
mm) clearance at top for service/maintenance.
15A
5.7A
115V/60/1
4,050
12.3 oz.
Power cord included
Plumbing
• Icemaker Water Supply Line: Min.1/4” Nominal ID Copper Water Tubing
or Equivalent
• Icemaker Drain Line: Min. 3/4” Nominal ID Hard Pipe or Equivalent
Water-Cooled Model (Lines Must Be Independent of Icemaker)
• Condenser Water Supply Line: Minimum 1/4” Nominal ID Copper Water
Tubing or Equivalent
• Condenser Drain/Return Line: Min. 1/4” Nominal ID Hard Pipe (open drain
system) or Copper Water Tubing (closed loop system) or Equivalent
Water Filter
Please refer to water filter spec sheet for recommended configurations.
Hoshizaki reserves the right to change specifications without notice.
154 / 187
KM-300B_J
SELF-CONTAINED CUBER
WITH BUILT-IN STORAGE BIN
FRONT VIEW
TOP VIEW
KM-300B_J
05/10/18
Item # 13235
mm
[inch]
(6 ft.)
AIR-COOLED
SIDE VIEW
AIR-COOLED
WATER-COOLED
WATER-COOLED
AIR-COOLED
(6 ft.)
WATER-COOLED
REAR VIEW
AIR-COOLED WATER-COOLED
© HOSHIZAKI AMERICA, INC.
618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com
Printed in the U.S.A.
