Hoshizaki F1002MAJC, F1002MRJ, F1002MWJC, F1002MRJC, F1002MWJ Part List

...
Download
Parts List
Modular Flaker
Models F-1002MAJ(-C) F-1002MWJ(-C) F-1002MRJ(-C) F-1002MLJ
hoshizakiamerica.com
Number: 71370 Issued: 6-23-2016
CONTENTS
Note About Ordering Parts .................................................................................................... 3
A. Main Assembly & Refrigeration Circuit .............................................................................. 4
F-1002MAJ(-C) .................................................................................................................. 4
F-1002MWJ(-C) ................................................................................................................. 6
F-1002MRJ(-C) .................................................................................................................. 8
F-1002MLJ ...................................................................................................................... 10
B. Icemaking Unit ................................................................................................................ 12
C. Water Circuit .................................................................................................................... 14
D. Control Box Assembly ...................................................................................................... 16
E. Accessories & Labels ...................................................................................................... 18
2
Auxiliary Codes
F-1002MAJ
F-0 July 2016
F-1002MWJ
F-0 July 2016
F-1002MRJ
F-0 July 2016
F-1002MLJ
F-0 TBD
F-1002MAJ-C
F-0 July 2016
F-1002MWJ-C
F-0 July 2016
F-1002MRJ-C
F-0 July 2016
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character indicates the year. Years progress or regress in alphabetical order. The series runs from "A" through "V" and the letters "I" and "O" are skipped. The second character indicates signicant part changes within a year. Base is "0" and this number advances for each change. In cases where there is a letter in parentheses, this designates the month. This is the last character in the serial number. The series runs from "(A)" through "(M)" and the letter "(I)" is skipped. This designation is only included when identifying a parts change within an auxiliary code.

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.
3

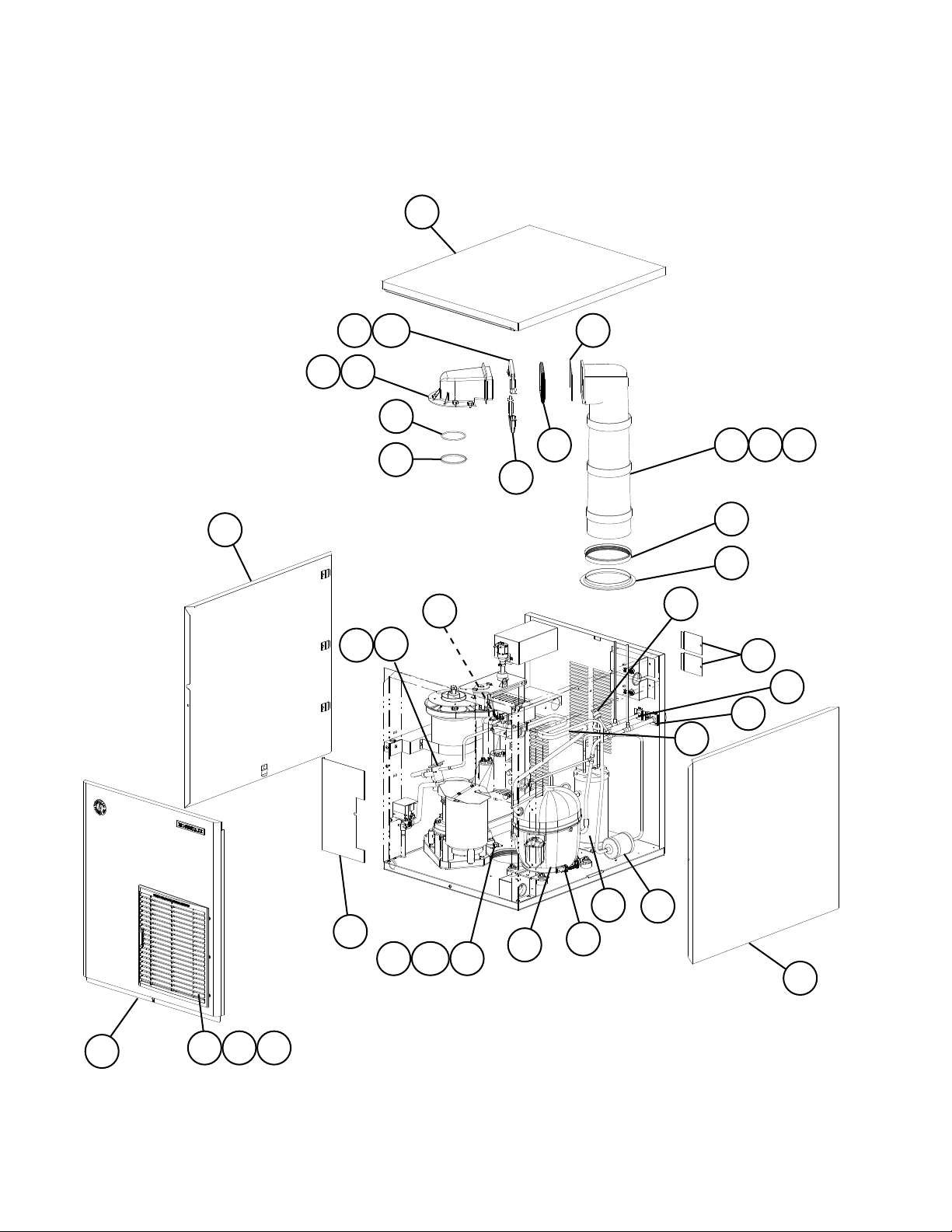

A. Main Assembly & Refrigeration Circuit

F-1002MAJ(-C)

F-0
4
14a
14
9a
9
10
11
6
15
12
13
16 17 18
19
27 28
7
21
21a
29
22
20
8
30
32
26
25
24
31
23
5
2
2a
1
3
4
Title: A. Main Assembly & Refrigeration Circuit Model: F-1002MAJ(-C)
Index
No. Description
1 Front Panel 2A2071-01 1 2 Louver 1A0548-01 2
2a Push Retainer 4A2414-01 6
3 Air Filter 2A2063G01 2 4 Top Panel 2A2064-02 1 5 Right Side Panel 2A2073G01 1 6 Left Side Panel 2A2072G01 1 7 Control Box Cover 3A0411-01 1 8 Junction Box Cover 433410-01 1
9 Spout 104797-01 1 9a Thumbscrew 415949G08 5 10 O-Ring 4A4755-03 1 11 Nylon Ring 432661-02 1 12 Spout-to-Chute Packing 321037-01 1 13 Spout-to-Chute Bracket 4A1712-01 1 14 Upper Strap 328703-02 1
14a Wing Nut 7E12-0600 2
15 Lower Strap 321038G02 1 16 Chute 2A1919-03 1 17 Chute Insulation 2A1920-01 1 18 Chute Tie 436531G01 3 19 Chute Packing 432877-01 1 20 Ring 3A1017-01 1 21 Infrared Sensor 4A4469-01 1
21a Thumbscrew 415949G08 1
22 Infrared Sensor Housing 3A3478-01 1
Material or Model Number Part Number
Main Assembly
F-0
Required Number
Refrigeration Circuit
23 Compressor 4A5669-01 1 24 Air-cooled Condenser 211663-02 1 25 Fan Motor 4A3158-01 1 26 Fan Blade 4A0197-01 1 27 Thermostatic Expansion Valve 4A1117-01 1 28 Thermostatic Expansion Valve
Cover
29 Thermostatic Expansion Valve
Bulb Holder 30 High-Pressure Switch 463180-04 1 31 Drier 4A2666-01 1 32 Heat Exchanger 3A7886G01 1
4A1168-01 1
3A0112-01 1
5

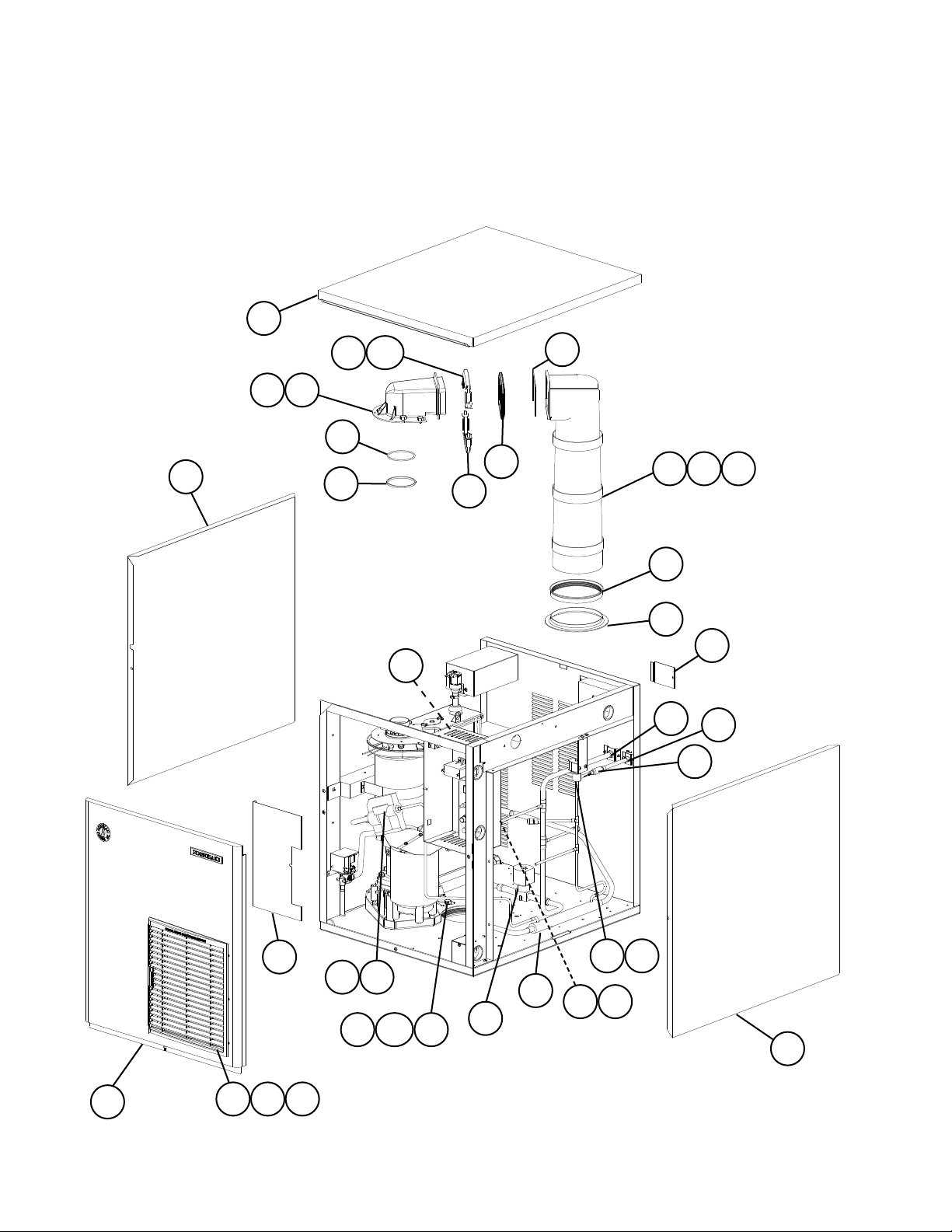

A. Main Assembly & Refrigeration Circuit

F-1002MWJ(-C)

F-0
4
12
13
30
16
19
20
28 29
17
8
18
14a
14
9a
9
10
11
15
6
24
27
25 26
7
21a
21
1
2a
2
3
22
23
32
31
5
6
Title: A. Main Assembly & Refrigeration Circuit Model: F-1002MWJ(-C)
Index
No. Description
1 Front Panel 2A2124-01 1 2 Louver 1A0547-01 1
2a Push Retainer 4A2414-01 3
3 Air Filter 2A2062G01 1 4 Top Panel 2A2064-02 1 5 Right Side Panel 2A2073G01 1 6 Left Side Panel 2A2072G01 1 7 Control Box Cover 3A0411-01 1 8 Junction Box Cover 433410-01 1
9 Spout 104797-01 1 9a Thumbscrew 415949G08 5 10 O-Ring 4A4755-03 1 11 Nylon Ring 432661-02 1 12 Spout-to-Chute Packing 321037-01 1 13 Spout-to-Chute Bracket 4A1712-01 1 14 Upper Strap 328703-02 1
14a Wing Nut 7E12-0600 2
15 Lower Strap 321038G02 1 16 Chute 2A1919-03 1 17 Chute Insulation 2A1920-01 1 18 Chute Tie 436531G01 3 19 Chute Packing 432877-01 1 20 Ring 3A1017-01 1 21 Infrared Sensor 4A4469-01 1
21a Thumbscrew 415949G08 1
22 Infrared Sensor Housing 3A3478-01 1
Material or Model Number Part Number
Main Assembly
F-0
Required Number
Refrigeration Circuit
23 Compressor 4A5669-01 1 24 Water-cooled Condenser 3A7321-01 1 25 Thermostatic Expansion Valve 4A1117-01 1 26 Thermostatic Expansion Valve
Cover
27 Thermostatic Expansion Valve
Bulb Holder 28 Water Regulating valve 4A0911-07 1 29 Male Connector 4A1087-01 1 30 High-Pressure Switch 463180-05 1 31 Drier 4A2666-01 1 32 Heat Exchanger 3A7886G01 1
4A1168-01 1
3A0112-01 1
7
A. Main Assembly & Refrigeration Circuit

F-1002MRJ(-C)

F-0
4
14a
14
9a
9
10
11
15
6
28
27
26
12
13
16 17 18
19
20
29
8
30
31
33
25
7
21a
21
2a
1
2 3
22
23
8
24
32
5
Title: A. Main Assembly & Refrigeration Circuit Model: F-1002MRJ(-C)
Index
No. Description
1 Front Panel 2A2124-01 1 2 Louver 1A0547-01 1
2a Push Retainer 4A2414-01 3
3 Air Filter 2A2062G01 1 4 Top Panel 2A2064-02 1 5 Right Side Panel 2A2073G01 1 6 Left Side Panel 2A2072G01 1 7 Control Box Cover 3A0411-01 1 8 Junction Box Cover 433410-01 2
9 Spout 104797-01 1 9a Thumbscrew 415949G08 5 10 O-Ring 4A4755-03 1 11 Nylon Ring 432661-02 1 12 Spout-to-Chute Packing 321037-01 1 13 Spout-to-Chute Bracket 4A1712-01 1 14 Upper Strap 328703-02 1
14a Wing Nut 7E12-0600 2
15 Lower Strap 321038G02 1 16 Chute 2A1919-03 1 17 Chute Insulation 2A1920-01 1 18 Chute Tie 436531G01 3 19 Chute Packing 432877-01 1 20 Ring 3A1017-01 1 21 Infrared Sensor 4A4469-01 1
21a Thumbscrew 415949G08 1
22 Infrared Sensor Housing 3A3478-01 1
Material or Model Number Part Number
Main Assembly
F-0
Required Number
Refrigeration Circuit
23 Compressor 4A5669-01 1 24 Crankcase Heater 4A5091-01 1 25 Receiver Tank 437596-01 1 26 Thermostatic Expansion Valve 4A3493-01 1 27 Thermostatic Expansion Valve
Cover
28 Thermostatic Expansion Valve
Bulb Holder 29 High-Pressure Switch 463180-04 1 30 Discharge Line Coupling 434132G01 1 31 Liquid Line Coupling 433751G01 1 32 Drier 4A1338-01 1 33 Heat Exchanger 3A7886G01 1
4A1168-01 1
3A0112-01 1
9
A. Main Assembly & Refrigeration Circuit

F-1002MLJ

F-0
4
14a
14
9a
9
10
6
11
34
12
15
13
16 17 18
19
20
8
31
32
33
7
27 28
21a
2221
2a
1
2 3
25
10
26
23 24
3029
5
Title: A. Main Assembly & Refrigeration Circuit Model: F-1002MLJ
Index
No. Description
1 Front Panel 2A2124-01 1 2 Louver 1A0547-01 1
2a Push Retainer 4A2414-01 3
3 Air Filter 2A2062G01 1 4 Top Panel 2A2064-02 1 5 Right Side Panel 2A2073G01 1 6 Left Side Panel 2A2072G01 1 7 Control Box Cover 3A0411-01 1 8 Junction Box Cover 433410-01 1
9 Spout 104797-01 1 9a Thumbscrew 415949G08 5 10 O-Ring 4A4755-03 1 11 Nylon Ring 432661-02 1 12 Spout-to-Chute Packing 321037-01 1 13 Spout-to-Chute Bracket 4A1712-01 1 14 Upper Strap 328703-02 1
14a Wing Nut 7E12-0600 2
15 Lower Strap 321038G02 1 16 Chute 2A1919-03 1 17 Chute Insulation 2A1920-01 1 18 Chute Tie 436531G01 1 19 Chute Packing 432877-01 1 20 Ring 3A1017-01 1 21 Infrared Sensor 4A4469-01 1
21a Thumbscrew 415949G08 1
22 Infrared Sensor Housing 3A3478-01 1
Material or Model Number Part Number
Main Assembly
Required Number
F-0
Refrigeration Circuit
23 Evaporator Pressure Regulator
Valve (EPR)
24 Evaporator Pressure Regulator
Valve Cover 25 Suction Line Valve 446873-01 1 26 Heat Exchanger 4A1374-01 1 27 Thermostatic Expansion Valve 4A1117-01 1 28 Thermostatic Expansion Valve
Cover 29 Liquid Line Valve Body 4A3276-01 1 30 Valve Coil 4A3277-01 1 31 Discharge Line Coupling 434132G01 1 32 Liquid Line Coupling 433751G01 1 33 Strainer 4A1385-01 1 34 Thermostatic Expansion Valve
Bulb Holder
4A1384-01 1
340434-01 1
4A1168-01 1
3A0112-01 1
11

B. Icemaking Unit

F-1002M_J(-C)
F-0
12a
13
12b
12
11
F-1002MAJ F-1002MWJ F-1002MRJ F-1002MLJ
8
12
11
14
F-1002MAJ-C F-1002MWJ-C F-1002MRJ-C
10
4a
11a
4b 4c
9
7
7a 7b
6
5
4
2a
2
2b
3
1
1a 1b
12
Title: B. Icemaking Unit Model: F-1002M_J(-C)
Index
No. Description
1 Gear Motor 4A2007-01 1 1a Socket Head Cap Screw 7S12-0811 3 1b Split Lock Washer 7L22-0800 3
2 Gear Motor Barrier 4A4029-01 1 2a Truss Head Screw 7C32-0408 2 2b Washer 4A5268-01 2
3 Spline Coupling 414137-01 1
4 Housing 2A1977G01 1 4a Hex Head Bolt 8×30, SS 7B02-0830 6 4b Plain Washer 7W22-0800 6 4c Split Lock Washer 7L22-0800 6
5 O-Ring 4A4755-02 1
6 Mechanical Seal 432492-01 1
7 Evaporator 2A7209G01 1 7a Socket Head Cap Screw 8×12, SS 7S12-0812 4 7b Split Lock Washer 7L22-0800 4
8 Drip Pan 2A7187-01 1
9 Flange 352713-01 1 10 Auger 120863G02 1 11 Extruding Head F-1002M_J 3A2175G01 1
11a Seal Bolt P01768-01 4
12 Cutter F-1002M_J 3A1395-02 1
12a Hex Head Bolt F-1002M_J 7B02-1030 1 12b Split Lock Washer F-1002M_J 7L22-1000 1
13 Dowel Pin F-1002M_J 713S-0416 1 14 Evaporator Heater F-1002M_J-C 4A2292-01 1
Material or Model Number Part Number
F-1002M_J-C 3A2176G01 1
F-1002M_J-C 427183G01 1
Required Number
F-0
13

C. Water Circuit

F-1002M_J(-C)
F-0
1
2
9
3
6
7
11
4
17
12
13
5
14
16
18
15
14
8
10
Title: C. Water Circuit Model: F-1002M_J(-C)
Index
No. Description
1 Water Supply Pipe 4A0891G02 1
2 Washer 413854-03 1
3 Inlet Water Valve 4A5309-01 1
4 Reservoir 2A0753-01 1
5 Reservoir Separator 4A1255-01 1
6 Float Switch 435490-01 1
7 Reservoir Cover 214810-01 1
8 Drain Pan 323765G02 1
9 Reservoir Inlet 4A0869-01 1
10 Drain Valve 4A2772-02 1 11 Drain Fitting 4A5528-01 1 12 Vinyl Hose L=375 mm 7725-1923 1 13 Silicone Hose L=185 mm 7730I3896 1 14 Vinyl Hose L=460 mm 4A0658L01 1 15 Drain Hose 3A8170-01 1 16 Vinyl Hose L=30 mm 7725-1923 1 17 Reservoir Hose 4A1165-06 1 18 Elbow 4A5624-01 1
Hose Clamp 26-30 mm 4A2017-02 1 Hose Clamp 17-20 mm 4A2017-05 1 Hose Clamp 19-22 mm 4A2017-06 1 Hose Clamp 14-15 mm 4A2017-08 1
Material or Model Number Part Number
Clamps
Required Number
F-0
15

D. Control Box Assembly

F-1002M_J(-C)
F-0
15
3
7
1 1a
2
9
6
10
1211
5
1413
4
8
16
Title: D. Control Box Assembly Model: F-1002M_J(-C)
Index
No. Description
1 "F-C" Control Board 2A8054-01 1 1a Control Board Support 4A0336-03 4
2 Fan Motor Capacitor F-1002MAJ(-C)
3 Gear Motor Capacitor 24MFD,
4 Start Capacitor
(all except F-1002MLJ)
5 Run Capacitor
(all except F-1002MLJ)
6 Start Relay
(all except F-1002MLJ) 7 Compressor Control Relay 110/120VAC 406132-07 1 8 Control Transformer 4A0557-01 1 9 Control Switch 4A0558-01 1
10 Power Switch 4A2332-01 1 11 Fuse Holder (control) 4A5443-01 1
12 Fuse (control) AGC-1A,
13 Fuse Holder (gear motor) 4A3449-02 1 14 Fuse (gear motor) GMD-3A,
15 Compressor Relay
(all except F-1002MLJ)
Material or Model Number Part Number
443192-02 1 5MFD, 250VAC
4A2273-01 1 250VAC
340-408MFD, 250VAC
40MFD, 370VAC
250VAC
250VAC 115VA C 4A3140-01 1
3A0076-24 1
3A2005-13 1
4A1107-22 1
4A0893-01 1
4A0893-06 1
Required Number
F-0
17

E. Accessories & Labels

F-1002M_J(-C) F-0
2
1
Title: E. Accessories & Labels Model: F-1002M_J(-C)
Index
No. Description
1 Hoshizaki Emblem Label 4A0560-01 1 2 Penguin Label 456246-01 1 3 Universal Brace 4A0363-01 2
3a Hex Bolt 7B02-0512 2
Material or Model Number Part Number
18
Required Number
F-0
