Hoshizaki CPT46, CPT46-D, CPT67-D2, CPT67-D4, CPT93-D2 Parts List

...
Download
Parts List
Commercial Series Refrigerated Kitchen Equipment
Models CPT46(-D) CPT67(-D2)(-D4) CPT93(-D2)(-D4)(-D6)
hoshizakiamerica.com
Number: 71352 Issued: 4-24-2014 Revised: 7-28-2017
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
A. Main Assembly .................................................................................................................. 4
CPT46(-D) ......................................................................................................................... 4
CPT67(-D2)(-D4) ............................................................................................................... 6
CPT93(-D2)(-D4)(-D6)....................................................................................................... 8
B. Refrigeration Circuit ......................................................................................................... 10
CPT46(-D) ....................................................................................................................... 10
CPT67(-D2)(-D4) ............................................................................................................. 12
CPT93(-D2)(-D4)(-D6)..................................................................................................... 14
C. Door-Right Hinged ........................................................................................................... 16
D. Door-Left Hinged ............................................................................................................. 18
E. Drawer Assembly ............................................................................................................ 20
F. Accessories & Labels ....................................................................................................... 21
2

Auxiliary Codes

CPT46
D-5 March 2014 D-6 July 2014 E-5 March 2015 E-6 August 2015 F-5 February 2016 F-6 June 2016 G-5 March 2017 G-6 May 2017
CPT46-D
D-5 April 2014 D-6 July 2014 F-5 April 2016 F-6 June 2016 G-5 February 2017 G-6 May 2017
CPT67
C-5 September 2013 D-5 January 2014 D-6 March 2014 D-7 August 2014 E-5 January 2015 E-6 August 2015 F-5 January 2016 F-6 June 2016 F-7 November 2016 G-5 January 2017 G-6 May 2017
CPT67-D
G-5 February 2017 G-6 May 2017
CPT67-D2
G-5 February 2017 G-6 May 2017
CPT67-D4
D-6 March 2014 D-7 September 2014 E-6 March 2015 E-7 August 2015 F-5 March 2016 F-6 June 2016 F-7 November 2016 G-5 January 2017 G-6 May 2017
CPT93
D-5 February 2014 D-6 March 2014 D-7 August 2014 E-5 January 2015 E-6 September 2015 F-5 January 2016 F-6 June 2016 F-7 December 2016 G-5 January 2017 G-6 May 2017
CPT93-D2
G-5 February 2017 G-6 May 2017
CPT93-D4
G-5 February 2017 G-6 May 2017
CPT93-D6
D-6 March 2014 E-6 March 2015 F-5 May 2016 F-6 August 2016 F-7 December 2016 G-5 January 2017 G-6 May 2017
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character indicates the year. Years progress or regress in alphabetical order. The series runs from "A" through "V" and the letters "I" and "O" are skipped. The second character indicates signicant part changes within a year. Base is "5" and this number advances for each change. In cases where there is a letter in parentheses, this designates the month. This is the last character in the serial number. The series runs from "(A)" through "(M)" and the letter "(I)" is skipped. This designation is only included when identifying a parts change within an auxiliary code.

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.
3

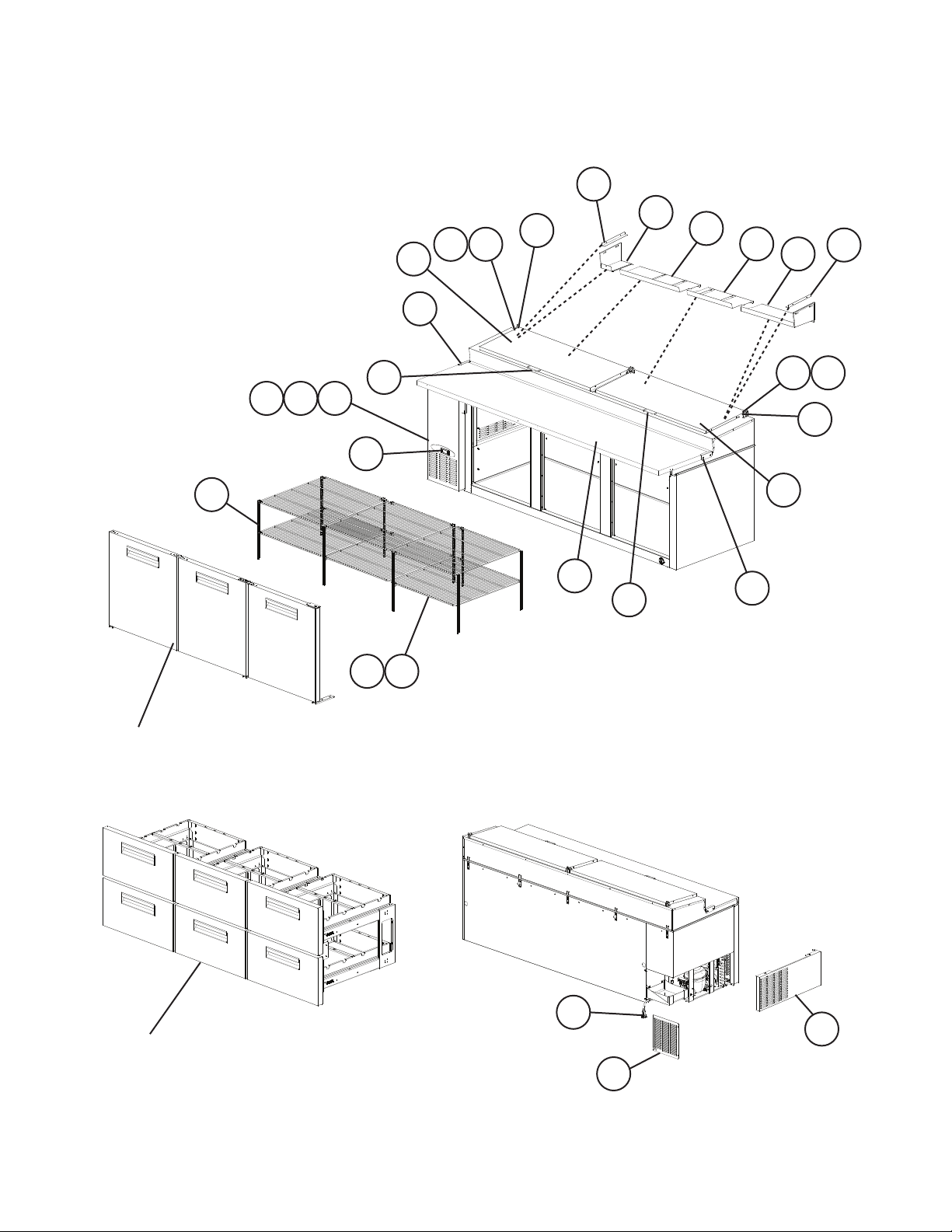

A. Main Assembly

CPT46(-D)

D-5 to G-6
10 11
17
13
15
14
13
6
For Door, see Section "C"
19
9
2a
2
2b
12
16
10 11
19
18
5
8
7
For Drawers, see Section "E"
3
4
1
4
Title: A. Main Assembly Models: CPT46(-D)
Required Number
D-5
E-6
Index
No. Description
1 Power Cord 4A2860-01 1 1 1 1 2 Front Panel 2A8533-01 1 - Auxiliary Code E-5 and earlier
2a Front Panel Latch 4A0508-03 4 2 2 2 2b Front Panel Striker 4A0515-01 4 2 2 2
3 Left Side Panel 2A7066-01 1 -
4 Rear Louver Panel 3A7482-01 1 1 1 1 5 Control Module SP-5212 1 1 -
6 Pilaster CPT46 4A5583-01 4 4 4 4 7 Shelf CPT46 3A2830-13 2 2 2 2 8 Shelf Clip CPT46 4A5418-01 8 8 8 8 9 Rail Cover
(includes items 10, 11, and 12)
10 Pivot Pin 4A4768-01 4 4 4 4 11 Pivot Bolt 4A4769-01 4 4 4 4 12 Handle 4A4518-01 1 1 1 1 13 Pan Support Bracket 3A7687-02 2 2 2 2 14 Right Upper Air Duct 1A3188-01 1 1 -
15 Left Upper Air Duct 1A3141-01 1 1 1 1 16 Right Rail Cover Bracket 4A5596-01 1 1 1 -
17 Left Rail Cover Bracket 4A5596-02 1 1 1 -
18 Cutting Board 3A4894-18 1 1 1 1 19 Cutting Board Bracket 3A4890-01 2 2 2 2
Material or Model Number Part Number
2A7902-01 1 1 1
4A5914G01 1 1
2A7212A01 1 1 1 -
2A8332A01 1
1A4252-01 1 1
3A9236-01 1
3A9236-02 1
to
E-5
to
F-5 F-6
1 1 1
G-5 G-6
must also order SP-5168
5
A. Main Assembly

CPT67(-D2)(-D4)

C-5 to G-6
13
10 11
18
16
15
14
13
9
20
2 2b2a
5
12
17
10 11
6
19
20
For Doors, see Sections "C" and "D"
For Drawers, see Section "E"
7 8
1
3
4
6
Title: A. Main Assembly Models: CPT67(-D2)(-D4)
Required Number
C-5
Index
No. Description
1 Power Cord 4A2860-01 1 1 1 1 1 1 2 Front Panel CPT67 2A8533-01 1 - Auxiliary Code E-5 and earlier must
2a Front Panel Latch 4A0508-03 4 2 2 2 2 2 2b Front Panel Striker 4A0515-01 4 2 2 2 2 2
3 Left Side Panel 2A7066-01 1 -
4 Rear Louver Panel 3A7482-01 1 1 1 1 1 1 5 Control Module SP-5212 1 1 1 -
6 Pilaster CPT67-D2 4A5583-01 4
7 Shelf CPT67-D2 3A2830-12 2
8 Shelf Clip CPT67-D2 4A5418-01 8
9 Rail Cover
(includes items 10, 11, and 12)
10 Pivot Pin 4A4768-01 4 4 4 4 4 4 11 Pivot Bolt 4A4769-01 4 4 4 4 4 4 12 Handle 4A4518-01 1 1 1 1 1 1 13 Pan Support Bracket 3A7687-02 2 2 2 2 2 2 14 Right Upper Air Duct 1A2965-01 1 -
15 Center Upper Air Duct 1A2964-01 1 -
16 Left Upper Air Duct 1A2963-01 1 -
17 Right Rail Cover Bracket 4A5596-01 1 1 1 1 1 -
18 Left Rail Cover Bracket 4A5596-02 1 1 1 1 1 -
19 Cutting Board 3A4894-17 1 1 1 1 1 1 20 Cutting Board Bracket 3A4890-01 2 2 2 2 2 2
Material or Model Number Part Number
CPT67(-D2) (-D4)
2A7902-01 1 1 1 1 1
4A5914G01 1 1 1
CPT67-D4 8 8 8 8 8 8
CPT67-D4 4 4 4 4 4 4
CPT67-D4 16 16 16 16 16 16
2A7060A01 1 1 1 1 -
2A8334A01 1 1
2A7798-01 1 1 1 1 1
2A7800-01 1 1 1 1 1
2A7799-01 1 1 1 1 1
3A9236-01 1
3A9236-02 1
to
E-5 E-6
1 1 - Auxiliary Code E-6 and earlier
E-7 F-5 F-6 F-7
also order SP-5168
1 1 1 1 1
must also order SP-5168
1 1 1 1
G-5 G-6
7
A. Main Assembly

CPT93(-D2)(-D4)(-D6)

D-5 to G-6
10
22
11 12
15
16
20
19
18
17
16
2 2a 2b
6
For Doors, see Sections "C" and "D"
13
5
7 8
21
13
11 12
14
9
22
For Drawers, see Section "E"
1
3
4
8
Title: A. Main Assembly Models: CPT93(-D2)(-D4)(-D6)
Required Number
D-5
E-6
Index
No. Description
1 Power Cord 4A2860-01 1 1 1 1 2 Front Panel 2A8533-01 1 - Auxiliary Code E-5 and earlier
2a Front Panel Latch 4A0508-03 4 2 2 2 2b Front Panel Striker 4A0515-01 4 2 2 2
3 Left Side Panel 2A7066-01 1 -
4 Rear Louver Panel 3A7482-01 1 1 1 1 5 Control Module SP-5212 1 1 -
6 Pilaster CPT93-D2 4A5583-01 8
7 Shelf CPT93-D2 3A2830-12 4
8 Shelf Clip CPT93-D2 4A5418-01 16
9 Right Rail Cover (includes
items 11, 12, and 13)
10 Left Rail Cover (includes items
11, 12, and 13)
11 Pivot Pin 4A4768-01 8 8 8 8 12 Pivot Bolt 4A4769-01 8 8 8 8 13 Handle 4A4518-01 2 2 2 2 14 Right Rail Cover Bracket 4A5596-01 2 2 2 -
15 Left Rail Cover Bracket 4A5596-02 2 2 2 -
16 Pan Support Bracket 3A7687-01 2 2 2 2 17 Right Upper Air Duct 1A2965-01 1 1 1 -
18 Right Center Upper Air Duct 1A3148-01 1 1 1 -
Center Upper Air Duct 2A8107-01 1 19 Left Center Upper Air Duct 1A2964-01 1 1 1 ­20 Left Upper Air Duct 1A3141-01 1 1 1 1
21 Cutting Board 3A4894-16 1 1 1 1 22 Cutting Board Bracket 3A4890-01 2 2 2 2
Material or Model Number Part Number
2A7902-01 1 1 1
4A5914G01 1 1
CPT93-D4 4 CPT93-D6 12 12 12 12
CPT93-D4 2 CPT93-D6 6 6 6 6
CPT93-D4 8 CPT93-D6 24 24 24 24
2A7023A01 1 1 1 -
2A8336A01 1
2A7025A01 1 1 1 -
2A8337A01 1
3A9236-01 2
3A9236-02 2
2A8108 -01 1
2A7799-01 1
to
E-5
to
F-6
G-5
F-5
F-7
G-6
must also order SP-5168
1 1 1
9

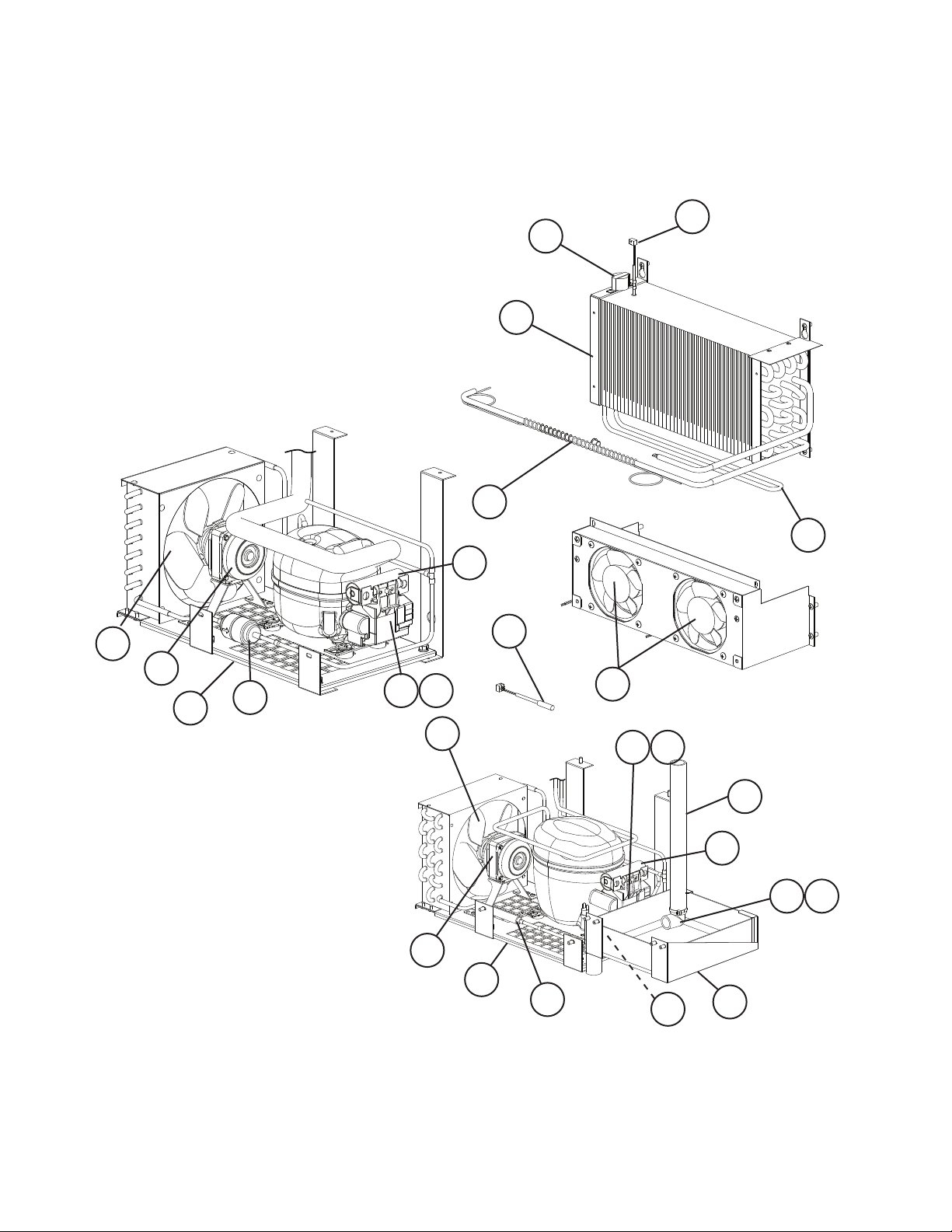

B. Refrigeration Circuit

CPT46(-D)

D-5 to G-6
11
13
9
15
12
6
14
3
2
10
1
D-5 and Earlier
8
5 7
3
5 7
16
6
17 18
2
1
8
17
4
For compressor or condenser replacement, order item 1.
D-6 and Later
10
Title: B. Refrigeration Circuit Models: CPT46(-D)
D-5
Index
No. Description
1 Condensing Unit (includes
compressor, condenser, and
items 2 through 7; compressor
and condenser are not sold
individually)
2 Condenser Fan Motor 3A6798-01 1 1 3 Condenser Fan Blade 3A6799-01 1 1 4 Condensate Pan 1A3373-01 1 1 5 Compressor External Protector 3A6774-01 1 1 6 Start Capacitor 4A5525-01 1 1 7 Start Relay 3A7232-01 1 1 8 Drier 4A5576-01 1 1
9 Evaporator 2A7531-01 1 1 10 Evaporator Fan 4A5343-01 2 2 11 Defrost Thermistor 4A4865-02 1 1 12 Defrost Heater 3A6443-01 1 1 13 Defrost Safety Thermostat 4A0954-02 1 1 14 Cabinet Thermistor 4A4864-01 1 1 15 Heat Exchanger 3A8228G01 1 1 16 Drain Tube 4A0658L01 1 1 17 Drain Boot 4A4938-01 1 ­18 Drain Elbow 4A5624-01 1
Material or Model Number Part Number
3A8107-01 1 1
to
G-5 G-6
Required Number
11
B. Refrigeration Circuit

CPT67(-D2)(-D4)

C-5 to G-6
15
11
13
9
12
14
10
16
7
4
17 18
3
2
8
1
For compressor or condenser replacement, order item 1.
5 6
12
Title: B. Refrigeration Circuit Models: CPT67(-D2)(-D4)
C-5
Index
No. Description
1 Condensing Unit (includes
compressor, condenser, and items 2 through 8; compressor and condenser are not sold
individually) 2 Condenser Fan Motor 3A6798-01 1 1 3 Condenser Fan Blade 3A6799-01 1 1 4 Condensate Pan 1A3373-01 1 1 5 Compressor External Protector 3A6936-01 1 1 6 Start Relay 3A6937-01 1 1 7 Start Capacitor 3A6938-01 1 1 8 Drier 4A5576-01 1 1 9 Evaporator 2A7531-01 1 1
10 Evaporator Fan Motor 4A5343-01 3 3 11 Defrost Thermistor 4A4865-02 1 1 12 Defrost Heater 3A6443-01 1 1 13 Defrost Safety Thermostat 4A0954-02 1 1 14 Cabinet Thermistor 4A4864-01 1 1 15 Heat Exchanger SP-5251 1 1 16 Drain Tube 4A0658L01 1 1 17 Drain Boot 4A4938-01 1 ­18 Drain Elbow 4A5624-01 1
Material or Model Number Part Number
3A8108-01 1 1
to
G-5 G-6
Required Number
13
B. Refrigeration Circuit

CPT93(-D2)(-D4)(-D6)

D-5 to G-6
11
13
9
15
12
14
10
16
7
4
17 18
3
2
8
1
For compressor or condenser replacement, order item 1.
5 6
14
Title: B. Refrigeration Circuit Models: CPT93(-D2)(-D4)(-D6)
D-5
Index
No. Description
1 Condensing Unit (includes
compressor, condenser, and
items 2 through 8; compressor
and condenser are not sold
individually) 2 Condenser Fan Motor 3A6798-01 1 1 3 Condenser Fan Blade 3A6799-01 1 1 4 Condensate Pan 1A3373-01 1 1 5 Compressor External Protector 3A6936-01 1 1 6 Start Relay 3A6937-01 1 1 7 Start Capacitor 3A6938-01 1 1 8 Drier 4A5576-01 1 1 9 Evaporator 2A7531-01 1 1
10 Evaporator Fan Motor 4A5343-01 3 3 11 Defrost Thermistor 4A4865-02 1 1 12 Defrost Heater 3A6443-01 1 1 13 Defrost Safety Thermostat 4A0954-02 1 1 14 Cabinet Thermistor 4A4864-01 1 1 15 Heat Exchanger SP-5251 1 1 16 Drain Tube 4A0658L01 1 1 17 Drain Boot 4A4938-01 1 ­18 Drain Elbow 4A5624-01 1
Material or Model Number Part Number
3A8108-01 1 1
to
G-5 G-6
Required Number
15

C. Door-Right Hinged

CPT46, CPT67(-D2), CPT93(-D2)(-D4)
C-5 to G-6
6
12
12
3
7
8
2a2
10
4 4a
11
5
Title: C. Door-Right Hinged Models: CPT46, CPT67(-D2), CPT93(-D2)(-D4)
C-5
to
Index
No. Description
1 Lower Hinge Bracket 3A6681G01 1 1
1a Hex Head Tapping Bolt 4A5213-01 2 2
2 Upper Hinge Bracket 3A6810-01 1 1
2a Truss Head Screw 5×12, SS 7C32-0512 2 2
3 Door Assembly
(includes items 4 through 12)
4 Hinge Spring Cartridge
(includes items 5 through 9)
4a Countersunk Screw 5×20, SS 7C42-0520 2 2
5 Thrust Washer 4A5234-01 1 1 6 Screw 4A5230-01 1 1 7 Lock Washer 4A5231-01 1 1
Material or Model Number Part Number
CPT46 2A7328G01 1 1 CPT67(-D2)
CPT93(-D2)(-D4)
2A6594G01 1 - 2A7322G01 1 3A6258-01 1 1
D-6
(D)
9
1a1
Required Number
D-6
(E)
to
G-6
16
Title: C. Door-Right Hinged Models: CPT46, CPT67(-D2), CPT93(-D2)(-D4)
C-5
to
Index
No. Description
8 Thrust Washer 4A5233-01 2 2 9 Bearing 4A5232-01 1 2
10 Truss Head Screw
(ller screws)
11 Gasket CPT46 2A6996-09 1 1
12 End Cap 4A5432-01 2 2
Material or Model Number Part Number
5×10 7C32-0510 2 2
CPT67(-D2) CPT93(-D2)(-D4)
2A5192-05 1 - 2A6996-05 1
D-6
(D)
Required Number
D-6
(E)
to
G-6
17

D. Door-Left Hinged

CPT67, CPT93(-D2)
C-5 to G-6
7
6
2a
2
8
11
4a
4
12
10
3
9
5
1a1
12
Title: D. Door-Left Hinged Models: CPT67, CPT93
C-5
to
Index
No. Description
1 Lower Hinge Bracket 3A6681G01 1 1
1a Hex Head Tapping Bolt 4A5213-01 2 2
2 Upper Hinge Bracket 3A6810-01 1 1
2a Truss Head Screw 5×12, SS 7C32-0512 2 2
3 Door Assembly
(includes items 4 through 12)
4 Hinge Spring Cartridge
(includes items 5 through 9)
4a Countersunk Screw 7C42-0520 2 2
5 Thrust Washer 4A5234-01 1 1 6 Screw 4A5230-01 1 1 7 Lock Washer 4A5231-01 1 1
Material or Model Number Part Number
2A7031G01 1 - 2A7331G01 1 3A6258-01 1 1
D-6
(D)
18
Required Number
D-6
(E)
to
G-6
Title: D. Door-Left Hinged Models: CPT67, CPT93
C-5
to
Index
No. Description
8 Thrust Washer 4A5233-01 2 2 9 Bearing 4A5232-01 1 1
10 Truss Head Screw (ller
screws)
11 Gasket 2A5192-05 1 -
12 End Cap 4A5432-01 2 2
Material or Model Number Part Number
7C32-0510 2 2
2A6996-05 1
D-6
(D)
Required Number
D-6
(E)
to
G-6
19

E. Drawer Assembly

CPT46-D, CPT67-D2(-D4), CPT93-D2(-D4)(-D6)
D-5 to G-6
5
3
6
1
4
2
Title: E. Drawer Assembly Models: CPT46-D, CPT67-D2(-D4), CPT93-D2(-D4)(-D6) Drawer Models
Required Number Per Section
D-5
E-5
Index
No. Description
1 Drawer Face CPT46-D 2A7235G01 2 -
2 Drawer Box CPT46-D 2A7236G01 2 2
3 Drawer Divider 3A3574-03 2 2 4 Right Side Roller 4A5674-02 2 2 5 Left Side Roller 4A5674-05 2 2 6 Drawer Gasket CPT46-D 2A5192-16 2 2
Material or Model Number Part Number
2A7512G01 2
CPT67-DX CPT93-DX
CPT67-DX CPT93-DX
CPT67-DX CPT93-DX
2A7342G01 2 ­2A7510G01 2
2A7319G01 2 2
2A5192-15 2 2
to
D-7
to
G-6
20

F. Accessories & Labels

CPT46(-D), CPT67(-D2)(-D4), CPT93(-D2)(-D4)(-D6)
C-5 to G-6
1
Title: F. Accessories & Labels Models: CPT46(-D), CPT67(-D2)(-D4), CPT93(-D2)(-D4)(-D6)
Required Number
C-5
Index
No. Description
1 Penguin Label 456246-02 1 2 Anti-Tip Bracket CPT46(-D) 3A8203A01 1 3 6" Caster Kit
(includes items 4 and 5) 4 6" Non-Locking Caster CPT46(-D)
5 6" Locking Caster CPT46(-D)
6 1/3 Size Pan, 4" Depth CPT46(-D) 1000000351 6
7 Pan Divider CPT46(-D) 3A4934-01 6
Material or Model Number Part Number
HS-5036 4A5435A01 1
4A5428-01 2
CPT67(-DX) CPT93(-DX) 3
4A5428-02 2
CPT67(-DX) CPT93(-DX) 3
CPT67(-DX) 9 CPT93(-DX) 12
CPT67(-DX) 9 CPT93(-DX) 12
to
G-6
2
21
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
