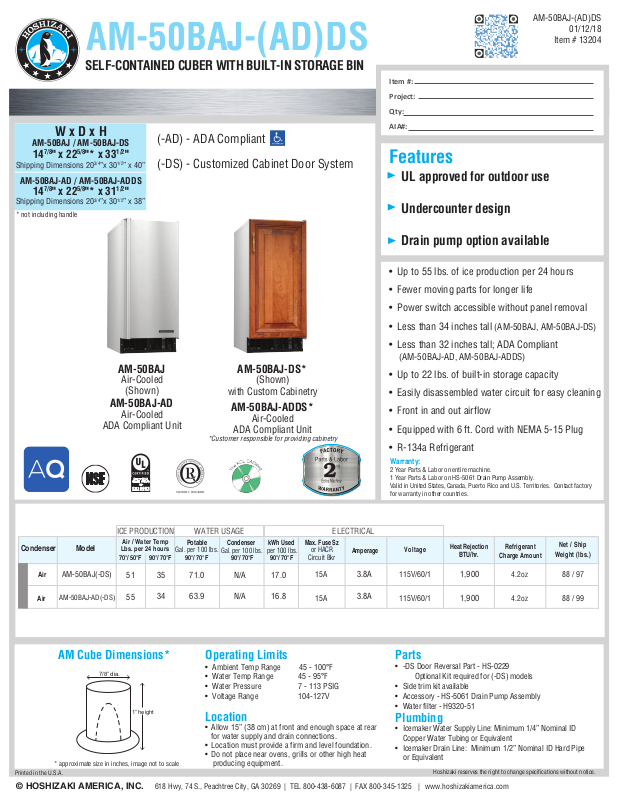

Hoshizaki AM50BAJADDS Specifications

AM-50BAJ-(AD)DS

SELF-CONTAINED CUBER WITH BUILT-IN STORAGE BIN

1” height

7/8” dia.

W x D x H

AM-50BAJ / AM-50BAJ-DS

7/8

14

Shipping Dimensions 20

AM-50BAJ-AD / AM-50BAJ-ADDS

7/8

14

Shipping Dimensions 20

* not including handle

" x 22

" x 22

5/8

"* x 33

5/8

"* x 31

3/4

3/4

”x 30

”x 30

1/2

1/2

” x 40”

1/2

1/2

” x 38”

AM-50BAJ-(AD)DS

01/12/18

Item # 13204

Item #:

Project:

Qty:

AIA#:

(-AD) - ADA Compliant

"

(-DS) - Customized Cabinet Door System

Features

UL approved for outdoor use

"

Undercounter design

Drain pump option available

• Up to 55 lbs. of ice production per 24 hours

• Fewer moving parts for longer life

• Power switch accessible without panel removal

Condenser

Air

Air

ADA Compliant Unit

Model

AM-50BAJ(-DS)

AM-50BAJ-AD(-DS)

AM-50BAJ

Air-Cooled

(Shown)

AM-50BAJ-AD

Air-Cooled

ICE PRODUCTION

Air / Water Temp

Lbs. per 24 hours

70°/ 50°F 90°/ 70°F

51

55

35

34

*Customer responsible for providing cabinetry

WATER USAGE

Potable

Gal. per 100 lbs.

90°/ 70°F 90°/ 70°F

71.0

63.9

Condenser

Gal. per 100 lbs.

AM-50BAJ-DS*

(Shown)

with Custom Cabinetry

AM-50BAJ-ADDS*

Air-Cooled

ADA Compliant Unit

Max. Fuse Sz

Circuit Bkr

N/A

N/A

kWh Used

per 100 lbs.

90°/ 70°F

17.0

16.8

or HACR

15A

15A

ELECTRICAL

Amperage

3.8A

3.8A

• Less than 34 inches tall (AM-50BAJ, AM-50BAJ-DS)

• Less than 32 inches tall; ADA Compliant
(AM-50BAJ-AD, AM-50BAJ-ADDS)

• Up to 22 lbs. of built-in storage capacity

• Easily disassembled water circuit for easy cleaning

• Front in and out airflow

• Equipped with 6 ft. Cord with NEMA 5-15 Plug

• R-134a Refrigerant

Warranty:

2 Year Parts & Labor on entire machine.
1 Year Parts & Labor on HS-5061 Drain Pump Assembly.
Valid in United States, Canada, Puerto Rico and U.S. Territories. Contact factory
for warranty in other countries.

Voltage

115V/60/1

115V/60/1

Heat Rejection

BTU/hr.

1,900

1,900

Refrigerant

Charge Amount

4.2oz

4.2oz

Net / Ship

Weight (lbs.)

88 / 97

88 / 99

AM Cube Dimensions*

Printed in the U.S.A.

© HOSHIZAKI AMERICA, INC.

* approximate size in inches, image not to scale

618 Hwy, 74 S., Peachtree City, GA 30269 | TEL [phone] | FAX [phone] | www.hoshizakiamerica.com

Operating Limits

• Ambient Temp Range 45 - 100°F

• Water Temp Range 45 - 95°F

• Water Pressure 7 - 113 PSIG

• Voltage Range 104-127V

Location

• Allow 15” (38 cm) at front and enough space at rear
for water supply and drain connections.

• Location must provide a firm and level foundation.

• Do not place near ovens, grills or other high heat
producing equipment.

Parts

• -DS Door Reversal Part - HS-0229
Optional Kit required for (-DS) models

• Side trim kit available

• Accessory - HS-5061 Drain Pump Assembly

• Water filter - H9320-51

Plumbing

• Icemaker Water Supply Line: Minimum 1/4” Nominal ID
Copper Water Tubing or Equivalent

• Icemaker Drain Line: Minimum 1/2” Nominal ID Hard Pipe
or Equivalent

Hoshizaki reserves the right to change specifications without notice.

AM-50BAJ-(AD)DS

SELF-CONTAINED CUBER WITH BUILT-IN STORAGE BIN

FRONT VIEW

AM-50BAJ-(AD)DS

01/12/18

Item # 13204

mm

[inch]

* -AD models have height ot 31.5”

REAR VIEW

* -AD models have height ot 31.5”

AM-50BAJ*

AM-50BAJ*

POWER SUPPLY
CORD 2m LONG

OUTSIDE

AM-50BAJ-DS*

AM-50BAJ-DS*

Front

SIDE VIEW

AM-50BAJ*

* -AD models have height ot 31.5”

© HOSHIZAKI AMERICA, INC.

618 Hwy, 74 S., Peachtree City, GA 30269 | TEL [phone] | FAX [phone] | www.hoshizakiamerica.com

AM-50BAJ-DS*

POWER SUPPLY
CORD 2m LONG

OUTSIDE

AIR IN

AIR OUT

AIR OUT

AM-50BAJ*

TOP VIEW

AIR IN

AIR OUT

AIR OUT

AM-50BAJ-DS*

Printed in the U.S.A.
