Horizon Fitness 4.3E User Manual

Download

ELITE SERIES

FOR MODELS :

2.3E

3.3E

4.3E

ELLIPTICAL U S E R ’ S GUIDE

IN TRODUCTION

CONGRATULATIONS and THANK YOU for your purchase of this Elite Series elliptical!

Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, an Elite Series elliptical can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics and innovative features you need to get stronger, healthier and faster. Because we're committed to designing fitness equipment from the inside out, we use only the highest quality components. It's a commitment we back with one of the strongest frame-to-brake warranty packages in the industry.

You want exercise equipment that offers the most comfort, the best reliability and the highest quality in its class.

The Horizon Elite Series delivers.

TA B L E OF CO N T E NT S

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLYASSEMBLY

BEFORE

YOU BEGIN

Important Precautions

Assembly

Before You Begin

Elliptical Operation

Conditioning Guidelines

Troubleshooting & Maintenance

Limited Warranty

CONTACT INFORMATION

Back Panel

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION ASSEMBLY

WARNING

IM PORTA NT PR EC AU TIONS

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

SAVE THESE INSTRUCTIONS

Read all instructions before using this elliptical. When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this elliptical. It is the responsibility of the owner to ensure that all users of this elliptical are adequately informed of all warnings and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the number listed on the back panel of this manual.

To reduce the risk of burns, fire, electrical shock or injury to persons:

• If you experience any kind of pain, including, but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician before continuing.

• Maintain a comfortable pace. Do not sprint above 80 rpms on this machine.

• To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or dismounting the machine.

• Do not wear clothes that might catch on any part of the elliptical.

• Do not turn pedal arms by hand.

• Make sure handlebars are secure before each use.

• Do not insert or drop any object into any opening.

• Unplug elliptical before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents. (See MAINTENANCE)

• This elliptical should not be used by persons weighing more than 300 pounds on the 2.3E and 325 pounds on the 3.3E and 4.3E. Failure to comply will void the warranty.

• This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional setting. Failure to comply will void the warranty.

• Do not use elliptical in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.

• Use the elliptical only as described in this manual.

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

At NO time should pets or children under the age of 12 be closer to the elliptical than 10 feet. At NO time should children under the age of 12 use the elliptical. Children over the age of 12 should not use the elliptical without adult supervision.

It is essential that your elliptical is used only indoors, in a climate controlled room. If your elliptical has been exposed to colder temperatures or high moisture climates, it is strongly recommended that the elliptical is warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.

AS SEMBLY

WARNING

IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!

There are several areas during the assembly process of a elliptical that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the elliptical could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the elliptical, the assembly instructions must be reviewed and corrective actions should be taken.

UNPACKING

Unpack the product where you will be using it. Place the product on a level flat surface. It is recommended that you place a protective covering on your floor. During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before completely tightening any ONE bolt.

NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as lithium bike grease is recommended.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

Before proceeding, find your elliptical’s serial number located on the console mast frame bracket and enter it in the space provided below. Also locate the model name which is located on the side cover badge.

ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOxES BELOW:

SERIAL NUMBER :

MODEL NAME:

* Refer to the SERIAL NUMBER and MODEL NAME when calling for service. * Also enter this serial number on your Warranty Card.

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

TOOLS INCLUDED PARTS INCLUDED

c 5mm Allen Wrench

c 4mm Allen Wrench

c Phillips Screw Driver

c 13/15mm Flat Wrench

c 17mm Flat Wrench

c 1 Console

c 1 Console Mast

c 1 Console Mast Boot (3.3E & 4.3E ONLY)

c 2 Upper Handlebars

c 2 Lower Handlebars

c 2 Front Handlebar Covers

c 2 Rear Handlebar Covers

c 2 Lower Link/Pedal Arms

c 2 Elbow Covers

c 2 Roller Wheel Covers

c 1 Water Bottle Holder (2.3E only)

c 2 Pedal Arm Covers

c 1 Top Cap

c 2 Foot Levelers

c 2 Foot Pads

c 2 Rubber Insert Pads (4.3E ONLY)

c 2 Guide Rail End Caps

c 1 Power Supply

c 5 Hardware Bags

If you have questions or if there are any missing parts, we will guarantee complete satisfaction.

Customer Tech Support contact information is located on the back panel of this manual.

CONSOLE (3.3E shown)

LED DISPLAY

CONSOLE MAST

CONSOLE MAST BOOT

CUP HOLDER (3.3E and 4.3E only)

LOWER LINK ARM

PIVOTING FOOT PAD

GUIDE RAIL END CAP

UPPER HANDLEBAR

HANDLEBAR COVER

LOWER HANDLEBAR

MAIN FRAME

PEDAL ARM

PEDAL ARM COVER

TRANSPORT WHEEL

FRONT STABILIZER TUBE

FOOT LEVELER

ROLLER WHEEL COVER

ELBOW COVERS

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

BOLT (A)

ARC WASHER (C)

SPRING WASHER (B)

FLAT WASHER (D)

SPRING WASHER (B)

CONSOLE MAST

TOP CAP

CONSOLE WIRES

MAIN FRAME BRACKET

MAIN FRAME

BOLT (A)

ASSEMBLY S T E P 1

BOLT (A) 15 mm Qty: 6

SPRING WASHER (B)

15 mm Qty: 6

FLAT WASHER (D)

20 mm Qty: 4

angle view

ARC WASHER (C)

17 mm Qty: 2

CONSOLE MAST

MAST BOOT

TOP CAP

HARDWARE BAG FOR STEP 1 CONTENTS :

2.3E SHOWN

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

3.3E and 4.3E ONLY

A) Open HARDWARE BAG FOR STEP 1.

B) Carefully pull the CONSOLE WIRES through the CONSOLE MAST using the twist tie located inside the CONSOLE MAST.

C) (For Models: 3.3E and 4.3E only) Slide the MAST BOOT onto and up the CONSOLE MAST.

D) Slide the TOP CAP onto and up the CONSOLE MAST.

E) Attach the CONSOLE MAST to the MAIN FRAME BRACKET using 2 BOLTS (A), 2 SPRING WASHERS (B), and 2 ARC

WASHERS (C) on the front of the console mast. Attach the CONSOLE MAST on the sides using 2 BOLTS (A), 2 SPRING WASHERS (B), and 2 FLAT WASHERS (D) on each side.

F) Slide the TOP CAP (and boot if applicable) down onto the MAIN FRAME.

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

FLAT WASHER (E)

BOLT (F)

FOOT LEVELER

MAIN FRAME

FOOT LEVELER AXLE

BOLT (F) 20 mm Qty: 2

FLAT WASHER (E) 16 mm Qty: 2

SCREW (G) 12 mm Qty: 8

FOOT PAD

LOWER LINK ARM PLATE

SCREW (G)

RUBBER PAD (4.3E only)

ASSEMBLY S T E P 2

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

HARDWARE BAG FOR STEP 2 CONTENTS :

A) Open HARDWARE BAG FOR STEP 2.

Slide FOOT LEVELER AXLE through MAIN

FRAME TUBE. (The FOOT LEVELER AXLE is on top of bottom styrofoam, beside the side shroud).

C) Slide left and right FOOT LEVELERS

onto MAIN FRAME.

D) Attach FOOT LEVELERS using a WASHER (E) and BOLT (F) on each side

of the MAIN FRAME.

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

ASSEMBLY S T E P 3

HARDWARE BAG FOR STEP 3 CONTENTS :

A) Open HARDWARE BAG FOR STEP 3.

B) (For Model 4.3E only) Fit RUBBER PAD

into bottom of FOOT PAD with traction nubs facing up.

Attach FOOTPAD to LOWER LINK ARM

PLATE using 4 SCREWS (G).

D) Repeat on other side.

WARRANTY

LIMITED

PEDAL ARM

PIVOT TUBE

FLAT WASHER (H)

ARC WASHER (I)

FLAT WASHER (J)

BOLT (K)

ASSEMBLY S T E P 4

BOLT (K) 13 mm Qty: 2

FLAT WASHER (H) 29 mm Qty: 2

FLAT WASHER (J) 27 mm Qty: 2

ARC WASHER (I) 23 mm Qty: 2

SCREW (L) 15mm Qty: 2

SCREW (M) 12mm Qty: 2

HARDWARE BAG FOR STEP 4 CONTENTS :

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

A) Open HARDWARE BAG FOR STEP 4.

B) Attach PEDAL ARM to PIVOT TUBE using FLAT WASHER (H), ARC WASHER (I), FLAT WASHER (J), and BOLT (K).

C) Repeat on other side.

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

ROLLER WHEEL COVER

PEDAL ARM COVER

PEDAL ARM

SCREW (M)

SCREW (L)

GUIDE RAIL END CAP

PRECAUTIONS

IMPORTANT

ASSEMBLY

ASSEMBLY S T E P 4 (C ON T I N U E D )

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

A) HARDWARE BAG FOR STEP 4 (continued).

B) Attach the PEDAL ARM COVER to the right PEDAL ARM using SCREW (L).

C) Repeat on the other side.

D) Attach the ROLLER WHEEL COVER to the right PEDAL ARM using SCREW (M).

E) Repeat on the other side.

F) Insert GUIDE RAIL END CAP into right GUIDE RAIL socket

E) Repeat on the other side.

WARRANTY

LIMITED

ASSEMBLY S T E P 5

PRE-ATTACHED BOLT AND WASHER

PRE-ATTACHED WASHERS

CONSOLE MAST

LOWER HANDLEBAR

WARNING

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

NOTE: There is NO hardware bag for this step. All hardware is pre-installed.

A) Remove PRE-ATTACHED BOLTS & WASHERS from CONSOLE MAST.

B) Slide LOWER HANDLEBARS onto CONSOLE MAST and attach by re-inserting PRE-ATTACHED BOLT & WASHERS.

C) Repeat on other side.

After handlebars are assembled they will rotate freely – be cautious. Until the machine is fully assembled, do not grab the handlebars for support.

BEFORE

YOU BEGIN

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

PRE-ATTACHED SET SCREWS

UPPER HANDLEBAR

LOWER HANDLEBAR

TAB

NOTCH

HANDLEBAR COVERS

UPPPER HANDLEBAR

UPPPER HANDLEBAR WIRE

CONSOLE WIRE

CONSOLE MAST

PRECAUTIONS

IMPORTANT

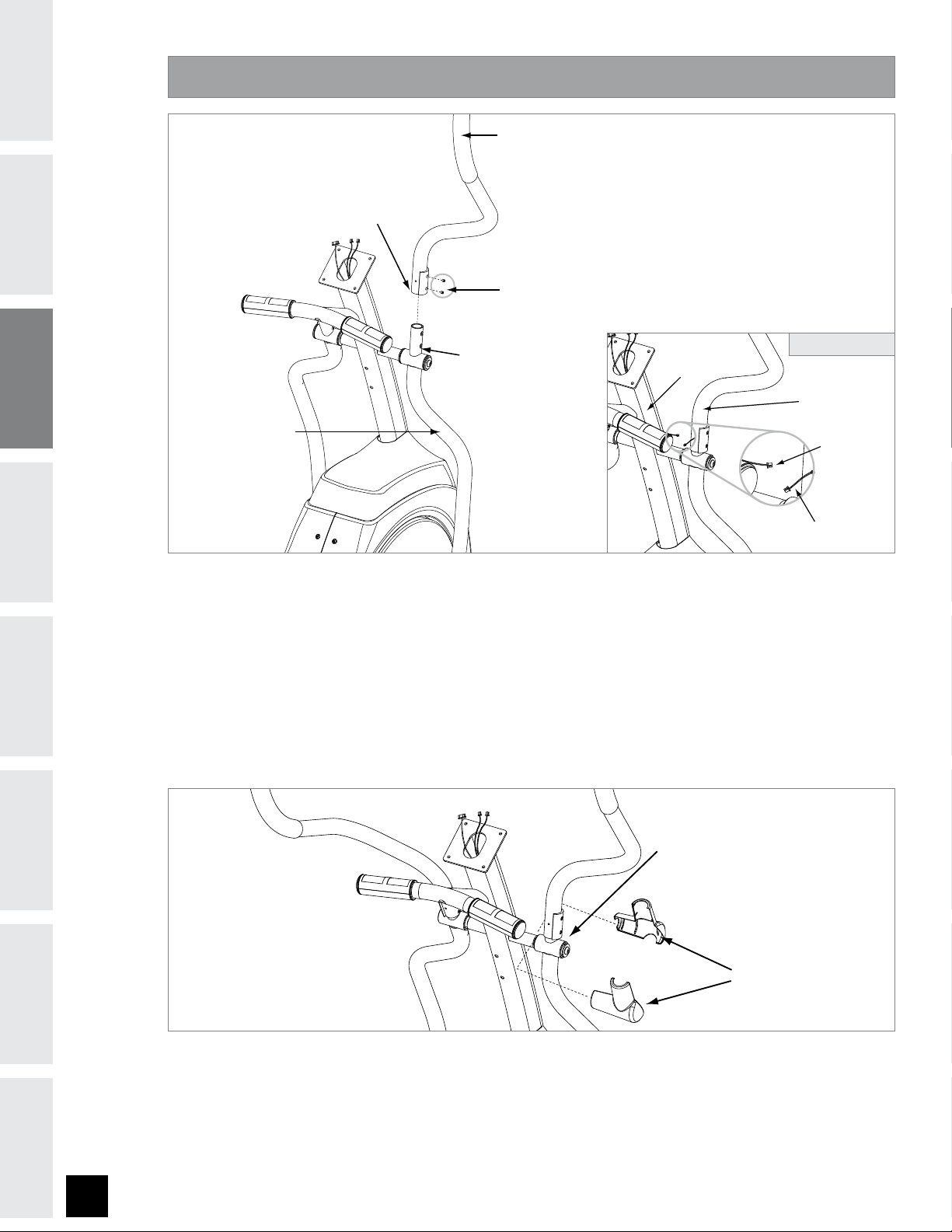

ASSEMBLY S T E P 5 (C ON T I N U E D )

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

FOR 4.3E ONLY

NOTE: There is NO hardware bag for this step. All hardware is pre-installed.

A) Slide UPPER HANDLEBAR onto LOWER HANDLEBAR and align NOTCH with TAB making sure handlebars are

joined together completely. Secure UPPER HANDLEBAR to LOWER HANDLEBAR using PRE-ATTACHED SET SCREWS.

B) Repeat on other side.

C) (For 4.3E only) Attach WIRE from UPPER HANDLEBAR to WIRE from CONSOLE MAST.

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

D) Snap the front and back HANDLEBAR COVERS together onto the UPPER HANDLEBARS. Note the position

ot the snap tabs on the covers before snapping into position. (On 4.3E, tuck wires inside of HANDLEBAR COVERS, CAREFUL not to pinch any wires).

E) Repeat on other side.

ASSEMBLY S T E P 6

GUIDE RAIL

LOWER LINK ARM

SPACER

TEFLON WASHERS

LOWER

HANDLEBAR

LOWER LINK ARM

TEFLON WASHERS (O)

SPACER (P)

L0WER HANDLEBAR

NUT (Q)

BOLT (N)

BOLT (N) 60 mm Qty: 2

SPACER (P) 44 mm axis Qty: 2

NYLON NUT (Q)

Qty: 2

TEFLON WASHER (O) 28 mm Qty: 4

SCREW (R) 15 mm Qty: 4

SCREW (R)

INSIDE ELBOW COVER

OUTSIDE ELBOW COVER

HARDWARE BAG FOR STEP 6 CONTENTS :

A) Open HARDWARE BAG FOR

STEP 6.

B) Insert SPACER (P) into LOWER

LINK ARM.

C) Insert 2 TEFLON WASHERS (O)

between the LOWER LINK ARM and LOWER HANDLEBAR.

D) Attach LOWER LINK ARM to

LOWER HANDLEBAR using BOLT (N) and NUT (Q).

E) Attach INSIDE & OUTSIDE

ELBOW COVERS together using

2 SCREWS (R).

F) Repeat on other side.

NOTE: If you have difficulty

fitting the lower link arm into the lower handlebar bracket, slide the roller wheel forward or backward on the guide rail for better access to the bracket.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

CONSOLE

CONSOLE WIRES

CONSOLE MAST

PRE-ATTACHED SCREWS

PRECAUTIONS

IMPORTANT

ASSEMBLY

ASSEMBLY S T E P 7

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

NOTE: There is NO hardware bag for this step.

A) Attach the CONSOLE MAST wires to the CONSOLE WIRES.

B) Carefully tuck the CONSOLE MAST WIRES into the CONSOLE MAST before attaching the CONSOLE.

C) Attach CONSOLE to the CONSOLE MAST using the 4 PRE-ATTACHED SCREWS (screws will have to be removed

from the console first).

BE CAREFUL NOT TO PINCH WIRES!

YOU’RE FINISHED!

WARRANTY

LIMITED

2.3E

3.3E

4.3E

BE FORE YOU BEGIN

GFFU

GFFU

GFFU

GPPU

CONGRATULATIONS! on choosing your elliptical. You’ve taken an important step in developing and

sustaining an exercise program! Your elliptical is a tremendously effective tool for achieving your personal fitness goals. Regular use of your elliptical can improve the quality of your life in so many ways.

HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:

• Weight Loss

• A Healthier Heart

• Improved Muscle Tone

• Increased Daily Energy Levels

INTRODUCTION

IMPORTANT

PRECAUTIONS

The key to reaping these benefits is to develop an exercise habit. Your new elliptical will help you eliminate obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your workout when you use your elliptical in the comfort of your home. This guide provides you with basic information for using and enjoying your new machine.

LOCATION OF THE ELLIPTICAL

Place the elliptical on a level surface. There should be 6 feet of clearance behind the elliptical, 3 feet on each side and one foot in front for the power cord (See diagram to the right). Do not place the elliptical in any area that will block any vent or air openings. The elliptical should not be located in a garage, covered patio, near water or outdoors.

ASSEMBLY

BEFORE

YOU BEGIN

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

WARNING

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

EL LIPTICAL OPERATION

POWER

Your programmable elliptical is powered by a power supply. The power must be plugged into the power jack, which is located in the front of the machine near the STABILIZER TUBE.

Do not operate the elliptical if the power cord or plug is damaged. If the elliptical appears to not be working properly, do not use the elliptical.

MOVING

Your elliptical has a pair of transport wheels built into the FRONT STABILIZER TUBE. To move, first remove the power supply and firmly grasp the CONSOLE MAST, carefully tilt and roll.

OPERATION

ELLIPTICAL

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

Our ellipticals are well built and heavy, weighing up to 200 lbs! Use care and additional help if necessary when moving.

FOOT POSITIONING

Your elliptical offers a variety of foot positions. Moving your foot to the forward most position of the foot pad increases your step height, which will create a feel similar to a step machine. Placing your foot toward the back of the foot pad decreases your step height and creates more of a gliding feel, similar to a smooth walk or run.

Your elliptical also allows you to pedal both forward and backwards to offer a variation to your workout and to focus on other major leg muscle groups such as your hamstrings and calves.

WARRANTY

LIMITED

2.3 - 3.3E C O N S O LE DI S P L AY

CH A N GE D I S P L AY

TIM E

SPE ED

HEA RT R ATE

DIS TA NCE

CAL OR IE S

RES IS TAN CE /L EV EL

P1: MANUAL P2: INTERVALS P4: ROLLING HILLSP3: WEIGHT L OSS

P6: RANDOM P7: CUSTOMP5: REVERSE TRAIN

ENT ERBAC K

S T A R T

QUIC K STA RT

S T O P

HOLD T O RES ET

A AB

CD EFG

F G

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

Note: 3.3E console shown

A) MONITOR DISPLAY: Speed, Time, Heart Rate, Distance, Calories, and Resistance Level. B) LARGE LED WINDOW: Displays program profiles. C) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the elliptical. D) START: Press to begin exercising, start your program, or resume exercising after a pause. E) PROGRAMMING BUTTON: Used to select Program, Level, Time, and other options. Press to change display

feedback during workout. During programming: ARROWS: Scrolls through programs and adjusts program settings. ENTER: Confirms setting and advances to next step. BACK: Returns to previous step.

F) ONE-TOUCH RESISTANCE KEYS: Used to reach desired resistance more quickly. G) RESISTANCE ARROW KEYS: Used to adjust resistance in small increments. H) QUICK PROGRAM KEYS: Used to select programs more directly.

BEFORE

YOU BEGIN

ELLIPTICAL

OPERATION

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

CH A N GE D I S P L AY

SPE ED

HEA RT R ATE

CAL OR IE S

RES IS TAN CE /L EV EL

TIM E

DIS TA NCE

S T A R T

QUIC K STA RT

S T O P

HOLD T O RES ET

ENTE RBACK

A AB

CD EFG

F G

PRECAUTIONS

IMPORTANT

ASSEMBLY

4.3E C ON S O L E DI SP L AY

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

A) MONITOR DISPLAY: Speed, Time, Heart Rate, Distance, Calories, and Resistance Level. B) LARGE LED WINDOW: Display program profiles. C) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill. D) START: Press to begin exercising, start your program, or resume exercising after a pause. E) PROGRAMMING BUTTON: Used to select Program, Level, Time, and other options. Press to change display

feedback during workout. During programming: ARROWS: Scrolls through programs and adjusts program settings. ENTER: Confirms setting and advances to next step. BACK: Returns to previous step.

WARRANTY

LIMITED

2.3E - 4.3E C O N S OL E OP E R ATION

QUICK START

1) Turn on Elliptical.

INTRODUCTION

2) Press START button and begin exercising.

3) Program will automatically default to MANUAL (P1), the time will count up from 0:00, and the resistance

will default to level 1.

4) The resistance level can be adjusted during the workout.

SELECTING PROGRAMS

1) Select a program using the PROGRAM QUICK KEY key and press ENTER.

*NOTE: If you press START, the program will begin and counts up from 0:00 for the manual program,

and count down from 30:00 for all other programs. The level defaults to 1.

2) Select a LEVEL using the ARROW KEYS on the programming button and press ENTER.

3) Set TIME using the ARROW KEYS on the programming button and press START.

SELECTING CU S T O M PROGRAMS

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

1) Select CUSTOM PROGRAM using the PROGRAM QUICK KEY and press ENTER.

2) Set TIME using the ARROW KEYS on the programming button and press ENTER.

3) Set the RESISTANCE PROFILES using the ARROW KEYS on the programming button and

press ENTER after each RESISTANCE PROFILE is set to the desired level (repeat until all 15 segments are chosen).

*NOTE: if BACK is pressed on the programming button, it will take you back to previous segment.

4) Press START to begin the program.

*NOTE: To reset the memory press and hold the ENTER button for 5 seconds.

ELLIPTICAL

OPERATION

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

SELECTING TH R ZONE PROGRAM (4.3E ONLY)

1) Select THR ZONE program using the PROGRAM QUICK KEY and press ENTER.

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

• The HEART RATE window will flash showing the default target heart rate of 80 beats per minute.

Select your target heart rate (from the chart on page 24) using the ARROW KEYS on the programming

button and press ENTER.

*NOTE: Target heart rate is selected in multiples of 5 beats.

2) Select TIME using the ARROW KEYS on the programming button and press START to begin the program.

• At this time, your program has been successfully saved into memory and can be used for future workouts.

In this program, the large LED dot matrix window displays your heart rate during exercise. The middle row represents your target heart rate (THR) and the other rows equal +/-2 heart beats. If you are working out beneath your THR, the LEDs BELOW the middle row will illuminate. If you are over, the LEDs ABOVE the middle row will illuminate. Your current heart rate is represented by the flashing column and the window will refresh every 5 seconds.

NOTE: If no heart rate is detected, the large LED window will display the resistance profile.

OPERATION

ELLIPTICAL

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

NOTES:

1) There is a 4-minute warm-up built into this program at level 1 resistance.

2) After 4 minutes the resistance will automatically adjust to bring your heart rate within 5 beats of the

target number you selected at the beginning of the program.

3) If there is no Heart Rate detected, the unit will not change resistance levels up or down.

4) If your Heart Rate is 25 beats over your Target Zone the program will shut down.

5) To RESET your program information and delete it from memory, press and hold the ENTER key for 5

seconds (after you have selected the THR ZONE 1 or 2 program).

WARRANTY

LIMITED

."/6"-

*/5&37"-4

."/6"-

*/5&37"-4

30--*/(

8&*()5-044

."/6"-

*/5&37"-4

30--*/(

."/6"-

*/5&37"-4

30--*/(

8&*()5-044

(0-'$0634&

3"$&

$6450.

$6450.

5)3;0/&

5)3;0/&

7"--&:

5063

3&7&34&53"*/

."/6"-

*/5&37"-4

30--*/(

8&*()5-044

(0-'$0634&

3"$&

$6450.

$6450.

5)3;0/&

5)3;0/&

7"--&:

5063

3&7&34&53"*/

3"/%0.

."/6"-

*/5&37"-4

30--*/(

8&*()5-044

(0-'$0634&

3"$&

$6450.

."/6"-

*/5&37"-4

30--*/(

8&*()5-044

(0-'$0634&

3"$&

$6450.

$6450.

."/6"-

*/5&37"-4

30--*/(

8&*()5-044

(0-'$0634&

3"$&

$6450.

$6450.

5)3;0/&

PROGRAM PR O F I L E S

MANUAL

Allows you to adjust the resistance level to your preference, without a preset program.

INTERVALS

Improves your strength, speed and endurance by raising and lowering the resistance levels through-out your workout to involve both your heart and muscles.

WEIGHT LOSS

Promotes weight loss by raising and lowering the resistance level, while keeping you in your fat burning zone.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ROLLING HILLS (3.3E & 4.3E ONLY)

REVERSE TRAIN (3.3E & 4.3E ONLY)

RANDOM (3.3E & 4.3E ONLY)

CUSTOM 1 (USER PROGRAM)

CUSTOM 2 (USER PROGRAM, 4.3E ONLY)

THR ZONES (4.3E ONLY)

Creates the feeling of moving up and down hills by gradually increasing and decreasing the resistance.

Program cues you to pedal forward and backwards for an exciting and challenging workout.

Provides even more workout variety by mixing up your resistance intervals in no particular order.

Design and store your own custom exercise program.

Automatically adjust the resistance level to keep your heart rate in your desired range.

60% OF MAx HEART RATE:

Used for beginners and longer workouts. Lower intensity and

longer duration helps burn fat more efficiently.

65% OF MAx HEART RATE:

Used for beginner to intermediate users and mid to long range

workouts. Lower intensity and longer duration helps burn fat more efficiently.

70% OF MAx HEART RATE:

For intermediate users and mid range cardio workouts. While this

range burns fat it really challenges the cardiovascular system and helps strengthen the heart.

75% OF MAx HEART RATE:

For advanced users and short to mid range cardio workouts. Burns

fat, tones muscles and challenges the heart.

80% OF MAx HEART RATE:

For advanced users and short workouts. Burns fat, strengthens

and tones muscles, and challenges the entire cardiovascular system.

ASSEMBLY

BEFORE

YOU BEGIN

ELLIPTICAL

OPERATION

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

BAC K S IDE O F CH E ST T R A NSM I T TER

APPLY MOISTURE HERE

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

HEART RAT E

HANDLEBARS

Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose, cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.

WIRELESS CHEST TRANSMITTER (4.3E only)

Prior to wearing the wireless chest transmitter on your chest, moisten the two rubber electrodes with water. Center the chest strap just below the breast or pectoral muscles, directly over your sternum, with the logo facing out. NOTE: The chest strap must be tight and properly placed to receive an accurate and consistent readout. If the chest strap is too loose, or positioned improperly, you may receive an erratic or inconsistent heart rate readout. WARNING! The heart rate function is not a medical device. Various factors may affect the accuracy of your heart rate reading. The heart rate reading is intended only as an exercise aid.

OPERATION

ELLIPTICAL

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

CO NDITIONING GUIDE LI NE S

ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN ExERCISE PROGRAM.

HOW OFTEN? (Frequency of Workouts)

The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!

HOW LONG? (Duration of Workouts)

For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per session. But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

HOW HARD? (Intensity of Workouts)

How hard you workout is also determined by your goals. If you use your machine to prepare for a 5K workout, you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to be beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate (using the grip pulse handlebars or a wireless chest transmitter - may be sold separately), and the second is by evaluating your perceived exertion level (this is simpler than it sounds!).

PERCEIVED ExERTION LEVEL

A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down. Always be aware of these warning signs of overexertion.

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

 

 

 

# & " 5 4  1 & 3  . * / 6 5 &

            

"( &

5 " 3 ( & 5  ; 0 / &

 









 





 



















































PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TA R G ET HE A R T RATE Z ON E CH A R T

What is Target Heart Rate Zone?

Target Heart Rate Zone tells you the number of times per minute your heart needs to beat to achieve a desired workout effect. It is represented as a percentage of the maximum number of times your heart can beat per minute. Target Zone will vary for each individual, depending on age, current level of conditioning, and personal fitness goals. The American Heart Association recommends working-out at a Target Heart Rate Zone of between 60% and 75% of your maximum heart rate. A beginner will want to workout in the 60% range while a more experienced exerciser will want to workout in the 70-75% range. See chart for reference.

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

ExAMPLE:

For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to the target zone bar. Results: 60% of maximum Hear Rate = 108 Beats Per Minute, 75% of maximum Heart Rate = 135 Beat Per Minute.

ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN ExERCISE PROGRAM.

STRETCHING

5 * 1 4

STRETCH FIRST

Before using your product, it is best to take a few minutes to do a few gentle stretching exercises. Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into each of these stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to bounce while doing

these stretches.

INTRODUCTION

IMPORTANT

PRECAUTIONS

1. STANDING CALVE MUSCLE STRETCH

Stand near a wall with the toes of your left foot about 18" from the wall, and the right foot about 12" behind the other foot. Lean forward, pushing against the wall with your palms. Keep your heels flat and hold this position for a count of 15 seconds. Make sure that you do not bounce while stretching. Repeat on the other side.

2. STANDING QUADRICEPS STRETCH

Using a wall to provide balance, grasp your left ankle with your left hand and hold your foot against the back of your thigh for 15 seconds. Repeat with your right ankle and hand.

3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH

Sit on the floor with your legs together and straight out in front of you. Do not lock your knees. Extend your fingers towards your toes and hold for a count of 15 seconds. Make sure that you do not bounce while stretching. Sit upright again. Repeat one time.

ASSEMBLY

BEFORE

YOU BEGIN

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

5 * 1 4

THE IMPORTANCE OF WARM UP & COOL DOWN

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

WARM UP

The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.

COOL DOWN

Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the decreased demand. Make sure that your cool down period consists of a very slow pace to allow your heart rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your muscles.

ACHIEVING YOUR FITNESS GOALS

An important step in developing a long term fitness program is to determine your goals. Is your primary goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule? Knowing what your goals are will help you develop a more successful exercise program. Below are some common exercise goals:

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

• Weight Loss - lower intensity, longer duration workouts

• Improve Body Shape and Tone - interval workouts, alternate between hi and low intensities

• Increased Energy Level - more frequent daily workouts

• Improved Sports Performance - high intensity workouts

• Improved Cardiovascular Endurance - moderate intensity, longer duration workouts

If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing. The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation benefits. Short term goals are easier to achieve. Your console provides you with several readouts that can be used to record your progress. You can track Distance, Calories or Time.

KEEPING AN ExERCISE DIARY

To make your personal exercise log book, photocopy the weekly and monthly log sheets, which are located on the following page and you can print them off of your computer by going to:

www.horizonfitness.com/guides/weeklylog.pdf www.horizonfitness.com/guides/monthlylog.pdf

As your fitness improves, you can look back and see how far you’ve come!

WE EKLY LOG SHEETS

8 & & ,   8 & & , -:  ( 0 " -

8 & & , -:  5 0 5 " - 4  

% ":

4 6 / %":

. 0 / %":

5 6 & 4%":

8 & % /&4%":

5 ) 6 34%":

' 3 * %":

4 "5 6 3 % " :

% "5 & % * 4 5" / $ & $ " - 0 3 * & 4 5 * . & $ 0 . . & / 5 4

8 & & ,   8 & & , -:  ( 0 " -

8 & & , -:  5 0 5 " - 4  

% ":

4 6 / %":

. 0 / %":

5 6 & 4%":

8 & % /&4%":

5 ) 6 34%":

' 3 * %":

4 "5 6 3 % " :

% "5 & % * 4 5" / $ & $ " - 0 3 * & 4 5 * . & $ 0 . . & / 5 4

8 & & ,   8 & & , -:  ( 0 " -

8 & & , -:  5 0 5 " - 4  

% ":

4 6 / %":

. 0 / %":

5 6 & 4%":

8 & % /&4%":

5 ) 6 34%":

' 3 * %":

4 "5 6 3 % " :

% "5 & % * 4 5" / $ & $ " - 0 3 * & 4 5 * . & $ 0 . . & / 5 4

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

8 & & ,   8 & & , -:  ( 0 " -

8 & & , -:  5 0 5 " - 4  

% ":

4 6 / %":

. 0 / %":

5 6 & 4%":

8 & % /&4%":

5 ) 6 34%":

' 3 * %":

4 "5 6 3 % " :

% "5 & % * 4 5" / $ & $ " - 0 3 * & 4 5 * . & $ 0 . . & / 5 4

8 & & ,   8 & & , -:  ( 0 " -

8 & & , -:  5 0 5 " - 4  

% ":

4 6 / %":

. 0 / %":

5 6 & 4%":

8 & % /&4%":

5 ) 6 34%":

' 3 * %":

4 "5 6 3 % " :

% "5 & % * 4 5" / $ & $ " - 0 3 * & 4 5 * . & $ 0 . . & / 5 4

8 & & ,   8 & & , -:  ( 0 " -

8 & & , -:  5 0 5 " - 4  

% ":

4 6 / %":

. 0 / %":

5 6 & 4%":

8 & % /&4%":

5 ) 6 34%":

' 3 * %":

4 "5 6 3 % " :

% "5 & % * 4 5" / $ & $ " - 0 3 * & 4 5 * . & $ 0 . . & / 5 4

PRECAUTIONS

IMPORTANT

ASSEMBLY

WE EKLY LOG SHEETS

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

MO NTHLY LO G S HE ET S

. 0 / 5 ) . 0 / 5 ) -:  ( 0 " -

. 0 / 5 ) -:  5 0 5" - 4  

8 & & ,   % * 4 5 " / $ & $ " - 0 3 *& 4 5 * . &

. 0 / 5 ) . 0 / 5 ) -:  ( 0 " -

. 0 / 5 ) -:  5 0 5" - 4  

8 & & ,   % * 4 5 " / $ & $ " - 0 3 *& 4 5 * . &

. 0 / 5 ) . 0 / 5 ) -:  ( 0 " -

. 0 / 5 ) -:  5 0 5" - 4  

8 & & ,   % * 4 5 " / $ & $ " - 0 3 *& 4 5 * . &

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

TR OUBLESHOOTING

Your Horizon Fitness elliptical is designed to be reliable. However, if you do experience problems with your elliptical, please reference the troubleshooting guide listed below.

PROBLEM: The console does not light up.

SOLUTION: Verify the following:

• The outlet the machine is plugged into is functional. Double check that the breaker has not tripped.

• The correct adapter is being used. Only use the adapter provided or authorized by Horizon Fitness.

• The adapter is not pinched or damaged and is properly plugged into the outlet AND the machine.

• The power switch is turned to the ON position (may not apply to all models).

• Turn off the machine and unplug power cord. Remove the console and check that all connections to the console are secure and not damaged or pinched.

NOTE: If your console uses batteries, they may need to be replaced.

PROBLEM: The console lights up but the Time/RPM’s do not count.

SOLUTION: Verify the following:

• Turn off machine and unplug power cord. Remove the console and check that all connections to the console are secure and not damaged or pinched.

• If doing the above does not fix the problem, the speed sensor and/or magnet may have become dislodged or damaged.

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

PROBLEM: The resistance levels seem to be incorrect, seeming too hard or too easy.

SOLUTION: Verify the following:

• The correct adapter is being used. Only use the adapter provided or authorized by Horizon Fitness.

• Reset the console and allow the resistance to reset to the default position. Restart and retry the resistance levels.

PROBLEM: The roller wheels appear to be leaving particles on the guide rails.

SOLUTION: This is considered normal wear of the elliptical wheels.

To remove, simply wipe off the roller wheels and guide rails with a damp cloth.

PROBLEM: The elliptical makes a squeaking or chirping noise.

SOLUTION: Verify the following:

• The elliptical is on a level surface.

• Loosen all bolts attached during the assembly process, grease the threads, and tighten again.

WARRANTY

LIMITED

HEART RAT E TROUBLESHO O T I N G

PROBLEM: There is no heart rate reading.

SOLUTION: Remove the console and verify that the heart rate cables are attached properly, making

sure that the cables are securely inserted into the console.

INTRODUCTION

YOU MAY ExPERIENCE AN ERRATIC READOUT UNDER THE FOLLOWING CONDITIONS:

• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the heart rate handlebars.

• Constant movement and vibration due to constantly holding the heart rate grips while exercising.

• When you are breathing heavily during a workout.

• When your hands are constricted by wearing a ring.

• When your hands are dry or cold. Try moistening your palms or rubbing them together to warm.

• Anyone with heavy arrhythmia.

• Anyone with arteriosclerosis or peripheral circulation disorder.

• Anyone whose skin on the measuring palms is especially thick.

NOTE: Outside interference sources such as computers, motors and fluorescent lights may cause the heart

rate reading to be erratic. Check your exercise environment for sources of interference such as high power lines, large motors, etc.

If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off.

CALL CUSTOMER TECH SUPPORT AT THE NUMBER ON THE BACK PANEL.

WHEN YOU ARE NEAR THE EQUIPMENT

IMPORTANT

PRECAUTIONS

ASSEMBLYASSEMBLY

BEFORE

YOU BEGIN

The following information may be asked of you when you call. Please have these items readily available:

• Model Name

• Serial Number

• Date of Purchase (receipt or credit card statement)

In order for Customer Tech Support to service your elliptical they may need to ask detailed questions about the symptoms that are occurring. Some troubleshooting questions that may be asked are:

• How long has this problem been occurring?

• Does this problem occur with every use? With every user?

• If you are hearing a noise, does it come from the front, back or inside? What kind of noise is it (thumping, grinding, squeaking, chirping etc.)?

• If you are having a resistance problem what is occurring? Is the resistance always too hard or too easy? Does the resistance respond when pushing the buttons on the console? Does the resistance constantly cycle through the levels during the workout?

• Has the machine been maintained per the maintenance schedule?

• Does the problem occur when using the handlebars? Without using the handlebars?

Answering these and other questions will give the technicians the ability to send proper replacement parts and the service necessary to get you and your Horizon Fitness elliptical running again!

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

COMMON PR O D U C T QUESTIONS

ARE THE SOUNDS MY ELLIPTICAL MAKES NORMAL?

Our ellipticals are some of the quietest available because they use belt drives and friction free magnetic resistance. We use the highest grade bearings and belts to minimize noise. However, because the resistance system itself is so quiet, you will occasionally hear other slight mechanical noises. Unlike older, louder technologies, there are no fans, friction belts, or alternator noises to mask these sounds on our ellipticals. These mechanical noises, which may or may not be intermittent, are normal and are caused by the transfer of significant amounts of energy to a rapidly spinning flywheel. All bearings, belts and other rotating parts will generate some noise which will transmit through the casing and frame. It is also normal for these sounds to change slightly during a workout and over time because of thermal expansion of the parts.

WHY IS THE ELLIPTICAL I HAD DELIVERED LOUDER THAN THE ONE AT THE STORE?

All fitness products seem quieter in a large store showroom because there is generally more background noise than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood overlay floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness product is placed close to a wall, there will be more reflected noise.

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

HOW LONG WILL THE DRIVE BELT LAST?

The computer modeling we have done indicated virtually thousands of maintenance free hours. Belts are now commonly used in far more demanding applications such as motorcycle drives.

CAN I MOVE THE TRAINER EASILY ONCE IT IS ASSEMBLED?

Your elliptical has a pair of transport wheels built into the front legs. It is easy to move your elliptical by rolling it on the front transport wheels. It is important that you place your elliptical in a comfortable and inviting room. Your elliptical is designed to use minimal floor space. Many people will place their ellipticals facing the TV or a picture window. If at all possible, avoid putting your elliptical in a unfinished basement. To make exercise a desirable daily activity for you, the elliptical should be in a comfortable setting.

CAN I PEDAL BACKWARDS ON MY ELLIPTICAL?

Your elliptical allows you to pedal both forward and backwards to exercise and strengthen a wider range of muscles.

WARRANTY

LIMITED

MA INTENANCE

WARNING

WHAT KIND OF ROUTINE MAINTENANCE IS REQUIRED?

We use sealed bearings throughout our ellipticals so lubrication is not needed. The most important maintenance step is to simply wipe your perspiration off the trainer after each use.

HOW DO I CLEAN MY ELLIPTICAL?

Clean with soap and water cleaners only. Never use solvents on plastic parts.

Cleanliness of your elliptical and its operating environment will keep maintenance problems and service calls to a minimum. For this reason, Horizon Fitness recommends that the following preventive maintenance schedule be followed.

AFTER EACH USE (DAILY)

Turn off the elliptical by unplugging the power cord from the wall outlet

• Wipe down the elliptical with a damp cloth. Never use solvents, as they can cause damage to the elliptical.

• Inspect the power cord. If the power cord is damaged, contact Horizon Fitness.

• Make sure the power cord is not underneath the elliptical or in any other area where it can become pinched or cut.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLYASSEMBLY

BEFORE

YOU BEGIN

To remove power from the elliptical, the power cord must be disconnected from the wall outlet.

WEEKLY

Clean underneath the elliptical, following these steps:

• Turn off the elliptical

• Move the elliptical to a remote location.

• Wipe or vacuum any dust particles or other objects that may have accumulated underneath the elliptical.

• Return the elliptical to its previous position.

EVERY MONTH

• Inspect all assembly bolts and pedals on the machine for proper tightness.

• Clean any debris off of the pedal arm wheels and guide rails.

ELLIPTICAL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

LI MITED HOME-USE WARRANTY

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

ELLIPTICAL

CONDITIONING

GUIDELINES

FRAME • LIFETIME

Horizon Fitness warrants the frame against defects in workmanship and materials for the lifetime of the original owner so long as the device remains in the possession of the original owner. (The frame is defined as the welded metal base of the unit and does not include any parts that can be removed.)

2.3E: BRAKE • LIFETIME Weight Capacity = 275 lbs

Horizon Fitness warrants the brake against defects in workmanship and materials for the lifetime of the original owner so long as the device remains in the possession of the original owner.

3.3E: BRAKE • LIFETIME Weight Capacity = 300 lbs

Horizon Fitness warrants the brake against defects in workmanship and materials for the lifetime of the original owner so long as the device remains in the possession of the original owner.

4.3E: BRAKE • LIFETIME Weight Capacity = 325 lbs

Horizon Fitness warrants the brake against defects in workmanship and materials for the lifetime of the original owner so long as the device remains in the possession of the original owner.

ExCLUSIONS AND LIMITATIONS

Who is covered:

• The original owner and is not transferable.

What IS covered:

• Repair or replacement of a defective motor, electronic component, or defective part and is the sole remedy of the warranty.

What IS NOT covered:

• Normal wear and tear, improper assembly or maintenance, or installation of parts or accessories not originally intended or compatible with the equipment as sold.

• Damage or failure due to accident, abuse, corrosion, discoloration of paint or plastic, neglect, theft, vandalism, fire, flood, wind, lightning, freezing, or other natural disasters of any kind, power reduction, fluctuation or failure from whatever cause, unusual atmospheric conditions, collision, introduction of foreign objects into the covered unit, or modifications that are unauthorized or not recommended by Horizon Fitness.

• Incidental or consequential damages. Horizon Fitness is not responsible or liable for indirect, special or consequential damages, economic loss, loss of property, or profits, loss of enjoyment or use, or other consequential damages of whatsoever nature in connection with the purchase, use, repair or maintenance of the product.

• Equipment used for commercial purposes or any use other than a single family or Household, unless endorsed by Horizon Fitness for coverage.

• Equipment owner or operated outside the US and Canada.

• Delivery, assembly, installation, setup for original or replacement units or labor or other costs associated with removal or replacement of the covered unit.

• Any attempt to repair this equipment creates a risk of injury. Horizon Fitness is not responsible or liable for any damage, loss or liability arising from any personal injury incurred during the course of, or as a result of any repair or attempted repair of your fitness equipment by other than an authorized service technician. All repairs attempted by you on your fitness equipment are undertaken AT YOUR OWN RISK and Horizon Fitness shall have no liability for any injury to the person or property arising from such repairs.

SERVICE/RETURNS

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

ELECTRONICS & PARTS • 2 YEARS

Horizon Fitness warrants the electronic components and all original parts for a period of 2 years from the date of original purchase, so long as the device remains in the possession of the original owner.

LABOR • 1 YEAR

Horizon Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of the original purchase, so long as the device remains in the possession of the original owner.

• In-home service is available within 150 miles of the nearest authorized repair center (Mileage beyond 150 miles from an authorized service center is the responsibility of the consumer).

• All returns must be pre-authorized by Horizon Fitness.

• Horizon Fitness’ obligation under this warranty is limited to replacing or repairing, at Horizon Fitness’ option, the same or comparable model at one of its authorized service centers.

• A Horizon Fitness authorized service center must receive all equipment for which a warranty claim is made. This equipment must be received with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.

• Replacement units, parts and electronic components reconditioned to As-new Condition by Horizon Fitness or its vendors may sometimes be supplied as warranty replacement and constitute fulfillment of warranty terms.

• This warranty gives you specific legal rights, and your rights may vary from state to state.

CU STOMER TECH SUPPORT

For fast and friendly service, please contact one of our

trained customer technicians via phone, email or our website.

Customer Tech Support Hotline: 1 -8 0 0- 2 44 - 4 1 9 2

Email: comments@horizonfitness.com

Website: www.horizonfitness.com

Every employee at Horizon Fitness takes pride in providing you with a high quality product.

We want to know if you have a problem and we want to have an opportunity to correct it for you.

NOTE: Please read the TROUBLESHOOTING section before contacting Customer Tech Support.

To receive additional product information, visit us at www.horizonfitness.com

1 6 2 0 L a n d m a r k D r i v e ,

C o t t a g e G r o v e W I , 5 3 5 2 7

T e l : 1 . 8 0 0 . 2 4 4 . 4 1 9 2

F a x : 6 0 8 . 8 4 2 . 1 6 6 0

Horizon Fitness 4.3E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
