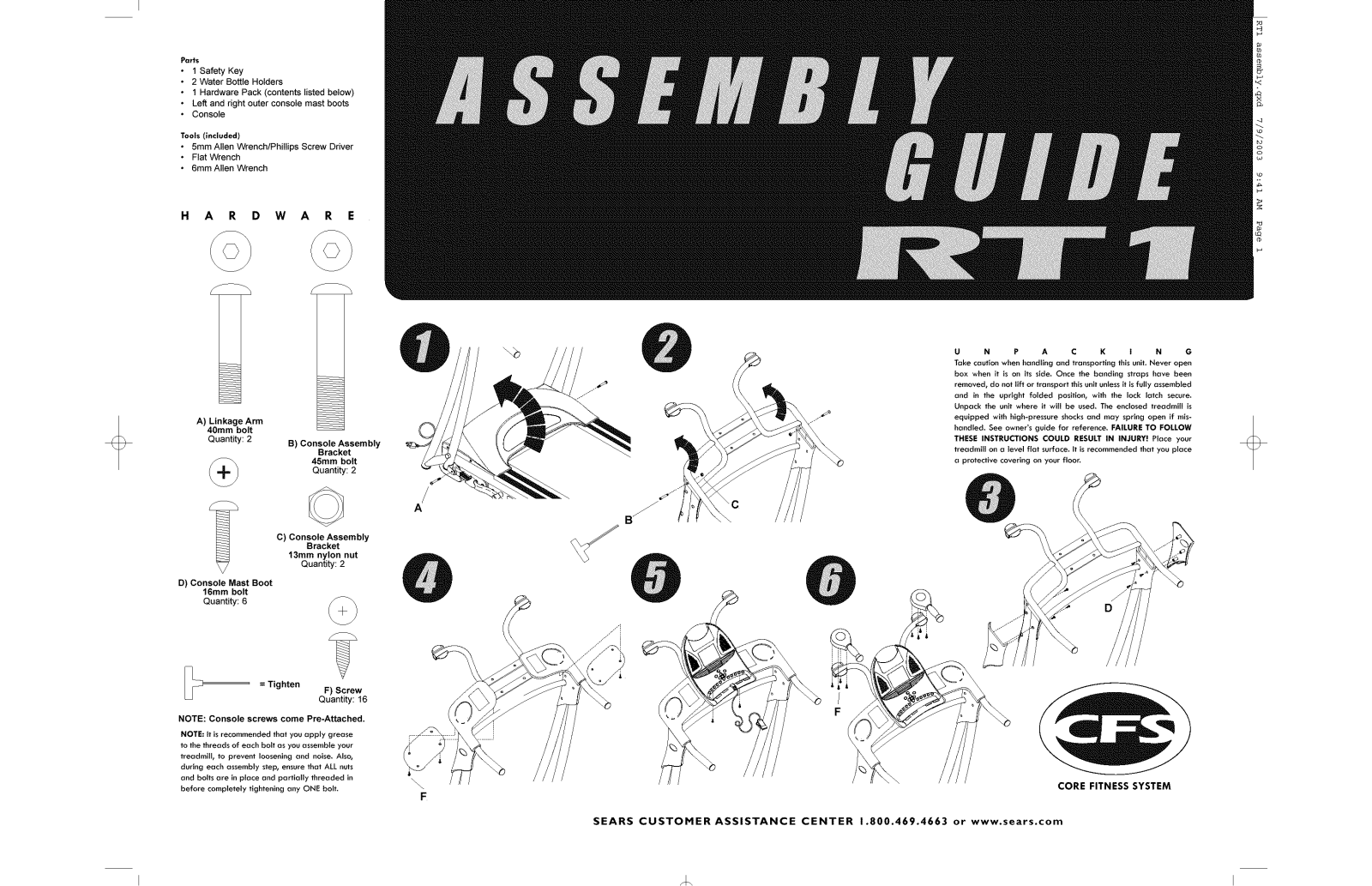

Horizon RT1 Installation Guide

Parts

• 1 Safety Key

• 2 Water Bottle Holders

• 1 Hardware Pack (contents listed below)

• Left and right outer console mast boots

• Console

Tools (included)

• 5rnm Alien Wrench/Phillips Screw Driver

• Flat Wrench

• 6mm Alien Wrench

HARDWARE

A) Linkage Arm

40mm bolt

Quantity: 2

B) Console Assembly

Bracket

45mm bolt

Quantity: 2

U N P A C K I N G

Take caution when handffng and transporting this unit. Never open

box when it is on its side. Once the bandh_g straps have been

removed, do not llft or transport this unit unlessit is fully assembled and in the upright folded posff[on, with the lock Jatch secure.

Unpack the unit where it wlll be used. The enclosed treodmlll is

equipped wffh high-pressure shocks and may spring open if mis- handled. See owner's guide for reference. FAILURE TO FOLLOW

THESE INSTRUCTIONS COULD RESULT IN INJURY_ Pk_ce your

treadln[ll on a level fiat surface. It is recommended that you place

a proted_ve covering on your floor.

C) Console Assembly

Bracket

13mm nylon nat

Quantity: 2

D) Console Mast Boot

16mm bolt

Quantity: 6

= Tighten

F) Screw

Quantity: 16

NOTE: Console screws come Pre-Attached.

NOTE: It is recommended that you apply grease

to the threads of each bolt as you assemble your treadm[ll_ to prevent loosening and noise. Abo, during each assembly step_ ensure that ALL nuts

and bolts are in place and partially threaded in before completely tightening any ONE bolt.

\\\

CORE FITNESS SYSTEM

SEARS CUSTOMER ASSISTANCE CENTER 1.800.469.4663 or www.sears.com
