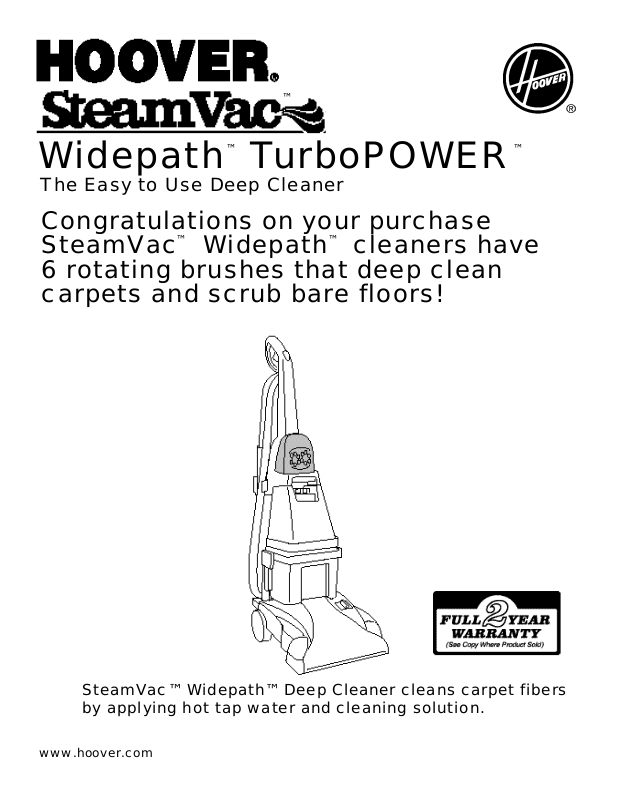

Hoover Widepath, TurboPOWER User Manual

Widepath TurboPOWER
The Easy to Use Deep Cleaner
Congratulations on your purchase SteamVac Widepath cleaners have
6 rotating brushes that deep clean carpets and scrub bare floors!
www.hoover.com
Fill in and Retain
Save these instru c t i o n s !
© 2002 The Hoover Company
w w w. h o o v e r. c o m
This HOOVER deep cleaner is designed for deep cleaning carpet, rugs, carpeted stairs and upholstery. The model and serial numbers are located on the data label on the back of the handle.
For your personal records, please enter the COMPLETE model and serial numbers in the spaces provided and retain this information.
Your deep cleaner is model
and has serial number
It is suggested that you attach your sales receipt to this owner s manual.
Verification of date of purchase may be required for warranty service of your Hoover product.
Index
Important safeguards . . . . . . . . . . 2
Assembly . . . . . . . . . . . . . . . . . . . 3-5
Carton contents. . . . . . . . . . . . . . 3
How to use. . . . . . . . . . . . . . . . . . 6-8
Agitator speed selector . . . . . . . 7
Automatic “shut-off”. . . . . . . . . . 7
Deep cleaner description . . . . . . 6
Emptying the recovery tank . . . . 8
Filling the clean solution tank . 7-8
How to clean
After cleaning . . . . . . . . . . . . . . . 9
Before you begin . . . . . . . . . . . . 9
Carpet cleaning . . . . . . . . . . . . . 10
Cleaning bare floors . . . . . . . . . 11
Picking up spills . . . . . . . . . . . . 10
Using the tools . . . . . . . . . . . . . 11
Attaching tools . . . . . . . . . . . . 11
Cleaning carpeted stairs. . . . . 12
Cleaning upholstery . . . . . . . 13
Maintenance
If you have a problem . . . . . . . . 14
Lubrication . . . . . . . . . . . . . . . . 14
Service . . . . . . . . . . . . . . . . . . . 14
Storage . . . . . . . . . . . . . . . . . . . 14
Warranty . . . . . . . . . . . . . . . . . . . . 14
Owner’s Manual
ENGLISH pp. 1-14 ESPAÑOL pág. 16-24 FRANÇAIS p. 26-34
Review this manual before operating deep cleaner
I m p o rtant Safeguard s !
When using an electrical appliance, always follow basic
precaution, including the following:
READ ALL INSTRUCTIONS BEFORE USING APPLIANCE.
To reduce the risk of fire, electric
WARNING:
• Use indoors only.
• Use only on surfaces moistened by the cleaning process or small spills. Do not immerse product.
• Connect to a properly grounded outlet only. See “Grounding Instructions”.
• Do not clean over floor electrical outlets.
• Do not use without tanks in place.
• Use extra care when cleaning on stairs. Do not place deep cleaner on stairs.
• Use deep cleaner only for its intended use as described in the instructions.
• Use only attachments recommended by The Hoover Company; others may cause hazards.
• The use of an extension cord is not recommended. If an extension cord is absolutely necessary, use at least a 16 gauge 3-wire cord which has a 3-prong grounding type plug and a 3-pole receptacle that accepts the machine plug.
• Unplug deep cleaner when not in use. Turn off all controls before unplugging.
• Unplug before connecting the powered hand tool.
• Always disconnect cord from electrical outlet before servicing the deep cleaner.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Never handle plug or appliance with wet hands.
• Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a Hoover Factory Service Center or Authorized Hoover Warranty Service Dealer.
• Close supervision is necessary when any appliance is used by or near children. Do not allow deep cleaner to be used as a toy or to run unattended at any time.
• Do not point tools toward people or pets.
• Use only commercially available floor cleaners intended for machine application. Do not use any type of wax with deep cleaner.
• To assist In reducing drying time, be certain the area is well ventilated when using detergents and other cleaners with this machine.
• Keep detergents and other cleaners out of children's reach.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not pick up chlorine bleach, drain cleaner, gasoline or any other toxic material with this appliance.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Avoid picking up hard, sharp objects with the deep cleaner. They may damage the machine.
• Keep hair, loose clothing, fingers, feet and all parts of body away from openings and moving parts.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.
• Store in a dry place. Do not expose machine to freezing temperatures.
shock, or injury:
2
Grounding Instructions
A
B
C
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resis­tance for electrical current to reduce the risk of electric shock. This appliance is equipped with a cord having an equip­ment-grounding conductor (C) and grounding plug (A). The plug must be plugged into an appropriate outlet (B) that is properly installed and grounded in accordance with all local codes and ordinances.
1. Assembly
DANGER-
Improper connection of the equipment­grounding conductor can result in the risk of electric shock. Check with a qual­ified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120 volt circuit and has a grounding plug that looks like the plug illustrated in sketch (A).
D
F
G
E
A temporary adapter (D) may be used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (B) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like (F) extending from the adapter must be connected to a perma­nent ground (G) such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.
Carton contents
1-1
C D
E
A
Unpack deep cleaner from the carton and identify the parts shown. Remove and dispose of the packing.
A. Deep cleaner B. Upper handle with powered hand tool C. Bolts (2) D. Nuts (3 - one extra included) E. Hose holder F. Carpet/Upholstery Detergent
B
F
G H
Contained in carton with hose: G. Hose H. Stair/upholstery nozzle I. Tool holder and screw (taped on rack under nozzle)
I
3
The assembled cleaner will look like this drawing.
Assemble handle
1-3
1-4
1-2
A1
A2
Attach upper handle
Remove clean solution tank (upper tank) from deep cleaner.
1-5
B
With hose hook (A1) and cord hook (A2) to back of deep cleaner, push upper handle down onto lower handle. Push b o l t s i n t o holes on front of handle. If bolts will not
go through hole easily handle is not pushed completely down.
1-6
Attach hose holder
Position hose holder (B) onto handle by matching tabs on rack with openings on back of handle. Make sure holes for bolts are aligned.
1-7
Place nuts in recessed areas on back of the hose holder. Hold each nut in
place while tightening each bolt securely (from the front of the handle) with a Phillips screw driver.
Only two nuts are needed on this model. The extra nut is not required but has been provided for your convenience.
1 - 8
C
When handle sections are completely together, squeeze trigger (C) on upper handle.
You will hear a “snap” when the trigger rod is in place.
1 - 9
D
Replace clean solution tank (upper tank) by positioning bottom first. Press on tank handle to snap top of tank into place.
4
Attach tool holder
Remove tool and taped screw from holder.
Insert projections on holder into slots on back of cleaner.
Slide rack down into place. Insert screw at (D) and tighten with a Phillips screw­driver.
1-10
A2
1 - 1 1
1 - 1 2
F
E
Press cord into cord clip on back of handle. Pull cord tight and wrap cord around hooks (A2).
1 - 1 3
Position stair/upholstery nozzle in holder at base of cleaner and snap it into place as shown at arrow.
Storing hose & tools
Store hose on holder by first positioning hose in front section of clip.
1 - 1 4
Powered hand tool
The powered hand tool is shipped in a plastic bag for protection. Remove the bag before using the tool by first open­ing tool door.
Continue wrapping hose under lower hook (E). Snap hose end fully into hold- er (F).
The hose end must be pushed com­pletely down into holder (F) to ensure maximum suction when cleaning floors.
1 - 1 5
To remove powered hand tool, pull it down and outward. To reposition the tool, reverse this proce­dure.
1 - 1 6
How to reattach tool
cover
The tool cover is designed with a break-
away feature which allows it to snap free
if it is pushed open too far.
To reattach, align hinges of cover with
holes on sides of tool storage area.
5
