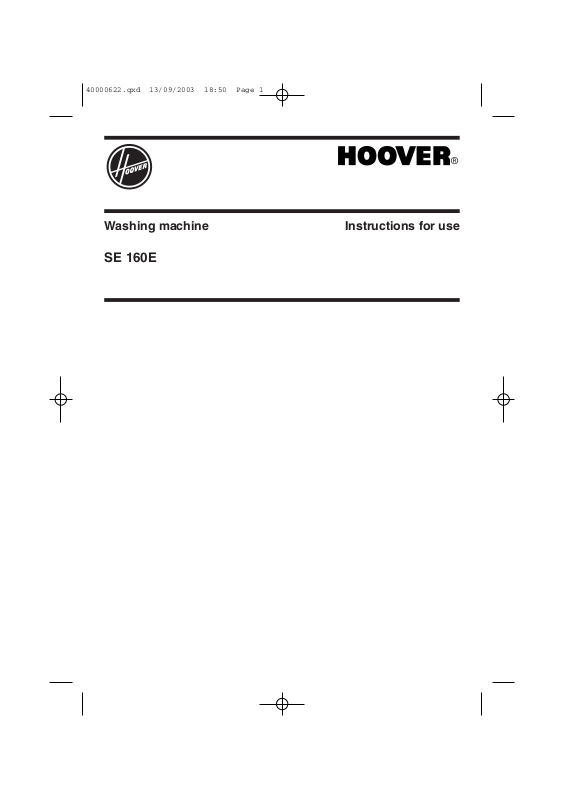

Hoover SE 160E User Manual

®

Washing machine Instructions for use

SE 160E

40000622.qxd 13/09/2003 18:50 Page 1

Contents Page

Introduction 3

General delivery notes 4

Safety notes 4

Quick start 5

Installation & testing 6

Useful advice for the user 11

Description of controls 12

Detergent drawer 14

Detergents, washing aids and amounts to use 15

Programme selector 17

The main wash 18

Consumption data 22

Programme Table 23

Cleaning and routine maintenance 25

Trouble shooting 27

Power failure 29

Technical data 30

Customer service 31

2

40000622.qxd 13/09/2003 18:50 Page 2

Introduction

Please read and follow these instructions carefully and operate the machine
accordingly.This booklet provides important guidelines for safe use, installation,
maintenance and some useful advice for best results when using your machine.
Keep all documentation in a safe place for future reference or for any future
owners.

3

Note: this machine is solely for domestic use, i.e. to
wash, rinse and spin dry household textiles and
garments.

Notes on disposal

All packaging materials used are environmentally-friendly and recyclable. Please
help dispose of the packaging via environmentally-friendly means.

Your retailer or local council will be able to give you
details of current means of disposal.

Appliances that have reached the end of their useful life are not worthless
rubbish! Valuable materials can be salvaged from an old appliance via scrap
reprocessing.

Note: to ensure safety when disposing of an old
washing machine disconnect the mains plug from the
socket, cut the mains power cable and destroy this
together with the plug. To prevent children shutting
themselves in the machine break the door hinges or
the door lock.

40000622.qxd 13/09/2003 18:50 Page 3

General delivery notes

Please check that the following items are delivered with the appliance:

– Instruction manual
– Guarantee card
– Blanking plug
– Inlet hoses & bracket
– Base panel & x2 push clips

Check that no damage has occurred to the machine during transit. If it has, call for
service by GIAS (tel: [phone]). Please see Customer Service.

4

Safety notes

Note: before carrying out any cleaning or maintenance
of the washing machine.

A) Disconnect the plug from the mains supply.
B) Turn off the water supply.
C) Hoover equips all its appliances with earthing. Ensure that the mains power

supply is earthed, if not, seek assistance from a qualified electrician.

D) Do not touch the appliance when hands or feet are wet or damp. Do not use

the appliance with bare feet.

E) The use of adapters, multiple connectors and/or extensions is not

recommended.

F) Caution: water temperature can reach 90°C during

the whites wash cycle and as a result the door
glass may get very hot.

G) Check there is no water visible in the drum before opening the door.
H) Do not allow children or unauthorised persons to use the appliance without

supervision.

I) Do not pull the power cable or the appliance itself to remove the plug from the

socket.

J) The appliance must not be exposed to weather conditions (rain, direct sun,

etc...)

40000622.qxd 13/09/2003 18:50 Page 4

K) When moving the appliance never lift it by the controls, the detergent drawer,

the hoses or the power cable.
To avoid damaging the door when moving the appliance never rest the door
against objects e.g a trolley.

L) IMPORTANT!

If the appliance is installed on a carpeted floor ensure that the ventilation

through the base of the appliance is not obstructed.
M) When lifting the machine always use two people to help avoid injuries.
N) If the appliance is not running properly or breaks down, switch it off, disconnect

the plug from the socket, turn off the water supply and do not tamper with the

appliance.

Consult GIAS Service (tel: [phone]) for possible repair. Failure to comply

with the above can compromise the safety of the appliance.
O) If the appliance’s power cable is damaged it must be replaced by a special cord

which is only available from GIAS Service.
P) After the machine has been installed, ensure that the mains plug and water

supply valves are easily accessible.
Q) Glass fibre curtains should never be put into this machine.
R) Lint or fluff must not be allowed to collect on the floor around the outside of this

machine.
S) Always ensure that the door locked indicator neon has switched itself off before

opening the door. By doing so the machine is allowed to cool down before the

laundry is handled.
T) Always ensure to fit the base panel to the machine.

5

Quick start

Washing

– Open the door by pressing the DOOR button
– Select the laundry and put it in the machine
– Close the door
– Put the detergent in the dispenser compartments.
– Select programme by turning the programme knob.
– Select any function buttons required and then press the START/PAUSE

button. The button functions are selected when the button neon is lit.

After washing
– Wait about two minutes for the door locking device

to disengage. The door locked neon will go out

– Switch off the washing machine by turning the

programme knob to the “OFF” position

– Open the door and remove the laundry

40000622.qxd 13/09/2003 18:50 Page 5

Remove the machine from the packaging - close to where it will finally
be positioned - and proceed as follows:

On the back of the machine

1) Remove the central screw A and

side screws B and pull out the transit

bracket C along with the red locator.

2) Tilt the machine forward and remove

the polystyrene spacers.

3 Cover the central hole using the cap

enclosed in the instructions bag.

4) Adjust the two feet at the front to

level the machine.

5) Tilt the machine forward and locate

the base panel by (1) removing the

paper backing from the adhesive tape,

(2) locate the base panel in the front of the

machine, (3) offer the base panel up to the

base of the washing machine and locate

the two push clips.

6

Installation & testing

40000622.qxd 13/09/2003 18:50 Page 6

Note: we recommend you keep the transit bracket and
screws to protect the machine for future transit.
The Manufacturers will not be responsible for any
damage to the machine caused by not following the
instructions relating to releasing the transit protection.
The user is responsible for all installation costs.

7

Connecting the fill hoses

This machine has inlet hoses with 19mm (3/4”) threaded ferrules fitted to the ends
to attach between the threaded connector on the appliance and the water supply.

Only use the new hoses supplied to connect the machine and ensure that
the sealing washers are in place inside the hose connectors.
Do not re-use old hoses which are attached to existing installations.
Do not over-tighten the connections. Hand tight is sufficient.
Do not trap or kink the hoses.

1. Connect the elbow end of hoses to

the back of the machine: red

connector (for hot water) to the red

threaded inlet, the white connector

(for the cold water) to the white

threaded inlet.

2. Connect the straight end of the

hoses to the stop taps.

If the inlet hose’s connection point is
changed, check that the 3/4” threaded
ferrule on the inlet hose is firmly attached
to the electrovalve connector.

WHITE

COLD

HOT

RED

40000622.qxd 13/09/2003 18:50 Page 7

Water supply requirements

Connect the machine to the drainage system used by household sinks.

8

THIS MACHINE MUST BE CONNECTED IN
ACCORDANCE WITH THE WATER SUPPLY
REGULATIONS. WATER BYELAWS PROHIBIT
CONNECTION TO A SURFACE WATER DRAIN.

No other appliance should be plumbed into the standpipe.

There are two possible arrangements which can be seen below :-

DRAIN HOSE

HOSE SUPPORT

CROOK

12-15cm

32mm

min

60-80cm

HOSE SUPPORT CROOK

ATTACH HOSE
SECURELY TO

WASTE OUTLET

DRAIN HOSE

FIX SECURELY
ABOVE OVERFLOW
OUTLET OF SINK

For the washing machine to function properly the outlet end of the drain
hose must be at a minimum of 60 cm and a maximum of 80 cm from the
ground.

If you have no hot water supply or your hot
water pressure is low:

A cold fill adapter , allowing the installation of the
machine with a cold water supply only can be
purchased from Gias Service
(Tel. No. 01204 556111).

Cold Water Supply

40000622.qxd 13/09/2003 18:51 Page 8

Testing the installation

Refer to the programme guide for details of how to select programmes.

1. Turn on the water supply and check for leaks from fill hoses.

2. Switch on the electricity supply.

3. Select a spin programme and then press the START/PAUSE button to start

the machine.

Allow the programme to continue for one minute and then cancel the

programme (please refer to “Description of Controls” section for cancelling the

programme). This will remove any water remaining in the machine from factory

testing.

4. To check for cold water filling to the machine:

Select a rinse programme and press the START/PAUSE button to start the

machine.

Allow the tumble action to continue until the water has pumped out.

Check that the drain outlet is not leaking or overflowing.

5. Switch off the machine at the end of the cycle by turning the programme knob

to the “OFF” position.

6. To check for hot water filling to the machine:

Select programme 1 and press the START/PAUSE button to start the

machine.

Allow the wash action to continue for one minute, then cancel the programme.

Alternatively, both inlets can be connected to the cold water supply by using a

suitable adaptor.

7. Select a spin programme and press the START/PAUSE button to switch the

machine on. If the machine takes longer than one minute to empty check the

drain hoses for kinks.

Installation testing is now complete.

9

40000622.qxd 13/09/2003 18:51 Page 9

To ensure the drum is thoroughly clean after testing and storage, select
programme 1 and run the machine for a complete cycle using only wash
detergent and water.

If the machine is not to be used immediately, switch off the mains power supply
and remove the plug from the power socket. We also recommend that the water
stop taps are turned off.

10

Note: it is advisable to isolate the washing machine
from the water and electricity supplies after each wash.

Electricity supply and safety advice

Washing machines are supplied to operate at a voltage of 240V, 50 Hz single­phase. Check that the conductor is powerful enough to supply at least 3.0 kW,
then connect the plug to a 13A earthed socket.

Electricity can be extremely dangerous. This washing machine must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

It is not advisable to use multiple adapters and/or extension leads.

The wires in the mains lead are coloured in accordance with the following codes:
Blue – NEUTRAL
Brown – LIVE
Green and Yellow – EARTH

If the mains cord on this appliance is damaged, it must be replaced by a special
cord which is only obtainable from the Hoover spares service, GIAS (01204

556111).
