Hoover LS User Manual

The Easy to Use Deep Cleaner
with automatic tool conversion
®
SteamVac™ Deep Cleaner cleans carpet fibers by applying hot
tap water and cleaning solution.
www.hoover.com
Congratulations on your purchase!
SteamVac™ LS cleaners have 5 brushes that deep clean carpets and scrub bare floors!
2
Fill in and Retain
This HOOVER deep cleaner is designed for deep cleaning carpet, rugs, carpeted stairs and upholstery. The model and serial numbers are located on the data label on the back of the handle.
For your personal records, please enter the COMPLETE model and serial numbers in the spaces provided and retain this information.
Your deep cleaner is model
and has serial number
It is suggested that you attach your sales receipt to this owner s manual.
Verification of date of purchase may be required for warranty service of your Hoover product.
Index
Important safeguards . . . . . . . . . . 2
Unpacking deep cleaner. . . . . . . . . 3
Assembling deep cleaner . . . . . . 4-5
Deep cleaner description . . . . . . . . 6
General operation . . . . . . . . . . . . 6-9
Filling the clean solution tank . 7-8 Emptying the recovery tank . . 8-9
Agitator speed selector . . . . . . . 7
Brush Indicator . . . . . . . . . . . . . . 7
How to use
Before you begin . . . . . . . . . . . . 9
After cleaning . . . . . . . . . . . . 9-10
Cleaning carpet . . . . . . . . . . . . 10
Picking up spills . . . . . . . . . . . . 10
Cleaning bare floors . . . . . . 10-11
Using the tools . . . . . . . . . . . . . 11
Cleaning carpeted stairs . . 11-12
Cleaning upholstery . . . . . . . 13
If you have a problem . . . . . . . . . 14
Lubrication . . . . . . . . . . . . . . . . . . 14
Service . . . . . . . . . . . . . . . . . . . . . 14
Storage . . . . . . . . . . . . . . . . . . . . . 14
Warranty . . . . . . . . . . . . . . . . . . . . 14
Important Safeguards!
When using an electrical appliance, always follow basic
precaution, including the following:
WARNING:
To reduce the risk of fire, electric shock, or injury:
• Use indoors only.
• Use only on surfaces moistened by the cleaning process or small spills. Do not immerse product.
• Connect to a properly grounded outlet only. See “Grounding Instructions”.
• Do not clean over floor electrical outlets.
• Do not use without tanks in place.
• Use extra care when cleaning on stairs. Do not place deep cleaner on stairs.
• Use deep cleaner only for its intended use as described in the instructions.
• Use only attachments recommended by The Hoover Company; others may cause hazards.
• The use of an extension cord Is not recommended. If an extension cord is absolutely necessary, use at least a 16 gauge 3-wire cord which has a 3-prong grounding type plug and a 3-pole receptacle that accepts the machine plug.
• Unplug deep cleaner when not in use. Turn off all controls before unplugging.
• Unplug before connecting the powered hand tool.
• Always disconnect cord from electrical outlet before servicing the deep cleaner.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Never handle plug or appliance with wet hands.
• Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not use with damaged cord or plug. If appliance Is not working as it should, has been dropped, damaged, left outdoors, or dropped Into water, take it to a Hoover Factory Service Center or Authorized Hoover Warranty Service Dealer.
• Close supervision is necessary when any appliance is used by or near children. Do not allow deep cleaner to be used as a toy or to run unattended at any time.
• Do not point tools toward people or pets.
• Use only commercially available floor cleaners Intended for machine application. Do not use any type of wax with deep cleaner.
• To assist In reducing drying time, be certain the area Is well ventilated when using detergents and other cleaners with this machine.
• Keep detergents and other cleaners out of children's reach.
• Do not use to pick up flammable or combustible liquids such as gasoline or use In areas where they may be present.
• Do not pick up chlorine bleach, drain cleaner, gasoline or any other toxic material with this appliance.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Avoid picking up hard, sharp objects with the deep cleaner. They may damage the machine.
• Keep hair, loose clothing, fingers, feet and all parts of body away from openIngs and moving parts.
• Do not put any object Into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.
• Store in a dry place. Do not expose machine to freezing temperatures.
Save these instructions!
© 1993,1999,2001 The Hoover Company
www.hoover .com
READ ALL INSTRUCTIONS BEFORE USING APPLIANCE.
Review this manual before operating deep cleaner
Owner’s Manual
ENGLISH pp. 1-14 ESPAÑOL pág. 15-23 FRANÇAIS p. 24-32
3
Grounding Instructions
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resis­tance for electrical current to reduce the risk of electric shock. This appliance is equipped with a cord having an equip­ment-grounding conductor (C) and grounding plug (A). The plug must be plugged into an appropriate outlet (B) that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER-
Improper connection of the equipment­grounding conductor can result in the risk of electric shock. Check with a qual­ified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120 volt circuit and has a grounding plug that looks like the plug illustrated in sketch (A).
A temporary adapter (D) may be used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (B) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like (F) extending from the adapter must be connected to a perma­nent ground (G) such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.
A
B
C
D
F
G
E
1. Assembly
Unpack deep cleaner from the carton and identify the parts shown. Remove and dispose of the packing.
A
B
C
D
E
F
G
H
K
L
I
M
J
1-1
A. Deep cleaner B. Upper handle with powered hand tool and
scrub module C. Bolts (2) D. Nuts (3 - one extra included) E. Carpet/Upholstery Detergent F. Bare Floor Cleaner (some models) G. PreCleaner (some models) H. Bare floor attachment
I. Hose holder J. Nozzle clean-out tool (some models)
Contained in carton with hose: K. Hose L. Stair/upholstery nozzle M. Hose rack and screw (taped on rack under nozzle)
Carton contents
Carpet
Upholstery
Cleaner
Bare
Pre-
floor
Cleaner
cleaner
Attach hose holder
Position hose holder (B) onto handle by matching tabs on rack with openings on back of handle. Make sure holes for bolts are aligned.
4
The assembled cleaner will look like this drawing.
1-2
Attach upper handle
Remove clean solution tank (upper tank) from deep cleaner.
With cord hook (A) to back of deep cleaner, push upper handle down onto lower han­dle. Push bolts into holes on front of han-
dle. If bolts will not go through hole easi­ly handle is not pushed completely down.
1-3
1-6
1-7
1-8
1-4
1-5
1-9

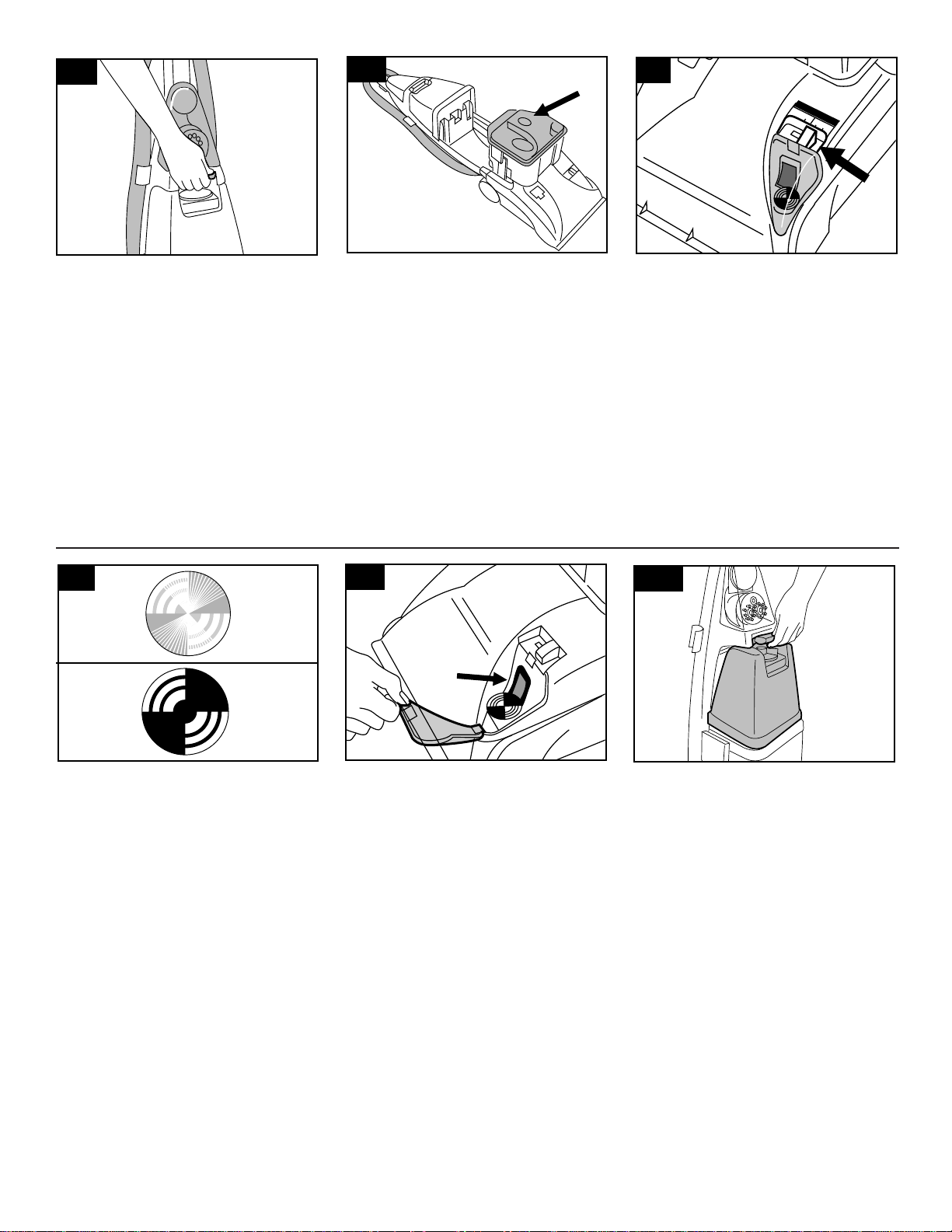

When handle sections are completely together, squeeze trigger (C) on upper handle to snap trigger rod In place.
A
C
B
Replace clean solution tank (upper tank) by positioning bottom first. Press on tank handle to snap top of tank into place.
Press cord into cord clip on back of handle. Pull cord tight.
Place nuts in recessed areas on back of hose holder. Hold each nut in place while tightening each bolt securely (from the front of the handle) with a Phillips screwdriver. Only two nuts are needed on this model. The extra nut is not required but has been provided for your conve­nience.
Attach tool holder
Remove tool and taped screw from holder.
Insert projections on rack into slots on back of cleaner.
Assemble handle
5
1-10
1-11
1-12
1-13
1-14
1-15
1-17
Slide rack down into place. Insert screw at (D) and tighten with a Phillips screw­driver.
D
F
E
Storing hose & tools
Store hose on holder by first positioning hose in front section of holder.
Continue wrapping hose under lower hook (E). Snap hose end fully into hold­er (F).
Ensure that the hose end is pushed down completely into holder (F).
Position tool in holder at base of cleaner and snap it into place as shown at arrow.
Slide bare floor attachment into holder as shown.
Powered hand tool
The powered hand tool is shipped in a plastic bag for protection. Remove the bag before using the tool by first open­ing tool door.
To remove powered hand tool (G), pull it down and outward. To reposition the tool, reverse this pro­cedure.
To remove the scrub module (H), grasp it at the sides and pull it forward.
To reposition module, fit tabs in the stor­age area into holes on back of module. Push module to snap it securely into position.
This is the proper storage location for the module.
How to reattach tool cover
The tool cover is designed with a break­away feature which allows it to snap free if it is pushed open too far.
To reattach, align hinges of cover with holes on sides of tool storage area.
G
H
1-16
6
1. Hand grip
2. Solution trigger: press to
release clean solution.
3. Cord clip: place cord in clip
to keep it out of the way when using cleaner
4. Hose
5. Hose holder: wrap hose
around holder and hooks (6) for storage.
6. Hose hooks
7. Cord hooks: wrap cord
around hooks for storage. The top hook can be rotated right or left for quick and easy cord release.
8. Scrub module
9. Powered hand tool
10. Carrying handle
11. Clean solution tank handle
12. Clean solution tank cap/ measuring cup
13. Clean solution tank: holds
cleaning solution.
14. Recovery tank handle:
raise handle to unlock tank for removal; lower handle for ward to lock tank into posi­tion.

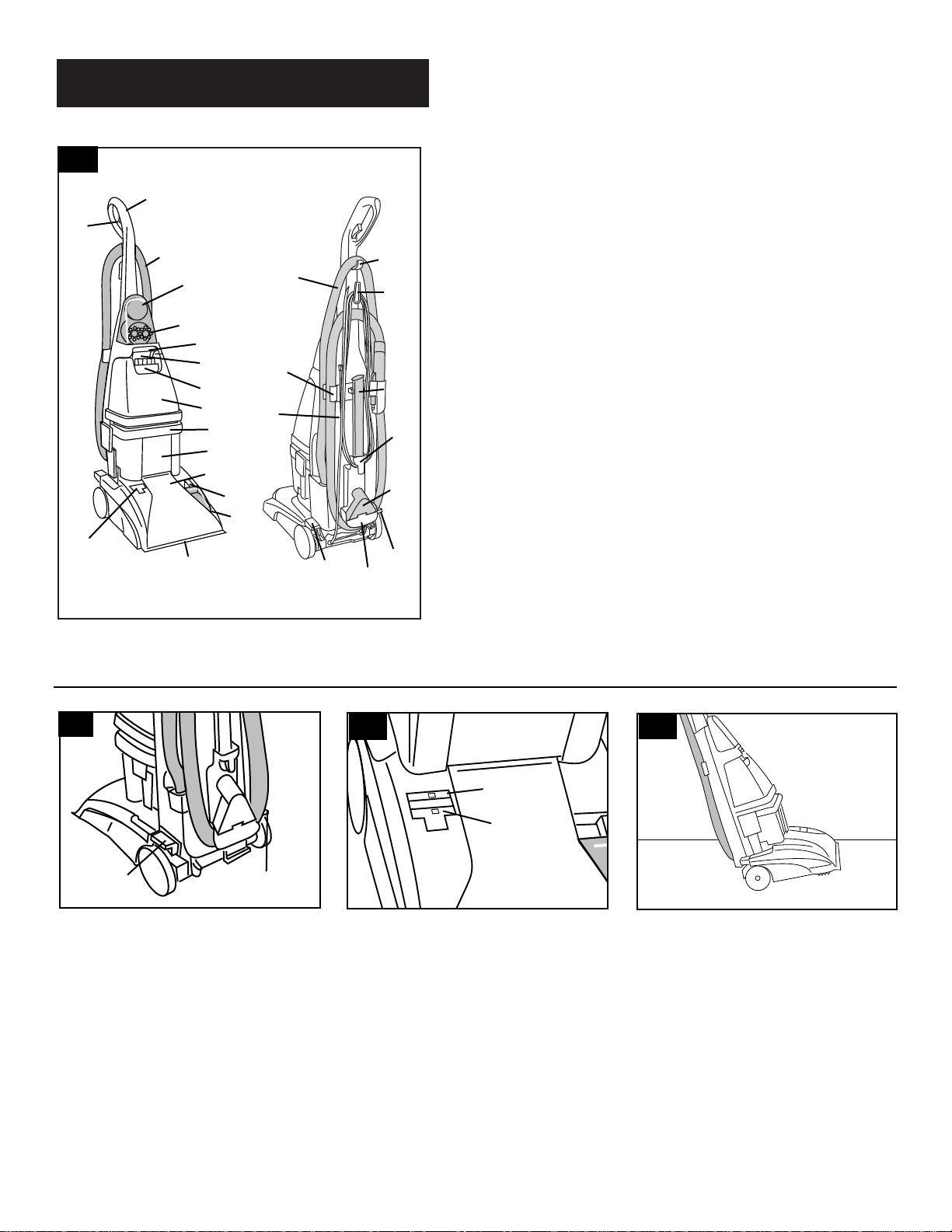

2. How to use
The assembled deep cleaner will look like the drawing.
2-1
2-2
15. Recovery tank: holds dirty
solution.
16. Hood
17. Brush speed selector:
slide selector to set brush speed on HI, LO, or OFF.
18. Brush Indicator: spins
when brushes are rotating.
19. Nozzle.
20. Cleaning mode indicator:
choose either floor or tools
21. ON/OFF pedal
22. Handle release pedal: step
on pedal to lower handle to operating (floor) position;
23. Stair/upholstery nozzle
24. Bare floor attachment This deep cleaner is intended
for household use.
ON/OFF pedal & Handle release pedal
Cleaning Mode
Floor
Tool
Step on pedal (A) to turn deep cleaner on. Step on pedal again to turn deep cleaner off.
Step on pedal (B) to lower handle to operating position. Handle does not lock into a single position but “floats” to allow convenient operation.
A
B
C
D
Cleaning mode indi­cator
Indicator will show a green window next to FLOOR (C) when handle is in the operating position for cleaning carpet rugs and bare floors.
Indicator will show a green window next to TOOL (D) when handle is in the upright position for tool use on stairs upholstery etc.
Deep cleaner automatically diverts
suction from FLOOR to TOOL when
handle is raised from the operating to the upright position.
2-3
2-4
To transport
To move your deep cleaner from room to room put handle in upright and locked position tilt deep cleaner back on wheels and push forward.
1
2
3
4
6
6
5
7
4
7
8
9
10
11
12
13
14
15
17
16
18
19
20
21
22
23
24
Deep cleaner description
Operate deep cleaner only at voltage specified on data plate on back of cleaner. Plug deep cleaner Into a properly grounded outlet.
7
Brush Speed
OFF
HI
LO
2-5
2-6
2-7
2-8
2-9
2-10
The deep cleaner may also be lifted by placing a hand under the upper clean solution tank handle as shown.
Automatic “shut off”
When the recovery tank (lower tank) is full the automatic shutoff mechanism will shut off the deep cleaner suction (suction will
be noticeably reduced).
At that time the red float disk will rise to the top of the recovery tank lid (E). The deep cleaner will no longer pick up dirty solution and the motor sound will
become noticeably higher in pitch. When this happens turn deep cleaner
off and empty recovery tank before
continuing use. Check clean solution tank also; it may
need to be refilled.
E
F
G
Brush speed selector
Your ‘SteamVac’ deep cleaner has three agitator brush settings.
Hl - for normal cleaning of carpet and bare floors
LO - for gentle cleaning of carpets and bare floors
OFF - for cleaning carpets and bare floors when brushing is not desired. (Such as when picking up liquid spills. See page 10.)
Slide selector button to the desired set­ting before cleaning.
Brush indicator
The brush indicator will spin (F) when the deep cleaner is turned ON and the brushes are rotating.
If the indicator does not spin and the pattern is visible (G)
when the deep
cleaner is turned ON,
the brushes are
not rotating.
There are three reasons why the brushes may not be rotating:
1. Brush speed selector set on OFF (see previous section).
2. Handle in upright position (see “CIeaning mode indicator,” Fig. 2-3).
3. Brush indicator screen dirty.
H
To clean screen (H), turn deep cleaner off and disconnect from electrical outlet.
Remove clear cover and wipe off screen with a damp cloth. Snap cover back into position.

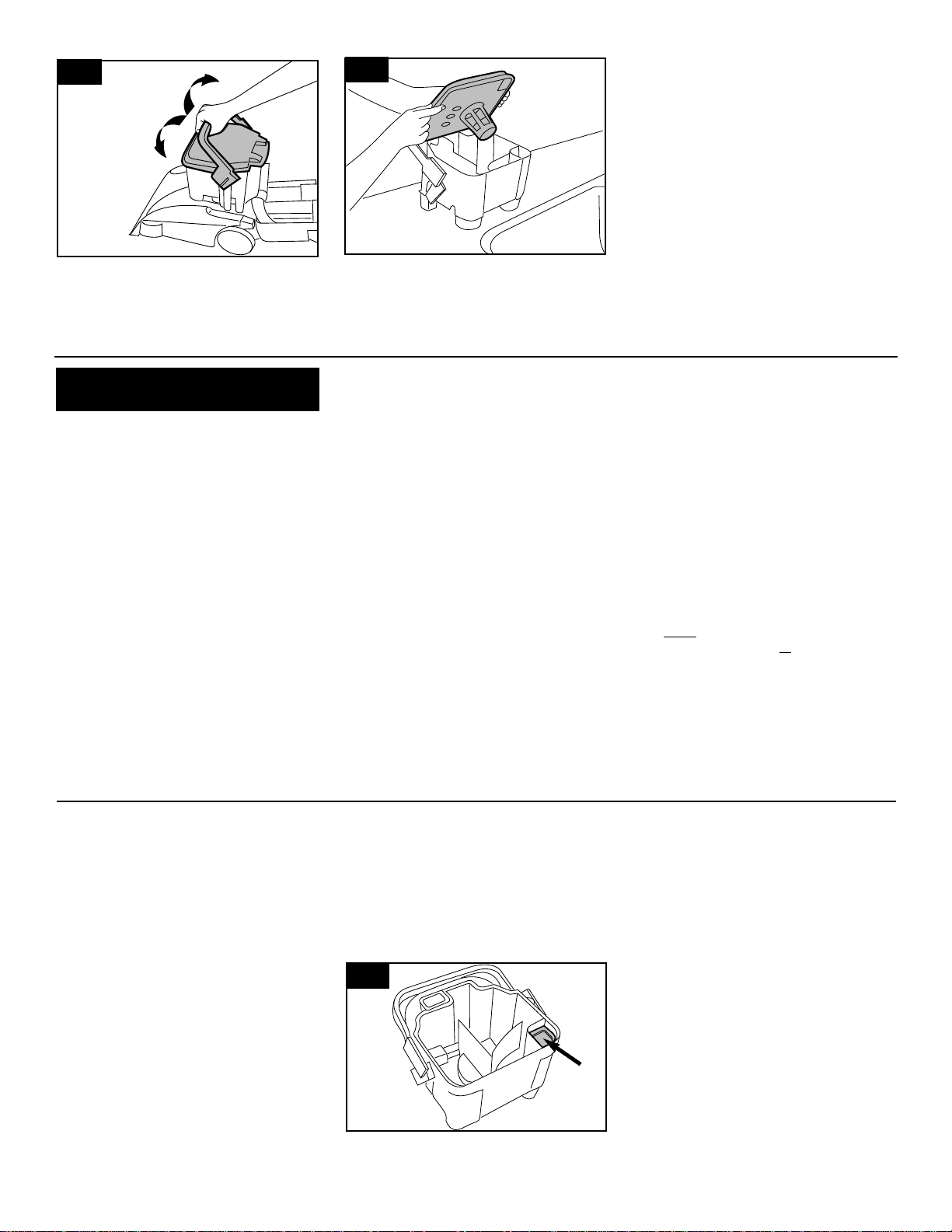

The tanks
Clean solution tank
(upper tank)
The clean solution tank holds the clean­ing solution that is to be dispersed onto the surface to be cleaned.
How to fill
Disconnect deep cleaner from electrical outlet.
Place deep cleaner handle in the upright, locked position.
To remove tank, press down on handle and pull forward.
Carry tank to a sink.
Continued
8
2-11
2-12
Rotate tank cap counterclockwise and lift up to remove cap.
Turn cap (A) upside down to serve as a measuring cup.
5 OUNCES/ 150 ml
A
D
C
2-13
2-14
2-15
2-16
Using cap, measure detergent following the chart below.
For carpet, carpeted stairs and uphol­stery:
Fill cap to fill line (5 ounces) with HOOVER Carpet/Upholstery Detergent.
For bare floors: Fill cap to fill line (5 ounces) with HOOVER
Bare Floor Cleaner *
Do not use Bare Floor Cleaner on carpet or upholstery. Do not use any type of wax
with your ‘SteamVac’deep cleaner. NOTE: Use only HOOVER detergents.
They are specially formulated for use with your ‘SteamVac’ deep cleaner.
*Available at additional cost if not included with your model.
CAUTION: Detergents contain Anionic and Nonionic Surfactants. Avoid contact with eyes and skin. In case of contact with eyes, flush with cold water for 15 minutes. In case of contact with skin, wash with water. If Irritation persists, call a physician. For Medical Information (U.S.) call 1-800-752-7869.
Pour detergent into tank. Fill tank to fill line (B) (1 gallon) with hot tap water.
To assure proper performance, use only HOOVER cleaning detergent.
B
If rubber ring (C) on cap has become dislodged, reposition it with uneven side against ledge (D) as shown.
Replace cap. Rotate cap clockwise
until it locks In place. Cap must be locked In place for proper perfor­mance and to prevent leaking.
Position bottom of tank into unit and press on tank handle to snap tank into place.
Recovery tank
(lower tank)
The recovery tank holds the dirty solu­tion that is picked up from the carpet.
When the recovery tank is full, the auto­matic shut-off will engage (see Fig. 2-6) and the tank must be emptied.
How to empty
Turn deep cleaner off and disconnect from electrical outlet.
To prevent possible leaking, remove clean solution tank (Fig. 2-10) by press­ing down on tank handle and pulling for­ward; set tank aside (do not set tank
on furniture).
Step on handle release pedal (Fig. 2-2) and lower handle until it rests on the floor.
For heavy traffic areas: Pre-treat with HOOVER PreCleaner Spray*. If you do not have access to the PreCleaner Spray, double the amount of
HOOVER Detergent (use 2 capfuls or 10 ounces per 1 gallon tank).
9
2-18
Raise handle to carrying position (straight up) to unlock tank from base of deep cleaner. Lift tank from deep clean­er and carry it to a sink or drain.
To remove tank lid, lower handle com­pletely toward back of tank and lift off lid.
Empty the tank and reposition the lid.
3-1
For full suction, it is important that the recovery tank lid is properly secured before cleaning.
Raise tank handle to carrying position to place it into base of cleaner. Move han­dle completely forward to lock tank into place (see Fig. 2-17).
Raise handle of deep cleaner to upright position and reposition upper clean solution tank.
3. How to clean
Before you begin cleaning
a. Vacuum thoroughly - For carpet, use a vacuum cleaner with an agitator for best results. Vacuum upholstery with a vacuum cleaner with cleaning tool attachments. Use a crevice tool to reach into tufts and folds. Do not use the
‘SteamVac’deep cleaner as a dry vac­uum cleaner.
b. For upholstery, check cleaning code
- Use your HOOVER ‘SteamVac’ deep
cleaner only if the upholstery fabric is marked with a “W” (for “wet” clean) or “S/W” (for “solvent/dry” or “wet” clean).
Do not clean fabric marked “S” (“sol­vent/dry” clean only). If your upholstery
does not have a code, seek professional assistance.
c. T est for colorfastness - Mix detergent and water according to the instructions under “Fill clean solution tank”, Figs. 2-8 to 2-16.
Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with white paper towel or cloth. If surface has more than one color, check all colors.
d. When cleaning entire floor, move furniture out of area to be cleaned
(may not be necessary if only high traffic areas are to be cleaned). For furniture too heavy to move, place aluminum foil or wax paper under legs. This will pre­vent wood finishes from staining carpet. Pin up furniture skirts and draperies.
e. Pretreat spots and heavy traffic areas with HOOVER
® PreCleaner*-
Test PreCleaner for colorfastness by first spraying it on a hidden area; wait ten minutes and blot with white paper towels or cloth. If no color change is visible, spray PreCleaner onto spots and traffic areas. Wait at least ten minutes. Use your ‘SteamVac’ deep cleaner to pick up PreCleaner and spot. Repeat until spot is removed; carefully scrub with a household scrub brush if nec­essary.
Do not saturate carpet or upholstery with PreCleaner.
If you do not have access to the PreCleaner Spray, double the amount of HOOVER Detergent (use 2 capfuls or 10 oz. per 1 gallon) in the clean solution tank.
No cleaning solution removes all stains from all carpets. Stain removal varies with the type of spill, time elapsed before removal, carpet material, and carpet type.
f. T o prevent staining, use plastic or alu­minum foil to protect wood or metal sur­faces from possible water spray.
g. T o avoid wetting and possible damage to wood floors underneath area rugs/car­pet, either
move area rugs/ carpet to a non-
wood bare floor surface or
place waterproof material (e.g. plastic) underneath them before cleaning.
See pages 10-13 for instructions on various cleaning tasks.
*Available at additional cost if not included with your model.
After cleaning
a. Allow carpet or upholstery to dry. To help prevent matting and resoiling the carpet, keep children and pets away from surface until it is completely dry. If it is necessary to walk on damp car­pet, place towels or white cloths on the traffic areas.
If furniture must be replaced before the carpet is dry, use plastic or aluminum foil pads under legs of furniture so metal slides or wood finishes will not stain the carpet.
b. If desired, the carpet may be rinsed. Rinsing is not necessary for cleaning,
but it may Improve the surface’s appear­ance after it is dry.
If rinsing is desired, be careful not to over-wet the carpet or upholstery.
Allow time for carpet or upholstery to dry completely between cleaning and rinsing. To rinse, follow the same proce-
dure for cleaning only using hot tap water with no detergent in the upper clean solution tank.
c. Empty tanks, rinse with clear water and let air dry. Rinse the solution tank cap and recovery tank lid and let air dry.
e. If desired, vacuum thoroughly after carpet has completely dried. This will help reduce any shading left by the deep cleaner’s brushes.
To clean nozzle
If lint or other debris becomes lodged in
nozzle, do not attempt to remove nozzle cover.
Pour one to two cups of clear water on a non-carpeted floor. Do not pour water
onto a wood floor.
Pick up water with your ‘SteamVac’ deep cleaner. Repeat as necessary until debris is flushed out of nozzle.
Continued
2-17
UNLOCK
LOCK
d. Remove lint from filter screen located
inside recovery tank.
10
Some models have a nozzle clean-out tool for removing debris or if a non-car-
peted floor is not available. To use the tool: Disconnect deep cleaner from electrical outlet. Slide tool into nozzle and remove debris as shown.
To clean the outside of the machine, wipe off dirt with a cloth dampened in warm water and mild detergent. Do not
use solvent or petroleum based prod­ucts to clean the machine.
Carpet Cleaning
Picking up spills
Cleaning bare floors
Read “Before you begin cleaning” instructions on page 9.
1. Fill clean solution tank (upper tank) with HOOVER Carpet/Upholstery Detergent according to instructions for Figs. 2-10 to 2-16
3-3
3-4
3-5
2. Move speed selector to LO for gen­tle cleaning or Hl for normal cleaning.
3. Dry hands and plug cord into a prop­erly grounded outlet.
Do not clean over floor electrical out­lets.
4. To avoid walking on damp carpet, start at the end of the room farthest from the door or path to sink where tanks will be emptied and filled .
Step on handle release pedal and lower handle to operating position; turn deep cleaner ON.
5. Squeeze trigger to release cleaning solution and slowly push deep cleaner forward (equals one wet stroke).
6. Continue to squeeze trigger and slowly pull deep cleaner back toward you (second wet stroke). Release trigger and slowly push deep cleaner forward over area just sprayed with solution (dry stroke). Then slowly pull deep cleaner back toward you without squeezing trig­ger (dry stroke).
7. Overlap strokes by 1 inch to help pre­vent streaking. Keep nozzle flat on floor for both for­ward and reverse strokes.
For heavily soiled areas, repeat steps 5-
7.
8. To avoid saturating carpet, do not use more than 4 wet strokes over one area. Always end with dry strokes.
It is best to alternate wet and dry strokes as described above.
For best cleaning results and to aid in faster drying of carpet, end with more dry strokes. (Continue using dry strokes until little water is visible passing through the recovery tank lid.) Empty recovery tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic shut-off”, Fig 2-6)
When finished cleaning, follow “After cleaning” instructions on pages 9-10.
Your HOOVER SteamVac deep cleaner may also be used to pick up small liq-
uid spills (1 gallon or less, never to exceed 1/4 inch in depth) on carpet,
upholstery, or bare floors.
For best results, pick up spills immedi­ately by placing the stair/upholstery noz­zle just above the spill and suction up any residue on top of the carpet. If the spill remains, place either the stair/ upholstery nozzle or floor nozzle
with
brushes turned OFF in
front of the spill, pull the nozzle very slowly over the spill initially with suction only. Repeat with spray and suction.
When picking up spills on bare floors, use only the floor nozzle with the bare floor attachment in place and speed selector in the OFF position (this will help
prevent spreading the spill). If a spot is left, the stair/upholstery nozzle is
generally more effective for removing it. Although no cleaning solution can com­pletely remove all spots, they can be treat­ed by following the instructions provided by the manufacturer of the carpet, uphol­stery, or bare floor surface being cleaned.
Do not use the SteamVac deep cleaner to pick up flammable or combustible liq­uids or chemicals.
When finished, follow “After cleaning” instructions on pages 9-10.
R
O
T
A
T
E
O
N
B
A
R
E
F
L
O
O
R
R
O
T
A
T
E
O
N
B
A
R
E
F
L
O
O
R
How to attach bare floor attachment
Disconnect deep cleaner from electri­cal outlet.
To prevent possible leaking, remove clean solution tank (Fig. 2-10) and recovery tank ( Fig 2-17) before posi­tioning bare floor attachment. Set tanks aside (do not set tank on furni­ture).
1. With handle in upright position, tilt cleaner back so that handle rests on the floor.
2. With foam strip (A) (located under the netting) in position as shown, place attachment on front of nozzle (B). Make sure arrow on end of attachment points in the direction as shown.
A
B
3-2
3. Push attachment against nozzle while rotating attachment downward until both ends snap into place.
(Note: Some force may be required to rotate and snap attachment into place.)
R
O
T
A
B
A
T
R
E
E
F
L
O
O
O
N
R
11
Using the tools
4. Return deep cleaner to upright posi­tion. Lower handle and replace recovery tank.
5. Raise handle to upright position and reposition clean solution tank.
To clean floor
Read Before you begin cleaning instructions on page 9.
Do not use the SteamVac deep clean­er on hardwood floors.
1. Fill clean solution tank with HOOVER Bare Floor Cleaner (available at additional cost if not included with your model) according to instructions for Figs. 2-10 to 2-16.
Do not use any type of wax with your SteamVac deep cleaner.
2. Move speed selector to the Lo or Hl position for scrubbing or OFF if scrubbing is not desired.
3. Dry hands and plug deep cleaner into a properly grounded outlet.
4. Step on handle release pedal and lower handle to operating position; turn deep cleaner ON.
5. To release solution, press trigger. Slowly move deep cleaner forward and backward over area to be cleaned.
6.To pick up dirty solution, release trig­ger and slowly move deep cleaner over area where solution has just been dis­persed. Use both forward and reverse strokes.
7. Empty recovery tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic shut-off”, Fig 2-6)
8. When finished cleaning, follow “After cleaning” instructions on pages 9-10.
Disconnect deep cleaner from electri­cal outlet and remove attachment from nozzle. Rinse it in clear water. Do not remove plastic screen or foam from attachment.
A. Powered hand tool has rotating
brushes for extra scrubbing action on small carpet areas, carpeted stairs and upholstery. Brushes can be removed for converting to the scrub module.
B. Stair/upholstery nozzle has a built­in brush to help provide the scrubbing action some spots may need for removal.
C. Scrub module with detachable scrub pad attaches to the base of the
powered hand tool (in place of brush module). Can be used to scrub stub­born areas such as scuff marks, dried spills, and in hard to reach areas on hard surfaces.
D
E
How to attach tools
Disconnect deep cleaner from electri­cal outlet.
1. Place handle in upright position and remove hose from rack.
All tools attach to the hose in the same manner:
2. Connect tool to hose by sliding it onto connector until the tab (D) locks it securely.
Using your thumb, push forward and up on the latch (E) to remove tool as shown.
Before using tool
It may be necessary to remove air from the system (“prime the pump”) so the clean solution will flow to the tool. Follow these steps:
1. Attach tool to hose and turn the deep cleaner ON.
2.Put the tool on a hard surface or
Continued
against your hand to block off the suc­tion.
3. Wait a few seconds (can take up to 15 seconds). Then squeeze the trigger and begin cleaning.
Follow the instructions on pages 12-13 for the appropriate cleaning task.
Attaching scrub module
1. Open the tool door and remove the powered hand tool.
2. Grasp the sides of the brush module and lift it from the base (F).
3. Pull scrub module from deep cleaner and snap it onto the base.
Note: It may be necessary to rotate the scrub module (G) slightly so it will align properly to the base.
*included with some models
3-6
A
B
C
3-8
F
3-9
G
Using the scrub tool
With a little solution, test the scrub tool on a hidden area before using on the desired surface. If no surface change is visible, continue to use as described below.
FOR LARGE AREAS
1. Fill clean solution tank with HOOVER Bare Floor Cleaner* according to instructions for Figs. 2-10 to 2-16.
2. Hold scrub tool above area to be cleaned and press trigger to dispense solution.
3. Release trigger and scrub area with tool. Pick up dirty solution with squeegee as shown.
FOR SPOT CLEANING
1. Apply Bare Floor Cleaner* with the spray bottle.
2. Scrub area with tool. Pick up diry solution with squeegee as shown.
3-7
3-14
9. Lift tool, and position it against riser. Pull tool slowly over carpet without pressing trigger (dry stroke).
It is best to alternate wet and dry strokes as described above. End with more dry strokes to aid in faster drying of carpet.
10. Overlap strokes by 1/2 inch to help prevent streaking.
To avoid saturating carpet, do not use more than 4 wet strokes over any one area. Always end with dry strokes.
If additional cleaning is necessary, wait until the carpet is completely dry before using the tool again.
11. Empty recovery tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic shut-off”, Fig. 2-6)
When finished cleaning, follow “After cleaning” instructions on page 9 and “After using tool” instructions on page
12.
3-13
3-10
H
After using scrub tool
To clean scrub pad, pull it off module. Wash it in water with mild detergent. Rinse and let air dry.
Pad must be completely dry before reat­taching to module and storing on deep cleaner.
Replacement pads may also be pur­chased. Ask for HOOVER part no.
40308001. To store scrub module, remove scrub
module from tool in same manner as removing the brush module.
Align openings on back of module with tabs in storage area (H).
Push module into position.
Read “Before you begin cleaning” Instructions on page 9.
1. Place handle in upright position.
Agitator brushes will not rotate while handle Is in upright position.
2. Fill clean solution tank with HOOVER Carpet/Upholstery Detergent according to instructions for Figs. 2-10 to 2-16.
3. Attach tool to end of hose.
4. Hose length may require that machine be placed at the top of the stairs to clean upper half of stairway and at bot­tom of stairs to clean lower half.
To prevent machine from falling, use extra caution when cleaning on stairs.
Do not place deep cleaner on stairs. Do not point tools toward people or
pets.
5. Dry hands and plug deep cleaner into a properly grounded outlet.
6. Turn deep cleaner ON. If necessary, refer to “Before using tool” section to remove air from the system.
Cleaning carpeted stairs
7. Pre-spray the carpeted stair by hold­ing the tool (A) or (B) about one inch above the carpet and push it forward while pressing the trigger (equals one wet stroke).
8. Position tool against the riser and slightly press it into carpet pile. Press the trigger and pull the tool slowly over the carpet (second wet stroke). Release trigger at end of stroke.
3-12
3-11
After using tool
1. Follow steps a and b for “After clean­ing” on page 9.
2. Rinse tool and hose by filling sink with a small amount of water. Turn deep cleaner ON and pickup the water with the tool.
3. Drain hose by turning deep cleaner ON and holding end of hose up for sev­eral seconds. Do not press trigger.
4. Disconnect deep cleaner from elec­trical outlet.
5. Drain solution tube (located inside hose) by pointing end of hose in sink and pressing trigger.
6. Proceed with steps c, d, and e, for “After cleaning” on page 9.
A
B
12
13
3-15
3-16
Read “Before you begin cleaning” Instructions on page 9.
Be sure to check the cleaning code on your upholstery. Use your HOOVER
‘SteamVac’deep cleaner only on upholstery marked “W” or “W/S”.
1. Place handle in upright position.
Agitator brushes will not rotate while handle Is In upright position.
2. Fill clean solution tank with HOOVER Carpet/Upholstery Detergent according to instructions for Figs. 2-10 to 2-16.
3. Attach tool to end of hose.
Do not point tools toward people or pets.
4. Dry hands and plug deep cleaner into a properly grounded outlet.
5. Turn deep cleaner ON. If necessary, refer to “Before using tool” section to remove air from the system.
Cleaning upholstery
6. Gently press the tool (A) or (B) onto the fabric. Press the trigger and slowly pull the nozzle over the fabric.
7. Overlap strokes by 1/2 inch to help prevent streaking.
Make additional strokes without pressing the trigger to remove more moisture.
8. To clean in corners or creases, lift the tool one-half inch from the fabric and press the solution trigger.
9. Vacuum up the solution with the tool without pressing the trigger.
10. For heavily soiled areas, it may be necessary to repeat the cleaning process. Make crisscrossing strokes to the original pattern; overlap each pass.
Make no more than 2 passes with the solution over any one area to prevent over-wetting and damage to fabric.
If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again.
11. Empty recovery tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic shut-off”, Fig. 2-6).
When finished cleaning, follow “After cleaning” instructions on page 9 and “After using tool” instructions on page 12.
A
B
4-1
4-2
4-3
B
B
B
B
B
B
B
A
Removable brushes
Your deep cleaner is equipped with removable brushes for easy cleaning.
To remove brushes
Disconnect cleaner from electrical outlet.
To prevent possible leaking, remove clean solution tank and recovery tank. Set tanks aside.
4. Maintenance
Press handle release pedal to lower han­dle. Turn cleaner over so bottom is fac­ing up.
Grasp inner portion of brush (A) and pull brush assembly out slightly to reveal latches (B).
Press all four latches (B) and pull brush block out. The brushes can be cleaned under running water.
4-4
4-5
C
C
D
D
E
F
To replace brushes
Align posts (C) on both ends of brush assembly with slots (D) in cleaner hous­ing.
Make sure that square post (E) also aligns with square hole (F). Turn brushes slightly until post fits easily into hole.
Press brush assembly firmly to snap into place.
5. If you have a problem
14
If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the check list below.
Possible cause
Possible solution
• Not firmly plugged in
Plug unit in firmly
• No voltage In wall plug
Check fuse or breaker
• Blown fuse/tripped breaker
Replace fuse/reset breaker
Possible cause
Possible solution
• Recovery tank full/automatic shut off engaged
Remove and empty recovery tank
• Blockage In tool on end of hose
Remove tool and clear blockage
• Recovery tank lid not on correctly
Make sure lid is on securely
Problem: Machine won’t run
Problem: Low suction
Problem: Clean solution won’t
dispense
Problem: Brushes/brush indicator
won’t rotate during floor cleaning
Possible cause
Possible solution
• Solution tank not firmly in place
Make sure tank is securely locked in position
• Solution tank empty
Refill tank according to instructions for surface being cleaned
• Recovery tank lid not on correctly
Make sure lid is firmly in place
Pump needs to be “primed” (when using tool)
See “Before using tool” section, p. 11
Possible cause
Possible solution
• Indicator screen dirty
Remove clear cover over indicator and clean screen; replace cover
• Speed selector on OFF
Move speed selector to Low or Hi
Full One Year
Warranty
(Domestic Use)
Your HOOVER® appliance is warranted in normal household use, in accordance with the Owner’s Manual against original defects in material and workmanship for a period of one full year from date of purchase. This warranty provides, at no cost to you, all labor and parts to place this appliance in correct operating con­dition during the warranted period. This warranty applies when the appliance is purchased in the United States including its territories and possessions, or in Canada or from a U. S. Military Exchange. Appliances purchased else­where are covered by a limited one year warranty which covers the cost of parts only. This warranty does not apply if the appliance is used in a commercial or rental application.
Warranty service can only be obtained by presenting the appliance to one of the following authorized warranty ser­vice outlets. Proof of purchase will be required before service is rendered.
1. Hoover Factory Service Centers.
2. Hoover Authorized Warranty Service Dealers (Depots).
For an automated referral of autho­rized service outlets in the U.S.A., phone 1-800-944-9200 OR
visit The Hoover Company on-line at www.hoover.com
This warranty does not cover pick up delivery, or house calls; however, if you mail your appliance to a Hoover Factory Service Center for warranty service, transportation will be paid one way.
While this warranty gives you specific legal rights, you may also have other rights which vary from state to state.
If further assistance is needed, or if there are questions concerning this war­ranty or the availability of warranty ser­vice outlets, write or phone the Consumer Response Center, The Hoover Company, 101 East Maple St., North Canton, Ohio 44720. Phone 1­330-499-9499.
In Canada, contact Hoover Canada, Burlington, Ontario L7R 4A8, 1-800-263-6376.
Storage
Before storing:
• Empty solution tank and rinse thoroughly with clean water.
• Replace empty solution tank and turn deep cleaner ON. Squeeze trigger and push deep cleaner for­ward and back several times to expel any solution remaining in the deep cleaner’s system. (Do not use deep cleaner on wood floors.)
• Empty recovery tank and rinse thoroughly with clean water.
Allow brushes and underside of deep cleaner to air dry thoroughly before storing deep cleaner on a carpeted or wood surface.
Do not store deep cleaner with a full solution tank In place.
Lubrication
The motor Is equipped with bearings which contain sufficient lubrication for the life of the motor. The addition of lubricant could cause damage. Do not
add lubricant to motor bearings.
Service
To obtain approved HOOVER service and genuine HOOVER parts, locate the nearest Hoover Factory Service
Center or Authorized Hoover Warranty Service Dealer (Depot) by:
• checking the Yellow Pages under Vacuum Cleaners - Household” OR
• checking the list of Factory Service Centers provided with this cleaner OR -
• calling 1-800-944-9200 for an automated referral of authorized service outlet locations (U.S. only) OR-
• checking the Service section of The Hoover Company on-line at
www.hoover.com
Do not send your cleaner to The
Hoover Company in North Canton for service, this will only result in delay.
If further assistance Is needed, contact The Hoover Company Consumer Response Center, North Canton, Ohio 44720 Phone: 330-499-9499.
In Canada, contact Hoover Canada, Burlington, Ontario L7R 4A8, Phone: 1-800-263-6376.
Always identify your cleaner by the complete model number when request­ing information or ordering parts. (The model number appears on the back of the handle.)
Loading...
