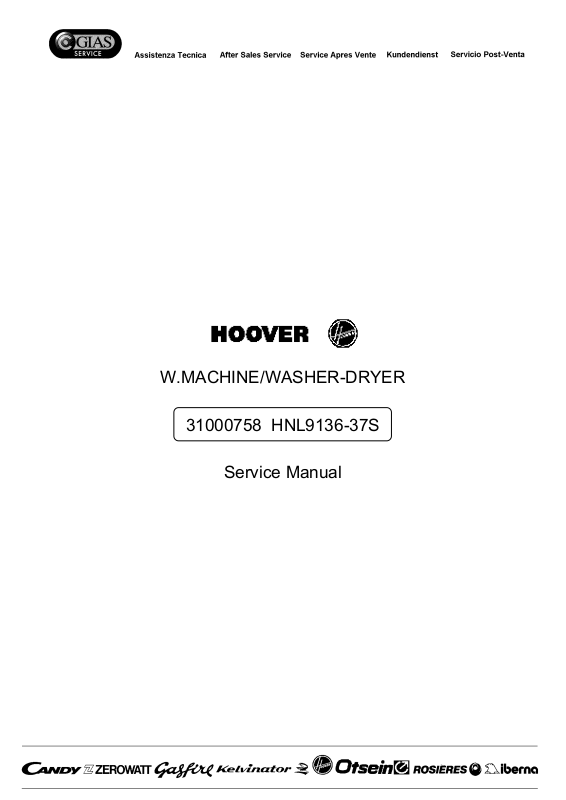

W.MACHINE/WASHER-DRYER

31000758 HNL9136-37S

Service Manual

Page 2

Page 3

Page 4

Page 5

Page 6

31000758 HNL9136-37S 0446 (10/11/2004)

Ricambio Part No. Piece

Ref. Descrizione - Description - Beschreibung - Descripcion

1 Knob insert 41012203

10 Timer/select. knob 41010375 0519 (01/05/2005) 10 Timer/select. knob 41010376 0519 (01/05/2005)

10a Timer knob support 41009496 0519 (01/05/2005)

15 Cam disc 91602569 0519 (01/05/2005)

19a Button 0/1 41010367

31 Control panel 41013099 0519 (01/05/2005) 31 Control panel 41016385 0519 (01/05/2005)

32 Dispenser drawer front 41013092

47 Table top front frame 41010368

48 R/H side frame 90481946

48a L/H side frame 90481979

49 Top rear frame 41010373

E-Teil Pieza

Inizio Beginning Debut Begin Inicio

Fine Ending Fin End Fin

49g Trade mark plate 91617795

51 Work top 41011597

60 Hinge 41010676

61 Counter ring 40000966

62 Door surround 41012243

63 Door glass 91600903

65a Door catch with spring service pack 49005176

67 Glass door with frame 41012244

76 Cabinet assy 91750608

77 Rear panel 92888429

78 Socle 41006148

79 Rear foot 92606474

80 Front foot 92692300

94d Filter w/knob without screw 41004157

97c Stopper x drain/recycle pump 91941774

97d Filt hous w/filter cartridge 49002227

101 Dispenser drawer 92136415 0519 (01/05/2005) 101 Dispenser drawer 41013614 0519 (01/05/2005)

103 Rack 92149368 0519 (01/05/2005)

Page 7

31000758 HNL9136-37S 0446 (10/11/2004)

Ricambio Part No. Piece

Ref. Descrizione - Description - Beschreibung - Descripcion

109 Dispenser bottom section assy 92967918 0519 (01/05/2005)

109b Dispenser bottom section 41013608 0519 (01/05/2005)

110 Dispenser top section 41013609 0519 (01/05/2005)

112 Distribution connecting rod 92884212 0519 (01/05/2005)

113 Lever 92621606

114 Driving lever 41000950 0519 (01/05/2005)

114a Hose clip 92470061

116 Cam 92621614

118 Spring 92483148 0519 (01/05/2005)

131a Hose clip 92470194 0519 (01/05/2005)

132 Hose 92131739 0519 (01/05/2005) 132 Hose 41013620 0519 (01/05/2005)

133 Hose clip 92470012

E-Teil Pieza

Inizio Beginning Debut Begin Inicio

Fine Ending Fin End Fin

134 Solenoid valve 25686057 0511 (07/03/2005) 134 Solenoid valve 41014222 0519 (01/05/2005) 134 Solenoid valve 41013615 0519 (01/05/2005)

138 Drain hose 92693373

138a Drain house elbow 92689587

138b Hose clamp 92895051

142 Fill hose 92250869

151e Motorized selector 16 settings 41007709 0519 (01/05/2005)

151f selector 16 settings 41014502 0519 (01/05/2005)

153 Pressure switch 91201369

157 Wiring harness 91201463 0519 (01/05/2005) 157 Wiring harness 41016422 0519 (01/05/2005)

157s 5 Way connecton 41002084

161d Drain/recycle pump complete 41005956

162 Door safety device 91201208 0527 (01/07/2005) 162 Door safety device 41016879 0527 (01/07/2005)

164 Anti jamming filter radio 41010141 0631 (01/08/2006) 164 Anti jamming filter radio 91200098 0631 (01/08/2006)

202 Drum 91750622

203 Tub 91670373 0601 (02/01/2006) 203 Tub 41018345 0601 (02/01/2006) 0627 (03/07/2006)

Page 8

31000758 HNL9136-37S 0446 (10/11/2004)

Ricambio Part No. Piece

Ref. Descrizione - Description - Beschreibung - Descripcion

203 Tub 41019699 0627 (03/07/2006)

204a Front flange 91601114 0601 (02/01/2006) 204a Front flange 91602750 0601 (02/01/2006)

205 Drum shaft assy 49002387

213a Spring 92436781 0627 (03/07/2006)

215 Tub gasket 92131689 0601 (02/01/2006) 215 Tub gasket 92605930 0601 (02/01/2006)

217 Seal retainer 92445600

218 Bearing 92440171

219 Bolt 92418714

221 Nut 92424209

224 Bearing 92440197

225a Gasket 92445626

230 Tub gasket clip 91750458

E-Teil Pieza

Inizio Beginning Debut Begin Inicio

Fine Ending Fin End Fin

230a Tub gasket clip 90488603

232 Heater holder 92736578

242 Support spring. 92484492

242a R/H support spring 92484484

244 Washer 92430206

244a Counter weight washer 92430214

246 Bolt 92419472

246a Bolt 22411906 0627 (03/07/2006)

246b Slide 04110150

246c Clamp 03460098 0601 (02/01/2006)

247 Upper balance weight 91500236 0519 (01/05/2005) 247 Upper balance weight 41014355 0519 (01/05/2005) 0627 (03/07/2006) 247 Upper balance weight 41018338 0627 (03/07/2006)

248 Lower balance weight 91500344

251a Telescopic shock absorber 92484518 0601 (02/01/2006) 251a Telescopic shock absorber 41017170 0601 (02/01/2006)

251c Washer 80000631

251d Nut 92424266 0601 (02/01/2006)

251e Shoch absorber pin 41017173 0601 (02/01/2006)

251f Antinoise bush 41017169 0601 (02/01/2006)

Page 9

31000758 HNL9136-37S 0446 (10/11/2004)

Ricambio Part No. Piece

Ref. Descrizione - Description - Beschreibung - Descripcion

253 Screw 91400204 0601 (02/01/2006)

259 Support 92673961

271 Door gasket 41008852

272 Discharge pipe 41001597

273 Fill pipe 91620033

274 Pressure switch air chamber 91611202

275 5x8 hose 91619593

276 Steam hose 91620009 0627 (03/07/2006) 276 Steam hose 92604123 0627 (03/07/2006)

277 Hose spring 90386137

278a Hose clip d44 92470137

279 Hose clip 92470285

286 Heater 91201546

E-Teil Pieza

Inizio Beginning Debut Begin Inicio

Fine Ending Fin End Fin

287m NTC probe 92743616

290 Drum pulley 92723824

292 Drive belt 92130442

292b Bottom panel 41007557

292c Clips 92473636

328 Control panel electronic module 49005275

328f Pcb protection 41012528

422 Circlip 91941775

427 Screw 92400480 0601 (02/01/2006)

473 Commutator motor 41002725

479i Coreboard 32K programmed 49005276 0519 (01/05/2005) 479i Coreboard 32K programmed 49007079 0519 (01/05/2005)

479m Electronic control 32K not programmed 41011825 0626 (01/07/2006) 479m Electronic control 32K not programmed 41021512 0626 (01/07/2006)

483a Brush with brush holder 49000466

487 Special bolt 92419548

488 Rivet 92466655

491 Mains cable 91200194

494 Red window 41010374

Page 10

31000758 HNL9136-37S 0446 (10/11/2004)

Ricambio Part No. Piece

Ref. Descrizione - Description - Beschreibung - Descripcion

511 Tray liquid detergents 92960384 0519 (01/05/2005)

547 Module protection 91601842

547a Module protection cover 91601843

558 Support bracket 91800570 0519 (01/05/2005) 558 Support bracket 92884204 0519 (01/05/2005)

571 Top sleeve 92730159

588 Siphon 41013613 0519 (01/05/2005)

602 Shock-absorb.conn.bracket 92898790 0601 (02/01/2006) 602 Shock-absorb.conn.bracket 41017172 0601 (02/01/2006)

632 Control support plate 91802090 0519 (01/05/2005)

643 Door handle assembly 40000967

734 Timer protection 91602473

749 Adhesive plaque 92473529

E-Teil Pieza

Inizio Beginning Debut Begin Inicio

Fine Ending Fin End Fin

806 Door upper hinge 41010385

807 Door lower hinge 41010386

828b Tach.coil 49000464

831 Thermostat hole stopper 92898394 0601 (02/01/2006)

832 Discharge pipe circlip 91408004

833 Upper counterweight support 92898915

834 Lower counterweight supp. 92898923

835a Magnet 49000465

840 Drum paddle 91607689

841 Drum paddle fixing screw 92419555

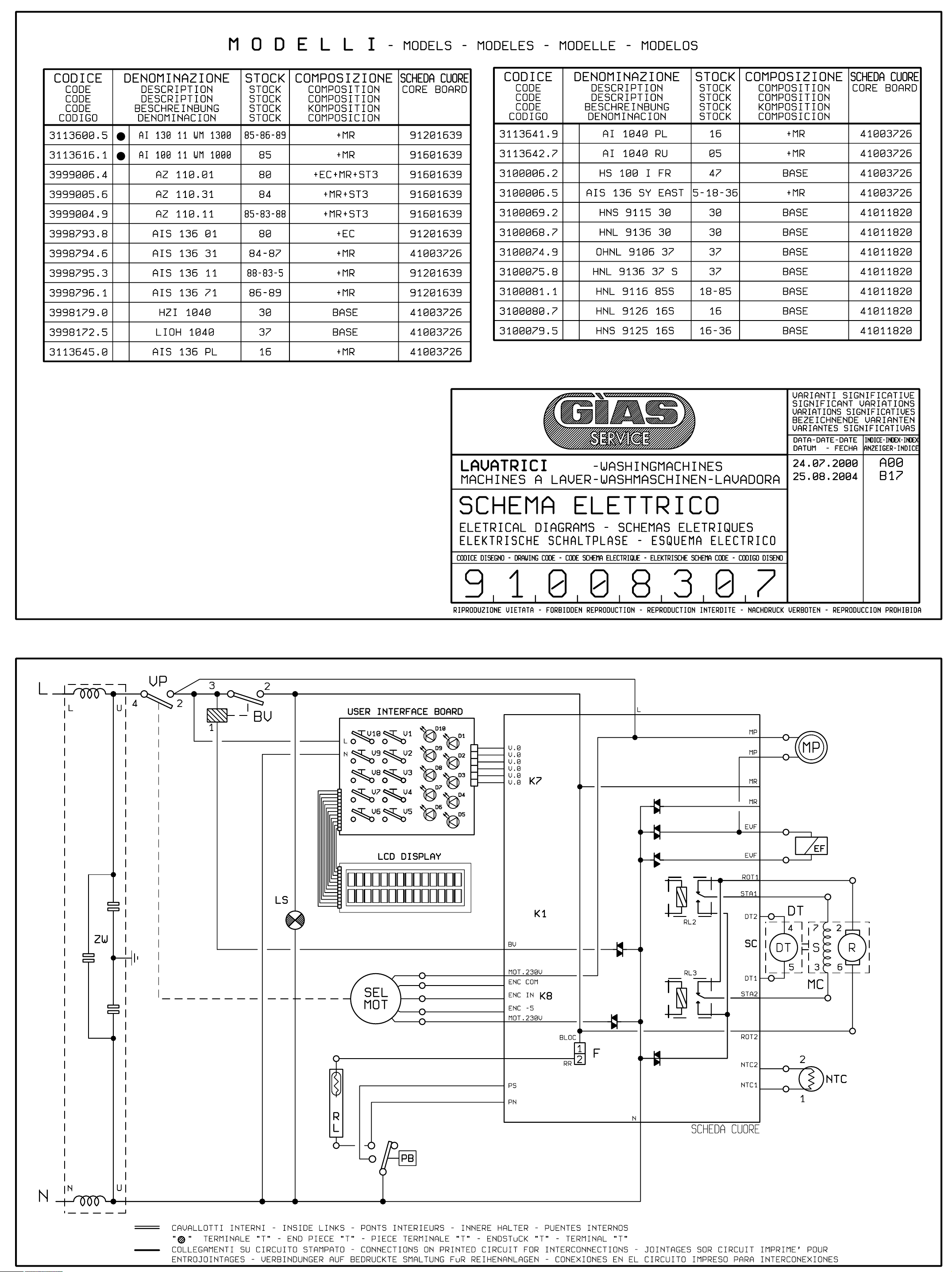

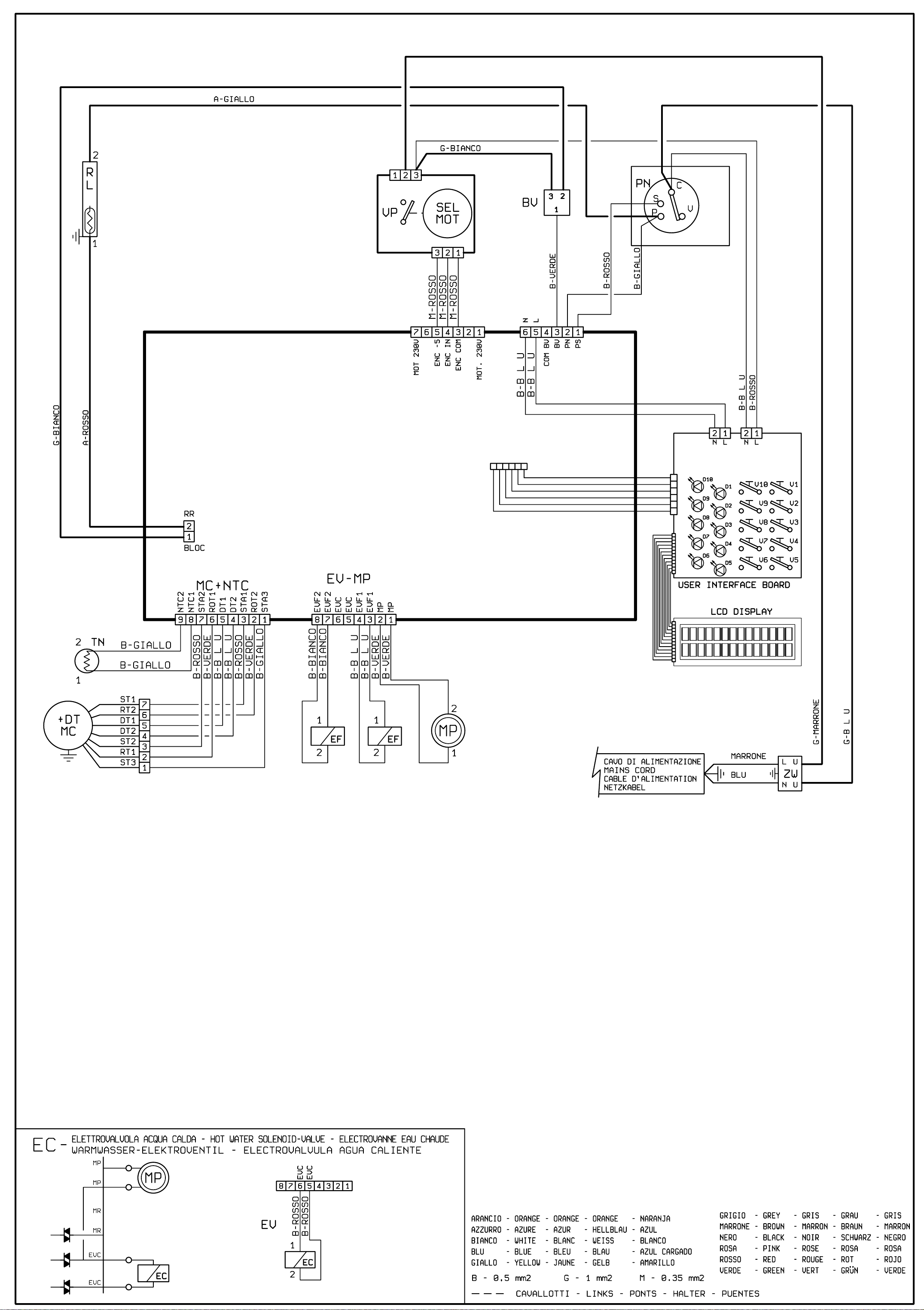

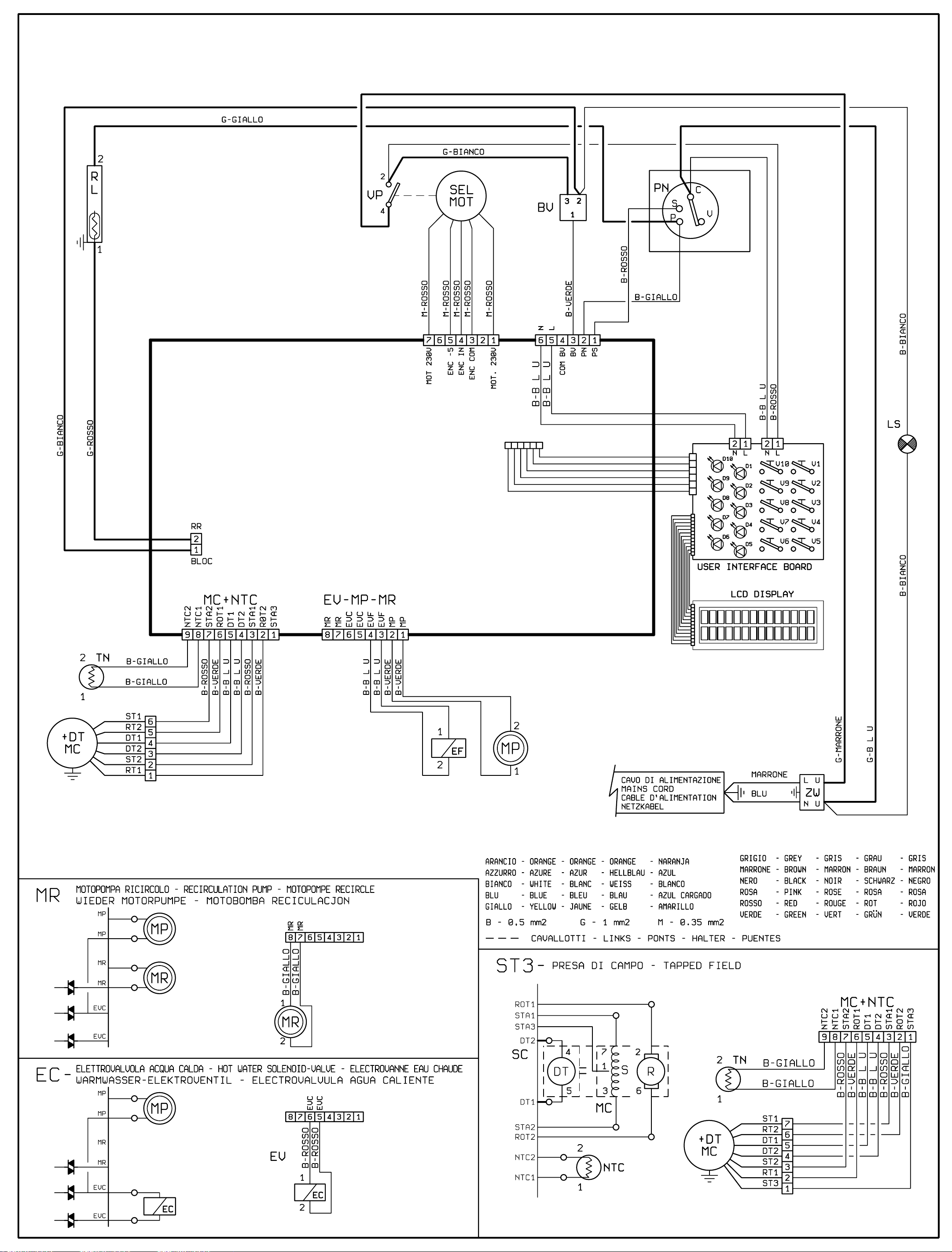

999 Wiring diagram 91008307 0519 (01/05/2005) 999 Wiring diagram 41015780 0519 (01/05/2005)

1007 Tie rod 92419514

1009 Disc spring 21346008 0627 (03/07/2006)

1011a Display 41011581

1147 Transit bolt kit 49002554

Page 11

31000758 HNL9136-37S 0446 (10/11/2004) - Modifications History -

Fine Ending Fin End Fin

Ref. Descrizione - Description - Beschreibung - Descripcion

Ricambio Part No. Piece E-Teil Pieza

Inizio Beginning Debut Begin Inicio

NEW SOLENOID VALVE

134 Solenoid valve 25686057 0511 (07/03/2005) 134 Solenoid valve 41014222 0511 (07/03/2005)

NEW WATER DISTRIBUTION

247 Upper balance weight 91500236 0519 (01/05/2005) 999 Wiring diagram 91008307 0519 (01/05/2005) 632 Control support plate 91802090 0519 (01/05/2005) 479i Coreboard 32K programmed 49005276 0519 (01/05/2005) 157 Wiring harness 91201463 0519 (01/05/2005) 151e Motorized selector 16 settings 41007709 0519 (01/05/2005) 15 Cam disc 91602569 0519 (01/05/2005) 134 Solenoid valve 41014222 0519 (01/05/2005) 132 Hose 92131739 0519 (01/05/2005) 103 Rack 92149368 0519 (01/05/2005) 558 Support bracket 91800570 0519 (01/05/2005) 131a Hose clip 92470194 0519 (01/05/2005) 101 Dispenser drawer 92136415 0519 (01/05/2005) 109 Dispenser bottom section assy 92967918 0519 (01/05/2005) 10a Timer knob support 41009496 0519 (01/05/2005) 112 Distribution connecting rod 92884212 0519 (01/05/2005) 114 Driving lever 41000950 0519 (01/05/2005) 118 Spring 92483148 0519 (01/05/2005) 10 Timer/select. knob 41010375 0519 (01/05/2005) 558 Support bracket 92884204 0519 (01/05/2005) 10 Timer/select. knob 41010376 0519 (01/05/2005) 157 Wiring harness 41016422 0519 (01/05/2005) 511 Tray liquid detergents 92960384 0519 (01/05/2005) 479i Coreboard 32K programmed 49007079 0519 (01/05/2005) 247 Upper balance weight 41014355 0519 (01/05/2005) 151f selector 16 settings 41014502 0519 (01/05/2005) 134 Solenoid valve 41013615 0519 (01/05/2005) 132 Hose 41013620 0519 (01/05/2005) 110 Dispenser top section 41013609 0519 (01/05/2005) 101 Dispenser drawer 41013614 0519 (01/05/2005) 999 Wiring diagram 41015780 0519 (01/05/2005) 109b Dispenser bottom section 41013608 0519 (01/05/2005) 588 Siphon 41013613 0519 (01/05/2005)

CONTROL PANEL FOR NEW WATER DIST.

31 Control panel 41013099 0519 (01/05/2005) 31 Control panel 41016385 0519 (01/05/2005)

NEW DOOR SAFETY DEVICE SNAP IN

162 Door safety device 91201208 0527 (01/07/2005) 162 Door safety device 41016879 0527 (01/07/2005)

NEW TELESCOPIC SHOCK ABSORBER

203 Tub 91670373 0601 (02/01/2006) 203 Tub 41018345 0601 (02/01/2006)

204a Front flange 91601114 0601 (02/01/2006)

Page 12

31000758 HNL9136-37S 0446 (10/11/2004) - Modifications History -

Ricambio Part No. Piece

Ref. Descrizione - Description - Beschreibung - Descripcion

204a Front flange 91602750 0601 (02/01/2006)

215 Tub gasket 92131689 0601 (02/01/2006) 215 Tub gasket 92605930 0601 (02/01/2006)

246c Clamp 03460098 0601 (02/01/2006) 251f Antinoise bush 41017169 0601 (02/01/2006)

602 Shock-absorb.conn.bracket 92898790 0601 (02/01/2006) 251a Telescopic shock absorber 41017170 0601 (02/01/2006)

251d Nut 92424266 0601 (02/01/2006) 602 Shock-absorb.conn.bracket 41017172 0601 (02/01/2006)

251a Telescopic shock absorber 92484518 0601 (02/01/2006) 251e Shoch absorber pin 41017173 0601 (02/01/2006)

831 Thermostat hole stopper 92898394 0601 (02/01/2006) 253 Screw 91400204 0601 (02/01/2006)

427 Screw 92400480 0601 (02/01/2006)

E-Teil Pieza

Inizio Beginning Debut Begin Inicio

Fine Ending Fin End Fin

NEW MAIN BOARD 48K

479m Electronic control 32K not programmed 41011825 0626 (01/07/2006) 479m Electronic control 32K not programmed 41021512 0626 (01/07/2006)

NEW TUB

203 Tub 41018345 0627 (03/07/2006) 203 Tub 41019699 0627 (03/07/2006)

276 Steam hose 91620009 0627 (03/07/2006) 276 Steam hose 92604123 0627 (03/07/2006)

247 Upper balance weight 41014355 0627 (03/07/2006) 247 Upper balance weight 41018338 0627 (03/07/2006)

246a Bolt 22411906 0627 (03/07/2006)

213a Spring 92436781 0627 (03/07/2006) 1009 Disc spring 21346008 0627 (03/07/2006)

NEW ANTI JAMMING FILTER RADIO

164 Anti jamming filter radio 41010141 0631 (01/08/2006) 164 Anti jamming filter radio 91200098 0631 (01/08/2006)

Page 13

Page 14

Page 15

Legenda componenti lavaggio - Washing components list Liste composantes lavage - Waschung komponenten liste Leyenda componentes lavado – Yıkayıcılar parça listesi

Versione 22/04/2009

4 Centrifuga lenta - Slow speed spin - Essorage lent - Langsame Zentrifuge - Centrifugado

bajo – Düúük hızda sıkma

8 Centrifuga veloce - Fast speed spin - Essorage vite - Schnelle Zentrifuge - Centrifugado

rapido – Yüksek hızda sıkma

AN Antitrabocco - Anti-overflow - Dispositif anti debordement - Antiuberlaufener -

Antidesbordamento – Taúma önleyici

AT Timer asciugatura - Dryer timer - Programmateur sechage - Trochner timer -

Programador secado – Kurutucu zamanlayıcı

BL Basetta di linea - Terminal box - Boite a liesons - Klemmbrett - Placa de linea – Terminal

kutusu

BR Ritardatore apertura amperometrico - Amperometric opening delayer - Retardateur

ouverture amperemetrique - Stromverzögerungsrelais - Placa retardadora amperimetrica – Akımsal kapı kilit mekanizması

BV Ritardatore apertura voltmetrico - Voltmetric opening delayer - Retardateur ouverture

voltmetrique - Voltmeter-Verzögerungsrelais - Placa retardadora voltmetrica – Gerilimsel kapı kilit mekanizması

C Carico acqua calda - Hot water filling - Chargement eau chaude - Warmtwasserfuel lung -

Entrada agua caliente – Sıcak su giriú

CA Condensatore - Capacitor - Condensateur - Kondensator - Condensador - Kondansatör

CB Condensatore aggiunto - Additional capacitor - Condensateur supplementaire -

Beifuegende Kondensator - Condensador suplementario – ølave kapasitör

CC Condensatore centrifuga - Spin capacitor - Condensateur centrifuge - Zentrifuge

Kondensator - Condensador centrifugado – Sıkma kapasitörü

CL Condensatore lavaggio - Washing capacitor - Condensateur lavage - Waschen -

Kondensator - Condensador lavado – Yıkama kapasitörü

D Lavaggio delicato - Soft tumble - Mouvement delicat - Delikate Washung - Lavado

delicado – Hassas kurutma

2005

Page 16

DT Dinamo tachimetrica - Tachometric dynamo - Bobine tachymetrique - Regel Dynamo -

Dinamo taquimetrica – Takometrik dinamo

EA Elettrovalvola asciugatura - Drying solenoid valve - Electrovanne sechage - Trochen -

Elektroventil - Electrovalvula secado – Kurutucu solenoid valfi

EC Elettrovalvola acqua calda - Solenoid valve for hot water - Electrovanne eau chaude -

Warmes Wasser Elektroventil - Electrovalvula agua caliente – Sıcak su solenoid valfi

EF Elettrovalvola acqua fredda - Solenoid valve for cold water - Electrovanne eau froid -

Kaltes Wasser Elektroventil - Electrovalvula agua fria – So÷uk su solenoid valfi

F Lavaggio forte - Strong tumble - Mouvement intensif - Stark Washung - Lavado energico

FA Centrifuga alta velocità - High speed spin - Centrifuge haute vitesse - Hochgesch

windigkeit Schleuderung - Centrifugado alta velocidad – Yüksek hızda sıkma

FB Centrifuga bassa velocità - Low speed spin - Centrifuge basse vitesse - Geschwi ndigkeit

Schleuderung - Centrifugado baja velocidad – Düúük hızda sıkma

FD Funzione 4° risciacquo - 4th rinse function - Fonction 4eme rincage - 4 Spülung Funktion

- Funcion cuarto enjuague – 4’üncü durulama fonksiyonu

FG Funzione lavaggio 35 giri - 35 rpm washing function - Fonction 35 tours lavage - 35

Abwashung Funktion - Foncion lavado 35 giros – 35 dev/dak yıkama fonksiyonu

FN Variante stock nord - Northern Europe market variation - Variation pour l'Europe du Nord

- Anderung Nord Europa - Variante stock nortico – Kuzey Avrupa pazarı farklılı÷ı

FP Protezione termostato di consenso - Protection for N.O. thermostat - Protection pour

thermostat N.O. - Schutz fuer N.O. Thermostat - Protecciòn termostato de paso 30°C – N.A. termostat koruma

FR Rigenero - Regenerating rinse - Rincage avec regeneration - Ausspuelung - Aclarado –

Rejeneratif durulama

FS Funzione salto "stop con acqua in vasca" - Function for "jumping" over the "stop with

water in tub" - Fonction pour "sauter" le "stop avec l'eau dans la cuve" - Funktion für "springen" die "stop mit wasser in wanne" - Foncion salto de "parada con agua en cuba" – “Suda bekletme” fonksiyonu için durdurma fonksiyonu

FT Termofusibile - Thermal fuse - Fusible thermique - Thermosicherung - Termofusible –

Termal sigorta

G Rigenero - Water exchange - Regénération d'eau - Wasser-Austausch – Regeneracion

de agua – Su çevrimi

2005

Page 17

GT Morsetto generale di terra - Earth connection - Serre cable de sol - Erdklemme - Toma

general tierra – Topraklama ba÷lantısı

GV Morsetto messa a terra vasca - Tub earth connection - Serre cable de sol cuve -

Waschbottich Erdklemme - Toma tierra cuba L1 Lampada spia alimentazione elettrica Net pilot lamp - Lampe temoin - Kontrollampe - Piloto alimentacion electrica – Tambur topraklama ba÷lantısı

H Carico acqua fredda - Cold water filling - Chargement eau froid - Kaltwasserfuellung -

Entrada agua fria – So÷uk su alma

L Alto livello - High water level - Haut niveau d'eau - Hoch Wasser Pegel - Nivel alto –

Yüksek su seviye

L2 Lampada spia fine asciugatura - End of drying pilot lamp - Lampe temoin du fin sechage

- Ende-Trochnen -Kontrollampe - Piloto fin ciclo secado – Kurutma bitti lambası

L3 Lampada spia raffreddamento - Cool down pilot lamp - Lampe temoin refroidisseme nt -

Abkuehlung-Kontrollampe - Piloto enfriamiento – So÷uma pilot lambası

L4 Lampada spia cassetto acqua pieno - Pilot lamp for full water container - Lampe tem oin

boite eau plein - Wasser Behaelter Voll Kontrollampe - Piloto nivel maximo agua – Su haznesi dolu lambası

L5 Lampada spia filtro intasato - Clogged filter pilot lamp - Lampe filtre engorgè - Versto

pfter Filter Kontrollampe - Piloto filtro sucio – Filte tıkalı lambası

LA Spia asciugatura - Drying cycle pilot lamp - Lampe temoin sechage - Trochen-

Kontrollampe Piloto secado – Kurutma pilot lambası

LD Spia LED - LED pilot lamp - Lampe temoin LED - LED Kontrollampe - Piloto LED – LED

lamba

LF Spia asciugatura forte - Intensive drying pilot lamp - Lampe temoin sechage inten sif -

Starktrochen Lampe – Hassas kurutma lambası

LS Spia generale - Pilot lamp - Lampe temoin - Kontrollampe – Pilot lambası

M Carico acqua miscelata - Mixed water filling-up - Chargement eau mélangé – Gemischte

Wasserfüll. -Entrada agua mezclada – Karıúım suyu alma

MA Timer asciugatura - Drying timer - Timer sechage - Trochen Timer - Timer secado –

Kurutma zamanlayıcı

MC Motore a collettore - Brushes and collector motor - Moteur collecteur - Kollektor Motor -

Motor a collector – Kömürlü (fı

rçalı) motor

2005

Page 18

MD Motore centrifuga - Spin motor - Moteur essorage - Schleuderung Motor - Motor secado –

sıkma motoru

ML Motore lavaggio - Washing motor - Moteur lavage - Waschung motor - Motor lavado –

Yıkama motoru

MP Elettropompa di scarico - Discharge electric pump - Pompe de vidange - Auslauf pumpe -

Electrobomba vaciado – Tahliye pompası

MR Elettropompa di ricircolo - Electric pump for water recycling- Pompe de reciclage -

Rezirkulation Pumpe - Electrobomba de recirculo – Su çevrim pompası

MT Motorino timer - Timer motor - Moteur timer - Timer motor - Motor programador –

Zamanlayıcı motoru

MV Motoventilatore asciugatura - Drying motor ventilator - Helice sechage - Trochen Fluegel

- Motoventilador secado – Kurutma fanı

P Spull stop - Stop with water in tub - Arret avec eau dans la cuve - Spüllstop - Stop cuba

llena(flot) – Suda bekletme

PA Pressostato alto livello - High level pressure switch - Pressostat du haut niveau - Hoch

Pegel Druckwaechter - Presostato nivel alto – Yüksek seviye basınç úalteri

PB Pressostato basso livello - Low level pressure switch - Pressostat du bas niveau - Niedrig

Pegel Druckwaechter - Presostato nivel bajo – Düúük seviye basınç úalteri

PD Potenziometro tempo lavaggio - Potenziometer adj length of cycle - Potenziometre temps

de lavage - Washzeit potentiometer - Potenciometro tiempo lavado – Yıkama süresi potansiyometresi

PH Potenziometro temperatura - Potenziometer adj temperature - Potenziometre

temperature - Temperatur potentiometer - Potenciometro temperatura – Sıcaklık potansiyometresi

PN Pressostato - Pressure switch - Interrupteur niveau - Druckwaechter - Presostato –

Basınç úalteri

PR Pressostato sicurezza resistenza- Heating element security pressure switch - Interrupteur

niveau protection resistance - Heizwiderstand Sicherheit Druckwaechter - Presostato

seguridad resistencia lavado – Isıtıcı emniyet basınç úalteri

PS Pressostato sicurezza - Security pressure switch - Interrupteur niveau de securitè -

Sicherheit Druckwaechter - Presostato seguridad – Emniyet basınç úalteri

2005

Page 19

PT Potenziometro velocità centrifuga - Potentiometer adj spin speed - Potentiometre vitesse

essorage - Schleuderung geschwindigkeit potentiometer - Potenciometro velocidad centrifugado – Sıkma hızı ayar potansiyometresi

PV Pressostato variabile - Adjustable pressure switch - Pressostat variable - Varierbarer

pressostat - Presostato variable – Ayarlanabilir basınç úalteri

RA Resistenza asciugatura - Drying heating element - Resistance sechage - Trockenheizung

- Resistencia secado – Kurutma rezistansı

RF Resistenza asciugatura forte - Intensive drying heating element - Resistance sechage

fort - Starktrocken Heizwiderstand - Resistencia secado energico. – Hassas kurutma rezistansı

RL Resistenza lavaggio - Washing heating element - Resistance lavage - Waschung

Heizwiderstand - Resistencia lavado – Yıkama rezistansı

RT Regolatore di temperatura a tempo - Timer for temperature regulation - Reglage

temperature au temps - Zeit-Temperatur-Regler - Regulacion temperatura por tiempo – Isı ayarı için zamanlayıcı

S Scarico - Discharge - Vidange - Ablauf – Vaciado - Tahliye

SC Modulo motore a collettore - Collector motor electronic module - Platine electroni que

moteur collecteur - Modulo motor a colector – Motor sürücü elektronik kart

SD Ritardatore di partenza - Start delay - Retardateur de depart - Start-Verspaeter - Placa

retardadora – Baúlama geciktirme

SF Modulo funzioni – Function module – Module fonctions – Funktions modul - Modulo

funciones – Fonksiyon modülü

SM Selettore motorizzato – Motorised selector – Selecteur motorise – Programmselektor -

Selector motorizado – Motorlu seçici

ST Sonda termostato regolabile - Adjustable thermostat probe - Sonde pour thermostat

reglable -Einstellbar Thermostat Sonde - Sonda termostato regulable – Ayarlanabilir termostat probu

ST3 Presa di campo – Tapped field coil – Modulation de champ - Conexion velocidad

maxima – Kollu sargı

SV Velocità regolabile (potenziometro) - Adjustable speed (potentiometer) - Vitesse reglable

(potentio-metre) - Einstellbar Geschwindigkeit (potentiometer) - Velocidad regulable (potenciometro) – Hız ayarlama (potansiyometre)

2005

Page 20

T Resistenza con consenso termostato - Heater with thermostatic consent - Resistan ce

avec consentement thermostatique - Heizung mit Thermostat Erlaubnis - Resistencia con paso termostato – Termostatlı ısıtıcı

TA Termostato di sicurezza asciugatura - Drying cycle safety thermostat - Thermostat de

securitè sechage - Sicherheits-Thermostat Trocknung - Termostato seguridad secado – Kurutma emniyet termostatı

TB Termostato bassa temperatura - Low temperature thermostat - Thermostat pour basse

temperature - Niedrige temperatur thermostat - Termostato baja temperatura – Düúük

sıcaklık termostatı

TC Termostato di consenso N.A. - Timer feed through N.O. thermostat - Alimentation timer

par thermostat N.O. - N.O. thermostat timer speisung - Termostato de paso – N.A. kontak üzerinden zamanlayıcı beslemesi

TF Termostato sicurezza asciugatura forte - Strong drying safety thermostat - Thermos tat

securitè essorage fort - Starke Abtrocknen Sicherheit Thermostat - Termostato seguridad secado energico – Güçlü kurutma emniyet termostatı

TM Termostato di massima (84°C+/-2°) - Limit thermostat (84°C+/-2°) - Thermostat de

securitè (84°C+/-2°) - Sicherhelts-Thermostat (84°C+/-2°) - Termostato de maxima (84°C+/-2°) – Emniyet termostatı (84°C+/-2°)

TN Termostato NTC - NTC termostat - Thermostat NTC - NTC thermostat - Termostato NTC

– Termostat NTC

TP Termostato di sicurezza ricircolo - Water recycling safety thermostat - Thermostat de

securitè recirculation eau sechage - Sicherheits-Thermostat für Rezirkulation Termostato de seguridad recirculo – Su çevrim emniyet termostatı

TR Termostato regolabile - Adjustable thermostat - Thermostat reglable - Regulierbarer-

Thermostat - Termostato regulable – Ayarlı termostat

TS Termostato di sicurezza - Safety thermostat - Thermostat de securitè - Sicherhei ts

Thermostat Termostato de seguridad – Emniyet Termostatı

V Raffreddamento - Cool down - Refroidissements - Abkühlung – Enfriamiento - So÷utma

V6 Tasto 6 Kg – 6 Kg push button – Poussoir 6 Kg – 6 Kg taste – Tecla 6 Kg – 6kg butonu

VA Tasto ammollo - Soak button - Poussoir trempage Einweicken Taste - Tecla remoio –

Suda bırakma butonu

2005

Page 21

VB Tasto bassa temperatura (60°C) - Low temperature (60°C) button - Touche basse

temperature (60°C) - Niedrige Temperatur (60°C) Taste - Tecla baja temperatura (60°C)

– Düúük sıcaklık (60°C) butonu

VC Tasto ciclo freddo - Cold washing button - Bouton lavage froid - Taste Kaltes Wasche -

Tecla lavado frio – So÷uk yıkama butonu

VD Tasto extrarisciacquo - Super rinse pushbutton - Touche extra rincage - Extra spuelung

taste - Tecla de superaclarado – Ekstra durulama butonu

VE Tasto esclusione centrifuga - Spin cut-out button - Touche exclusion centrifuge -

Schleuderans Taste - Tecla exclusion centrifugado - Sıkma kesme butonu

VF Tasto asciugatura forte – Intensive drying pilot lamp - Touche sechage fort - Starke

Trocknungstatste - Tecla secado energico – Hassas kurutma lambası

VG Tasto lavaggio 35 giri - 35 rpm washing pushbutton - Touche 35 tours lavage - 35

Abwashung Drehzahl - Tecla 35 r.p.m. lavado VH Tasto start delay-Star delay pushbutton-Touche start delay-Start delay taste - Tecla start delay – 35 dev/dak yıkama butonu

VI Tasto centrifuga istantanea - Sudden spin button -Touche essorage istantanè - Taste

Augenblick-licher-Schleuderung - Tecla centrifugado istantaneo – Sıkma butonu

VK Tasto 90° - 90° pushbutton - Touche 90° - 90° taste - Tecla 90° - 90° butonu

VL Tasto "Plus" - "Plus" pushbutton - Poussoir "Plus" - "Plus" taste - Tecla "Plus" – “Plus”

butonu

VM Tasto mezzo carico elettrico - Switch for electric half load - Touche demi chargeme nt

electrique - Elektrische Halb-Einladen Taste - Tecla media carga electrico – Elektrikli yarı yük butonu

VN Tasto mezzo carico meccanico - Switch for mechanical half load - Touche demi

chargement mecanique - Mechanische Halb-Einladen Taste - Tecla media carga mecanico – Mekanik yarı yük butonu

VO Tasto prelavaggio - Prewash pushbutton - Touche prelavage - Vorwashung taste - Tecla

prelavado – Ön yıkama butonu

VP Tasto marcia/arresto - On/Off button - Touche marche/arret - Ein/Aus Schalter - Tecla

marcha / parada - On/Off butonu

VQ Tasto unidirezionale cesto – Unidirectional tumbling pushbutton - Touche rotation

tambour unidirectionel - Taste für einseitige Trommeldrehung -Tecla unidireccional del

tambor – øki yöne sıkma butonu

2005

Page 22

VR Tasto economia - Economic washing pushbutton - Poussoir lavage economique -

Billigwasche Taste - Tecla economico – Ekonomik yıkama fonksiyonu

VS Tasto fermo con acqua in vasca (spull stop) - Stop with water in tub button (spull stop) -

Poussoir arret avec eau dans la cuve (spull stop) - Spull stop taste - Tecla flot – “Suda

bekletme” tuúu (sıkma durdurma)

VT Tasto 4° risciacquo - 4th rinse pushbutton - Touche de rincage - Spueltaste - Tecla

asclarado – 4’üncü durulama butonu

VU Tasto super rapido - Rapid program button - Touche super rapide - Super schnelltaste -

Tecla super rapido – Hızlı program butonu

VV Tasto cambio velocità - Speed change button - Poussoir changement de vitesse. -

Geschwindigkeitsaenderung Taste - Tecla cambio velocidad – Hız de÷iútirme butonu

VW Tasto "Softwasher" - "Softwasher" pushbutton - Poussoir "Softwasher" - "Softwasher"

Taste -Tecla "Softwasher" – “Softwasher” butonu

ZR Relè - Relay - Relais - Relais - Rele - Röle

ZT Trasformatore - Transformer - Transformateur - Transformator - Transformador - Trafo

ZW Filtro antidisturbi radio - Radio interference suppressor - Filtre anti-bruit radio -

Entstoerungsfilter - Filtro antiparasitario – Antiparazit filtre

2005

Page 23

TABELLA CORRISPONDENZA CONTATTI PRESSOSTATO E BLOCCAPORTA REFERENCE LIST FOR CONNECTIONS TO PRESSURE SWITCH AND DOOR

INTERLOCK TABLEAU DE CORRESPONDENCE POUR LES CONTACTS DU PRESSOSTAT ET

RETARDATEUR OVERTURE REFERENZEN LISTE FÜR DIE DRUCHWÄCHTER KONTAKTS UND OEFFNUNGS

VERSPATER TABLA DE CORRESPONDENCIA DE LOS CONTACTOS DEL PRESOSTATO Y

BLOCAPUERTA BASINÇ ùALTERø VE KAPI EMNøYET ùALTERøNE BAöLANTI øÇøN REFERANS

LøSTESø

C Contatto comune - Common lead - Contatct comun - Gemeinkontakt - Contacto comun –

Ortak uç Vuoto - Tub without water - Sans eau dans la cuve - Ohne wasser in dem Waschbottich -

Sin agua en la cuba – Tamburda su yok

P Pieno - Tub full of water - Avec eau dans la cuve - Mit wasser in dem Washbottich - Con

agua en la cuba – Tambur su dolu Antitrabocco - Anti-overflow device - Antidebordage - Antiuberlaufener -

Antidesbordamiento – Taúma önleyici úalter

A B

C 11 11 V 12 12 P 14 13 A 16 /

C 21 21 V 22 22

P 24 23 A / 24

Il contatto 16 della versione "A" corrisponde al

contatto 24 della versione "B".

Contact 16 of "A" version corresponds to contact

24 of "B" version.

Le contact 16 de la version "A" correspond au

contact 24 de la version "B".

Der Kontakt 16 von "A" Version bezhalt der

Kontakt 24 von "B" Version.

El contacto 16 de la version "A" corre-sponde al

contacto 24 de la version "B".

16 kontaklı A versiyonu 24 kontaklı B

versiyonuna karúılık gelmektedir.

2005

Page 24

ll contatto L della versione "A" corrisponde al contatto 3 della versione "B".

Contact L of "A" version corresponds to contact 3 of "B" version. Le contact L de la version "A" corre- spond au contact 3 de la

version "B". El contacto L de la version "A" corresponde al contacto 3 de la

version "B". Der Kontakt L von "A" Version bezhalt der Kontakt 3 von "B"

Version.

“A” versiyonunun L konta÷ı “B” versiyonunun 3 konta÷ına karúılık

gelmektedir.

A AZZURRO AÇIK MAVĀ B BLU MAVĀ C CREMA KREM F ROSA PEMBE G GRIGIO GRĀ K PONTE KÖPRÜ M MARRONE KAHVERENGĀ N NERO SĀYAH O ARANCIO TURUNCU P VERDE YEāĀL R ROSSO KIRMIZI V VIOLA MOR Y GIALLO SARI

W BIANCO BEYAZ

2005

Page 25

Page 26

Page 27
