Page 1
-- mlH-- _-
_ L __ EEE IW_ L.
®
TM
Deep Cleaner with Auto
The
Easy to Use Deep Cleaner
Rinse
ENGLISH ,._ pp. 1-17
ESPAI_OL ,._ pag. 18-27
FRAN(_AIS ,._ p. 28-37
SteamVac TM V2 TM Deep Cleaner cleans carpet fibers by
applying hot tap water and cleaning solution.
www, hoover,co m
Page 2
Important Safeguards!
When using an electrical appliance, always follow basic precautions, including
the following:
READ ALL INSTRUCTIONS BEFORE USING APPLIANCE.
WARNING:
To reduce the risk of fire, electric
shock, or injury:
• Use indoors only.
• Use only on surfaces moistened by
the cleaning process. Do not immerse
product.
• Connect to a properly grounded
outlet only. See "Grounding
Instructions".
• Do not clean over floor electrical
outlets.
• Do not use without tanks in place.
• Use extra care when cleaning on
stairs. Do not place deep cleaner on
stairs.
• Use deep cleaner only for its
intended use as described in the
instructions.
• Use only attachments recommend-
ed by The Hoover Company; others
may cause hazards.
• The use of an extension cord is not
recommended. If an extension cord is
absolutely necessary, use at least a
16 gauge 3-wire cord which has a 3-
prong grounding type plug and a 3-
pole receptacle that accepts the
machine plug.
• Unplug deep cleaner when not in
use. Turn off all controls before
unplugging.
• Unplug before connecting the pow-
ered hand tool.
• Always disconnect cord from electri-
cal outlet before servicing the deep
cleaner.
• Do not unplug by pulling on cord.
To unplug, grasp the plug, not the
cord.
• Never handle plug or appliance
with wet hands.
• Do not pull or carry by cord, use
cord as a handle, close door on cord
or pull cord around sharp edges or
corners. Do not run appliance over
cord. Keep cord away from heated
surfaces.
Save these instructions!
• Do not use with damaged cord or
plug. If appliance is not working as it
should, has been dropped, damaged,
left outdoors, or dropped into water,
take it to a Hoover Factory Service
Center or Authorized Hoover Warranty
Service Dealer.
• Close supervision is necessary
when any appliance is used by or
near children. Do not allow deep
cleaner to be used as a toy or to run
unattended at any time.
• Do not point tools toward people or
pets.
• Use only commercially available
Hoover SteamVac TM cleaners intended
for machine application. Do not use
any type of wax with deep cleaner.
• Keep detergents and other cleaners
out of children's reach.
• Do not use to pick up flammable or
combustible liquids such as gasoline
or use in areas where they may be
present.
• Do not pick up chlorine bleach,
drain cleaner, gasoline or any other
toxic material with this appliance.
• Do not pick up anything that is
burning or smoking, such as ciga-
rettes, matches, or hot ashes.
• Avoid picking up hard, sharp
objects with the deep cleaner. They
may damage the machine.
• Keep hair, loose clothing, fingers,
feet and all parts of body away from
openings and moving parts.
• Do not put any object into open-
ings. Do not use with any opening
blocked; keep free of dust, lint, hair,
and anything that may reduce air flow.
• To help prevent matting and resoil-
ing, avoid contact with carpets until
they are dry. Keep children and pets
away from carpets until they are com-
pletely dry.
• Store in a dry place. Do not expose
machine to freezing temperatures.
Grounding
Instructions
A °(7)
C
This appliance must be grounded. If it
should malfunction or breakdown,
grounding provides a path of least resis-
tance for electrical current to reduce the
risk of electric shock. This appliance is
equipped with a cord having an equip-
ment-grounding conductor (C) and
grounding plug (A). The plug must be
plugged into an appropriate outlet (B)
that is properly installed and grounded
in accordance with all local codes and
ordinances.
DANGER-
Improper connection of the equipment-
grounding conductor can result in the
risk or electric shock. Check with a qual-
ified electrician or service person if you
are in doubt as to whether the outlet is
properly grounded. Do not modify the
plug provided with the appliance - if it
will not fit the outlet, have a proper outlet
installed by a qualified electrician. This
appliance is for use on a nominal 120
volt circuit and has a grounding plug
that looks like the plug illustrated in
sketch (A).
A temporary adapter (D) may be used to
connect this plug to a 2-pole receptacle
(E) if a properly grounded outlet is not
available. The temporary adapter should
be used only until a properly grounded
outlet (B) can be installed by a qualified
electrician. The green colored rigid ear,
lug, or the like (F) extending from the
adapter must be connected to a perma-
nent ground (G) such as a properly
grounded outlet box cover. Whenever
the adapter is used, it must be held in
place by a metal screw. NOTE: In
Canada, the use of a temporary adapter
is not permitted by the Canadian
Electrical Code.
Page 3
Thank you for choosing a HOOVER product.
If you need any assistance:
Visit our website at www.hoover.com Click on the "Service" button to find
the service outlet nearest you OR
Call 1-800-944-9200 for an automated referral of service outlet locations (U.S.
only) OR
Call 1-330-499-9499 to speak with a representative in our Consumer
Response Center.
PLEASE DO NOT RETURN THIS PRd)DUCT TO THE STORE.
Fill in and Save
Please enter the COMPLETE model and serial numbers in the spaces provided
and save.
The model and serial numbers are located on the data label on the back of the
handle.
Model No.
Serial No.
Hint: Attach your sales receipt to this owner's manual.
Verification of date of purchase may be required for warranty service of your
Hoover product.
Contents
Important safeguards .......... 2
Parts needed for assembly ....... 3
Assembling deep cleaner ...... 3-5
Deep cleaner description ........ 6
General operation ............ 6-8
Filling the clean water tank ... 7-8
Emptying the recovery tank .... 8
Brush speed selector ......... 7
Automatic shut-off ............ 7
How to use
Before you begin ............ 9
After cleaning ............. 9-10
Cleaning carpet ............. 10
Cleaning bare floors ......... 11
Using the tools .......... 11-13
Cleaning carpeted stairs ..... 13
Cleaning upholstery ....... 14
If you have a problem ......... 15
Lubrication .................. 15
Service ..................... 15
Storage ..................... 15
Warranty .................... 16
Parts needed for assembly
i
B
A
A. Deep cleaner
B. Upper handle
C. Handle bolts and nuts (in bag with hose)
D. Hose/cord hook
E. Hose/tool caddy
F. Hose
G. Utility tool
© 2002 The Hoover Company
www.hoover.com
Accessories - vary by model
H I J
0
M
Not all accessories are included with every
model.
H. Carpet/Upholstery Detergent
I. Bare Floor Cleaner
J. Pre-cleaner
K. Bare floor tool
L. SpinScrub TM hand tool
M. Scrub module
N. Stair/upholstery nozzle
O. Crevice tool
Accessories not included with your model may be
purchased separately using the order form located at
the center of this manual.
Page 4
Theassembled cleaner will look like this
drawing. Model with SpinScrub TM hand
tool is shown.
|B]
II
I
With cord hook (D) to back of deep cleaner,
push upper handle down onto lower
handle.
Attach upper handle
Remove clean water tank (upper tank)
from deep cleaner.
Jill
Push bolts into holes on front of handle. If
bolts will not go through h01e easily, han-
dle is not pushed completely down.
Place nuts in recessed areas on back
of the handle. Hold each nut in place
while tightening each bolt securely (from
the front of the handle) with a Phillips
screw driver.
Only two nuts are needed on this model.
The extra nut is not required but has
been provided for your convenience.
NOTE: If the cord protector (A) on back
of handle should become dislodged
during unpacking, make sure it is repo-
sitioned properly before continuing
with assembly or your deep cleaner.
With the arrow (B) on the cord protector
pointing down, press groove (C) in the
cord protector into slot in the lower
handle.
Replace clean water tank (upper tank)
by positioning bottom first. Press tank
into place.
Attach hose/cord
hook
Insert tabs on hook into slots on back of
cleaner. Snap hook onto cleaner.
A
Attach hose/tool caddy
The hose/tool caddy is designed to be
used either on the cleaner for easy
access to the tools and hose, or if the
tools are not going to be used, it can be
removed and hung for storage.
If you do not want to attach the caddy to
the cleaner at this time, proceed to Fig.
1-10 for proper hose placement on the
caddy.
JR=]
Slide tabs (E) on caddy into slots (F)on
back of Gleaner.
Page 5
imJ
|1ram)
+
Rotate top of caddy toward cleaner
handle. Slide caddy down so notch (G)
on caddy rests in hook (m) on cleaner.
Press hose into opposite side of caddy.
Loop hose at bottom of cleaner and
press into top of hook (K).
Identify the hose parts before storing
hose.
I. Nozzle connector end
g. Solution tube
Loop hose over top of caddy again.
Slide hose clip (h) toward end of hose.
Snap tab (M) on hose connector into
hose clip.
Storing hose and
tools
Press hose, a few inches from nozzle
connector end (I), into caddy. Bring
hose up and over top of caddy.
|mR!|mVA
Repeat on other end of hose.
Press solution tube (J) into opposite side
of clip.
Snap stair/upholstery nozzle onto
caddy.
Insert top of bare floor tool (available at
additional cost if not included with your
cleaner) through "loop" on caddy. Slide
tool down into place.
Iron
SpinScrub TM hand tool
(not included with all models)
The SpinScrub TM hand tool is shipped in
a plastic bag for protection. To remove
the bag before using the tool, open tool
door.
Continued
5
Page 6
|ml=3
m
Pull tool down and outward.
To reposition the tool, reverse this proce-
dure.
How to reattach tool
cover
The tool cover is designed with a break-
away feature which allows it to snap free
if it is pushed open too faF.
To reattach, align hinges of cover with
holes on sides of tool storage area.
Snap door into place.
Page 7
Deep
Pill
Cleaner Description
3%
10-,,.
11--.
16,
ii11_
14
13
"_- 21
12
The assembled deep cleaner will look like the drawing.
Model with SpinScrub TM hand tool is shown.
1. Hand grip
2. Solution trigger: press to release cleaning
solution
3. ON/OFF switch
4. Rinse Setting switch
5. SpinScrub TM hand tool (not included with all
models)
6. Carrying handle
7. Clean water tank handle
8. Clean water tank
9. Detergent container
10. Recovery tank handle
11. Recovery tank: holds dirty solution
12. Recovery tank latches
13. Brush setting selector
14. Solution tube connection port
15. Nozzle
16. Hose connection port
17. Cord hook: rotates for quick cord release
18. Hose
19. Hose/tool caddy
20. Stair/upholstery nozzle
21. Bare floor tool (available at additional cost if
not included with your cleaner)
22. Cord/hose hook
23. Handle release pedal
ON/OFF switch
To turn cleaner ON, push switch down.
To turn cleaner OFF, push switch up.
This deep cleaner is intended for household
use.
Operate deep cleaner only at voltage specified
on data plate on back of cleaner. Plug deep
cleaner into a properly grounded outlet.
Handle release pedal
Step on pedal (A) to lower handle to
operating position. Handle does not lock
into a single position but "floats" to allow
convenient operation.
m
To transport
To rnove your deep cleaner from room to
room, put handle in upright and locked
position, tilt deep cleaner back on
wheels and push forward.
Continued _ 7
Page 8
m m
Carrying handle
The deep cleaner may also be lifted by
placing a hand above the upper Glean
solution tank handle as shown.
Automatic shut off
When the recovery tank (lower tank) is full
the automatic shutoff mechanism will shut
off the deep cleaner suction (suction will
be noticeably reduced).
At that time, the yellow float disk will rise
to the top of the recovery tank lid (B).
The deep cleaner will no longer pick up
dirty solution and the motor sound will
become noticeably higher in pitch.
When this happens, turn deep cleaner
off and empty recovery tank berore
continuing use.
Check clean water tank also; it may
need to be refilled.
Do not use without float and float
retainer in place. If broken or dis-
lodged, take to an Authorized Hoover
Service Center or Dealer for repair.
Brush setting selector
Your 'SteamVac' deep cleaner has two
agitator brush settings.
ON - for cleaning of carpet and bare
floors
OFF - for cleaning carpets and bare
floors when brushing is not desired.
Slide selector button to the desired set-
ting before cleaning.
Rinse Setting switch
Use this switch to select a wash with
rinse setting or a rinse only setting.
WASH-AutoRinse - This setting cleans
your carpet with detergent and water on
the forward stroke. On the reverse
stroke, a water=only rinse is applied
automatically.
RINSE - This setting applies water-only
rinse in both the forward and reverse
strokes.
See "How to clean" section for more
details.
The tanks
Clean water tank
(upper tank)
The clean water tank (C) holds the water
that will either be mixed with detergent
for cleaning the carpet or floor, or used
to rinse the carpet or floor.
The detergent container (U) is perma-
nently attached to the water tank. It
holds the detergent that mixes with the
welter.
mow to fi I I
Unplug deep cleaner from electrical
outlet.
Place deep cleaner handle in the
upright, locked position.
To remove tank, press down on tank
handle and pull forward.
Page 9
_,lll]P_III|1
F_
Carry tank to a sink.
Turn tank cap counterclockwise and
remove Gap.
Fill container (16 oz.) with HOOVER
Carpet/Upholstery Detergent or
HOOVER Bare Floor Cleaner.
Do not use Bare Floor Cleaner on carpet or
upholstery. DO not use any type of wax
with your 'SteamVa c 'deep cleaner.
To assure proper results, use 0nly
HOOVER detergent.
Replace container Gap and tighten.
Fill tank (E) (1 gallon) with hot tap welter.
Replace tank cap and tighten.
NOTE: Use only HOOVER detergents.
They are specially formulated for use
with your 'SteamVac' deep cleaner.
CAUTION: Detergents contain
Anionic and Nonionic Surfactants.
Avoid contact with eyes and skin. In
case of contact with eyes, flush with
cold water for 15 minutes. In case of
contact with skin, wash with water. If
irritation persists, call a physician.
For Medical Information (U.S.) call
1-800-752-7869.
To fill detergent container (F), turn cap
counterclockwise and remove cap.
Position bottom of tank onto cleaner and
pivot tank to snap it into place.
Recovery tank
(lower tank)
The recovery tank holds the dirty solu-
tion that is picked up from the surface
being cleaned.
When the recovery tank is full, the auto-
matic shut-off will engage, suction will
stop (see page 7), and the tank must be
emptied.
How to empty
Turn deep cleaner off and unplug
from electrical outlet.
To prevent possible leaking, remove
clean water tank (Fig. 2-10) by pressing
down on tank handle and pulling for-
ward; set tank aside (do not set tank
on furniture).
Step on handle release pedal (Fig. 2-3)
and lower handle until it rests on the
floor.
Turn recovery tank latches (G) outward
(one on each side of tank).
Raise handle (m) straight up and lift tank
off Gleaner.
Carry tank to sink or drain.
Lower handle toward back of tank to
unlock lid. Lift lid off tank.
Empty tank and reposition lid.
For full suction, it is important that
the recovery tank lid is properly
secured before cleaning.
Raise tank handle to carrying position
and place it onto deep cleaner. Lower
handle to front of tank.
Turn latches (one on each side of tank)
inward to lock tank in place.
Raise handle of deep cleaner to upright
position and reposition upper Glean
water tank. Continued -I_ 9
Page 10

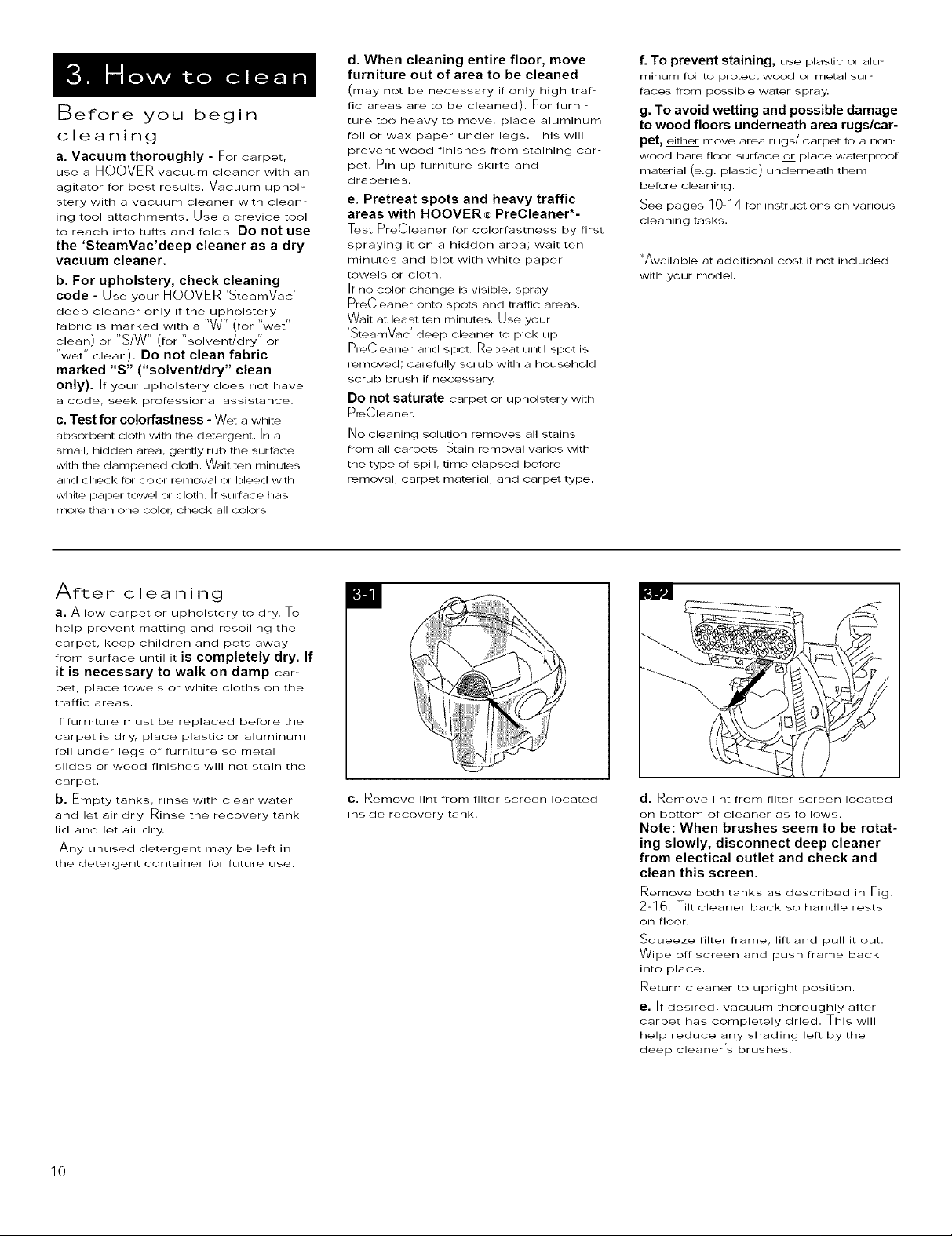

Before you begin
cleaning
a. Vacuum thoroughly - For carpet,
use a HOOVER vacuum cleaner with an
agitator for best results. Vacuum uphol-
stery with a vacuum Gleaner with clean-
ing tool attachments. Use a crevice tool
to reach into tufts and folds. DO not use
the 'SteamVac'deep cleaner as a dry
vacuum cleaner,
b. For upholstery, check cleaning
code - Use your HOOVER 'SteamVac'
deep Gleaner only if the upholstery
fabric is marked with a "W" (for "wet"
clean) or "S/W" (for "solvent/dry" or
"wet" clean). Do not clean fabric
marked "S" ("solvent/dry" clean
only). If your upholstery does not have
aJ code, seek professional _ssistance.
c. Test for colorfastness - Wet a white
absorbent cloth with the detergent. In a
small, hidden area, gently rub the surf;_ce
with the dampened clotYl. W_lit ten minutes
and check for color removal or bleed with
white paper towel or cloth. If surface has
more than one color, check all colors.
d. When cleaning entire floor, move
furniture out of area to be cleaned
(may mot be necess_ry if only high traf-
fic areas are to be cle;ined). For furni-
ture too heaJvy to move, place aluminum
foil or wax paper under legs. This will
prevent wood finishes from staining car-
pet. Pin up furniture skirts and
draperies.
e. Pretreat spots and heavy traffic
areas with HOOVER ® PreCleaner*-
Test PreOleaner for colorfastness by first
spraying it on a hidden area; wait ten
minutes and blot with white paper
towels or cloth.
If no color change is visible, spray
PreOleaner onto spots and traffic areas.
Wait at least ten minutes. Use your
'SteamVac' deep cleaner to pick up
PreOleaner and spot. Repeat until spot is
removed; carefully scrub with a household
scrub brush if necessary.
Do not saturate carpet or upholstery with
PreOleaner.
No cleaning solution removes all stains
from all carpets. Stain removal varies with
the type of spill, time elapsed before
removal, carpet material, and carpet type.
f. To prevent staining, use plastic or alu-
minum foil to protect wood or metal sur-
faces from possible water spray.
g. To avoid wetting and possible damage
to wood floors underneath area rugs/car-
pet, either move area rugs/carpet to a non-
wood bare floor surf_lce or place waterproof
material (e.g. plastic) underneath them
before cleaning.
See pages 10-14 for instructions on various
cleaning tasks.
_Available at additional cost if not included
with your model.
After cleaning
a, Allow carpet or upholstery to dry. To
help prevent matting and resoiling the
carpet, keep children and pets away
from surface until it is completely dry. If
it is necessary to walk on damp car-
pet, place towels or white cloths on the
traffic areas.
If furniture must be replaced before the
carpet is dry, place plastic or alurninum
foil under legs of furniture so metal
slides or wood finishes will not stain the
carpet.
b. Empty tanks, rinse with clear water
and let air dry. Rinse the recovery tank
lid and let air dry.
Any unused detergent may be left in
the detergent container for future use.
- °I
C. Remove lint from filter screen located
inside recovery tank.
d. Remove lint from filter screen located
on bottom of cleaner as follows.
Note: When brushes seem to be rotat-
ing slowly, disconnect deep cleaner
from electical outlet and check and
clean this screen.
Remove both tanks _s described in Fig.
2-16. Tilt cleaner back so handle rests
on floor.
Squeeze filter frame, lift and pull it out.
Wipe off screen and push frame back
into place.
Return Gleaner to upright position.
e, If desired, vacuum thoroughly after
carpet has completely dried. This will
help reduce any shading left by the
deep cleaner's brushes.
10
Page 11
To clean nozzle
If lint or other debris becornes lodged in
nozzle, it can be removed for cleaning.
m x
Unplug deep cleaner from electrical
outlet.
Rernove both tanks as described in Fig.
2-16. With handle in upright position, tilt
cleaner back so that handle rests on the
floor.
LiP up rear edge of nozzle. Slide nozzle
up and remove from cleaner.
Read "Before you begin cleaning"
instructions on page 9.
1. Fill clean w_ter t_nk according to
instructions for Figs. 2-9 to 2-12.
2. Fill detergent container with HOOVER
Carpet/Upholstery Detergent according
to instructions for Figs. 2-13 to 2-15.
3. Turn brushes ON or OFF as desired.
4. Dry hands and plug cord into a prop-
erly grounded outlet.
Do not clean over floor electrical out-
lets.
5.To_lvoid walking on damp carpet,
start at the end of the room farthest from
the door or path to sink where tanks will
be emptied and filled.
Step on handle release pedal and lower
handle to operating position.
6. Set Rinse Setting switch to WASH-
Aut0Rinse. Turn cleaner ON (Fig. 3-5).
7. Squeeze trigger to release cleaning
solution and slowly push deep cleaner
forward (equals one wet stroke).
8. Continue to squeeze trigger and
slowly pull deep cleaner back toward
To replace nozzle, line up tabs (A) on
nozzle with holes (B) in cleaner. Slide
tabs into holes.
Slide nozzle completely onto cleaner.
Press down on nozzle to secure it.
Replace recovery tank (Fig. 2-17).
The nozzle must be in the proper
position in order for the recovery tank
to go on properly.
Raise cleaner to upright position and
replace clean water tank (Fig. 2-15).
you (second wet stroke). The deep
cleaner rinses the carpet on the back-
ward pass. Note: T0 assure proper
rinsing, it is important to keep the
deep cleaner 0n the same path back-
ward as forward.
9. Release trigger and slowly push deep
cleaner forward over areajust sprayed
with solution (dry stroke). Then slowly
pull deep cleaner back toward you with-
out squeezing trigger (dry stroke).
Continue using dry strokes until little
water is visible passing through the
recovery tank lid.
AUTO
WASH RINSE
10. For best results, use straight, paral-
lel strokes as shown in the diagram
below. Overlap strokes by 1 inch to help
prevent streaking.
Keep nozzle flat on floor for both for-
ward and reverse strokes.
Ill
I
11. If you would like to rinse the carpet
with water only, set Rinse Setting switch
to RINSE (Fig. 3-8). Repeat steps 7-9. In
this setting, rinsing will be done on both
forward and reverse strokes.
Rinsing is not necessary, but will help
remove detergent residue and help your
carpet look fresher.
12. For heavily soiled areas, repeat
steps 6-9. Avoid saturating carpet, as
noted below.
Note: T0 avoid saturating carpet, do
not use more than 4 wet strokes over
one area. Always end with dry
strokes.
It is best to alternate wet and dry strokes
as described above.
For best cleaning results and to aid in
faster drying of carpet, end with more
dry strokes. (Continue using dry strokes
until little water is visible passing through
the recovery tank lid.)
13. Empty recovery tank when the
motor sound becomes higher pitched
and there is a loss in suction (see
"Automatic shut=off", Fig. 2-6).
When finished cleaning, follow "After
cleaning" instructions on pages 9 &q0.
Continued all, 11
Page 12
How to attach bare floor
attachment
(Available at additional cost if mot includ-
ed with your cleaner.)
Unplug deep cleaner from electrical
outlet.
Toprevent possible leaking, remove
clean water tank (Fig. 2-10) and recov-
ery tank (Fig. 2-16) before positioning
bare floor attachment.
Set tanks aside (do not set tank on furni-
ture).
1. With handle in upright position, tilt
cleaner back so that handle rests on the
floor.
2. With foam strip (C) (located under the
netting) in position as shown, place
attachment on front or nozzle (U).
Make sure arrow on end of attachment
points in the direction as shown.
3. Push attachment against nozzle while
rotating attachment downward until both
ends snap into place.
(Note: Some force may be required to
rotate and snap attachment into place.)
4. Return deep cleaner to upright posi-
tion. Lower handle and replace recovery
tank.
5. Raise handle to upright position and
reposition clean water tank.
To clean floor
Read "Before you begin cleaning"
instructions on page 9.
Do not use the deep cleaner on hard-
wood floors.
1. Fill clean water tank according to
instructions for Figs. 2-9 to 2-15.
2. Fill detergent container with HOOVER
Bare Floor Cleaner according to instruc-
tions for Figs. 2-13 to 2-15.
3. Turn brushes ON for scrubbing or
OFF if scrubbing is not desired.
4. Dry hands and plug deep cleaner
into a properly grounded outlet.
5. Step on handle release pedal and
lower handle to operating position.
6. Set Rinse Setting switch to WASH-
Aut0Rinse. Turn cleaner ON.
7. To release solution, press trigger.
Slowly move deep cleaner forward and
backward over area to be cleaned.
Water and detergent will be released on
the forward stroke. A water-only rinse will
automatically be released on the reverse
stroke.
8. To pick up dirty solution, release trig-
ger and slowly move deep Gleaner over
area where solution has just been dis-
persed. Use both forward and reverse
strokes.
9. If rinsing the floor is desired, set Rinse
Setting switch to RINSE. Repeat steps 7
& 8. This setting provides a water-only
rins in both the forward and reverse
strokes.
Rinsing is not necessary, but will help
remove detergent residue from the floor.
10. Empty recovery tank when the
motor sound becomes higher pitched
and there is a loss in suction (see
"Automatic shut-off", Fig. 2-6).
11. When finished cleaning, follow "After
cleaning" instructions on pages 9 & 10.
Unplug deep cleaner from electrical
outlet and remove attachment from noz-
zle. Rinse it in clear water. Do not
remove plastic screen or foam from
attachment,
Attach hose
Unplug cleaner from electrical outlet.
Open hose connection port (E).
12
Insert short hose end, matching tabs on
hose with same-sized slots in port.
Plug solution tube firmly into solution
connection port (F).
Page 13
Select tool
Your model includes some combination
of the following tools, but may not
include them all.
IlIM_!
I
G. SpinScrub TM hand tool has rotating
brushes for extra scrubbing action on
small carpet areas, carpeted stairs and
upholstery. For some models, the
brushes can be removed for converting
to the scrub module.
H. Stair/upholstery nozzle has a built-in
brush to help provide the scrubbing
action some spots may need for
removal.
I. Scrub module with detachable
scrub pad attaches to the base of the
SpinScrub TM hand tool (in place of brush
module). Can be used to scrub stub-
born areas such as scuff marks, dried
spills, and in hard to reach areas on
hard surfaces.
J. Crevice tool can be used to clean
along edges of carpet, carpeted stairs
and on upholstery.
How to attach tools
llll_
Unplug deep cleaner from electrical
outlet.
l. Place handle in upright position and
rerTiove hose from rPick.
All tools attach to the hose in the same
manner:
2. Connect tool to hose by sliding it onto
connector until the tab (J) locks it
securely.
Using your thumb, push forward and
up on the latch (K) to remove tool.
After using tool
Drain suction hose by turning deep
cleaner ON and holding nozzle up for
several minutes. D0 not press trigger.
Unplug deep cleaner from electrical
outlet.
Disconnect hose and solution tube
from deep cleaner.
Drain solution tube by placing round
end in sink and raising nozzle above
your head. Press the trigger.
The tool caddy can be removed and
hung on a coat hanger for storage.
Continued _ 13
Page 14
Attaching scrub module
Available at additional cost if not includ-
ed with your cleaner.
1. Open the tool door and remove the
SpinScrub TM hand tool.
2. Grasp the sides of the brush module
and lift it from the base (h).
3. Snap scrub module onto the base.
Note: If may be necessary to rotate the
scrub module (M) slightly so it will align
properly to the base.
Using the scrub tool
With a little solution, test the scrub
tool on a hidden area before using on
the desired surface. If no surface
change is visible, continue to use as
described below.
1. Att_ch hose and solution tube as
instructed in Figs. 3-11 to 3-13.
2. Place handle in upright position.
3. Fill clean water tank according to
instructions for Figs. 2-9 to 2-12.
4. Fill detergent container with HOOVER
Bare Floor Cleaner according to instruc-
tions for Figs. 2-13 to 2-15.
5. Attach tool to end of hose.
6. Hold scrub tool above area to be
cleaned and press trigger to dispense
solution.
7. Release trigger and scrub area with
tool. Pick up dirty solution with
squeegee as shown.
After using scrub tool
To clean scrub pad, pull it off module.
Wash it in water with mild detergent.
Rinse and let air dry. Pad must be corm
pletely dry before reattaching to module.
Replacement pads may also be pur-
chased. Ask for HOOVER part no.
40308001.
Read "Before you begin cleaning"
instructions on page 9.
1. Attach hose and solution tube as
instructed in Figs. 3-11 to 3-13.
2. Place handle in upright position.
Agitator brushes will not rotate while
handle is in upright position.
3. Fill Glean water tank according to
instructions for Figs. 2-9 to 2-12.
4. Fill detergent container with HOOVER
Carpet/Upholstery Detergent according
to instructions for Figs 2-13 to 2-15.
5. Attach tool to end of hose.
6. Hose length may require that
machine be placed at the top of the
stairs to clean upper half of stairway
and at bottom of stairs to clean lower
half.
To prevent machine from falling, use
extra caution when cleaning on stairs.
Do not place deep cleaner on stairs.
Do not point tools toward people or
pets.
7. Dry hands and plug deep cleaner
into a properly grounded outlet.
8. Set Rinse Setting switch to WASH-
AutoRinse. Turn cleaner ON.
Note: "Auto-rinse" and rinse are not
available during tool use. The hose will
only dispense water mixed with deter-
gent.
J_J
9. Pre-spray the carpeted stair by hold-
ing the tool (A) or (B) about one inch
above the carpet and push it forward
while pressing the trigger (equals one
wet stroke).
10. Position tool against the riser and slightly
press it into carpet pile. Press the trigger
and pull the tool slowly over the carpet
(second wet stroke). Release trigger at end
of stroke.
11. Lift tool, and position it against riser.
Pull tool SlOWly over carpet without
pressing trigger (dry stroke).
12. Overlap strokes by 1/2 inch to help
prevent streaking.
It is best to alternate wet and dry
strokes as described above. End with
more dry strokes to aid in faster drying
of carpet.
To avoid saturating carpet, do not use
more than 4 wet strokes over any one
area. Always end with dry strokes.
if additional Gleaning is necessary, wait
until the carpet is completely dry before
using the tool again.
1 3. Empty recovery tank when the motor
sound becomes higher pitched and
there is a loss in suction (see "Automatic
shut-off", Fig. 2-6).
When finished Gleaning, follow "After
cleaning" instructions on pages 9 & 10
and "After using tool" instructions on
page 13.
14
Page 15
Read "Before you begin cleaning"
instructions on page 9.
Be sure to check the cleaning code on
your upholstery. Use your deep cleaner
only on upholstery marked "W" or
"W/S".
1. Attach hose and solution tube as
instructed in Figs. 3-11 to 3-13.
2. Place handle in upright position.
Agitator brushes will not rotate while
handle is in upright position.
3. Fill Glean water tank according to
instructions for Figs. 2-9 to 2-12.
4. Fill detergent container with HOOVER
Carpet/Upholstery Detergent according
to instructions for Figs. 2-13 to 2-15.
5. Attach tool to end of hose.
Do not point tools toward people or
pets.
6. Dry hands and plug deep cleaner
into a properly grounded outlet.
7. Set Rinse Setting switch to WASH-
AutoRinse. Turn cleaner ON.
Note: "Auto-rinse" and rinse are not
available during tool use. The hose will
only dispense water mixed with deter-
gent.
8. Gently press the tool onto the fabric.
Press the trigger and slowly pull the noz-
zle over the fabric.
9. Overlap strokes by 1/2 inch to help
prevent streaking.
Make additional strokes without pressing
the trigger to remove more moisture.
10. To clean in corners or creases, lift
the tool one-half inch from the fabric and
press the solution trigger.
11. Vacuum up the solution with the tool
without pressing the trigger.
12. For heavily soiled areas, it may be
necessary to repeat the cleaning
process. Make crisscrossing strokes to
the original pattern; overlap each pass
(Fig. 3-23).
Make no more than 2 passes with the
solution or rinse over any one area to
prevent over-wetting and damage to
fabric.
Ir _ldditional cleaning is necessary, wait
until the upholstery is completely dry
before using the tool again.
13. Empty recovery tank when the motor
sound becomes higher pitched and
there is a loss in suction (see "Automatic
shut-oft", Fig. 2-6).
When finished cleaning, follow "After
cleaning" instructions on pages 9 & 10
and "After using tool" instructions on
page 12.
Removable brushes
Your deep Gleaner is equipped with
removable brushes for easy cleaning.
To remove brushes
Disconnect cleaner from electrical
outlet,
To prevent possible leaking, remove
clean water tank and recovery tank. Set
tanks aside.
With handle in upright position, tilt
cleaner back until handle rests on the
floor.
m
Grab brush assembly and pull firmly.
The brushes can be cleaned under run-
ning water.
B D B
To replace brushes
Align posts (A) on both ends of brush
assembly with slots (B) in cleaner hous-
ing.
Make sure that the square post (C) also
aligns with the square hole (D). Turn
brushes slightly until post fits easily into
hole.
Press brush assembly firmly to snap into
place.
Continued _ 15
Page 16
Storage
Before storing:
• Empty Glean water tank and let air
dry. Replace on deep cleaner.
• Unused detergent can be stored in
the detergent container.
• Empty recovery tank, rinse tank
and lid thoroughly with clean water
and let air dry.
Allow brushes and underside of deep
cleaner to air dry thoroughly before
storing deep cleaner on a carpeted or
wood surface.
Do not store deep cleaner with a full
clean water tank in place.
Lubrication
The motor is equipped with bearings
which contain sufTioient lubrication for
the life of the motor. The addition of
lubricant could cause damage. DO not
add lubricant to motor bearings.
If a minor problem occurs, it usually can
be solved quite easily when the cause is
found by using the check list below.
Possible cause
Possible solution
• Not firmly plugged in
• Plug unit in firmly
• No voltage in wall receptacle
• Check fuse or breaker
• Blown fuse/tripped breaker
• Replace fuse/reset breaker
Possible cause
Possible solution
• Recovery tank full/automatic shut
off engaged
• Remove and empty recovery tank
• Blockage in tool on end of hose
• Remove tool and clear blockage
• Recovery tank lid not on correctly
• Make sure lid is on securely
• Water tank empty, but detergent
remains
• Fill welter tank
Service
To obtain approved HOOVER service
and genuine HOOVER parts, locate the
nearest Hoover Factory Service
Center or Authorized Hoover
Warranty Service Dealer (Depot) by:
• checking the Service section of The
Hoover Company on-line at
www.hoover.com OR
• checking the list of Factory Service
Centers provided with this cleaner
OR
• checking the Yellow Pages under
"Vacuum Cleaners - Household" OR
• calling 1-800-944-9200 for an
automated referral of authorized
service outlet locations (U.S. only).
Do not send your cleaner to The Hoover
Company in North Canton for service,
this will only result in delay.
If further assistance is needed, contact
The Hoover Company Consumer
Response Center, North Canton, Ohio
44720 Phone: 330-499-9499.
In Canada, contact Hoover Canada,
Burlington, Ontario L7R 4A8,
Phone: 1-800-263-6376.
Always identify your cleaner by the
complete model number when request-
ing information or ordering parts. (The
model number appears on the bottom of
the cleaner.)
Possible cause
Possible solution
• Clean water tank not firmly in place
• Make sure tank is securely locked in
position
• Clean water tank or detergent
container empty
• Refill container according to instruc-
tions for surface being cleaned
• Recovery tank lid not on
correctly
• Make sure lid is firmly in place
Possible cause
Possible solution
• Dirty filter screen on bottom of unit
• Clean screen as shown in Fig. 3-2
• Setting selector on OFF
• Move setting selector to ON
16
Page 17
Full One Year
Warranty
(Domestic Use)
Your HOOVER_R)appliance is warranted
in normal household use, in accordance
with the Owner's Manual against original
defects in material and workmanship for
a period of one full year from date of pur-
chase. This warranty provides, at no cost
to you, all labor and parts to place this
appliance in correct operating condition
during the warranted period. This war-
ranty applies when the appliance is pur-
chased in the United States including its
territories and possessions, or in Canada
or from a U, S, Military Exchange,
Appliances purchased elsewhere are
covered by a limited one year warranty
which covers the cost of parts only, This
warranty does not apply if the appliance
is used in a commercial or rental appli-
cation,
Warranty service can only be obtained
by presenting the appliance to one of
the following authorized warranty service
outlets. Proof of purchase will be
required before service is rendered.
1. Hoover Factory Service Centers.
2. Hoover Authorized Warranty
Service Dealers (Depots).
For an automated referral of autho-
rized service outlets in the U.S.A.,
phone 1-800-944-9200 OR
visit The Hoover Company on4ine at
www.hoover.com
This warranty does not cover pick up
delivery, or house calls; however, if you
mail your appliance to a Hoover Factory
Service Center for warranty service,
transportation will be paid one way.
While this warranty gives you specific
legal rights, you may also have other
rights which vary from state to state.
If further assistance is needed, or if
there are questions concerning this war-
ranty or the availability of warranty ser-
vice outlets, write or phone the
Consurner Response Center, The
Hoover Company, 101 East Maple St.,
North Canton, Ohio 44720,
Phone 1-330-49%9499.
In Canada, contact Hoover Canada,
Burlington, Ontario L7R 4A8,
1-800-263-6376.
17
Page 18
HOOVER _ _on marcas registradas
HOOVER and _})are registered trademarks
9-02 F7425-/30-900, F7440-980 Lithe USA 56518-151
HOOVER et rent des marques depose'.es
Loading...
