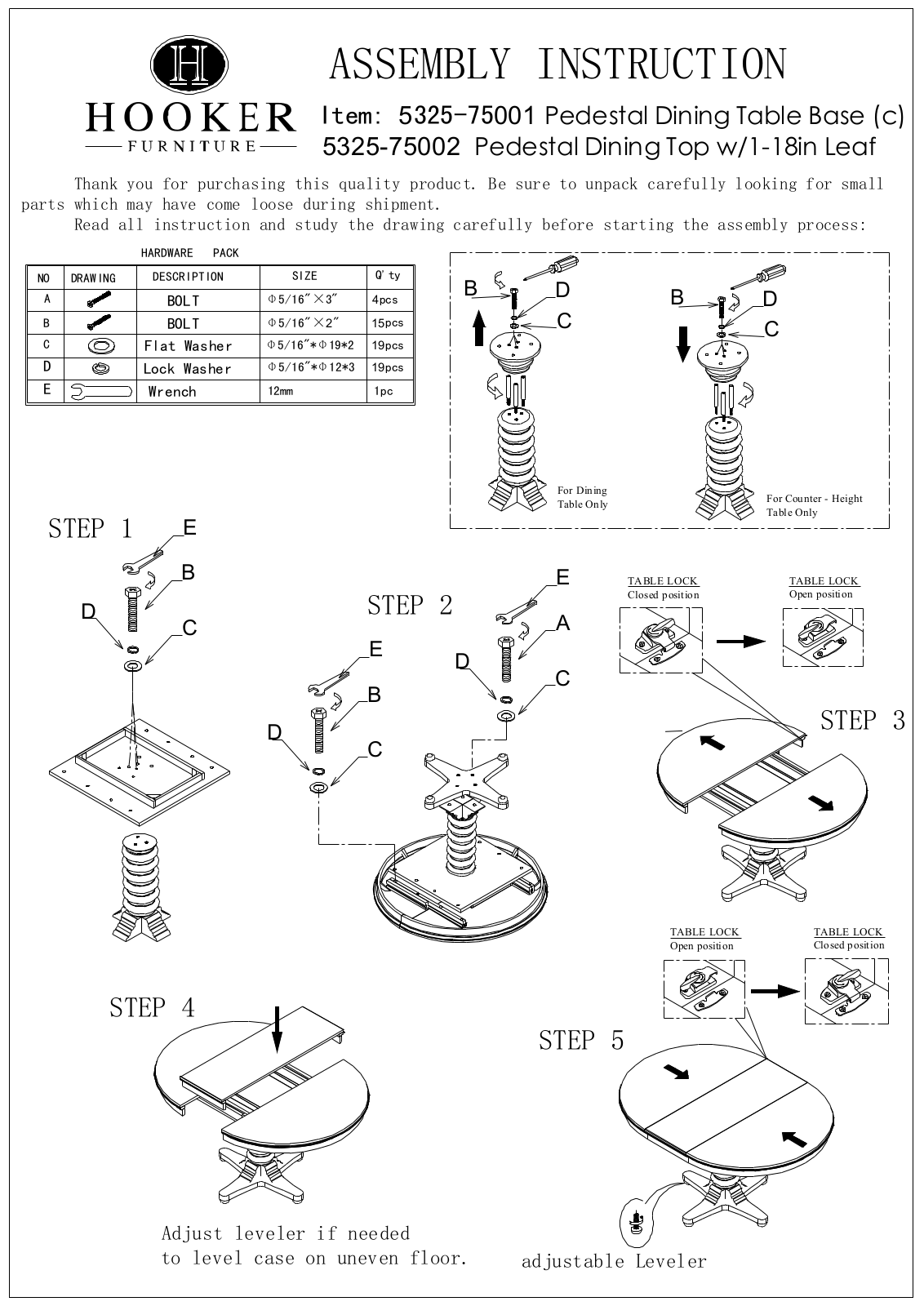

ASSEMBLY INSTRUCTION

Item: 5325-75

5325-75002

Pedestal Dining Top w/1-18in Leaf

001

Pedestal Dining Table Base (c)

Thank you for purchasing this quality product. Be sure to unpack carefully looking for small
parts which may have come loose during shipment.
Read all instruction and study the drawing carefully before starting the assembly process:

HARDWARE PA CK

DRAWING

NO

A

B

C

D
E

STEP 1

DESCRIPTION

BOLT

BOLT
Flat Washer
Lock Washer

Wrench

E

SIZE

Φ

5/16"×3"

×

Φ

5/16"

Φ

5/16"*Φ19*2

Φ

5/16"*Φ12*3

12mm

2

Q'ty

4

pcs

pcs

15

"

19

pcs

19

pcs

1pc

B

D

C

For D inin g
Table Only

B

D

C

For Cou nter - H eight
Table Only

D

STEP 4

B

C

D

STEP 2

E

B

C

D

E

A

C

TABLE LOCK
Closed positio n

TABLE LOCK
Open positi on

TABLE LOCK
Open positi on

STEP 3

TABLE LOCK
Closed positio n

Adjust leveler if needed
to level case on uneven floor.

STEP 5

adjustable Leveler
