Page 1
User Guide
Page 2
Contents
Foreword
Getting started
2 Your phone at a glance
3 Charging the battery
5 Powering on or off your phone
5 Locking and unlocking the screen
7 Getting to know your home screen
10 Status icons
11 Viewing recently used applications
Texting
12 Selecting an input method
12 Huawei Swype input method
13 Android input method
14 Editing text
Personalizing your phone
16 Changing the home screen style
16 Changing the theme
16 Changing the wallpaper
17 Setting tones
17 Changing the font size
Calls
18 Smart dialing
18 Answering or rejecting a call
19 What you can do during a call
20 Answering a third-party call
20 Making an emergency call
20 Using the call log
Contacts
22 Creating a contact
22 Importing or exporting contacts
24 Copying contacts
24 Searching for a contact
24 Merging contacts
24 Creating a contact group
25 Sending messages or emails to a contact group
i
Page 3
Messaging
26 Sending a text message
26 Sending a multimedia message
27 Managing messages
Browser
29 Browsing web pages
29 Managing bookmarks
30 Setting the home page
30 Clearing your browsing history
Email
31 Adding a POP3 or IMAP email account
31 Adding an Exchange account
32 Sending an email
32 Checking your emails
Multimedia
34 Camera
38 Gallery
39 Music
Internet connection
42 Mobile data connection
42 Wi-Fi network
43 Wi-Fi hotspot
Sharing data
45 Bluetooth
46 Wi-Fi Direct
47 Connecting your phone to a computer

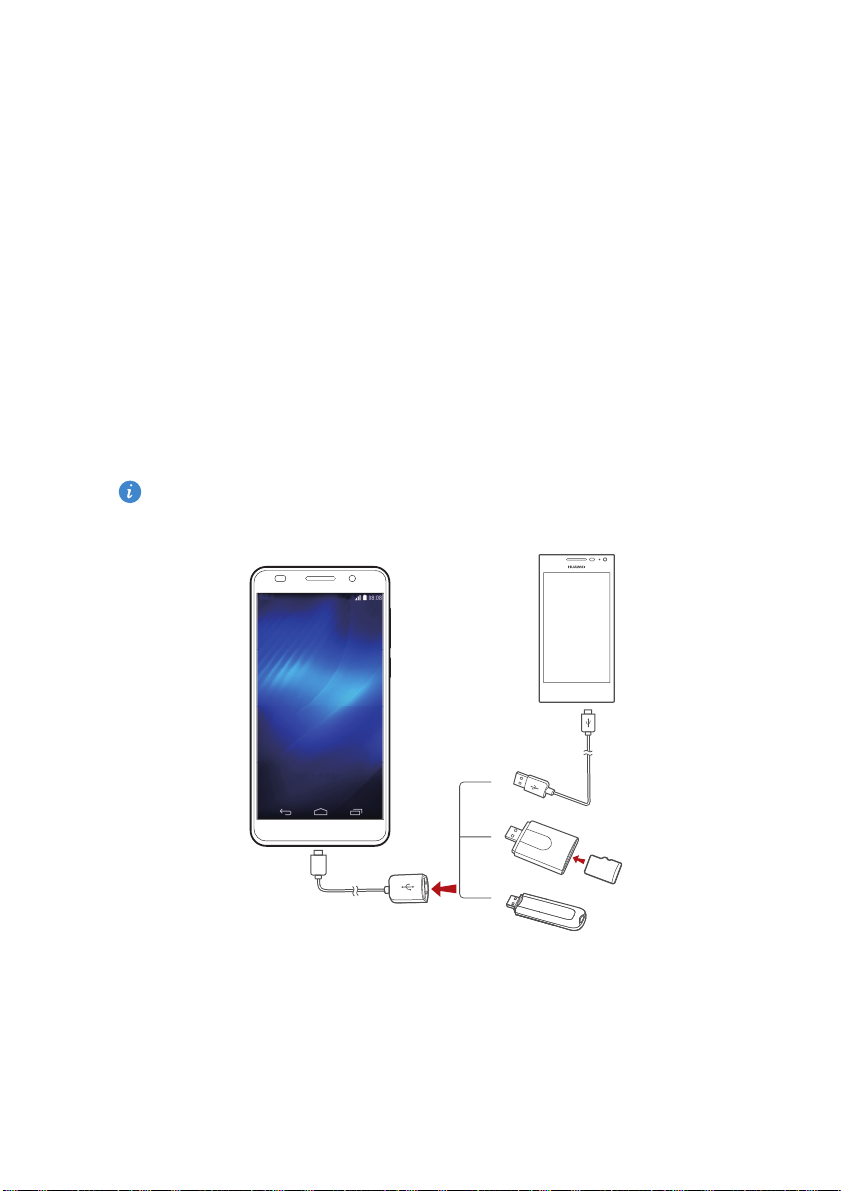

48 Connecting your phone to a USB storage device
File Manager
50 Creating a folder
50 Searching for a file
50 Copying, cutting, and pasting a file
50 Compressing or decompressing a file
51 Renaming a file
51 Deleting a file
51 Creating a shortcut for a file or folder
52 Checking the storage status
ii
Page 4
Managing applications
53 Downloading applications
53 Installing an application
53 Sharing an application
54 Uninstalling an application
54 Clearing the application cache
Phone Manager
55 Optimizing the system
56 Power manager
56 Harassment filter
Backup, restoration, and update
58 Backing up data to the local storage
58 Backing up data to a USB storage device
59 Restoring data from the local storage
59 Restoring data from a USB storage device
59 Restoring factory settings
60 Online update
Tools
61 Calendar
61 Clock
63 Weather
Phone settings
65 Turning on or turning off airplane mode
65 Adjusting the screen brightness
65 Modifying tone settings
66 Modifying display settings
67 Turning on or turning off do not disturb mode
68 Setting the date and time
68 Changing the system language
68 Setting the PIN of your SIM card
Legal Notice
Index
iii
Page 5
Foreword
Thank you for choosing the honor 6 smartphone!
This guide introduces you to the features and functions of your new phone.
Also included are safety precautions you should be aware of, so please read
this guide first before you begin using your new phone.
Symbols and definitions
Note
Caution
Warning
Highlights important information and tips, and
provides additional information.
Indicates potential problems that may arise, such
as device damage or data loss, if the proper care
or attention is not given.
Indicates a potentially hazardous situation which,
if not avoided, could result in serious injury.
1
Page 6
Getting started
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Your phone at a glance
Headset jack Status indicator
Proximity sensor/Ambient
light sensor
Microphone Micro-USB port
microSD card slot Micro-SIM card slot
Power button Volume button
Earpiece Front camera
Noise reduction
microphone
Navigation bar
Flash
2
Page 7
Getting started
15
16
Rear camera Speaker
Do not block the area around the ambient light and proximity sensor.
When you attach a protective film to the screen, make sure it does not
block the sensor.
Navigation bar
Return
Touch to return to the previous screen or exit the
current application.
Home Touch to return to the home screen.
Recent
Touch to display the list of recently used
applications.
Charging the battery
Your phone's built-in battery is not user-removable. To replace the
battery, contact an authorized service center. Do not attempt to remove
it yourself.
Your phone supports fast charging, which requires the provided power
adapter and USB cable. Using any other power adapters or USB cables
may cause repeated restarts, extended charging time, excessive heat,
device damage, or in extreme cases, an explosion.

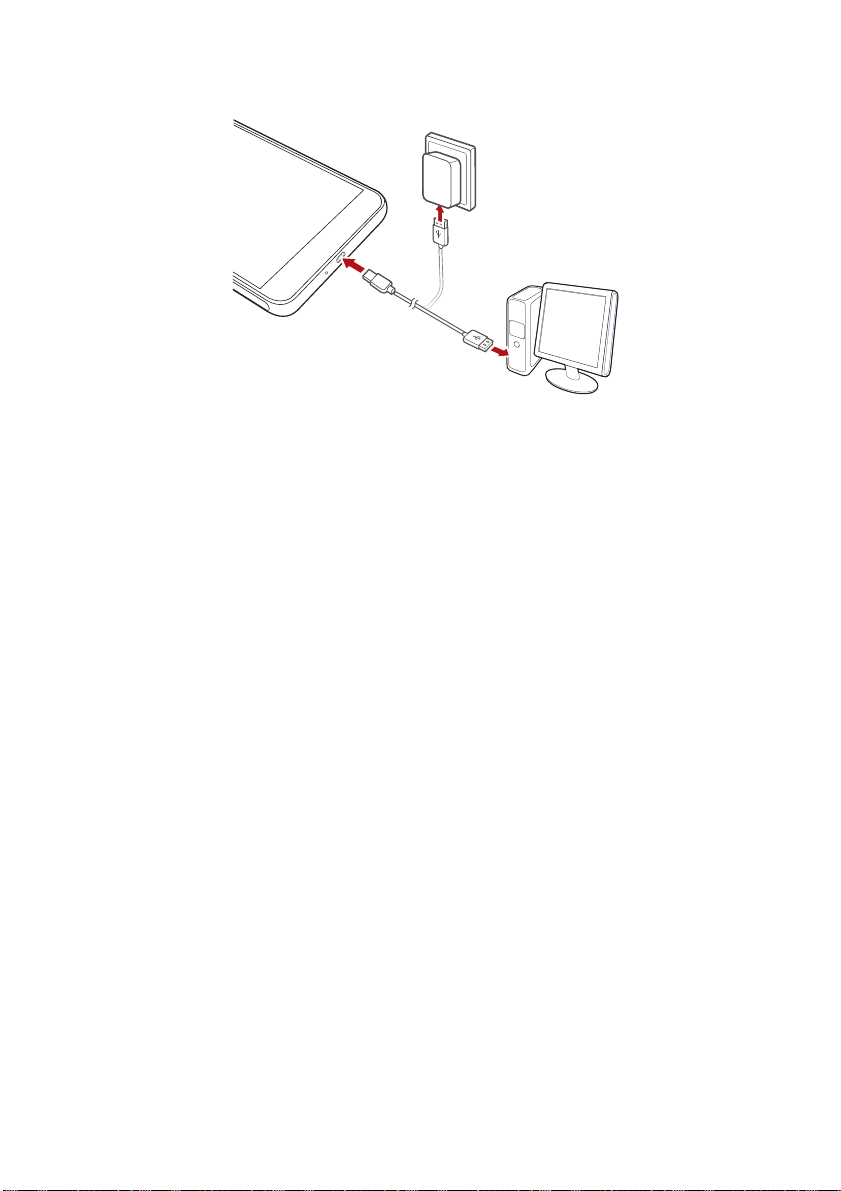

You can charge the phone in either of the following ways:
•
Use the provided USB cable and power adapter to connect your phone to a
power socket.
•
Use a USB cable to connect your phone to a computer, and touch
only
on the
USB connection methods
screen.
Charge
3
Page 8
Battery indicator
Your phone's battery level is shown on the status indicator.
•
Blinking red: The battery level is lower than 2%.
•
Steady red (when charging): The battery level is lower than 10%.
Getting started
•
Steady yellow (when charging): The battery level is higher than 10%.
•
Steady green (when charging): The battery is almost or already full.
Important information about the battery
•
Rechargeable batteries have a limited lifecycle and may eventually need to
be replaced. If you notice significantly reduced battery life, replace the
battery. Your phone's built-in battery is not user-removable. To replace the
battery, contact an authorized service center. Do not attempt to remove it
yourself.
•
If your phone has been running for long periods of time, especially in hot
environments, heat may be pushed to the surface of the phone. If your
phone is overheating, cease using it immediately and unplug it from any
power source to let it cool down. Do not hold on to the phone for too long
to avoid burn injuries.
4
Page 9
Getting started
•
Use the original battery, power adapter, and USB cable to charge your
phone. Using third-party accessories may reduce your phone's
performance or pose security risks. Do not operate your phone or cover it
with any object while it is charging. Do not cover the power adapter either.
•
The time required to fully charge the battery depends on the ambient
temperature and age of the battery.
•
If your phone is low on power, it plays an alert tone and displays a
message. If the battery level is extremely low, your phone automatically
powers off.
•
If the battery power is depleted, you may not be able to power on your
phone immediately after you begin charging the battery. This is normal.
Allow the battery to charge for a few minutes before attempting to power
on your phone.
Powering on or off your phone
•
To power on your phone, press and hold the power button.
•
To power off your phone, press and hold the power button to display an
option menu, and then touch
If you are experiencing slowdown issues or the system isn't responding
properly, press and hold the power button for 10 seconds or more to
restart your phone.
Power off
> OK.
Locking and unlocking the screen
Locking the screen not only prevents mistaken operations from occurring
without your knowledge, but also protects your phone from unauthorized
use. You can lock and unlock your screen in different ways. The pre-installed
screen unlock method is used as an example in this section.
Locking the screen
•
Method 1: Press the power button to manually lock the screen.
5
Page 10
Getting started
•
Method 2: After being idle for a specified period of time, your phone
automatically locks its screen.
To set the screen lock method, touch on the home screen. On the
displayed
General
tab, touch
Screen lock
>
Screen lock
.

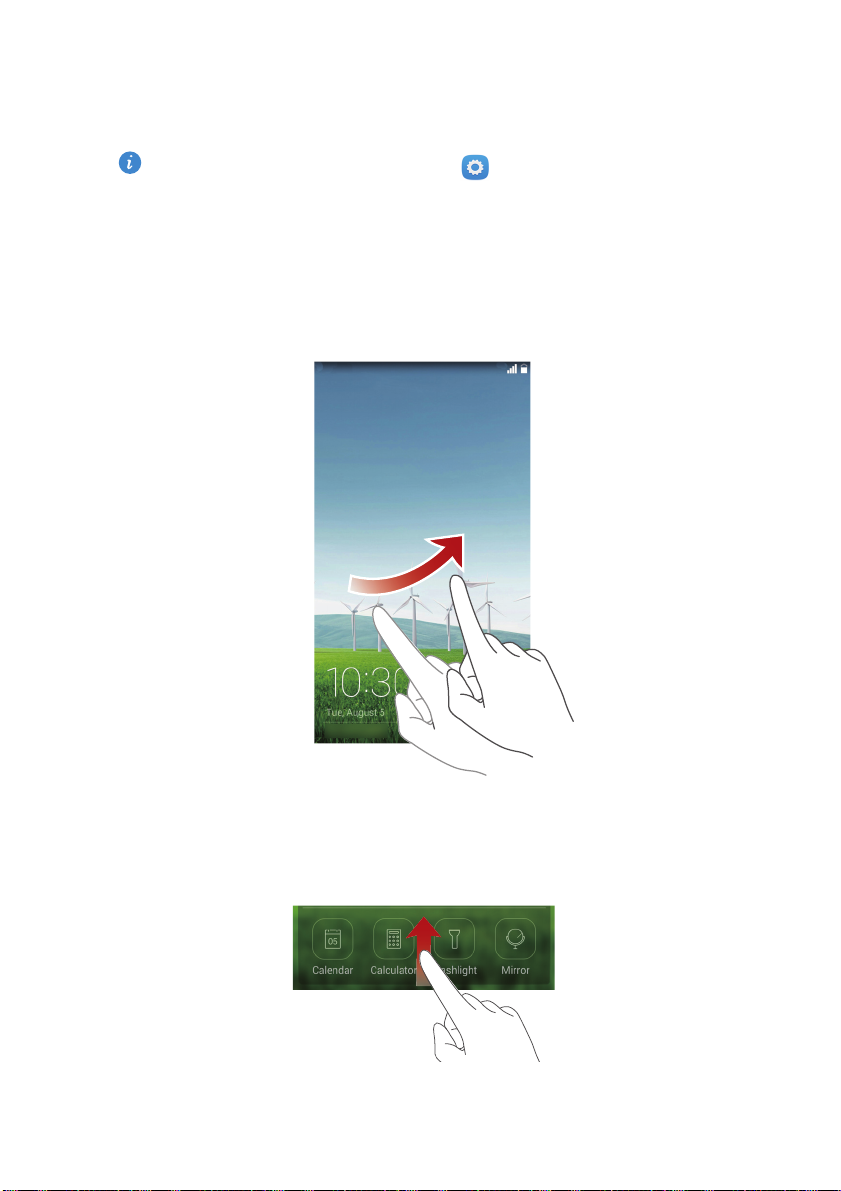

Unlocking the screen
If the screen is off, press the power button to turn it on. Slide your finger
toward any direction to unlock the screen.
Flick up from the bottom of the lock screen to access the quick operation
panel for one-touch optimization or to open commonly used applications,
such as Calculator.
6
Page 11
Getting started
1
2
3
4
5
1
2
3
4
5
Getting to know your home screen
Your home screens are where you'll find all of your favorite widgets and
applications. We did away with the application list to give you a more
convenient and direct path to your applications. The default home screen is
shown below.
Status bar: displays notifications and status icons. Flick down
from the status bar to open the notification panel.
Display area: displays application icons, folders, and widgets.
Screen position indicator: shows the current screen's position.
Dock: displays frequently used applications.
Navigation bar: displays virtual keys.
Using the notification panel
Flick down from the status bar to open the notification panel.
7
Page 12
Getting started
1
2
3
4
1
2
3
4
Touch to dismiss all notifications.
Touch an application to view it and flick left or right across a
notification to dismiss it.
Touch the shortcut switches on the notification panel to turn
on or turn off the functions.
Touch to display the shortcut switches and touch to
edit it.
Taking a screenshot
Want to share an interesting scene in a movie or show off your new high score
in a game? Take a screenshot and share away.
Press the power and volume down buttons simultaneously to take a
screenshot. Then, open the notification panel and touch to share the
screenshot. By default, screenshots are saved to the
Gallery
Screenshots
folder in
.
You can also flick down from the status bar to open the notification
panel and touch .
8
Page 13
Getting started
Auto-rotate screen
Your phone is built with a tilt sensor. If you rotate your phone when browsing
a web page or viewing a photo, your screen automatically changes between
landscape and portrait view. You'll also be able to enjoy tilt sensor-based
applications, such as racing games.
To enable or disable the auto-rotate screen function, flick down from the
status bar to open the notification panel, and touch .
Moving an application or widget
On the home screen, touch and hold an application or widget until the phone
vibrates to enter editing mode. You can then drag an application or widget to
any fitting empty space.
Deleting an application or widget
On the home screen, touch and hold the application or widget you want to
delete until is displayed. Drag the unwanted application or widget to
to delete it.
Deleting an application icon uninstalls the application. When you delete
an application icon, your phone prompts you to confirm the action.
OK
Touch
can't be uninstalled.
to uninstall the application. Some pre-installed applications
Organizing home screen icons using folders
1.
On the home screen, drag an application onto another one to create a
folder containing both of them.
2.
Touch the folder to open it. You can then:
•
Touch the folder name to rename it.
•
Touch and add more items to the folder.
•
Drag an icon out from the folder to remove the icon.
A folder must contain at least two items; otherwise, the folder will
automatically disappear.
9
Page 14
Status icons
GG
EE
3G3G
H
HH
4G
R
Signal strength No signal
GPRS network connected
3G network connected
Getting started
Enhanced Data Rates for
GSM Evolution (EDGE)
network connected
Evolved High-Speed
H
Packet Access (HSPA+)
network connected
High Speed Packet Access
(HSPA) network
connected
Roaming Airplane mode enabled
Bluetooth on
Vibration mode enabled Silence mode enabled
Alarms enabled Charging
Battery full Battery low
Call in progress Missed calls
New messages New emails
New voicemails Select input method
Wi-Fi network available
Uploading data Downloading data
4G
Long Term Evolution (LTE)
network connected
Receiving location data
from GPS
Connected to a Wi-Fi
network
Phone memory full Upcoming events
No SIM card found
Synchronizing data Synchronization failed
Login or synchronization
problem
10
Page 15
Getting started
Portable Wi-Fi hotspot on More notifications
Connected to a VPN Headset plugged in
USB debugging mode
enabled
USB tethering on
Viewing recently used applications
Touch to display the list of recently used applications. You can then:
•
Touch an application to start it.
•
Flick left or right across an application or touch on its right upper
corner to dismiss it.
•
Touch to clear the list.
11
Page 16
Texting
2
3 4 5 6
1
7
1
Your phone comes with multiple text input methods. You can quickly enter
text using the onscreen keyboard.
•
Touch a text box to bring up the onscreen keyboard.
•
To hide the onscreen keyboard, touch .
Selecting an input method
1.
On the text input screen, flick down from the status bar to open the
notification panel.
2.
Touch to select an input method.
To change your phone's default input method, touch on the home
All
screen. Under
method.
, touch
Huawei Swype input method
Language & input
>
Default
to select an input
Slide across letters to enter a word, such as "bay".
12
Page 17
Touch to switch between lowercase letters, uppercase letters,
2
a
3
4
+!=
5
EN
EN
6
7
1
2 3 4 5
6
1
2
and caps lock.
Touch and hold to go to the settings screen.
Touch to enter numbers and symbols.
•
Touch to enter a space.
•
Touch and hold to choose another language.
Touch to use voice input.
•
Touch to delete the character to the left of the cursor.
•
Touch and hold to quickly delete multiple characters to the left
of the cursor.
Android input method
Texting
•
Touch to switch between lowercase and uppercase letters.
•
Touch and hold or quickly touch twice to turn on caps lock.
Touch to enter numbers and symbols.
13
Page 18
•
3
4
English(US)
5
6
Touch to enter a comma.
•
Touch and hold to open the
•
Touch to enter a space.
•
Touch and hold to choose another input method.
•
Touch to enter a period.
•
Touch and hold to enter symbols.
•
Touch to delete the character to the left of the cursor.
•
Touch and hold to quickly delete multiple characters to the left
of the cursor.
English(US)
Input options
option menu.

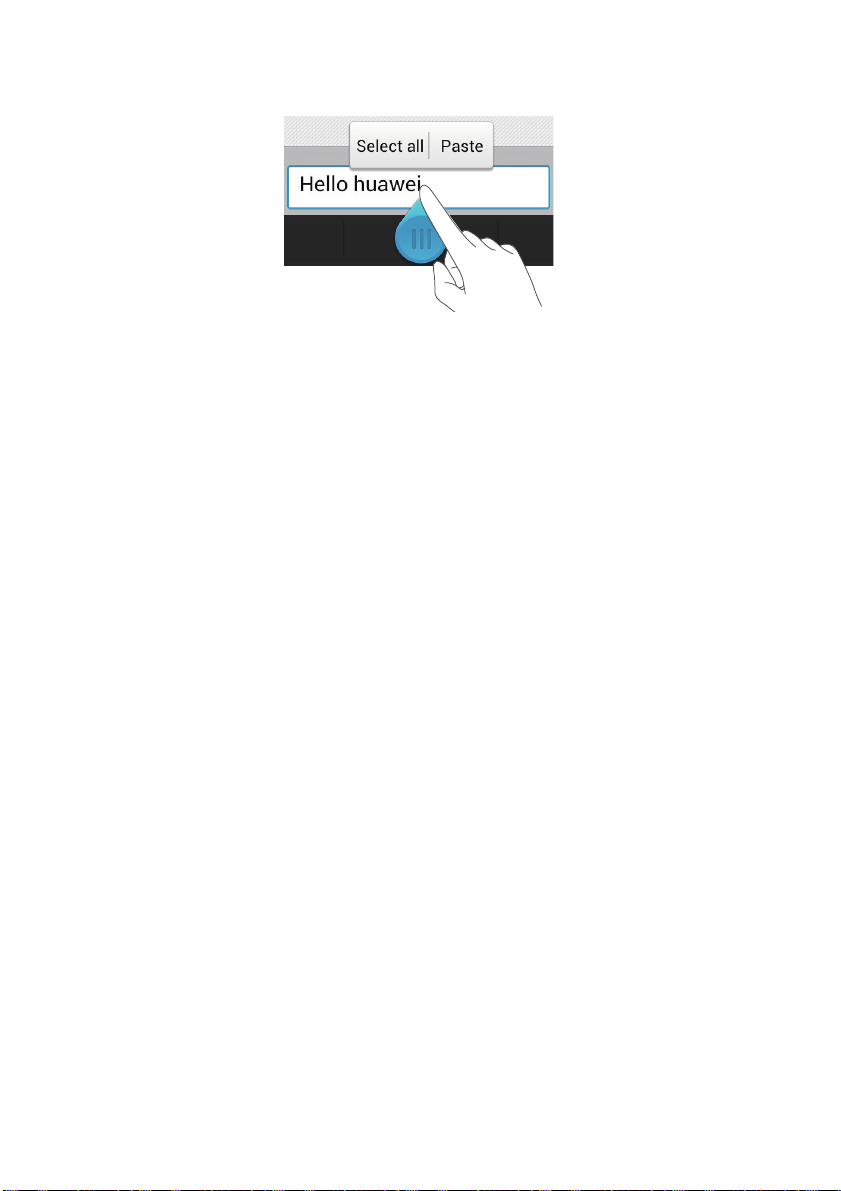

Editing text
Discover how to select, cut, copy, and paste text on your phone.
Texting
•
Select text
box.
•
Copy text
•
Cut text
•
Paste text
insertion point, and touch
: Touch and hold the text to bring up . Then drag and
to select more or less text, or touch
: Select text and touch
: Select text and touch
: Touch where you want to insert the text, drag to move the
Select all
Copy
.
Cut
.
Paste
to paste the text you copied or cut.
to select all text in a text
14
Page 19
Texting
15
Page 20
Personalizing your phone
Changing the home screen style
Your phone supports the standard and simple home screen styles.
1.
On the home screen, touch .
2.
Under
All
, touch
Home screen style
3.
Choose
Simple
or
Standard
and touch
Changing the theme
1.
On the home screen, touch .
2.
Flick left or right to browse different local and online themes. You can
then:
•
Select a theme on the
•
Select a theme on the
Local
Online
.
APPLY
tab, and touch
tab, and touch
.
APPLY
.
DOWNLOAD
>
APPLY
.
Changing the wallpaper
1.
On the home screen, touch and hold a blank area to display the
dialog box.
Screen
2.
Touch
Wallpapers
3.
On the
Wallpaper
•
Touch
Lock screen wallpaper
lock screen.
•
Touch
Home screen wallpaper
•
Touch
Random change
randomly at preset intervals.
.
screen, you can:
to set the wallpaper displayed on the phone
to set the home screen wallpaper.
to have the home screen wallpaper change
Set Home
16
Page 21
Setting tones
1.
On the home screen, touch .
2.
Under
All
, touch
Sound
.
3.
Touch
Phone ringtone
following tabs:
•
Ringtone
•
Music
: Choose from the audio files you have saved to your phone.
4.
Touch
APPLY
: Choose from the default selection.
.
or
Default notification tone
Changing the font size
1.
On the home screen, touch .
2.
Under
All
, touch
Display
.
3.
Touch
Font size
and select a font size.
Personalizing your phone
, and choose either of the
17
Page 22
Calls
Smart dialing
You can make a call by entering the phone number on the dialer or use smart
dialing that lets you quickly find contacts by entering parts of their names or
numbers.
1.
On the home screen, touch .
2.
Enter the initials or first few letters of a contact's name, or part of the
contact's phone number. Matching contacts in your phone and phone
numbers in your call log are then displayed in a list.
3.
From the list, select the contact you want to call.
4.
To end the call, touch .
Answering or rejecting a call
When a call comes in, you can press the volume button to mute the
ringtone.
•
Drag right to answer the call.
•
Drag left to reject the call.
•
Drag up to reject the call and send the caller a message.
18
Page 23
1
2
3
4
5
7
6
1
2
3
4
5
6
7
On the dialer screen, touch >
Call settings
edit the message that will be sent.
What you can do during a call
>
Reject calls with SMS
Calls
to
Touch > to place the current call on hold, and touch
again to resume the call.
Touch > to start a three-way call. Before you use three-
way calling, make sure you have subscribed to this service. For
details, contact your service provider.
Touch to display the dialer.
Touch to use the speakerphone.
Touch to end the call.
Touch to mute or unmute the microphone.
Touch > to write a note.
19
Page 24
Calls
To return to the call screen, flick down from the status bar to open the
notification panel, and touch
Current call
.
Answering a third-party call
Before you answer a third-party call, make sure you have enabled call waiting.
1.
If a call comes in when you are already in another call, drag right to
answer the new call and place the first call on hold.
2.
To switch between the two calls, touch > .
Making an emergency call
In the event of an emergency, you will still be able to make emergency calls
without the use of a SIM card. However, you must still be under the coverage
area.
1.
On the home screen, touch .
2.
Enter your local emergency number and touch .
Emergency calls are subject to cellular network quality, use environment,
service provider policies, and local laws and regulations. Never rely
solely on your phone for critical communications when emergencies
occur.
Using the call log
The call log records your called, answered, and missed calls.
Adding a contact from the call log
1.
On the home screen, touch .
2.
From the call log, select the number you want to add as a contact, and
touch
.
20
Page 25
3.
Touch
Create new contact
or
Save to existing contact
.
You can also touch and hold the number you want to add, and touch
Create new contact
or
Save to existing contact
.
Deleting call records
1.
On the home screen, touch .
2.
Under
Dialer
, you can:
•
Touch and hold a contact name or phone number, and touch
to delete the call record.
•
Touch >
Delete call log
to delete multiple records simultaneously.
Calls
Delete entry
21
Page 26
Contacts
Creating a contact
1.
On the home screen, touch .
2.
Touch .
3.
Choose the save location for the contact.
4.
Enter the contact name, phone number, and other details.
5.
Touch
SAVE
.
Importing or exporting contacts
Your phone supports contact files in .vcf format only. This is the standard
format for files storing contacts. Contact names, addresses, phone numbers,
and other information can be saved in .vcf files.
Importing contacts from a storage device
1.
On the home screen, touch .
2.
Touch >
3.
Select one or more .vcf files, and touch OK.
Import/Export
>
Import from storage
.
Importing contacts from a SIM card
1.
On the home screen, touch .
2.
Touch >
3.
Touch the contacts you want to import or touch
and then touch
Import/Export
IMPORT
.
>
Import from SIM card
.
All
to select all contacts,
Importing contacts from a Bluetooth device
1.
On the home screen, touch .
22
Page 27
Contacts
2.
Touch >
3.
Select
Bluetooth and scans for other Bluetooth devices in range.
4.
Touch the Bluetooth device from which you want to import contacts.
When the two devices are paired, your phone automatically imports the .vcf
file from the other device.
Import/Export
Supports Bluetooth
>
Import from another phone
, and touch
NEXT
. The phone then turns on
.
Importing contacts using Wi-Fi Direct
1.
On the home screen, touch .
2.
Touch >
prompts you to turn on Wi-Fi and scans for Wi-Fi Direct devices in range.
3.
Touch the Wi-Fi Direct device from which you want to import contacts.
When the two devices are connected, your phone automatically imports the
.vcf file from the other device.
Import/Export
>
Import via Wi-Fi Direct
. The phone then
Exporting contacts to a storage device
1.
On the home screen, touch .
2.
Touch >
3.
Touch
4.
Choose from where you want to export the contacts and touch OK.
To view the .vcf file you just exported, open
is saved to the root directory of your phone's internal storage.
Import/Export
EXPORT
>
Export to storage
.
.
File Manager
. By default, the file
Exporting contacts to a SIM card
1.
On the home screen, touch .
2.
Touch >
3.
Touch the contacts you want to export or touch
and then touch
4.
In the displayed dialog box, touch OK.
Import/Export
EXPORT
.
>
Export to SIM card
.
All
to select all contacts,
23
Page 28
Copying contacts
You can copy contacts from a SIM card to your phone and vice versa.
1.
On the home screen, touch .
2.
Touch >
copy the contacts.
3.
Touch the contacts you want to copy or touch
4.
Touch
Settings
COPY
and choose where you want to paste the contacts.
>
Copy contacts
and choose from where you want to
All
to select all contacts.
Searching for a contact
1.
On the home screen, touch .
2.
Enter the contact name or initials. Matching contacts are displayed as you
type.
Merging contacts
Contacts
1.
On the home screen, touch .
2.
Touch >
3.
Touch the contacts you want to merge or touch
that can be merged, and then touch
Only duplicate contacts saved in your phone storage can be merged.
Settings
>
Merge duplicate contacts
MERGE
.
All
to select all contacts
.
Creating a contact group
1.
On the home screen, touch .
2.
Under
Favorites
3.
Name the contact group.
4.
Touch
Add members
, touch >
.
New group
.
24
Page 29
Contacts
@
5.
Touch the contacts you want to add to the group or touch
ADD
contacts, and then touch
6.
Touch
SAVE
.
.
All
to select all
Sending messages or emails to a contact
group
1.
On the home screen, touch .
2.
Under
Favorites
message or email to, and choose
displayed option menu.
You can also open the contact group and touch to send a message
or to send an email.
, touch and hold the contact group you want to send a
Send message
or
Send email
from the
25
Page 30
Messaging
Sending a text message
1.
On the home screen, touch .
2.
In the list of message threads, touch .
3.
Touch the recipient text box and enter the contact name or phone number.
Matching contacts are displayed as you type. Select a contact.
Touch to select more contacts.
4.
Write your message.
5.
Touch
Send
.
Sending a multimedia message
Data usage fees may apply. For details, contact your service provider.
1.
On the home screen, touch .
2.
In the list of message threads, touch .
3.
Touch the recipient text box and enter the contact name or phone number.
Matching contacts are displayed as you type. Select a contact.
Touch to select more contacts.
4.
Touch >
5.
Write your message.
6.
Touch , select the attachment type, and attach a file.
To attach more than one file to the message, touch
touch
7.
Touch
Add subject
Remove slide
Send
.
and enter the message subject.
to delete the current slideshow.
Slideshow
. You can
26
Page 31
Messaging
Managing messages
Copying messages to a SIM card
1.
On the home screen, touch .
2.
In the list of message threads, touch a contact name or phone number to
view the conversation thread.
3.
Touch and hold the message you want to copy, and touch
.
card
Restoring your phone to its factory settings won't delete messages saved
in your SIM card.
Forwarding a message
1.
On the home screen, touch .
2.
In the list of message threads, touch a contact name or phone number to
view the conversation thread.
Copy to SIM
3.
You can then:
•
Touch and hold the message you want to forward, and touch
•
Touch >
4.
Touch the recipient text box and enter the contact name or phone number.
Touch to select more contacts.
5.
Touch
Send
Forward
.
to forward multiple messages.
Forward
Deleting a message
1.
On the home screen, touch .
2.
In the list of message threads, touch a contact name or phone number to
view the conversation thread.
.
27
Page 32
3.
Touch and hold the message you want to delete, and touch
Touch >
Delete
to delete multiple messages simultaneously.
Deleting a thread
1.
On the home screen, touch .
2.
In the list of message threads, you can:
•
Touch and hold the thread you want to delete, and touch
conversation
•
Touch >
.
Delete
to delete multiple threads simultaneously.
Delete
Delete
Messaging
.
28
Page 33
Browser
Browsing web pages
1.
On the home screen, touch .
2.
Enter a website address in the address box. Your phone then displays
matching websites as you type.
3.
Touch the website you want to visit.
Managing bookmarks
Bookmarks let you keep track of your favorite websites. You can organize
your bookmarks by placing them into different folders.
Adding a bookmark
1.
On the home screen, touch .
2.
On the
Browser
bookmark.
screen, open the web page you want to add as a
3.
Touch >
4.
Name the bookmark and touch OK.
Save to bookmarks
Accessing a bookmark
1.
On the home screen, touch .
2.
Touch >
3.
Under
Bookmarks
Local
, touch a bookmark.
then the
Editing a bookmark
1.
On the home screen, touch .
2.
Touch >
Bookmarks
then the
.
Bookmarks
Bookmarks
tab.
tab.
29
Page 34
Browser
3.
Touch and hold the bookmark you want to edit, and touch
4.
Rename the bookmark, change the website address, or revise the account
OK
information. Then touch
.
Edit bookmark
Setting the home page
1.
On the home screen, touch .
2.
Touch >
3.
From the displayed option menu, choose the web page you want to set as
your home page.
Settings
>
General
>
Set homepage
.
Clearing your browsing history
To better protect your privacy, clear your browsing history from time to time.
1.
On the home screen, touch .
2.
Touch >
Settings
>
Privacy & security
.
.
3.
Touch
Clear history
then OK.
30
Page 35
Adding a POP3 or IMAP email account
Certain parameters must be set when you add a POP3 or IMAP email account.
For details, contact your email service provider.
1.
On the home screen, touch .
2.
Touch
Others
3.
Enter your
4.
Follow the onscreen instructions to configure the email account. The
system then automatically connects to the server and checks server
settings.
Email address
and
Password
, and touch
Next
.
When the email account is set up, the
To add more email accounts, touch >
Inbox
the
screen.
Inbox
screen is displayed.
Settings
>
NEW ACCOUNT
on
Adding an Exchange account
Exchange is an email system developed by Microsoft for internal enterprise
correspondence. Some email service providers also provide Exchange
accounts for individuals and families.
You may need to contact your email service provider to configure certain
parameters.
1.
On the home screen, touch .
2.
Touch
3.
Enter your
Next
Exchange
.
.
Email address, Domain, Username
, and
Password
. Then, touch
31
Page 36
4.
Follow the onscreen instructions to configure your Exchange account. The
system then automatically connects to the server and checks server
settings.
Email
When your Exchange account is set up, the
Inbox
screen is displayed.
Sending an email
1.
On the home screen, touch .
2.
On the
Inbox
screen, touch to select an email account.
3.
Touch .
4.
Enter one or more recipients.
To send the email to multiple recipients, touch
different email addresses with semicolons (;).
5.
Enter the subject, and write your message. Touch to upload any
attachments.
6.
When you are done, touch to send the email.
+ Cc/Bcc
. Separate
Checking your emails
1.
On the home screen, touch .
2.
On the
Inbox
screen, touch to select an email account.
3.
Touch the email you want to read.
4.
You can then:
•
Touch to delete it.
•
Touch to reply to it.
•
Touch to reply to all.
•
Touch to forward it.
32
Page 37
•
Flick left to go back to the previous email or flick right to skip to the next
email.
Mail retrieval may be slightly delayed, depending on the network
Email
condition. On the
inbox.
Inbox
screen, touch >
Refresh
to refresh the
33
Page 38
Multimedia
1
2
34
5
6
7
8
1
2
3
4
5
6
A
Camera
Your phone supports a variety of capture scenarios, such as scenery, portrait,
and dynamic. It also supports smart, beauty, panoramic, audio control, and
burst capture modes.
Capture screen
Touch to record a video.
•
Touch to take a photo.
•
Touch and hold to take burst shots, and release your finger
to stop.
Touch the thumbnail to view your photos and videos.
•
Touch an object on the viewfinder to focus the camera on it.
•
Spread two fingers apart to zoom in or pinch them together to
zoom out.
Touch to select a capture mode.
Touch to set the flash mode.
34
Page 39
Multimedia
7
8
Touch to switch between the rear and front cameras.
Touch for more options.
Taking a photo
1.
On the home screen, touch .
2.
Frame the scene you want to capture. Let your camera focus automatically
or touch the screen to focus the camera. When the camera is focused, the
frame in the center of the viewfinder turns green.
3.
Touch .
Shooting a video
1.
On the home screen, touch .
2.
Frame the scene you want to record.
3.
Touch to start recording.
4.
During the recording, touch an object or area to f ocus on it.
Touch to pause recording.
5.
Touch to stop recording.
Ultra snapshot
You can quickly take a photo without unlocking the screen first.
1.
Face your camera with the object you want to capture when the screen is
turned off or locked.
2.
Press the volume down button twice in rapid succession to quickly take a
photo.
Continuous shooting
Continuous shooting allows you to record a series of dynamic images and pick
the best from them.
1.
On the home screen, touch .
35
Page 40
Multimedia
2.
Frame the scene you want to capture.
3.
Touch and hold . The camera then takes up to 20 photos in rapid
succession. You can stop shooting anytime by releasing your finger.
Taking a panoramic photo
1.
On the home screen, touch .
2.
Touch > to switch to panoramic mode.
3.
Frame the scene you want to capture.
4.
Touch to start shooting.
5.
Follow the onscreen instructions and move your phone slowly to capture
multiple photos.
6.
Touch to stop shooting. The camera automatically stitches the photos
together to create one panoramic photograph.
Taking an audio photo
You can record a brief audio clip after you take a photo.
1.
On the home screen, touch .
2.
Touch > to switch to audio photo mode.
3.
Frame the scene you want to capture.
4.
Touch to take a photo. The phone then records an audio clip for a few
seconds. Record your thoughts for the photo you've just taken.
Using HDR
High dynamic range (HDR) imaging technology improves the details in the
lightest and darkest areas of photos for true-to-life quality.
1.
On the home screen, touch .
2.
Touch > to switch to HDR mode.
3.
Frame the scene you want to capture.
36
Page 41
Multimedia
4.
Touch .
The front camera does not support HDR.
Taking a photo using audio control
1.
On the home screen, touch .
2.
Touch > to switch to audio control mode.
3.
Frame the scene you want to capture. Your phone will take a photo when
the surrounding noise reaches a certain decibel level.
Taking a photo with watermark
You can add the time, location, weather, and other information to the photo
as watermarks.
1.
On the home screen, touch .
2.
Touch > to switch to watermark mode.
3.
Flick left or right at the bottom of the screen to select a watermark.
4.
Drag the watermark to adjust its position.
5.
Frame the scene you want to capture.
6.
Touch .
Setting the camera resolution
1.
On the home screen, touch .
2.
On the viewfinder, touch >
3.
Touch
Resolution
4.
Select a resolution for photos and videos.
.
Camera
or
Video
.
37
Page 42
Gallery
Viewing photos or videos
1.
On the home screen, touch .
2.
Touch an album.
3.
Touch a photo or video to view it in full screen mode.
When viewing a photo, pinch two fingers together to zoom out or
spread them apart to zoom in.
Playing a slideshow
1.
On the home screen, touch .
2.
Touch an album.
3.
Touch >
4.
To stop the slideshow, touch the screen.
Slideshow
to play a slideshow of the photos in the album.
Multimedia
Editing a photo
You can adjust the photo brightness, saturation, size, and more.
1.
On the home screen, touch .
2.
Touch the photo you want to edit.
3.
Touch >
4.
Select a photo processing method.
5.
Select a special effect, and follow the onscreen instructions to edit the
photo.
6.
When you are done, touch to save the changes.
Edit
.
Sharing a photo or video
Want to share your best shots or an amusing trick your dog just did? Simply
share the photos and videos using email, Bluetooth, and more.
38
Page 43
Multimedia
1
2
3
4
5
7
6
1
1.
On the home screen, touch .
2.
Touch an album.
3.
Touch , and choose a sharing method from the displayed option menu.
4.
Select the photo or video you want to share.
5.
Touch
SHARE
and follow the onscreen instructions to share the photo or
video.
Music
Listening to music
1.
On the home screen, touch .
2.
Select a category.
3.
Touch the song you want to play.
4.
Touch the playing song to enter the main playback interface.
Flick left or right to switch between the album cover and lyrics.
39
Page 44
Multimedia
2
3
4
5
6
7
Touch to add a song to your
Touch to switch between different playing modes (repeat
the current song, repeat the playlist, shuffle, and play in
sequence).
•
Touch to play and touch to pause.
•
Touch to go back to the previous song.
•
Touch to skip to the next song.
Drag the slider to control the playback.
Touch to display the option menu from which you can
perform additional operations.
Touch to enable or disable DTS audio.
When a song is playing, touch to exit the playback screen without
stopping the song. To return to the music playback screen, open the
notification panel and touch the playing song.
Favorites
.
Creating a playlist
1.
On the home screen, touch .
2.
Touch
Playlists
3.
Touch the text box to name the playlist, and touch
4.
In the displayed dialog box, touch OK.
5.
Select the songs you want to add.
6.
Touch
ADD
>
Create new playlist
.
.
Save
.
Playing a playlist
1.
On the home screen, touch .
2.
Touch
Playlists
3.
Touch and hold the playlist you want to play, and touch
.
Play
.
40
Page 45
Multimedia
Sharing a song
1.
On the home screen, touch .
2.
Select a category.
3.
On the song list, touch >
4.
Select the song you want to share.
5.
Touch
SHARE
.
6.
From the displayed option menu, choose a file type.
7.
Choose a sharing method and follow the onscreen instructions to share the
song.
Share
.
41
Page 46
Internet connection
Mobile data connection
Turning on your mobile network
1.
On the home screen, touch .
2.
Under
All
, touch
Mobile networks
3.
Select the
When you don't need to access the Internet, turn off your mobile
network to save battery power and reduce mobile data usage.
Data enabled
check box.
Creating an APN
The Access Point Name (APN) is a necessary parameter for a phone to connect
to a mobile network or send multimedia messages. It is usually automatically
set after you insert a SIM card into your phone. If your phone can't connect
to a mobile network using the automatically set APN, contact your service
provider for the specific parameters and create a new APN.
.
1.
On the home screen, touch .
2.
Under
All
, touch
Mobile networks
3.
Touch
Access Point Names
4.
Touch >
5.
Enter the access point name and other parameters.
6.
Touch
SAVE
New APN
.
.
.
.
Wi-Fi network
Your phone can connect to Wi-Fi networks. Some public locations, such as
airports and libraries, may have Wi-Fi networks available for use. Using Wi-Fi
networks provided by certain Internet service providers may produce fees.
42
Page 47
Internet connection
Before you use a public Wi-Fi hotspot, make sure you check and are aware of
that service provider's fee policies.
Connecting to a Wi-Fi network
1.
On the home screen, touch .
2.
Under
All
, touch the Wi-Fi switch to turn on Wi-Fi.
3.
Touch
Wi-Fi
. Your phone then scans for available Wi-Fi networks and
displays them.
4.
Touch the Wi-Fi network you want to connect to.
•
If the network is open, you will directly connect to it.
•
If the Wi-Fi network is encrypted, enter the password when prompted,
and touch
Connect
.
Connecting to a Wi-Fi network using WPS
Wi-Fi protected setup (WPS) lets you quickly connect to a Wi-Fi network.
Simply press the WPS button or enter the PIN to connect your phone to a Wi-
Fi router that supports WPS.
1.
On the home screen, touch .
2.
Under
All
, touch the Wi-Fi switch to turn on Wi-Fi.
3.
Touch
Wi-Fi
.
4.
Touch >
router.
To connect to a Wi-Fi network through WPS PIN, touch >
PIN
WPS Push Button
.
and press the WPS button on the Wi-Fi
Input WPS
Wi-Fi hotspot
Your phone can function as a Wi-Fi hotspot for other devices, sharing its
mobile data connection.
1.
On the home screen, touch then the
All
tab.
43
Page 48
Internet connection
2.
Under
WIRELESS & NETWORKS
3.
Touch
Tethering & portable hotspot
4.
Select the
5.
Touch
6.
Set the Wi-Fi hotspot's name, encryption mode, and password.
Portable Wi-Fi hotspot
Portable Wi-Fi hotspot settings
, touch
More\u2026
.
.
check box to turn on Wi-Fi hotspot.
>
Configure Wi-Fi hotspot
.
It is recommended that you set the encryption mode to WPA2PSK for
better security.
7.
Touch
Save
.
On the device you want to use, search for and connect to your phone's Wi-Fi
network.
44
Page 49
Sharing data
Bluetooth
Your phone is Bluetooth-capable, allowing you to connect to other
Bluetooth-enabled devices for wireless data transmission. When using
Bluetooth, stay within 10 meters (33 feet) of other Bluetooth devices.
Turning on or turning off Bluetooth
1.
On the home screen, touch .
2.
Under
All
, touch
Bluetooth
to turn on or turn off Bluetooth. After
Bluetooth is turned on,
Turn off Bluetooth when you don't need it to save battery power.
is displayed on the status bar.
Searching for and pairing with other Bluetooth devices
Before pairing your phone with another device, turn on Bluetooth. Your
phone's name will be displayed. Select the check box next to the phone name
to set your phone as discoverable to other Bluetooth devices.
1.
On the home screen, touch .
2.
Under
All
, touch
Bluetooth
devices in range.
3.
In the list of detected Bluetooth devices, touch a device and follow the
onscreen instructions to pair with it.
To disconnect from a paired Bluetooth device, under
>
Unpair
.
If you can't set up a Bluetooth connection with another device, the
device may not be compatible with your phone.
. Your phone will then scan for other Bluetooth
PAIRED DEVICES
, touch
45
Page 50
Sharing data
Sharing a file using Bluetooth
To exchange data with another Bluetooth device, enable Bluetooth on both
devices and pair them with each other.
1.
On the home screen, touch .
2.
Touch and hold the file you want to send, and touch
3.
Select a device.
Share
>
Bluetooth
.
Receiving a file using Bluetooth
When your phone receives a file transfer request, a
Accept
will be displayed. Touch
notification panel to view the file receiving progress.
By default, received files are saved to the
to start receiving the file. You can open the
bluetooth
File transfer
folder in
dialog box
File Manager
.
Wi-Fi Direct
Wi-Fi Direct allows two devices to connect to each other for data transmission
without using any access point.
Connecting two devices using Wi-Fi Direct
1.
On the home screen, touch .
2.
Under
All
, touch
Wi-Fi
to turn on Wi-Fi.
3.
In the Wi-Fi network list, touch
4.
Select a device.
Sending a file using Wi-Fi Direct
1.
On the home screen, touch .
Wi-Fi direct
to scan for available devices.
2.
Touch and hold the file you want to send, and touch
3.
Touch
Wi-Fi Direct
4.
Select a device.
to scan for available devices.
Share
.
46
Page 51
Sharing data
Receiving a file using Wi-Fi Direct
When a file comes in through Wi-Fi Direct, your phone automatically begins
receiving it. You can open the notification panel to view the file receiving
progress.
By default, received files are saved to the
Wi-Fi Direct
folder in
File Manager
Connecting your phone to a computer
MTP mode
MTP mode lets you transfer media files, such as photos, songs, and videos,
between your phone and a computer. Windows Media Player 11 or later is
required.
1.
Use a USB cable to connect your phone to the computer.
2.
On the
USB connection methods
phone driver is then automatically installed on the computer.
3.
After the driver is installed, open the new drive and begin transferring
media files between your phone and computer. Multimedia content on
your phone can only be viewed through Windows Media Player.
HiSuite mode
HiSuite is a file transfer application developed by Huawei that lets you back
up, synchronize, and transfer data between your phone and computer.
screen, touch
Media device (MTP)
. The
.
1.
Use a USB cable to connect your phone to the computer.
2.
On the
USB connection methods
phone driver is then automatically installed on the computer.
3.
On the computer, open the new drive, double-click
follow the onscreen instructions to install HiSuite. You can then manage
your phone's data on the displayed HiSuite window.
screen, touch
PC Suite (HiSuite)
HiSuiteSetup.exe
. The
, and
USB flash drive mode
If a microSD card is inserted into your phone, you can use your phone as a USB
flash drive and transfer files between your microSD card and computer.
47
Page 52
Sharing data
USB OTG cable
USB cable
1.
Use a USB cable to connect your phone to the computer.
2.
On the
USB connection methods
screen, touch
USB flash drive
. The phone
driver is then automatically installed on the computer.
3.
After the driver is installed, the computer will identify your phone as a USB
flash drive. Open the new drive to view files on your microSD card.
Connecting your phone to a USB storage
device
You can connect your phone to a USB storage device directly using a USB OTG
cable to transfer data. Compatible USB storage devices include USB flash
drives, card readers, and phones that have a microSD card inserted.
To purchase a USB OTG cable, please contact an authorized Huawei
retailer or your device vendor.
To connect your phone to another phone, make sure that phone has a
microSD card installed. To establish a connection and read data stored on the
microSD card:
1.
Use a USB OTG cable and USB cable to connect the two phones.
48
Page 53
Sharing data
2.
Turn on USB mass storage mode on the phone from which you want to
read data.
3.
On your phone, touch >
USB
to read data from the other phone's
microSD card.
4.
When you are done, touch on your phone. Under
Unmount USB storage
.
All
, touch
To connect your phone to other types of USB storage devices, use a USB
Storage
>
OTG cable to connect your phone to the device, and touch >
on your phone.
USB
49
Page 54
File Manager
Creating a folder
1.
On the home screen, touch .
2.
Under
Local
, touch
3.
Touch >
4.
Name the folder and touch
Searching for a file
1.
On the home screen, touch .
2.
Under
Local
, touch
3.
Touch >
4.
Enter part or all of the file name. Search results are displayed as you type.
Internal
New folder
Internal
Search
.
or
SD card
.
Save
or
SD card
.
.
.
Copying, cutting, and pasting a file
1.
On the home screen, touch .
2.
Under
Local
, touch
3.
Touch or .
4.
Touch the file you want to copy or cut, and touch
5.
Select where you want to paste the file, and touch
Internal
or
SD card
.
Copy
or
CUT
.
PASTE
.
Compressing or decompressing a file
You can compress files into .zip files to save space or decompress .zip and .rar
files.
50
Page 55
1.
On the home screen, touch .
2.
Under
Local
, touch
3.
Touch >
4.
Select the file or folder you want to compress, and touch
5.
Choose the save path of the compressed file, name it, and touch OK.
Internal
Compress
or
SD card
.
.
Compress
File Manager
.
To decompress a file, touch and hold it, and choose
displayed option menu.
Renaming a file
1.
On the home screen, touch .
2.
Under
Local
, touch
3.
Touch and hold the file you want to rename, and touch
4.
Rename the file and touch OK.
Internal
or
SD card
.
Deleting a file
1.
On the home screen, touch .
2.
Under
Local
, touch
3.
Touch .
4.
Select the file you want to delete, and touch
5.
Touch OK.
Internal
or
SD card
.
DELETE
Extract
.
from the
Rename
.
Creating a shortcut for a file or folder
1.
On the home screen, touch .
2.
Under
Local
, touch
3.
Touch and hold the file or folder you want to create a shortcut for, and
choose
Desktop shortcuts
Internal
or
SD card
from the displayed option menu.
.
51
Page 56
Checking the storage status
1.
On the home screen, touch .
2.
Under
Local
, touch >
3.
On the
Storage
internal storage or microSD card.
screen, view the total and available space in your phone's
Storage
.
File Manager
52
Page 57
Managing applications
Downloading applications
A rich selection of applications are available from a variety of sources. You
can:
•
Download applications from Google's Play Store.
•
Download applications from web pages using the browser on your phone.
•
Download applications using a computer, and copy the applications to the
phone.
•
Connect the phone to a computer, and download applications using
HiSuite or other third-party applications.
Installing an application
Play Store should be your primary download source. Applications
downloaded from some other sources may be malicious or incompatible
with your phone.
1.
On the home screen, touch .
2.
Under
Categories
3.
In the application list, touch the application you want to install, and follow
the onscreen instructions to install it.
During the installation, follow the onscreen instructions to set the
application permissions to protect your phone and privacy.
, touch
Apps
.
Sharing an application
1.
On the home screen, touch and hold the application you want to share
until
is displayed at the top of the screen.
53
Page 58
Managing applications
2.
Drag the application to .
3.
On the displayed dialog box, select a sharing method and follow the
onscreen instructions to share the application.
System applications can't be shared.
Uninstalling an application
1.
On the home screen, touch .
2.
Under
All
, touch
3.
Flick to
4.
Touch
Manage apps
ALL
, and select the application you want to uninstall.
Uninstall
> OK.
.
Some pre-installed applications can't be uninstalled.
Clearing the application cache
You can clear the application cache to free up the phone storage.
1.
On the home screen, touch .
2.
Under
All
, touch
3.
Flick to
ALL
, and touch
Manage apps
.
Clear cache
.
54
Page 59
Phone Manager
Optimizing the system
Phone scanning
Phone scanning lets you run a full check of your phone's operation status and
quickly optimize the system.
1.
On the home screen, touch .
2.
Touch
Scan
or
Touch to scan
After the scan is complete, follow the onscreen instructions to clear trash
files, optimize the system, and remove potential threats to your phone.
Phone accelerator
If you are experiencing slowdown issues with your phone, you may have too
many applications using up too much memory. Optimize your system by using
phone accelerator.
.
1.
On the home screen, touch .
2.
Touch
Phone accelerator
3.
Select the unwanted applications, and touch
.
CLOSE
.
Storage cleaner
1.
On the home screen, touch .
2.
Touch
Storage cleaner
3.
Touch
Smart scan
On the
Storage cleaner
cache every day, clean the thumbnails every month, and remind you
when your storage space is running low.
.
, and clean your phone storage based on the scan results.
screen, touch to have your phone clean the
55
Page 60
Power manager
Setting the power saving mode
1.
On the home screen, touch .
2.
Touch
Power saving
3.
On the
Power saving
•
Touch
Optimum performance
•
Touch
Smart
while still allowing full use of all phone functions.
•
Touch
Ultra
and Contacts can be used in this mode.
Optimizing the power plan
1.
On the home screen, touch .
2.
Touch
Power saving
.
screen, you can:
to enable normal mode.
to enable smart mode and have your phone conserve power
to enable ultra power saving mode. Only Dialer, Messaging,
.
Phone Manager
3.
Touch
Power monitoring
the scan results.
and manually optimize the power plan based on
Harassment filter
Harassment filter
1.
On the home screen, touch .
2.
Touch
Harassment filter
3.
On the
Harassment filter
•
Touch
Calls
or
•
Touch
Blacklist
On the
Harassment filter
Harassment filter and Interception reminders.
.
screen, you can:
Messages
>
to view blocked calls or messages.
ADD CONTACTS
screen, touch to turn on or turn off
to add a number to the blacklist.
56
Page 61
Phone Manager
Notification manager
Some applications may push all kinds of notifications to your phone.
Notification manager lets you set restriction rules on notifications to avoid
receiving unnecessary information.
1.
On the home screen, touch .
2.
Flick left and touch
3.
On the
Notification manager
•
Touch
Rules
notification panel and set push rights for your applications.
•
Touch
Log
to view blocked notifications.
Notification manager
screen, you can:
to view applications that may send notifications to the
.
57
Page 62
Backup, restoration, and
update
Backing up data to the local storage
1.
On the home screen, touch
2.
Select or clear the
encrypted, you need to enter the password to access it.
3.
Touch
New backup
4.
Select the data you want to back up, and follow the onscreen instructions
to back it up.
Encrypt your backup
.
Tools
> .
check box. Once the backup file is
By default, backup files are saved to the
Manager
.
Encrypted backup files can only be restored by
later. To check the version you have, open
Settings
>
About
.
HuaweiBackup
Backup
Backup
folder in
version 3.2.26 or
, and touch >
File
Backing up data to a USB storage device
Connect the USB storage device to your phone using a USB OTG cable. Make
sure your phone can detect the USB storage device.
1.
On the home screen, touch
2.
Touch >
3.
Select or clear the
4.
Touch
5.
Select the data you want to back up, and follow the onscreen instructions
to back it up.
Back up to external USB storage
Encrypt your backup
New backup
.
Tools
> .
.
check box.
58
Page 63
Backup, restoration, and update
For details about how to connect your phone to a USB storage device,
see Connecting your phone to a USB storage device.
Restoring data from the local storage
1.
On the home screen, touch
2.
Select the backup file you want to restore. You can use the file's backup
Tools
> .
time as a reference.
3.
If the backup file has been encrypted, enter the password when prompted,
OK
and touch
4.
Select the data you want to restore, and touch
.
RESTORE
.
Restoring data from a USB storage device
Connect the USB storage device to your phone using a USB OTG cable. Make
sure your phone can detect the USB storage device.
1.
On the home screen, touch
2.
Touch >
3.
Select the backup file you want to restore. You can use the file's backup
Back up to external USB storage
Tools
> .
.
time as a reference.
4.
If the backup file has been encrypted, enter the password when prompted,
OK
and touch
5.
Select the data you want to restore, and touch
.
RESTORE
.
For details about how to connect your phone to a USB storage device,
see Connecting your phone to a USB storage device.
59
Page 64
Backup, restoration, and update
Restoring factory settings
Restoring your phone to the factory settings erases all your personal
data from the phone storage, including information about your
accounts, your system and application settings, and downloaded
applications. Back up important data on your phone before you restore
factory settings.
1.
On the home screen, touch .
2.
Under
All
, touch
3.
Touch
Factory data reset
Backup & reset
.
>
Reset phone
>
Reset phone
. The phone will
restore its factory settings and restart.
Online update
Once in a while, new updates for your phone will be available online. You will
receive a notification when updates are available. Before updating, make sure
your phone has enough storage space for the update package.
•
Using unauthorized third-party software to update your phone may
damage your phone or put your personal information at risk. It is
recommended that you update through your phone's online update
feature or download official update packages from Huawei's official
website.
•
All your data may be erased during a system update. It is
recommended that you back up important data before updating your
phone.
To update your phone manually, go to the home screen, touch >
System updates
>
>
Online update
to check for updates, and follow the
onscreen instructions to update your phone online.
Updates
60
Page 65
Tools
Calendar
Calendar is your personal assistant that helps you manage, arrange, and keep
track of all important events. If you have saved the birthday information for
your contacts, Calendar automatically creates birthday reminders.
Creating an event
1.
On the home screen, touch .
2.
Touch .
3.
Enter event details, such as the event name, time, location, and how often
it repeats.
4.
Touch
SAVE
.
Viewing events
1.
On the home screen, touch .
2.
Touch the tabs at the top of the screen to switch between the year, month,
week, day, and agenda views. The agenda view displays all your calendar
events.
Sharing an event
1.
On the home screen, touch .
2.
Select the event you want to share.
3.
Touch to share the event using Bluetooth, email, or other methods.
Clock
Clock lets you view the time around the world, use stopwatch or timer to keep
track of time, or set alarms to wake you up in the morning.
61
Page 66
Alarm
1.
On the home screen, touch .
2.
Under
Alarm
, you can:
•
Add an alarm: Touch , and set the alarm time, ringtone, how often it
repeats, and more. Then touch
•
Turn on or turn off an alarm: Touch the switch button to the right of an
alarm to turn it on or off.
•
Configure alarm settings: Touch , and set the snooze duration,
whether the alarm rings in silent mode, and what the volume buttons do
when pressed.
•
Delete an alarm: Touch , select the alarm you want to delete, and
touch
DELETE
.
DONE
.
World clock
1.
On the home screen, touch .
Tools
2.
Under
World clock
•
Add a city: Touch , enter a city name or choose a city from the city
list, and touch the city you want to add.
•
Set your time zone: Touch to set your home time zone and system
date and time.
•
Delete a city: Touch , select the city you want to delete, and touch
REMOVE
.
, you can:
Stopwatch
1.
On the home screen, touch .
2.
On the
3.
4.
Touch
Touch
Stopwatch
Lap
to record multiple times.
Stop
tab, touch
to stop the stopwatch.
Start
to start timing.
62
Page 67
Tools
Touch
Reset
to clear all stopwatch records.
Timer
1.
On the home screen, touch .
2.
On the
Timer
tab, rotate the dial to set the timer duration, or touch an
option to quickly select a time duration.
Touch to set a tone for the timer.
3.
When you are done, touch
4.
When the timer ends, the phone plays a tone and starts overtime timing.
Close
Touch
to stop the tone and reset the timer.
When the timer is running, touch
Start
to start the timer.
Reset
to reset it.
Weather
Weather provides you with the latest weather information for any city around
the world. You can share weather information with your family and friends.
Before you use
Weather
, turn on your phone's GPS and data service.
Adding a city
Add cities to check their real-time weather information.
1.
On the home screen, touch .
2.
Touch > .
3.
Enter a city name. Matching cities are then displayed.
4.
Select the city you want to add.
In addition to your current city, you can add up to nine cities.
Setting the default city
1.
On the home screen, touch .
63
Page 68
2.
Touch .
3.
Touch to the right of the city you want to set as the default city.
Tools
To rearrange the cities, in the city list, touch >
Rearrange cities
Updating the weather
1.
On the home screen, touch .
2.
Flick left or right to find the city whose weather you want to update.
3.
Touch to update the weather.
You can also set
Settings
>
then update the weather at the interval you set.
, select
Weather
to automatic update mode. Touch >
Auto update
, and set
Update interval
. Your phone will
.
64
Page 69
Phone settings
Turning on or turning off airplane mode
Your phone's signal reception or transmission may interfere with an
airplane's flight system. Power off your phone or switch to airplane
mode as required when you are on a flight. In airplane mode, your
phone's wireless features are disabled, but you can still listen to music
or play games.
Use either of the following methods to turn on or turn off
•
Press and hold the power button, and touch
•
On the home screen, touch . Under
When airplane mode is on, is displayed on the status bar.
Airplane mode
All
, touch
Airplane mode
.
Airplane mode
Adjusting the screen brightness
1.
On the home screen, touch .
2.
Under
All
, touch
Display
.
3.
Touch
Brightness
4.
Drag the slider left or right to adjust the screen brightness.
You can also flick down from the status bar to open the notification
panel and adjust the screen brightness using the shortcut switch.
.
Modifying tone settings
:
.
1.
On the home screen, touch .
2.
Under
All
, touch
Sound
.
3.
On the
Sound
screen, you can:
65
Page 70
Phone settings
•
Touch
Volume
notification tones, alarms, calls, and more.
•
Touch
•
Select or clear the
phone vibrates when it is in silence mode.
•
Select or clear the
phone vibrates when you have an incoming call.
•
Touch
•
Touch
•
Select or clear the
•
Touch or clear the check box under
notification tone or vibration when you touch or lock the screen, take a
screenshot, dial a number, and more.
and drag the sliders to set the volume of music, ringtones,
Silent mode
Phone ringtone
Default notification tone
to turn on or turn off silence mode.
Vibrate in silent mode
Vibrate when ringing
to select a ringtone.
to set a notification tone.
DTS mode
to turn on or turn off DTS audio.
check box to set whether your
check box to set whether your
SYSTEM
to turn on or turn off the
Modifying display settings
1.
On the home screen, touch .
2.
Under
All
, touch
Display
.
3.
On the
Display
screen, you can:
•
Touch
Brightness
•
Touch
Color temperature
manually adjust the color temperature, clear the
•
Touch
Wallpaper
•
Select or clear the
screen auto-rotate function. If this function is enabled, your screen's
orientation will automatically change with the way you hold your phone
when you perform certain operations, such as browsing a web page,
viewing a picture, or writing a message.
•
Touch
Sleep
your phone automatically locks its screen to save battery power.
to adjust the screen brightness.
to adjust the screen color temperature. To
Default
check box.
to set the lock screen and home screen wallpapers.
Auto-rotate screen
to set a screen timeout period. If idle for the specified period,
check box to enable or disable the
66
Page 71
Phone settings
•
Touch
Daydream
enabled, the screen saver will automatically run while your phone is being
charged.
•
Touch
Font size
•
Touch
Font style
•
Touch
Pulse notification light
when you receive notifications.
to enable or disable the screen saver. If this function is
to change the display font size.
to change the display font style.
to enable or disable the blinking indicator
Turning on or turning off do not disturb
mode
To avoid being disturbed when you need to focus on important business, turn
on do not disturb mode. In do not disturb mode, your phone will ring only
when you receive calls from allowed contacts. Other calls will be rejected, and
message and other notification tones will be muted.
1.
On the home screen, touch .
2.
Under
All
, touch
Do not disturb
3.
On the
Do not disturb
•
Touch
Enable
mode, is displayed on the status bar.
•
Touch
Scheduled
mode.
•
Touch
Allowed contacts
in do not disturb mode.
•
Touch
Repeat calls
repeat calls function is enabled, the second call from the same number
made within 3 minutes will not be muted.
screen, you can:
to turn on or turn off do not disturb mode. In do not disturb
to schedule the effective time period for do not disturb
to enable or disable the repeat calls function. After the
.
to add contacts whose calls you can still receive
67
Page 72
Setting the date and time
1.
On the home screen, touch .
2.
Under
All
, touch
Date & time
3.
On the
Date & time
•
Select the
to use the network date and time.
•
Clear the
manually set the date, time, and time zone.
•
Select or clear the
12-hour and 24-hour formats.
•
Touch
Automatic date & time
Select date format
screen, you can:
Automatic date & time
Use 24-hour format
.
and
Automatic time zone
and
Automatic time zone
check box to switch between the
to select how you want the date to be displayed.
Changing the system language
1.
On the home screen, touch .
Phone settings
check boxes
check boxes to
2.
Under
All
, touch
3.
Touch
Language
4.
Select a language.
Language & input
.
.
Setting the PIN of your SIM card
A personal identification number (PIN) is delivered with your SIM card to
better protect your phone data. If you enable the SIM card lock, you must
enter the PIN each time you turn your phone on.
Before you perform the following operations, make sure you have obtained
your SIM card's PIN from your service provider.
1.
On the home screen, touch .
2.
Under
All
, touch
3.
Touch
Set up SIM card lock
Security
.
.
68
Page 73
Phone settings
4.
Select the
5.
Enter your PIN, and touch OK.
6.
Touch
Lock SIM card
Change SIM PIN
check box.
to change the PIN.
The SIM card allows only a limited number of consecutive retries if an
incorrect PIN is entered. If this limit is exceeded, you must enter a PIN
unblocking key (PUK), which you can obtain from your service provider.
The number of consecutive attempts to enter the PUK incorrectly is also
limited. If this limit is exceeded, your SIM card will be permanently
disabled. For details about these limits, contact your service provider.
69
Page 74
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by
any means without prior written consent of Huawei Technologies Co., Ltd.
and its affiliates ("Huawei").
The product described in this manual may include copyrighted software of
Huawei and possible licensors. Customers shall not in any manner reproduce,
distribute, modify, decompile, disassemble, decrypt, extract, reverse
engineer, lease, assign, or sublicense the said software, unless such
restrictions are prohibited by applicable laws or such actions are approved by
respective copyright holders.
Trademarks and Permissions
, , , and are trademarks or registered trademarks of
Huawei Technologies Co., Ltd.
Android™ is a trademark of Google Inc.
LTE is a trade mark of ETSI.
Bluetooth® word mark and logos are registered trademarks owned by
The
Bluetooth SIG, Inc.
Ltd. is under license.
Other trademarks, product, service and company names mentioned may be
the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the
software installed, capacities and settings of local network, and therefore
may not be activated or may be limited by local network operators or network
service providers.
and any use of such marks by Huawei Technologies Co.,
70
Page 75
Legal Notice
Thus, the descriptions herein may not exactly match the product or its
accessories which you purchase.
Huawei reserves the right to change or modify any information or
specifications contained in this manual without prior notice and without any
liability.
Third-Party Software Statement
Huawei does not own the intellectual property of the third-party software and
applications that are delivered with this product. Therefore, Huawei will not
provide any warranty of any kind for third party software and applications.
Neither will Huawei provide support to customers who use third-party
software and applications, nor be responsible or liable for the functions or
performance of third-party software and applications.
Third-party software and applications services may be interrupted or
terminated at any time, and Huawei does not guarantee the availability of any
content or service. Third-party service providers provide content and services
through network or transmission tools outside of the control of Huawei. To
the greatest extent permitted by applicable law, it is explicitly stated that
Huawei shall not compensate or be liable for services provided by third-party
service providers, or the interruption or termination of third-party contents or
services.
Huawei shall not be responsible for the legality, quality, or any other aspects
of any software installed on this product, or for any uploaded or downloaded
third-party works in any form, including but not limited to texts, images,
videos, or software etc. Customers shall bear the risk for any and all effects,
including incompatibility between the software and this product, which result
from installing software or uploading or downloading the third-party works.
This product is based on the open-source Android™ platform. Huawei has
made necessary changes to the platform. Therefore, this product may not
support all the functions that are supported by the standard Android platform
or may be incompatible with third-party software. Huawei does not provide
any warranty or representation in connect with any such compatibility and
expressly excludes all liability in connection with such matters.
71
Page 76
Legal Notice
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT
SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE,
DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF
WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY
FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A
LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT
DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY
CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and
regulations and be responsible to obtain all necessary governmental permits
and licenses in order to export, re-export or import the product mentioned in
this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see
the privacy policy at http://consumer.huawei.com/privacy-policy.
72
Page 77
Index
A
Accessing a bookmark 29
Adding a bookmark
Adding a city 62, 63
Adding a POP3 or IMAP email account 31
Adding an alarm
Adding an Exchange account 31
Adjusting the screen brightness 65
Android input method
Answering a call 18
Answering a third-party call 20
Applying a special effect
Auto-rotate screen 9
B
Backing up data to a USB storage device 58
Backing up data to the local storage 58
Battery indicator
Birthday reminder 61
Bluetooth 45
Browsing web pages
29
62
13
38
4
29
C
Calendar 61
Changing the font size
Changing the system language 68
Changing the theme 16
Changing the wallpaper
Charging the battery 3
Charging the battery using a computer 3
Charging the battery using the provided power adapter
Checking your emails 32
Clearing the application cache 54
Clearing your browsing history
Compressing a file 51
Configuring alarm settings 62
Connecting to a Wi-Fi network
Connecting to a Wi-Fi network using WPS 43
Connecting two devices using Wi-Fi Direct 46
Continuous shooting
17
16
30
43
35
3
i
Page 78
Copying a file 50
Copying contacts
Copying messages to a SIM card
Copying text 14
copyright
Creating a contact
Creating a contact group
Creating a folder 50
Creating a playlist 40
Creating a shortcut for a file or folder
Creating an event 61
Cutting a file 50
Cutting text
70
24
27
22
24
51
14
D
Decompressing a file 51
Deleting a city 62
Deleting a file 51
Deleting a message
Deleting a thread 28
Deleting an alarm 62
Deleting an application or widget
disclaimer of warranties 72
Downloading applications 53
27
9
Index
E
Editing a bookmark 29
Editing text
export regulations 72
Exporting contacts to a SIM card 23
Exporting contacts to a storage device
14
23
F
Fast charging 3
Filtering harassment calls 56
Filtering harassment messages 56
Forwarding a message
Freeing up your phone memory 55
27
G
Getting to know your home screen 7
H
HiSuite mode 47
ii
Page 79
I
import regulations 72
Important information about the battery
Importing contacts from a Bluetooth device 22
Importing contacts from a SIM card 22
Importing contacts from a storage device 22
Importing contacts using Wi-Fi Direct
Installing an application 53
4
23
L
Listening to music 39
Locking the screen 5
M
Making an emergency call 20
Managing notifications
Merging contacts 24
Modifying display settings 66
Modifying tone settings
Moving an application or widget 9
MTP mode 47
57
65
N
Navigation bar 3
notice
70
Notification manager 57
Index
O
Online update 60
Organizing home screen icons using folders 9
P
Pairing with another Bluetooth device 45
Pasting text
permissions 70
Phone accelerator 55
Phone scanning
Playing a playlist 40
Playing a slideshow 38
Power consumption scan
Power manager 56
Powering off 5
Powering on
privacy policy 72
14
55
56
5
iii
Page 80
R
Receiving a file using Bluetooth 46
Receiving a file using Wi-Fi Direct
Rejecting a call 18
Rejecting a call and sending the caller a message 18
Renaming a file 51
Restarting your phone
Restoring data from a USB storage device 59
Restoring data from the local storage 59
Restoring factory settings
5
47
60
S
Searching for a contact 24
Searching for a file 50
Selecting an input method 12
Selecting text
Sending a file using Wi-Fi Direct 46
Sending a multimedia message 26
Sending a text message
Sending an email 32
Sending emails to a contact group 25
Sending messages to a contact group
Setting the date and time 68
Setting the default city 63
Setting the home page
Setting the PIN of your SIM card 68
Setting the power saving mode 56
Setting the ringtone and notification tones
Setting the screen lock method 6
Setting your time zone 62
Sharing a file using Bluetooth
Sharing a photo or video 39
Sharing an application 53
Sharing an event
Shooting a video 35
Smart dialing 18
Status icons
Stopwatch 62
Storage cleaner 55
14
26
25
30
17
46
61
10
Index
T
Taking a photo 35
Taking a photo with watermark
Taking a screenshot 8
Taking an audio photo 36
third-party software statement
37
71
iv
Page 81
Timer
63
trademarks
Turning off airplane mode
Turning off Bluetooth 45
Turning off do not disturb mode
Turning on airplane mode
Turning on Bluetooth
Turning on do not disturb mode 67
Turning on or turning off an alarm 62
70
65
67
65
45
U
Uninstalling an application 54
Unlocking the screen
Updating the weather 64
USB flash drive mode 48
Using HDR
Using the notification panel 7
36
6
V
Viewing photos or videos 38
Viewing recently used applications 11
W
What you can do during a call 19
Wi-Fi Direct
Wi-Fi hotspot 43
46
Index
Y
Your phone at a glance 2
v
Page 82
This guide is for reference only. The actual product, including but not limited to
the color, size, and screen layout, may vary. All statements, information, and
recommendations in this guide do not constitute a warranty of any kind, express
or implied.
Please visit http://consumer.huawei.com/en/support/hotline for recent updated
hotline and email address in your country.
Model: H60-L04
V100R001_01
Loading...
