Honeywell V340 PRODUCT DATA
PRODUCT DATA
Honeywell y Subject to change EN0H-2205GE25 R1106
V340
VENUS series Lockshield Valves
FOR THE RETURN PORT OF RADIATORS, EXTERNAL THREADS
Straight
Angle
Design
The lockshield valves consist of:
• Valve housing PN10, DN10 or DN15 with
• internal thread connection to ISO228 on inlet
• external thread connection with union-nut and radiator tail-
piece on outlet
• angle and straight bodies with dimensions according so
EN215, Appendix A, Series F
• Valve insert
• Protection cap
• Union-nut and radiator tailpiece
Materials
• Valve housing made of nickel-plated brass
• Valve insert made of brass with EPDM O-rings and soft seals
and stainless steel spindle
• Protection cap made of grey plastic
• Union-nut and tailpiece made of nickel plated brass with
EPDM O-ring
Application
VENUS series lockshield valves are used to connect radiators
and other heat exchangers to heating circuits of hydronic
heating systems. They are installed at the return port of the
radiator and offer a shutoff function to separate the radiator
from the heating circuit, for example for renovating.
Features
• With shutoff function for easy removal of connected
radiator
• Connection to all types of pipework DN10 to DN15
• Tail piece with integrated O-ring

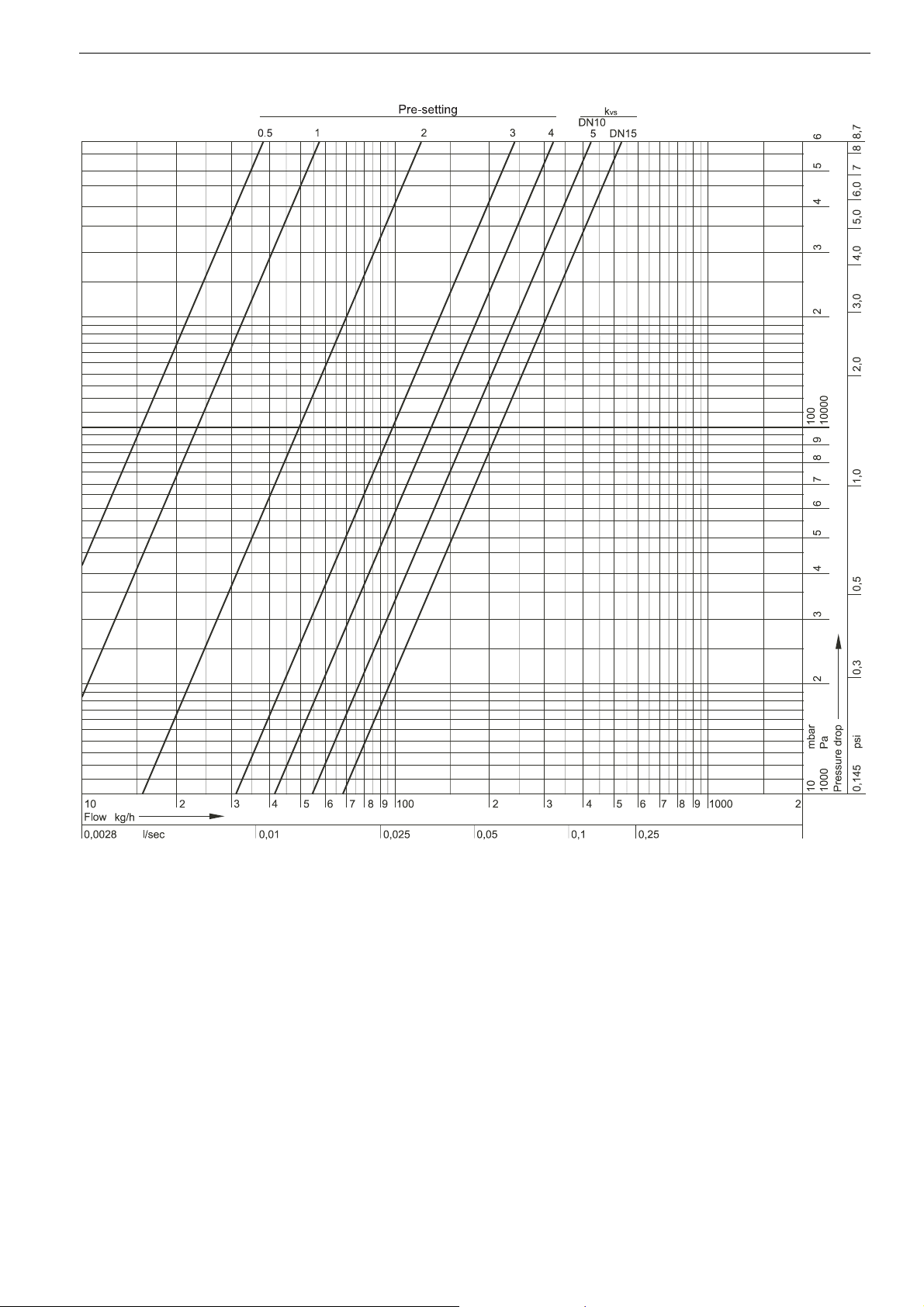

Specifications
Medium Heating water, water quality to
VDI2035
ph-value 8...9,5
Operating temperature max. 120°C (24 8°F)
Operating pressure PN 10
Differential pressure max. 0.20 bar (2.9 psi)
recommended for quiet operation
V340 - VENUS SERIES LOCKSHIELD VALVES
EN0H-2205GE25 R1106 2 Honeywell y Subject to change
Dimensions and Ordering Information
Table 1. Available versions and OS-Nos (OS=Ordering System)
NOTE: All dimensions in mm unless stated otherwise.
Fig. 1. Angle version Fig. 2. Straight version
Versions
DN
Dimensions
OS-No.
d1 d2 I1 l h
Angle (Fig. 1) 10 Rp
3
/
8
"Rp
3
/
8
" 20 49 21.5 V340E010
15 Rp
1
/
2
"Rp
1
/
2
" 23 53 21.5 V340E015
Straight (Fig. 2) 10 Rp
3
/
8
"Rp
3
/
8
" 25 75 23 V340D010
15 Rp
1
/
2
"Rp
1
/
2
" 29 82 23 V340D015
Please Note:
• To avoid stone deposit and corrosion the composition of the
medium should conform with VDI-Guideline 2035
• Additives have to be suitable for EPDM sealings
• System has to be flushed thoroughly before initial operation
with all valves fully open
• Any complaints or costs resulting from non-compliance with
above rules will not be accepted by Honeywell
• Please contact us if you should have any special require-
ments or needs
Accessories
Connections
Compression ring and nut
1/2" x 10 mm VA620A1510
1/2" x 12 mm VA620A1512
1/2" x 14 mm VA620A1514
1/2" x 15 mm VA620A1515
1/2" x 16 mm VA620A1516
NOTE: Support inserts have to be used for copper or soft
steel pipe with 1.0 mm wall thickness
Compression ring and nut with support insert (2 pcs each)
1/2" x 12 mm VA621A1512
1/2" x 15 mm VA621A1515
1/2" x 16 mm VA621A1516
NOTE: Support inserts have to be used for copper or soft
steel pipe with 1.0 mm wall thickness
Compression ring and nut with support insert for compo-
site pipe (2 pcs each)
1/2" x 14 mm VA622B1514
1/2" x 16 mm VA622B1516
