V2476 Verafix-VKE
PRE-SETTABLE H-BLOCK FOR COMPACT RADIATORS
PRODUCT DATA
Design |
The Verafix-VKE consists of:
•Straight valve body for floor connection or angle valve body for wall connection
•Valve insert
•Nickel-plated brass protection cap
•Radiator connection nuts
•Universal externally threaded connections (Eurotaper connections) suitable for copper, precision steel tube, plastics and composite tube (see accessories for external thread fittings)
Materials
•Matt nickel-plated hot-forged brass body
•Brass valve insert
•EPDM or NBR O-ring sealings
•Brass union connections
•Nickel-plated brass radiator connection nuts
•Nickel-plated brass protection caps with NBR sealings
Application

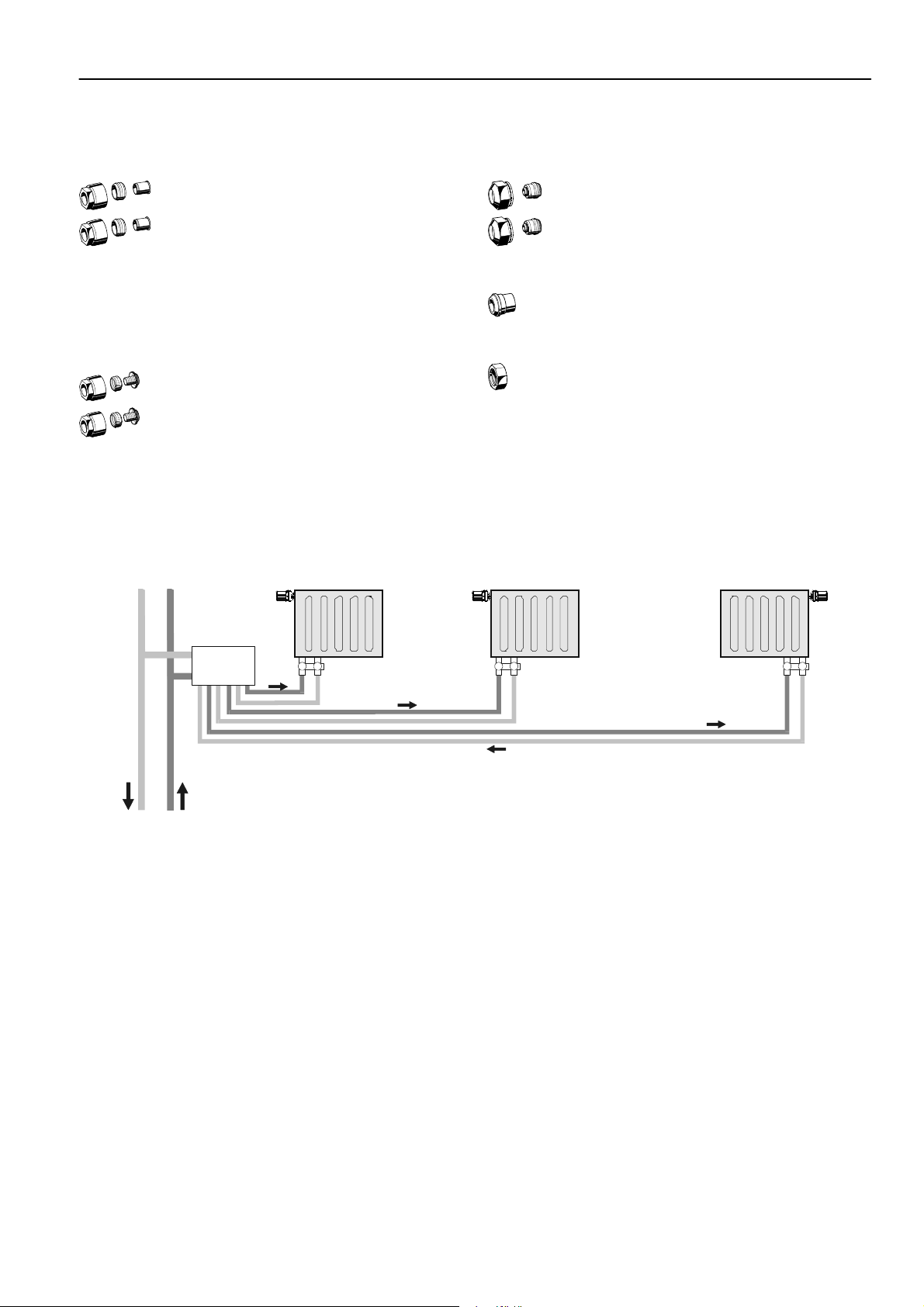

The verafix-VKE is an adjustable lockshield valve for compact radiators with connection centres of 50 mm. It is used on twopipe systems with radiators which have integral valves to regulate and shut-off individual radiators.
Verafix-VKE is suitable for hot water heating systems.
Verafix-VKE with 1/2" internal threads are suitable for radiators which include the following makes:
Bemm |
Finimètal |
Northor |
Superia |
Concept |
Ferroli |
Purmo |
Thor |
Dia-Norm |
Henrad |
Radson |
VEHA |
Dia-therm |
Korado |
Schäfer |
Vogel & Noot |
Dura |
Manaut |
Stelrad |
|
Verafix-VKE with 3/4" external threads are suitable for radiators which include the following makes:
Baufa |
Buderus |
Kermi |
Ribe |
Brötje |
De Longhi |
Reusch |
RIOPanel |
Brugman |
|
|
|
Features
•Adjustable by stroke limitation with system in full operation
•Optional flow direction. Performance values apply for both directions of flow.
•Robust brass housing
•Connection on pipework side 3/4"external thread for copper, soft steel, plastic and composite pipes
•Connectors on radiator side 1/2" internal or 3/4" external thread
Specifications
Medium |
Water |
pH-value |
8–9,5 |
Operating temperature |
max. 120°C (248°F) |
Operating pressure |
max. 10,0 bar (145 p.s.i.) |
kvs-value |
1,50 |
Identification
The Verafix-VKE differs from the outwardly identical VerafixVK in the design of the valve inserts. Verafix-VKE inserts have a hexagon socket for shut-off. (Verafix-VK inserts have an additional pentagon nut on top. The hexagon socket for shut-off is accessed by a hole in the middle.)
Copyright © 2000 Honeywell AG • All rights reserved |
EN0H-034GE25 R1200 |
VERAFIX-VKE
Function
Individual pre-setting of the Verafix-VKE is made with a commercially available 6 mm Allan key. The flow rate is adjusted by turning the valve insert from the closed position to the calculated value. The relationship between the number of turns and the flow rate can be read off the flow diagram where ‘open’ refers to the fully open position – valve insert turned anti-clockwise as far as possible. Pre-setting only needs to be done on one side either supply or return.
The supply and return of the radiator can be shut-off by turning the valve inserts fo the Verafix-VKE clockwise to the closed position with a 6 mm Allan key. Shutting-off the radiator with the Verafix-VKE causes the pre-setting to be lost.
Pre-settable Verafix-VKE lockshield valves are supplied set fully open.
Dimensions
Fig. 1. Dimensions Verafix-VKE angle |
Fig. 2. Dimensions Verafix-VKE |
NOTE: All dimensions in mm unless otherwise stated.
Ordering Information
Type |
Pipe |
Radiator |
DN |
kvs-value |
OS-No. |
|
connection |
connection |
|
|
|
Angle (wall connection) |
3/4” external |
3/4” external |
15 |
1,50 |
V2476E020 |
Angle (wall connection) |
3/4” external |
1/2” internal |
15 |
1,50 |
V2476E015 |
Straight (floor connection) |
3/4” external |
3/4” external |
15 |
1,50 |
V2476D020 |
Straight (floor connection) |
3/4” external |
1/2” internal |
15 |
1,50 |
V2476D015 |
|
|
|
|
|
|
