Honeywell V2212, V2211 PRODUCT DATA
Straight version
V2211, V2212
Fourway Distribution Valves
CONNECTION VALVES FOR DISTRIBUTION SYSTEMS
PRODUCT DATA
Application
Fourway distribution valves are used to connect the supply and
return of a radiator to the heating loop. Individual radiators can
be shutoff without affecting or interrupting the water flow of the
heating loop.
By using distribution valves connections under the floor or in the
wall are avoided. Angle pattern valves can be used on the left
or on the right side of a radiator.
V2211 distribution valves are used for one-pipe systems and
have a radiator flow share of 50%. V2212 distribution valves are
used for two-pipe systems and have a radiator flow share of
100%.
Features
• No connections under the floor necessary
• Shutoff does not affect other radiators in the loop
• Available for one-pipe and two-pipe systems
•With G
3
/4" (Eurocone) external threads
Angle version
Design
The distribution valve consists of:
• Valve housing PN10, DN15 with G
• Shutoff valve insert
• Protection cap
• Union-nut and radiator tailpiece
3
/4“ external threads
Materials
• Valve housing made of nickel-plated brass
• Valve insert made of brass with EPDM O-rings
• Union-nut, tailpiece and cap made of nickel-plated brass
Specifications
Medium Water or glycol-water mixture,
quality to VDI 2035
Operating temperature 2...100°C (36...212°F)
Operating pressure PN10
k
(cv)-values V2211: 2.7 (3.16)
vs
V2212: 1.5 (1.76)
Function
The distribution valve supplies incoming heating water to the
connected riser tube and heating water returning from the radiator back into the heating loop.
The radiator is shutoff from the heating loop when the valve
insert is closed. Following radiators in the heating loop are not
affected by this.
Please Note:
• To avoid stone deposit and corrosion the composition of the
medium should conform with VDI-Guideline 2035
• Additives have to be suitable for EPDM sealings
• System has to be flushed thoroughly before initial operation
with all valves fully open
• Any complaints or costs resulting from non-compliance with
above rules will not be accepted by Honeywell
• Please contact us if you should have any special requirements or needs
Honeywell y Subject to change EN0H-2405GE25 R1108
V2211, V2212 FOURWAY DISTRIBUTION VALVES
Dimensions and Ordering Information
Ø3/4“
29
58
29
38
Ø3/4“
52
112
Ø3/4“
Fig. 1. Straight version Fig. 2. Angle version
NOTE: All dimensions in mm unless stated otherwise.
Table 1. Available versions and OS-Nos (OS=Ordering Specification)
Item Description OS-No.
V2211X floor Fourway distribution valve for one-pipe systems (radiator share 50%),
straight version, floor connection
V2211X wall Fourway distribution valve for one-pipe systems (radiator share 50%),
angle version, wall connection
V2212X floor Fourway distribution valve for two-pipe systems, straight version, floor
connection
V2212X wall Fourway distribution valve for two-pipe systems, angle version, wall
connection
Ø1/2“
29
Ø3/4“
38
Ø3/4“
52
112
V2211XD0020
V2211XE0020
V2212XD0020
V2212XE0020
Ø1/2“

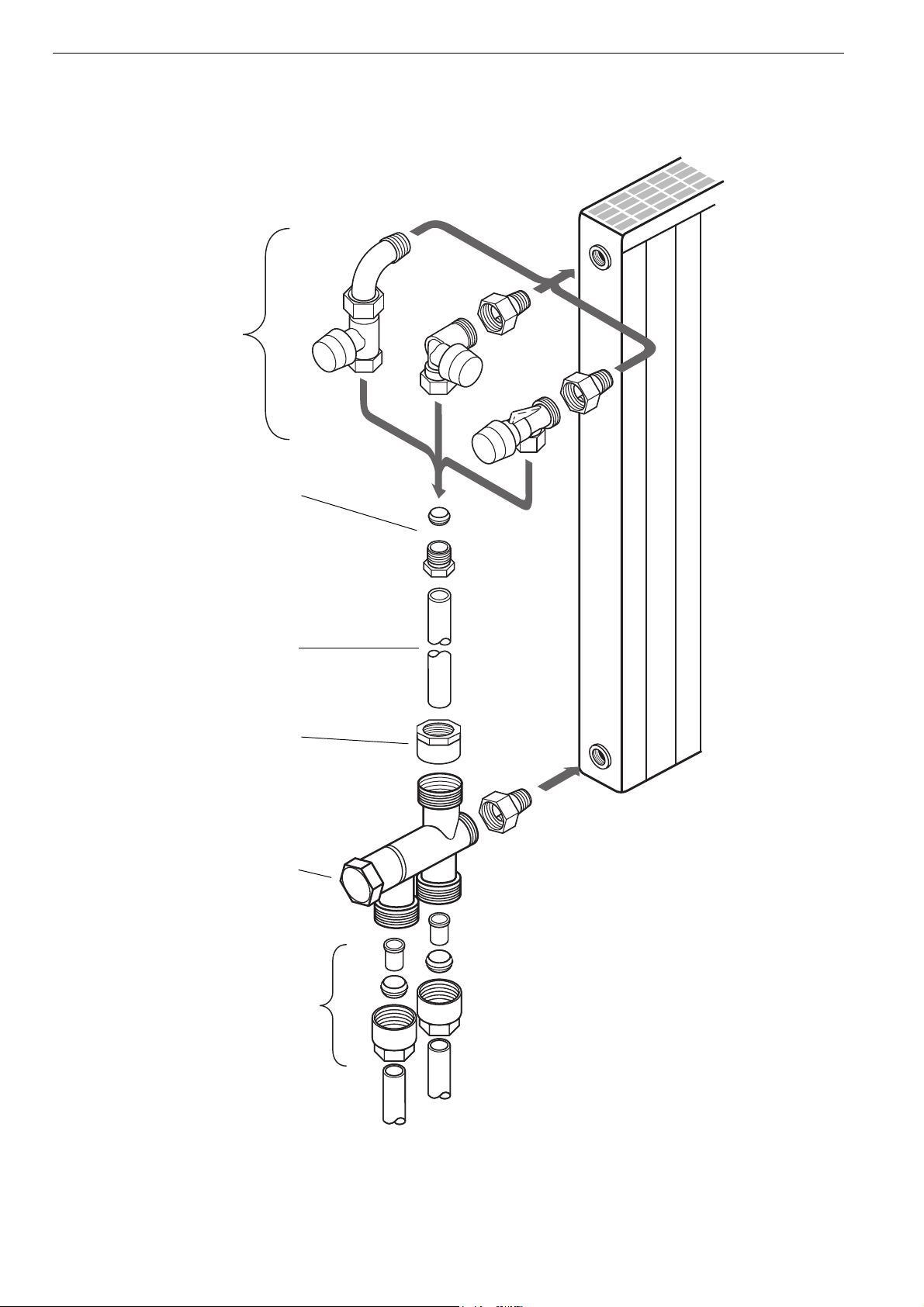

Accessories
Connection for copper pipe (2 pcs.)
3/4" x 10 mm OT114M-3/4B
3/4" x 12 mm OT114M-3/4C
3/4" x 14 mm OT114M-3/4D
3/4" x 15 mm OT114M-3/4E
3/4" x 16 mm OT114M-3/4F
3/4" x 18 mm OT114M-3/4H
Connection for PE-X pipe (2 pcs.)
3/4" x 14 x 2 mm OT112M-3/4D
3/4" x 16 x 2 mm OT112M-3/4F
3/4" x 16 x 2,2 mm OT112M-3/4F2
3/4" x 17 x 2 mm OT112M-3/4G
3/4" x 18 x 2 mm OT112M-3/4H
3/4" x 20 x 2 mm OT112M-3/4K
Connection for composite pipe (2 pcs.)
3/4" x 14 x 2 mm OT113M-3/4D
3/4" x 16 x 2 mm OT113M-3/4F
3/4" x 18 x 2 mm OT113M-3/4H
Chrome-plated precision steel riser tube
15 x 1 mm, length 1.100 mm VA2203A110
Pressure cap – for shutting off valves on radiator outlet
for valve DN15 VA2202A015
EN0H-2405GE25 R1108 2 Honeywell y Subject to change
