ST699
The ST699 electronic dual zone timer
with two ON/OFF periods per day.
FEATURES
•
Wallplate compatibility with 7-day version (ST799)
ELECTRONIC DUAL
ZONE TIMER
PRODUCT DATA
is used to control gravity, primary or
fully pumped central heating systems
requiring a single 24 hour programme
ST699 incorporates a simple and
intuitive programming concept which
established its predecessor as the
leading electronic dual zone timer on
the market.
ST699 is designed for European CEN
approval.
• 24-hour programme
• Independent heating and hot water channels
• One or Two ON/OFF periods per day
• Built-in programme
• Temporary programme override/advance
• 7-day battery back-up
• Compact size
• AM/PM or 24 hour clock format (factory option)
• 10 minute programme resolution
• 3 A resistive/inductive (@ 0.6 pf) 230 V~ SPDT relay
rating
• Simple/intuitive programming
• Surface or wallbox mounting options
• Pack contains everything for immediate installation
EN0R 8439 R0
ST699 ELECTRONIC DUAL ZONE TIMER
DIMENSIONS
INSTALLATION
SPECIFICATIONS
Product type
: Electronic dual zone timer
Programme day
: 03.00 AM to 02.50 AM (on the next day)
Wiring
: Surface or single
wallbox (UA1 size)
Wiring access
: Rear or bottom edge (surface wiring
Protection class
ORDERING SPECIFICATION
Power supply : 230 V~ (±10%), 50 HZ
Power reserve : Rechargeable battery with 7 days
backup following a 24 hour charging
period
Switch rating : 2 x SPDT potential free
3 A resistive @ 230 V~ (± 10%), 50 Hz
3 A inductive @ 0.6 pf
Programme : 24-hour with two ON/OFF periods daily
Programme
resolution
Override : Advance next programme time
: 10 minutes
(change)
access)
Wire gauge : 0.75 to 2.5 mm2 two max. per terminal
Dimensions : 100 x 100 x 38 mm (w x h x d)
: IP20 (IEC 529)
Environmental : Operating temperature range 0 to 45oC
Shipping and storage temperature
range -20 to 55oC
Humidity range 0 to 90% rh, non-
condensing
Approvals : Designed to meet European CEN
approval EN60730
Life : 7 years minimum
ST699B1002
Mounting
Remove the subbase from the timer by depressing the
securing clip A and pulling the two halves apart. See fig. 1
The ST699 can either be mounted onto the wall surface or a
flush mounted UA1 (with 60.3 mm pitch mounting holes)
using the screws supplied.
IMPORTANT
1. The installer must be a trained service
engineer
2. Disconnect the power supply before beginning
installation
EN0R 8439 R0 2
Fig. 1
ST699 ELECTRONIC DUAL ZONE TIMER
CLOCK
WIRING
wired in accordance with the latest IEE wiring regulations.
CLOCK
CLOCK
CLOCK
Cable entries can be made through the opening in the rear of
the subbase, or via the three surface entry break-outs in the
top and two sides of the wallplate. See fig. 2
The ST699 is designed for fixed wiring only and must be
Ensure the wiring connections to the mains supply is via a
fuse rated at not more than 3 A and a Class "A" switch
(having contact separation of at least 3 mm in all poles).
Remove the terminal cover to allow access to the wiring
terminals as shown in fig.2. Connect the systems wiring as
shown by the specific applications wiring diagram. A
maximum of two 2.5 mm2 (cross sectional area) wires can be
connected to each terminal as shown in fig.3. Each wire
should be stripped of insulation to a length no greater than
7mm to safeguard against the possibility of electrical shorts.
Fig. 3

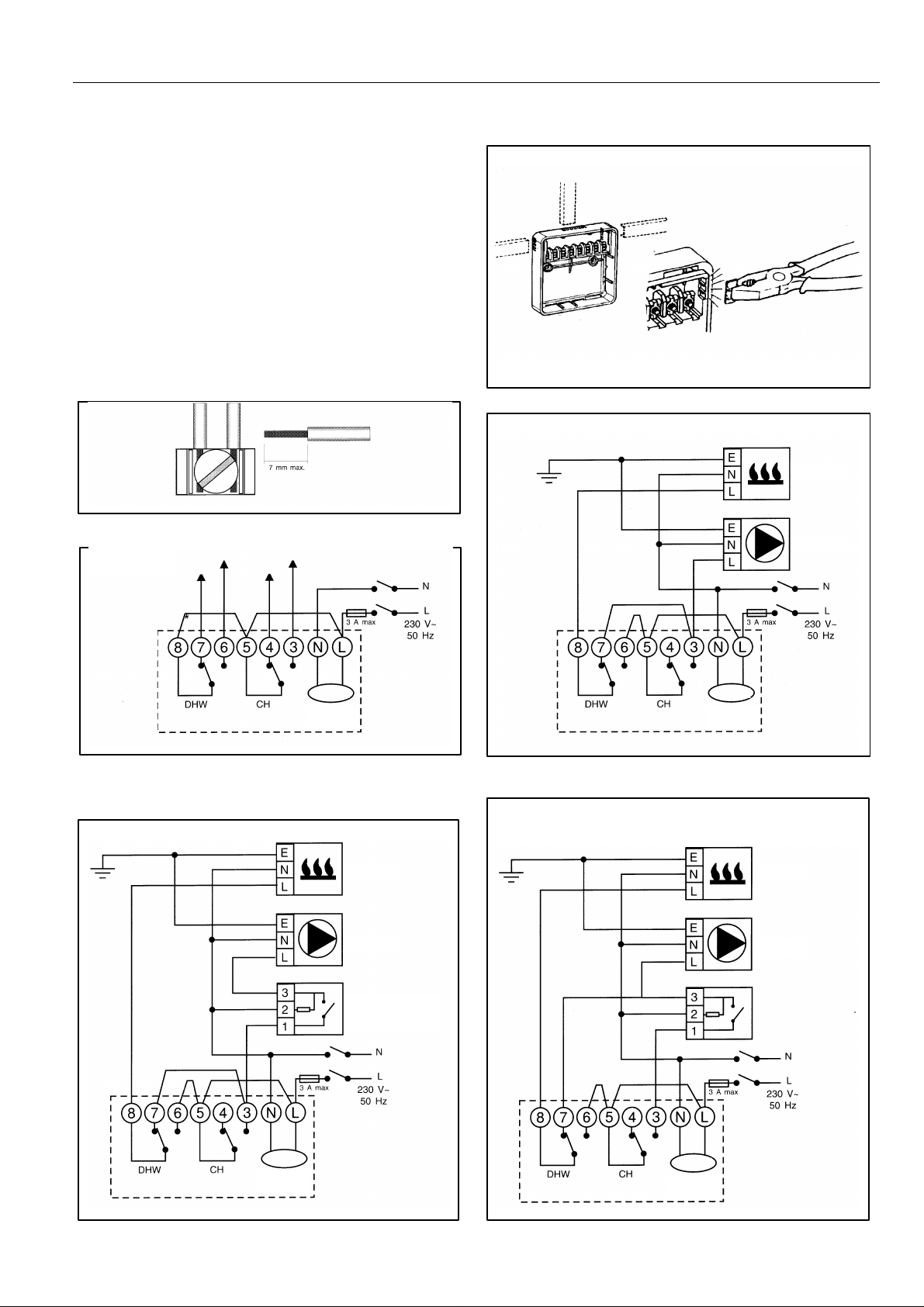

Systems Wiring
Basic Wiring
DHW ON
DHW OFF
CH ON
CH OFF
Fig. 2
Basic System 1 - without thermostats
BOILER
PUMP
ST699
*A link must be provided between L-5-8 on the subbase of
ST699 for all Sundial Plans, or fully controlled pumped
primary systems
Basic System 2 - with room thermostat
BOILER
FUSE
PUMP
ROOM
THERMOSTAT
ST699
Basic System 3 - as System 2 except boiler cycling
controlled by room thermostat when DHW is switched
OFF
BOILER
PUMP
ROOM
THERMOSTAT
ST699
ST699
3 EN0R 8439 R0
ST699 ELECTRONIC DUAL ZONE TIMER
NOTE:
In the Sundial S, W, and Y Plan wiring diagrams,
C-Plan
ROOM STAT.
CYLINDER
BOILER
PUMP
CLOCK
Y-Plan
W-Plan
T6360/T4360
L641
V4044
BOILER
PUMP
CLOCK
T6360/T4360
L641
V4043H
BOILER
PUMP
CLOCK
SUNDIAL PLAN WIRING DIAGRAMS
S-Plan
HOT
BOILER
PUMP
CLOCK
V4043H
V4043H
ROOM STAT.
CYLINDER
3 A max
ROOM STAT.
STAT.
CYLINDER
STAT.
ST699
ST699
MID-POSITION VALVE
2 PORT ZONE VALVE
HEATING
2 PORT ZONE VALVE
ROOM STAT.
WATER
2 PORT ZONE VALVE
CYLINDER
STAT.
STAT.
ST699
DIVERTING VALVE
3 A max
ST699
connections are shown to basic boilers only. For
wiring connections to pump overrun boilers refer to
boiler manufacturers instructions or Honeywell for
assistance.
3 A max
ST699
Final Assembly
When the wiring is completed, replace the terminal cover
ensuring it is correctly installed with ends located under the
tabs and the locking pin through the locating hole.
Replace the timer onto the wallplate, ensuring it is firmly
secured by the three securing clips.
Switch on the power and refer to the user's guide for
programming details.
If the display remains blank, press the RESET button
with a blunt object. (e.g. a pencil)
