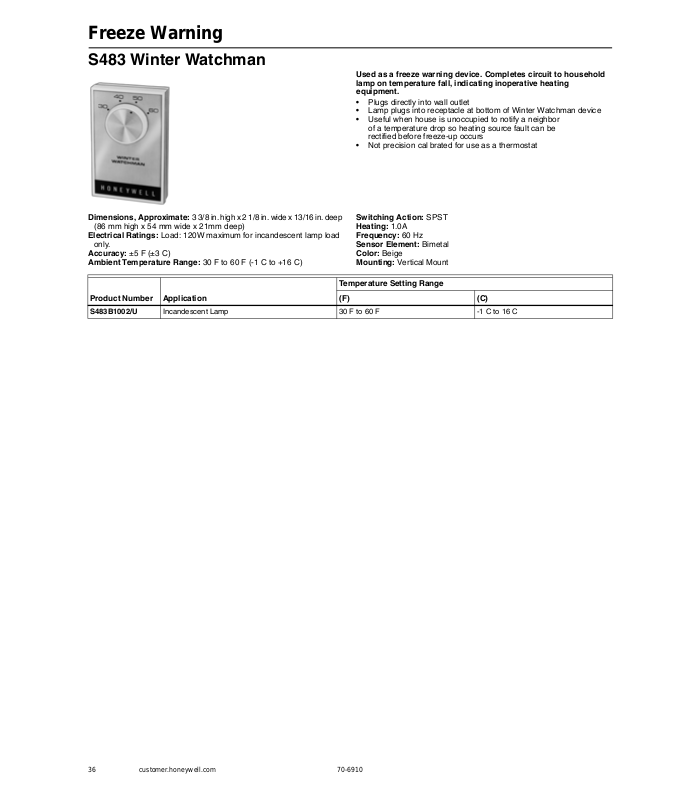

Honeywell S483 Catalog Page
Freeze Warning
S483 Winter Watchman
Used as a freeze warning device. Completes circuit to household lamp on temperature fall, indicating inoperative heating equipment.
• Plugs directly into wall outlet
• Lamp plugs into receptacle at bottom of Winter Watchman device
• Useful when house is unoccupied to notify a neighbor of a temperature drop so heating source fault can be rectified before freeze-up occurs
• Not precision cal brated for use as a thermostat
Dimensions, Approximate: 3 3/8 in. high x 2 1/8 in. wide x 13/16 in. deep |
Switching Action: SPST |
|
||
(86 mm high x 54 mm wide x 21mm deep) |
|
Heating: 1.0A |
|
|
Electrical Ratings: Load: 120W maximum for incandescent lamp load |
Frequency: 60 Hz |
|
||
only. |
|
|
Sensor Element: Bimetal |
|
Accuracy: ±5 F (±3 C) |
|
Color: Beige |
|
|
Ambient Temperature Range: 30 F to 60 F (-1 C to +16 C) |
|
Mounting: Vertical Mount |
|
|
|
|
|
|
|
|
|
Temperature Setting Range |
|
|
|
|
|
|
|
Product Number |
Application |
(F) |
|
(C) |
|
|
|
|
|
S483B1002/U |
Incandescent Lamp |
30 F to 60 F |
-1 C to 16 C |
|
|
|
|
|
|
36 |
customer.honeywell.com |
70-6910 |
