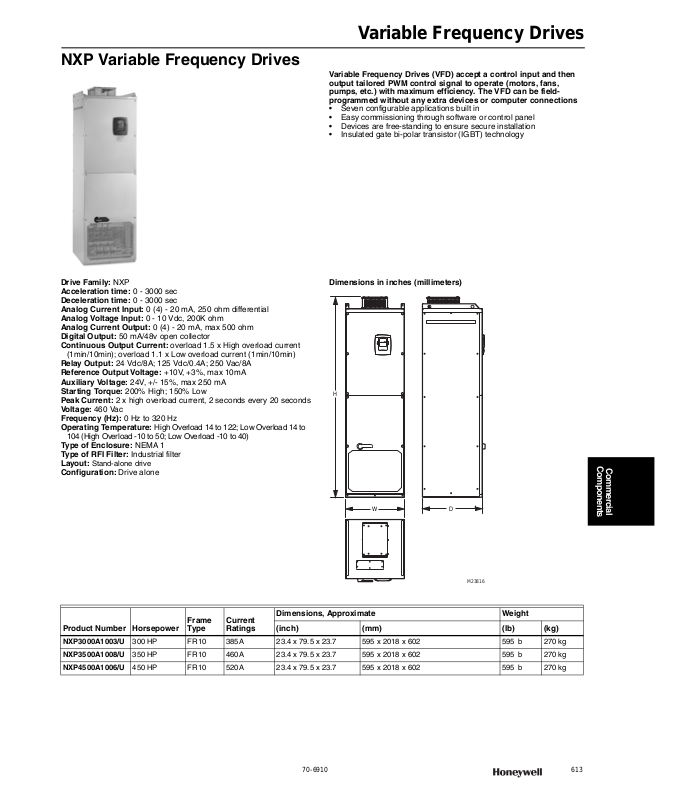

NXP Variable Frequency Drives
Drive Family: NXP
Acceleration time: 0 - 3000 sec
Deceleration time: 0 - 3000 sec
Analog Current Input: 0 (4) - 20 mA, 250 ohm differential
Analog Voltage Input: 0 - 10 Vdc, 200K ohm
Analog Current Output: 0 (4) - 20 mA, max 500 ohm
Digital Output: 50 mA/48v open collector
Continuous Output Current: overload 1.5 x High overload current
(1min/10min); overload 1.1 x Low overload current (1min/10min)
Relay Output: 24 Vdc/8A; 125 Vdc/0.4A; 250 Vac/8A
Reference Output Voltage: +10V, +3%, max 10mA
Auxiliary Voltage: 24V, +/- 15%, max 250 mA
Starting Torque: 200% High; 150% Low
Peak Current: 2 x high overload current, 2 seconds every 20 seconds
Voltag e: 460 Vac
Frequency (Hz): 0 Hz to 320 Hz
Operating Temperature: High Overload 14 to 122; Low Overload 14 to
104 (High Overload -10 to 50; Low Overload -10 to 40)
Type of Enclosure: NEMA 1
Type of RFI Filter: Industrial filter
Layout:
Configuration: Drive alone
Stand-alone drive
Variable Frequency Drives (VFD) accept a control input and then
output tailored PWM control signal to operate (motors, fans,
pumps, etc.) with maximum efficiency. The VFD can be fieldprogrammed without any extra devices or computer connections
• Seven configurable applications built in
• Easy commissioning through software or control panel
• Devices are free-standing to ensure secure installation
• Insulated gate bi-polar transistor (IGBT) technology
Dimensions in inches (millimeters)
Commercial
Components
Product Number Horsepower
NXP3000A1003/U 300 HP FR10 385A 23.4 x 79.5 x 23.7 595 x 2018 x 602 595 b 270 kg
NXP3500A1008/U 350 HP FR10 460A 23.4 x 79.5 x 23.7 595 x 2018 x 602 595 b 270 kg
NXP4500A1006/U 450 HP FR10 520A 23.4 x 79.5 x 23.7 595 x 2018 x 602 595 b 270 kg
Frame
Type
Current
Ratings
Dimensions, Approximate Weight
(inch) (mm) (lb) (kg)
70-6910 613
