Portable Air Conditioner (Dual Hose)
User Manual
Read and save these instructions before use
Model:
MN10CED / MN10CHED
MN12CED / MN12CHED
MN14CED / MN14CHED
Series
Customer Support:
Web: www.jmatek.com
USA: 1-800-474-2147 | usinfo@jmatek.com
CANADA^: 1-888-209-0999 | canadainfo@jmatek.com
^ Canada Customer Support service available for models sold in Canada only.
SAFETY
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND
KEEP FOR FUTURE REFERENCE. IN CASE THERE IS ANY
INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH
VERSION AND ANY OTHER LANGUAGE VERSION OF THE
CONTENT OF THIS MATERIAL, THE ENGLISH VERSION
SHALL PREVAIL.
WARNING:
•
DO NOT operate the unit with a damaged plug or loose wall
outlet. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•
DO NOT cover the air intake and exhaust when in use.
•
DO NOT place objects on or sit on the unit.
•
Always turn off and unplug the unit when cleaning or
servicing.
•
DO NOT use the appliance if it is damaged.
•
If service is needed contact an authorized service agent.
•
Unplug the unit when stored or not in use.
•
DO NOT pull or carry the appliance by the power cord.
•
DO NOT pinch the power cord in the door and DO NOT pull
it along edges or sharp corners.
•
DO NOT run the power cord under carpeting and rugs.
•
Use caution to prevent tripping on cord.
•
DO NOT use the device in the following cases:
- Near a fire source
- In areas where gasoline, paint or other flammable
goods are stored
- In an area where the water can be projected
•
DO NOT touch the plug or the device with wet hands.
•
Basic safety precautions should always be followed when
using electrical appliances.
EN
SAFETY (CONTINUED)
This appliance has been manufactured for use in domestic
•
environments and should not be used for other purposes.
Only use the installation kit provided to install this unit.
•
DO NOT attempt to extend the exhaust Hose or install
this unit using other methods other than that shown in
this manual. Improper installation will void any existing
warranties.
DO NOT use an extension cord with this unit.
•
This appliance can be used by children aged from 8 years
•
and above, and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Never insert your fingers or rods into the air outlet. Take
•
special care to warn children of these dangers.
The manufacturer is not liable for injury caused to
•
persons or property damage due to non-compliance
with maintenance instructions and improper use of the
appliance.
The appliance shall be installed in accordance with national
•
wiring regulations.
The appliance is not to be used by persons (including
•
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction.
Children should be supervised to ensure that they do not
•
play with the appliance.
EN
THANK YOU
Congratulations on your purchase of this Honeywell Portable Air Conditioner.
Regarding the information pertaining to the installation, handling, servicing, cleaning and disposal
of the appliance, please refer to the below paragraph of the manual.
USER TIPS
Portable Air Conditioners are ideal for spot cooling. The compressor, condenser and evaporator are
housed in a compact unit. The air is dehumidified and cooled while a flexible exhaust Hose sends
heat outside. The air conditioner includes a window venting kit.
No permanent installation is needed. The unit is easy to move from room to room and offers a truly
flexible air conditioning solution.
Auto Evaporation System - The unit automatically evaporates the condensate through the exhaust
Hose. There is no need to empty the drainage tank except in humid conditions. Read and follow the
instructions carefully.
To ensure optimal efficiency of the product, keep doors and windows closed when it is used as an air
conditioner or dehumidifier. If the product is being used with the fan function only, an open window
could improve air circulation.
Cooling, Heating* and Dehumidifying
Important:
Before installing the unit, place it UPRIGHT for 1 hour before use to allow the refrigerant to stabilize.
Manually adjust the air vent located at the top of the unit to adjust the direction of air flow.
Follow installation instructions to set up the unit.
•
Plug the unit into a properly grounded circuit. DO NOT plug into an extension cord.
•
Operation
EN
Fan Operation
*Applicable for models with Heating feature only.
1
PARTS DESCRIPTION
5
2
6
1
3
9
10
8
4
1) Control Panel
(Incl. Signal Receptor)
2) Air Outlet 8) Power Supply Cord
3) Handle 9) Remote Control
4) Casters 10) Lower Drain Plug with Plastic Cap
7) Air Exhaust Outlet
(Air Conditioning Mode)
11
7
12
5) Upper Dust Filter 11) Upper Drain Plug
6) Upper Grill 12) Air Intake Outlet
EN
(De-humidifier Mode)
2
INSTALLATION
It is important that the installation instructions below are followed for successful installation of this
Portable Air Conditioner. Please call Customer Support if you have any difficulties or queries
regarding these installation procedures.
1 3
x1
4
Installation Kit:
1. Window Bracket Kit (1 Set) 4. Hole Cover (2 Pieces)
2. Window Bracket Panel Adapter
Dia. 5.9" (15 cm)
Dia. 5.1"(13 cm)
3. Hose Connector
Dia. 5.9" (15 cm)
Dia. 5.1" (13 cm)
2
x2 x2
5
x2
(2 Pieces) 5. Hose
Dia. 5.9" (15 cm)
Dia. 5.1" (13 cm)
(2 Pieces)
x2
(2 Pieces)
Installation Steps:
Hose Connector, Hose and window bracket panel adapter for both the Hose with diameter of 5.9"
1.
(15 cm) and the Hose with diameter of 5.1" (13 cm) are pre-assembled inside the package.
Hoses:
Length: 12" to 47" (30 cm to 120 cm)
3EN
INSTALLATION (CONTINUED)
2. The Window Brackets allow you to install to windows and balcony doors of different heights or
width.
19.7" (50 cm)
1 part
19.7" (50 cm) to
38.2" (97 cm)
2 parts
Adjustable Knobs
47.2" (1.2 m)
3 parts
To install the window bracket to the window frame, you need to adjust the height or width of the
window bracket by extending the length according to the height or width of the window. When the
length is set, tighten the Adjustable Knobs (preinstalled on the window bracket) to ensure the window
bracket is secured in the desired position. Use one or all three pieces of window bracket as needed.
Note: After setting the window bracket to the size of your window, please remove it from the window
and follow the instructions below.
3. Connect one Hose to the rear air exhaust outlet on the back of the unit. Slide-in the Hose
Connector from left to right. Rotate clockwise to ensure the knob mechanism is locked in place.
Rotate anticlockwise to unlock the knob mechanism.
Air Exhaust
Outlet
Air Intake
Outlet
Connect the second Hose to the rear air intake outlet on the back of the unit. Slide-in the Hose
Connector downwards. Rotate anticlockwise to ensure the knob mechanism is locked in place. Rotate
clockwise to unlock the knob mechanism.
EN
4
INSTALLATION (CONTINUED)
4. Connect the window bracket to the window bracket panel adapters. Slide-in the window bracket
panel adapter for the Hose with diameter of 5.9" (15 cm) then rotate anti-clockwise until it is
locked in place. Slide-in the window bracket panel adapter for the Hose with diameter of 5.1" (13
cm) then rotate clockwise until it is locked in place.
5. Connect the window bracket to the window.
6. The Portable Air Conditioner is now ready to use.
5EN
INSTALLATION (CONTINUED)
IMPORTANT: Do not replace or lengthen the exhaust Hose as this could cause the unit to
malfunction.
20" (50 cm)
MIN 35.6 cm
MAX. 14" (36 cm)
MAX. 40" (102 cm)
NOT RECOMMENDED RECOMMENDED
WARNING: Any warranties included with this product will be voided if an extra extension Hose is
added to the originally provided installation kit or if the installation is performed differently than the
manufacturer's instructions, without proper consultation. Please contact Customer Support for help
with installation procedures if needed.
One supplied Hose has a diameter of 5.9" (15 cm) and the other one has a diameter of
•
5.1" (13 cm). Both can be extended from 12" to 47" (30 cm to 120 cm).
Do not bend (to the extent shown below) the exhaust Hose. A bent Hose will block exhaust air
•
and cause the unit to malfunction or shut-off.
Make sure the back of the unit is at least 20" (50 cm) away from the wall. Do not place the unit in
•
front of curtains or drapes as this could obstruct the airflow.
EN
6
USE AND OPERATION
CONTROL PANEL
(6) (5) (4) (4) (3) (1),(2)
1) Power Control / Standby Mode 4) Timer / Temperature Set Controls
2) Warning Light (when flashing) 5) Fan Speed Control
3) Mode Control 6) Timer Control
FUNCTION BUTTONS
POWER CONTROL
The Power Control turns the unit on and off. When the unit is plugged in, this button lights up indicating it
is in a Standby Mode ready to be switched on anytime.
WARNING LIGHT
Condensation may accumulate in the unit.
If the internal tank becomes full, the Power Control light will flash and the unit will not operate until
the unit has been drained (refer to Water Condensation Drainage).
After switching the air conditioner off, you must wait 3 minutes before switching it back on again.
MODE CONTROL
Settings: Air Conditioning, Heating*, Dehumidifying, Fan.
The corresponding indicator light will illuminate to indicate the current mode setting.
Air Conditioning Mode
•
Adjust fan speed and air temperature to suit your desired comfort level.
Temperature setting range is 16°C - 32°C (61°F - 89°F).
*Applicable for models with Heating feature only.
EN
7
USE AND OPERATION (CONTINUED)
FUNCTION BUTTONS (CONTINUED)
Dehumidifying Mode
•
Air is dehumidified as it passes through the unit, without being in full cooling mode.
If room temperature is higher than 25°C (77°F) fan speed can be adjusted; otherwise fan speed is
preset to LOW.
Note: If the unit will be used mainly as a dehumidifier, do not connect the exhaust Hoses.
Continuous drainage is then necessary (refer to Continuous Draining for Dehumidifier Mode).
IMPORTANT: The Dehumidifier mode is used to support moisture reduction but should not
be expected to dehumidify to the same degree as a standard dehumidifier-only appliance. The
built-in dehumidifier automatically adjusts dehumidification based on ambient room temperatures.
It is not possible to adjust to a desired humidity percentage. The front display only shows the
current AND desired temperatures. It does not show humidity levels.
Fan Mode
•
For air circulation without air conditioner cooling.
Heating Mode*
•
This unit uses HeatPump technology which reverses the air conditioning cooling cycle by
transferring heat from the outside into the room – this is more energy efficient than traditional
electric heaters that generate heat instead of transferring heat into the room. These properties
make this heater ideal for use in autumn or spring when outdoor temperatures are not severely
cold, or as supplemental heating in colder rooms of your home.
When heating mode is selected the indicator light will shine. Heating is activated only when
the ambient temperature is below 25°C (77°F). In this mode, the desired temperature can be
set between 16°C 25°C (61°F - 77°F).
Note: The exhaust Hoses must vent outside the room when using heating mode.
IMPORTANT: The Heat pump draws moisture from the air which then condenses into the
internal water tank. The unit will pause operation when the tank is full and will restart when
the tank has been emptied. It is recommended to use the heating mode in a room with 50%
humidity or lower. Avoid operating moisture-producing products or appliances such as a
humidifier or a kettle when using the unit in heating mode.
See the "Draining Water Condensation in Heat Mode" section for more information on
draining the water tank.
*Applicable for models with Heating feature only.
EN
8
USE AND OPERATION (CONTINUED)
FUNCTION BUTTONS (CONTINUED)
TEMPERATURE / TIMER SET CONTROLS
Used for adjusting the timer and thermostat.
•
The default display is setting temperature.
•
In cooling mode, when ▼ or ▲ button is pressed, the set temperature is displayed and may be
•
adjusted. After 10 seconds the display will revert back to room temperature. Temperature is only
adjustable in cool mode. The time is adjustable between 1 - 24 hours.
Note: By pressing both ▼ or ▲ buttons at the same time, the display will toggle between
Celsius(°C) and Fahrenheit(°F).
FAN SPEED CONTROL
3 settings: High, Medium and Low.
TIMER CONTROL
While the unit is turned on, press the timer button then press the ▼ or ▲ to select the number of
hours you would like the unit to continue to run. The unit will turn off automatically.
AUTO TURN OFF:
While unit is running, press the ▼ or ▲ button to select the number of hours you want the unit to run
in air conditioning mode.
AUTO TURN ON:
When unit is in a standby mode (plugged in with power light on), then press the ▼ or ▲ button to
select the number of hours until you want the unit to automatically start running.
EN
9
USE AND OPERATION (CONTINUED)
REMOTE CONTROL
The functions work the same as the Portable Air Conditioner's Control Panel.
All key functions can be accessed from the remote control.
Power Control
ON / OFF
Fan Speed Control
• HIGH • MID • LOW
Timer Control
In running mode: Auto switch off
In stand-by mode: Auto switch on
Press ▼ or ▲ button to adjust the
time setting for 1 hour intervals.
Temperature / Timer Set
Used for adjusting the timer and
•
temperature.
When the ▼ or ▲ key is pressed, the
•
set temperature is displayed and
may be adjusted
Timer setting is available from 1 - 24 hours
•
by pressing the key ▼ or ▲.
Mode Control
Press this button to change the operation
mode in the order of:
Air Conditioning
*Applicable for models with Heating feature only.
Heating*
Dehumidifying
Fan
Note:
Battery Installation: Remove the cover on the back of the remote control and insert two AAA
•
batteries with + and - pointing in the proper direction according to the polarity markings.
Caution:
Use only two AAA or IEC R03 1.5V batteries.
•
Remove the batteries if the remote control is not in use for a month or longer.
•
All batteries should be replaced at the same time, do not mix with old batteries.
•
Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
•
Properly dispose of used batteries.
•
This device complies with part 15 of the FCC Rules. Operation is subject to following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment info an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
10EN
CLEANING AND MAINTENANCE
Appliance Maintenance:
Turn off the appliance before disconnecting the power supply.
1.
Only clean the appliance with a soft dry cloth.
2.
Dust Filter Maintenance:
The dust filter is to be cleaned every two weeks to maintain
air cooling efficiency. Please follow the below instructions for
cleaning the dust filter:
Switch off and unplug the air conditioner from the
1.
electrical outlet.
Remove the Upper Dust Filter.
2.
Gently wash using water and/ or diluted liquid
3.
dishwashing detergent.
Rinse thoroughly and gently shake excess water from
the filter. Make sure the filter is dry before reinstalling.
Note: You may use a vacuum cleaner to remove dust.
Replace the Upper Dust Filter onto the unit.
4.
WARNING: DO NOT power or operate the Air Conditioner when cleaning or when the Dust Filter is
removed from the unit, or if there is a loose-fitting Dust Filter. DO NOT attempt to handle or touch
any of the parts or wiring inside the Rear Grill after the Dust Filter has been removed from the unit.
Doing so can cause serious injury or electrical shock.
Upper
Dust Filter
Rear Grill
End of Season Storage and Maintenance:
If the appliance will not be used for a long time, follow these steps:
Be sure to drain the left-over water condensation. Remove the lower drain plug and use a
1.
shallow pan to collect the water (make sure to replace the drain plug when finished).
To dry excess moisture, run the unit in Fan only mode for 30 minutes before storing.
2.
Turn off and unplug the air conditioner from the power supply.
3.
Remove the dust filter and clean with water. Dry the dust filter and then reinstall.
4.
11
EN
CLEANING AND MAINTENANCE (CONTINUED)
Disconnecting the Window Installation Kit:5.
Remove the Hose from the air exhaust outlet by rotating anti-clockwise to unlock the knob
•
mechanism then sliding out. Remove the Hose from the air intake outlet by rotating clockwise
to unlock the knob mechanism then sliding out.
Remove the window bracket panel adapter for the Hose with diameter of 5.9" (15 cm) from the
•
window bracket by rotating clockwise then pulling away. Remove the window bracket panel
adapter for the Hose with diameter of 5.1" (13 cm) from the window bracket by rotating anticlockwise then pulling away.
It is recommended to store the Window Kit parts in a bag together with the Remote Control
•
and placing them together with the air conditioner unit.
If needed, you can clean the Window Kit with a damp cloth and water before storing.
•
Make sure all parts of the Window Kit are dry before storage.
Cover the air conditioner with a cloth/ plastic bag before storage, to protect from dust and
6.
scratches collecting on the surface of the unit.
It is recommended to coil the power cord before storing to ensure the cord is protected from
7.
bents and creases.
Store the air conditioner in a cool, dry place, away from direct sunlight.
8.
EN
12
WATER CONDENSATION DRAINAGE
When there is excess water condensation inside the unit, the air conditioner stops running and
shows a warning light (the Power Control button flashes with a red light). This warning light indicates
that the water condensation needs to be drained using the following procedures:
Manual Draining in Cooling, Dehumidifying and Heating* Modes
Water may need to be drained in high humidity areas.
Unplug the unit from power source.
1.
Place a shallow pan under the lower rubber drain plug.
2.
See diagram.
Remove the lower rubber drain plug.
3.
Water will drain out and collect in the shallow pan.
4.
After the water is drained, replace the lower rubber
5.
drain plug firmly.
You can now turn on the unit.
6.
Plastic Cap
and Lower
Drain Plug
If you find that there is a high volume of condensation and a shallow pan is not enough for your use,
you can use a large pan to drain. Follow the below instructions carefully:
Find a flat, stable board that is up to 1" thick. The base
1.
could be a wooden board purchased from your local
hardware store, with a minimum base dimension of 20"
(length) x 17" (width) x 1" (thick).
The base should be large and sturdy enough to fit the
2.
portable air conditioner on top. The air conditioner must
be stable and not rock or move when positioned on this
base and not easy to topple over.
Drain the water from the lower drain plug as needed,
3.
into a larger pan or through a drain tube. If using a drain
tube, you can purchase vinyl tubing which has an outside
diameter of 5/8" and an inside diameter of ½".
Remember the drain tube must be positioned lower than
the drain plug so the water condensation does not
Wooden Board
Height: up to 1"
flow backwards back into the air conditioner.
Shallow Pan
(Not included)
Plastic Cap
and Lower
Drain Plug
Large Pan
(Not included)
WARNING: For safety reasons, the Portable Air Conditioner must NOT be positioned on a base that is
higher than 1" from the floor. This is only recommended if you have a stable, flat base to position the
portable air conditioner on safely.
*Applicable for models with Heating feature only.
13EN
WATER CONDENSATION DRAINAGE (CONTINUED)

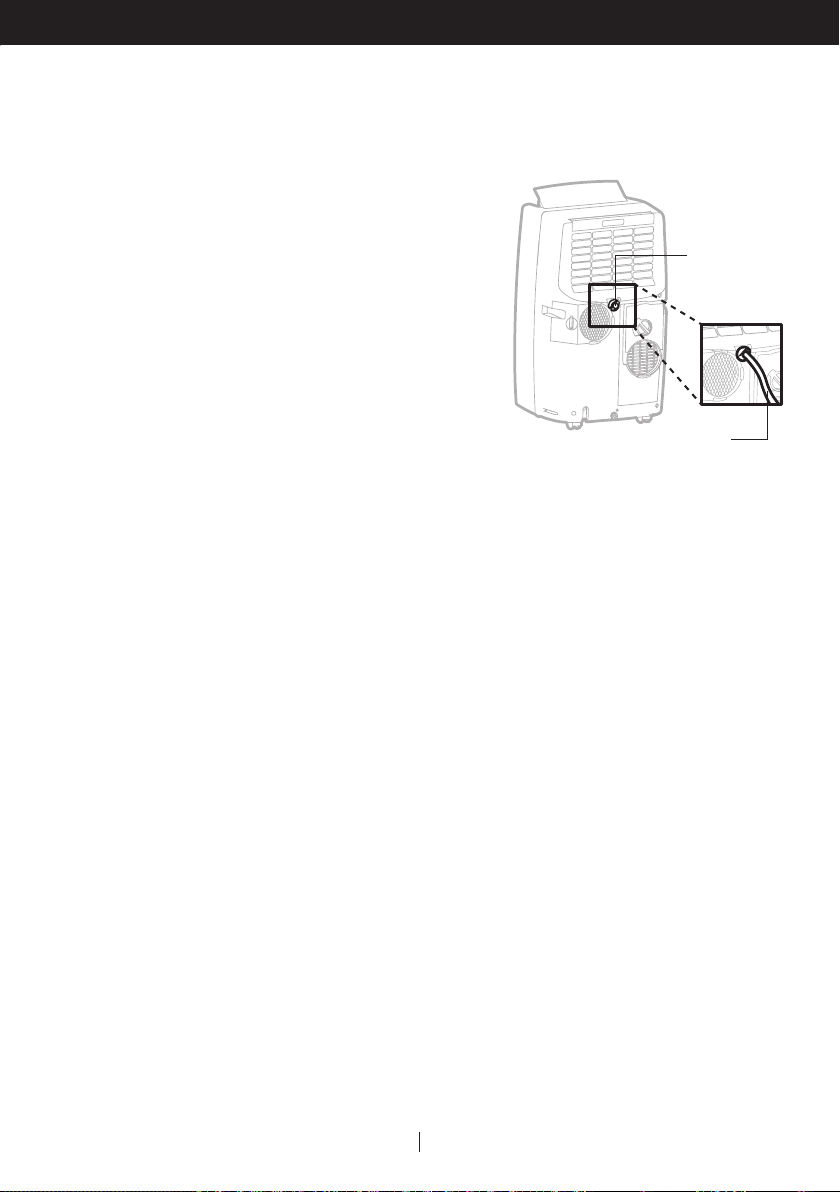

Continuous Draining for Dehumidifier Mode
While using the unit in dehumidifier mode, continuous
drainage is recommended.
Unplug the unit from power source.
1.
Remove the upper rubber drain plug.
2.
Some residual water may spill so please have a pan to
collect the water. See diagram.
Connect the drain connector to a ¾" Hose or standard
3.
garden Hose (not included).
The water can be continuously drained through the
4.
drain tube into a floor drain or bucket.
Replace the drain plug.
5.
You can now turn on the unit.
6.
IMPORTANT: It is NOT recommended to connect the drain Hose for continuous drainage while the
unit is switched ON in air conditioning cooling mode. Doing so can reduce the cooling efficiency
of the Portable Air Conditioner. Only drain the water condensation when the unit is switched off.
Continuous drainage is only suitable when the unit is set up in Dehumidifier mode.
IMPORTANT: The water cannot be drained using the continuous drain option in heating* mode.
In Heating mode, the internal water tank collects condensation faster and may require more
frequent emptying of the tank in more humid rooms. It is recommended to use the heating mode in a
room with 50 % humidity or lower. Avoid operating moisture-creating products or appliances such as
a humidifier or a kettle when using the unit in heating mode.
Upper Rubber
Drain Plug
Drain Tube
EN
14
TROUBLESHOOTING GUIDE
The following troubleshooting guide addresses the most common problems. If problems persist, call
customer support. Unplug and disconnect the appliance from the power source before attempting
to troubleshoot.
PROBLEM POSSIBLE CAUSE SOLUTION
No electricity. Check for power.
Batteries in the remote
The air
conditioning
unit does not
start
control need to be
replaced.
The power cord is not
properly plugged in.
Change remote control batteries.
Remove and reconnect the power cord.
Runs a short
while only
In Heating
Mode*,the unit
keeps switching
off frequently
The safety LCDI plug has
tripped (USA / Canada /
Mexico only).
The thermostat
temperature setting
is too close to room
temperature.
Air outlet is blocked. Make sure the exhaust Hose is properly connected.
There are tight bends in
one or both Hoses.
The room is too humid.
Water Tank needs to be
emptied.
Reset the safety LCDI plug, if problem
persists contact our customer support
(USA / Canada / Mexico only).
Lower the set temperature.
Connect Hoses as per instructions on page 3.
In heating mode, the heat pump condenses moisture
from the air into the internal water tank. In more
humid rooms, it will collect faster and need to be
emptied out more frequently. It is recommended to
use the heating mode in 50% humidity or less.
Switch off any appliances such as a humidifier or
kettle to avoid extra moisture build up in the room
when operating in heating mode.
*Applicable for models with Heating feature only.
EN
15
TROUBLESHOOTING GUIDE (CONTINUED)
PROBLEM POSSIBLE CAUSE SOLUTION
A door or window is open. Make sure the window or door is closed.
The dust filter is dirty. Clean the dust filter.
Runs but not
cooling
Will not run and
Power button
is blinking
(water full
indicator)
One or both of the Hoses
are detached.
Temperature setting is
too high.
Air outlet or intake is
blocked.
Room exceeds
recommended size.
Large size or number of
windows are decreasing
cooling effectiveness.
Excess water
condensation inside
the tank.
Reinstall Hoses properly
(refer to Installation section).
Reduce temperature setting on control panel.
Remove blockage.
Move unit to smaller room.
Cover windows with curtains or blinds.
Drain the water (refer to Water Condensation
Drainage).
EN
16
TROUBLESHOOTING GUIDE (CONTINUED)
PROBLEM POSSIBLE CAUSE SOLUTION
Heater* is not
switching ON.
Heating function not
activated yet.
The ambient temperature
is too high.
Heating is activated
only when the ambient
temperature is below
25°C (77°F).
Check that the Heating function has been activated.
will be illuminated when the
Heater is switched ON.
Switch on the Heating function when the ambient
temperature reaches below 25°C (77°F).
*Applicable for models with Heating feature only.
EN
17EN
JMATEK North America LLC
Mahwah, New Jersey 07495 USA
Email: usinfo@jmatek.com
Web: www.jmatek.com
Made in China
© 2019 JMATEK Limited. All rights reserved.
The Honeywell Trademark is used under license
from Honeywell International Inc.
Honeywell International Inc. makes no
representations or warranties with respect to this product.
This product is manufactured by Airtek Int'l Corp. Ltd.
(subsidiary of JMATEK Ltd.).
Loading...
