Honeywell MINIPLUS FK06-AAM Product specification sheet

MiniPlus FK06-AAM
Filter combination
with brass filter bow
Product specification sheet
Application
MiniPlus FK06-AAM rinsable filter combinations ensure a conti­nuous supply of filtered water. They prevent the ingress of foreign bodies such as particles of rust, strands of hemp and grains of sand. The accumulation of foreign particles in the base of the filter bowl can be easily removed by rinsing the filter. The pressure reducing valve prevents over-pressure damage and reduces the water consumption.
Compact in size, the device can be fitted even where space is limited.
Special Features
• The set pressure is directly indicated on the set point scale
• The adjustment spring is not in contact with the potable water
• The valve insert is of high quality synthetic material and can be fully exchanged
• Filtered water supply even during rinsing
• Inlet pressure balancing - fluctuating inlet pressure does not influence outlet pressure
• Meets KTW recommendations for potable water
Construction
The filter combination comprises:
• Threaded connections
• Valve insert complete with diaphragm and valve seat
• Spring bonnet with setting knob and scale
• Fine filter in brass filter bowl
•Ball valve
• Double wring wrench
• Pressure gauge not included (see accessories)
Materials
• Dezincification resistant brass housing
• Brass threaded connections
• High-quality synthetic material valve insert
• High-quality synthetic material spring bonnet with adjustment knob and setting scale
• Spring steel adjustment spring
• Stainless steel fine filter
• Dezincification resistant brass filter bowl
EN0H-1133GE23 R1009 • Subject to change without notice
• Fibre-reinforced NBR diaphragm
• NBR seals
Range of Application
Medium Water
Inlet pressure Maximum 16.0 bar
Outlet pressure 1.5 - 6.0 bar
The filter is constructed for drinking water installations. In case of a process water application the filter has to be proven individually.
Technical Data
Installation position Horizontal with filter bowl downwards
Operating pressure Maximum 16.0 bar
Operating temperature Maximum 70 °C
Connection size
1
/2" , 3/4", 1", 11/4"
www.honeywell.com 51
MiniPlus FK06-AAM Filter combination
Method of Operation
The filter combination integrates a pressure reducing valve and a rinsable fine filter cartridge in one appliance.
During normal operation, water flows through the filter mesh to the body outlet. To rinse the filter, the ball valve is opened which discharges the dirt particles. A continous supply of filtered water is available also during the rinse cycle.
The integral pressure reducing valve functions on a balanced force principle whereby the force exerted by a diaphragm is balanced against the force of an adjustment spring. The inlet pressure has no influence on opening or closing of the valve. Inlet pressure fluctuation does not therefore affect the outlet pressure.
Options
FK06-...AAM = Threaded union connectors,
filter mesh size 100 µm
Connection size
Connection size R1/2" Nominal size
DN 15 20 25 32
3
/4"1"11/4"
diameter Weight approx. kg 0.7 1.0 1.5 1.7 Dimensions mm
L 140 160 180 197
l 80 90 100 105
H 89 89 111 111
h 156 156 180 180
D54546161
-value 2.52.96.06.2
k
vs
6
4
8
2
r
ba
0
10
M07M
RV277
Accessories
M07M Pressure gauge
Housing diameter 63 mm, rear connection thread
1
/4". Ranges: 0 - 4, 0 - 10, 0 - 16 or 0 - 25 bar.
G Please indicate upper value of pressure range when ordering
ZR06K Double-ring wrench
For removing spring bonnet
ZR06K
52 www.honeywell.com
VST06A
VST06B
RV277 Inlet check valve
Available in sizes R
VST06 Connection set
Connection set A = Threaded male connection; B = Solder union connection
1
/2" - 2"
EN0H-1133GE23 R1009 • Subject to change without notice

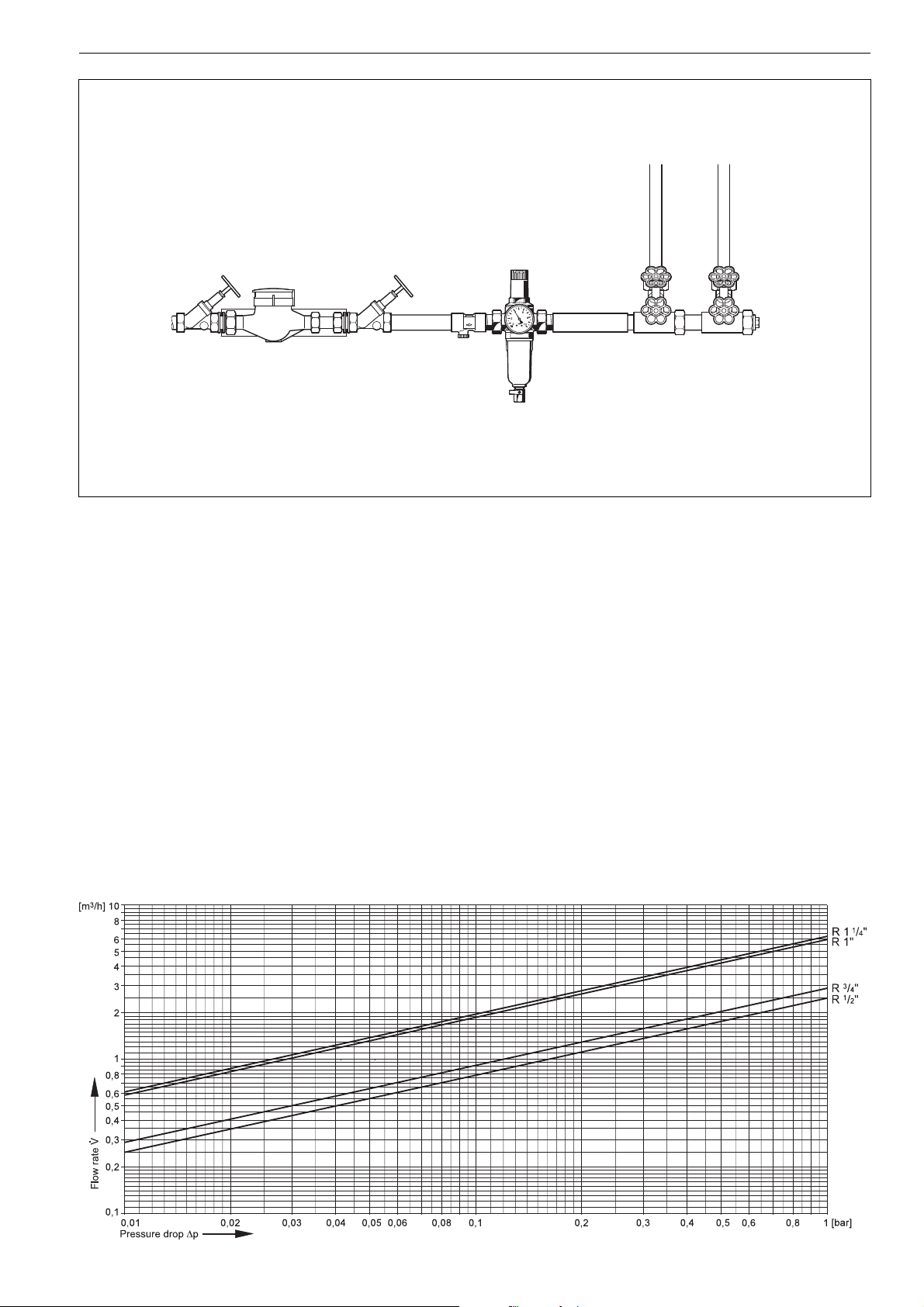

Installation Example
MiniPlus FK06-AAM Filter combination
Installation Guidelines
• Install in horizontal pipework with filter bowl downwards
o This position ensures optimum filter efficiency
• Install shutoff valves
• Ensure good access
o Degree of contamination can be easily seen with clear filter
bowl
o Simplifies maintenance and inspection
• The installation location should be protected against frost
• Fit immediately after water meter
o Corresponds to DIN 1988, Part 2
Flow Diagram
Typical Applications
Filter combinations of this type are suitable for all types of house­hold installations. They can also be used for commercial and industrial applications within the limits of their specifications.
Filter combinations of this type are installed:
• Where space is limited
• Where there is existing metal or plastics pipework
• If the static pressure exceeds the maximum permissible operating pressure of an installation
• As protection against noise if the static pressure at take off points exceeds 5.0 bar (DIN 4109: Noise protection in high buildings)
• If pressure fluctuations in the downstream system must be avoided
• If the downstream system includes appliances which must be protected against dirt
EN0H-1133GE23 R1009 • Subject to change without notice
www.honeywell.com 53
MiniPlus FK06-AAM Filter combination

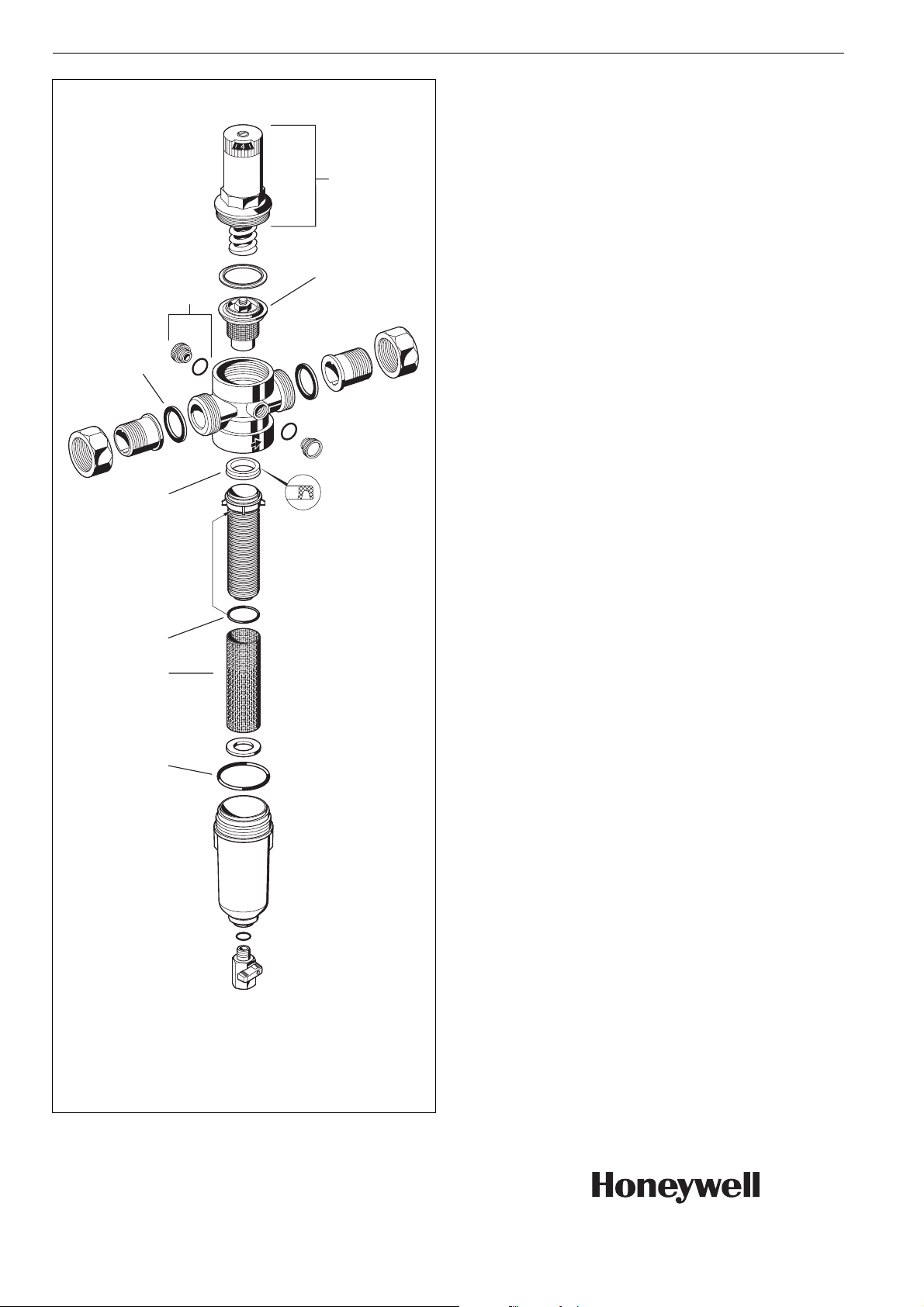

Spare Parts
MiniPlus FK06-AAM Filter Combinations (From 2002 onwards)
No. Description Dimension Part No.
1
1 Spring bonnet
complete 1" + 1
1
/2" + 3/4" 0901515
1
/4" 0901516
3
included in 2
5
6
2 Valve cartridge complete1/2" + 3/4" D06FA-1/2
(without filter insert) 1" + 1
2
4
3 Seal ring set
(pack of 10)
1
/4" D06FA-1B
1
/2" 0901443
3
/4" 0901444
1" 0901445
1
1
/4" 0901446
4 Blanking plug with O-ring
1
R
/4" (pack of 5)
5 O-ring-set for
carrier body (pack of 10) 1" + 1
6 Replacement
filter insert 1" + 1
1
/2" + 3/4" 0903127
1
/4" 0903128
1
/2" + 3/4" AS06-1/2A
1
/4"AS06-1A
S06K-1/4
7 O-ring-set for
filter bowl (pack of 10) 1" + 1
1
/2" + 3/4" 0901246
1
/4" 0901499
8 Double ring wrench
For removing filter bowl (no fig.)
1
/2" - 11/4"ZR06F
7
Automation and Control Solutions
Honeywell GmbH Hardhofweg D-74821 Mosbach Phone: (49) 6261 810 Fax: (49) 6261 81309 http://europe.hbc.honeywell.com www.honeywell.com
Manufactured for and on behalf of the Environmental and Combustion Controls Division of Honeywell Technologies Sàrl, Rolle, Z.A. La Pièce 16, Switzerland by its Authorised Repre­sentative Honeywell GmbH
EN0H-1133GE23 R1009 Subject to change without notice © 2009 Honeywell GmbH
