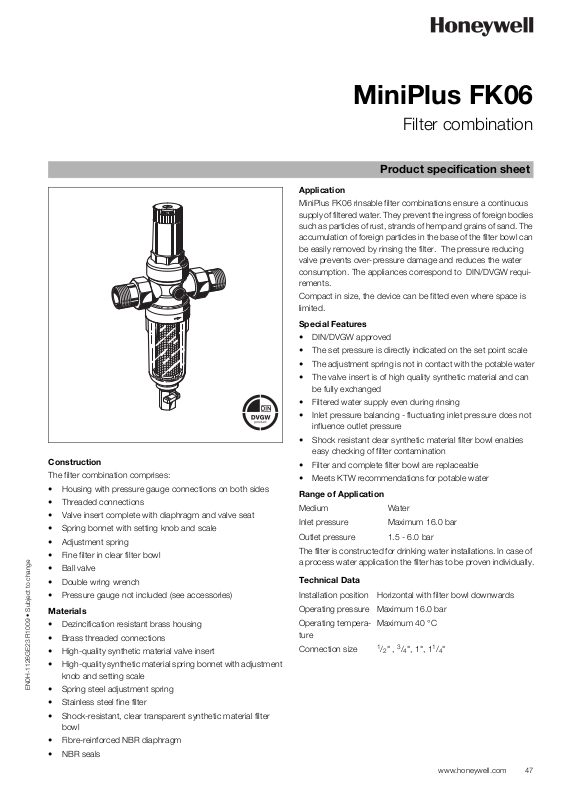

Honeywell MINIPLUS FK06 Product specification sheet
Construction
The filter combination comprises:
• Housing with pressure gauge connections on both sides
• Threaded connections
• Valve insert complete with diaphragm and valve seat
• Spring bonnet with setting knob and scale
• Adjustment spring
• Fine filter in clear filter bowl
•Ball valve
• Double wring wrench
• Pressure gauge not included (see accessories)
Materials
• Dezincification resistant brass housing
• Brass threaded connections
• High-quality synthetic material valve insert
• High-quality synthetic material spring bonnet with adjustment
knob and setting scale
EN0H-1126GE23 R1009 • Subject to change
• Spring steel adjustment spring
• Stainless steel fine filter
• Shock-resistant, clear transparent synthetic material filter
bowl
• Fibre-reinforced NBR diaphragm
• NBR seals
MiniPlus FK06
Filter combination
Product specification sheet
Application
MiniPlus FK06 rinsable filter combinations ensure a continuous
supply of filtered water. They prevent the ingress of foreign bodies
such as particles of rust, strands of hemp and grains of sand. The
accumulation of foreign particles in the base of the filter bowl can
be easily removed by rinsing the filter. The pressure reducing
valve prevents over-pressure damage and reduces the water
consumption. The appliances correspond to DIN/DVGW requirements.
Compact in size, the device can be fitted even where space is
limited.
Special Features
• DIN/DVGW approved
• The set pressure is directly indicated on the set point scale
• The adjustment spring is not in contact with the potable water
• The valve insert is of high quality synthetic material and can
be fully exchanged
• Filtered water supply even during rinsing
• Inlet pressure balancing - fluctuating inlet pressure does not
influence outlet pressure
• Shock resistant clear synthetic material filter bowl enables
easy checking of filter contamination
• Filter and complete filter bowl are replaceable
• Meets KTW recommendations for potable water
Range of Application
Medium Water
Inlet pressure Maximum 16.0 bar
Outlet pressure 1.5 - 6.0 bar
The filter is constructed for drinking water installations. In case of
a process water application the filter has to be proven individually.
Technical Data
Installation position Horizontal with filter bowl downwards
Operating pressure Maximum 16.0 bar
Operating temperature
Connection size
Maximum 40 °C
1
/2" , 3/4", 1", 11/4"
www.honeywell.com 47
MiniPlus FK06 Filter combination
Method of Operation
The filter combination integrates a pressure reducing valve and a
rinsable fine filter cartridge in one appliance.
During normal operation, water flows through the filter mesh to
the body outlet. To rinse the filter, the ball valve is opened which
discharges the dirt particles. A continous supply of filtered water
is available also during the rinse cycle.
The integral pressure reducing valve functions on a balanced
force principle whereby the force exerted by a diaphragm is
balanced against the force of an adjustment spring. The inlet
pressure has no influence on opening or closing of the valve. Inlet
pressure fluctuation does not therefore affect the outlet pressure.
Options
FK06-...AA = Threaded union connectors,
filter mesh size 100 µm
Connection size
Connection size R1/2"
3
/4"1"11/4"
Nominal size diameter DN 15 20 25 32
Weight approx. kg 0.7 1.0 1.5 1.7
Dimensions mm
L 140 160 180 197
l 80 90 100 105
H 89 89 111 111
h 156 156 180 180
D54546161
-value 2.5 2.9 6.0 6.2
k
vs
DIN/DVGW Approval No. NW-9311 BO 0223 -
6
4
8
2
r
ba
0
10
M07M
RV277
Accessories
M07M Pressure gauge
Housing diameter 63 mm, rear connection thread
1
/4". Ranges: 0 - 4, 0 - 10, 0 - 16 or 0 - 25 bar.
G
Please indicate upper value of pressure range when
ordering
ZR06K Double-ring wrench
For removing spring bonnet
ZR06K
48 www.honeywell.com
VST06A
VST06B
RV277 Inlet check valve
Available in sizes R
VST06 Connection set
Connection set
A = Threaded male connection;
B = Solder union connection
1
/2" - 2"
EN0H-1126GE23 R1009 • Subject to change
