Construction
The fine filter comprises:
• Housing with female and male threads
• Threaded connections (version AA)
• Fine filter in clear filter bowl
•Ball valve
• Double wring wrench
Materials
• Body of dezincification resistant pressed brass
• Brass threaded connections
• Stainless steel fine filter
• Shock-resistant, clear transparent synthetic material filter
bowl
MiniPlus FF06
Rinsable fine filter
Product specification sheet
Application
Rinsable MiniPlus FF06 fine filters ensure a continous supply of
filtered water. The fine filter stops the flow of particulates, for
example rust particles, strands of hemp, or grains of sand. Sediment collected at the bottom of the filter bowl can simply be
removed by rinsing the filter.
Compact in size, these filters were designed to fit where space is
limited.
Special Features
• DIN/DVGW approved
• Simple assembly
• Filtered water supply even during rinsing
• Shock resistant clear synthetic material filter bowl enables
easy checking of filter contamination
• Filter and complete filter bowl are replaceable
• Body with female and male threads
• Meets KTW recommendations for potable water
Range of Application
Medium Water
The filter is constructed for drinking water installations. In case of
a process water application the filter has to be proven individually.
Technical Data
Installation position Horizontal with filter bowl downwards
Operating pressure Maximum 16.0 bar
Operating temperature Maximum 40 °C
Connection size
1
/2" , 3/4", 1", 11/4"
EN0H-1115GE23 R0808 • Subject to change
www.honeywell.com 39
MiniPlus FF06 Rinsable fine filter
Method of Operation
The MiniPlus fine filter is composed of a body and a rinsable fine
filter insert.
During normal operation, water flows through the filter mesh to
the body outlet. To rinse the filter, the ball valve is opened which
discharges the dirt particles. A continous supply of filtered water
is available also during the rinse cycle.
Options
FF06-...AA = Threaded male connections,
filter mesh size 100 µm
FF06-...EA = Without connections, filter mesh size 100 µm
Connection size
Connection size R
Internal threads G
1
/2"
1
/2"
3
/4"1"1
3
/4"1" -
1
Weight approx. kg 0.7 1.0 1.3 1.5
Dimensions mm
L 140 158 179 197
I 80 90 100 105
h 158 180 180 180
3
Flow value at ∆p=0.2bar m
-value 3.3 6.3 7.2 8.5
k
vs
/h 1.5 2.8 3.2 3.8
DVGW-Approval No. NW-9301 AT 2530 -
Accessories
RV277 Inlet check valve
1
Available in sizes R
/2" - 2"
VST06 Connection set
RV277
Connection set
A = Threaded male connection;
B = Solder union connection
/4"
40 www.honeywell.com
VST06A
EN0H-1115GE23 R0808 • Subject to change
VST06B

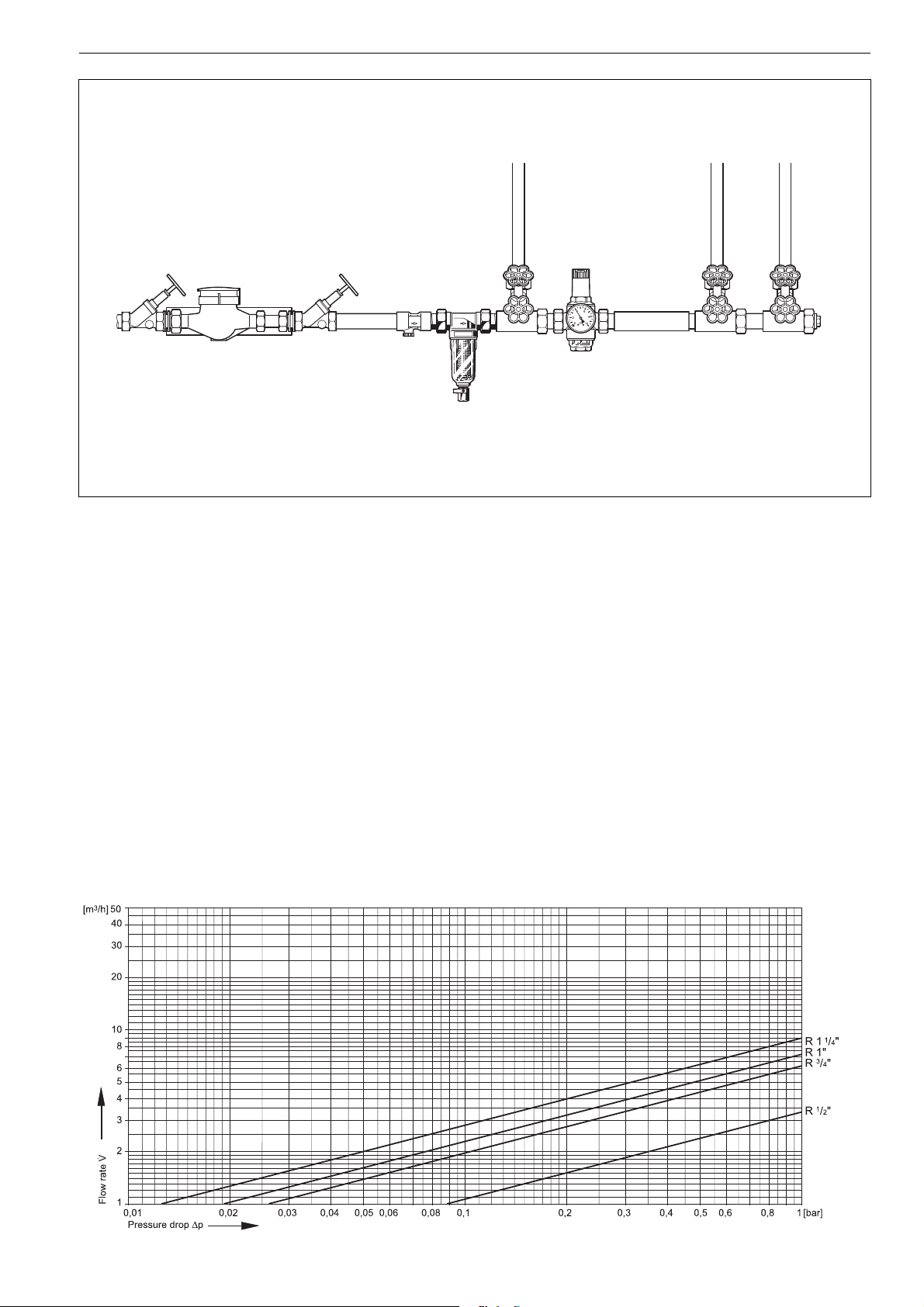

Installation Example
MiniPlus FF06 Rinsable fine filter
Installation Guidelines
• Install in horizontal pipework with filter bowl downwards
o This position ensures optimum filter efficiency
• Install shutoff valves
• Ensure good access
o Degree of contamination can be seen with clear filter bowl
o Simplifies maintenance and inspection
• The installation location should be protected against frost
• Fit immediately after water meter
o Corresponds to DIN 1988, Part 2
Flow Diagram
Typical Applications
Fine filters of this type are suitable for supplies to buildings of all
types. They can also be used for commercial and industrial applications within the limits of their specifications.
Fine filters of this type are installed:
• If the downstream system includes appliances which must be
protected against dirt
• Where no pressure reducing valve is required
(maximum 5.0 bar static pressure)
• Where a pressure reducing valve is already fitted but cannot
be retrofitted with a filter
EN0H-1115GE23 R0808 • Subject to change
www.honeywell.com 41
MiniPlus FF06 Rinsable fine filter
Spare Parts
MiniPlus FF06 Fine Filters (From 1997 onwards)
No. Description Dimension Part No.
1 Clear filter bowl
complete with sieve
and mesh carrier
2 O-ring set for
mesh carrier
1
/2" KF06-1/2A
3
/4" - 11/4"KF06-1A
1
/2" 0903127
3
/4" - 11/4" 0903128
(pack of 10)
3 Replacement
sieve
1
/2" AS06-1/2A
3
/4" - 11/4" AS06-1A
4 O-ring set
for filter bowl
(pack of 10)
1
/2" 0901246
3
/4" - 11/4" 0901499
5 Double ring wrench
2
3
1
For removing filter
bowl (no fig.)
1
/2" - 11/4" ZR06F
4
Automation and Control Solutions
Honeywell GmbH
Hardhofweg
D-74821 Mosbach
Phone: (49) 6261 810
Fax: (49) 6261 81309
http://europe.hbc.honeywell.com
www.honeywell.com
Manufactured for and on behalf of the
Environmental and Combustion Controls Division
of Honeywell Technologies Sàrl, Rolle, Z.A. La
Pièce 16, Switzerland by its Authorised Representative Honeywell GmbH
EN0H-1115GE23 R0808
Subject to change without notice
© 2008 Honeywell GmbH
