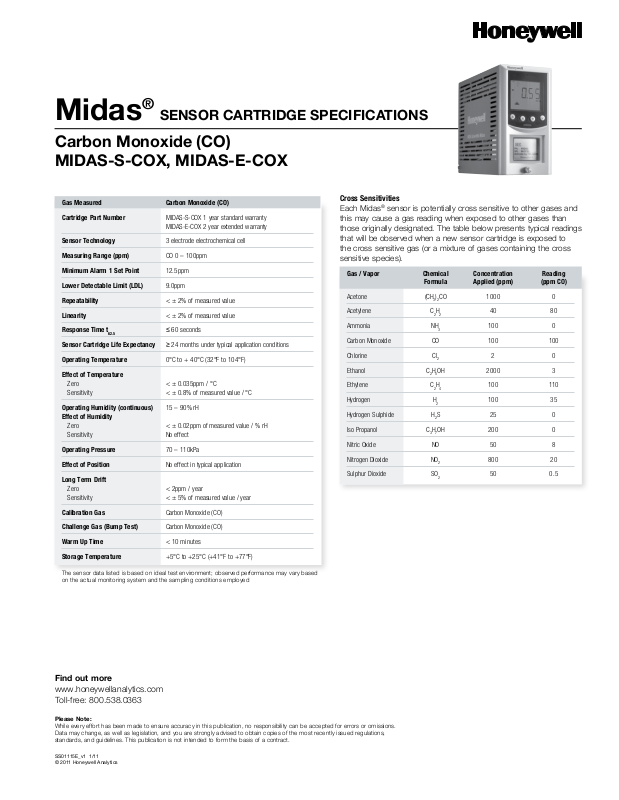

Honeywell MIDAS Data sheet

Midas® SENSOR CARTRIDGE SPECIFICATIONS

Carbon Monoxide (CO) MIDAS-S-COX, MIDAS-E-COX

Gas Measured Carbon Monoxide (CO)

Cartridge Part Number MIDAS-S-COX 1 year standard warranty

Sensor Technology 3 electrode electrochemical cell

Measuring Range (ppm) CO 0 – 100ppm

Minimum Alarm 1 Set Point 12.5ppm

Lower Detectable Limit (LDL) 9.0ppm

Repeatability < ± 2% of measured value

Linearity < ± 2% of measured value

Response Time t

Sensor Cartridge Life Expectancy ≥ 24 months under typical application conditions

Operating Temperature 0°C to + 40°C (32°F to 104°F)

Effect of Temperature

Zero < ± 0.035ppm / °C Sensitivity < ± 0.8% of measured value / °C

Operating Humidity (continuous) 15 – 90% rH Effect of Humidity

Zero < ± 0.02ppm of measured value / % rH Sensitivity No effect

Operating Pressure 70 – 110kPa

Effect of Position No effect in typical application

Long Term Drift

Zero < 2ppm / year Sensitivity < ± 5% of measured value / year

Calibration Gas Carbon Monoxide (CO)

Challenge Gas (Bump Test) Carbon Monoxide (CO)

Warm Up Time < 10 minutes

Storage Temperature +5°C to +25°C (+41°F to +77°F)

The sensor data listed is based on ideal test environment; observed performance may vary based on the actual monitoring system and the sampling conditions employed

≤ 60 seconds

62.5

MIDAS-E-COX 2 year extended warranty

Cross Sensitivities

Each Midas® sensor is potentially cross sensitive to other gases and this may cause a gas reading when exposed to other gases than those originally designated. The table below presents typical readings that will be observed when a new sensor cartridge is exposed to the cross sensitive gas (or a mixture of gases containing the cross sensitive species).

Gas / Vapor Chemical Concentration Reading Formula Applied (ppm) (ppm CO)

Acetone (CH

Acetylene C

Ammonia NH

Carbon Monoxide CO 100 100

Chlorine Cl

Ethanol C

Ethylene C

Hydrogen H

Hydrogen Sulphide H

Iso Propanol C

Nitric Oxide NO 50 8

Nitrogen Dioxide NO

Sulphur Dioxide SO

CO 1000 0

3)2

40 80

2H2

100 0

2 0

OH 2000 3

2H5

100 110

2H4

100 35

S 25 0

OH 200 0

3H7

800 20

50 0.5

Find out more

www.honeywellanalytics.com Toll-free: 800.538.0363

Please Note:

While every effort has been made to ensure accuracy in this publication, no responsibility can be accepted for errors or omissions. Data may change, as well as legislation, and you are strongly advised to obtain copies of the most recently issued regulations, standards, and guidelines. This publication is not intended to form the basis of a contract.
