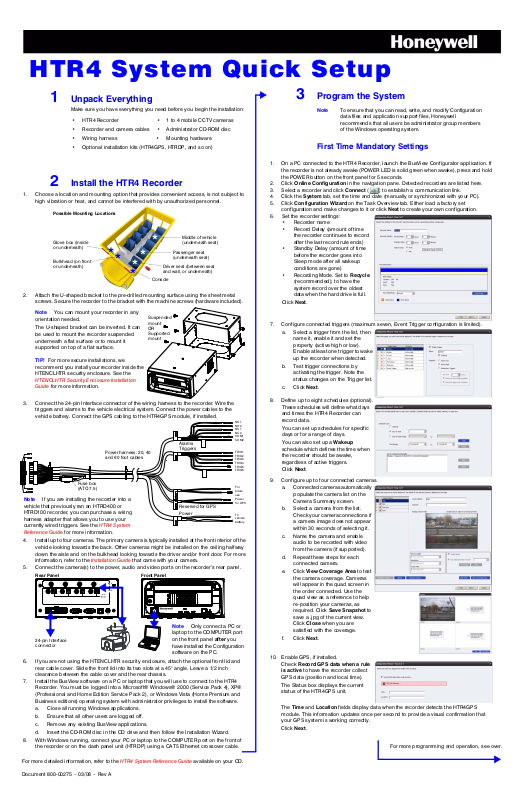

HTR4 System Quick Setup
1 Unpack Everything
Make sure you have everything you need before you begin the installation:
• HTR4 Recorder • 1 to 4 mobile CCTV cameras
• Recorder and camera cables • Administrator CD-ROM disc
• Wiring harness • Mounting hardware
• Optional installation kits (HTR4GPS, HTRDP, and so on)
2 Install the HTR4 Recorder
1. Choose a location and mounting option that provides convenient access, is not subject to
high vibration or heat, and cannot be interfered with by unauthorized personnel.
Possible Mounting Locations
Glove box (inside
or underneath)
Bulkhead (on front
or underneath)
*
*
*
*
*
*
Console
2. Attach the U-shaped bracket to the pre-drilled mounting surface using the sheet metal
screws. Secure the recorder to the bracket with the machine screws (hardware included).
Note You can mount your recorder in any
orientation needed.
The U-shaped bracket can be inverted. It can
be used to mount the recorder suspended
underneath a flat surface or to mount it
Suspended
mount
OR
Supported
mount
supported on top of a flat surface.
TIP! For more secure installations, we
recommend you install your recorder inside the
HTENCLHTR security enclosure. See the
HTENCLHTR Security Enclosure Installation
Guide for more information.
Middle of vehicle
(underneath seat)
Passenger seat
(underneath seat)
Driver seat (between seat
and wall, or underneath)
3 Program the System
Note To ensure that you can read, write, and modify Configuration
data files and application support files, Honeywell
recommends that all users be administrator group members
of the Windows operating system.
First Time Mandatory Settings
1. On a PC connected to the HTR4 Recorder, launch the BusView Configurator application. If
the recorder is not already awake (POWER LED is solid green when awake), press and hold
the POWER button on the front panel for 5 seconds.
2. Click Online Configuration in the navigation pane. Detected recorders are listed here.
3. Select a recorder and click Connect ( ) to establish a communication link.
4. Click the System tab, set the time and date (manually or synchronized with your PC).
5. Click Configuration Wizard on the Task Overview tab. Either load a factory set
configuration and make changes to it or click Next to create your own configuration.
6. Set the recorder settings:
•Recorder name
• Record Delay (amount of time
the recorder continues to record
after the last record rule ends)
• Standby Delay (amount of time
before the recorder goes into
Sleep mode after all wakeup
conditions are gone)
• Recording Mode. Set to Recycle
(recommended); to have the
system record over the oldest
data when the hard drive is full.
Click Next.
7. Configure connected triggers (maximum seven, Event Trigger configuration is limited).
a. Select a trigger from the list, then
name it, enable it and set the
property (active high or low).
Enable at least one trigger to wake
up the recorder when detected.
b. Test trigger connections by
activating the trigger. Note the
status changes on the Trigger list.
c. Click Next.
3. Connect the 24-pin Interface connector of the wiring harness to the recorder. Wire the
triggers and alarms to the vehicle electrical system. Connect the power cables to the
vehicle battery. Connect the GPS cabling to the HTR4GPS module, if installed.
Alarms
Triggers
Fuse box
(ATO 7.5)
Power harness: 20, 40
and 60 foot cables
Note If you are installing the recorder into a
vehicle that previously ran an HTRD400 or
HTRD100 recorder, you can purchase a wiring
Reserved for GPS
Power
harness adapter that allows you to use your
currently wired triggers. See the HTR4 System
NO1
NO2
NC1
NC2
COM1
COM2
TRIG1
TRIG2
TRIG3
TRIG4
TRIG5
TRIG6
For
future
use
Power
for GPS
To
vehicle
battery
Reference Guide for more information.
4. Install up to four cameras. The primary camera is typically installed at the front interior of the
vehicle looking towards the back. Other cameras might be installed on the ceiling halfway
down the aisle and on the bulkhead looking towards the driver and/or front door. For more
information, refer to the Installation Guide that came with your camera.
5. Connect the camera(s) to the power, audio and video ports on the recorder’s rear panel.
Rear Panel Front Panel
12
34
3412
AUDIO
IN
VIDEO
IN
CAMERA
POWER OUT
DC 12-14V
SPOT
REMOTE
COM 2COM 1INTERFACE
MONITOR
PANEL
Note Only connect a PC or
laptop to the COMPUTER port
24-pin Interface
connector
on the front panel after you
have installed the Configuration
software on the PC.
6. If you are not using the HTENCLHTR security enclosure, attach the optional front lid and
rear cable cover. Slide the front lid into its two slots at a 45° angle. Leave a 1/2 inch
clearance between the cable cover and the rear chassis.
7. Install the BusView software on a PC or laptop that you will use to connect to the HTR4
Recorder. You must be logged into a Microsoft® Windows® 2000 (Service Pack 4), XP®
(Professional and Home Edition Service Pack 2), or Windows Vista (Home Premium and
Business editions) operating system with administrator privileges to install the software.
a. Close all running Windows applications.
b. Ensure that all other users are logged off.
c. Remove any existing BusView applications.
d. Insert the CD-ROM disc in the CD drive and then follow the Installation Wizard.
8. With Windows running, connect your PC or laptop to the COMPUTER port on the front of
the recorder or on the dash panel unit (HTRDP) using a CAT5 Ethernet crossover cable.
8. Define up to eight schedules (optional).
These schedules will define what days
and times the HTR4 Recorder can
record data.
You can set up schedules for specific
days or for a range of days.
You can also set up a Wakeup
schedule which defines the time when
the recorder should be awake,
regardless of active triggers.
Click Next.
9. Configure up to four connected cameras.
a. Connected cameras automatically
populate the camera list on the
Camera Summary screen.
b. Select a camera from the list.
Check your camera connections if
a camera image does not appear
within 30 seconds of selecting it.
c. Name the camera and enable
audio to be recorded with video
from the camera (if supported).
d. Repeat these steps for each
connected camera.
e. Click View Coverage Area to test
the camera coverage. Cameras
will appear in the quad screen in
the order connected. Use the
quad view as a reference to help
re-position your cameras, as
required. Click Save Snapshot to
save a .jpg of the current view.
Click Close when you are
satisfied with the coverage.
f. Click Next.
10. Enable GPS, if installed.
Check Record GPS data when a rule
is active to have the recorder collect
GPS data (position and local time).
The Status box displays the current
status of the HTR4GPS unit.
The Time and Location fields display data when the recorder detects the HTR4GPS
module. This information updates once per second to provide a visual confirmation that
your GPS system is working correctly.
Click Next.
For more programming and operation, see over.
For more detailed information, refer to the HTR4 System Reference Guide available on your CD.
Document 800-00275 – 03/08 – Rev A
11. Define up to nine record rules that determine when recording takes place.
a. Click Add New Rule. You can also
Edit, Delete or Duplicate previously
created rules.
b. Select the trigger(s) to use to activate
the rule. You must add at least one
trigger to the rule. Only enabled
triggers are available for selection.
c. Click Next.
d. Add up to eight record schedules to
the rule (optional). A rule becomes
active only when events occur
during the day and time defined in
the rule schedule(s).
e. You can Add predefined schedules,
Wakeup schedules, or create new
schedules for specific days or a
range of days.
f. Click Next.
g. Select at least one camera you want
audio and video to record from in the
rule. You can also specify the image
quality, resolution and frame rate
settings of the camera.
h. Click Next.
i. Select the camera(s) to be displayed
on the spot monitor when the rule is
active. You can also select the
Display Duration of each camera.
j. Click Next.
k. Review the storage information you are
using. Do not exceed your capacity.
l. Click Next.
m. Name and enable the record rule.
Provide a rule description, if required.
n. Click Finish.
o. Repeat these steps for each rule you
are adding.
p. Review the rules. The
recorder reacts to the
record rule at the top
of the list first.
q. To change the rule
priority, highlight a
rule, then click the up
or down arrow.
r. Click Next when you
are finished
configuring rules.
HTR4 System Quick Setup
4 Finding and Playing Video
If the HTR4 Recorder is not already on (POWER LED is solid green when
on), briefly press the POWER button on the front panel.
Start the BusView Player application.
Front Panel Indicators (LEDs)
Recorder State Service Temperature Record Power
No power to recorder OFF
Sleep mode ON (Blinking)
ON (wake up) ON (Rapid blinking)
ON (not recording) ON (Solid)
ON (recording) ON (Solid) ON (Solid)
Error ON (Solid) ON (Solid)
Error (HD specific) ON (Blinking) ON (Solid or blinking)
Storage Full and Protected ON (Blinking) ON (Blinking) ON (Solid)
Outside Temperature Range ON (Solid) ON (Blinking)
Firmware Upgrade in Progress ON (Blinking) ON (Blinking) ON (Blinking)
HD Erase (Full Erase) ON (Rapid Blinking) ON (Solid)
Recording without all cameras
present for the active rule
Note The Service LED will flash a few times during wake up. This is normal operation and not an error.
Search for Video
Search for video data stored on a recorder or archived (saved) on a PC. You
do not have to be connected to a recorder to search for archived data.
1. Click on the Player quad screen.
2. Select Recorders (or Archives) on the
Source tab. If you are not connected to a
recorder, select the recorder from the
recorders list. Click Add.
3. Enter parameters on the appropriate tab
to search by: date and time range,
trigger(s), camera(s), rule(s), or GPS
data. To locate a specific instance,
narrow your search parameters.
4. Click Add to add the search criteria to
this search file. This only adds the criteria
currently displayed on the open tab.
5. Click Save (optional) to save the search
criteria for future use.
6. Click GO to locate the clips that match
your search criteria.
7. Select the desired clip from the Search
Results, then click Load. Use the Player
controls to start viewing the video.
Play Video
1. Select the recorder on the Recorders tab of the Explorer Pane, then click Connect.
2. Clips on a connected recorder appear under its name. Select the desired clip from the list,
then click Load. Use a search to locate a specific clip. Use the Player controls (see below)
to start viewing.
Clip information: date, start and end time
Information Print image
ON (Blinking) ON (Solid) ON (Solid)
Indicates active audio source when green
Camera name
Save
12. Review your configuration summary. Click Save (recommended) to save the configuration file
on your PC for future use.
13. You must upload the configuration to the recorder to have your settings take effect. This
overwrites the current configuration. Click Upload this Configuration.
14. On the Users tab, select the Password Protection Enabled check box to secure recorded
data from unwanted access.
15. Assign up to 50 user accounts and set passwords (this requires administrator privilege and
password protection to be enabled).
To create new user accounts,
you must select the privilege
level for the user. Choose
between Configuration,
Viewer, or both.
Recorders — lists video clips
by connected recorder
Archives — lists recordings
previously saved to the PC
Search Results — lists clips
matching search criteria
Player Controls
Next/
Clip
Start
Fast
Reverse
Prev
Clip
Single
Frame
Rev
Rev
Play
Stop/
Pause
Location of current image
Progress bar indicates clip length
Current clip time, playback speed
GPS information: speed, direction,
location (latitude + longitude)
Advanced views
(time, triggers, cameras, rules)
Fwd
Single
Frame
Fwd
Fast
Forward
Play
Clip
End
Previous/next event
Global controls
(all cameras)
Print images
Archive (save)
Search
Help
Audio control
Player controls
Displays active
trigger information
www.honeywellvideo.com
+1.800.796.CCTV (North America only)
HVSsupport@honeywell.com
Document 800-00275 – Rev A – 03/08
© 2008 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written permission from Honeywell Video Systems. The information in this publication is believed to be accurate
in all respects. However, Honeywell Video Systems cannot assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to
this publication may be issued to incorporate such changes.
Loading...
