HMC1041Z
1-Axis Magnetic Sensor
HMC1041Z
Advanced Information
The Honeywell HMC1041Z is a z-axis surface mount option designed for low field magnetic sensing. By adding the HMC1041Z to other 2-axis magneto-resistive sensors, a cost effective and space-efficient 3-axis magnetometer or compassing solution is enabled. This compact, low cost solution is easy to assemble for high volume, cost effective OEM designs. Applications for the HMC1041Z include Compassing, Navigation Systems, Magnetometry, and Current Sensing.
The HMC1041Z utilizes Honeywell’s Anisotropic Magnetoresistive (AMR) technology that provides advantages over coil based magnetic sensors. They are extremely sensitive, low field, solid-state magnetic sensors designed to measure direction and magnitude of Earth’s magnetic fields, from tens of micro-gauss to 6 gauss. Honeywell’s Magnetic Sensors are among the most sensitive and reliable low-field sensors in the industry.
Honeywell continues to maintain product excellence and performance by introducing innovative solid-state magnetic sensor solutions. These are highly reliable, top performance products that are delivered when promised. Honeywell’s magnetic sensor solutions provide real solutions you can count on.
FEATURES |
BENEFITS |
4
4
4
4
4
4
4
4
4
Low Height Magnetic Sensors (1.05mm) |
4 Narrow Dimensions and Small Size for Low Profile Vertical Sensing |
|
Applications and Mounting, No Layout Constraints |
Surface Mount Z-Axis Sensor |
4 Easy to Assemble & Compatible with High Speed SMT Assembly |
Low Voltage Operations (2.0V) |
4 Compatible for Battery Powered Applications |
Low Cost |
4 Designed for High Volume, Cost Effective OEM Designs |
Available in Tape & Reel Packaging |
4 High Volume OEM Assembly |
Lead Free Package Construction |
4 Complies with Current Environmental Standards |

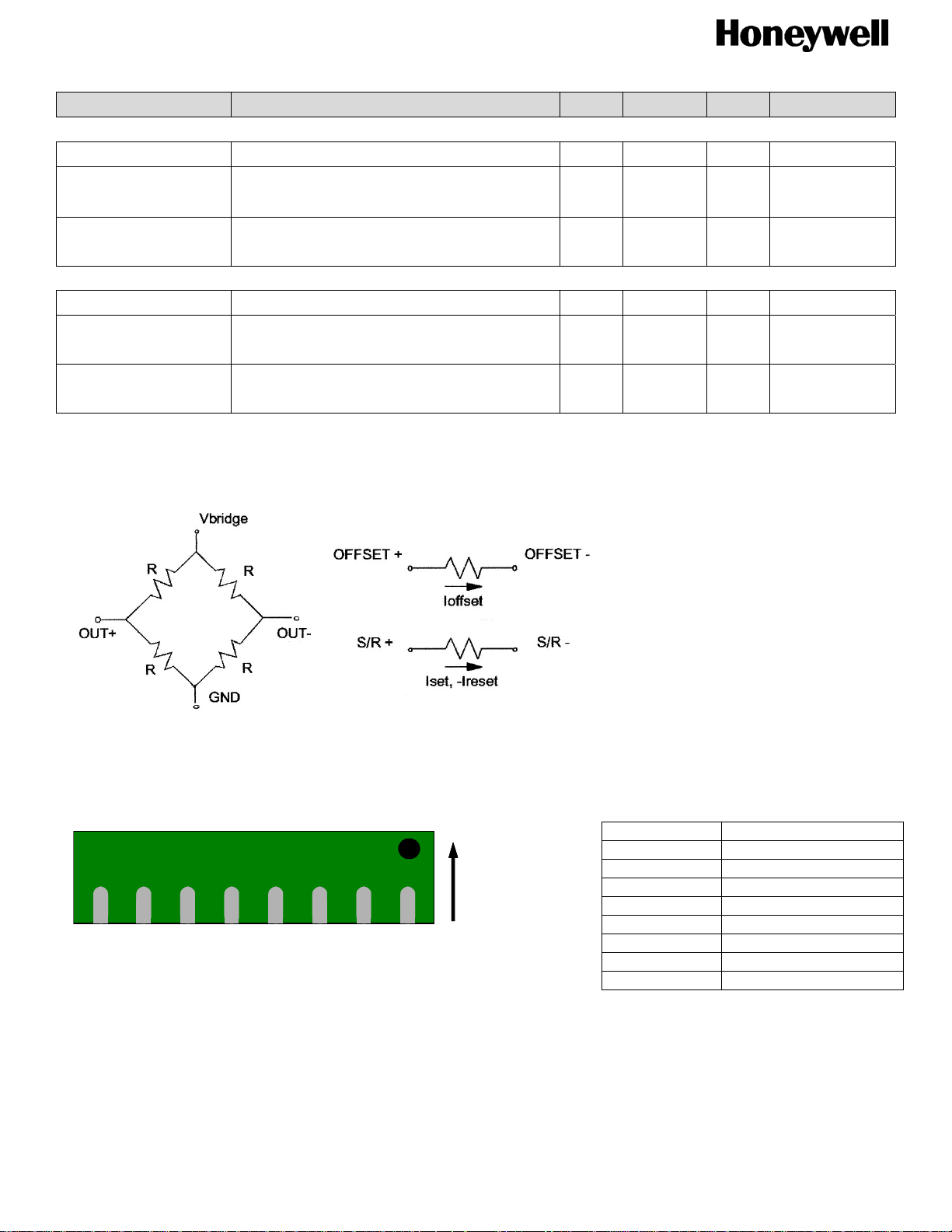

4-Element Wheatstone Bridge |
4 Low Noise Passive Element Design |
Wide Magnetic Field Range (+/-6 Oe) |
4 Sensor Can Be Used in Strong Magnetic Field Environments |

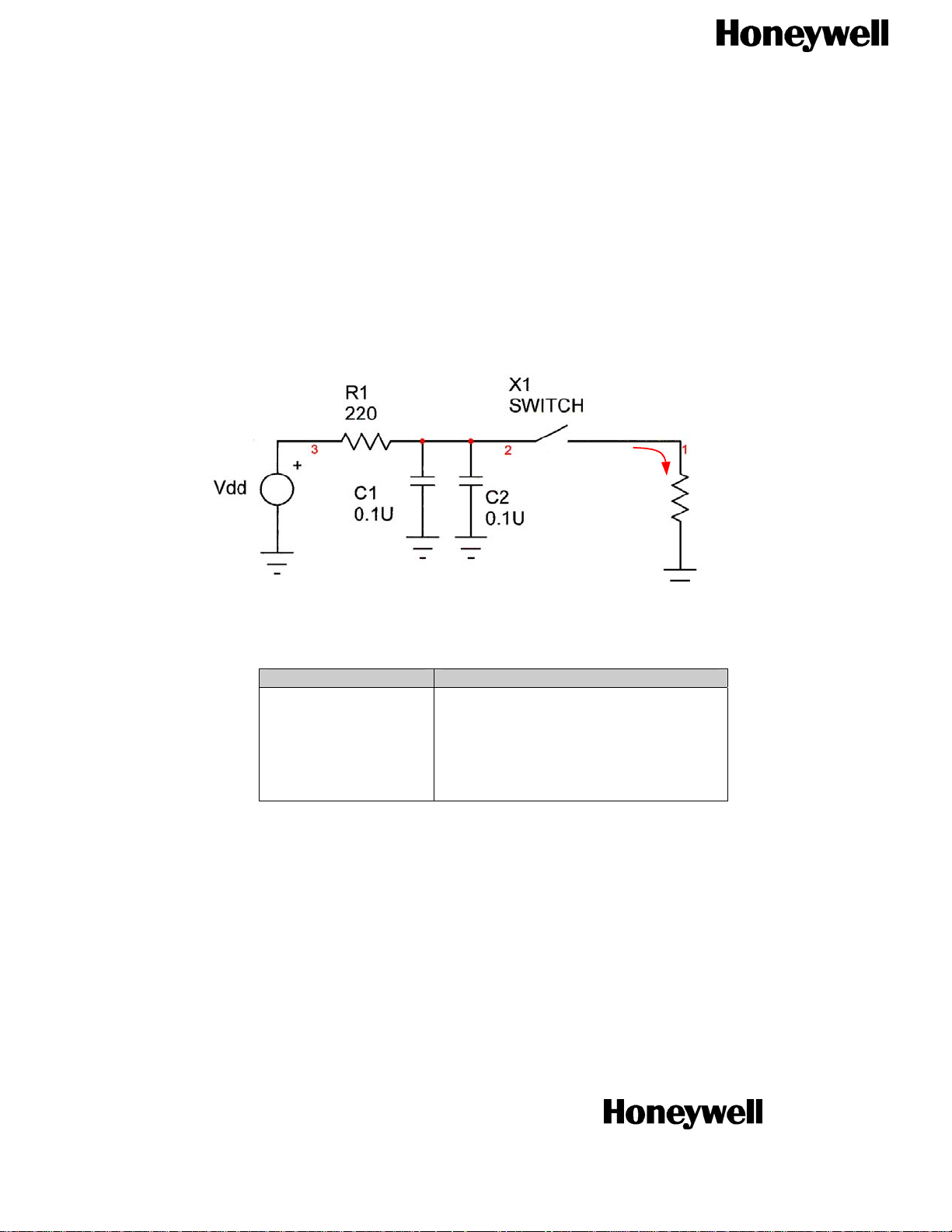

Patented Offset and Set/Reset Straps |
4 Stray Magnetic Field Compensation |
HMC1041Z
SPECIFICATIONS
Characteristics |
Conditions* |
Min |
Typ |
Max |
Units |
Bridge Elements |
|
|
|
|
|
|
|
|
|
|
|
Supply |
Vbridge referenced to GND |
2.0 |
5.0 |
20 |
Volts |
Resistance |
Bridge current = 1mA |
800 |
1050 |
1300 |
ohms |
Field Range |
Full scale (FS) – total applied field |
-6 |
|
+6 |
gauss |
Sensitivity |
Set/Reset Current = 0.5A |
0.8 |
1.0 |
1.25 |
mV/V/gauss |
Resolution |
1 kHz bandwidth, Vbridge = 5.0 volts |
|
0.16 |
|
milli-gauss |
|
|
|
|
|
(RMS) |
|
|
|
1.44 |
|
milli-gauss |
|
|
|
|
|
(pk – pk) |
|
|
|
|
|
|
Bridge Offset |
Offset = (OUT+) – (OUT-) |
-2.0 |
±0.5 |
+2.0 |
mV/V |
|
Field = 0 gauss after Set pulse |
|
|
|
|
Bandwidth |
Magnetic signal (lower limit = DC) |
|
5 |
|
MHz |
Disturbing Field |
Sensitivity starts to degrade. |
|
|
20 |
gauss |
|
Use S/R pulse to restore sensitivity. |
|
|
|
|
Max. Exposed |
No perming effect on zero reading |
|
|
10000 |
gauss |
Field |
|
|
|
|
|
Operating |
Ambient |
-40 |
|
125 |
°C |
Temperature |
|
|
|
|
|
Storage |
Ambient, unbiased |
-55 |
|
125 |
°C |
Temperature |
|
|
|
|
|
Sensitivity |
TA= -40 to 125°C, Vbridge=5V |
-3500 |
-3100 |
-2000 |
ppm/°C |
Tempco |
|
|
|
|
|
Bridge Offset |
TA= -40 to 125°C, No Set/Reset |
|
±500 |
|
ppm/°C |
Tempco |
TA= -40 to 125°C, With Set/Reset |
|
±10 |
|
|
Bridge Ohmic |
Vbridge=5V, TA= -40 to 125°C |
2100 |
2500 |
2900 |
ppm/°C |
Tempco |
|
|
|
|
|
Cross-Axis |
Cross field = 0.5 gauss, Happlied = ±3 gauss |
|
±0.5% |
|
%FS/gauss |
Sensitivity |
|
|
|
|
|
Linearity Error |
Best fit straight line |
|
|
|
|
|
± 1 gauss |
|
0.17 |
|
|
|
± 3 gauss |
|
0.42 |
|
%FS |
|
± 6 gauss |
|
0.80 |
|
|
Hysteresis Error |
3 sweeps across ±3 gauss |
|
0.15 |
|
%FS |
|
|
|
|
|
|
Repeatability Error |
3 sweeps across ±3 gauss |
|
0.11 |
|
%FS |
Weight |
|
|
8.9 |
|
milli-grams |

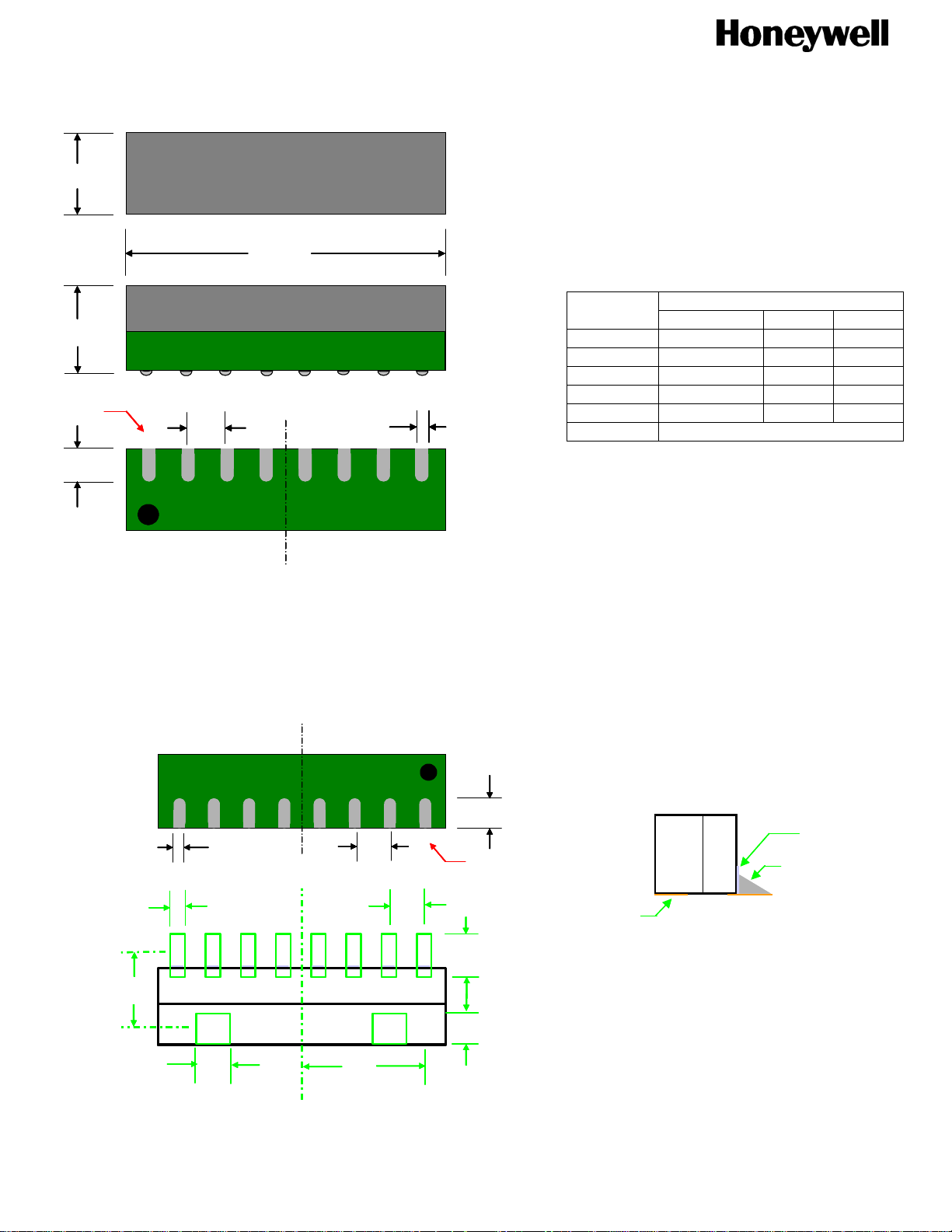

* Tested at 25°C except stated otherwise.
