Honeywell HCD5HIH, HCD5MIH, HCD5HIHX, HCD5MIHX, HCD5WIHX Reference Manual

®

equIP

Series

True Day/Night

Network Box Camera

NTSC / PAL

HCD5HIH HCD5HIHX
HCD5MIH HCD5MIHX
HCD5WIH HCD5WIHX

Reference Guide

Document 800-07067V5 – Rev A – 07/2013

Reference Guide

Revisions

Issue Date Revisions

V2 A 11/2011 Changed 800-07067V1from a User Guide exclusively for HCD5MIH/X. Added the

HCD5HDIH(X) and HCD5MWIH(X) cameras to this User Guide.

Added a note in Chapter 2 advising that the camera should not be connected to two
different power sources at the same. Changed the number of users that can be
logged on at the same time. Changed the length of time required to hold down the
reset button. Added a note in the IP installation section suggesting that all Norton
AntiVirus software be disabled before installing the IP software.

Added the information for installing the Honeywell IP Utility on Windows 7. And added
Frame Rate to the list of available priority settings in the Compression Settings
section.

V3 A 11/2011 Removed sentence in Specifications which states that only 4 users can log on at a

time. Removed notes throughout that referred to a limited number of users that can
be logged on at a time. Updated the System Requirements. Added the step for
Enabling Microsoft .NET Framework 3.5 to the Install Honeywell IP Utility Software
section. Expanded on the Disable User Account Control section. Added WDR and
LDC to the Auto Exposure Settings table. Changed the Immunity Regulatory
specification from EN 50024 to 50130-4.

V4 A 08/2012 Corrected the description of the Alarm I/O and Audio I/O connectors in the

specifications for HCD5MIH(X) and HCD5WIH(X).

Changed EQUIP to equIP.

Updated the method for connecting to the Download Center website and
downloading the IP Utility.

V5 A 07/2013 Updated URLs on back cover.

Updated the method for finding the User Guide.

Changed "Honeywell Camera ActiveX Software" to "Honeywell PSIA IP ActiveX
Software".

Added notes about the removal of the credentials window for V49 or higher.

Updated the descriptions of ELC, ALC, and DSS, and of the descriptions of White
Balance.

Updated Specifications for the cameras, including the minimum illumination for all
cameras, the power consumption, the temperatures for all cameras, the Primary
Stream Resolutions, the AES/ELC .

Moved the "Uninstalling the ActiveX" section from Chapter 3 to Chapter 4, as well as
all Web Client information to Chapter 4.

Updated the Regulatory for all cameras.

Added a note about the automatic installation of a signed version of ActiveX when
users log onto the Honeywell IP Utility for the first time.

Changed the Conformance from LVD 2006/95/EC to GPSD 2001/95/EC.

Changed the selections for and description of DNR.

Added information about D/N Control and Alarm Interlock Day/Night Switching.

4

Contents

About This Document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Overview of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Manufacturer’s Declaration of Conformance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

North America. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Warranty and Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2 Installation and Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Before you Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Unpack Everything . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Overview of the Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Selecting the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adjusting the Back Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Mounting the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connecting Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connecting Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Connecting Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Connecting Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Restoring Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3 Installing the Honeywell IP Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

About the Honeywell IP Utility and Web Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

About the Honeywell IP Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Step 1: Confirm Your System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Step 2: Install the Honeywell IP Utility Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Finding the equIP Series User Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Step 3: Log Onto the IP Utility and Discover Network Devices . . . . . . . . . . . . . . . . . . . . . . 29

Step 4: Connect to a Device and Configure Network Settings . . . . . . . . . . . . . . . . . . . . . . 31

Connecting to or Disconnecting from Devices . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Configuring the IP Network Settings Automatically or Manually . . . . . . . . . . . . . . . . . 32

Interfacing with the equIP PSIA Device Via a Network Video Recorder . . . . . . . . . . . . . 34

Step 5: Launch the Web Client to View Live Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Uninstalling the IP Utility and/or the Bonjour Software . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Uninstalling the IP Utility Using the Start Menu . . . . . . . . . . . . . . . . . . . . . . . . . 36

Uninstalling the IP Utility and/or the Bonjour Software Using the Control Panel . . . . . . . . 37

Document 800-07067V5 Rev A 5
07/2013

Contents

4 IP Camera Web Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

About the Web Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

User Profiles: Web Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Confirming Your System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Configuring Your OS and Browser for ActiveX Installation on Microsoft IE . . . . . . . . . . . . . . . . 41

Configuring Windows 7 (32-bit and 64-bit) and IE Security Settings . . . . . . . . . . . . . . 41

Configuring Windows XP Service Pack 3 and IE Security Settings . . . . . . . . . . . . . . . 48

Logging On and Off the IP Web Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Launching the Web Client from IP Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Logging Onto the Web Client from Internet Explorer . . . . . . . . . . . . . . . . . . . . . .54

Uninstalling the Honeywell PSIA IP ActiveX: Microsoft IE . . . . . . . . . . . . . . . . . . . . 55

Logging Out of the Web Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Navigating the Web Client User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Live View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Taking a SnapShot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Configuring IP and Firmware Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Resetting the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Compression Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Primary Stream Video Codec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Secondary Stream Video Codec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Statistics: Received Bit Rate and Frame Rate . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Camera Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Basic Camera Setup Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Auto Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

White Balance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Video Analytics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Tamper Detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Configuring Video Motion Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Alarm and Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Alarm Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Alarm Interlock Day/Night Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Appendix A Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Problem: Live View Does Not Display the Expected Video . . . . . . . . . . . . . . . . . . . . . . . . 83

Problem: Failure of IP Utility Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Problem: Web Client Does Not Display the Expected Video . . . . . . . . . . . . . . . . . . . . . . . 84

Problem: Cannot Connect to a Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Appendix B HCD5HIH(X) Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Appendix C HCD5MIH(X) Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Appendix D HCD5WIH(X) Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Appendix E Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

6

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Figures

Figure 1-1 Camera Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 2-1 Back Focus Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 2-2 Camera Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 2-3 Camera Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 2-4 Alarm Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 2-5 Normal Alarm States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 2-6 Alarm Output Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 3-1 Honeywell IP Utility Log On Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 3-2 Honeywell IP Utility User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

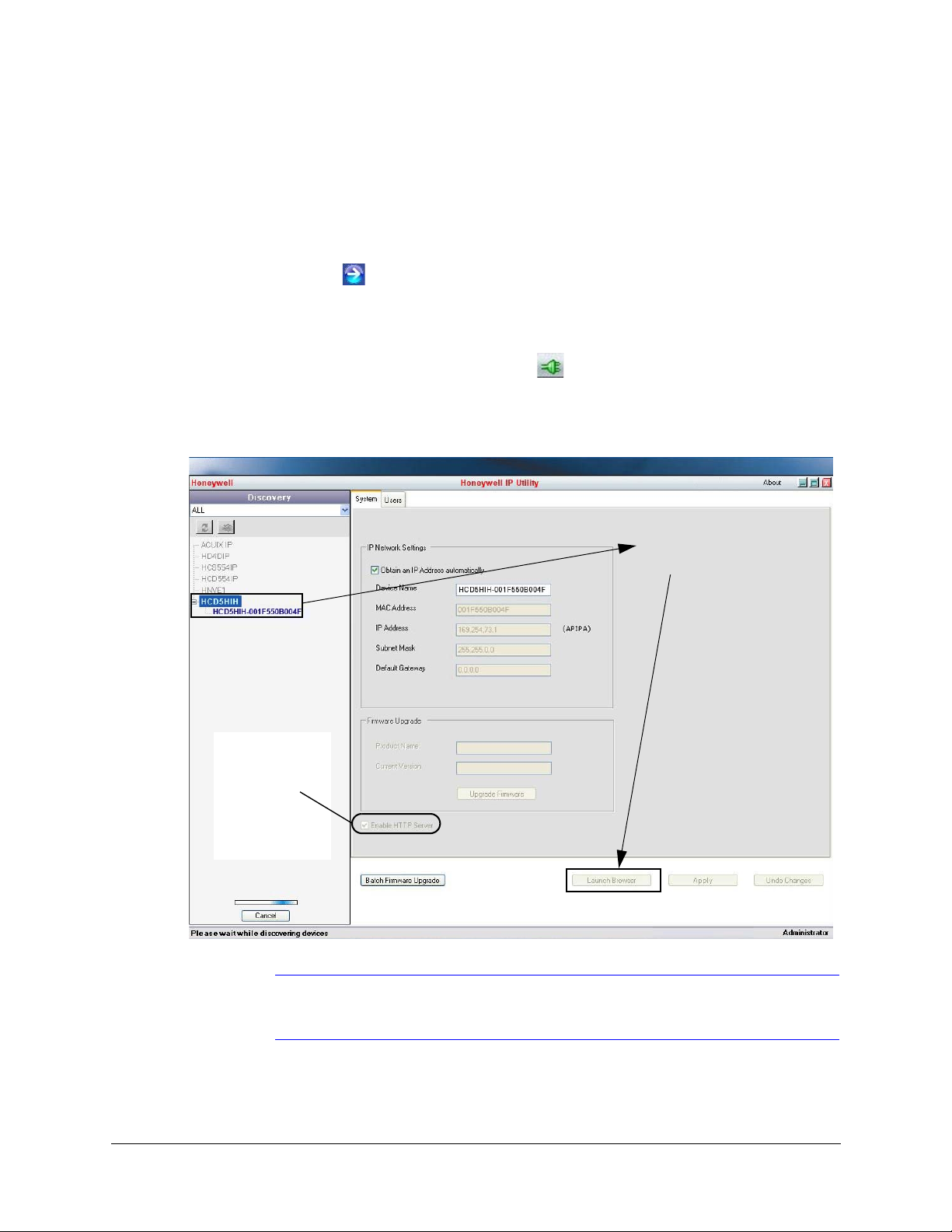

Figure 3-3 Setting the IP Network Settings Automatically or Manually . . . . . . . . . . . . . . . . . . 33

Figure 3-4 ActiveX Prompt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Figure 3-5 Web Client Interface After Logging On . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Figure 4-1 Windows Firewall Settings for IE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Figure 4-2 Allowed Programs List in IE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Figure 4-3 Adding IE to the Allowed Programs List. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Figure 4-4 Searching for UAC in the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Figure 4-5 User Account Control Settings Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Figure 4-6 Preferred UAC Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Figure 4-7 Run IE as Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 4-8 Camera Login Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 4-9 Trusted Sites Configuration Page in IE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 4-10 Trusted Sites List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 4-11 Adding a Whole Subnet to the List of Trusted Sites. . . . . . . . . . . . . . . . . . . . . . 48

Figure 4-12 Allowing IE through the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Figure 4-13 Camera Login Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Figure 4-14 Trusted Sites Configuration Page in IE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Figure 4-15 Trusted Sites List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Figure 4-16 Adding a Whole Subnet to the List of Trusted Sites. . . . . . . . . . . . . . . . . . . . . . 52

Figure 4-17 Launching the Web Client from the IP Utility . . . . . . . . . . . . . . . . . . . . . . . . . 53

Figure 4-18 ActiveX Prompt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Figure 4-19 Web Client Window Layout: Administrator Log On . . . . . . . . . . . . . . . . . . . . . . 56

Figure 4-20 Web Client: Administrator User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Figure 4-21 Web Client: Guest User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Figure 4-22 Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Figure 4-23 IP and Firmware Settings: Device Information Tab . . . . . . . . . . . . . . . . . . . . . . 60

Document 800-07067V5 Rev A 7
07/2013

Figures

Figure 4-24 Compressions Settings Tab: Primary Stream . . . . . . . . . . . . . . . . . . . . . . . . . 61

Figure 4-25 Primary Stream Video Codec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Figure 4-26 Secondary Stream Video Codec Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 4-27 Quality Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Figure 4-28 Bit Rate Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Figure 4-29 Frame Rate Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Figure 4-30 Camera Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Figure 4-31 Video Analytics Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Figure 4-32 Tamper Detection Settings on the Video Analytics Tab. . . . . . . . . . . . . . . . . . . . 71

Figure 4-33 Video Analytics Alarm Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Figure 4-34 Video Motion Detection Configuration - 30% Sensitivity Level . . . . . . . . . . . . . . . . 77

Figure 4-35 Video Motion Detection Configuration - 50% Sensitivity Level . . . . . . . . . . . . . . . . 77

Figure 4-36 Video Motion Detection Configuration - 80% Sensitivity Level . . . . . . . . . . . . . . . . 78

Figure 4-37 Video Motion Detection Configuration - 30% Sensitivity Level for a Wide Field of View . . . 78

Figure 4-38 Video Motion Detection Configuration - 50% Sensitivity Level for a Wide Field of View . . . 79

Figure 4-39 Video Motion Detection Configuration - 80% Sensitivity Level for a Wide Field of View . . . 79

Figure 4-40 Video Motion Detection Configuration - A Combination Setup . . . . . . . . . . . . . . . . 80

Figure 4-41 Audio and IO Settings Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Figure 4-42 D/N Control Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Figure 4-43 Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Figure A-1 Limited or No Connection Message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Figure B-1 Camera Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Figure C-1 Camera Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Figure D-1 Camera Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

8

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Tables

Table 1-1 Network Cameras Model Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 3-1 PC Minimum System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 3-2 Items Installed On Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 3-3 IP Network Device Setting Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 4-1 User Profiles and Permissions for the Web Client . . . . . . . . . . . . . . . . . . . . . . . 40

Table 4-2 PC Minimum Requirements for ActiveX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 4-3 Tabs in the Web Client Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table 4-4 Video Streaming Resolutions - 1080p Resolution Primary Stream . . . . . . . . . . . . . . 63

Table 4-5 Video Streaming Resolutions - 720p Resolution Primary Stream . . . . . . . . . . . . . . . 64

Table 4-6 Video Streaming Resolutions - 1080p Resolution Secondary Stream. . . . . . . . . . . . . 64

Table 4-7 Video Streaming Resolutions - 720p Resolution Secondary Stream . . . . . . . . . . . . . 64

Table 4-8 Compression Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Table 4-9 Selecting Quality, Bit Rate, or Frame Rate.. . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Table 4-10 Auto Exposure Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Table 4-11 White Balance Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Table 4-12 Blur Threshold Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Table 4-13 Blinding Threshold Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Table 4-14 Scene Change Threshold Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Document 800-07067V5 Rev A 9
07/2013

Tables

10

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

About This Document

This document introduces the Honeywell HCD5 Series of High Resolution True Day/Night
Network Box Cameras. This series includes the following cameras:

• HCD5HIH(X) 1080p True Day/Night Network Box Camera

• HCD5MIH(X) 720p True Day/Night Network Box Camera

• HCD5WIH(X) 720p Wide Dynamic True Day/Night Network Box Camera

This document explains how to install, configure and operate the camera in a network
environment. This document is intended for system installers, administrators, and
operators.

Overview of Contents

This document contains the following chapters and appendixes:

• Chapter 1, Introduction, introduces the Honeywell network box camera and gives a
functional overview of its components.

• Chapter 2, Installation and Setup, provides procedures for installing cameras, lens
adjustment, and setting up a network camera environment.

• Chapter 3, Installing the Honeywell IP Utility, describes how to install and use the
Honeywell IP Utility and web client software.

• Chapter 4, IP Camera Web Client, describes how to use the web client application to
view video and configure the available settings for the network camera.

• Appendix A, Troubleshooting, lists common problems encountered when setting up
the network camera.

• Appendix B, HCD5HIH(X) Specifications, provides specifications for HCD5HIH(X)
cameras.

• Appendix C, HCD5MIH(X) Specifications, provides specifications for HCD5MIH(X)
cameras.

• Appendix D, HCD5WIH(X) Specifications, provides specifications for HCD5WIH(X)
cameras.

•The Glossary explains terms and initializations used in this guide.

•The Index provides quick access to commonly searched terms.

Document 800-07067V5 Rev A 11
07/2013

About This Document

CAUTION

THIS SYMBOL INDICATESTHAT
DANGEROUSVOLTAGE
CONSTITUTINGA RISK OF
ELECTRIC SHOCK IS PRESENT
WITHIN THE UNIT.

CAUTION:TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE THE COVER.

NO USER-SERVICEABLE PARTSINSIDE.

REFER SERVICINGTO QUALIFIED SERVICE

PERSONNEL.

THIS SYMBOL INDICATESTHAT
IMPORTANT OPERATING AND•
MAINTENANCE INSTRUCTIONS
ACCOMPANYTHIS UNIT.

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

Cautions and Warnings

Installation and servicing should be performed only by qualified and experienced
technicians to conform to all local codes and to maintain your warranty.

WARNING! 24 V AC models require the use of CSA Certified/UL Listed

Class 2 power adapters to ensure compliance with
electrical safety standards. Power over Ethernet (PoE)
should meet the IEEE 802.3 af PoE standard.

FCC Compliance Statement

12

WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this
product (applicable in the European Union and other European countries with
separate collection systems). This product should be disposed of, at the end of
its useful life, as per applicable local laws, regulations, and procedures.

Caution When powering the camera from 24 V AC, a UPS source should

be considered to ensure satisfactory performance.

Information to the User: This equipment has been tested and found to comply with the
limits for a Class B digital device. Pursuant to Part 15 of the FCC Rules, these limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference. For example, try reorienting or relocating the receiving antenna,
increasing the separation between the equipment and receiver, or connecting the
equipment to an outlet on a different circuit.

Caution Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to
operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Manufacturer’s Declaration of Conformance

North America

The equipment supplied with this guide conforms to UL 60950-1 and CSA C22.2 No.
60950-1.

Europe

The manufacturer declares that the equipment supplied with this guide is compliant with
the European Parliament and Council Directive on the Restrictions of the use of certain
Hazardous Substances in electrical and electronic equipment (2011/65/EU), the General
Product Safety Directive (2001/95/EC) and the essential requirements of the EMC
directive (2004/108/EC), conforming to the requirements of standards EN 55022 for
emissions, EN 50130-4 for immunity, and EN 60950-1 for electrical equipment safety.

Warranty and Service

Subject to the terms and conditions listed on the Product warranty, during the warranty
period Honeywell will repair or replace, at its sole option, free of charge, any defective
products returned prepaid.

In the event you have a problem with any Honeywell product, please call Customer
Service at 1.800.323.4576 for assistance or to request a Return Merchandise
Authorization (RMA) number.

Be sure to have the model number, serial number, and the nature of the problem available
for the technical service representative.

Document 800-07067V5 Rev A 13
07/2013

About This Document

Prior authorization must be obtained for all returns, exchanges, or credits. Items shipped
to Honeywell without a clearly identified Return Merchandise Authorization (RMA)
number may be refused.

14

1

Introduction

Reset button restores
factory default settings

CS lens mount

Lens connector for
DC Auto Iris lens plug

Honeywell’s High Resolution True Day/Night Network Box Cameras provide high picture
quality remote video surveillance over a network connection. See Table 1-1 for a list of
camera models.

Table 1-1 Network Cameras Model Numbers

Model Number Description

HCD5HIH True Day/Night 1080p Network Camera, NTSC

HCD5HIHX True Day/Night 1080p Network Camera, PAL

HCD5MIH True Day/Night 720p Network Camera, NTSC

HCD5MIHX True Day/Night 720p Network Camera, PAL

HCD5WIH True Day/Night Wide Dynamic 720p Network Camera, NTSC

HCD5WIHX True Day/Night Wide Dynamic 720p Network Camera, PAL

Figure 1-1 Camera Overview

Document 800-07067V5 Rev A 15
07/2013

Introduction

Features

The Honeywell Megapixel IP Box Camera has the following features:

Camera Resolution Progressive Scan Sensor

HCD5HIH/X

HCD5MIH/X

HCD5WIH/X

• Mechanical Infrared (IR) cut filter ensures excellent low light performance

• Camera Tamper Detection

• Video Motion Detection

• H.264 and MJPEG compression

• Dual digital video streams simultaneously, independently configurable

• Remote firmware updates

• Support of both Dynamic and Static IP address assignment

• Multiple levels of password-protected remote access prevents unauthorized users
from altering system settings

• Advanced IP Utility software

• Web server for remote setup of camera video and network parameters

• 24 V AC or PoE IEEE 802.3 af choice of power inputs

• Input and output alarm contacts support

• Bi-directional audio support

• Local video out – aim and focus

• PSIA compliant

1080p (1920 x 1080) 1/2.7" color CMOS

720p (1280 x 720) 1/4" color CMOS

720p (1280 x 720) 1/3" color CMOS

16

2

Installation and Setup

This chapter describes how to:

• Mount the camera(s)

• Adjust the camera(s) for the clearest image

• Set up cameras in a network system

Before you Begin

Before you install your IP box camera:

• Please read this guide carefully. Keep this guide for future reference.

• Before installing the camera, Honeywell recommends that you download the latest

software updates. Go to

http://www.honeywellsystems.com/support/download-center/index.html and follow

the instructions on the page to logon, find your camera, and then download the
latest software updates.

Note You will need a Username and Password to log in to the Download Center. To

receive a Username and Password, contact the customer service center for
your region. Contact information is found on the Download Center page.

Unpack Everything

Check that the items received match those listed on the order form and packing slip. The
packing box should include, in addition to this User Guide:

• One network camera

• 3-pin terminal block for Power input

• 4-pin terminal block for Alarm input/output

• One product warranty

• One DVD containing the product software and the User Guide

Document 800-07067V5 Rev A 17
07/2013

Installation and Setup

If any parts are missing or damaged, contact the dealer you purchased the camera from or
call Honeywell Customer Service (see Warranty and Service on page 13).

Overview of the Installation Procedure

This network camera is intended for indoor use only. If you choose to mount the camera
outdoors, you must employ a suitable weatherproof enclosure (such as Honeywell’s
HHC12 camera housing). Seewww.honeywellvideo.com/products/cameras/index.html for
information on Honeywell weatherproof enclosures and mounting brackets.

Note Please familiarize yourself with the installation procedure and complete each

step in the sequence given.

The initial installation of a network camera consists of the following steps:

Installation

Selecting the Lens

Step See …

1 Select the lens. Selecting the Lens, page 18

2 Adjust the back focus. Adjusting the Back Focus, page 19

3 Mount the camera. Mounting the Camera, page 19

4 Connect the camera. Connecting Video, page 20

5 Program the camera. Camera Setup, page 67

18

The network camera supports the use of a manual iris lens or DC (Direct Drive) auto iris
lens. When using a DC auto iris lens, it should be connected to the camera through the
4-pin square socket located at the side of the camera (see Figure 2-1).

If you are dissatisfied with the sharpness of the image, then you should ensure that you are
using a megapixel lens. For a list of recommended lenses, go to

www.honeywellvideo.com/products/cameras/index.html.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Setscrews

Reset button restores
factory default settings

Lens connector for
DC auto Iris lens

Focus
ring

Adjusting the Back Focus

The back focus adjustment is accessible at the front end of the camera housing to adjust
the back focal length or picture focus.

The range of adjustment allows the CS-mount lenses to be used without the need for a
spacer ring.

Figure 2-1 Back Focus Adjustment

1. Loosen the setscrews with a Phillips screwdriver.

2. Adjust the focus ring at the front end of the camera housing to focus the picture.

3. Re-tighten the setscrews.

Mounting the Camera

Mounting points are provided on the top and bottom of the camera and are used to mount
the camera on a bracket or tripod for indoor applications. They are designed to accept
standard sized mounting bolts (1/4 x 20). The mounting bracket must be capable of
supporting the weight of the camera and its lens.

Caution Some installation codes state that the mounting bracket must be

For outdoor applications, mount the camera inside a weatherproof enclosure. See

www.honeywellvideo.com/products/cameras/index.html for information on Honeywell

weatherproof enclosures.

capable of supporting up to four times the combined weight of the
camera and lens.

Document 800-07067V5 Rev A 19
07/2013

Installation and Setup

Use standard size
mounting bolts (1/4 x 20)
to mount the camera on
a bracket or tripod.

Analog video connection
for a spot monitor

24 V AC power

Audio line level input and
output connections (600
Ohm impedance).

RJ45 Ethernet network
connection (using
10Base T or 100Base
TX cable). Also for
Power over Ethernet
(PoE 802.3 af).

Alarm input (maximum rated
voltage level 24 V DC) and output.
Contacts rated 12 V DC @ 0.5 A.

Wiring

Figure 2-2 Camera Mount

Caution Installation must be performed by a qualified service technician and

Connecting Video

Figure 2-3 Camera Connections

must be in accordance with all national and local mechanical and
electrical codes.

20

Spot Monitor

The analog video connection is available as a test output and should be used during
installation to aim and focus the camera as needed.

Connect the VIDEO connector on the rear of the camera to the video input connector on
your spot monitor.

Network RJ-45 Ethernet Connection

The main video connection for your network camera will be made through your Ethernet
network connection. Connect the Ethernet connector on the rear of the camera to your
network using an Ethernet (10Base-T, 100Base-TX) cable.

Connecting Power

Caution When connecting a power supply, use a 24 V AC power plug or a PoE

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Note You can connect your camera to a network or connect it directly to a PC or

laptop using a crossover cable.

IEEE 802.3 (Power over Ethernet) compatible hub. To avoid damage
to the camera, never connect more than one type of power supply at
the same time.

WARNING! The use of a CSA Certified/UL Listed Class 2 power supply is

required to ensure compliance with electrical safety
standards.

Note Check the power source from the external power supply before applying

power to the camera.

1. Connect the camera to a power supply appropriate for your installation:

• 24 V AC power supply (proceed to step 2)

• Power over Ethernet (PoE IEEE 802.3 af) 48 V DC power supply

Note Connect power either from a 24 V AC source or CAT5 Ethernet connector

(PoE). It is not recommended to connect both power sources at the same
time.

Document 800-07067V5 Rev A 21
07/2013

Installation and Setup

Note If you are using PoE (802.3 af), power will automatically be supplied to the

camera through the network cable.

2. Plug in the power supply. Use a screwdriver to first loosen the ~AC 24 V terminal
screws on the terminal block.

Note To ease installation, the terminal block can be removed. The power

connections of the removable terminal block are not polarity-sensitive.
Connect either power lead to either connector terminal.

3. Secure the power leads by tightening the terminal screws until snug.

4. Plug the power supply into an appropriate power source.

Note For secure installations, surface-mounted cables should be protected by

plastic or metal cable covers.

Note If your installation involves a 24 V AC power source, then please wait

approximately 60 seconds after connecting to a power source for video to
appear on the local video out.

Caution Installation must be performed by a qualified service technician. The

proper wire gauge for the distance and number of cameras must be
determined to maintain 24 V AC at each camera.

Caution When powering the camera from 24 V AC, a UPS source should be

considered to ensure satisfactory performance.

22

Note Connect power either from a 24 V AC source or CAT5 Ethernet connector

(PoE). It is not recommended to connect both power sources at the same
time.

Connecting Alarms

IN

OUT

IN

OUT

ALARM

Normally closed

Normally opened

WARNING! Do not exceed the maximum rating of 12 V DC, 0.5 A on alarm

The network camera has one alarm input and one alarm output available to connect to
peripheral devices (Figure 2-4).

Figure 2-4 Alarm Connections

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

output connections.

Connect mechanical or electrical switches to the alarm input connection to allow
event-triggered recording. When alarm inputs are configured, the camera triggers an alarm
only when the normal state (open or closed) changes (see Figure 2-5). See Alarm Settings
on page 81 to configure the alarm inputs.

The network camera has a D/N Control setting which allows control of the moving IR cut
filter when there is a change in state from Normally Open to Normally Closed or from
Normally Closed to Normally Open for Alarm input (see Alarm Interlock Day/Night Switching
on page 81 for more information). In this way, the moving IR cut filter and the day/night
operation of the camera can be interlocked with external lighting changes using a common
controller such as a photocell or timer.

Figure 2-5 Normal Alarm States

Connect external devices such as sirens or flashing lights to the alarm output connector to
signal users of the camera that an alarm is activated. See Figure 2-6 for alarm connection.

Document 800-07067V5 Rev A 23
07/2013

Installation and Setup

+

–

IN

OUT

IN

OUT

ALARM

In

Out

+

–

Figure 2-6 Alarm Output Connection

The alarm output can be configured to provide normally open or normally closed contacts
(see Alarm Settings on page 81 to configure the alarm output). Contacts will be rated for
12 V DC @ 0.5 A.

Connecting Audio

The network camera supports bi-directional audio. There are two supported voice band
channels that function in full duplex mode. The camera can transmit audio from the camera
to the client (PC) using any audio source that provides an industry standard line level input
(3.5 mm jack). The camera can also receive audio from the client (PC) and provide an
industry standard line level output (3.5 mm jack) suitable to connect to audio devices. Audio
input and output have 600 Ohm impedance. See Audio Settings on page 82 to configure
audio options.

Restoring Factory Defaults

Your network camera has a Factory Reset switch on the side of the camera (see Figure 2-1).
Use this switch to restore your camera options and passwords to their default settings. Use
a pin or straightened paper clip to press and hold the Reset switch for five seconds.

24

3

Installing the Honeywell IP Utility

This chapter describes how to:

• Install and log onto the IP Utility

• Connect to a device and configure network settings using the IP Utility

• Uninstall the IP Utility and/or the Bonjour software

• Perform firmware upgrades

About the Honeywell IP Utility and Web Client

About the Honeywell IP Utility

The Honeywell IP Utility is a software application that is installed from a DVD or
downloaded from the Honeywell Security Group website
(www.honeywellvideo.com/products/cameras/index.html). It is installed on a local
workstation and primarily used by Administrators to configure the equIP
products residing on an IP network.

®

Series of

The IP Utility enables users to:

• Discover devices on a network

• Configure the IP network settings, name devices, upgrade firmware, change
passwords.

• Open individual web client applications for each discovered device.

Updating the Honeywell IP Utility

Honeywell recommends that you regularly check the Honeywell website for the latest
available software updates.
Go to http://www.honeywellsystems.com/support/download-center/index.html and
follow the instructions on the page to logon, find your camera, and then download the
software updates.

Document 800-07067V5 Rev A 25
07/2013

Installing the Honeywell IP Utility

Note You will need a Username and Password to log in to the Download Center. To

receive a Username and Password, contact the customer service center for
your region. Contact information is found on the Download Center page.

Note Before installing and using the Honeywell IP Utility, confirm that your camera

is connected to the network through an Ethernet cable (see Network RJ-45

Ethernet Connection on page 21).

Step 1: Confirm Your System Requirements

Note Windows administrator privileges are required to install the Honeywell IP

Utility and associated software.

Note Contact the network administrator if there are any questions regarding the

local area network (LAN) or any other network related issues.

26

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Install the Honeywell IP Utility on a work station with the minimum requirements (outlined
in Table 3-1). After the IP Utility is installed, the same computer workstation can be used to
access the web client.

Table 3-1 PC Minimum System Requirements

Component Requirement

Operating
System

Processor Intel

RAM 1 GB RAM (32-bit) or 2 GB RAM (64-bit)

Table 3-2 Items Installed On Your System

Item Function

Honeywell IP Utility software To enable use of the web client to configure

Bonjour software To discover cameras on the network.

IE6 Windows XP SP3

Windows 2003 Server R2 32-bit

IE7 Windows 2008 Server 32/64-bit and R2 64-bit

IE8 Windows XP SP3

Windows 2003 Server R2 32-bit
Windows 7 (32/64-bit)
Windows 2008 Server 32/64-bit
Windows 2008 Server R2 64-bit

IE9 Windows 7 (32/64-bit)

Windows 2008 Server 32/64-bit
Windows 2008 Server R2 64-bit

®

Pentium® IV, 3.1 GHz or faster

cameras and view live video.

Honeywell PSIA IP Adapter
software

Honeywell PSIA IP ActiveX
software

To enable web client and systems operation with
PSIA devices.

To enable live streaming of video on the web
client.

Step 2: Install the Honeywell IP Utility Software

1. Close all other applications that might be open on your computer.

Note We recommend that you disable any Norton AntiVirus software that might be

running on the workstation.

Document 800-07067V5 Rev A 27
07/2013

Installing the Honeywell IP Utility

2. Disable User Account Control (UAC) Settings (for Windows 7 and Windows 2K8 only).

3. Open the Honeywell IP Utility InstallShield Wizard.

Note If InstallShield does not open automatically, navigate to [DVD

If you do not disable UAC, you will be unable to install the ActiveX software.
a. Go to Getting Started  Change UAC Setting.
b. Change the UAC setting to Never Notify.
c. Click OK to save the new setting.

Method 1: DVD

Insert the DVD into the DVD-ROM drive.

drive]\Honeywell IP Utility\Honeywell IP Utility Setup.exe. Double-click on
the file to launch the program.

Method 2: Website

a. Navigate to

http://www.honeywellsystems.com/support/download-center/index.html.

b. Follow the instructions on the page to log on, and find your camera.

Note You will need a Username and Password to log in to the Download Center. To

receive a Username and Password, contact the customer service center for
your region. Contact information is found on the Download Center page.

c. Under Honeywell IP Utility, download, extract and open the Honeywell IP Utility

Set-up.exe icon from where you extracted the file.

4. When the Honeywell IP Utility InstallShield Wizard opens, follow the instructions.
After the installation is complete, a Honeywell IP Utility icon displays on the
desktop.

Finding the equIP Series User Guide

Please look for the user guide on the software DVD that came with your camera.

28

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Step 3: Log Onto the IP Utility and Discover Network Devices

1. Double-click the Honeywell IP Utility icon on your desktop.

-OR­Click Start
IP Utility.
The Honeywell IP Utility Log On window opens.

Figure 3-1 Honeywell IP Utility Log On Window

 Programs  Honeywell Video Systems  IP Utility  Honeywell

Note If the IP Utility you are using is V49 or higher, then you will not get the

credential window when logging in.

2. Select Administrator or Guest from the User Name drop-down list.

3. Enter the case-sensitive password in the Password field.

• The default Administrator password is 1234.

• The default Guest password is guest.

Note During the installation set up, you must log on as an Administrator to access

all the features.

4. Click the arrow button .
The Honeywell IP Utility Interface opens.

Note All examples in this User Guide show the GUI for the HCD5MIH(X) model

camera, unless otherwise specified.

Document 800-07067V5 Rev A 29
07/2013

Installing the Honeywell IP Utility

The About menu displays the
software version installed.

The Status bar displays how many
devices are on the network, which
one you are connected to, and
which user is logged on.

The Discovery pane lists
the IP devices found on the
network and groups by
device type.

On the User tab, Administrators
can change the web client user
passwords.

IP Network Setting assigns
network settings automatically
or manually.

Connect button

Disconnect button

Limited/No connectivity
button

Refresh button

Upgrade Firmware
downloaded from the
Honeywell website.

Use the Product Filter drop-down
menu to select a specific device,
such as all

HCD5 series cameras.

Click Apply to save
manually configured
network settings.

Use Launch Browser
to open the HCD5
series IP web client for
each device.

Use Batch Firmware Upgrade
to select a group of devices and
upgrade the firmware for all.

Enable or disable HTTP

Server. (IP Utility v45 or lower)

Figure 3-2 Honeywell IP Utility User Interface

The Honeywell IP Utility program searches for devices on the network and opens to
the Honeywell IP Utility user interface.

5. Automatically discover or manually refresh the list of devices on the network.
Use the manual refresh if a new device was added after you logged onto the system.

• You do not need to do anything to discover devices. When you log on to the IP

Utility, the devices on the network — including the devices on other subnets —
are automatically discovered and listed in the Discovery pane. After the initial
discovery, the network automatically continues to discover devices that are newly
added to the network.

• To manually refresh the device list, click the Refresh ( ) button, located near

the top of the Discovery pane.

30

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

6. Enable or disable the HTTP Server checkbox for additional security. Only an
Administrator can disable (uncheck the box), resulting in the user being unable to
access the web client, although video recording is unaffected.

Note All examples in this User Guide show the GUI for the HCD5MIH(X) model

camera, unless otherwise specified.

Step 4: Connect to a Device and Configure Network Settings

When you log on to the IP Utility, the devices on the network — including the devices on
other subnets — are automatically discovered and are listed in the Discovery pane. After
the initial discovery, auto-refresh continues to discover devices that are newly added to the
network.

You can also manually refresh the device discovery by clicking the Discovery icon ( ),
located near the top of the Discovery pane.

Connecting to or Disconnecting from Devices

Before configuring the IP network settings, you must connect to an IP device.

Connecting to a Device

You can connect to individual web client applications for each discovered device.

•In the Discovery pane, double-click the device to which you want to connect.

-OR-

• Select the device and click the Connect button.
The network settings for the connected device are displayed in the System pane.

Disconnecting from a Device

In the Discovery pane, select the device and click Disconnect .

Document 800-07067V5 Rev A 31
07/2013

Installing the Honeywell IP Utility

Note If you disconnect the device without saving configuration details, a warning

dialog box displays. Click Yes to save and disconnect, or click Cancel to
discard the changes and disconnect the device.

Configuring the IP Network Settings Automatically or Manually

Note When you see the Limited/No connectivity button, you cannot fully

connect to the device because the discovered device is on a different subnet
from your PC. Check your network settings for both the device and your PC to
resolve this issue. Consult your network administrator for additional support.

The IP network setting details, such as device name, IP address, and subnet mask can be
configured for each connected device either automatically or manually.

Note It is important to click Apply to save any configuration change.

Table 3-3 IP Network Device Setting Options

Option Description

Device Name By default, the device name is the device type plus the MAC Address. Honeywell

recommends, for security, that you change the device name.

IP Address The IP address of the device on the network.The camera obtains an IP address

by static or dynamic (automatic) means. There are two ways: Dynamic
(DHCP/APIPA), which is automatically assigned by the network administrator, or
Static (static), which is assigned by the user.

Subnet Mask The subnet mask, or netmask, value of the device on the network. IP networks

can be divided into several smaller networks by subnetting. When a network is
subnetted, you must specify a subnet mask, which tells network devices which
smaller network they belong to.

Note If the subnet mask is not properly configured, the camera might not be

able to communicate with other devices on the network.

32

Default Gateway The default gateway address that connects the device to the network. Enter the

IP address of the host to use as a gateway between networks. The gateway
allows communication between devices that are on different networks. Without a
correct gateway setting, the camera cannot receive or transmit data from or to
devices that are not in the same network address range.

MAC Address The MAC address is a factory-assigned address that is unique for each device.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Click to clear this checkbox and
manually set the network details

Figure 3-3 Setting the IP Network Settings Automatically or Manually

Note All examples in this User Guide show the GUI for the HCD5MIH(X) model

camera, unless otherwise specified.

Updating IP Network Settings Automatically

1. In the Discovery pane, select the device and click Connect .

2. From the System tab click the Obtain an IP Address automatically check box.

3. Enter a Device Name, for example, FrontLobbyCam01.

4. Click Apply.
The network automatically assigns the IP Address based on the DHCP network server
details. If no DHCP server is present on the network, the hardware defaults to an

APIPA address (169.254.x.x).

Updating IP Network Settings Manually

Caution When manually updating the network settings, it is important to enter

the correct IP network settings before applying them. Incorrect values
might cause a failure when connecting to the device. See Table 3-3

1. In the Discovery pane, select the device, and click Connect .

2. To assign a static IP address to the device, from the System tab click to clear the

3. Enter a Device Name, for example, FrontLobby01.

for definitions of each setting.

Obtain an IP Address automatically check box.

Document 800-07067V5 Rev A 33
07/2013

Installing the Honeywell IP Utility

Note The MAC address is a factory assigned address that is unique for each

4. Enter an IP Address of the device on the network.

Note The address must be in the same address range. For example, if the PC is

5. Enter the device Subnet Mask value. A value is required.

6. Enter a default Gateway Address that connects the device to the static network. A

7. Click Apply.

device.

192.168.1.xx, then the device should be set to a similar address, for example

192.168.1.xy.

value is required.

The network settings are updated and a message displays in the status bar to confirm
the update.

Interfacing with the equIP PSIA Device Via a Network Video Recorder

This camera supports the PSIA specification for interoperability between network video
products. There is no support for legacy equIP and equIP2 protocols.

For further information, refer to the documentation supplied with your NVR or contact your
NVR network administrator.

Step 5: Launch the Web Client to View Live Video

Note It is important to click Apply in order to save any configuration change.

1. Log onto the web client. There are two ways to launch the web client and log on— via
the Honeywell IP Utility Program or directly from Internet Explorer.

Honeywell IP Utility

a. Log onto the Honeywell IP Utility program.
b. From the Discovery pane, click to select the device to launch its browser.

34

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

c. To enable or disable the HTTP server, select or clear the Enable HTTP Server

check box. By default, the HTTP server is enabled. (IP Utility v45 or lower)

d. From the System tab, click Launch Browser.

The web client application for the selected device opens in Internet Explorer.

Internet Explorer

From Internet Explorer (v6.0+), enter the URL (IP address of the device) in the
Address bar to open the logon window.

2. Select a User Name and enter a Password.
a. From the User Name drop-down list, select admin or guest.
b. In the Password field, enter the case-sensitive password.

• The default Administrator password is 1234.

• The default Guest password is guest.

c. Click .

Note A signed version of ActiveX® control is installed when you use the web client

to discover connected devices for the first time. If you have a previous version
of the IP ActiveX installed, you are prompted to upgrade to a later version
Honeywell PSIA IP ActiveX control.

Figure 3-4 ActiveX Prompt

Click Yes.

3. Follow the InstallShield Wizard prompts to install the secure Honeywell PSIA IP
ActiveX on your PC.

4. The InstallShield Wizard Completed message indicates a successful ActiveX
upgrade. Click Finish.

The web client interface opens and live streaming video displays on the monitor.

Document 800-07067V5 Rev A 35
07/2013

Installing the Honeywell IP Utility

Note See Logging Onto the Web Client from Internet Explorer on page 54 for

Figure 3-5 Web Client Interface After Logging On

information on viewing live video directly through Microsoft IE.

Uninstalling the IP Utility and/or the Bonjour Software

You can uninstall the IP Utility and/or the Bonjour software using:

•The Start menu to uninstall IP Utility and Bonjour

OR

•The Control Panel to uninstall IP Utility and/or Bonjour.

Uninstalling the IP Utility Using the Start Menu

1. Click Start  All Programs  Honeywell Video Systems  IP Utility  Uninstall
Honeywell IP Utility.

2. Click Yes.

36

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

The Honeywell IP Utility is uninstalled.

3. During the uninstallation process, you are prompted to also uninstall the Bonjour
program. Click Yes to remove Bonjour or No to only uninstall the Honeywell IP Utility.

4. Click Finish.

Uninstalling the IP Utility and/or the Bonjour Software Using the

Control Panel

1. Click Start  Settings  Control Panel.

2. Open Add or Remove Programs and select Honeywell IP Utility from the Currently
installed programs list.

3. Click Change/Remove.
The IP Utility Installation Wizard screen opens.

4. Click Next

The Honeywell IP Utility is uninstalled.

5. During the uninstallation process, you are prompted to also uninstall the Bonjour
program. Click Yes to remove Bonjour or No to only uninstall the Honeywell IP Utility.

6. Click Finish.

 Remove.

Document 800-07067V5 Rev A 37
07/2013

Installing the Honeywell IP Utility

38

4

IP Camera Web Client

Before you launch the Honeywell IP web client, ensure that you complete the following
sections before configuring your HCD5 series camera:

• Chapter 2, Installation and Setup

• Chapter 3, Installing the Honeywell IP Utility

This chapter covers:

• Navigating the web client interface

• Understanding the web client features and functions

• Configuring compression settings

• Configuring camera settings

• Setting tamper detection

• Configuring audio, alarm, and motion detection settings

Overview

The network camera web client is a web-based application that enables you to view video,
listen to audio, and configure camera, tamper detection, motion detection, alarm, and
audio settings for the network camera.

Certain features of the IP Camera web client are user-based and are available only to the
Administrator. Guest users are limited to the Live View tab.

Document 800-07067V5 Rev A 39
07/2013

IP Camera Web Client

About the Web Client

The web client is the web-based application that enables users to:

• View live-streaming video

• View the device network settings and firmware details

• Configure camera settings

• Configure video analytics settings

• Configure compression settings

• Configure alarm and audio settings

• Configure camera date and time settings (including time synchronization)

User Profiles: Web Client

The web client has two user types: Administrator and Guest as described in Table 4-1.

Table 4-1 User Profiles and Permissions for the Web Client

Administrator/Admin Guest

• View video and network settings.

• Configure compression settings.

• Configure camera setup (such as
auto exposure, white balance, and
day/night settings).

• Configure video analytics (camera
tamper and video motion detection).

• Configure audio and alarms.

• Guest users are limited to the Live
View tab where they can view
video

40

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Confirming Your System Requirements

Ensure that your workstation meets the following minimum requirements for installing
ActiveX.

Table 4-2 PC Minimum Requirements for ActiveX

Component Minimum Requirement

Web Browser • Microsoft IE6, IE7, IE8, or IE9 (32-bit)

Operating System • Windows XP Professional SP3

• Windows 7 32-bit and 64-bit
(Enterprise/Ultimate/Professional)

• Windows Server 2003 32-bit (Enterprise/Standard)

• Windows Vista SP1

• Windows Server 2008 R2 64-bit (Enterprise/Standard)

®

Processor • Intel

Pentium® IV, 3.1 GHz or faster

RAM • 1 GB RAM (32-bit) or 2 GB RAM (64-bit)

Graphics Card • Display driver with Direct3D enabled (for Camera IE

web client only)

Configuring Your OS and Browser for ActiveX Installation on

Microsoft IE

Configuring Windows 7 (32-bit and 64-bit) and IE Security Settings

Note Make sure your user account is an Administrator account.

Document 800-07067V5 Rev A 41
07/2013

IP Camera Web Client

Checking the Firewall Settings

Note If the firewall is turned off on your PC, then please skip this section and continue

with Checking the UAC Settings on page 44.

If the firewall is turned on on your PC, then you can either turn it completely off, or configure
it as follows:

1. Open Windows Firewall Settings in IE. Click Start
Security

The Windows Firewall Settings page opens.

Figure 4-1 Windows Firewall Settings for IE

 Windows Firewall Settings.

 Control Panel  System and

42

2. Click Allow a program or feature through Windows Firewall.
The Allowed Programs list appears.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Figure 4-2 Allowed Programs List in IE

3. If Internet Explorer is already in the Allowed list, then please confirm that the settings
are configured as in Figure 4-2.

4. If Internet Explorer is not already in the Allowed list, then please add IE to the list, as
shown in Figure 4-3.

Document 800-07067V5 Rev A 43
07/2013

IP Camera Web Client

Figure 4-3 Adding IE to the Allowed Programs List

Note After adding IE to the Allowed Programs list, please configure the settings as

shown in Figure 4-2.

Checking the UAC Settings

1. Click Start  Control Panel to open the Control Panel.

2. Enter UAC in the Search Control Panel.

Figure 4-4 Searching for UAC in the Control Panel

3. Click Change User Account Control settings.

The User Account Control Settings page appears.

44

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Figure 4-5 User Account Control Settings Page

If the UAC level is not configured to the lowest level (see Figure 4-6), then please run
IE as administrator, as shown in Figure 4-7 on page 46

Figure 4-6 Preferred UAC Settings

Document 800-07067V5 Rev A 45
07/2013

IP Camera Web Client

Figure 4-7 Run IE as Administrator

Adding to Trusted Sites in IE

1. Open the camera login page.

Figure 4-8 Camera Login Page

46

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

2. Click Tools  Internet Options  Security  Trusted Sites.

Figure 4-9 Trusted Sites Configuration Page in IE

3. Click Sites. The Trusted Sites window opens.

Figure 4-10 Trusted Sites List

Document 800-07067V5 Rev A 47
07/2013

IP Camera Web Client

4. Click to uncheck Require server verification (https:) for all sites in the zone.

• To add one camera to the Trusted Sites list, enter the URL in the Add this

website to the zone: field. See Figure 4-10.

• To add a whole subnet to the Trusted Sites list, enter the partial URL with a * at

the end in the Add this website to the zone: field. Use a * to add the whole
network.

Figure 4-11 Adding a Whole Subnet to the List of Trusted Sites

5. Click Add to add the website in the Add this website to the zone field to the list of
trusted websites.

6. Click Close to close this window.

Configuring Windows XP Service Pack 3 and IE Security Settings

Note Make sure your user account is an Administrator account.

Checking the Firewall

If the firewall is on, please configure it to allow IE through the firewall.

48

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Figure 4-12 Allowing IE through the Firewall

Click OK to save the changes.

Adding to Trusted Sites in IE

1. Open the camera login page.

Document 800-07067V5 Rev A 49
07/2013

IP Camera Web Client

Figure 4-13 Camera Login Page

50

2. Click Tools

 Internet Options  Security  Trusted Sites.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Figure 4-14 Trusted Sites Configuration Page in IE

3. Click Sites. The Trusted Sites window opens.

Figure 4-15 Trusted Sites List

Document 800-07067V5 Rev A 51
07/2013

IP Camera Web Client

4. Click to uncheck Require server verification (https:) for all sites in the zone.

• To add one camera to the Trusted Sites list, enter the URL in the Add this

website to the zone: field. See Figure 4-10.

• To add a whole subnet to the Trusted Sites list, enter the partial URL with a * at

the end in the Add this website to the zone: field. Use a * to add the whole
network.

Figure 4-16 Adding a Whole Subnet to the List of Trusted Sites

5. Click Add to add the website in the Add this website to the zone field to the list of
trusted websites.

6. Click Close to close this window.

Logging On and Off the IP Web Client

There are two ways to open each IP web client.

•By clicking Launch Browser from the IP Utility interface.

• Directly from Internet Explorer by entering the URL (the IP address) in the address
bar.

Launching the Web Client from IP Utility

1. From the desktop, double-click the Honeywell IP Utility icon .

-OR­Click Start
IP Utility.
The Honeywell IP Utility Log On window opens.

 Programs  Honeywell Video Systems  IP Utility  Honeywell

52

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Connect to the device then click

Launch Browser

Enable HTTP
Server must be

enabled. If it isn’t,
the Launch
Browser button
might not be
available.

2. From the User Name drop-down list, select Administrator or Guest.
See Table 4-1 on page 40 for User roles and privileges.

3. In the Password field, enter the case-sensitive password.

• The default Administrator password is 1234.

Only one Administrator can be logged in at a time.

• The default Guest password is guest.

4. Click .
The Honeywell IP Utility program searches for devices on the network and opens to
the Honeywell IP Utility user interface.

5. In the Discovery pane, double-click the device you want to connect to.

-OR­Select the device and click Connect .
The network settings for the connected device are displayed in the System pane.

6. Click Launch Browser (see Figure 4-17) to go to the web client logon page.

Figure 4-17 Launching the Web Client from the IP Utility

Note All examples in this User Guide show the GUI for the HCD5MIH(X) model

camera, unless otherwise specified. (IP Utility V1.0.1.45 or lower)

Document 800-07067V5 Rev A 53
07/2013

IP Camera Web Client

Note If the Launch Browser button is inactive, then you must enable Enable HTTP

Server. Click to enable the HTTP Server, and then click Apply. The Launch

Browser button should then be enabled.

Logging Onto the Web Client from Internet Explorer

1. From Internet Explorer (v6.0+), enter the URL (IP address of the device) in the
Address bar to open the logon window.
The web client log on page opens.

54

2. Select a User Name and enter a Password.
a. From the User Name drop-down list, select admin or guest.
b. In the Password field, enter the case-sensitive password.

• The default Administrator password is 1234.

• The default Guest password is guest.

c. Click .

The web client interface opens and live streaming video displays on the monitor.

Note A signed version of ActiveX® control is installed when you log in to a Honeywell

PSIA camera from IE for the first time. I If you have a previous version of the IP
ActiveX installed, you are prompted to upgrade to a later version of the Honeywell
PSIA IP ActiveX control.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Figure 4-18 ActiveX Prompt

3. Click Next.

4. Follow the InstallShield Wizard prompts to install the Honeywell PSIA IP ActiveX on
your PC.

The InstallShield Wizard Completed message indicates a successful ActiveX
upgrade.

5. Click Finish.
The web client interface opens and live streaming video displays on the monitor.

Uninstalling the Honeywell PSIA IP ActiveX: Microsoft IE

You will use the Control Panel to uninstall the ActiveX software.

1. Click Start  Settings  Control Panel.

2. Open Add or Remove Programs and select Honeywell PSIA IP ActiveX from the
Currently installed programs list.

3. Click Change/Remove.
The Honeywell PSIA IP ActiveX Installation Wizard screen opens.

4. Click Next
The Honeywell PSIA IP ActiveX is uninstalled.

5. Click Finish.

 Remove.

Logging Out of the Web Client

To log out from the web client application, click Logout at the top of the web client window.

Document 800-07067V5 Rev A 55
07/2013

IP Camera Web Client

The URL corresponds to the IP Address as
configured in the IP Utility.

Click Logout to exit the program.
Confirm the user type logged in.

Each tab has a section for configuration
and/or navigation controls.

Click the tabs
to access the
available
configurations
and settings.

If logged on as a Guest, only the Live
View tab is available. Administrators
can access all tabs.

The image from your
HCD5 series camera
displays on every tab.

SnapShot

Navigating the Web Client User Interface

Figure 4-19 Web Client Window Layout: Administrator Log On

56

The web client application user interface consists of multiple user-friendly tabs organized
by function. Access to the tabs is user-controlled.

Table 4-3 Tabs in the Web Client Application

Tab Enables you to...

Live View View video and take SnapShots.

Device Settings View the network settings and firmware details of the camera.

Restore to factory defaults and reboot a camera.

Compression
Settings

Select the compression mode.

Set the maximum bit rate and/or target bit rate that the camera will
provide across the network based on priority mode settings. This
value is the threshold that you do not want the bit rate to exceed.

View received bit rate and frame rate statistics of the current image
in real time.

Camera Setup Configure auto exposure and white balance for the camera.

Video Analytics Configure the camera tamper detection settings and view video

display.

IO and Audio Configure the alarm and audio settings.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

The menu bar displays
which user is logged on
and provides a link to log
out of the application.

Screens are divided
between displaying
current video and the
configuration options
associated with the view.

Click a Tab to
display the
corresponding tab.

Click to select the
video stream.

SnapShot

When an alarm is
detected, an alarm
message appears here
to notify the operator.

Logging on as a Guest limits users
to Live View tab functions only.
See Live View for more details.

When an alarm is detected,
an alarm message appears
here to notify the operator.

SnapShot

Figure 4-20 Web Client: Administrator User

Figure 4-21 Web Client: Guest User

Document 800-07067V5 Rev A 57
07/2013

IP Camera Web Client

Live View

Live View shows live video from the selected camera (see Figure 4-21).

Taking a SnapShot

The SnapShot function allows you to save an image from Live View to a default folder
on your computer (C:\Program Files\Honeywell Video Systems\Support\Snapshots). Files
are saved as: DeviceName_Date_Time.bmp. You are not asked for confirmation.

SnapShot is available to Administrators and Users with administrator and guest privileges.

Device Settings

The Device Settings tab allows you to

• View the network settings and firmware details of the camera

• Configure local video out

• Restore to or to reboot a device.

58

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Configuring IP and Firmware Settings

Depending on the hardware installation, there is a tab called either Device Information or
Device Settings. In both cases, the IP and Firmware Settings panel mirrors the information

available in the Honeywell IP Utility. It provides read-only network settings, firmware
settings, and video formats without having to access the IP Utility.

The Device Settings are the same for the Primary and Secondary streams.

Figure 4-22 Device Settings

Document 800-07067V5 Rev A 59
07/2013

IP Camera Web Client

Device Name as entered in the IP
Utility program

IP Address on the network

(DHCP/Static/APIPA)

Firmware Settings including
product name and version

Video Output - Enable or disable local video
out to a spot monitor. HCD5HIH(X) only.

Note Enabling Local Video Out will

disable to the secondary video
stream. HCD5HIH(X) only.

Subnet Mask and Default Gateway
address that connects the camera to
the network

MAC Address is a factory assigned
address unique for each device

Video Format - NTSC or PAL

Select a location for saving Snapshots

Figure 4-23 IP and Firmware Settings: Device Information Tab

Resetting the Device

60

You can choose from Restart, Restore, and Reset to Defaults. See Figure 4-23. Each of
these functions take approximately 2 minutes to complete, and during that time, the camera
will lose connection to the web client. You will be asked if you wish to proceed before the
action occurs.

Restart Restarts the camera while maintaining the existing configurations.

Restore Resets the camera to the factory defaults, except the network settings.

Reset to
Defaults

Resets the camera to the factory defaults, including the network
settings.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Compression Settings

The video signal sent from the camera to the web client has a number of settings that can
be edited which affect how the video displays in the web client. The Compression Settings
tab enables you to configure these settings:

•Stream Type

• Enable/Disable the Secondary Stream

•Resolution

•Frame Rate

•Priority (Quality, Bit Rate, or Frame Rate) (Frame Rate available for primary stream
only)

• Compression Ratio (if Quality is chosen as the priority)

• Target Bit Rate (if Bit Rate or Frame Rate is chosen as the priority)

• Maximum Bit Rate that the camera will provide across the network (if Quality is
chosen as the priority)

• GOP (number of frames) / Key Frames

Figure 4-24 Compressions Settings Tab: Primary Stream

Your HCD5 series camera supports simultaneous video streams. The Primary stream
delivers H.264-compressed video up to 30 fps at 1080p, 720p or other resolutions,
dependent on different models. The Secondary stream delivers MJPEG-compressed video
up to 30 fps at 640 x 360 resolution or H.264-compressed video up to 30 fps at 1080p, 720p
or other resolutions, dependent on different models.

Document 800-07067V5 Rev A 61
07/2013

IP Camera Web Client

Set the Resolution

Set the Frame Rate

Set the

Priority

to Quality, or Bit or Frame Rate

Set the Compression Ratio

Set the Target Bit Rate

Set the Maximum Bit Rate (kbps)

Set the GOP (Group of Pictures)

Default settings shown for NTSC models

Note If you select 1920 x 1080p resolution for the primary stream for your

HCD5HIH(X) camera, you can select all the resolutions except 720p for your
secondary stream. If you select 1280 x 720p resolution for the primary stream
for your HCD5HIH(X) camera, you can select all the resolutions except 1080p
for your secondary stream. See Configuring the Compression Settings on
page 63.

Primary Stream Video Codec Settings

Figure 4-25 Primary Stream Video Codec Settings

Secondary Stream Video Codec Settings

Click on the Secondary Stream tab. A warning message appears: The secondary
stream is disabled. To enable, select compression settings tab and
configure secondary stream.(HCD5HIH(X) only)

You will have access to the Secondary Stream Video Codec Settings.

62

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Set the Frame Rate

Set the

Priority

to Quality or Bit Rate

Set the Compression Ratio

Set the Target Bit Rate

Set the Maximum Bit Rate (kbps)

Enable/Disable the secondary stream
Set the Resolution

Default settings shown for NTSC models

Figure 4-26 Secondary Stream Video Codec Settings

Note Enabling the secondary (MJPEG) stream disables the local video out (aim

and focus). (HCD5HIH(X) only)

Configuring the Compression Settings

1. On the Compression Settings tab, in the Statistics area, select the Received check
box to receive in real time the bit rate and frame rates for the current image.
Deselecting the check box disables the refresh rate.

Note The Received check box is disabled by default. When you log out, this check

box reverts to the disabled state.

2. Use Table 4-4 to set up the streaming resolution and Table 4-8 for the other
compression settings.

Table 4-4 Video Streaming Resolutions - 1080p Resolution Primary Stream

Primary Stream Resolutions Secondary Stream Resolutions

1920 x 1080 H.264

1920 x 1080
1280 x 720 (not supported)
800 x 450
640 x 360
320 x 180

MJPEG

640 x 360
320 x 180

Document 800-07067V5 Rev A 63
07/2013

IP Camera Web Client

Table 4-5 Video Streaming Resolutions - 720p Resolution Primary Stream

Primary Stream Resolutions Secondary Stream Resolutions

1280 x 720 H.264

1920 x 1080 (not supported)
1280 x 720
800 x 450
640 x 360
320 x 180

Table 4-6 Video Streaming Resolutions - 1080p Resolution Secondary Stream

Primary Stream Resolutions Secondary Stream Resolutions

1920 x 1080
1280 x 720 (not supported)
800 x 450
640 x 360
320 x 180

Table 4-7 Video Streaming Resolutions - 720p Resolution Secondary Stream

Primary Stream Resolutions Secondary Stream Resolutions

1920 x 1080 (not supported)
1280 x 720
800 x 450
640 x 360
320 x 180

H.264

1920 x 1080

H.264

1280 x 720

MJPEG

640 x 360
320 x 180

MJPEG

640 x 360
320 x 180

MJPEG

640 x 360
320 x 180

Table 4-8 Compression Settings

Setting Options Description

Frame Rate 1–30 (NTSC)

1–25 (PAL)

Priority Quality, Bit Rate,

Frame Rate

Compression
Ratio

Target Bit
Rate (kbps)

GOP (No. of
Frames)

Minimum, Low,
Medium, High,
Maximum

250 – 6000 kbps Enter the Target Bit Rate in kbps (kilobits per second) which represents the

1– 50 Select the GOP (Group of pictures) number from 1 to 50. (Not available on the

The frame rate that is displayed per second. For NTSC, select from 1 fps (lowest)
to 30 fps (highest). For PAL, select from 1 fps (lowest) to 25 fps (highest).

Allows you to set the maximum bit rate and/or target rate value, based on priority
mode settings. This value is the threshold that you do not want the bit rate to
exceed. The Secondary Stream is configurable for Quality and Bit Rate only. For
more information on these settings, please see Configuring Priority Settings:

Quality, Bit Rate, and Frame Rate on page 65.

When Quality is selected as the Priority, select the Compression Ratio.
Minimum is the highest visual quality; Maximum is the lowest visual quality.

amount of data processed per second.

Secondary Stream.)

64

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Quality is selected.

Compression Ratio

Default setting is Medium. Selecting Minimum or Low will
increase overall picture quality and increased delivered bit rate.

Default setting is Medium. Selecting Minimum or Low will
increase overall picture quality and increased delivered bit rate.

Maximum Bit Rate

If the maximum bit rate exceeds the current threshold, the
frame rate will drop.

Configuring Priority Settings: Quality, Bit Rate, and Frame Rate

Honeywell's H.264 cameras use efficient compression technology to provide high picture
quality at minimal bandwidth.

The default settings are based on typical user requirements and settings and are adequate
for most scenes. However, scenes with higher than average motion may require additional
configuration.

Table 4-9 Selecting Quality, Bit Rate, or Frame Rate

Select this Priority

Field Setting Description

.

field setting

Quality

(see Selecting

Quality for Priority

on page 65)

Maximum Bit Rate

The Target Bit Rate field
is grayed out.

The camera maintains the picture quality
until the bit rate delivered exceeds the
Maximum Bit Rate (MBR), at which point
the camera drops frames to ensure that
the MBR is not exceeded.

Bit Rate

(see Selecting Bit

Rate for Priority on
page 65)

Frame Rate

(see Selecting

Frame Rate for
Priority on page 66)

Target Bit Rate

Maximum Bit Rate and
Compression Ratio fields
are grayed out.

Target Bit Rate

Maximum Bit Rate and
Compression Ratio fields
are grayed out.

The camera adjusts the picture quality to
ensure that the bit rate delivered does not
exceed the Target Bit Rate (TBR), at
which point the camera drops frames to
ensure that the TBR is not exceeded.

The camera maintains the selected frame
rate while adjusting image quality to meet
the TBR. This mode allows the actual bit
rate to fluctuate beyond the user-defined
TBR while maintaining the selected frame
rate.

Selecting Quality for Priority

When Quality is selected as the priority, you can adjust the Compression Ratio and/or the
Maximum Bit Rate.

Figure 4-27 Quality Settings

Selecting Bit Rate for Priority

When Bit Rate is selected as the priority, you can adjust the Target Bit Rate.

Document 800-07067V5 Rev A 65
07/2013

IP Camera Web Client

Bit Rate is selected.

Target Bit Rate

Increasing or decreasing the target bit rate threshold will
increase or decrease the picture quality accordingly. If the
target bit rate is exceeded, the frame rate will drop.

Frame Rate is selected.

Target Bit Rate

Increasing or decreasing the target bit rate threshold will
increase or decrease the picture quality accordingly. This
priority allows the actual bit rate to fluctuate beyond the Target
Bit Rate.

Figure 4-28 Bit Rate Settings

Selecting Frame Rate for Priority

When Frame Rate is selected as the priority, you can adjust the Target Bit Rate.

Figure 4-29 Frame Rate Settings

3. Click Apply. Adjustments in your compression settings are captured in the statistics.
As you make adjustments, the Statistics field acts as a visual reminder of how your
settings affect the bit rate, frame rate, and bandwidth usage. See Statistics: Received

Bit Rate and Frame Rate on page 66.

4. When you are satisfied with your settings — that is, that the image quality and
bandwidth usage meets your requirements — click Apply to save your settings.
Settings are not saved unless you click Apply.

Statistics: Received Bit Rate and Frame Rate

To view in real time the received bit rate and frame rate statistics of the current image:

1. Click the Compression Settings tab.

2. In the Statistics area, select the Received check box.

Deselecting the check box disables the refresh rate.

Note The Received check box is disabled by default. When you log out, this check

box reverts to the disabled state.

66

Camera Setup

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

The Camera Setup tab provides access to the settings used to configure the camera
configurations for both Primary and Secondary streams. The following section explains
Auto Exposure and White Balance setup.

Note You must click Apply after you make changes to any settings to save those

changes. Settings are not saved unless you click Apply.

Figure 4-30 Camera Setup

Basic Camera Setup Procedure

1. Aim and focus the camera using the test video output.

2. Create a typical scene. Add the motion, scene complexity, and lighting levels (day or
night) expected in normal operation.

3. Using the camera web client application, open the Camera Setup tab, and adjust the
image parameters—brightness, color, AGC (gain) —to achieve the desired exposure
and white balance.

4. Open the Compression Settings tab, and enable Statistics.

5. Select the resolution, frame rate, and priority mode (Quality, Bit Rate, or Frame Rate).
a. Is the delivered picture quality, bit rate, and frame rate acceptable with the

appropriate motion, scene complexity, and day/night transitions?

Yes - Then camera setup is complete.
No - Then additional configuration is required.

Document 800-07067V5 Rev A 67
07/2013

IP Camera Web Client

Auto Exposure

b. If the delivered bit rate is close to the maximum bit rate, then can you

increase the maximum bit rate value?
Yes - Then increase the maximum bit rate and return to 5a.
No - Then set the compression ratio to High or Maximum, then return to 5a.

c. Can you increase the target bit rate value?

Yes - Then increase the target bit rate, and return to 5a.
No - Then reduce the resolution and/or frame rate.

The Auto Exposure settings allow the user to access and configure exposure-related
settings as described in Table 4-10.

Note You must click Apply after you make changes to any settings to save those

changes. Settings are not saved unless you click Apply.

Table 4-10 Auto Exposure Settings

Setting Options Description

ELC (Electronic Light
Compensation)

ALC (Automatic Light
Compensation)
(HCD5MIH(X) and
HCD5HIH(X) only)

AGC (Automatic Gain
Control)

DNR (Digital Noise
Reduction)

Level 1 –25 For ELC, the lens iris is fully open at all times and brightness is achieved

by controlling the electronic shutter. Select an ELC level to attain the
desired scene brightness. ELC is recommended for outdoor scenes.

DC Iris Level: 1–25 For ALC, the shutter speed is constant and brightness is controlled

through the lens iris by opening or closing it.

Adjust the ALC level to the appropriate value so that the image is
correctly exposed (neither too bright nor too dark). This is
recommended for indoor scenes, especially under fluorescent light.

Off, 20 dB–40 dB Adjust the maximum value of AGC gain. AGC can be Off, or set to

20 dB, 30 dB, or 40 dB.

Note As AGC levels are reduced, the threshold ranges for DayToNight

and NightToDay are decreased.

Off, Auto, Fixed Improves picture performance in low light by reducing video noise.

DNR will remove video noise, but will also soften the image.

Off - DNR is turned off.
Auto - DNR is automatically controlled by the firmware according to

changes in the lighting condition.
Fixed - DNR is manually set to the highest value regardless of changes

in the lighting condition. You will get the least video noise (dots), but the
softest image.

DNR is deactivated if AGC is turned Off.

68

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Table 4-10 Auto Exposure Settings (cont’d)

Setting Options Description

Flickerless
(HCD5MIH(X) and
HCD5HIH(X) only)

DSS
(Digital Slow Shutter)

Day/Night Auto, Day, Night,

Night Mode B/W or Color Sets the color mode as B/W (monochrome) or Color in Night Mode.

Detect Time 5 – 60 seconds Sets the time (5– 60 seconds) before the camera switches to Day or

WDR (Wide Dynamic
Range) (HCD5WIH(X)
only)

Off, On Eliminates the “flicker” that can appear in an image under certain

lighting conditions (for example, fluorescent lighting). This setting is not
available if you have selected ELC.

Off, Low, High Automatically provides a clear image under low-light conditions. DSS

improves the scene brightness. Motion blur might be introduced; this is
scene dependent.

Controls True Day/Night (TDN) operation. When Auto is selected, the

Alarm Input

Off, Low, Medium,
High

IR-cut filter will be removed automatically in low-light scenes. When Day
is selected, the IR-cut filter is on at all times. When Night is selected, the
IR-cut filter is off (removed) at all times.

When Alarm Input is selected, the IR-cut filter will be interlocked with
Alarm Input. It will be automatically enabled if D/N control is selected for
Night Mode on Alarm in the I/O & Audio tab. See Alarm Interlock

Day/Night Switching on page 81.

Day/Night must be set to Night.

Night mode after detecting a low-light condition or a normal light
condition, respectively.

Day/Night must be set to Auto.

Wide dynamic range provides clear, balanced images in high-contrast
lighting conditions. Set the WDR to Off, Low, Medium, or High.

LDC (Lens Distortion
Correction)
(HCD5WIH(X) only)

DayToNight 1 –7 Determines the low light detection level (1–7) when the camera

NightToDay 3 –9 Determines the low light detection level (3–9) when the camera

Off, On When On, LDC reduces picture distortion. The performance of Frame

Rate mode might be impacted by LDC.

switches to Night mode. The lower the value, the darker the lighting
conditions before the camera switches.

Day/Night must be set to Auto.

Note The DayToNight threshold level must be set at least 2 less than

the NightToDay threshold setting.

Note The DayToNight threshold range is decreased if the AGC level is

reduced.

switches to Day mode. The higher the value, the brighter the lighting
conditions before the camera switches.

Day/Night must be set to Auto.

Note The

NightToDay threshold range is decreased if the AGC level is

reduced.

Document 800-07067V5 Rev A 69
07/2013

IP Camera Web Client

White Balance

White Balance ensures that color integrity is maintained in the camera image by
compensating for the temperature color “casts” that different light sources can cause. Use

Table 4-11 to set up White Balance options.

Note You must click Apply after you make changes to any settings to save those

changes. Settings are not saved unless you click Apply.

Table 4-11 White Balance Settings

Option Description

Video Analytics

Your camera can be configured to detect camera tampering and motion within a scene via
the Video Analytics tab (see Figure 4-31). The Video Analytics tab enables a user to set the
tamper detection threshold settings for blur, blinding and scene changes.

Auto (Auto White
Balance Control Mode)

Manual Manual white balance mode. Set the Red and Blue gains

WBC Push (Auto White
Balance Control Mode)

An automatic white balance mode that can be used in
scenes which do not have constant lighting.

from 0–255.

Automatically adjust the white balance to your specific
environment. When selected, the white balance is locked.
The user can optimize WB for the given scene by pressing
and holding an adjustment button.

Note This setting is recommended for situations in which

the light conditions are constant, so that the
specified color temperature does not change.

70

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Each Tamper Detection
Setting provides 3
threshold levels: High
(80%), Medium (50%)
and Low (30%).

Set the Blur Threshold. Blur
can be affected by elements
such as water, for example

Set the Blinding Threshold.
Blinding applies to obstacles in
front of the camera lens

Set the Scene Change

Threshold

Figure 4-31 Video Analytics Tab

Tamper Detection

Each setting has three threshold levels: high (80%), medium (50%) and low (30%). When
these thresholds are exceeded, camera tampering or motion is detected, and alarm
messages appear above the video display and alarm signals are sent to DVRs/NVRs (see

Figure 4-33).

Figure 4-32 Tamper Detection Settings on the Video Analytics Tab

There are three types of tamper detection in the Tamper Detection Setting tab on the Video
Analytics tab: blinding the camera, blurring the video display, and tampering with the
camera field of view. The user should note that when the following conditions are
applicable, the tamper detection features should be manually disabled to avoid raising false
alarms:

• During the configuration of the video display

• While text is overlaid on the video

• If the video display becomes too dark

Document 800-07067V5 Rev A 71
07/2013

IP Camera Web Client

Figure 4-33 Video Analytics Alarm Message

Configuring Video Blur Detection

The video appears blurred when the camera is exposed to elements such as water. When
this occurs, video blurring in the field of view is detected and an alarm message appears
(see Figure 4-33) above the video display. To detect video blurring:

1. Click the Video Analytics tab.

2. In the Blur Threshold list, select one of the following options:

Table 4-12 Blur Threshold Values

Value To detect …

High (80%) Maximum video blurring. The alarm message appears when

the video display is blurred by 80% or more.

Medium (50%) Medium video blurring. The alarm message appears when

the video display is blurred by 50% or more.

Low (30%) Minimum video blurring. The alarm message appears when

the video display is blurred by 30% or more.

3. Click Apply.

Note To turn off video blur detection, select Disable in the Blur Threshold list.

Disable is the default value.

Note You must click Apply after you make changes to any settings to save those

changes. Settings are not saved unless you click Apply.

Configuring Camera Blinding Detection

72

An obstacle in front of the camera lens can blind the camera. When this occurs, camera
blinding is detected and an alarm message appears above the video display (see

Figure 4-33). To detect camera blinding:

1. Click the Video Analytics tab.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

2. In the Blinding Threshold list, select one of the following options:

Table 4-13 Blinding Threshold Values

Value To detect …

High (80%) Maximum blinding. The alarm message appears when your

camera is blinded by 80% or more.

Medium (50%) Medium blinding. The alarm message appears when your

camera is blinded by 50% or more.

Low (30%) Minimum blinding. The alarm message appears when your

camera is blinded by 30% or more.

3. Click Apply.

Note To turn off camera blind detection, select Disable in the Blinding Threshold

list. Disable is the default value.

Note You must click Apply after you make changes to any settings to save those

changes. Settings are not saved unless you click Apply.

Configuring Camera Field of View Change Detection

The web client application can detect tampering of the camera field of view and show an
alarm message above the video display (see Figure 4-33).

Note Before changing the current Scene Change settings, you must click Reset

Scene.

Note Camera Field of View change detection works best detecting objects with sharp

edges and/or corners. Environments that are flat and/or monochrome might
trigger false alarms.

To detect a change in the camera field of view:

1. Click the Video Analytics tab.

Document 800-07067V5 Rev A 73
07/2013

IP Camera Web Client

2. In the Scene Change Threshold list, select one of the following options:

Table 4-14 Scene Change Threshold Values

Value To detect …

High (80%) Maximum change in the camera field of view. The alarm

message appears when there is at least an 80% change in
your camera field of view.

Medium (50%) Medium change in the camera field of view. The alarm

message appears when there is at least a 50% change in
your camera field of view.

Low (30%) Minimum change in the camera field of view. The alarm

message appears when there is at least a 30% change in
your camera field of view.

3. Click Apply.

Note To turn off camera field of view change detection, select Disable in the Scene

Change Threshold list. Disable is the default value.

Note You must click Apply after you make changes to any settings to save those

changes. Settings are not saved unless you click Apply.

Configuring Video Motion Detection

For motion detection, an Administrator can enable and configure up to 5 zones within a
scene. The enabled and configured zones will be monitored for motion.

1. Click the Video Analytics tab in the web client user interface.

2. Click the Region drop-down menu in the Video Motion Detection pane, then select a
region from the five available.

3. Click the VMD drop-down arrow, and select Enable.

The Regions appear in their default positions.

4. Click and drag the box to resize and place it over the camera image.

This box is the region of interest.

5. Select the sensitivity level: 30% (most sensitive), 50% (medium sensitivity), or 80%
(least sensitive).

We recommend that you use the medium sensitivity at 50% as the initial setting. It can
be further adjusted as explained in Fine Tuning Video Motion Detection on page 75.

6. Click Apply.

74

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Note To ensure that the VMD settings have been applied, click onto another tab, and

then back onto the Video Settings tab. Check the VMD settings for the changes
you made.

Note To disable a zone, click the VMD drop-down menu, then select Disable.

Fine Tuning Video Motion Detection

For best results, the VMD configuration has to be adjusted to match the camera field of
view, regions of interest and other factors.

1. Identify areas in the image where motion detection alarms should be triggered.

In some applications, motion anywhere in the image needs to be reported. In other
applications, users only want to monitor specific areas such as doors, parking lot
entrances, or other areas of interest.

2. Select one of the five available regions for each area of interest, and draw the
region-of-interest box for that region to fully cover the area of interest.

Note The camera only measures motion inside the drawn region-of-interest box. So a

person or vehicle moving along the boundary of the box may or may not trigger
an alarm, because their motion will only be evaluated partially. It is therefore
important to adjust the region-of-interest boxes to fully cover the areas of interest.

In cameras with a wide field of view, or when activity happens far away from the
camera, people and vehicles might appear rather small in the image. In such cases, it
might not be possible to apply a single area of interest to the whole field of view and
reliably detect motion. In such cases, it is recommended to cover the camera view
with multiple, smaller region-of-interest boxes, and to concentrate on areas where
motion alarms are of most interest to the user, such as entrances, restricted access
areas, etc.

3. Use the medium sensitivity at 50% as the initial setting. It can be further adjusted as
explained below.

Note Observe VMD performance in all expected lighting conditions after the initial

configuration is applied. Ensure that relevant scene motion triggers alarms and
ensure that the camera is not reporting false alarms (such as VMD alarms
triggered due to image noise).

Document 800-07067V5 Rev A 75
07/2013

IP Camera Web Client

Increasing VMD sensitivity

If relevant scene motion does not trigger VMD alarms, the following adjustments will
increase VMD sensitivity:

• Decreasing the sensitivity level from 80% to 50%, or from 50% to 30%. This change
will cause smaller objects to trigger alarms and it will also require smaller contrast
level to report and alarm. This should be the primary adjustment mechanism.

• Reducing the size of the region-of-interest box (and adding more regions if needed).
This adjustment will cause smaller objects to also trigger VMD alarms.

Note After VMD sensitivity is increased, observe the performance in other lighting

conditions in case further tuning is required to prevent false alarms.

Decreasing VMD sensitivity

If VMD alarms are triggered even when there is no motion and no large changes in the
video, the following adjustments will decrease VMD sensitivity:

• Increasing the sensitivity level from 30% to 50%, or from 50% to 80%. This should be
the primary adjustment mechanism, because it increases the required contrast level
(or amount of noise) required to trigger an alarm. Higher sensitivity levels also require
larger amount of motion to be observed before a VMD alarm is triggered.

• Increasing the size of the region-of-interest box. This adjustment will prevent smaller
objects (or smaller areas of noise) from triggering VMD alarms.

VMD configuration examples

These examples are provided only for illustration. Other factors such as lighting level,
contrast, and image noise may affect VMD performance and may require tuning
adjustments as described above.

Normal Field of View

In a normal field of view, with a person walking in front of the camera, the maximum
recommended region-of-interest box sizes would be as shown by the red boxes in

Figure 4-34, Figure 4-35, and Figure 4-36.

Note Outdoor scenes are shown in the following examples. HCD5 cameras are

outdoor cameras only when used with the appropriate environmental
housing.

76

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Figure 4-34 Video Motion Detection Configuration - 30% Sensitivity Level

Figure 4-35 Video Motion Detection Configuration - 50% Sensitivity Level

Document 800-07067V5 Rev A 77
07/2013

IP Camera Web Client

Figure 4-36 Video Motion Detection Configuration - 80% Sensitivity Level

Wide Field of View

In a wide field of view camera, the car shown below would be expected to trigger a VMD
alarm if the VMD region-of-interest box size is not larger than indicated by the red box:

Figure 4-37 Video Motion Detection Configuration - 30% Sensitivity Level for a

Wide Field of View

78

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Figure 4-38 Video Motion Detection Configuration - 50% Sensitivity Level for a

Wide Field of View

Figure 4-39 Video Motion Detection Configuration - 80% Sensitivity Level for a

Wide Field of View

For cameras with a wide-angle field of view covering a large outdoor scene, people who
walk far away from the camera might appear rather small in the image. If motion needs to
be detected in the entire field of view, the following region-of-interest box configuration is
recommended:

• Three smaller boxes, set to 30% sensitivity, covering the upper portion of the image
where people appear small.

• Two larger boxes, set to 50% sensitivity, covering the lower portion of the image
where objects appear larger.

Document 800-07067V5 Rev A 79
07/2013

IP Camera Web Client

Figure 4-40 Video Motion Detection Configuration - A Combination Setup

Alarm and Audio

Figure 4-41 Audio and IO Settings Tab

80

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

Alarm Settings

Connect external devices such as sirens or flashing lights to the alarm output connector to
signal camera users that an alarm is activated. Set the Alarm Output as Normally Open or
Normally Close. See Connecting Alarms on page 23 for more information.

When alarm inputs are connected, the camera triggers an alarm only when the normal state
(open or closed) changes. An alarm message appears on the web client screen (see

Figure 4-33) to notify the operator.

Alarm Interlock Day/Night Switching

The network camera has a D/N Control setting which allows control of the moving IR cut
filter when there is a change in state from Normally Open to Normally Closed or from
Normally Closed to Normally Open for Alarm input (see Connecting Alarms on page 23 for
more information). In this way, the moving IR cut filter and the day/night operation of the
camera can be interlocked with external lighting changes using a common controller such
as a photocell or timer.

Configuring Alarm Interlock Day/Night Switching:

1. Select Night Mode On Alarm in the D/N Control field in the Alarm Settings pane of
the IO & Audio tab.

2. Click Apply. A message appears.

Figure 4-42 D/N Control Message

3. Click OK to accept the changes to configure alarm interlock Day/Night switching.
Now any alarm will be generated and appear on the web client screen.

When Alarm Input is set to Normally Open

When the Alarm Input is set to Normally Open, the camera is normally in Day mode if the
camera alarm input connection is opened.

• The IR-cut filter will be off (removed), and the camera will switch to Night mode if the
camera alarm input connection is closed (shorted). See Connecting Alarms on page

23 for more information about alarm connections.

• The IR-cut filter will be on, and the camera will switch to Day mode if the camera alarm
input connect is opened again.

Document 800-07067V5 Rev A 81
07/2013

IP Camera Web Client

Audio Settings

When Alarm Input is set to Normally Closed

When Alarm Input is set to Normally Closed, the camera is normally in Day mode if the
camera alarm input connection is closed (shorted).

• The IR-cut filter will be off (removed), and the camera will switch to Night mode if the
camera Alarm input connection is opened.

• The IR-cut filter will be on, and the camera will switch to Day mode if the camera alarm
input connection is closed (shorted) again.

The network camera supports bi-directional audio. There are two supported voice band
channels that function in full duplex mode. Connect industry-standard line level audio input
and output to the back of your camera. See Connecting Audio on page 24 for more
information.

Audio configuration for your network camera is straightforward.

Figure 4-43 Audio Settings

Listening or Capturing Audio from the Camera

To listen to or capture audio from the camera, enable the Camera to Client (PC) check box
().

Listening to Audio from the Client PC

To listen to audio from the client (PC), enable the Client (PC) to Camera check box.

82

A

Troubleshooting

Technical Support

Prior to calling Honeywell technical support, refer to the following topics for possible
solutions to problems with your network camera. To contact the Honeywell Video
Systems technical support team, call 1-800-796-2288 (North America only) or send an
e-mail to https://www.honeywellsystems.com/ss/techsupp/index.html.

Any equipment returned to Honeywell Video Systems for warranty or service repair must
have a Return Merchandise Authorization (RMA) number. The RMA number must be
clearly marked on all return packages and internal paperwork.

Problem: Live View Does Not Display the Expected Video

Possible solutions:

• Ensure that your web browser settings have been configured to allow ActiveX
controls (see Step 2: Install the Honeywell IP Utility Software on page 27 for
information on setting up your browser).

• Ensure that the network cable from the camera is connected to both the camera and
the network.

Problem: Failure of IP Utility Software Installation

Solution 1 Disable Norton AntiVirus software, then install the IP Utility software.

Document 800-07067V5 Rev A 83
07/2013

Troubleshooting

Solution 2 Enable Microsoft .NET Framework 3.5 on your workstation. It usually comes

pre-installed on Windows 7.

Enabling Microsoft .NET Framework 3.5 on Your Workstation

1. Go to Start  Control Panel  Programs  Programs and Features.

2. Click the check box beside Microsoft .NET Framework 3.5 to enable it.

3. Click OK to save the new setting.

Problem: Web Client Does Not Display the Expected Video

Possible solutions:

• Ensure that your web browser settings have been configured to allow ActiveX controls
(see Step 5: Launch the Web Client to View Live Video on page 34 for information on
setting up your browser).

• Ensure that the network cable from the camera is connected to both the camera and
the network.

Problem: Cannot Connect to a Device

When the following message (Figure A-1) displays in the status bar of the IP Utility, your
device connection is limited. Usually this warning state indicates that your PC and the
device you are connecting to are on different subnets. Contact your network administrator
for help to resolve your network issue(s).

Figure A-1 Limited or No Connection Message

84

B

HCD5HIH(X) Specifications

Note These specifications refer to all models, except where otherwise noted.

Specifications are subject to change without notice.

Video Signal Specifications NTSC PAL

Scanning System: Progressive

Image Sensor: 1/2.7” CMOS

Number of Pixels (H x V): 1920 x 1080 (HD)

Minimum Illumination: 0.18 lux color/0.15 lux BW @ 50 IRE, F1.2

0.11 lux color/0.09 lux BW @ 30 IRE, F1.2

Video Output (local): 1.0 Vp-p @ 75 Ohms

S/N Ratio: 50 dB or more (AGC Off)

Auto Gain Control (AGC): Off/On, selectable (20 – 40 dB)

Auto Electronic Shutter (ELC): 1/30 – 1/130,000 sec

Automatic Lens Iris Control: DC Iris level 1 – 25

White Balance (AWB): AWC, MWB (Manual Mode), AWC Push

Audio Signal Specifications

Audio/Two-Way: Line in/out

Electrical Specifications

Input Voltage: 24 V AC, PoE IEEE 802.3af

Input Voltage Range: 17 – 28 V AC

Surge Suppression: 1.5 kW transient

Power Consumption: 5.0 W (max) 24 V AC

Mechanical

Dimensions (WxH): See diagrams starting on page 87

Weight: 1.1 lb (0.5 kg) camera only

Construction: Housing: Aluminum

Camera Mount: 1/4-20 UNC mounting ring

Connectors: Local Video Output: BNC

Power Input: Removable screw terminal block

PoE: PD Type 1, Class 2

Finish: Cool gray powder coat

Lens: 4-Pin Connector

Alarm I/O: Removable screw block

Audio In: 3.5 mono phone jack

Audio Out: 3.5 mono phone jack

Network: RJ45 connector

Document 800-07067V5 Rev A 85
07/2013

HCD5HIH(X) Specifications

Environmental

Temperature: Operating: 14°F to 122°F (-10°C to 50°C)

Storage: -40°F to 158°F (-40°C to 70°C)

Relative Humidity: 0% to 85%, non-condensing

IP Specifications

Video Compression: H.264, MJPEG

Primary Stream
Resolutions:

1920 x 1080
1280 x 720
800 x 450
640 x 360
320 x 180

Frame Rate NTSC/PAL: Up to 30/25 fps video in all resolutions

Video Streaming: Dual Streaming: H.264 and/or H.264/MJPEG

Security: Multiple user access levels with password protection

Video access from web
browser:

Web browsing requirements: IE6, IE7, IE8, and IE9

Operating system
requirements:

Processor: Pentium IV CPU 3.1 GHz or faster

RAM: 1 GB RAM (32-bit) or 2 GB RAM (64-bit)

Graphics card: Display driver with Direct3D enabled (for camera IP web

Installation, Management, and
Maintenance:

Supported Protocols: HTTP, TCP, RTSP, RTP, UDP, ARP, DNS, RTCP, FTP,

Standards: PSIA

Regulatory

EMC 2004/108/EC

Emissions: EN 55022

Immunity: EN 50130-4

Safety: EU: EN60950-1

Bitrate H.264

(Typical)*

3.0 Mbps

1.4 Mbps

0.75 Mbps

0.4 Mbps

0.2 Mbps

Controllable frame rate and bandwidth

Constant or variable bit rate (H.264)

Full control of all camera settings available to

Windows XP SP3, Windows 7 (32-/64-bit), Windows 2003

Server R2 (32-bit), Windows Vista SP1, Windows 2008

Honeywell IP Utility software identifies the IP address,

checks the status of the device. Firmware upgrades over

http://www.honeywellsystems.com/support/download-

ICMP, DHCP, Bonjour, IGMP, Telnet

North America ETL listed to UL/CSA 60950-1

Frame Rate Storage/Day (GB)

30/25
30/25
30/25
30/25
30/25

administrator

Server R2 (64-bit)

client only)

HTTP, firmware available at

center/index.html.

31.6

14.8

7.91

4.22

2.11

86

*The actual bitrate is scene- and motion-dependent with the H.264 stream.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

5.34” (135.6 mm)

0.81” (20.6 mm)

2.44” (62.0 mm)

2.44” (62.0 mm)

Figure B-1 Camera Dimensions

Document 800-07067V5 Rev A 87
07/2013

HCD5HIH(X) Specifications

88

C

HCD5MIH(X) Specifications

Note These specifications refer to all models, except where otherwise noted.

Specifications are subject to change without notice.

Video Signal Specifications NTSC PAL

Scanning System: Progressive

Image Sensor: 1/4” CMOS

Number of Pixels (H x V): 1280 x 720 (HD)

Minimum Illumination: 0.6 lux color/0.4 lux BW @ 50 IRE, F1.3

0.25 lux color/0.15 lux BW @ 30 IRE, F1.3

Video Output (local): 1.0 Vp-p @ 75 Ohms

S/N Ratio: 50 dB or more (AGC Off)

Auto Gain Control (AGC): Off/On, selectable (10 – 40 dB)

Auto Electronic Shutter (ELC): 1/60 – 1/24,000

sec

Automatic Lens Iris Control: DC Iris level 1 – 25

White Balance (AWB): AWC, MWB (Manual Mode), AWC Push

Audio Signal Specifications

Audio/Two-Way: Line in/out

Electrical Specifications

Input Voltage: 24 V AC, PoE IEEE 802.3af

Input Voltage Range: 17 – 28 V AC

Surge Suppression: 1.5 kW transient

Power Consumption: 5.0 W (max) 24 V AC

Mechanical

Dimensions (WxH): See the diagrams starting on page 91

Weight: 1.1 lb (0.5 kg) camera only

Construction: Housing: Aluminum

Camera Mount: 1/4-20 UNC mounting ring

1/50 – 1/24,000

sec

PoE: PD Type 1, Class 1

Finish: Cool gray powder coat

Document 800-07067V5 Rev A 89
07/2013

HCD5MIH(X) Specifications

Connectors: Local Video Output: BNC

Lens: 4-Pin Connector

Power Input: Removable screw terminal block

Audio In: 3.5 mono phone jack

Audio Out: 3.5 mono phone jack

Network: RJ45 connector

Environmental

Temperature: Operating: 14°F to 122°F (-10°C to 50°C)

Storage: Storage: -40°F to 158°F (-40°C to 70°C)

Relative Humidity: 0% to 85%, non-condensing

IP Specifications

Video Compression: H.264, MJPEG

Primary Stream
Resolutions:

1280 x 720
800 x 450
640 x 360
320 x 180

Frame Rate NTSC/PAL: Up to 30/25 fps video in all resolutions

Video Streaming: Dual Streaming: H.264 and/or H.264/MJPEG

Security: Multiple user access levels with password protection

Video access from web
browser:

Web browsing requirements: IE6, IE7, IE8, and IE9

Operating system
requirements:

Processor: Pentium IV CPU 3.1 GHz or faster

RAM: 1 GB RAM (32-bit) or 2 GB RAM (64-bit)

Graphics card: Display driver with Direct3D enabled (for camera IP web

Installation, Management, and
Maintenance:

Supported Protocols: HTTP, TCP, RTSP, RTP, UDP, ARP, DNS, RTCP, FTP,

Standards: PSIA support

Regulatory

EMC 2004/108/EC

Emissions: EN 55022

Immunity: EN 50130-4

Safety: EU: EN60950-1

Bitrate H.264

(Typical)*

1.8 Mbps

1.2 Mbps

0.6 Mbps

0.21 Mbps

Controllable frame rate and bandwidth

Constant or variable bit rate (H.264)

Full control of all camera settings available to

Windows XP SP3, Windows 7 (32-/64-bit), Windows 2003

Server R2 (32-bit), Windows Vista SP1, Windows 2008

Honeywell IP Utility software identifies the IP address,

checks the status of the device. Firmware upgrades over

HTTP, firmware available at

http://www.honeywellsystems.com/support/download-

ICMP, DHCP, Bonjour, IGMP, Telnet

North America ETL listed to UL/CSA 60950-1

Frame Rate Storage/Day

(GB)

30/25
30/25
30/25
30/25

administrator

Server R2 (64-bit)

client only)

center/index.html.

18.98

12.65

6.33

0.89

90

*The actual bitrate is scene- and motion-dependent with the H.264 stream.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

5.34” (135.6 mm)

0.81” (20.6 mm)

2.44” (62.0 mm)

2.44” (62.0 mm)

Figure C-1 Camera Dimensions

Document 800-07067V5 Rev A 91
07/2013

HCD5MIH(X) Specifications

92

D

HCD5WIH(X) Specifications

Note These specifications refer to all models, except where otherwise noted.

Specifications are subject to change without notice.

Video Signal Specifications NTSC PAL

Scanning System: Progressive

Image Sensor: 1/3” CMOS

Number of Pixels (H x V): 1280 x 720 (HD); 640 x 480 (VGA)

Minimum Illumination: 0.1 lux color/0.07 lux BW @ 50 IRE, F1.2

Video Output (local): 1.0 Vp-p @ 75 Ohms

Dynamic Range: 115 dB

S/N Ratio: 50 dB or more (AGC Off)

Auto Gain Control (AGC): Off/On, selectable (20 – 40 dB)

Auto Electronic Shutter (ELC): 1/30 – 1/87,000 sec

White Balance (AWB): AWC, MWB (Manual Mode), AWC Push

Audio Signal Specifications

Audio/Two-Way: Line in/out

Electrical Specifications

Input Voltage: 24 V AC, PoE IEEE 802.3af

Input Voltage Range: 17 – 28 V AC

Surge Suppression: 1.5 kW transient

Power Consumption: 5.0 W (max) 24 V AC

Mechanical

Dimensions (WxH): See the diagrams starting on page 95

Weight: 1.1 lb (0.5 kg) camera only

Construction: Housing: Aluminum

Camera Mount 1/4-20 UNC mounting ring

Connectors: Local Video Output: BNC

Power Input: Removable screw terminal block

PoE: PD Type 1, Class 2

Finish: Cool gray powder coat

Lens: 4-Pin Connector

Audio In: 3.5 mono phone jack

Audio Out: 3.5 mono phone jack

Network: RJ45 connector

Document 800-07067V5 Rev A 93
07/2013

HCD5WIH(X) Specifications

Environmental

Temperature: Operating: 14°F to 122°F (-10°C to 50°C)

Storage: Storage: -40°F to 158°F (-40°C to 70°C)

Relative Humidity: 0% to 85%, non-condensing

IP Specifications

Video Compression: H.264, MJPEG

Primary Stream
Resolutions:

1280 x 720
800 x 450
640 x 360
320 x 180

Frame Rate NTSC/PAL: Up to 30/25 fps video in all resolutions

Video Streaming: Dual Streaming: H.264 and/or H.264/MJPEG

Security: Multiple user access levels with password protection

Video access from web
browser:

Web browsing requirements: IE6, IE7, IE8, and IE9

Operating system
requirements:

Processor: Pentium IV CPU 3.1 GHz or faster

RAM: 1 GB RAM (32-bit) or 2 GB RAM (64-bit)

Graphics card: Display driver with Direct3D enabled (for camera IP web

Installation, Management, and
Maintenance:

Supported Protocols: HTTP, TCP, RTSP, RTP, UDP, ARP, DNS, RTCP, FTP,

Standards: PSIA

Regulatory

EMC 2004/108/EC

Emissions: EN 55022

Immunity: EN 50130-4

Safety: EU: EN60950-1

Bitrate H.264

(Typical)*

2.7 Mbps

1.8 Mbps

0.9 Mbps

0.315 Mbps

Controllable frame rate and bandwidth

Constant or variable bit rate (H.264)

Full control of all camera settings available to

Windows XP SP3, Windows 7 (32-/64-bit), Windows 2003

Server R2 (32-bit), Windows Vista SP1, Windows 2008

Honeywell IP Utility software identifies the IP address,

checks the status of the device. Firmware upgrades over

HTTP, firmware available at

http://www.honeywellsystems.com/support/download-

ICMP, DHCP, Bonjour, IGMP, Telnet

North America ETL listed to UL/CSA 60905-1

Frame Rate Storage/Day

(GB)

30/25
30/25
30/25
30/25

administrator

Server R2 (64-bit)

client only)

center/index.html.

28.48

18.98

9.49

3.32

94

*The actual bitrate is scene- and motion-dependent with the H.264 stream.

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

5.34” (135.6 mm)

0.81” (20.6 mm)

2.44” (62.0 mm)

2.44” (62.0 mm)

Figure D-1 Camera Dimensions

Document 800-07067V5 Rev A 95
07/2013

HCD5WIH(X) Specifications

96

E

Glossary

AGC (Automatic Gain Control) Video Amplifier in a camera that boosts the amount of

video gain (including the noise) to maintain a 1V p-p (1-volt peak-to-peak) video signal
output. It becomes operational when the light level is low. The circuit is designed to
compensate for fluctuations in scene illumination which would cause the video output
level to be too low. If the video level (scene illumination) is adequate, the circuit does not
apply any gain to the signal. As the video level falls, more gain is applied by the AGC
circuit to the video signal.

ALC (Automatic Light Compensation) Setting in an Auto Iris lens to control the iris

opening.

DHCP (Dynamic Host Configuration Protocol) Allows a server to dynamically assign

IP addresses to nodes (workstations) automatically. Provides client information including
subnetwork mask, gateway address, and DNS (Domain Address Server) addresses.

DNR (Digital Noise Reduction) Reduces the appearance of noise in low-light

conditions.

DSS (Digital Slow Shutter) Improves picture quality (brightness) in low-light scenes.

DSS might introduce motion blur. The higher the DSS setting, the more likely motion blur
will occur.

ELC (Electronic Light Control) Typically used with manual iris lenses. The image

brightness is controlled electronically by the camera through automatically adjusting
shutter speed for a properly exposed picture.

Flickerless Eliminates the “flicker” that can appear in an image under certain lighting

conditions (for example, fluorescent lighting). This is usually caused by the interaction of
the shutter with the AC frequency of the lighting.

FOV (Field of View) The part of the scene visible with a particular lens. The height

(horizontal) and width (vertical) picture size at a given distance that can be seen through
a lens. Generally, shorter focal length lenses have a wider field of view than those with
longer focal lengths.

Gain The amplification a system provides to a signal.

IP Address A unique, 32-bit identifier for a specific TCP/IP host computer on a network.

Iris Adjust Adjusts the iris to either open or close in response to changing light

conditions.

NTSC (National Television Standards Committee) A standard of specifications for

television transmission in the U.S., Canada, Japan, Central American, and half of South
America. The North American system uses interlaced scans and 525 horizontal lines per
frame at 30 frames per second.

Document 800-07067V5 Rev A 97
07/2013

Glossary

PAL (Phase Alternate Line) A standard of specifications for television transmission for

color TV signals used in West Germany, England, Holland, Australia, and several other
countries. It uses an interlaced format with 625 lines per frame at 25 frames per second.

PoE (Power over Ethernet) A method of powering Ethernet-connected devices via the

Ethernet cabling as defined in the IEEE 802.3af standard.

Shutter Speed The speed at which the charge is read out from the imager chip. Adjusts

the light sensitivity of the camera. A faster (briefer) shutter speed can arrest the motion of a
fast moving object (reduce image blur), rendering it sharp. Fast shutter speeds allow less
light to all on the CCD and can darken the image. For fast shutter speeds, ensure there is
adequate lighting. Usually selected using DIP switches on the side of the camera.

Subnet Mask A number used to identify a subnetwork so that an IP address can be shared

on a LAN.

True Day/Night The incorporation of a moving mechanical IR filter within the camera

ensures true 24 hour surveillance, providing high quality color images during the day and
similar quality black & white images at night when used with IR lighting.

UPS (Uninterruptible Power Supply) These are power supplies used in the majority of

high security systems, whose purpose is to back up the system when the main power fails.

98

Index

HCD5 equIP® Series True Day/Night Network Box Camera Reference Guide

A

ActiveX

installation 41
minimum requirements 41
UAC settings 44

uninstallation through IE 55
ActiveX control 35
adding, trusted sites 46, 49
administrator

privileges 40
administrator password, default 29
AGC (Automatic Gain Control) 68
AGC (automatic gain control) 68
alarm configuration 81
alarm output settings 81
alarm settings 81
ALC (automatic light compensation) 68
APIPA address 32, 33, 60
audio configuration 82
audio settings 82
auto

configuration, IP network 31–34

device discovery 29, 33
auto exposure settings 68
Auto White Balance Control mode 70
Automatic Gain Control 68
Automatic Light Compensation 68
AWC (auto white balance control mode) 70

B

bit rate 62, 65

setting 61, 65

viewing statistics 66
blinding threshold 70, 73
blur threshold 70, 72
Bonjour software 26

C

camera

type 59

camera blinding 72
camera field of view change 73
camera settings

AGC 68
ALC 68
AWC 70
DayToNight 69
detect time 69
flickerless 69
MWB 70

NightToDay 69
camera setup procedures 67
compression ratio, setting 61
compression settings 61, 62

bit rate 65

frame rate 64, 65, 66

GOP (group of pictures) 64

maximum bit rate 65

picture quality 64

target bit rate 64
configuration

alarm 81

audio 82
configuring

IP network settings 31–34
configuring Windows 7

firewall for ActiveX 42
configuring Windows 7 for ActiveX 41
configuring Windows XP

firewall for ActiveX 48
configuring Windows XP for ActiveX 48
connect button 30
connecting

to devices 31, 52

D

DayToNight 69
default

passwords 29
default gateway 32
device

connecting 31

disconnecting 31

Document 800-07067V5 Rev A 99
07/2013

discovering 29, 33
information tab 59

name 32
DHCP address 32, 33, 60
digital noise reduction 68
digital slow shutter 69
disconnect button 30
disconnecting, from IP Utility 31
DNR 68
DSS 69

E

equIP series

manuals 27

F

features, camera 16
field of view change 73
finding the user manuals 28
firewall

configuring Windows 7 for ActiveX 42

configuring Windows XP for ActiveX 48
firmware

settings 59

upgrading 30
flickerless 69
frame rate 62, 64, 65, 66

setting 61

viewing statistics 66
functions, camera 18

IP network settings 32

default gateway 32
IP address 32
MAC address 32
subnet mask 32

IP Utility

description 25
disconnecting 31
discovering devices 29, 33
installing 27
interface overview 30
logging on 29
uninstalling 36
web client and 34, 52

IP utility

user types 40

IP Utility, logging onto 29

L

LAN 26
launch web client 30, 34, 52
launching an IP web client 52
launching the IP Utility 29
limited/no connectivity button 30, 31
live view tab

layout 56
log off from the IP web client 55
logging onto an IP web client 52
logging onto the IP Utility 29

M

G

gateway 32, 60
GOP (group of pictures) 62, 64
group of pictures (GOP) 64
guest password, default 29
guest user privileges 40

H

HTTP server 31

I

installed components 27
installing

ActiveX 41

IP

address 32, 33, 60

APIPA 32
DHCP 32

network settings 31–34, 59

IP address 32

100

MAC address 32, 34, 60
manual white balance mode 70
manual, configuration, IP network 31–34
maximum bit rate 65
maximum bit rate, setting 61
minimum requirements

ActiveX 41
motion detection 74
MWB (manual white balance) mode 70

N

netmask 32
NightToDay 69
NTSC

video format 60

video resolution 62

O

opening an IP web client 52
operating system 26
