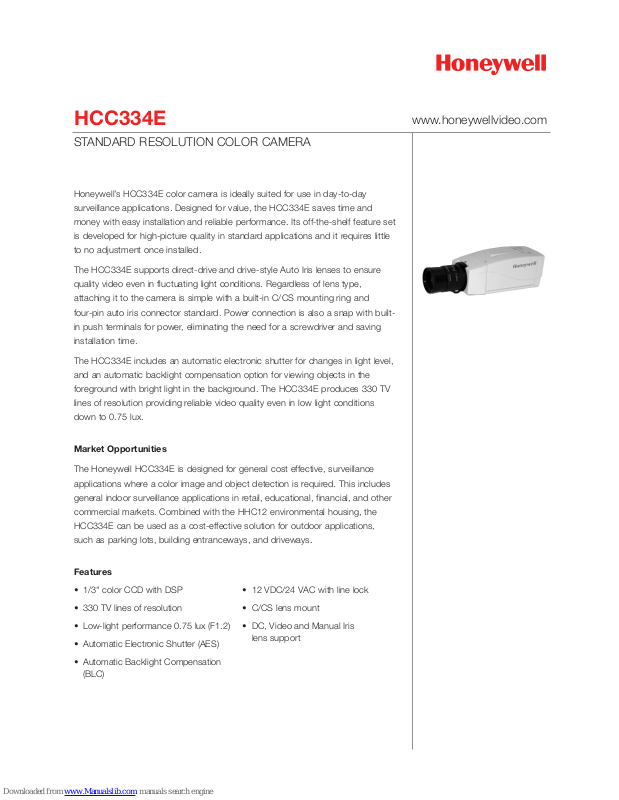

Honeywell HCC334E Specifications

Honeywell’s HCC334E color camera is ideally suited for use in day-to-day
surveillance applications. Designed for value, the HCC334E saves time and
money with easy installation and reliable performance. Its off-the-shelf feature set
is developed for high-picture quality in standard applications and it requires little
to no adjustment once installed.

The HCC334E supports direct-drive and drive-style Auto Iris lenses to ensure
quality video even in fluctuating light conditions. Regardless of lens type,
attaching it to the camera is simple with a built-in C/CS mounting ring and
four-pin auto iris connector standard. Power connection is also a snap with built­in push terminals for power, eliminating the need for a screwdriver and saving
installation time.

The HCC334E includes an automatic electronic shutter for changes in light level,
and an automatic backlight compensation option for viewing objects in the
foreground with bright light in the background. The HCC334E produces 330 TV
lines of resolution providing reliable video quality even in low light conditions
down to 0.75 lux.

Market Opportunities

The Honeywell HCC334E is designed for general cost effective, surveillance
applications where a color image and object detection is required. This includes
general indoor surveillance applications in retail, educational, financial, and other
commercial markets. Combined with the HHC12 environmental housing, the
HCC334E can be used as a cost-effective solution for outdoor applications,
such as parking lots, building entranceways, and driveways.

Features

www.honeywellvideo.com

HCC334E

• 1/3" color CCD with DSP

• 330 TV lines of resolution

• Low-light performance 0.75 lux (F1.2)

• Automatic Electronic Shutter (AES)

• Automatic Backlight Compensation
(BLC)

• 12 VDC/24 VAC with line lock

• C/CS lens mount

• DC, Video and Manual Iris
lens support

STANDARD RESOLUTION COLOR CAMERA

NOTE: Honeywell reserves the right, without notification, to make changes in product design or specifications.

HCC334E

HV05262
L/HCC334E/D
August 2006
© 2006 Honeywell International Inc.

Honeywell Security

Honeywell Video Systems
2700 Blankenbaker Pkwy, Suite 150
Louisville, KY 40299

1.800.796.CCTV
www.honeywell.com

www.honeywellvideo.com

SPECIFICATIONS

Operational

Video Standard NTSC, PAL

Scanning System

525/60 lines (NTSC)

625/50 lines (PAL)
Image Sensor 1/3" Interline Transfer CCD
Number of Pixels

(H x V)

510 x 492 (NTSC)

500 x 582 (PAL)
Minimum

Illumination

0.75 lux @ F1.2 (50 IRE)

Horizontal
Resolution

330 TVL

Video Output 1.0 Vp-p @ 75 Ohms

Sync System

12 VDC: Internal

24 VAC: Line lock, Internal
S/N Ratio 50 dB typical
Auto Gain Control High/low
ALC Adjusted (with direct drive Auto Iris lenses)
Automatic

Electronic Shutter

1/60 – 1/100,000 sec (NTSC)

1/50 – 1/100,000 sec (PAL)
Line Lock Phase

Adjust

Adjustable line lock vertical phase

BLC On/off

Electrical

Input Voltage 12 VDC/24 VAC
Input Range 10 - 14 VDC, 20 - 28 VAC
Power

Consumption

4.5 W (max)

Mechanical

Dimensions
(W x H x D)

2.27" x 2.57" x 5.56"

(57.9 mm x 65.2 mm x 141.2 mm)
Weight 1.5 lb (0.68 Kg) camera only

Construction

Housing: Aluminum

Finish: Cool gray powder coat
Camera Mount 1/4 – 20 UNC (top and bottom)
Lens Mount C/CS adjustable mounting ring

Connector

Video Output: BNC connector

Lens: 4-pin connector

Power Input: Push terminals

with ground
Power Indicator LED

Environmental

Temperature

Operating: 14°F to 122°F (-10°C to 50°C)
Storage: -4°F to 140°F (-20°C to 60°C)

Relative
Humidity

20% to 80%, non-condensing

Accessories
Recommended Lens Options

HLD25V6F12L 2.5 – 6 mm, F1.2, DC Auto Iris lens
HLD28V8F95L 2.8 – 8 mm, F0.95, DC Auto Iris lens

HLD27V13DNL

2.7 – 13.5 mm, F1.3, Aspherical
Vari-focal lens

HLD5V50F13L 5.0 – 50 mm, F1.3, DC Auto Iris lens

Housing and Mounts

HBC5WT Wall/Ceiling Mount Bracket
HHC12 Series Environmental Housing

Power Supplies

UL Listed Fused Smart Fused Description

HPTV2404UL HPTV2404 HPTV2404CB 4 A, 4 Output
HPTV2408UL HPTV2408 HPTV2408CB 4 A, 8 Output
HPTV2416UL HPTV2416 HPTV2416CB 8 A, 16 Output

Regulatory

Emissions FCC, CE (EN55013)
Immunity CE (EN50130-4)
Safety EU: 73/23/EEC LVD

Ordering

HCC334E 1/3" Standard-Resolution Color Camera with DSP, 330 TVL, 12 VDC/24 VAC, NTSC
HCC334EX 1/3" Standard-Resolution Color Camera with DSP, 330 TVL, 12 VDC/24 VAC, PAL
HCC335EX 1/3" Standard-Resolution Color Camera with DSP, 330 TVL, 230 V, PAL

Transformers

HPT2420

24 VAC, 20 VA Class 2 plug-in with thermal
cut-out

HPT12DC500

12 VDC, 500 mA plug-in regulated 2.1 mm
coaxial plug UL Listed/CSA Certified

OFF

Front View

Rear View

Side View

2.57”

(65.2 mm)

5.56” (141.2 mm)
