equIP® SERIES S 1080p / 3 MP / 5 MP MFZ LENS TRUE
DAY/NIGHT H.264 INDOOR MINIDOME IP CAMERA
H3D Series S
Honeywell’s H.264 indoor H3D Series S cameras offer high definition resolution at full frame
rate, progressive scan technology and edge enhancement for outstanding picture clarity.
ONVIF (Profile S) compliance ensures hassle-free, flexible system integration.
Choose the Resolution That’s Right for Your Application
• 1080p, 3 megapixel and 5 megapixel models
• Quad stream compression (H.264-1+H.264-2+H.264-3+H.264-4/MJPEG)
• Configurable resolution and frame rate for each selected H.264 stream
Maximize Bandwidth without Losing Image Quality
• Highly efficient H.264 video compression
• 3DNR (Digital Noise Reduction) and proprietary SPQ (Smart Picture Quality) provide
significant storage savings without sacrificing image quality in low light
• CMOS progressive scan imager ensures accurate colour rendition through a wide variety
of lighting conditions
P-Iris Control Improves Contrast and Clarity
• The P-Iris setting keeps both close and distant objects in the scene in focus
simultaneously, even in changing lighting conditions
Smart IR Ensures Correct Illumination (IR Models Only)
• The IR LED brightness adjusts automatically to provide even illumination of moving subjects
Onboard Video Storage
• Up to 32 GB microSDHC (Class 10) support. Card not included
Privacy Masking
• Conceal up to 5 areas of a scene from viewing and recording
Time is Money—Installation and Upgrading Made Easy
• Camera and lens integrated in a compact, single-piece unit
• Built-in PoE (Power over Ethernet) eliminates separate power supply and associated
wiring. 12 V DC or 24 V AC inputs where PoE power is unavailable
• Remote configuration, auto focus and motorized zoom adjustments, and firmware
updating through Honeywell Viewer web client or from an NVR/DVR. Password-protected
access to the camera’s video and network setup
• Export/import of configuration facilitates quick rollout of multiple cameras
Market Opportunities
The H3D Series S cameras are perfect for applications that require excellent picture
quality at minimal bandwidth. The cameras can be retrofitted on many existing DVR/NVR
installations without requiring additional storage.
Features
(IR model shown)
• Up to 25 fps (30 fps for NTSC)
progressive scan
• True day/night, 3–9 mm (F1.2)
MFZ lens with removable IR cut
filter. H3D5 lens is 5-9 mm (F1.5)
when set to 5 MP resolution
• IR models feature 24 LEDs,
providing up to 50 ft (15 m) of
illumination depending on scene
reflectance
• Camera tamper detection and
video motion detection
• Supports both dynamic and static
IP addresses and APIPA auto-IP
addressing
• Up to 8× digital zoom
• Date and time stamp embedded
in video stream
• Configurable user privileges for
simple viewing or administrator
control and setup of functions
• Input (×1) and output (×1)
alarm contacts
• Bidirectional audio communication
Page 2
FEATURES
H3D Series S
Immediately Detect and Respond to Events
The camera can be configured to automatically detect and respond to events such as motion in the scene, alarm inputs, a
network failure and/or tampering. Automated responses include:
• Sending a notification through email, FTP and/or HTTP
• Uploading still images at the time of the event through email and/or FTP
• Recording a video clip of the event to a configured microSDHC memory card or Network Attached Storage device
• Enabling a visual or auditory notification (for example, a flashing light, bell or siren)
Page 3
SPECIFICATIONS
H3D Series S
Operational
Video Standard PAL/NTSC
Scanning System Progressive scan
Image Sensor
H3D2 cameras: 1/2.7-in. CMOS
H3D3 cameras: 1/3-in. CMOS
H3D5 cameras: 1/2.5-in. CMOS
Number of Pixels
(H × V)
H3D2 cameras:1920 × 1080 (1080p)
H3D3 cameras: 2048 × 1536 (3 MP)
H3D5 cameras: 2592 × 1944 (5 MP)
Minimum Illumination
H3D2 cameras: 0.45 lux colour/0.02 lux
BW @ 50 IRE, F1.2 (IR off)
H3D3 cameras: 0.3 lux colour/0.01 lux
BW @ 50 IRE, F1.2 (IR off)
H3D5 cameras: 0.5 lux colour/0.02 lux
BW @ 50 IRE, F1.2 (IR off)
Video Output (AUX) 1.0 Vp-p @ 75 ohms
S/N Ratio 50 dB or more (AGC off)
Auto Gain Control Off/On, selectable
Wide Dynamic
Range
H3D2 cameras: 69 dB
H3D3 cameras: 69 dB
H3D5 cameras: 70 dB
Automatic
Electronic Shutter
1–1/10,000 s PAL and NTSC
Lens Type
3–9 mm MFZ, F1.2 wide/F2.1 tele
(H3D5 cameras @ 5 MP: 5–9 mm,
F1.5 wide/F2.1 tele)
Horizontal
Angle of View
H3D2 cameras: 108° wide; 41° tele
H3D3 cameras @ 3 MP: 90° wide; 30° tele
H3D3 cameras @ 1080p: 86.3° wide; 28.2° tele
H3D5 cameras @ 5 MP: 64° wide; 37° tele
H3D5 cameras @ 3 MP: 90° wide; 30° tele
H3D5 cameras @ 1080p: 86° wide; 28° tele
Vertical
Angle of View
H3D2 cameras: 75° wide; 24° tele
H3D3 cameras: 74° wide; 23° tele
H3D5 cameras @ 5 MP: 50° wide; 28° tele
H3D5 cameras @ 3 MP: 74° wide; 23° tele
H3D5 cameras @ 1080p: 55° wide; 16° tele
IR LEDs
(Select Models)
850 nm, 24 LEDs
IR Illumination
Distance
(Select Models)
Up to 50 ft (15 m), depending on scene
reflectance and camera settings
White Balance Auto/ATW/Manual
Privacy Masking 5 programmable zones
Audio/Two Way Line in/out
Electrical
Input Voltage
12 V DC, 24 V AC
PoE IEEE 802.3af, Type 1, Class 0
Power Consumption
Non-IR models: 9 W (max)
IR models: 12 W (max)
PD Type 1, Class 0, 12.95 W (max)
Mechanical
Dimensions (W × H) 149.0 x 30.5 mm
Weight 0.7 kg
Construction Housing: Polycarbonate Colour: White
Recording and
Storage
Up to 32 GB microSDHC card (Class 10)
and Network Attached Storage (NAS)
support (card and NAS not included)
Connectors
Video output (AUX): BNC connector
Power input: 3-pin terminal block
Network: RJ45 connector
Alarm I/O: 4-pin terminal block
Audio I/O: 4-pin terminal block
Environmental
Temperature
Operating: –10°C to 50°C
Storage: –20°C to 70°C
Relative Humidity 10% to 85%, non-condensing
IP Specifications
Video Compression
H.264 Baseline/Main Profile/High Profile,
Motion JPEG
Primary Stream
Resolution
2592 × 1944
2
2048 × 1536
3
1920 × 1080
1280 × 1024
1280 × 720
1024 × 768
800 × 600
720 × 480
640 × 480
352 × 240
H.264 Bitrate
(Typical)
1
4.0 Mbps
4.0 Mbps
4.0 Mbps
4.0 Mbps
2.0 Mbps
2.0 Mbps
2.0 Mbps
1.0 Mbps
1.0 Mbps
0.5 Mbps
Frame Rate
12
15
25/30
25/30
25/30
25/30
25/30
25/30
25/30
25/30
Storage/Day
(GB)
42.2
42.2
42.2
42.2
21.1
21.1
21.1
10.5
10.5
5.3
Frame Rate
(PAL/NTSC)
1080p and lower: Up to 25/30 fps
3 MP: Up to 15 fps
5 MP: Up to 12 fps
Video Streaming
Quad streaming H.264 (×3) and
H.264/MJPEG
Controllable frame rate and bandwidth
Constant or variable bit rate
Security
Multiple user access levels with
password protection
Video Access from
Web Browser
Full control of all camera settings available to
administrator
System
Requirements
CPU: Pentium M 2.16 GHz or
Intel Core 2 Duo 2.0 GHz
RAM: 2 GB or more
Network Card: 10Base-T (10 Mbps)
minimum or 100Base-TX (100 Mbps)
recommended
OS: Windows XP, Windows Vista,
Windows 7
Browser: Internet Explorer 6.0 or
later (32-bit), Chrome, Firefox, or Safari
Installation and
Management
Maintenance
Honeywell Device Search software identifies
the IP address, discovers cameras,
supports firmware upgrades
Supported
Protocols
4
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP,
HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE,
UPnP, IGMP, SNMP, QoS, SSL, DNS, NTP
Standards ONVIF (Profile S)
Regulatory
Emissions FCC, CE (EN 55022)
Immunity CE (EN 50130-4)
Safety
CE (EN 60950-1)
North America UL listed to UL/CSA
60950-1
1
Actual bit rate is scene and motion dependent with H.264 stream.
2
H3D5 cameras only.
3
H3D3 and H3D5 cameras only.
4
Some development may be required in specific user cases to support some
of these protocols in the field as they mature over time.
Page 4
HVS-H3DSeriesS-01-EN(0514)DS-E
May 2014
© 2014 Honeywell International Inc.
For additional information, please visit
www.honeywell.com/security/uk
Honeywell Security Group
Aston Fields Road
Whitehouse Industrial Estate
Runcorn
Cheshire WA7 3DL
Tel: 08448 000 235
www.honeywell.com
ORDERING
H3D Series S
System Integration
Open IP Integration
ONVIF support and open API for software
integration. Refer to www.onvif.org for the
ONVIF specification and the Honeywell
Open Technology Alliance website
(http://www.security.honeywell.com/hota)
to learn more about our open and
integrated solutions.
Accessories
Housing and Mounts
H34S-IC In-Ceiling Mount
H3SIP-PK Pendant Mounting Kit
H3SIP-WK Wall Mounting Kit
HSWK-PM Pole Mount Adapter for H3SIP-WK
Replacement Covers
H3S-CB Clear Bubble with Plastic Housing
H3S-SB Smoke Bubble with Plastic Housing

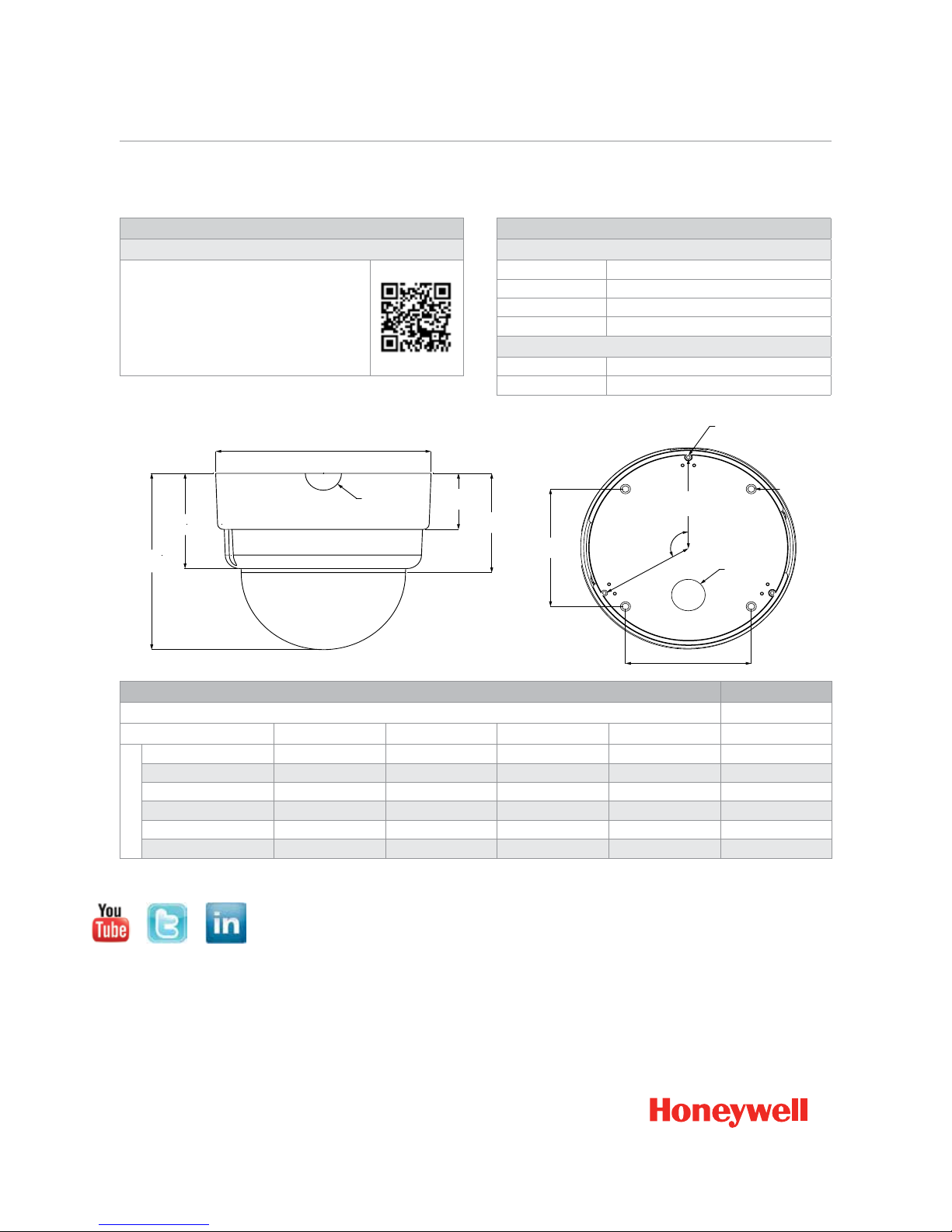

70.5 mm
130.5 mm
NPT 3/4"–14
120°
R 12 mm
3 × M3 Screw
Pitch 0.5 mm
Ø 4.8 mm
41.5 mm
73.5 mm
86.97 mm
86.97 mm
149.0 mm
67.0 mm
Ordering
equIP® Series 1080p/3 MP/5 MP MFZ Lens True Day/Night H.264 Indoor Minidome IP Camera
Model Number 1080p 3 Megapixel 5 Megapixel IR LEDs P-IRIS
PAL
H3D2S2X
H3D2SR2X
H3D3S2X
H3D3SR2X
H3D5S2X
H3D5SR2X
NOTE: Honeywell reserves the right, without notification, to make changes in product design or specifications.
All other company names and products are trade names,
trademarks or registered trademarks of their respective companies.
