Honeywell FK76CS, FKN76CS Product specification sheet

Construction
The filter combination comprises:
• Spring bonnet with adjustment knob and setting scale
• Valve insert complete with diaphragm and valve seat
• Fine filter in clear filter bowl
• Rotatable connector piece (FK76CS only)
• Threaded union connections
• Ball valve with drain connection
• Double ring wrench
Materials
• Red bronze housing
• Red bronze connector piece
• High-quality synthetic material spring bonnet
• High-quality synthetic material valve insert
• Stainless steel fine filter
• Shock-resistant, clear transparent synthetic material filter
EN0H-1104GE23 R1009 • Subject to change
bowl
• Fibre-reinforced NBR diaphragm
• NBR seals
FK76CS/FKN76CS
Reverse rinsing filter combination
with rotatable connector flange
Product specification sheet
Application
The FK76CS/FKN76CS filter combinations comprise reverse rinsing filter and pressure reducing valve in one appliance. They ensure a continuous supply of filtered water. The fine filter stops the ingress of foreign bodies, for example rust particles, strands of hemp and grains of sand. The pressure reducing valve prevents pressure damage and reduces water consumption.
All individual units correspond to the requirements of current DIN/ DVGW specifications. Technical features of each unit also apply to the combination assembly.
Special Features
• DVGW-approval requested
• Double Spin Technology
o Cartridge with external rotor enabling simultaneous
cleaning in lower and upper filter areas
o Visual function check possible
• Balanced seat valve
• Filtered water supplied even during reverse rinsing
• Patented reverse rinsing system - fast and thorough cleaning of the filter with small amount of water
• Memory ring indicates when next manual reverse rinsing is due
• Automatic reverse rinsing actuator with bayonet connector can be retrofitted
• Shock resistant clear synthetic material filter bowl enables easy checking of filter contamination
• Inlet pressure balancing - fluctuating inlet pressure does not influence outlet pressure
• Valve and filter inserts fully interchangeable
Range of Application
Medium Water
Inlet pressure Maximum 16.0 bar with clear filter bowl
Outlet pressure 1.5 to 6.0 bar
The filter is constructed for drinking water installations. In case of a process water application the filter has to be proven individually.
Technical Data
Installation position Vertical or horizontal, with filter bowl
downwards
Operating pressure Minimum 1.5 bar
Operating temperature Maximum 40 °C with transparent filter
bowl
Connection size
3
/4", 1", 11/4"
www.honeywell.com 15
FK76CS/FKN76CS Reverse rinsing filter combination
Connection size with DA74C R3/4"1"11/4" Nominal size diameter DN 20 25 32 Weight kg 3.9 4.0 4.1 Dimensions mm
L 158 179 197 T 177 177 181
t959599
H 493 493 493
h 363 363 363
D979797
-value 5.4 6.0 9.0
k
vs
DIN/DVGW Approval No. requested
RV277
ZA76C
VST06A
Z11S
VST06B
AF11DS
FT09RS
DA74C
Method of Operation
The filter combination combines reverse rinsing filter and pres­sure reducing valve in one appliance.
The downstream reverse rinsing fine filter holds back any dirt particles in the water. These particles are then completely flushed out by reverse rinsing.
Filters with Double Spin Technology have turbine blades which circulate the water and thereby set the rotor on the upper filter into a rotational motion. The internal impeller rinses off particles that have adhered to the upper filter at the intersecting points with the rotor.
The integral pressure reducing valve functions on a balanced force principle whereby the force exerted by a diaphragm is balanced against the force of an adjustment spring. The inlet pressure has no influence on opening or closing of the valve. Inlet pressure fluctuation does not therefore affect the outlet pressure.
Options
FK76CS-...AA = Filter mesh size 100 µm, incl. rotatable
connector piece DA74C with threaded male connections
Connection size
FKN76CS-1A = Filter mesh size 100 µm; rotatable connector
piece DA74C has to be ordered separately ­see accessories
Accessories
Z11S Automatic reverse rinsing actuator
For automatic filter cleaning at presettable intervals
FT09RS Red-bronze filter bowl
For temperatures up to 70°C and operating pressures up to 25.0 bar
ZA76C Connector piece
For conversion of the fine filters with rotatable connector pieces (1 1/4" and 1 1/2") into retrofit filter combinations (Converts 63 mm hole centres to 45 mm hole centres)
RV277 Inlet check valve
1
Available in sizes R
/2" - 2"
VST06 Connection set
Connection set A = Threaded male connection; B = Solder union connection
AF11DS Filter insert complete
Available with filter meshes 20 µm, 50 µm, 100 µm, 200 µm, 300 µm, 500 µm (for filters with Double Spin Technology)
DA74C Rotatable connector piece
For connection of retrofit filters and filter combinations
* The filter guide (either with double spin or without double spin feature) is included
in the packaging of the replacement filter inserts (AF11DS and AF11S) only for the sizes 1/2" up to 11/4!
EN0H-1104GE23 R1009 • Subject to change
16 www.honeywell.com

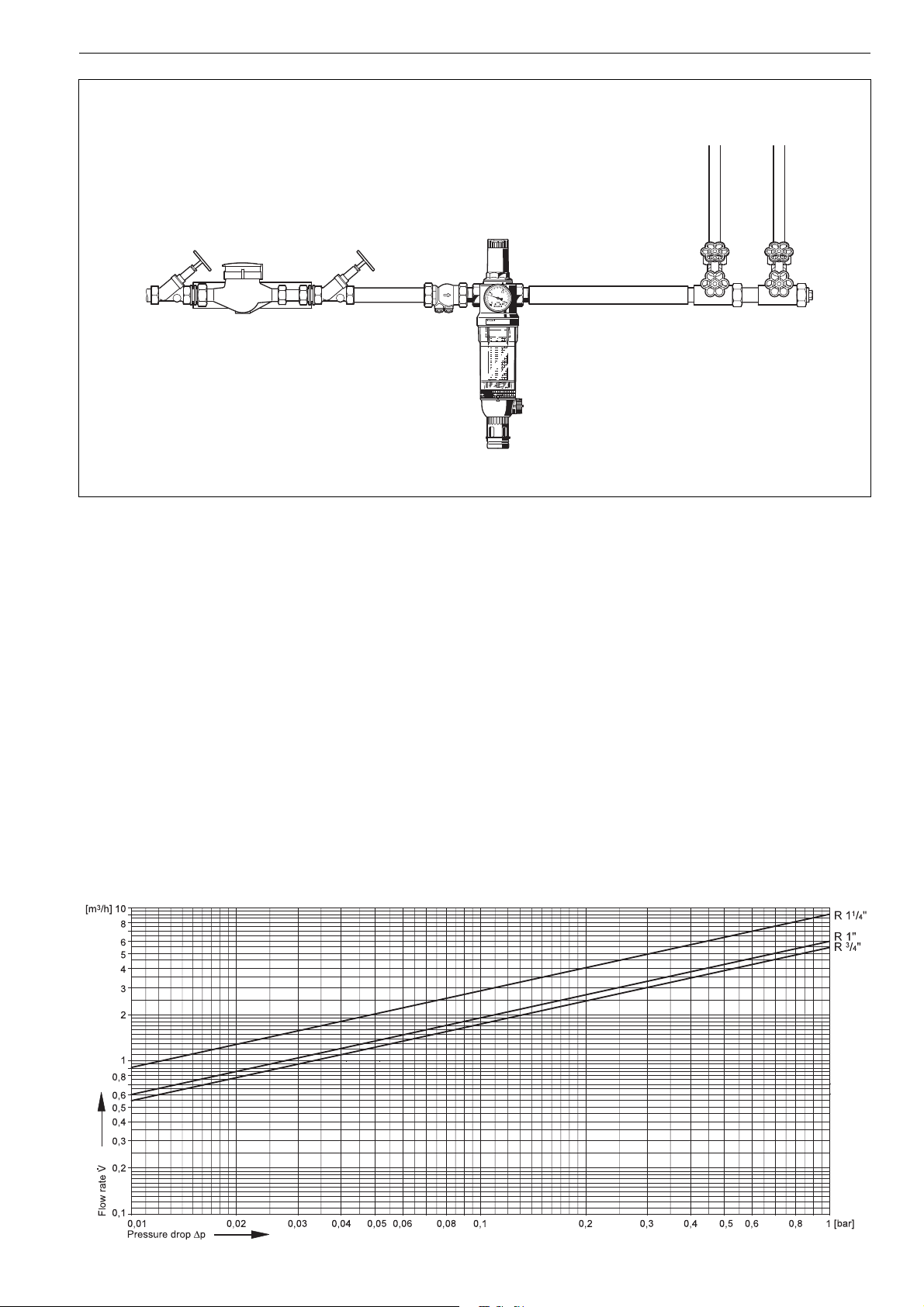

Installation Example
FK76CS/FKN76CS Reverse rinsing filter combination
Installation Guidelines
• Install in horizontal or vertical pipework with filter bowl downwards
o This position ensures optimum filter efficiency
• Install shutoff valves
• Ensure good access
o Pressure gauge can be read off easily o Degree of contamination can be seen with clear filter bowl o Simplifies maintenance and inspection
• The installation location should be protected against frost
• Fit immediately after water meter
o Corresponds to DIN 1988, Part 2
Flow Diagram
Typical Applications
Filter combinations of this type are suitable for all types of house­hold installations. They can also be used for commercial and industrial applications within the limits of their specifications.
Filter combinations of this type are installed:
• Where there is existing metal or plastics pipework
• For installation in horizontal or vertical pipework
• As replacement for an existing filter
• Where space is limited
• For protection against noise when the static pressure at take off points exceeds 5.0 bar (DIN 4109)
• If the static pressure exceeds the maximum permissible operating pressure of an installation
• If pressure fluctuations in the downstream system must be avoided
EN0H-1104GE23 R1009 • Subject to change
www.honeywell.com 17
FK76CS/FKN76CS Reverse rinsing filter combination
1
2
4
3
5
6
Spare Parts
FK76CS/FKN76CS Filter Combinations (From 1997 onwards)
No. Description Dimension Part No.
1 Spring bonnet
3
/4" - 11/4" 0901517 complete (with setting scale)
3
2 Valve insert complete
/4" - 11/4"D06FA-1A (without sieve)
3 Seal ring set
3
/4" 0901444 (Pack of 10) 1" 0901445
1
1
/4" 0901446
4 Pressure gauge M07M-A16
(0 - 16 bar)
5 Flange seal
6 Filter insert complete
3
/4" - 11/4" 5536400
3
/4" - 11/
"
4
AF11DS-1A for filters with Double Spin Technology
Filter mesh 100 µm
3
7 Clear filter bowl
/4" - 11/4"KF11S-1A
complete
8 O-ring set
3
/4" - 11/4" 0900747
(Pack of 10)
9 Drain connection
3
/4" - 11/4" AA76-1/2A
10
9
10 Ball valve complete3/4" - 11/4" KH11S-1A
11 Double ring wrench
8
For removing the filter
3
/4" - 11/4" ZR10K-1
bowl (no fig.)
* The filter guide (either with double spin or without double spin feature) is included
in the packaging of the replacement filter inserts (AF11DS and AF11S) only for the sizes 1/2" up to 11/4!
7
Automation and Control Solutions
Honeywell GmbH Hardhofweg D-74821 Mosbach Phone: (49) 6261 810 Fax: (49) 6261 81309 http://europe.hbc.honeywell.com www.honeywell.com
Manufactured for and on behalf of the Environmental and Combustion Controls Division of Honeywell Technologies Sàrl, Ecublens, Route du Bois 37, Switzerland by its Authorised Repre­sentative Honeywell GmbH
EN0H-1104GE23 R1009 Subject to change without notice © 2009 Honeywell GmbH
