FF60
TRIPLEX filter with washable prefilter,
fine filter and activated carbon cartridge
Product specification sheet
Application
The TRIPLEX water filter combines three different filter cartridges
in one housing. Washable prefilter, the polypropylene cartridge
holds back undissolved matter. Activated Carbon cartridge filters
out fine particles, eliminates of unpleasant odors and flavours
caused by chlorine or other organic substances, removes of
pesticides, insecticides, chlorinate solvents.
The filters ensure a continuous supply of filtered water. The fine
filter prevents the ingress of particulates, for example rust
particles, strands of hemp and grains of sand.
The filters can be applied to rain water treatment within the range
of their specifications.
Special Features
• Large filter surface
• Filter insert fully replaceable
• Very simple operation
• Reliable and proven
Range of Application
Medium Water
Construction
The filters comprise:
• Simplex housing for 100µm sieve, followed by duplex housing
for 25µm sieve and activated carbon cardridge
• Clear filter bowl
• Preliminary filter 100µm (rinsable)
• Fine filter 25 µm
• Activated Carbon insert
• ¾" female thread
•¾"-1" male adapter
•¾"-¾" male adapter
• Teflon-sealing tape
• Ring wrench for filter bowl
Materials
• Head and ring nut: reinforced polypropylene
• Polyester prefilter net
• Polypropylene fine filter
• Granular activated carbon
• Clear synthetic material filter bowl
EN0H-1150GE23 R1009 • Subject to change without notice
•ETP O-Rings
Technical Data
Installation position Horizontal with filter bowl downwards
Operating pressure Maximum 6.0 bar
Operating temperature Maximum 45 °C
Connection size
3
/4" female,
3
/4" male with 3/4"-3/4" male adapter
1" male with
3
/4"-1" adapter
www.honeywell.com 59
FF60 TRIPLEX filter with washable prefilter, fine filter and activated carbon cartridge
Method of Operation
Water flows through both the prefilter and the fine filter mesh
from outside to inside and these traps dirt particles on the outer
face of the filter. For reasons of hygiene, the fine filter insert must
B
A
be replaced at no longer than six monthly intervals. The washable
prefilter should be replaced at least after 2 years or after the third
rinsing.
Activated Carbon cartridge filters out fine particles, eliminates of
unpleasant odours and flavours caused by chlorine or other
organic substances, removes of pesticides, insecticides, chlorinate solvents.
Average life-span of activated carbon cartridges: about 6
months.
Options
FF60 Triplex water filter: prefilter mesh size 100µm, fine filter
mesh size 25µm combined with activated carbon filter
Connection size
3
/4" male with 3/4" - 3/4" adapter
3
/4" female,
1" male with 1" Approximate weight approx. kg 3.90
Dimensions mm
A315
B405
3
Flow value at ∆p=0.2bar m
-value 0.8
k
vs
RV277
/h 0.4
VST06A
3
/4" adapter
Accessories
RV277 Inlet check valve
Applicable sizes R
RV284 Check valve
Applicable sizes R
VST06 Connection set
Connection set
A = Threaded male connection;
B = Solder union connection
3
/4" - 1"
3
/4" - 1"
RV284
60 www.honeywell.com
VST06B
EN0H-1150GE23 R1009 • Subject to change without notice

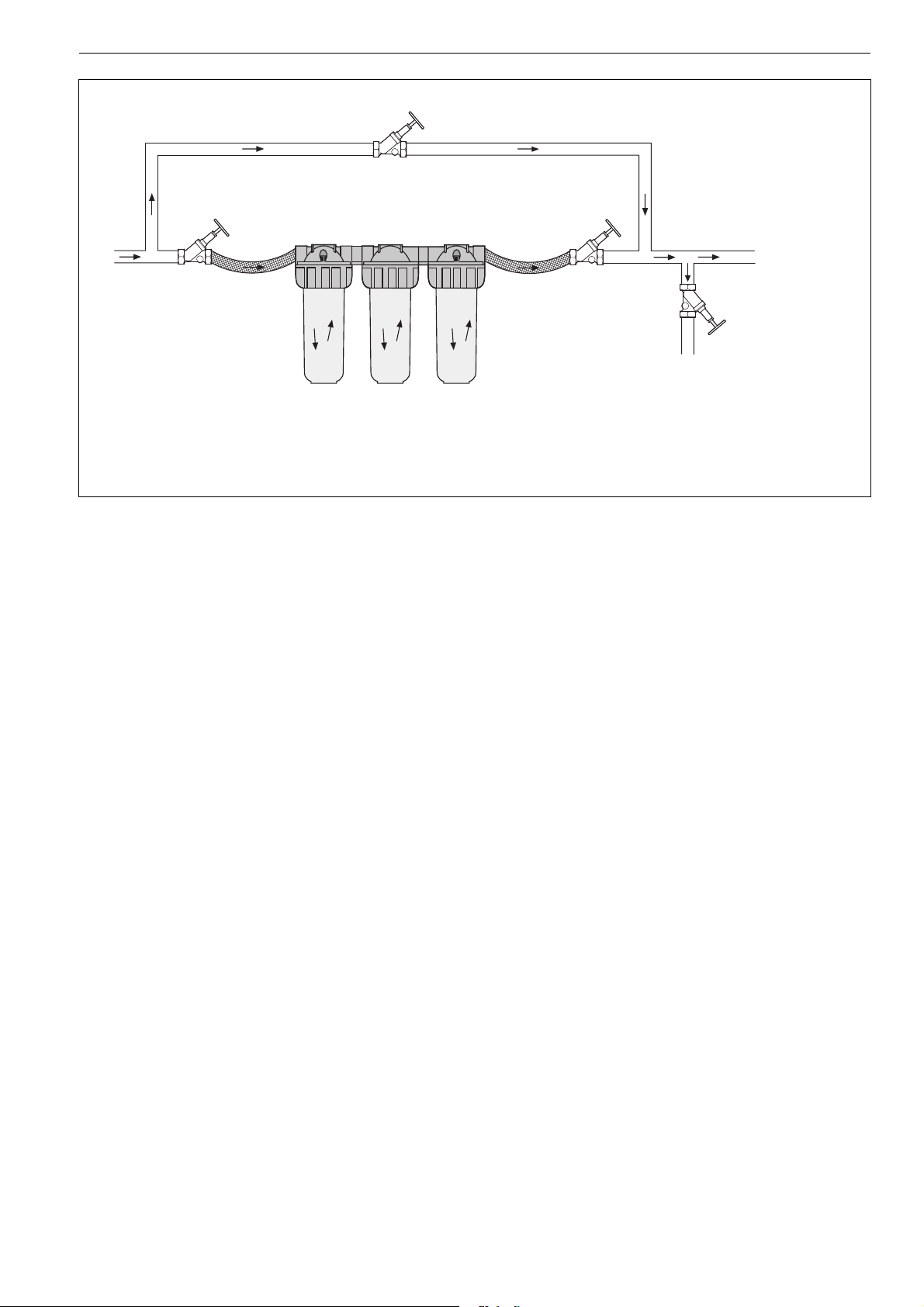

Installation Example
FF60 TRIPLEX filter with washable prefilter, fine filter and activated carbon cartridge
Installation Guidelines
• Install in horizontal pipework with filter bowl downwards
o This position ensures optimum filter efficiency
• Install shutoff valves before and after the filter
• Ensure good access
o Degree of contamination can be seen with clear filter bowl
o Simplifies maintenance and inspection
• The installation location should be protected against frost
• Do not install in places where there is strong sunlight
Typical Applications
Fine filters of this type can be applied to rain water treatment.
They can also be used for commercial and industrial applications
within the limits of their specifications.
Fine filters of this type are installed:
• Where no pressure reducing valve is required
(maximum 5.0 bar static pressure)
• Where a pressure reducing valve is already fitted but cannot
be retrofitted with a filter
EN0H-1150GE23 R1009 • Subject to change without notice
www.honeywell.com 61
FF60 TRIPLEX filter with washable prefilter, fine filter and activated carbon cartridge
Serviceteile
FF60 TRIPLEX filter (From 2008 onwards)
3
3
/4" -3/4"
3
/4" - 1"
2
/4" -3/4"
3
/4" - 1"
1
3
No. Description Dimension Part No.
1 Replacement filter cartridge
100µm
2 Replacement filter cartridge
25µm
3 Replacement active carbon
cartridge
Cartridge Height
10"
Cartridge Height
10"
Cartridge Height
10"
FF60-WMF
FF20-DMF
FF20-GAC
Automation and Control Solutions
Honeywell GmbH
Hardhofweg
D-74821 Mosbach
Phone: (49) 6261 810
Fax: (49) 6261 81309
http://europe.hbc.honeywell.com
www.honeywell.com
Manufactured for and on behalf of the
Environmental and Combustion Controls Division
of Honeywell Technologies Sàrl, Rolle, Z.A. La
Pièce 16, Switzerland by its Authorised Representative Honeywell GmbH
EN0H-1150GE23 R1009
Subject to change without notice
© 2009 Honeywell GmbH
