ER150C and ER200C
Perfect Window™ Fresh Air
Ventilation Systems
OWNER’S MANUAL
M11706
® U.S. Registered Trademark
Copyright © 2002 Honeywell
All Rights Reserved
69-1563-1
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
TABLE OF CONTENTS
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Feeling right at home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
The Perfect Window™ Fresh Air Ventilation System consists of . . . . . . . . . . . . . . . .3
Operating your Fresh Air Ventilation System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Getting the most from your Fresh Air Ventilation System. . . . . . . . . . . . . . . . . . . . . .6
Maintenance Instructions for your Fresh Air Ventilation System . . . . . . . . . . . . . . . .6
Perfect Climate® Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
69-1563-1 2
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
Introduction
We take it for granted that our homes will protect us from the elements, but because of
tighter, better quality home construction, our indoor environment may be exposing us
to unacceptable levels of the very things we are trying to escape. Excessive heat,
dryness, humidity, toxic gases and dust contaminants can be sealed in securely by
weatherproofing.
So what’s the forecast for indoors?
Today’s indoor forecast is stormy weather for many homeowners. But rapid clearing
and fresh breezes are just around the corner!
Feeling right at home
Unlike what the outdoors brings us, you can have control of indoor conditions.
Temperature, humidity levels and air quality can all affect physical health, mental
attitude, general comfort and energy savings. With today’s technological advances,
you can achieve a “Perfect Climate” indoors.
After all, people look to their homes as a place to escape the stress of work, a busy
lifestyle and an increasingly polluted outdoor environment. Creating a perfect indoor
climate is becoming critical to feeling right at home.
The Honeywell Perfect Window™ Fresh Air Ventilation System removes stale,
unhealthy air and replaces it with a stream of fresh air. Its powerful centrifugal blowers
bring fresh air into your home and at the same time, exhaust stale air in an equal amount.
Both incoming and outgoing airstreams pass through a energy transfer core where both
the heat and the moisture from the exhaust air are efficiently transferred to the incoming
fresh air. An air duct system supplies the fresh air brought in by the Perfect Window™
ventilator and distributes it throughout your home. Another duct draws the existing stale,
air back to the Perfect Window™ ventilator and then exhausts it outdoors.
It’s really very simple...and remarkably effective!
Fresh Air Ventilation System consists
The Perfect Window
™
of...
1. Air Circulation FAN and Motor
Inside the casing are two fans, one for exhaust and one for fresh air supply. The
electric motor that operates the fan is 1/15 hp to 1/20 hp (depending on the ventilator model) and uses the same amount of power as a 100 watt lightbulb.
2. Air Filters
There are two permanent washable air filters in your ventilator. The filters lower
the amount of dust and outside particulates entering the ventilator core and your
fresh air supply.
3 69-1563-1
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
R
.
CORE INSTRUCTIONS
ENERGY TRANSFER CORE
FILTERS (2)
CABINET
DUCTING
(4 PORTS)
MAIN MOTOR
SQUIRREL
CAGE FAN
CORE GUIDE
CHANNEL (4)
INSULATED
ACCESS DOO
DOOR KEEPER PLATE (2)
M20143
3. Energy Transfer Core
As the exhaust and fresh air pass through opposite sides of the Energy Transfer
Core heat is transferred from the warm side to the cold side. This heat transfer
reduces the cost of conditioning the fresh outside air that is brought into your
home. In addition, moisture is transferred from the wet side to the dryer side.
This moisture transfer reduces the drying of the air inside your home that occurs
during the winter months and reduces the amount of moisture that is brought into
your home during the summer months. The core removes easily for cleaning.
4. Controls - Speed Control
Easy operation, simply rotate the Perfect Window™ ventilator fan speed control
to your desired setting.
Operating your Fresh Air Ventilation System
Changing Fan Speed
The control fan speed is conveniently located on the ventilator. The rotary fan speed
control knob can be manually set from the off (standby) position through speeds 1 to 4.
Note the fifth speed (high) is accessible only by a remote control.
Off/standby mode may be used if intermittent ventilation is desired. In the off/standby
position, the ventilator will not function until energized by a remote control, see
information below.
69-1563-1 4
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
4
W
A
It is up to the individual homeowner to set their system to a speed which they find
comfortable. If you feel your house is stuffy or there is an above average occupancy
rate, you may need to increase your ventilation. In most applications a low to medium
speed setting is comfortable.
Connecting a Remote Device
Your ventilator comes equipped with a low voltage terminal strip for connection to
several optional control devices.
PERFECT CLIMATE COMFORT CENTER™ CONTROL
The Honeywell Perfect Climate Comfort Center™ unit controls your ventilator
automatically by using the programmed times or manually by pressing the Ventilate
key. See the Perfect Climate Comfort Center™ Owner’s Guide (form 69-0891) for
complete instructions.
POWER CORD
-SPEED CONTROL
ITH STANDBY POSITION
PRODUCT
IDENTIFICATION LABEL*
*NOTE: THIS INFORMATION IS VERY IMPORTANT WHEN MAKING
INQUIRIES ABOUT YOUR ERV.
RECOMMENDED
MAINTENANCE
M11704
TIMER
For your convenience, Honeywell provides an optional timer control that can fit a wide
variety of needs, for example, exhaust humid air from the bathroom or kitchen (see the
timer instructions for selection and part numbers).
WALL SWITCH
A wall switch can also be used to switch your ventilator fan speed to high. The fan will
run at high speed until the wall switch is turned off.
When any remote device is activated the ventilator will run at high speed. All remote
devices must be in the off position to return the fan to the speed manually selected on
the rotary fan speed control knob.
5 69-1563-1
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
Getting the most from your Fresh Air Ventilation System
HOW MUCH VENTILATION DO I NEED?
During the seasons that your windows and doors are closed (winter and summer if you
have air conditioning), the ventilator should operate continuously when the home is
occupied, and either continuously or intermittently when not occupied.
For most installations, the ventilator will normally be set to operate continuously on low
speed with the option of going to high speed as the need arises. For example, if you
are entertaining and there is a large number of people present (some may be
smoking), the ventilator should be switched to high speed.
YOUR VENTILATOR MAY BE SET TO HIGH SPEED BY:
1. selecting the highest speed on the ventilator or
2. if the system includes an optional remote control, switch it to the ON position.
Maintenance Instructions for your Fresh Air Ventilation System
WARNING
Electrical Shock Hazard.
Can cause personal injury or equipment damage.
Disconnect power supply before performing maintenance.
The Perfect Window™ Fresh Air Ventilation System must be maintained on a regular
basis for best efficiency. Honeywell recommends that the ventilator be cleaned and
checked at least twice a year, preferably at the beginning of each heating and cooling
season.
Check and Clean
EXTERIOR HOODS
Exterior hoods should be inspected at least once a month. Be sure exhaust and fresh
air supply hoods are not blocked up or restricted by leaves, grass or snow. In winter, it
is especially important to make sure snow is not blocking the hoods or that frost has
not built up on the wire mesh (bird screen).
69-1563-1 6
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
FILTER CLIP
FILTER
CORE GUIDE CHANNEL
M11899
WARNING
Carbon Monoxide Hazard.
Can cause personal injury or equipment damage.
Hood blockage can cause a change of pressure in building which can lead to
possible spillage from combustible appliances.
AIR FILTERS
Air filters should be cleaned twice a year. The standard filters supplied with your
ventilator are removable and washable.
1. Open access door and slide out core. Refer to Core Maintenance section for
cleaning instructions.
2. Remove filter clip.
3. Remove filters from the core and rinse with water or a combination of soap and
water. Do not clean in a dishwasher.
4. After cleaning, place filters (wet or dry) back in their position and reattach the
retaining clip.
CORE
IMPORTANT
Do not wash the core with water or other fluids.
Clean the core twice each year using only a vacuum cleaner.
1. Open the access door and carefully grip the ends of the core and pull evenly outward. The core can be snug, but it will slide out of the cabinet.
NOTE: Do not handle the fins because damage can occur.
7 69-1563-1
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
2. Once out of the cabinet, remove the filters (refer to Air Filter Maintenance section).
3. When the core is dry, clean it with only a vacuum cleaner. Vacuum the filter sides
of the core by pulling any dirt back out of the core, not by pulling dirt all the way
through the core.
4. Reinstall the clean filters.
5. Reinstall the clean core.
TO INSTALL THE CLEAN CORE:
1. First mount the bottom core guide into the bottom Core Guide Channel.
2. Mount either side core guide, followed by the other side.
3. Mount the top core guide into the top Core Guide Channel.
4. With all four corners in place and the core straight and even, push on the core
center until the core slides to the back of the cabinet.
NOTE: The core is designed to appear to protrude from the cabinet approximately
1/8 in. (3mm) so the access door fits tightly against the core.
GENERAL MAINTENANCE
Twice a year, wipe the inside of the cabinet with a damp cloth to remove dirt, bugs and
debris that can be present.
FANS
If the fans accumulate dirt, it could cause an imbalance and excessive vibration of the
ventilator. A reduction in air flow can also occur. In a newly constructed house, this
often happens within the first year due to heavy dust residue in the entire system. It
can also occur periodically depending on the outdoor conditions. If you suspect that
service is required, please contact the ventilator installer or your local HVAC
contractor.
69-1563-1 8
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
Perfect Climate® Control
Describing Perfection
The most convenient, most energy efficient, cleanest, healthiest and most comfortable
indoor environment, possible today! Perfect climate is achieved when the six core
components of your homes climate system work together:
• optimal efficiency of heating and cooling equipment
• precise, programmable temperature control
• effective indoor air quality control
• controlled humidity
• proper ventilation and air distribution
• zone control for personalized room-to-room temperature control.
Products for a Perfect Climate® Home
HEATING AND COOLING SYSTEM
This is the workhorse of your indoor climate system. Have your local heating/cooling
contractor tune up your system annually for comfort, safety and most economical
operation. If your heating equipment is old, think about replacing it with a modern and
improved unit. Recent advances in product technology have substantially increased
efficiency of equipment. Improved performance often pays back much of the cost of
installation within a few short years.
• Honeywell Perfect Window™ Fresh Air Ventilation System
• Honeywell Perfect Climate Comfort Center™ control or Chronotherm® IV
programmable thermostat.
• Honeywell F35 media air cleaner or
F50 electronic air cleaner.
• Honeywell humidistat and
humidifier.
• Honeywell digital fan timer.

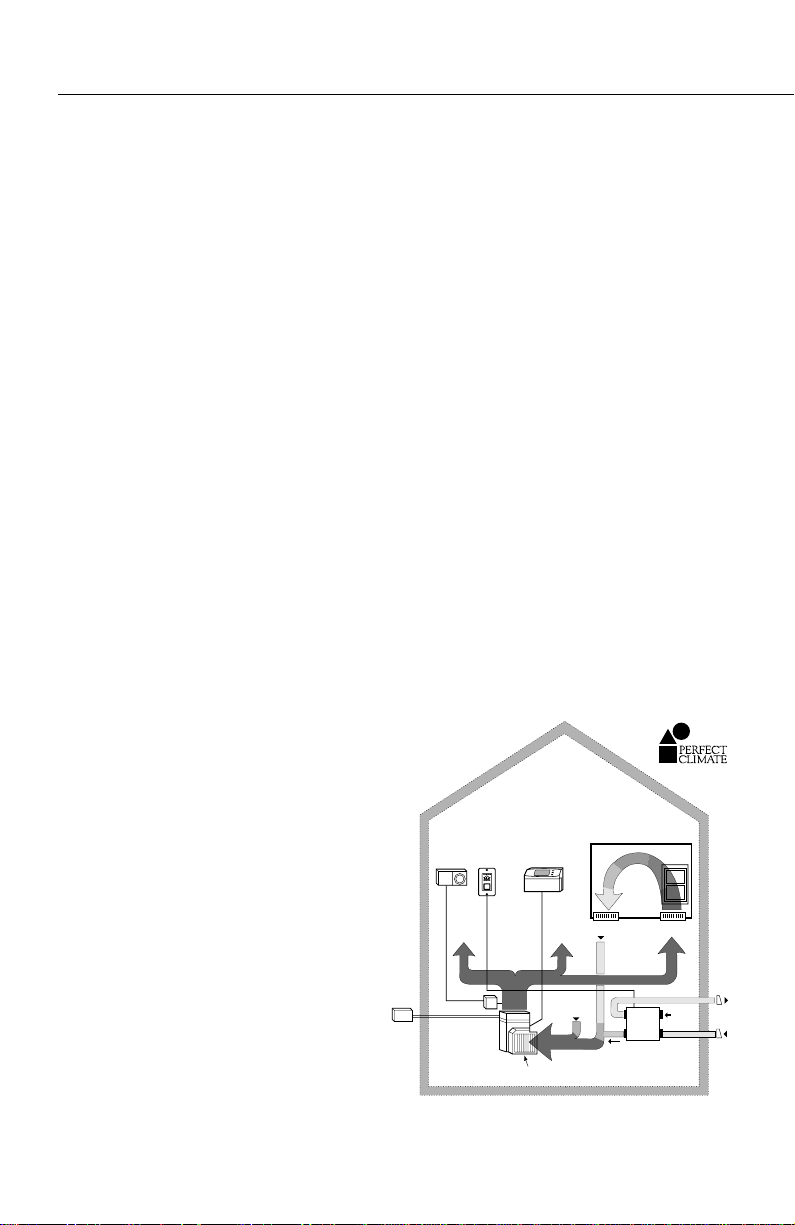

How it works...
OPTIMAL
EFFICIENCY AIR
CONDITIONER
OR HEAT PUMP
M11703
IS ONE PART OF A PERFECT CLIMATE
INDOOR ENVIRONMENT THAT PROVIDES TOTAL
INDOOR COMFORT. IT MAKES YOU FEEL BETTER, AND
ALLOWS YOU TO LIVE AND WORK IN A MORE
DIGITAL
ELECTRONIC
HONEYWELL
TIMER
HUMIDISTAT
2040 60
FAN TIMER
CONDITIONED
AIR
HUMIDIFIER
OPTIMAL
EFFICIENCY
FORCED AIR
FURNACE
THE
HONEYWELL
PERFECT WINDOW™
FRESH AIR VENTILATION SYSTEM
COMFORTABLE ENVIRONMENT.
HONEYWELL
®
CHRONOTHERM
lV
PROGRAMMABLE
THERMOSTAT
RETURN AIR
REGISTER
CONDITIONED
AIR
COLD AIR
RETURN
FRESH
AIR TO
HONEYWELL
ELECTRONIC AIR CLEANER
HOME
®
PERFICT
WINDOW™
FRESH AIR
VENTILATION
SYSTEM
9 69-1563-1
SUPPLY AIR
REGISTER
AIR FROM
STALE
BATHS
STALE AIR
EXHAUST
FRESH AIR
INTAKE
®
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
Troubleshooting
Lack of power to the ventilator:
• power failure of electrical box.
• loose or unplugged power cord.
• faulty breaker or fuse in home’s electrical panel.
• call your installation contractor.
Power to the ventilator, but no fan operation:
• ventilator is in standby mode and optional remote dehumidistat is set to OFF or the
humidity setting is higher than room humidity.
• door Is not closed properly, the safety interlock switch will keep the ventilator off.
Check that the access door is firmly closed and latched.
• refer to operating instructions.
• call your installation contractor for service.
Lack of Speed Control:
• let the remote device continue its time setting or manually adjust it to gain speed
control.
• test the speed control on the ventilator by turning the variable speed control knob to
its highest setting.
• call your installation contractor for service.
69-1563-1 10
ER150 AND ER200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS
Limited Warranty
Honeywell warrants this product, to be free from defects in the workmanship or materials, under
normal use and service, for a period of one (1) year from the date of purchase by the consumer.
If, at any time during the warranty period, the product is defective or malfunctions, Honeywell
shall repair or replace it (at Honeywell’s option) within a reasonable period of time.
If the product is defective
(i) return it, with a bill of sale or other dated proof of purchase, to the retailer from which you
purchased it, or
(ii) package it carefully, along with proof of purchase (including date of purchase) and a short
description of the malfunction, and mail it, postage prepaid, to the following address:
Honeywell Return Goods
Dock 4, MN10-3860
1885 Douglas Drive North
Golden Valley, MN 55422
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is
shown by Honeywell that the defect or malfunction was caused by damage which occurred while
the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated
above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND,
INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY
OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR
ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS
PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS
HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS WARRANTY. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to
you.
This warranty gives you specific legal rights, and you may have other rights which vary from state
to state.
If you have any questions concerning this warranty, please write Honeywell Customer Relations,
1885 Douglas Drive North, MN10-1461, Golden Valley, MN 55422. In Canada, write Honeywell
Limited/Honeywell Limitée, 35 Dynamic Drive, ON15, Scarborough, Ontario M1V 4Z9.
11 69-1563-1
Automation and Control Solutions
Honeywell Honeywell Limited-Honeywell Limitée
1985 Douglas Drive North35 Dynamic Drive
Golden Valley, MN 55422 Scarborough, Ontario
M1V 4Z9
Printed in U.S.A. on recycled
59-1563-1 G.H. Rev. 01-02 www.honeywell.com/yourhome
paper containing at least 10%
post-consumer paper fibers.
Loading...
